Foam Pro Features Benefits Foam Pro Systems 2000

Foam. Pro Features & Benefits

Foam. Pro Systems 2000 Series 1600 Series 3012 Model 139 Accu. Max Series

Foam. Pro Features • Operates without flow restriction • Commences operation immediately • Displays flow rate * • Displays total water usage * • Displays total concentrate * • Displays low foam conditions • Warning indicators • Re-supply foam without interruption • Indicates when exceeding foam injection rate * • Incremental proportioning • Quickly accesses Class A or Class B foam* and default settings • Interfaces with CAFS • Remote start/stop & Auto. On* * Not available on 1600 series 140

Foam. Pro Benefits • Unsurpassed features – Design incorporates recommendations from fire fighters worldwide • Superior performance – Combining innovative Foam. Pro patented microprocessor and controls with rugged Hypro and Edwards pumps • Unmatched accuracy – Most accurate proportioner on the market – Widest range of performance and options – Improved accuracy translates to: – Reduction in foam concentrate cost – Improved logistics operation for foam re-supply 141

Foam. Pro Benefits (cont. ) • Ease of use – Easiest proportioner in the industry to use – Push of the button and system is activated – Automatically monitors water flow and injects the precise amount of foam concentrate • Information available to operator – – – Flow in GPM Total amount of foam solution or water flow Foam injection percentage Total foam concentrate pumped Indicates when exceeding foam injection rate 142

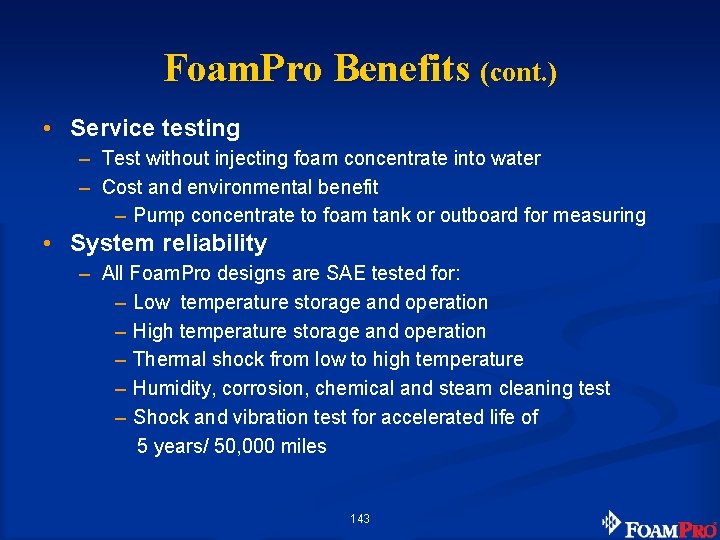

Foam. Pro Benefits (cont. ) • Service testing – Test without injecting foam concentrate into water – Cost and environmental benefit – Pump concentrate to foam tank or outboard for measuring • System reliability – All Foam. Pro designs are SAE tested for: – Low temperature storage and operation – High temperature storage and operation – Thermal shock from low to high temperature – Humidity, corrosion, chemical and steam cleaning test – Shock and vibration test for accelerated life of 5 years/ 50, 000 miles 143

Foam. Pro Benefits (cont. ) • Foam system installation – Easily installed in new or existing apparatus – Technical and engineering assistance direct from Foam. Pro • Experience – Average fire industry experience of Foam. Pro personnel is over 20 years! • Built for present, designed for the future – Today’s 3% foam concentrates are being replaced by 1%, and today’s 1% will soon be replaced by 0. 5% – Precise injection of foam concentrates from 0. 1% to 10% – Accurate proportioning of all foam concentrates, even today’s high viscosity foams 144

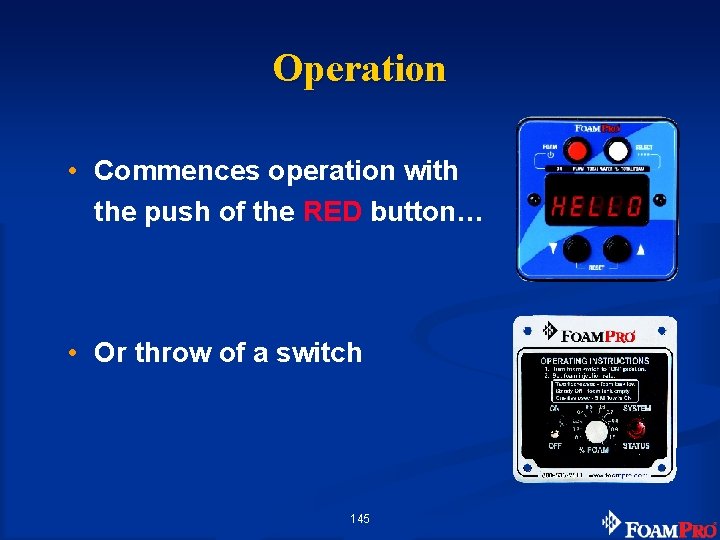

Operation • Commences operation with the push of the RED button… • Or throw of a switch 145

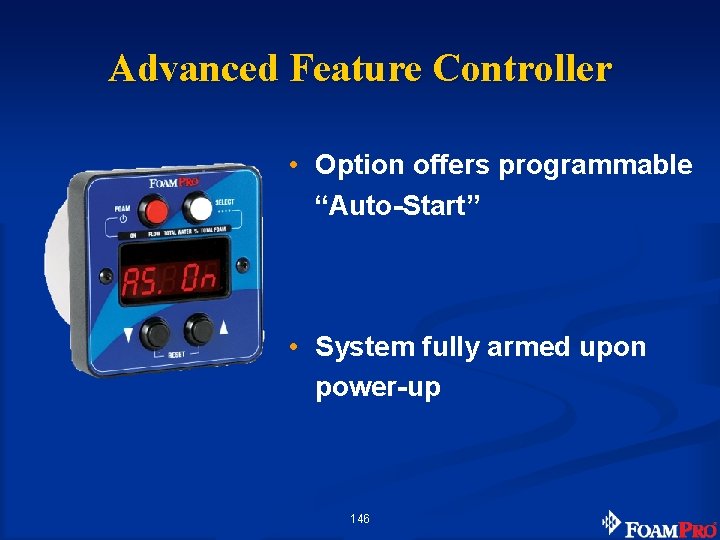

Advanced Feature Controller • Option offers programmable “Auto-Start” • System fully armed upon power-up 146

Digital Display Information Water flow in (gpm) Total Gallons of water flowed Foam concentrate injection percentage Total foam concentrate injected 147

Low Foam Display Information • “Lo. Con” display – Selected foam concentrate tank is getting low – If foam concentrate isn’t added within 2 minutes, “no. Con” is displayed • “no. Con” display – Foam concentrate pump turns off – Add foam concentrate 148

Exceeding Foam Injection Rate • “HI. FLO” display – Occurs when the water flow exceeds the foam pump capabilities of meeting chosen concentrate injection percentage 149

Dual Foam Concentrate Tank (CMS) 150

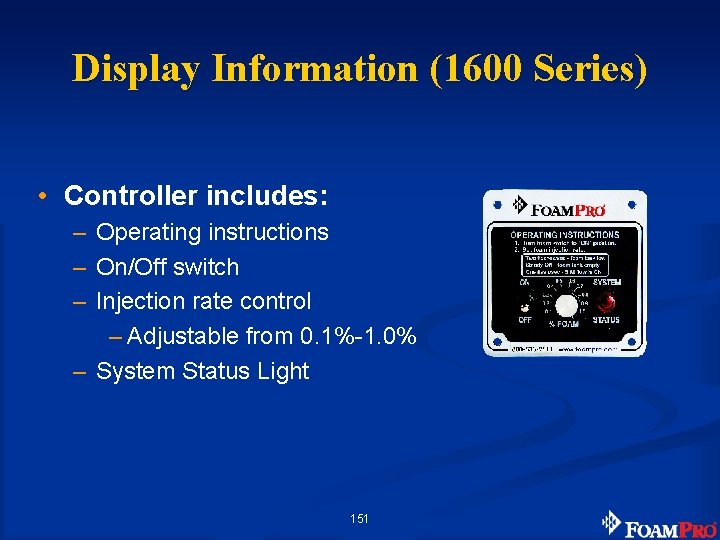

Display Information (1600 Series) • Controller includes: – Operating instructions – On/Off switch – Injection rate control – Adjustable from 0. 1%-1. 0% – System Status Light 151
