FMT Exemplified Engineers Animal Aqua Feed Plant Designers

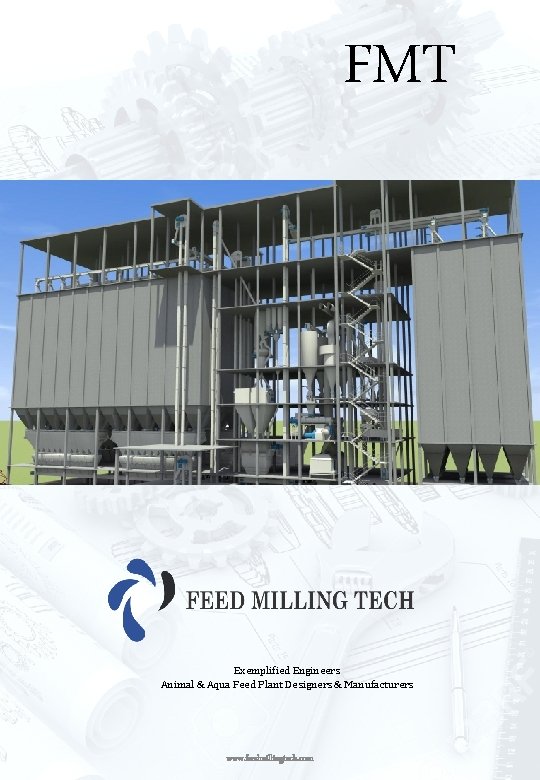

FMT Exemplified Engineers Animal & Aqua Feed Plant Designers & Manufacturers www. feedmillingtech. com

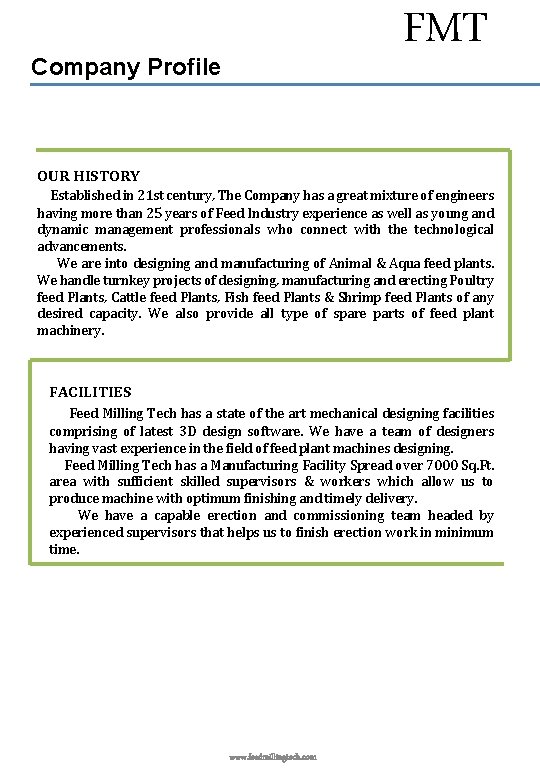

FMT Company Profile OUR HISTORY Established in 21 st century, The Company has a great mixture of engineers having more than 25 years of Feed Industry experience as well as young and dynamic management professionals who connect with the technological advancements. We are into designing and manufacturing of Animal & Aqua feed plants. We handle turnkey projects of designing, manufacturing and erecting Poultry feed Plants, Cattle feed Plants, Fish feed Plants & Shrimp feed Plants of any desired capacity. We also provide all type of spare parts of feed plant machinery. FACILITIES Feed Milling Tech has a state of the art mechanical designing facilities comprising of latest 3 D design software. We have a team of designers having vast experience in the field of feed plant machines designing. Feed Milling Tech has a Manufacturing Facility Spread over 7000 Sq. Ft. area with sufficient skilled supervisors & workers which allow us to produce machine with optimum finishing and timely delivery. We have a capable erection and commissioning team headed by experienced supervisors that helps us to finish erection work in minimum time. www. feedmillingtech. com

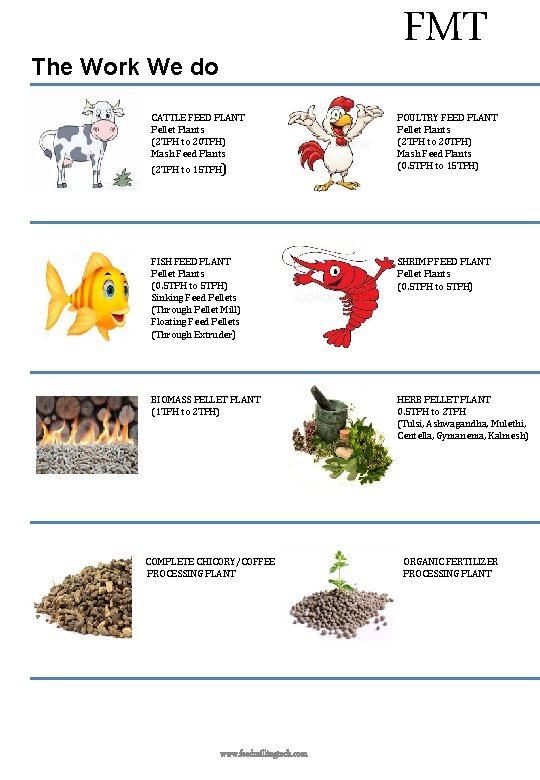

FMT The Work We do CATTLE FEED PLANT Pellet Plants (2 TPH to 20 TPH) Mash Feed Plants (2 TPH to 15 TPH) POULTRY FEED PLANT Pellet Plants (2 TPH to 20 TPH) Mash Feed Plants (0. 5 TPH to 15 TPH) FISH FEED PLANT Pellet Plants (0. 5 TPH to 5 TPH) Sinking Feed Pellets (Through Pellet Mill) Floating Feed Pellets (Through Extruder) SHRIMP FEED PLANT Pellet Plants (0. 5 TPH to 5 TPH) BIOMASS PELLET PLANT (1 TPH to 2 TPH) HERB PELLET PLANT 0. 5 TPH to 2 TPH (Tulsi, Ashwagandha, Mulethi, Centella, Gymanema, Kalmesh) COMPLETE CHICORY/COFFEE PROCESSING PLANT www. feedmillingtech. com ORGANIC FERTILIZER PROCESSING PLANT

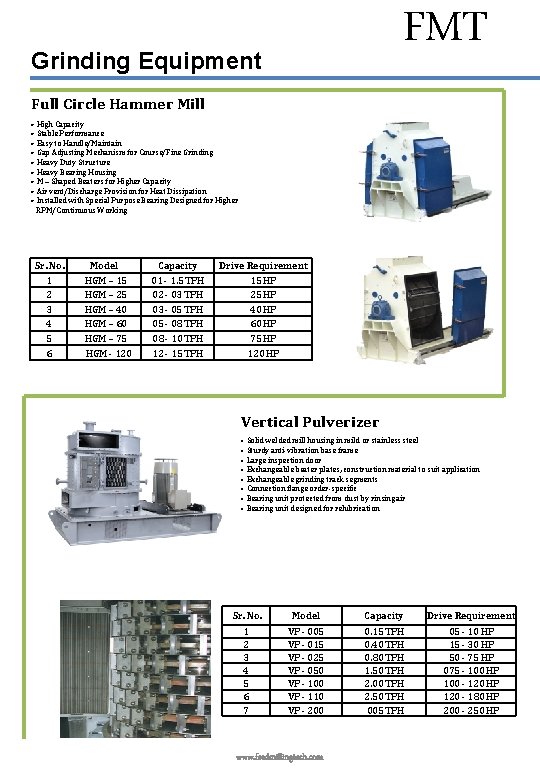

FMT Grinding Equipment Full Circle Hammer Mill • High Capacity • Stable Performance • Easy to Handle/Maintain • Gap Adjusting Mechanism for Course/Fine Grinding • Heavy Duty Structure • Heavy Bearing Housing • M – Shaped Beaters for Higher Capacity • Air vent/Discharge Provision for Heat Dissipation • Installed with Special Purpose Bearing Designed for Higher RPM/Continuous Working Sr. No. 1 2 3 4 5 6 Model HGM – 15 HGM – 25 HGM – 40 HGM – 60 HGM – 75 HGM - 120 Capacity 01 - 1. 5 TPH 02 - 03 TPH 03 - 05 TPH 05 - 08 TPH 08 - 10 TPH 12 - 15 TPH Drive Requirement 15 HP 25 HP 40 HP 60 HP 75 HP 120 HP Vertical Pulverizer • Solid welded mill housing in mild or stainless steel • Sturdy anti-vibration base frame • Large inspection door • Exchangeable beater plates, construction material to suit application • Exchangeable grinding track segments • Connection flange order-specific • Bearing unit protected from dust by rinsing air • Bearing unit designed for relubrication Sr. No. Model Capacity Drive Requirement 1 2 3 4 5 6 7 VP - 005 VP - 015 VP - 025 VP - 050 VP - 100 VP - 110 VP - 200 0. 15 TPH 0. 40 TPH 0. 80 TPH 1. 50 TPH 2. 00 TPH 2. 50 TPH 005 TPH 05 - 10 HP 15 - 30 HP 50 - 75 HP 075 - 100 HP 100 - 120 HP 120 - 180 HP 200 - 250 HP www. feedmillingtech. com

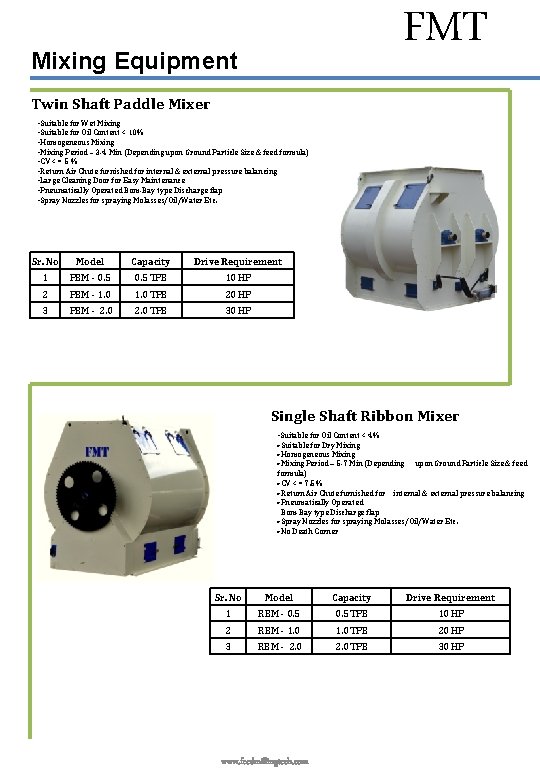

FMT Mixing Equipment Twin Shaft Paddle Mixer • Suitable for Wet Mixing • Suitable for Oil Content < 10% • Homogeneous Mixing • Mixing Period – 3 -4 Min (Depending upon Ground Particle Size & feed formula) • CV < = 5 % • Return Air Chute furnished for internal & external pressure balancing • Large Cleaning Door for Easy Maintenance • Pneumatically Operated Bom-Bay type Discharge flap • Spray Nozzles for spraying Molasses/Oil/Water Etc. Sr. No Model Capacity Drive Requirement 1 PBM - 0. 5 TPB 10 HP 2 PBM - 1. 0 TPB 20 HP 3 PBM - 2. 0 TPB 30 HP Single Shaft Ribbon Mixer • Suitable for Oil Content < 4% • Suitable for Dry Mixing • Homogeneous Mixing • Mixing Period – 5 -7 Min (Depending upon Ground Particle Size & feed formula) • CV < = 7. 5% • Return Air Chute furnished for internal & external pressure balancing • Pneumatically Operated Bom-Bay type Discharge flap • Spray Nozzles for spraying Molasses/Oil/Water Etc. • No Death Corner Sr. No Model Capacity Drive Requirement 1 RBM - 0. 5 TPB 10 HP 2 RBM - 1. 0 TPB 20 HP 3 RBM - 2. 0 TPB 30 HP www. feedmillingtech. com

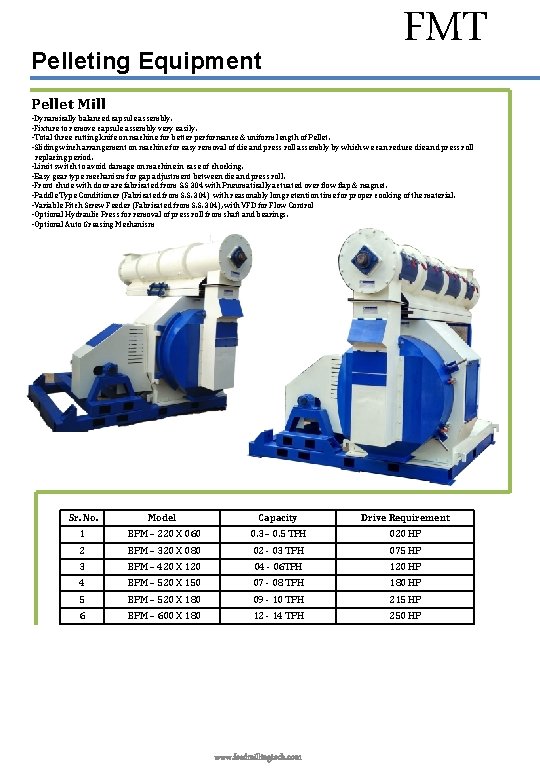

Pelleting Equipment FMT Pellet Mill • Dynamically balanced capsule assembly. • Fixture to remove capsule assembly very easily. • Total three cutting knife on machine for better performance & uniform length of Pellet. • Sliding winch arrangement on machine for easy removal of die and press roll assembly by which we can reduce die and press roll replacing period. • Limit switch to avoid damage on machine in case of chocking. • Easy gear type mechanism for gap adjustment between die and press roll. • Front chute with door are fabricated from S. S 304 with Pneumatically actuated over flow flap & magnet. • Paddle Type Conditioner (Fabricated from S. S. 304) with reasonably long retention time for proper cooking of the material. • Variable Pitch Screw Feeder (Fabricated from S. S. 304), with VFD for Flow Control • Optional Hydraulic Press for removal of press roll from shaft and bearings. • Optional Auto Greasing Mechanism Sr. No. Model Capacity Drive Requirement 1 BPM – 220 X 060 0. 3 – 0. 5 TPH 020 HP 2 BPM – 320 X 080 02 - 03 TPH 075 HP 3 BPM – 420 X 120 04 - 06 TPH 120 HP 4 BPM – 520 X 150 07 - 08 TPH 180 HP 5 BPM – 520 X 180 09 - 10 TPH 215 HP 6 BPM – 600 X 180 12 - 14 TPH 250 HP www. feedmillingtech. com

Conditioning Equipment FMT Single Shaft Conditioner • Made of stainless steel Sr. No. • Special rotor and Paddle structure • Minimum residue 1 • Long retention time: 60 -120 seconds 2 • High gelatinization: 45 -50 3 • Large side access door design for easy cleaning and maintenance Model Capacity CD-300 CD-400 CD-500 02 - 03 TPH 05 - 07 TPH 07 - 10 TPH Drive Requirement 03 HP 05 HP 7. 5 HP Differential Diameter Conditioner • Made of stainless steel • Adjustable retention time up to 150 seconds by means of variable frequency drive • Advanced design with individual driven shaft • Hygienic design to prevent microbial growth • Large inspection windows for ease of maintenance • Injections ports for water, liquid, oil and steam Sr. No. 1 2 3 4 5 Model CD² - 3 x 2. 0 CD² - 4 x 3. 0 CD² - 5 x 4. 0 CD² - 6 x 5. 5 Capacity 01 - 02 TPH 03 - 04 TPH 04 - 06 TPH 07 - 10 TPH 12 - 14 TPH www. feedmillingtech. com Drive Requirement 03 HP 05 HP 7. 5 HP 10 HP

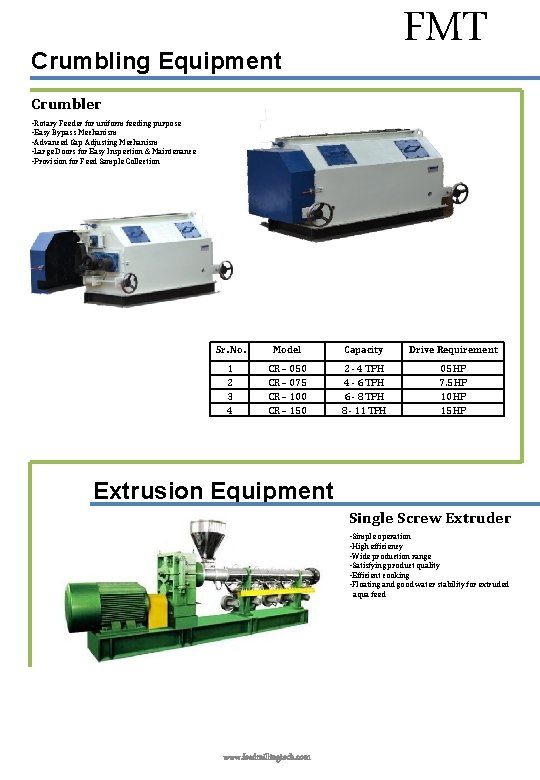

FMT Crumbling Equipment Crumbler • Rotary Feeder for uniform feeding purpose • Easy Bypass Mechanism • Advanced Gap Adjusting Mechanism • Large Doors for Easy Inspection & Maintenance • Provision for Feed Sample Collection Sr. No. Model Capacity Drive Requirement 1 2 3 4 CR – 050 CR – 075 CR – 100 CR – 150 2 - 4 TPH 4 - 6 TPH 6 - 8 TPH 8 - 11 TPH 05 HP 7. 5 HP 10 HP 15 HP Extrusion Equipment Single Screw Extruder • Simple operation • High efficiency • Wide production range • Satisfying product quality • Efficient cooking • Floating and good water stability for extruded aqua feed www. feedmillingtech. com

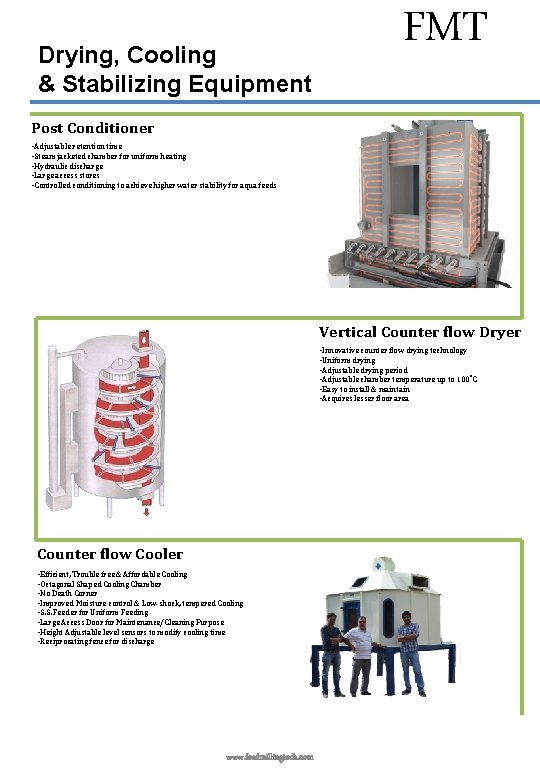

Drying, Cooling & Stabilizing Equipment FMT Post Conditioner • Adjustable retention time • Steam jacketed chamber for uniform heating • Hydraulic discharge • Large access stores • Controlled conditioning to achieve higher water stability for aqua feeds Vertical Counter flow Dryer • Innovative counter flow drying technology • Uniform drying • Adjustable drying period • Adjustable chamber temperature up to 100˚C • Easy to install & maintain • Acquires lesser floor area Counter flow Cooler • Efficient, Trouble free & Affordable Cooling • Octagonal Shaped Cooling Chamber • No Death Corner • Improved Moisture control & Low-shock, tempered Cooling • S. S. Feeder for Uniform Feeding • Large Access Door for Maintenance/Cleaning Purpose • Height Adjustable level sensors to modify cooling time • Reciprocating fence for discharge www. feedmillingtech. com

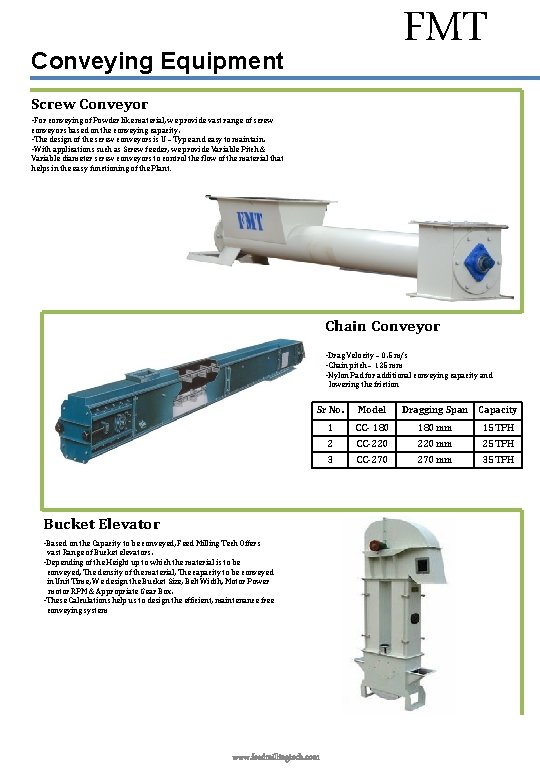

FMT Conveying Equipment Screw Conveyor • For conveying of Powder like material, we provide vast range of screw conveyors based on the conveying capacity. • The design of the screw conveyors is U – Type and easy to maintain. • With applications such as Screw feeder, we provide Variable Pitch & Variable diameter screw conveyors to control the flow of the material that helps in the easy functioning of the Plant. Chain Conveyor • Drag Velocity – 0. 5 m/s • Chain pitch – 125 mm • Nylon Pad for additional conveying capacity and lowering the friction Sr No. Model Dragging Span Capacity 1 CC- 180 mm 15 TPH 2 CC-220 mm 25 TPH 3 CC-270 mm 35 TPH Bucket Elevator • Based on the Capacity to be conveyed, Feed Milling Tech Offers vast Range of Bucket elevators. • Depending of the Height up to which the material is to be conveyed, The density of the material, The capacity to be conveyed in Unit Time, We design the Bucket Size, Belt Width, Motor Power motor RPM & Appropriate Gear Box. • These Calculations help us to design the efficient, maintenance free conveying system www. feedmillingtech. com

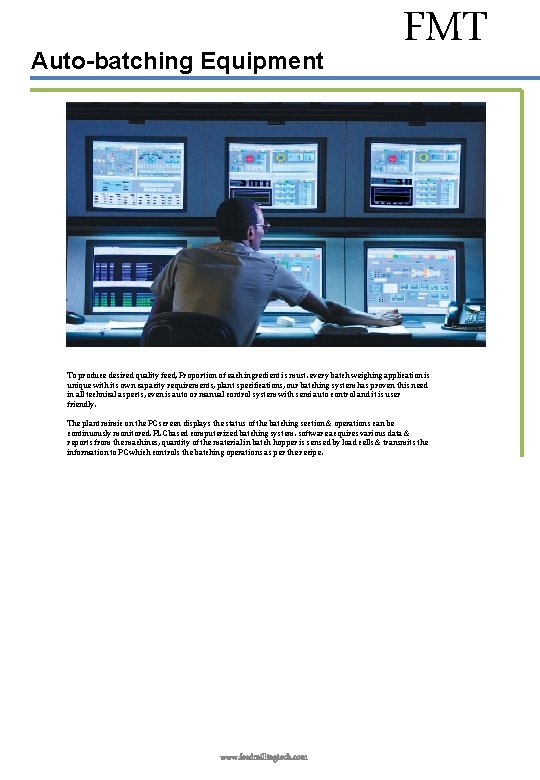

Auto-batching Equipment FMT To produce desired quality feed, Proportion of each ingredient is must. every batch weighing application is unique with its own capacity requirements, plant specifications, our batching system has proven this need in all technical aspects, even is auto or manual control system with semi auto control and it is user friendly. The plant mimic on the PC screen displays the status of the batching section & operations can be continuously monitored. PLC based computerized batching system. software acquires various data & reports from the machines, quantity of the material in batch hopper is sensed by load cells & transmits the information to PC which controls the batching operations as per the recipe. www. feedmillingtech. com

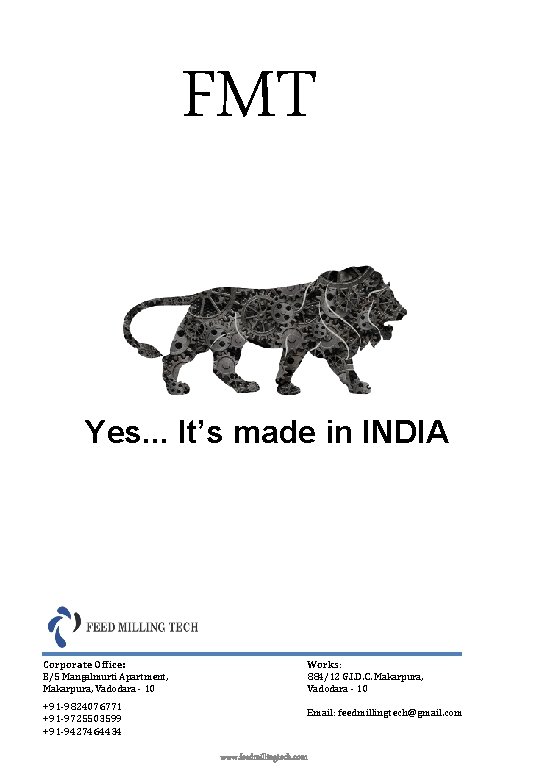

FMT Yes. . . It’s made in INDIA Corporate Office: B/5 Mangalmurti Apartment, Makarpura, Vadodara - 10 +91 -9824076771 +91 -9725503599 +91 -9427464434 Works: 884/12 G. I. D. C. Makarpura, Vadodara - 10 Email: feedmillingtech@gmail. com www. feedmillingtech. com
