Fluvial Sediments As a young man my fondest

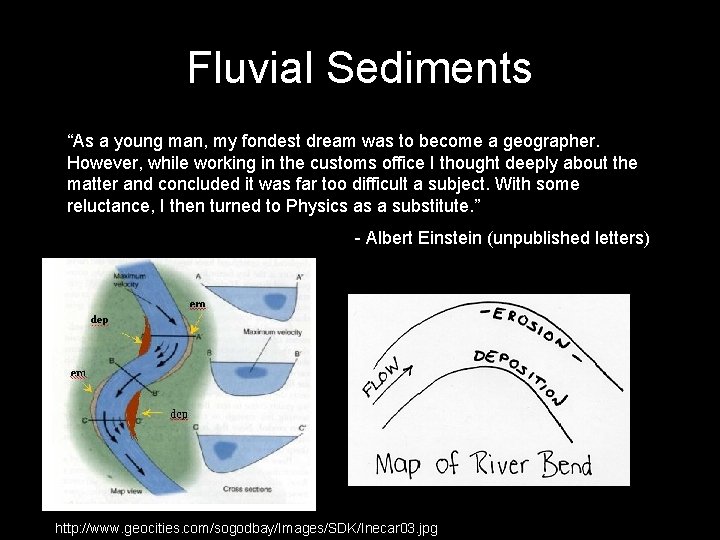

Fluvial Sediments “As a young man, my fondest dream was to become a geographer. However, while working in the customs office I thought deeply about the matter and concluded it was far too difficult a subject. With some reluctance, I then turned to Physics as a substitute. ” - Albert Einstein (unpublished letters) http: //www. geocities. com/sogodbay/Images/SDK/Inecar 03. jpg

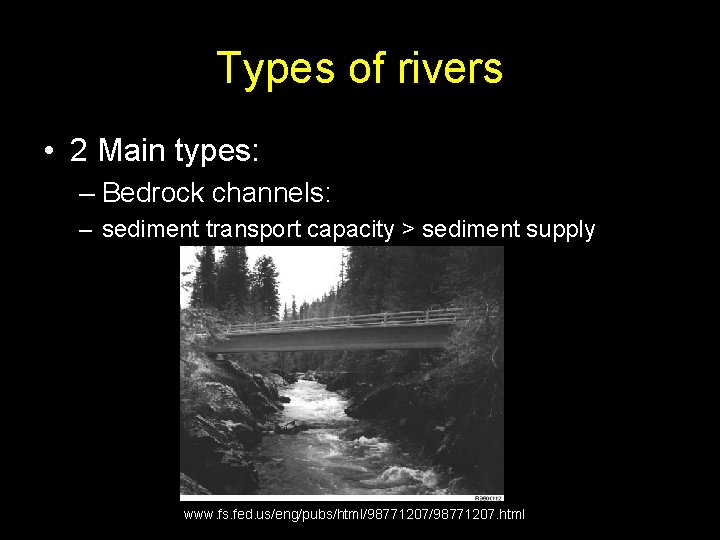

Types of rivers • 2 Main types: – Bedrock channels: – sediment transport capacity > sediment supply http: //www. fs. fed. us/eng/pubs/html/98771207. html

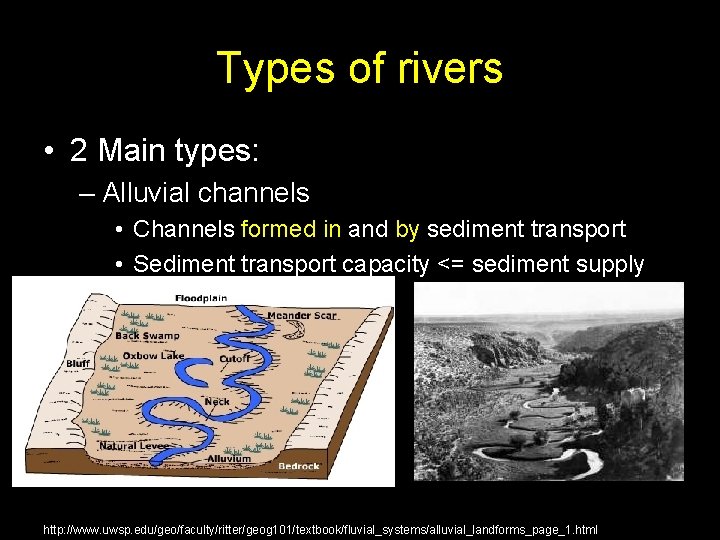

Types of rivers • 2 Main types: – Alluvial channels • Channels formed in and by sediment transport • Sediment transport capacity <= sediment supply http: //www. uwsp. edu/geo/faculty/ritter/geog 101/textbook/fluvial_systems/alluvial_landforms_page_1. html

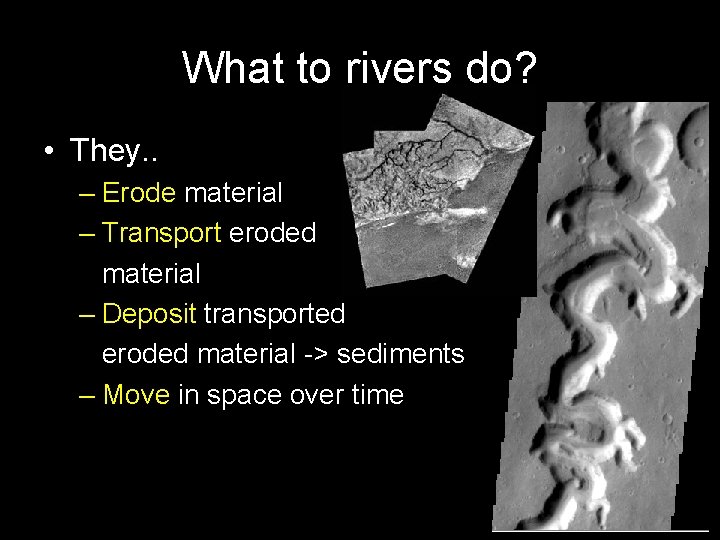

What to rivers do? • They. . – Erode material – Transport eroded material – Deposit transported eroded material -> sediments – Move in space over time

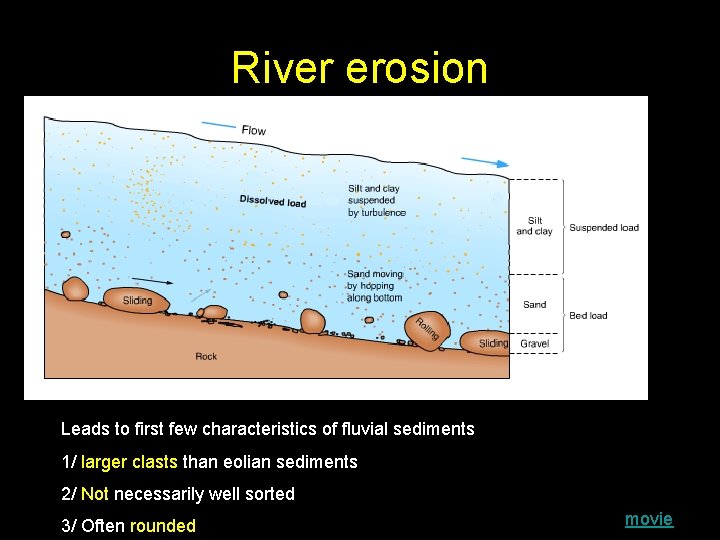

River erosion Leads to first few characteristics of fluvial sediments 1/ larger clasts than eolian sediments 2/ Not necessarily well sorted 3/ Often rounded movie

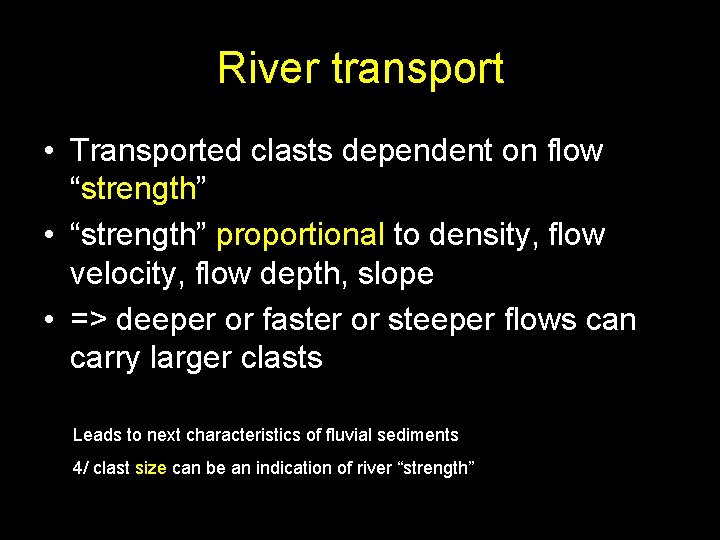

River transport • Transported clasts dependent on flow “strength” • “strength” proportional to density, flow velocity, flow depth, slope • => deeper or faster or steeper flows can carry larger clasts Leads to next characteristics of fluvial sediments 4/ clast size can be an indication of river “strength”

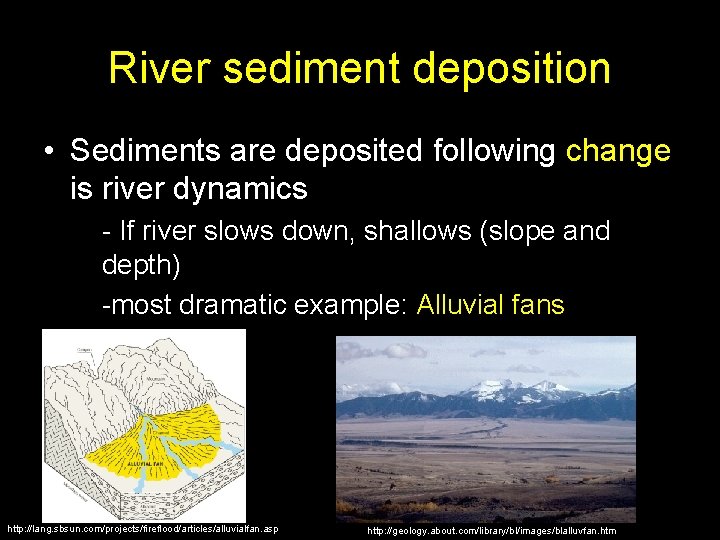

River sediment deposition • Sediments are deposited following change is river dynamics - If river slows down, shallows (slope and depth) -most dramatic example: Alluvial fans http: //lang. sbsun. com/projects/fireflood/articles/alluvialfan. asp http: //geology. about. com/library/bl/images/blalluvfan. htm

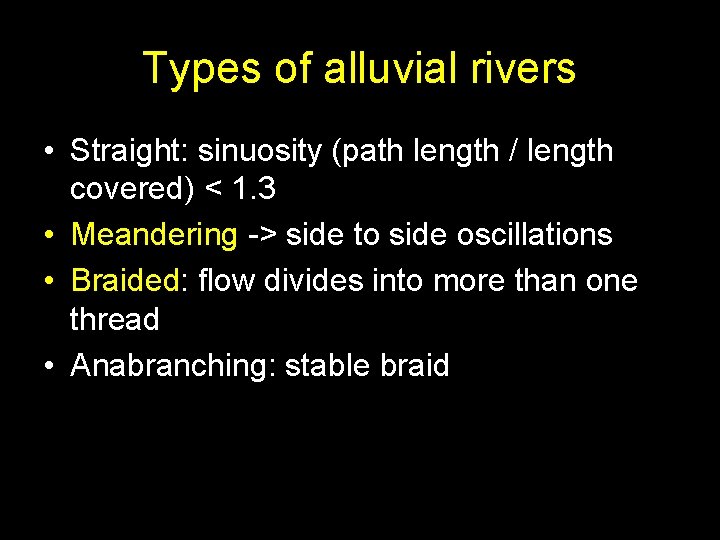

Types of alluvial rivers • Straight: sinuosity (path length / length covered) < 1. 3 • Meandering -> side to side oscillations • Braided: flow divides into more than one thread • Anabranching: stable braid

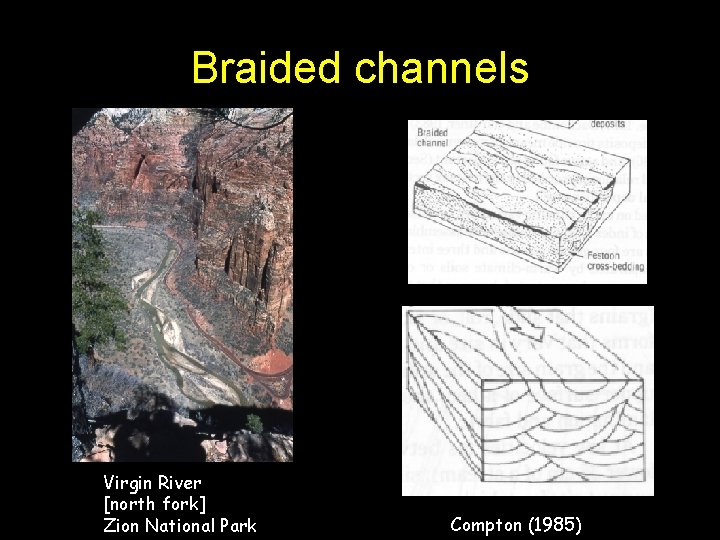

Braided channels Virgin River [north fork] Zion National Park Compton (1985)

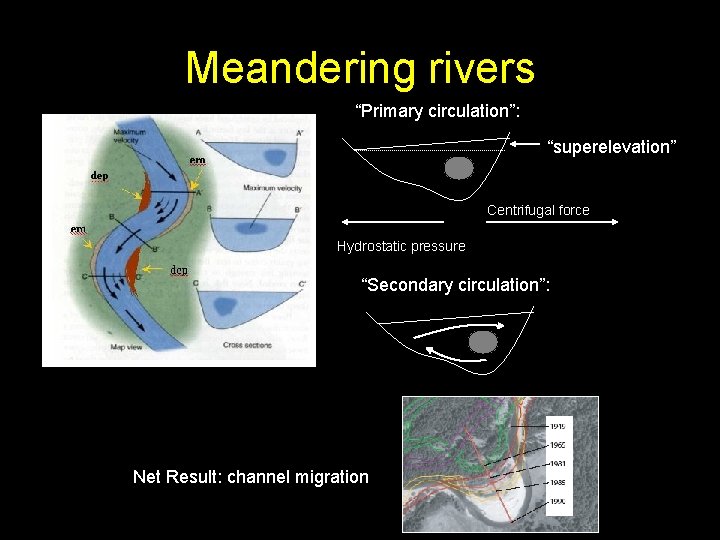

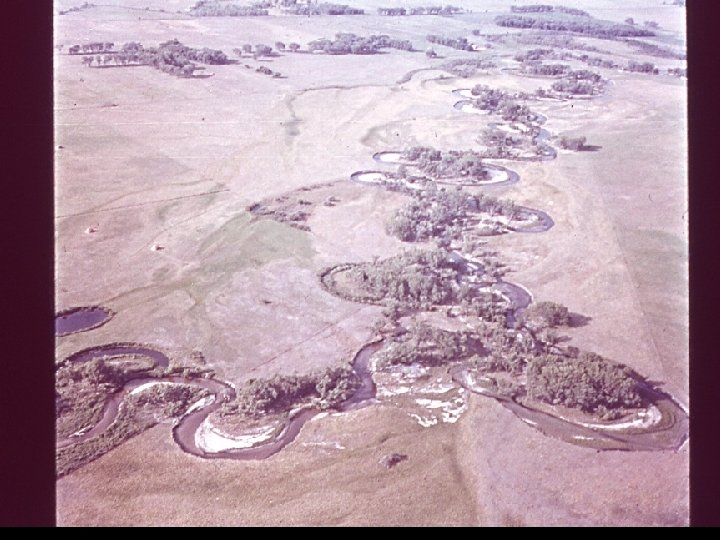

Meandering rivers “Primary circulation”: “superelevation” Centrifugal force Hydrostatic pressure “Secondary circulation”: Net Result: channel migration

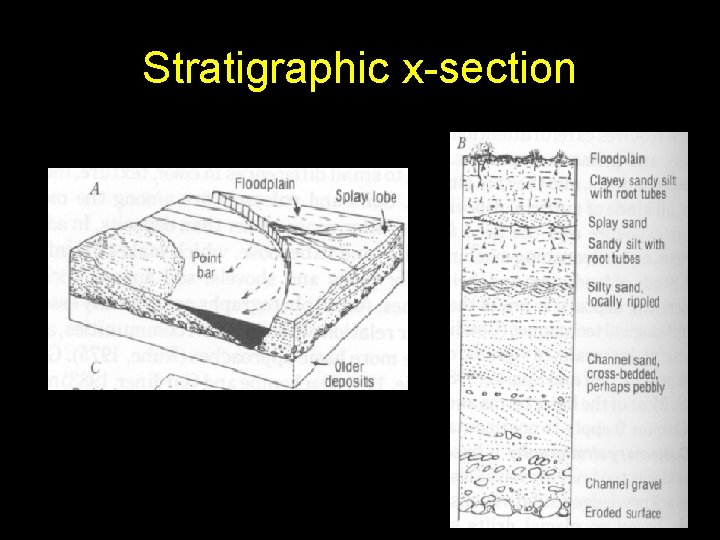

Stratigraphic x-section

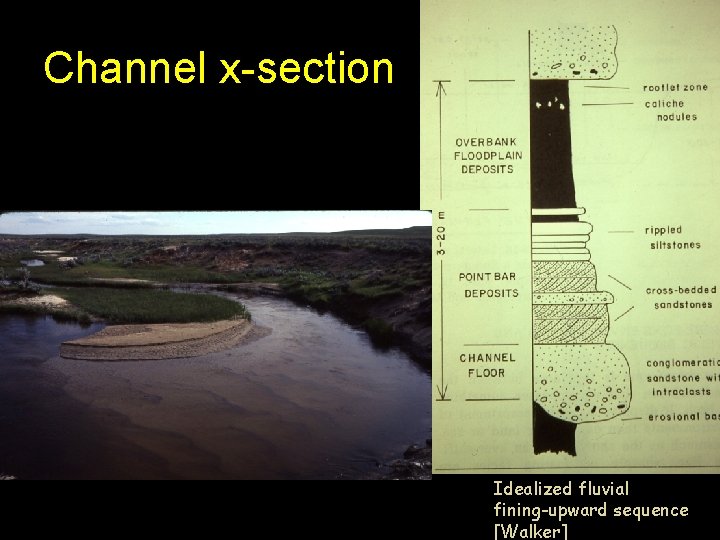

Channel x-section Idealized fluvial fining-upward sequence [Walker]

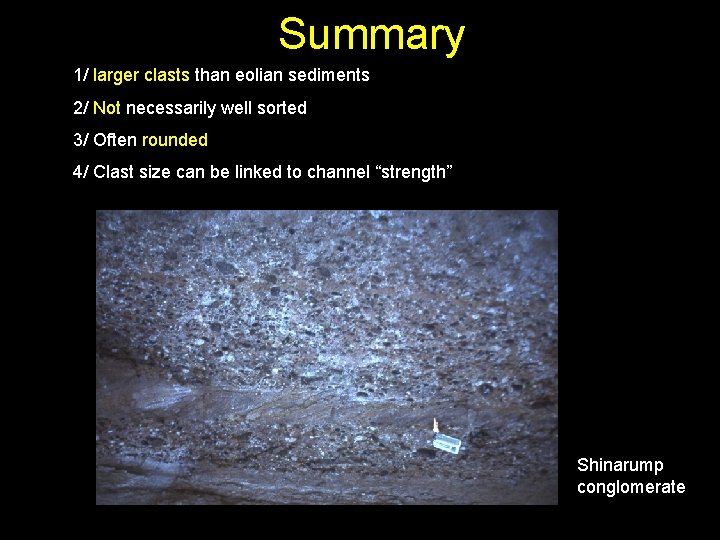

Summary 1/ larger clasts than eolian sediments 2/ Not necessarily well sorted 3/ Often rounded 4/ Clast size can be linked to channel “strength” Shinarump conglomerate

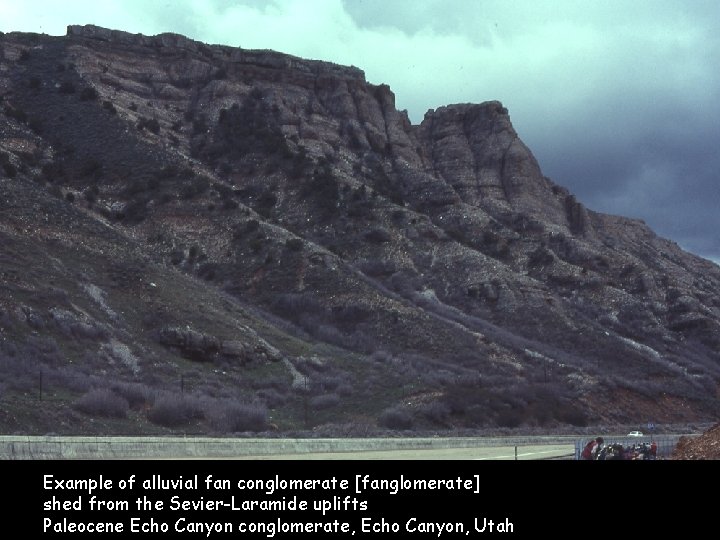

Example of alluvial fan conglomerate [fanglomerate] shed from the Sevier-Laramide uplifts Paleocene Echo Canyon conglomerate, Echo Canyon, Utah

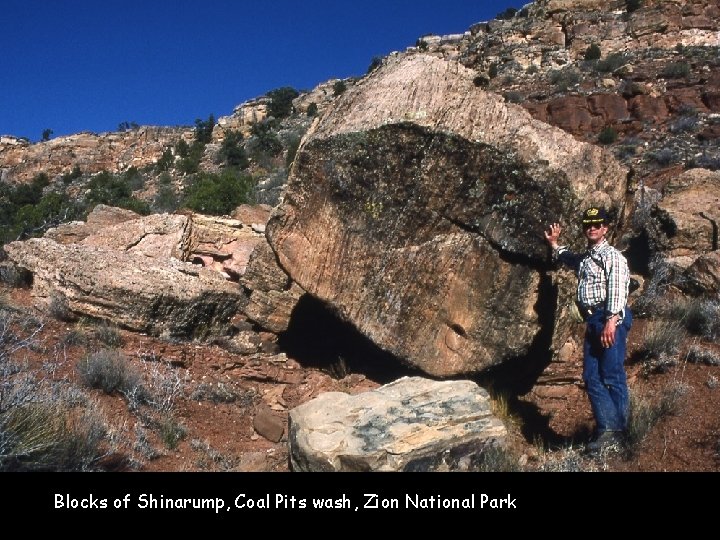

Blocks of Shinarump, Coal Pits wash, Zion National Park

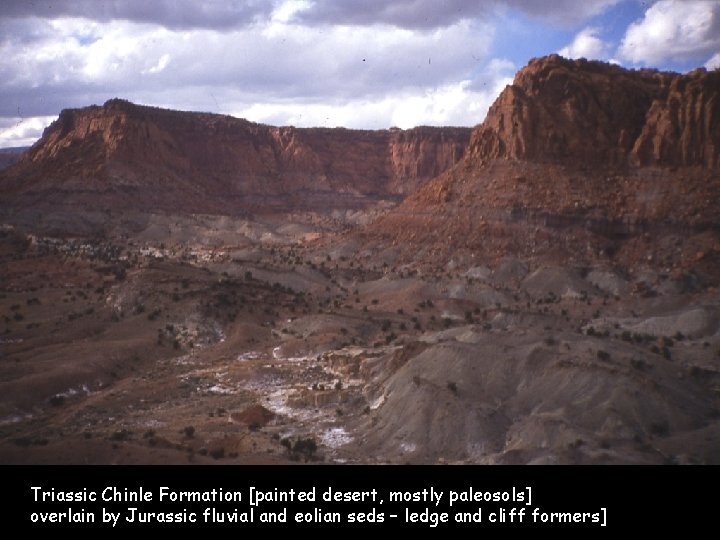

Triassic Chinle Formation [painted desert, mostly paleosols] overlain by Jurassic fluvial and eolian seds – ledge and cliff formers]

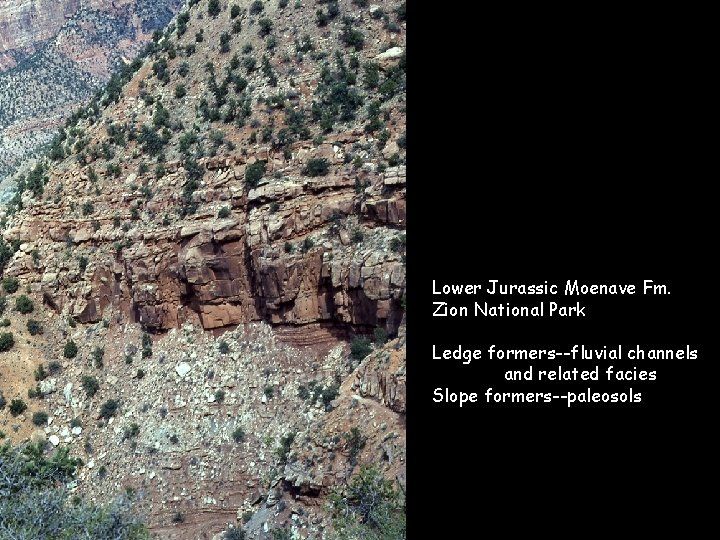

Lower Jurassic Moenave Fm. Zion National Park Ledge formers--fluvial channels and related facies Slope formers--paleosols

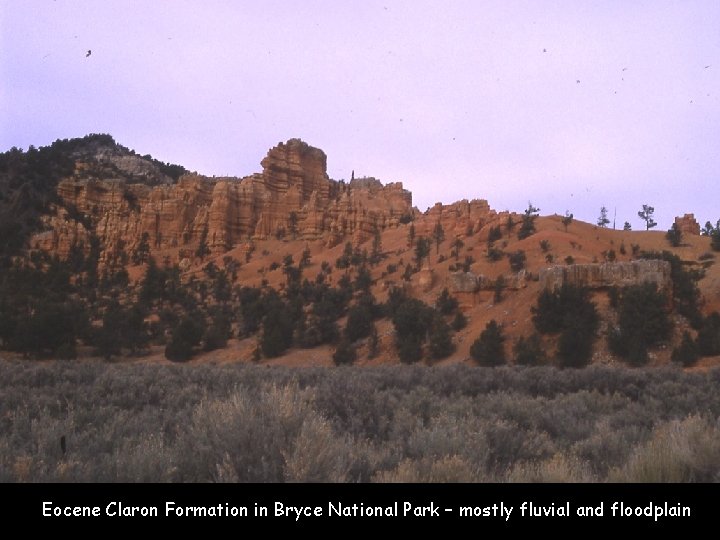

Eocene Claron Formation in Bryce National Park – mostly fluvial and floodplain

channel facies Eocene Claron Formation in Bryce National Park – mostly fluvial and floodplain

Shinarump Conglomerate member of the Triassic Chinle Formation [basal member]

fluvial channel deposit [resistant cap, ledge former] Permian paleosols [soft, badlands topography, colorful]

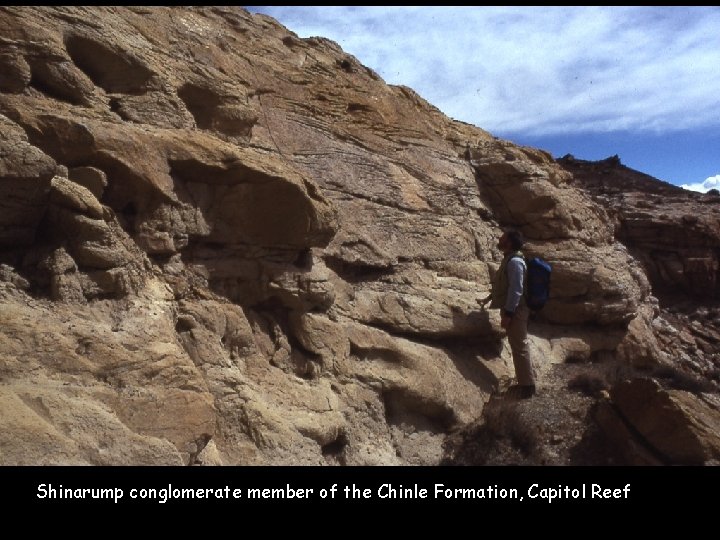

Shinarump conglomerate member of the Chinle Formation, Capitol Reef

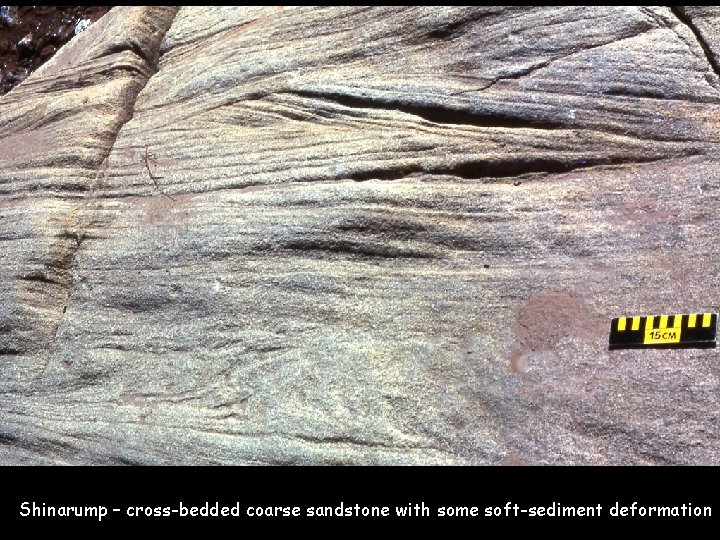

Shinarump – cross-bedded coarse sandstone with some soft-sediment deformation

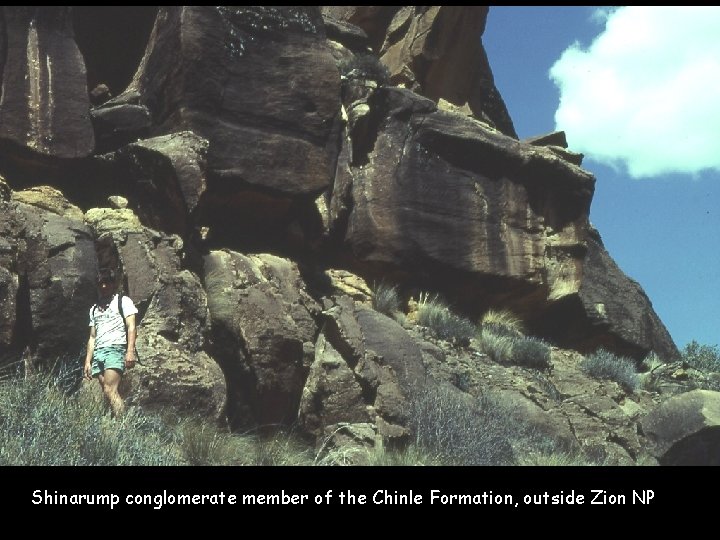

Shinarump conglomerate member of the Chinle Formation, outside Zion NP

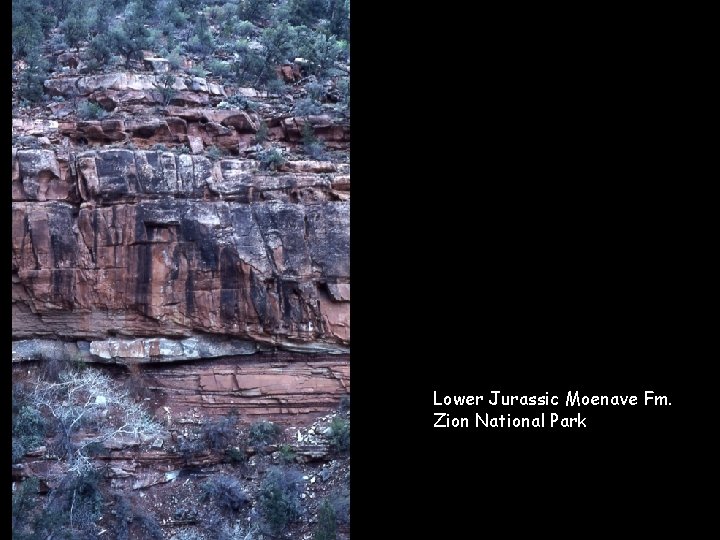

Lower Jurassic Moenave Fm. Zion National Park

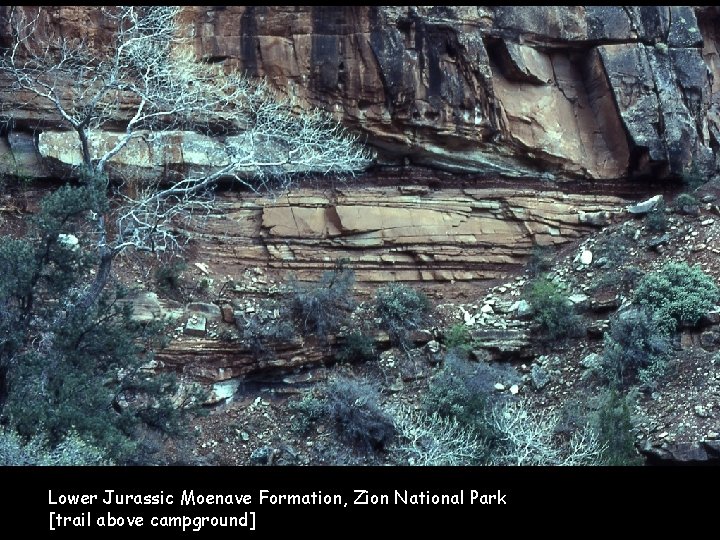

Lower Jurassic Moenave Formation, Zion National Park [trail above campground]

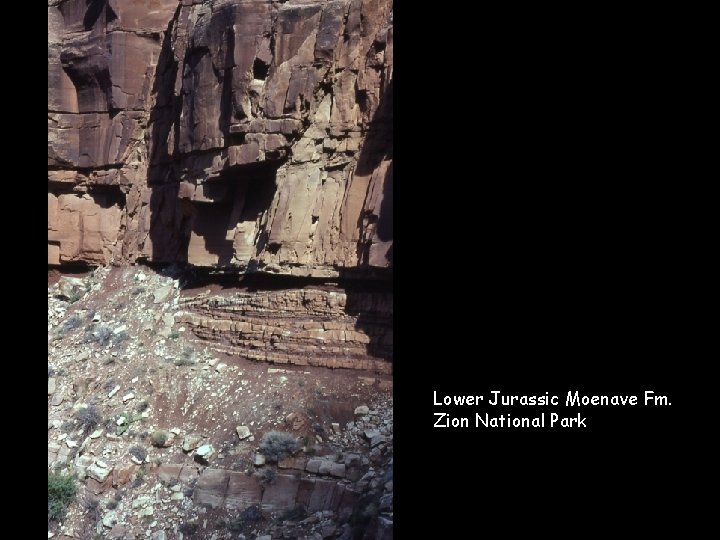

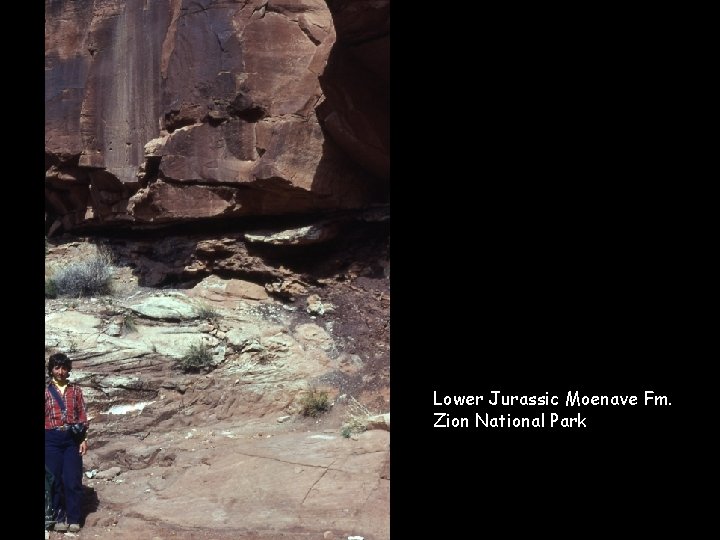

Lower Jurassic Moenave Fm. Zion National Park

Lower Jurassic Moenave Fm. Zion National Park

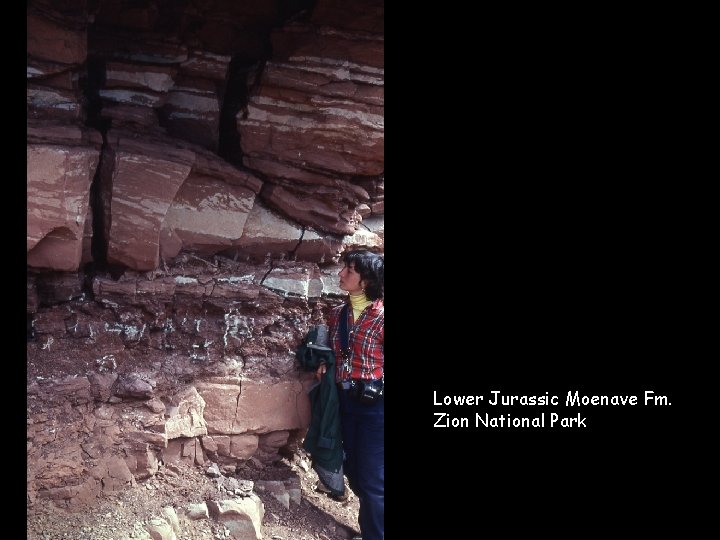

Lower Jurassic Moenave Fm. Zion National Park

Lower Jurassic Moenave Fm. Zion National Park
