Fluke 430 II 2016 Upgrade to FC Capability

Fluke 430 -II 2016 Upgrade to FC Capability Product Enhancements Overview 1

Fluke 430 Series Product Overview 43 X-II Key Features: • Power and Energy Loss analysis • Inverter Efficiency • Basic PQ V/A/Hz, Power, Dips, Swells, Harmonics, Unbalance • SD card storage (up to 32 GB), enables months of logging 435 -II Advanced Analyzer Key Features: • Flicker, transients, Class A • Power Wave • Event waveform capture Fluke 430 Series FC Upgrade 2016 What are we doing? • Replacing the existing SD memory card shipped with a 430 -II with a Wifi + SD Memory combination card • Enable wireless data transfer and Fluke Connect capability Fluke 430 -II Series 2016 VAVE Company Confidential 2

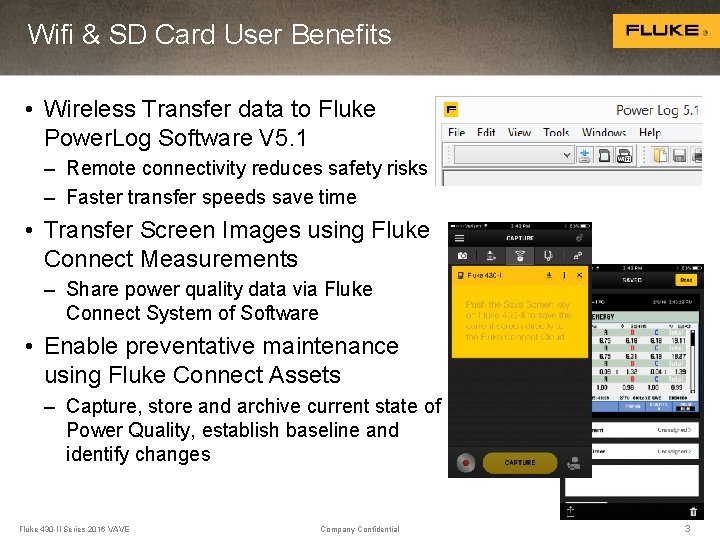

Wifi & SD Card User Benefits • Wireless Transfer data to Fluke Power. Log Software V 5. 1 – Remote connectivity reduces safety risks – Faster transfer speeds save time • Transfer Screen Images using Fluke Connect Measurements – Share power quality data via Fluke Connect System of Software • Enable preventative maintenance using Fluke Connect Assets – Capture, store and archive current state of Power Quality, establish baseline and identify changes Fluke 430 -II Series 2016 VAVE Company Confidential 3

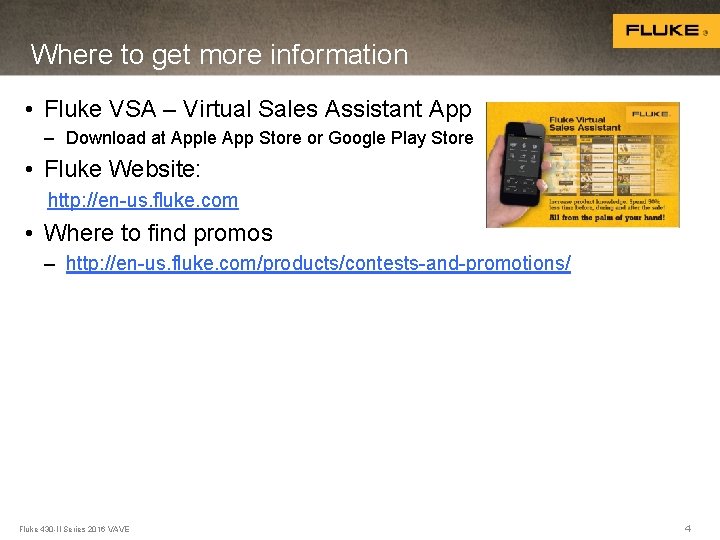

Where to get more information • Fluke VSA – Virtual Sales Assistant App – Download at Apple App Store or Google Play Store • Fluke Website: http: //en-us. fluke. com • Where to find promos – http: //en-us. fluke. com/products/contests-and-promotions/ Fluke 430 -II Series 2016 VAVE 4

430 -II FC User Guide

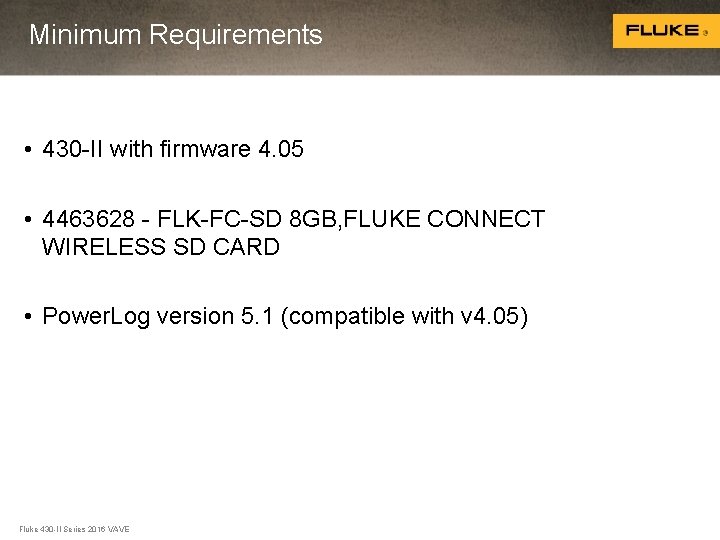

Minimum Requirements • 430 -II with firmware 4. 05 • 4463628 - FLK-FC-SD 8 GB, FLUKE CONNECT WIRELESS SD CARD • Power. Log version 5. 1 (compatible with v 4. 05) Fluke 430 -II Series 2016 VAVE

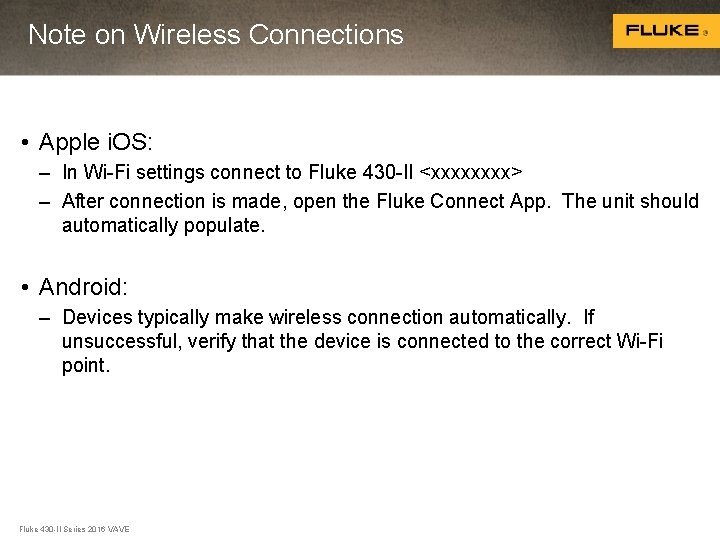

Note on Wireless Connections • Apple i. OS: – In Wi-Fi settings connect to Fluke 430 -II <xxxx> – After connection is made, open the Fluke Connect App. The unit should automatically populate. • Android: – Devices typically make wireless connection automatically. If unsuccessful, verify that the device is connected to the correct Wi-Fi point. Fluke 430 -II Series 2016 VAVE

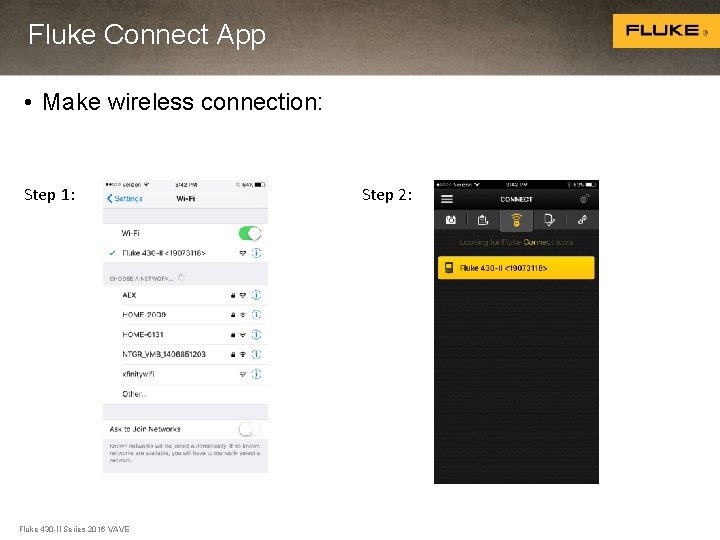

Fluke Connect App • Make wireless connection: Step 1: Fluke 430 -II Series 2016 VAVE Step 2:

Available Features • FC is capable of “live capture” of current 430 -II screen Fluke 430 -II Series 2016 VAVE

Available Features • Or downloading all Saved Screens Fluke 430 -II Series 2016 VAVE

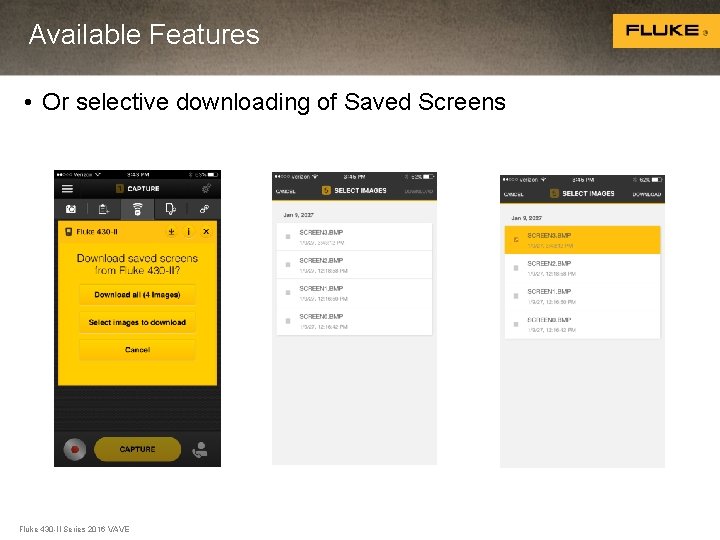

Available Features • Or selective downloading of Saved Screens Fluke 430 -II Series 2016 VAVE

Standard FC Integration Applies • Once the screens are captured from the instrument, data can be applied to a work order or to an asset as with other FC enabled products. Fluke 430 -II Series 2016 VAVE

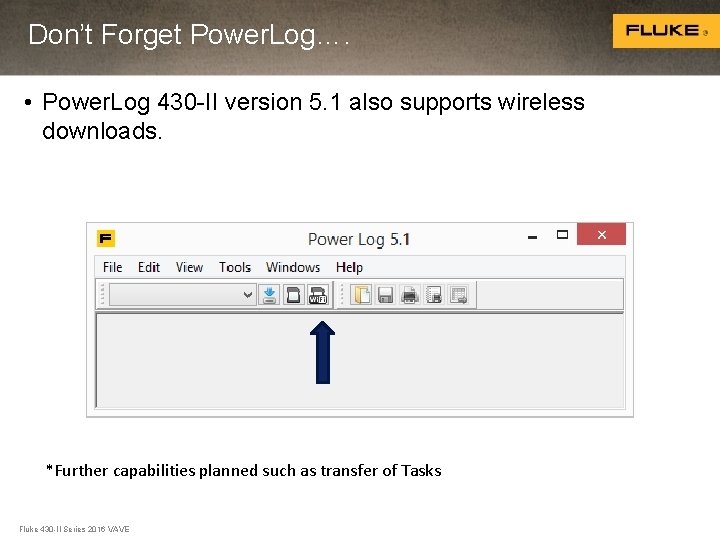

Don’t Forget Power. Log…. • Power. Log 430 -II version 5. 1 also supports wireless downloads. *Further capabilities planned such as transfer of Tasks Fluke 430 -II Series 2016 VAVE

Powerlog Classic versus PL 430 -II • Power. Log Classic supports: – – VR 1710 345 1735 Original 433/434/435 • Power. Log 430 -II – Only supports the 434 -II, 435 -II and 437 -II Fluke 430 -II Series 2016 VAVE
