Fluid Power Symbols Fluid Power Symbols By the
Fluid Power Symbols
Fluid Power Symbols • By the end of this presentation, you will be able to identify a variety of Fluid Power Symbols

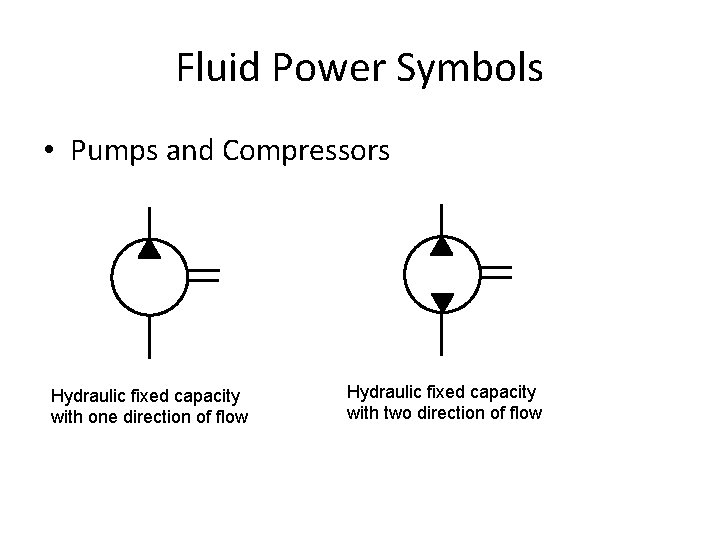

Fluid Power Symbols • Pumps and Compressors Hydraulic fixed capacity with one direction of flow Hydraulic fixed capacity with two direction of flow
Fluid Power Symbols • Pumps and Compressors Hydraulic variable capacity with one direction of flow Hydraulic variable capacity with two direction of flow

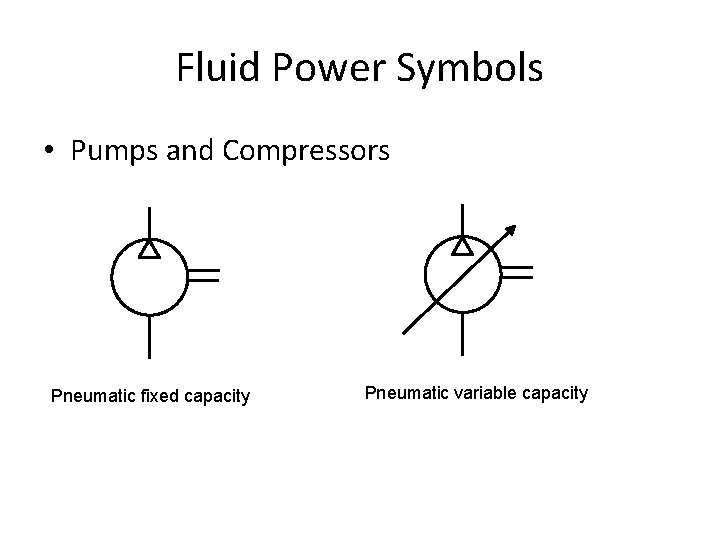

Fluid Power Symbols • Pumps and Compressors Pneumatic fixed capacity Pneumatic variable capacity
Fluid Power Symbols • Oil Storage Atmospheric reservoir with inlet pipe above fluid level Atmospheric reservoir with inlet pipe below fluid level

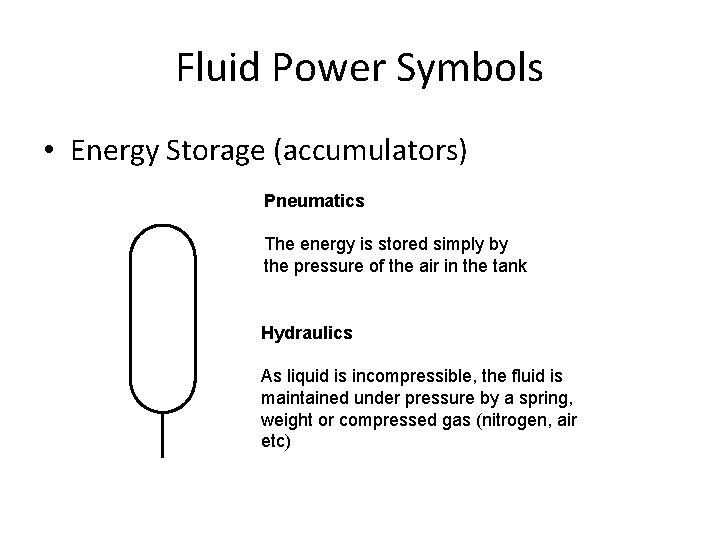

Fluid Power Symbols • Energy Storage (accumulators) Pneumatics The energy is stored simply by the pressure of the air in the tank Hydraulics As liquid is incompressible, the fluid is maintained under pressure by a spring, weight or compressed gas (nitrogen, air etc)

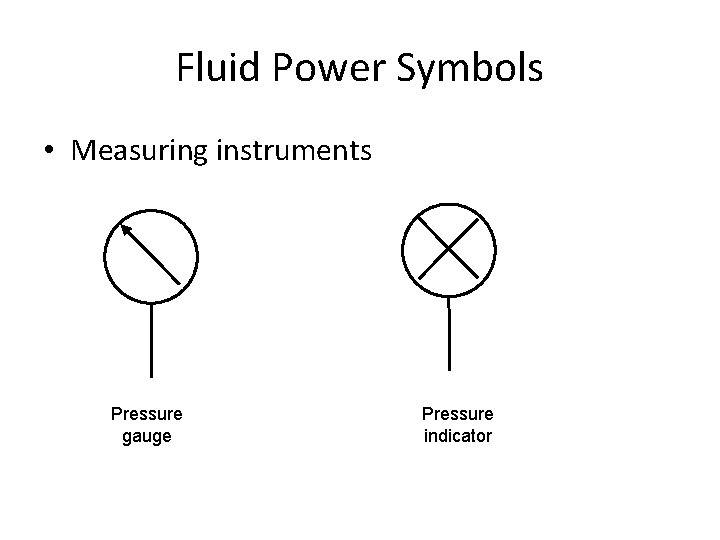

Fluid Power Symbols • Measuring instruments Pressure gauge Pressure indicator

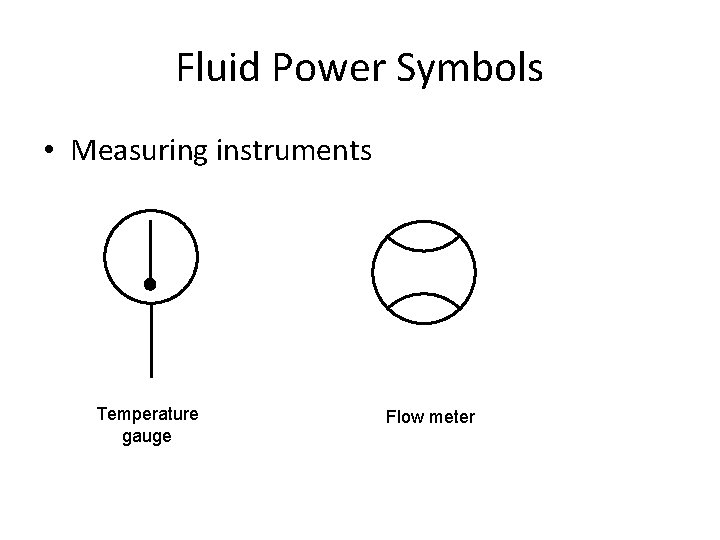

Fluid Power Symbols • Measuring instruments Temperature gauge Flow meter

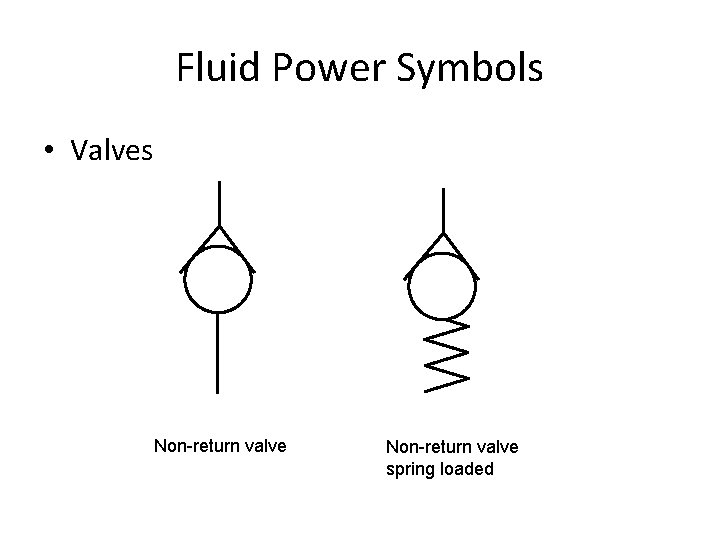

Fluid Power Symbols • Valves Non-return valve spring loaded

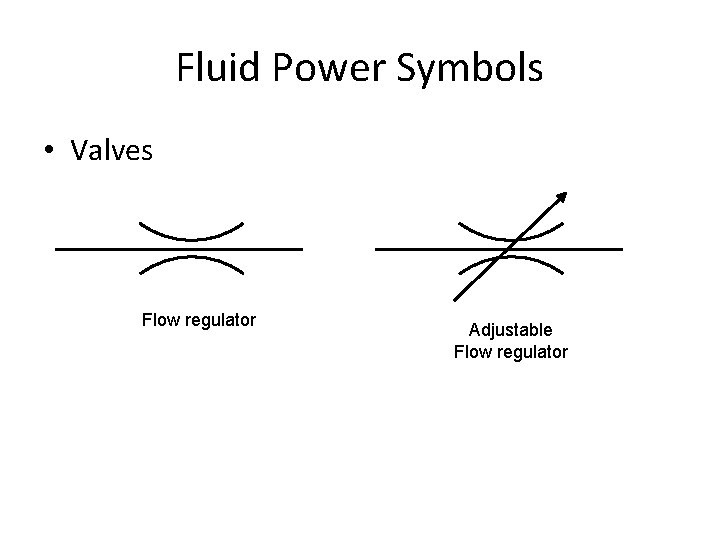

Fluid Power Symbols • Valves Flow regulator Adjustable Flow regulator

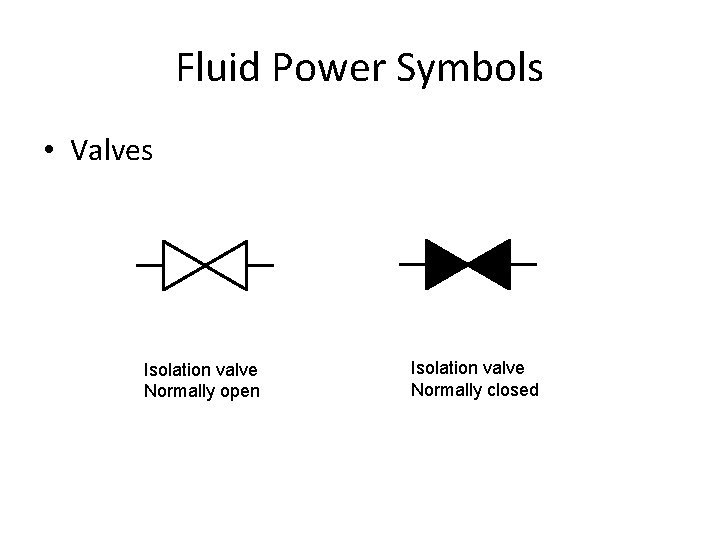

Fluid Power Symbols • Valves Isolation valve Normally open Isolation valve Normally closed

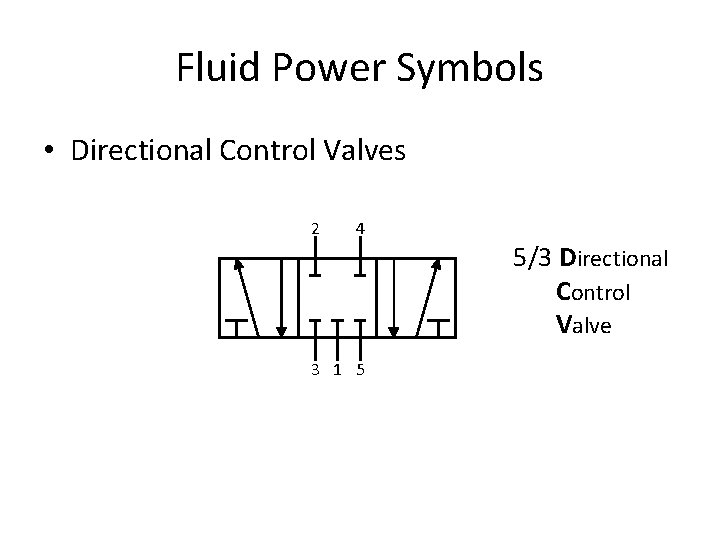

Fluid Power Symbols • Directional Control Valves 2 4 5/3 Directional Control Valve 3 1 5
Fluid Power Symbols • Directional Control Valves 2 4 5/3 Directional Control Valve 3 1 5

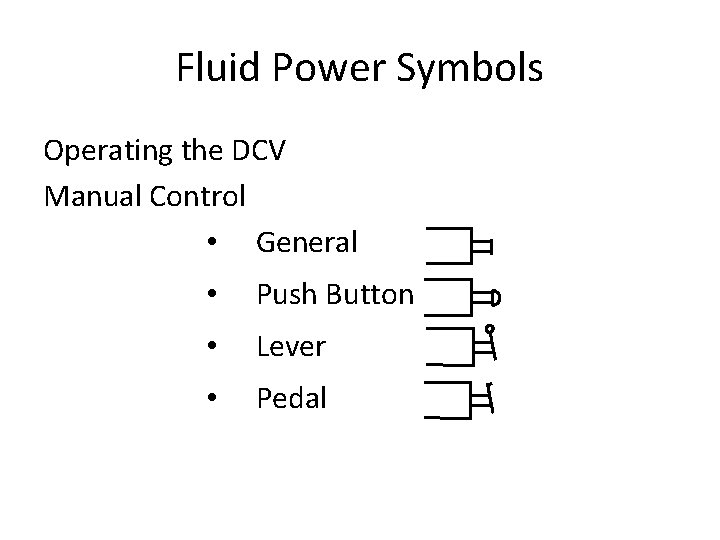

Fluid Power Symbols Operating the DCV Manual Control • General • Push Button • Lever • Pedal

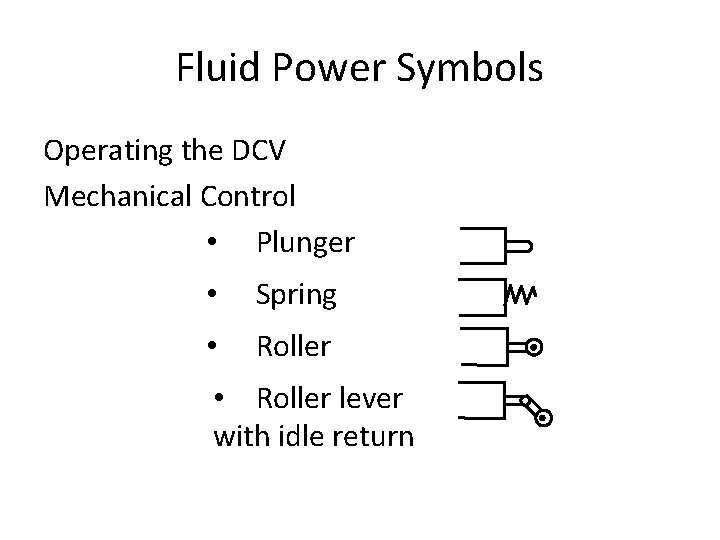

Fluid Power Symbols Operating the DCV Mechanical Control • Plunger • Spring • Roller • Roller lever with idle return

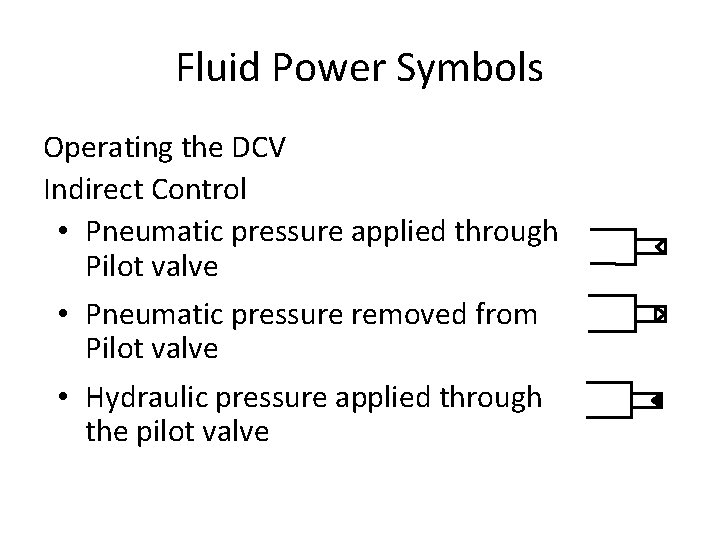

Fluid Power Symbols Operating the DCV Indirect Control • Pneumatic pressure applied through Pilot valve • Pneumatic pressure removed from Pilot valve • Hydraulic pressure applied through the pilot valve

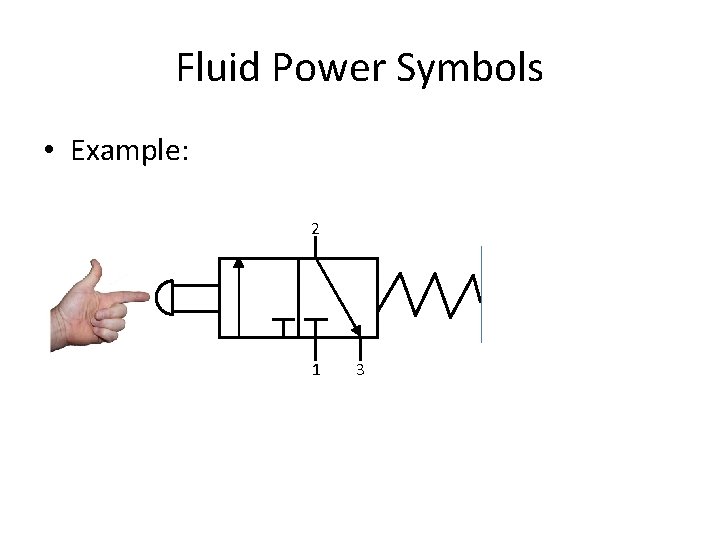

Fluid Power Symbols • Example: 2 1 3

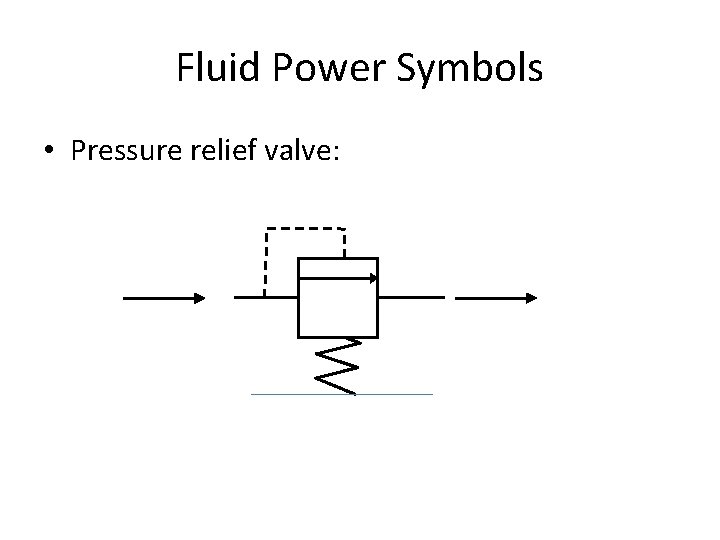

Fluid Power Symbols • Pressure relief valve:

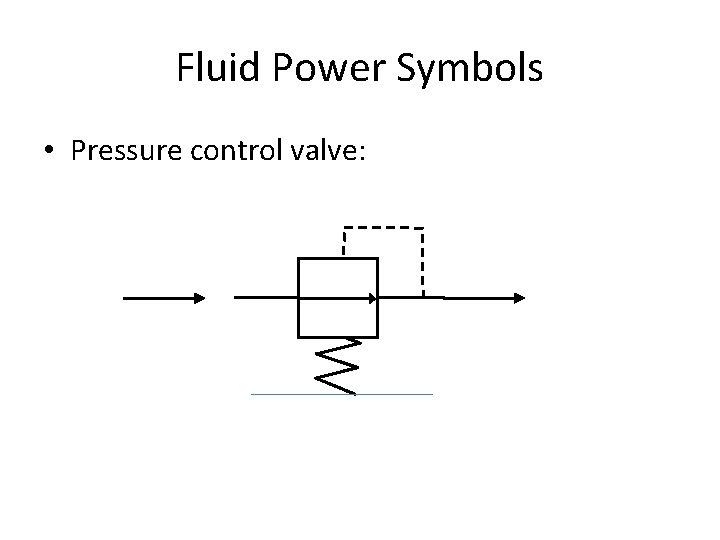

Fluid Power Symbols • Pressure control valve:

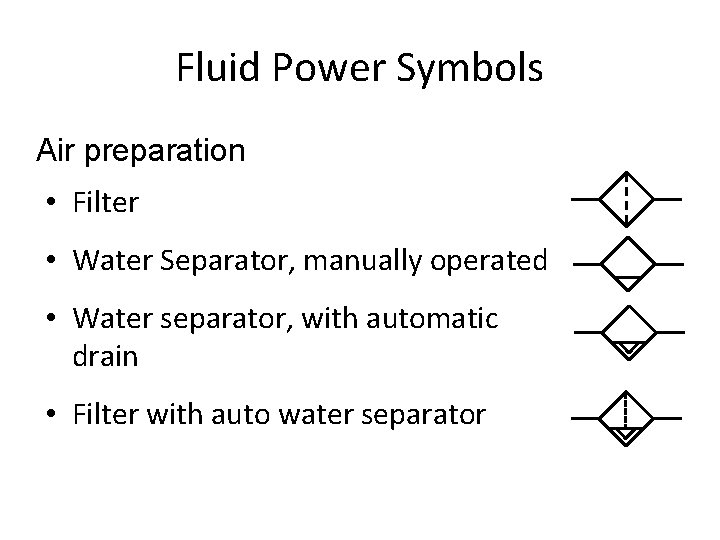

Fluid Power Symbols Air preparation • Filter • Water Separator, manually operated • Water separator, with automatic drain • Filter with auto water separator

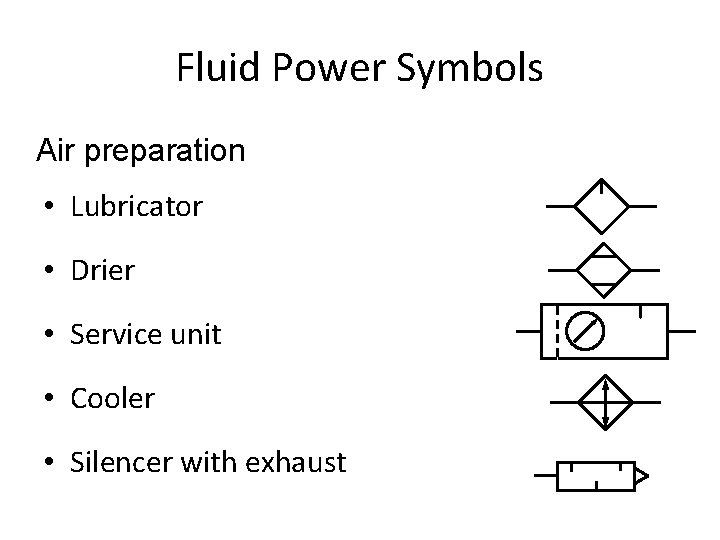

Fluid Power Symbols Air preparation • Lubricator • Drier • Service unit • Cooler • Silencer with exhaust

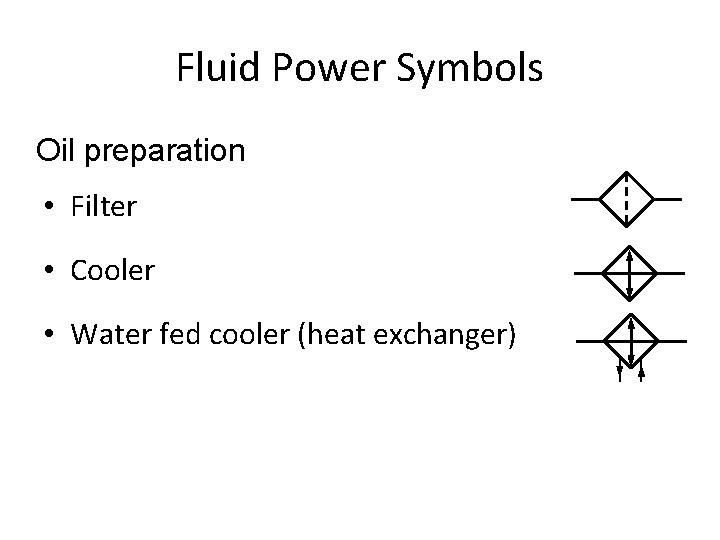

Fluid Power Symbols Oil preparation • Filter • Cooler • Water fed cooler (heat exchanger)

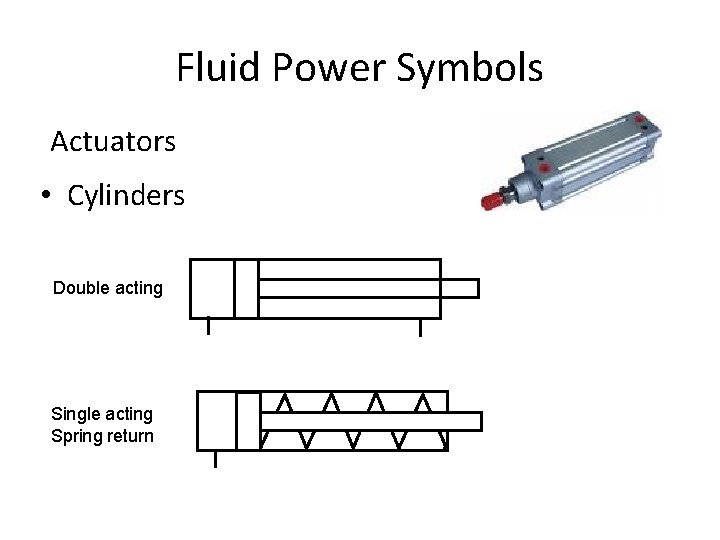

Fluid Power Symbols Actuators • Cylinders Double acting Single acting Spring return

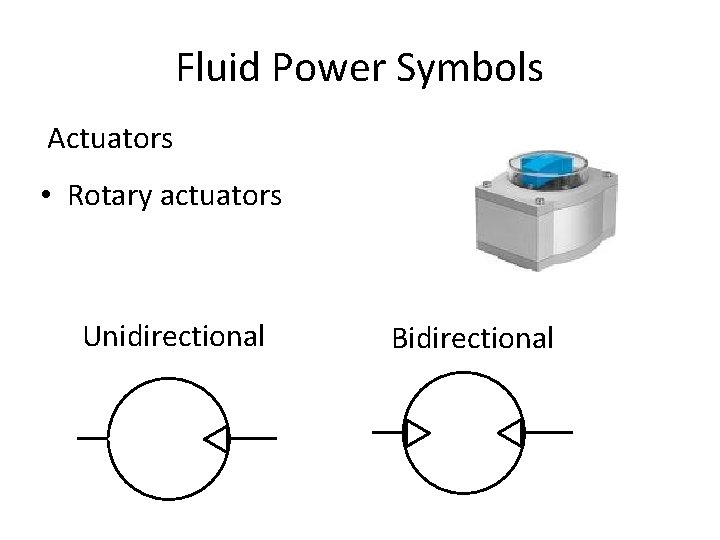

Fluid Power Symbols Actuators • Rotary actuators Unidirectional Bidirectional

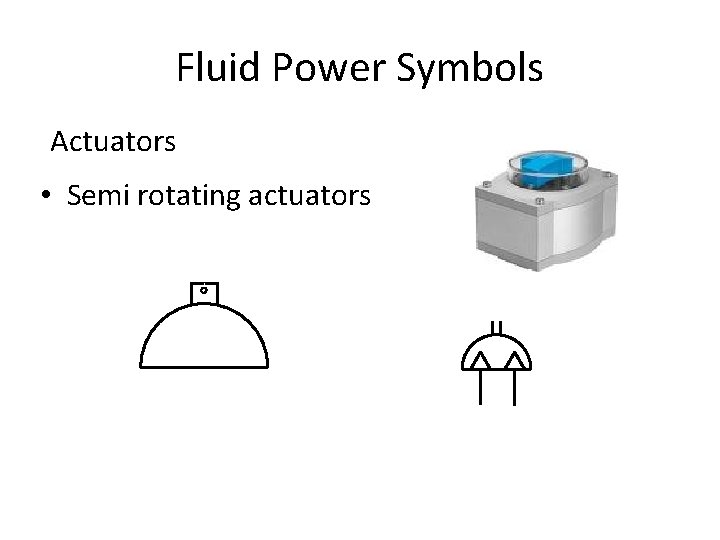

Fluid Power Symbols Actuators • Semi rotating actuators
