Fluid Mechanics PUMPS
Fluid Machines • Is a device which adds energy (pump or compressor) into or removes energy (turbine) from a fluid by dynamic interactions between the device and the fluid • Four categories of fluid machines (Pumps): – – Positive Displacement (PD) Pump Centrifugal fluid pump Axial fluid pump Jet fluid pump • Energy equation or “Pressure rise” “Head”

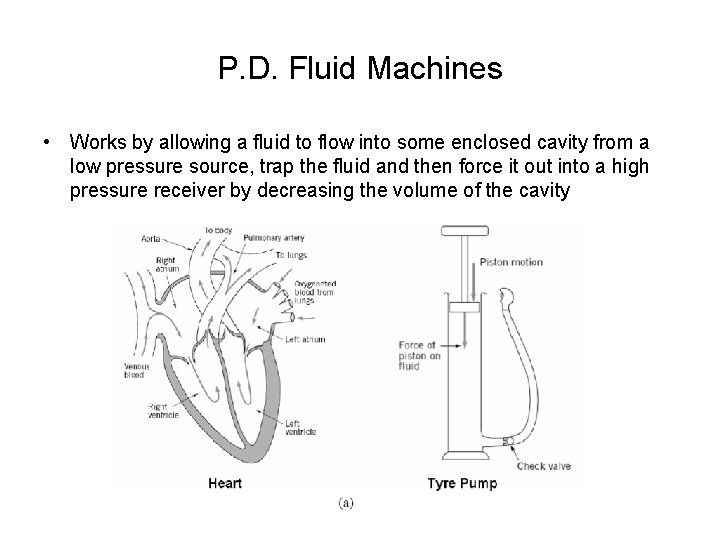

P. D. Fluid Machines • Works by allowing a fluid to flow into some enclosed cavity from a low pressure source, trap the fluid and then force it out into a high pressure receiver by decreasing the volume of the cavity
Centrifugal Fluid Machines • Raises the pressure of a fluid by moving it outward in a centrifugal force field, passing it radially across the impeller and giving it a high kinetic energy and then converting that kinetic energy into fluid pressure energy.
Axial-flow Fluid Machines • Fluid passes through several rows of blades arranged in an annulus and is successively accelerated by moving rows of blades, and then slowed by a stator blade. Fluid enters and leaves in the direction of the axis of the rotor
Jet Fluid Machines • Used to convert kinetic energy into pressure energy, usually with the objective of creating an overpressure at one point and a vacuum at another.
What do they look like? P. D. Pump Axial flow Pump Centrifugal Pump Jet fluid Pump
Pump Vs. Compressor • Both pumps and compressors are fluid machines, which add energy into the fluid • The key difference – Pumps deal with incompressible fluid, e. g. water – Compressors deal with compressible fluid, e. g. air • Our focus is on PUMPS – – Pump performance curves System curve Pump selection Dimensionless numbers, which are important to pumps
How P. D. Pumps Work?
Performance Curve of P. D. Pumps “Constant-volumetric flow rate device” At fixed motor speed “Must always have some kind of safety valve to relieve pressure if the discharge line is suddenly blocked”
How Centrifugal Pumps Work? • Fluid enters the eye of the impeller in an axial direction and passes radially across the impeller acquiring a large tangential velocity • The kinetic energy is converted to pressure • Radial-flow fluid machine
Kinetic Energy to Pressure (or Head) or b is the width of the impeller
Centrifugal Pump Performance Curve
Centrifugal Pump Performance Curve
System Curve
System Curve (Cont’d) Energy equation:
System Curve (Cont’d)
System Curve (Cont’d)
Net Positive Suction Head (NPSH)
Below.
Net Positive Suction Head- Required (NPSHR)
System Curve (Cont’d) (NPSHR)
Pumps in Series or Parallel
Pump Dimensionless Numbers • Dimensionless Analysis on Pump – Key Variables • The actual head rise (or the actual head rise in terms of energy per unit mass) • Shaft power • Pump efficiency
Pump Dimensionless Numbers • For geometrically similar Pump
Dimensionless Performance Curves Centrifugal Pump Axial-flow Pump
Pump Scaling Laws • Similitude Law
Specific Speed Dimensionless number and independent of the system of units In US unit:
Specific Speed

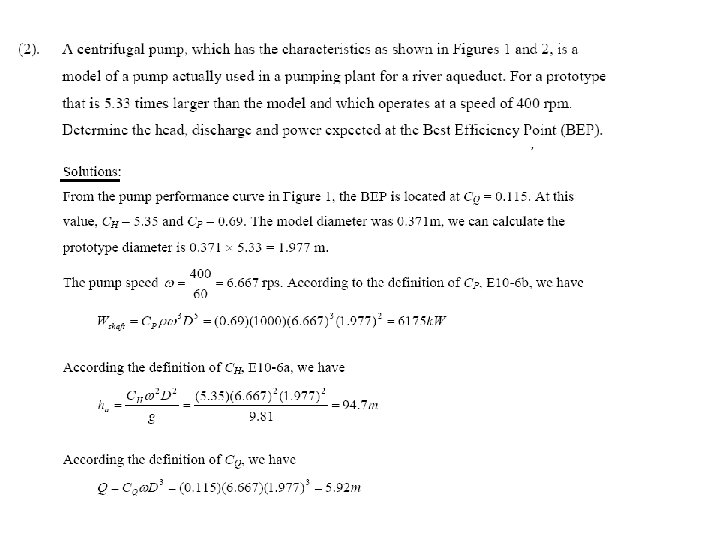

Examples
