Flow Visualization & Pore Network Simulation of Immiscible/ Miscible Displacement with Gravity Domination M. Haghighi 09/09/09

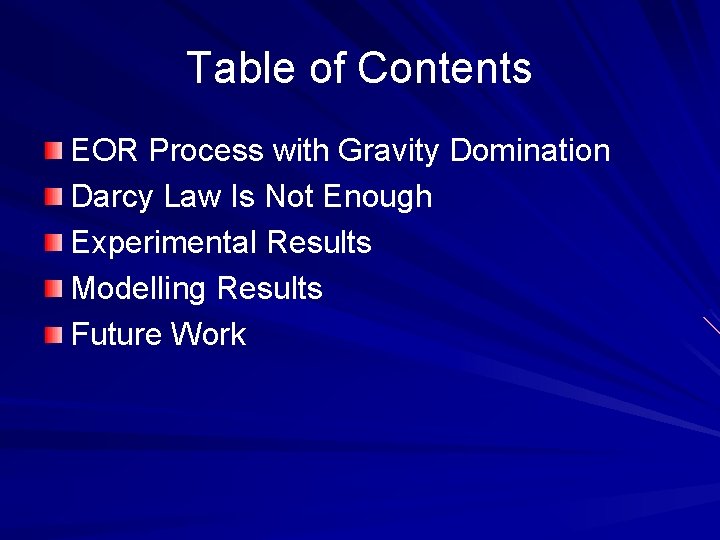

Table of Contents EOR Process with Gravity Domination Darcy Law Is Not Enough Experimental Results Modelling Results Future Work

EOR Process with Gravity Drainage GAGD SAGD Downdip Gas Injection Updip Gas Injection In Fractured Reservoirs

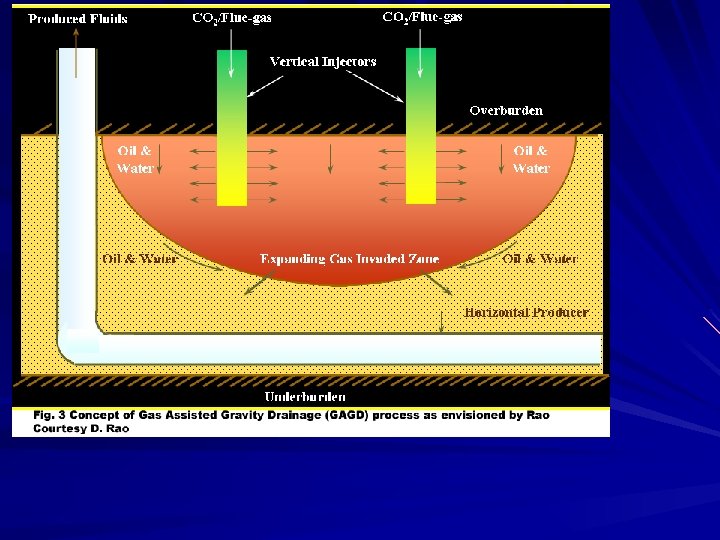

CO 2 GAGD (Jadhawar & Sarma)

SAGD

Downdip Gas Injection

Gravity Drainage In Fractured Reservoirs

Reservoir Simulation Diffusivity Equation (Mass Balance and Darcy Equation) Relative Permeability Concept (Buckley. Leverett equation for immiscible displacement)

EOR Efficiency Microscopic Displacement Efficiency × Macroscopic Displacement Efficiency

Microscopic Displacement Efficiency Flow Mechanism at Pore Scale Pore Geometry Pore Structure Wettability Dispersion Diffusion

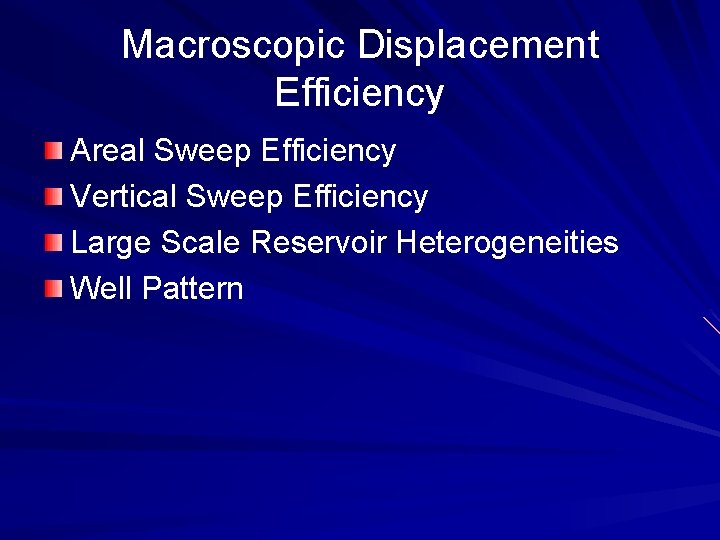

Macroscopic Displacement Efficiency Areal Sweep Efficiency Vertical Sweep Efficiency Large Scale Reservoir Heterogeneities Well Pattern

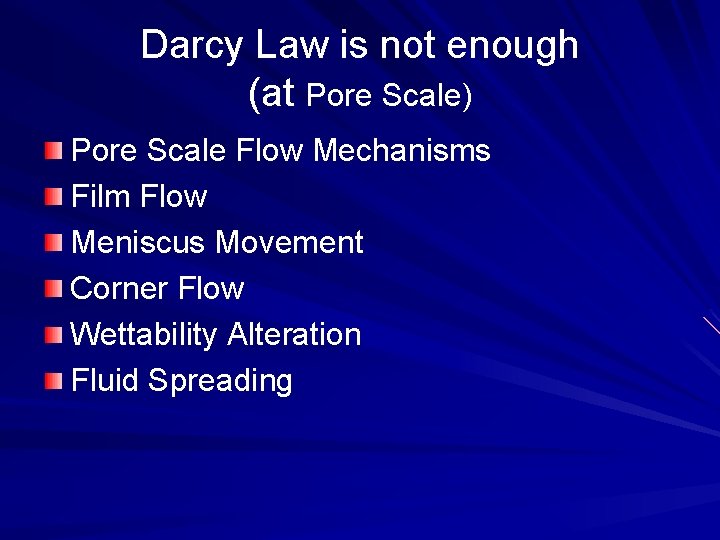

Darcy Law is not enough (at Pore Scale) Pore Scale Flow Mechanisms Film Flow Meniscus Movement Corner Flow Wettability Alteration Fluid Spreading

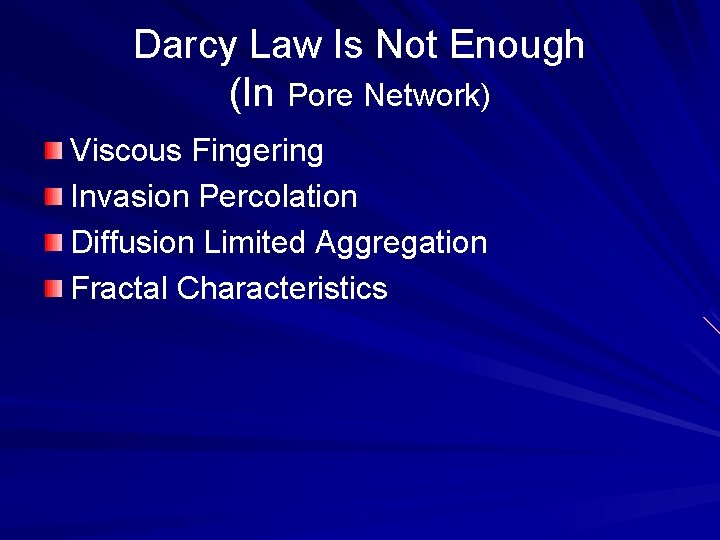

Darcy Law Is Not Enough (In Pore Network) Viscous Fingering Invasion Percolation Diffusion Limited Aggregation Fractal Characteristics

DLA

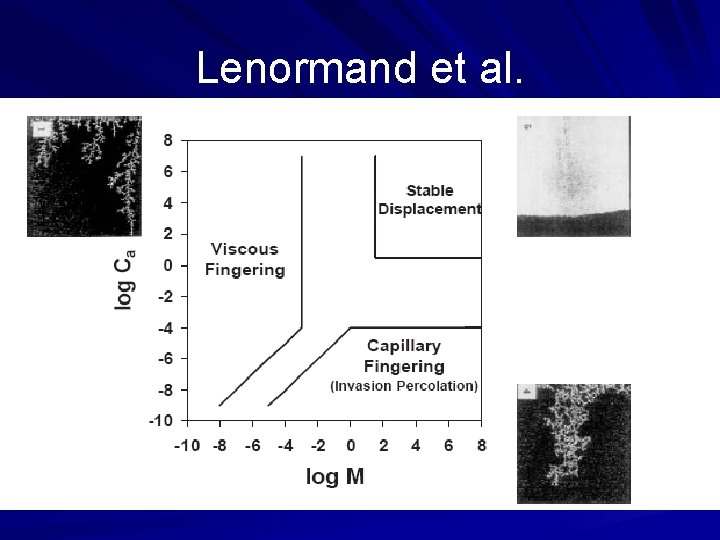

Lenormand et al.

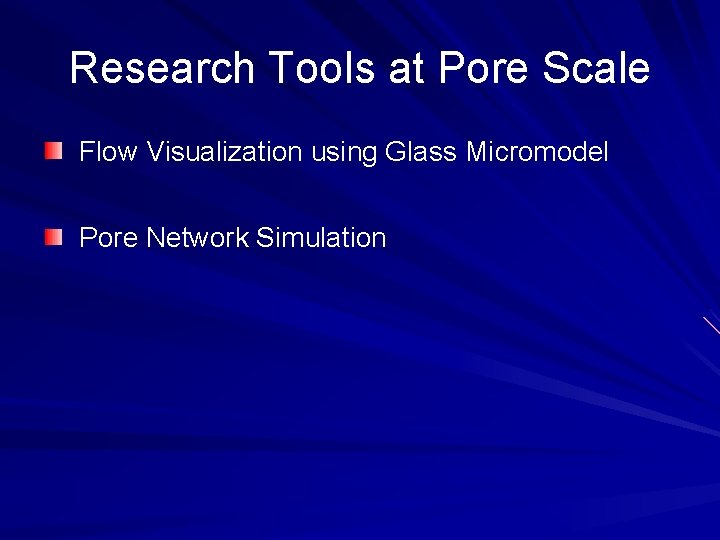

Research Tools at Pore Scale Flow Visualization using Glass Micromodel Pore Network Simulation

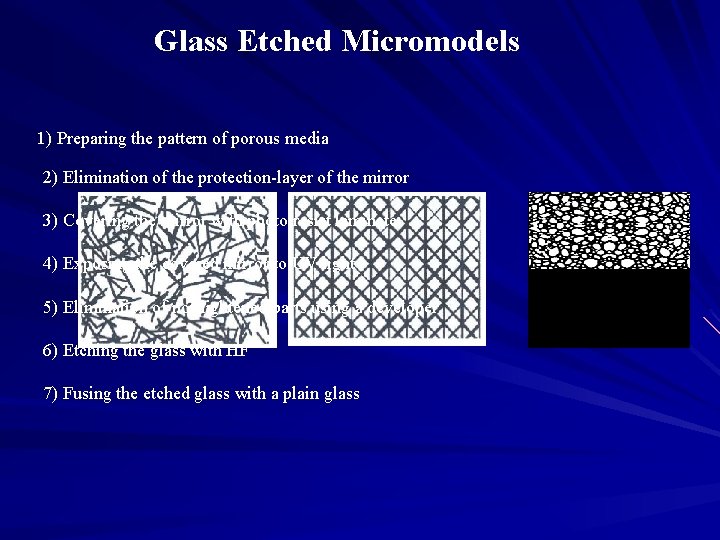

Glass Etched Micromodels 1) Preparing the pattern of porous media 2) Elimination of the protection-layer of the mirror 3) Covering the mirror with photo resist laminate 4) Exposing the covered mirror to UV light 5) Elimination of not-lightened parts using a developer 6) Etching the glass with HF 7) Fusing the etched glass with a plain glass

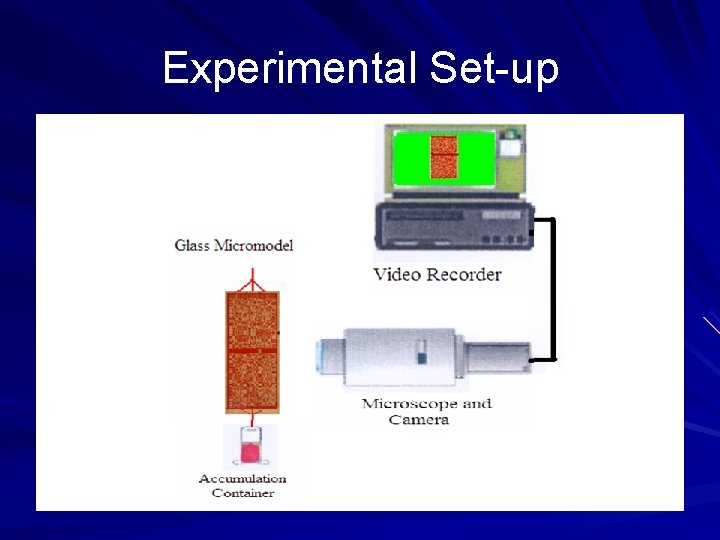

Experimental Set-up

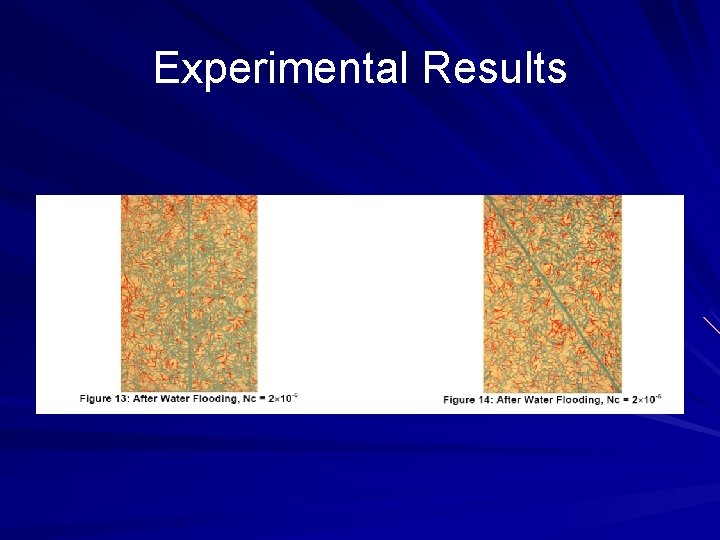

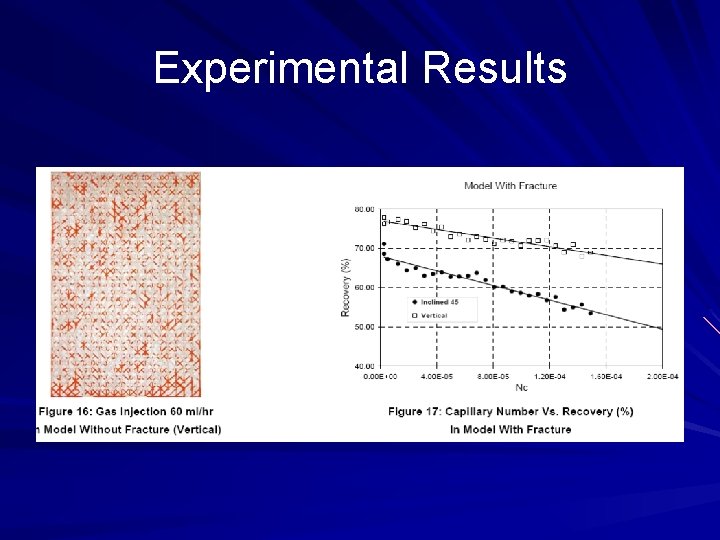

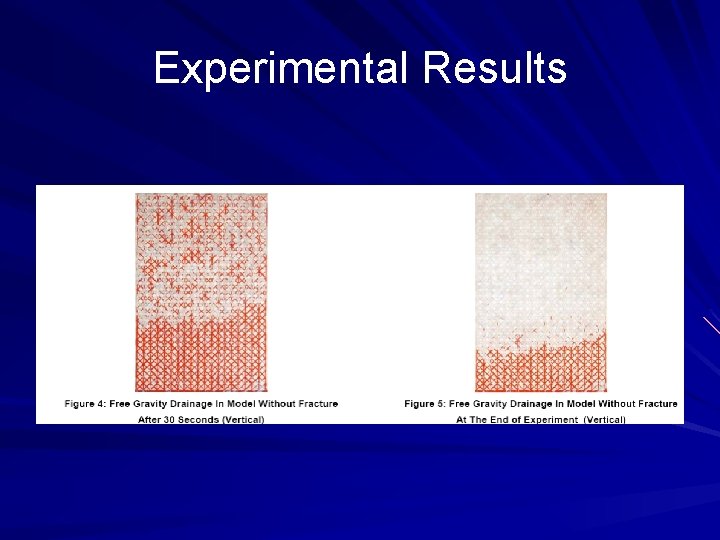

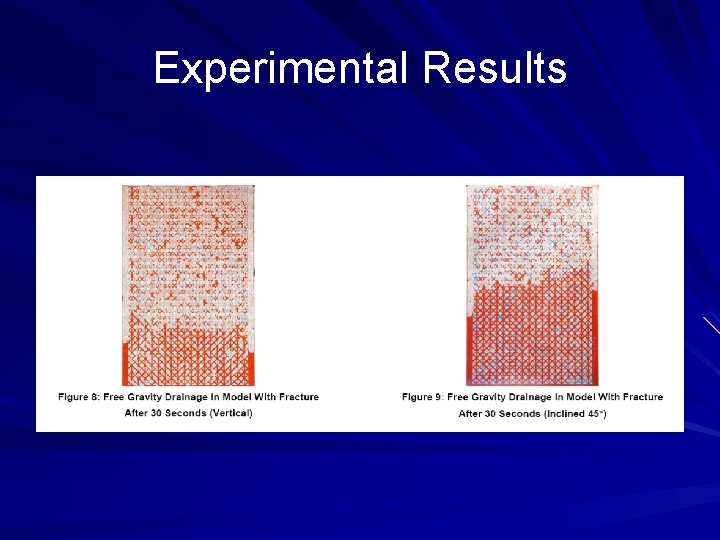

Experimental Results

Experimental Results

Experimental Results

Experimental Results

Experimental Results

Experimental Results

Experimental Results

Pore Network Modeling 1. A discrete view of the porous medium (pores and pore throats) Pores provide volume & interconnectivity Pore throats provide resistance to flow. 2. Solution to various transport problems using conservation equations. Mass conservation at each pore: Simple solution to the momentum equations in each pore throat.

Solution of the Fluid Flow in the Network Conductances: Fluid Flow Equations Nodes with Oil-Gas Front: g a) =0. 5 GA , (Oil): circular cross section One 2/μPhase g = 0. 5623 GA 2/μ , square cross section g = 3 R 2 A/20μ , triangular cross section Pgas= Constant= Patm b) Two-Phase (Oil. Balance) & Gas): Eq. For Each Oily Node: Continuity (Mass At = πR 2 , circular cross section At = 4 R 2 , square cross section At =R 2/4 G , triangular cross section Writing Film Conductance: Continuity Eq. for all Nodes, We have a linear set of equations:

Gas-Oil Displacement Generalization of Continuity Eq. for Different Fluid Configurations 34 Different Fluid Gonfigurations → 34 Different Continuity Equations Example: If All Adjacent Nodes of Node i Are Oily Nodes: Example: If One of the Adjacent Nodes of Node i be Occupied by Gas:

Pore Level Displacement Mechanisms 2 -Phase Displacement Mechanisms a) Drainage b) Imbibition c) Counter-Current Drainage 3 -Phase Displacement Mechanisms a) Double Drainage b) Double Imbibition

Model Assumptions ≈10 -6 → Viscous forces are negligible ≈ 1609 > 10 -4 → Gravity forces are very important

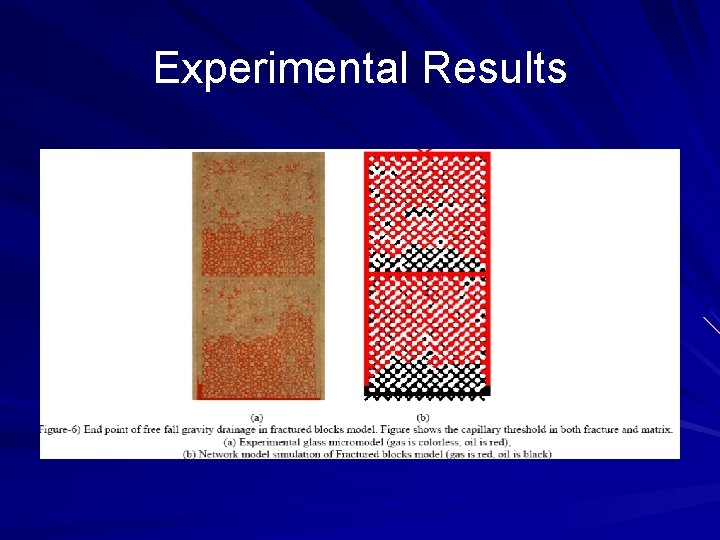

Experimental Results

Future Work Micible Co 2 Flooding with Gravity Domination Using Glass-etched Micromodel and Pore network Modelling

Miscible Co 2 Flooding with Gravity Domination Establishing Flow Visualization Lab Performing Miscible Displacement Tests Developing Pore Network Model for Miscible Displacement Identifying Controlling parameters Performing Experimental in Core Scale Performing Process Optimization Upscaling

End Any Questions?
