Flow Cytometry Basic Principles, Instrumentation, and Practices

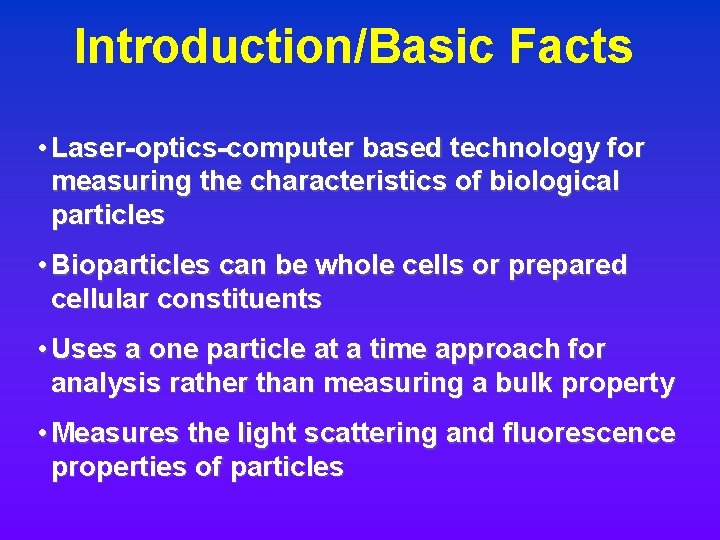

Introduction/Basic Facts • Laser-optics-computer based technology for measuring the characteristics of biological particles • Bioparticles can be whole cells or prepared cellular constituents • Uses a one particle at a time approach for analysis rather than measuring a bulk property • Measures the light scattering and fluorescence properties of particles

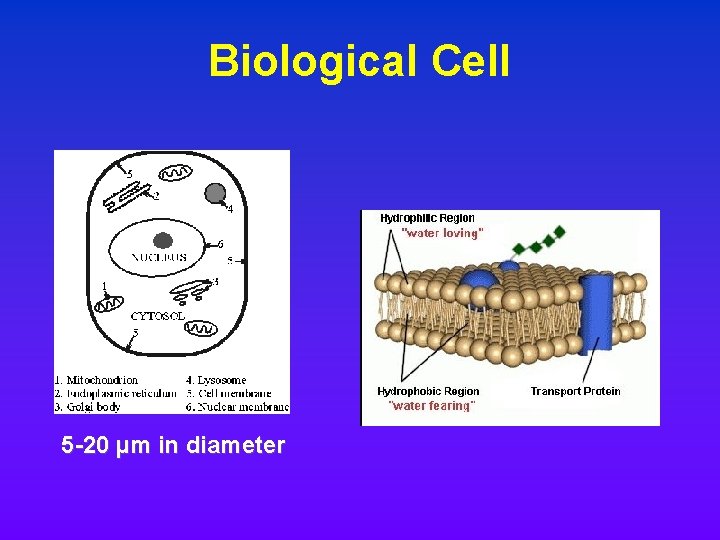

Biological Cell 5 -20 µm in diameter

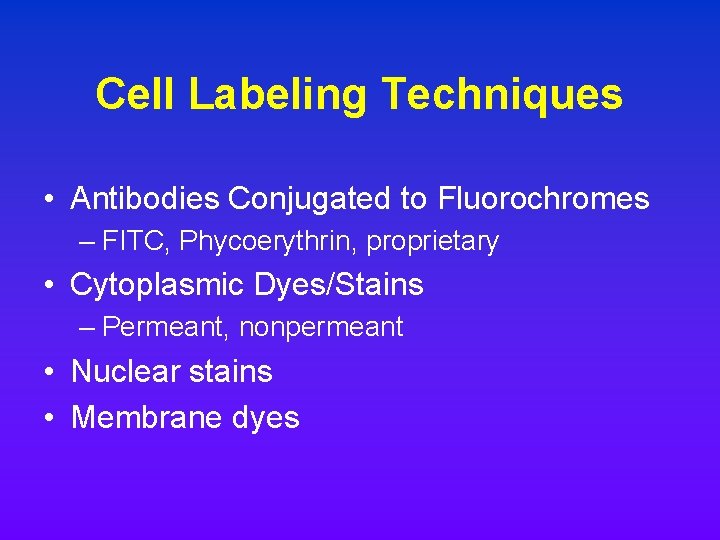

Cell Labeling Techniques • Antibodies Conjugated to Fluorochromes – FITC, Phycoerythrin, proprietary • Cytoplasmic Dyes/Stains – Permeant, nonpermeant • Nuclear stains • Membrane dyes

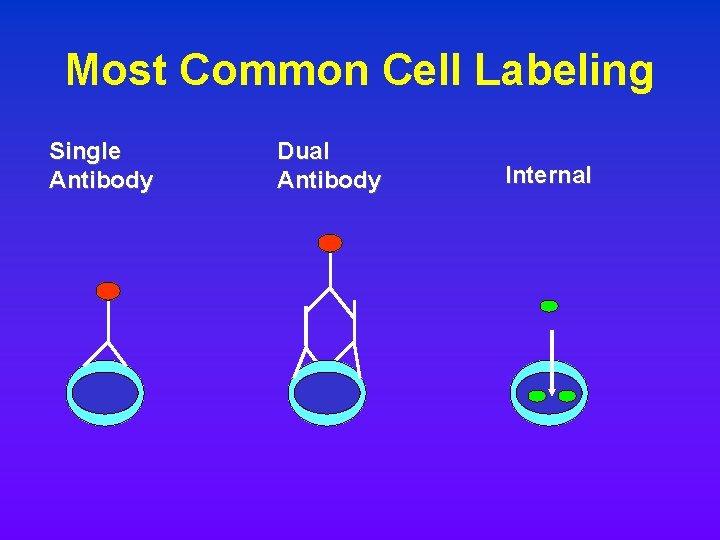

Most Common Cell Labeling Single Antibody Dual Antibody Internal

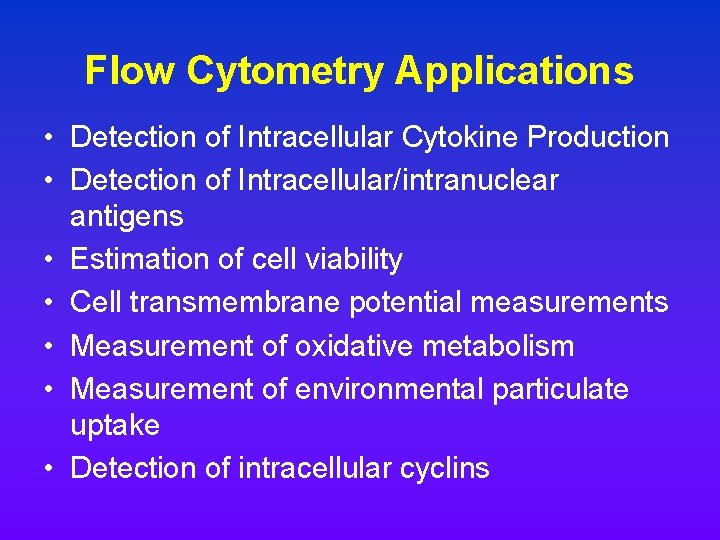

Flow Cytometry Applications • Detection of Intracellular Cytokine Production • Detection of Intracellular/intranuclear antigens • Estimation of cell viability • Cell transmembrane potential measurements • Measurement of oxidative metabolism • Measurement of environmental particulate uptake • Detection of intracellular cyclins

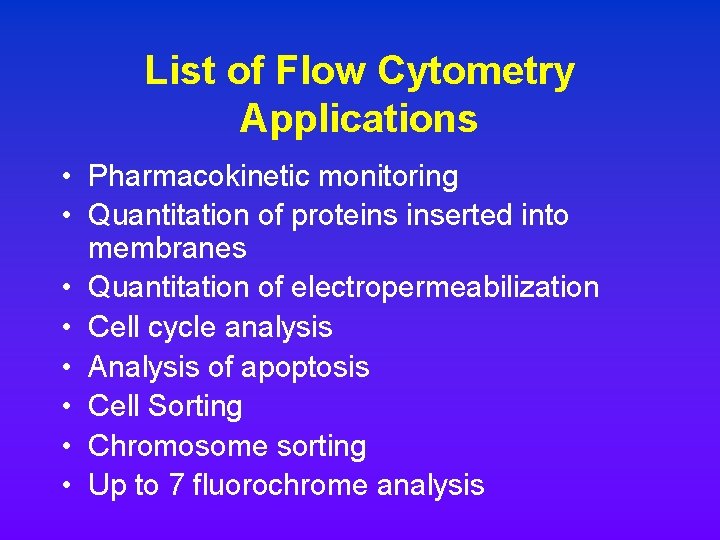

List of Flow Cytometry Applications • Pharmacokinetic monitoring • Quantitation of proteins inserted into membranes • Quantitation of electropermeabilization • Cell cycle analysis • Analysis of apoptosis • Cell Sorting • Chromosome sorting • Up to 7 fluorochrome analysis

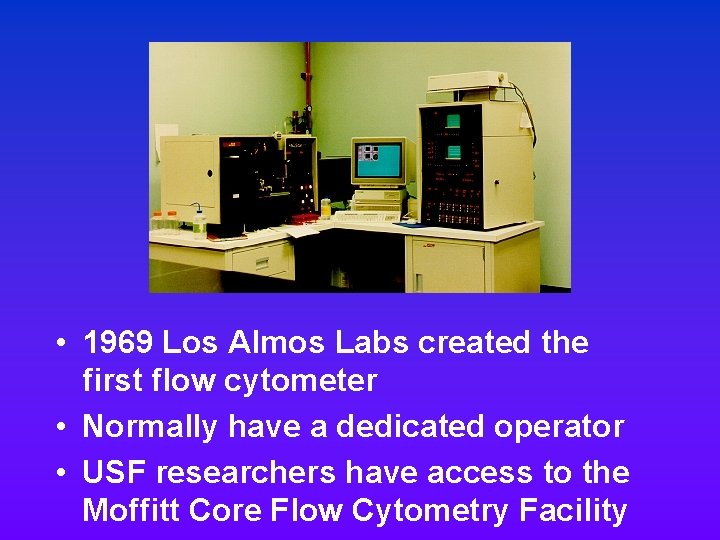

• 1969 Los Almos Labs created the first flow cytometer • Normally have a dedicated operator • USF researchers have access to the Moffitt Core Flow Cytometry Facility

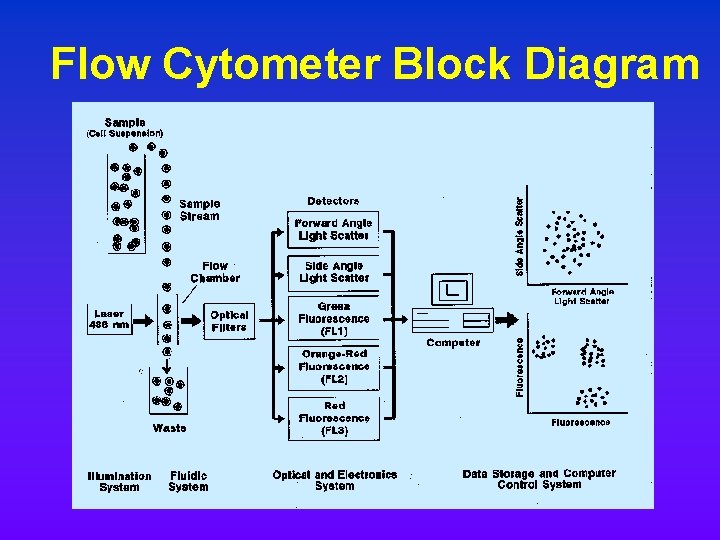

Flow Cytometer Block Diagram

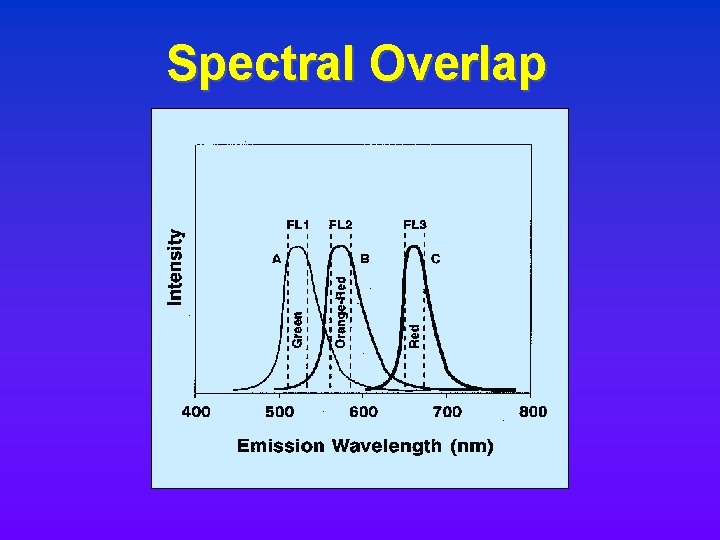

Spectral Overlap

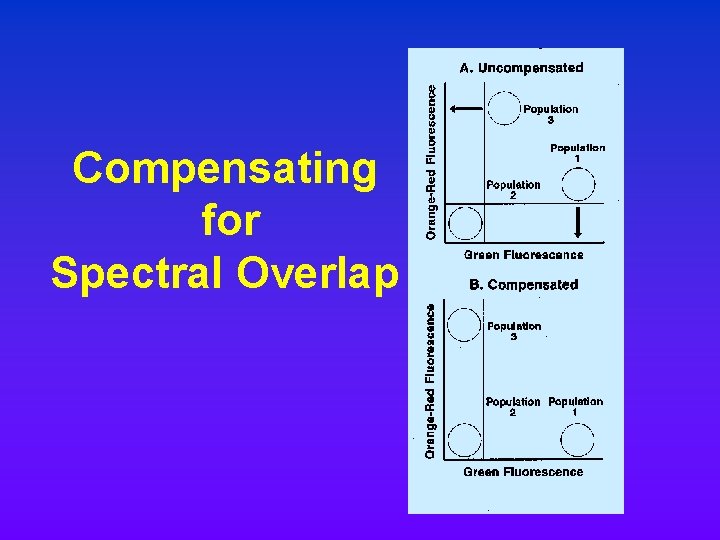

Compensating for Spectral Overlap

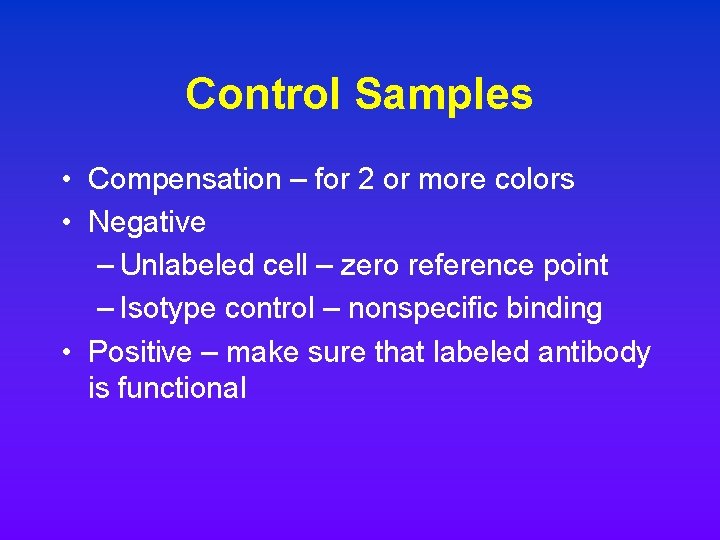

Control Samples • Compensation – for 2 or more colors • Negative – Unlabeled cell – zero reference point – Isotype control – nonspecific binding • Positive – make sure that labeled antibody is functional

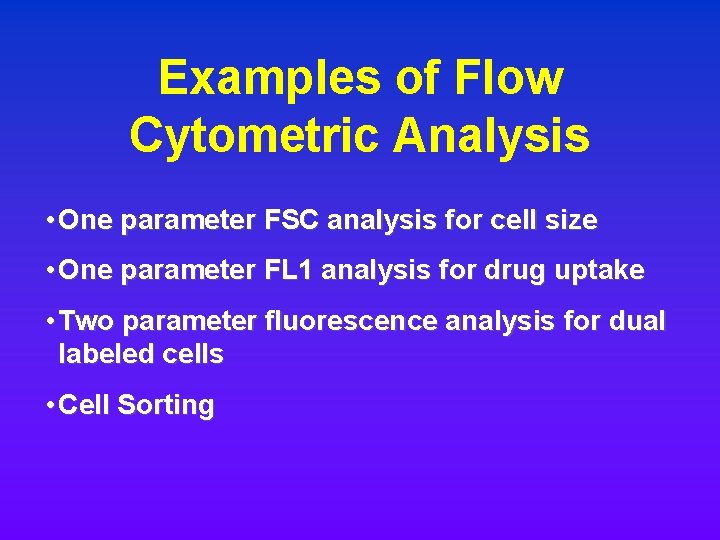

Examples of Flow Cytometric Analysis • One parameter FSC analysis for cell size • One parameter FL 1 analysis for drug uptake • Two parameter fluorescence analysis for dual labeled cells • Cell Sorting

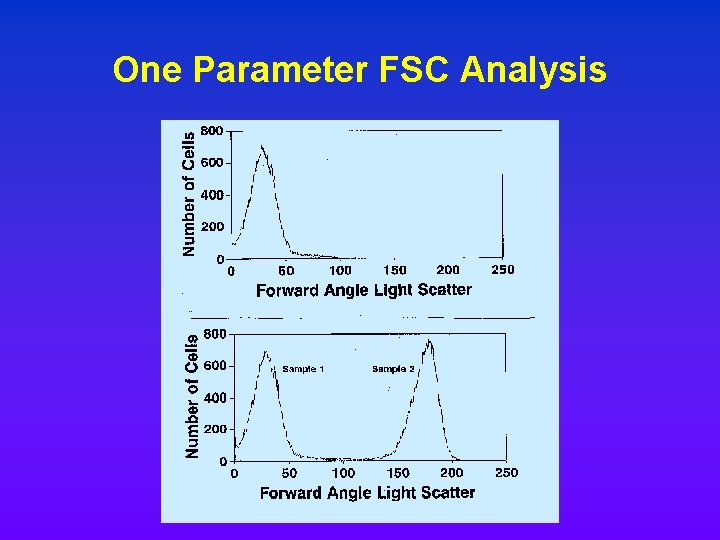

One Parameter FSC Analysis

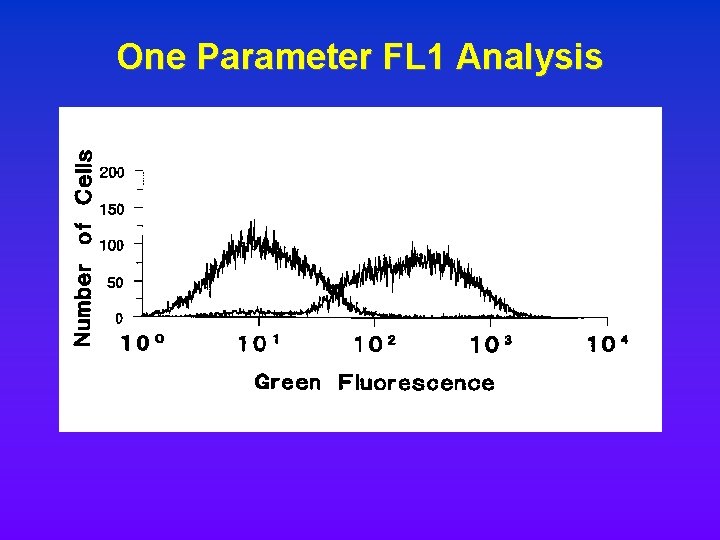

One Parameter FL 1 Analysis

One Parameter FL 1 Analysis

Fluorescence Two Color Analysis Unfused Fused

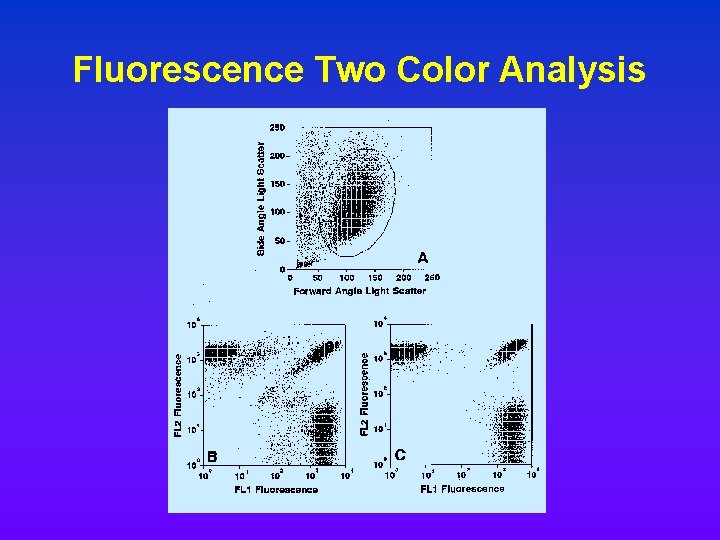

Fluorescence Two Color Analysis

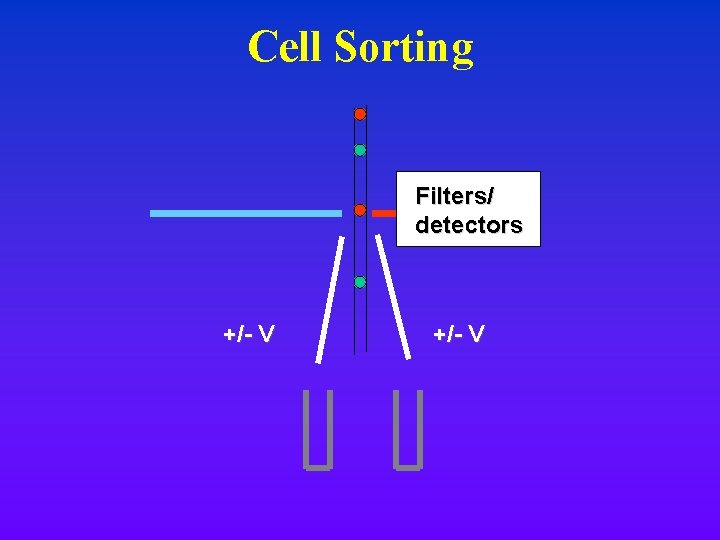

Cell Sorting Filters/ detectors +/- V
