Flow Complex Joachim Giesen FriedrichSchillerUniversitt Jena Points Surface

Flow Complex Joachim Giesen Friedrich-Schiller-Universität Jena

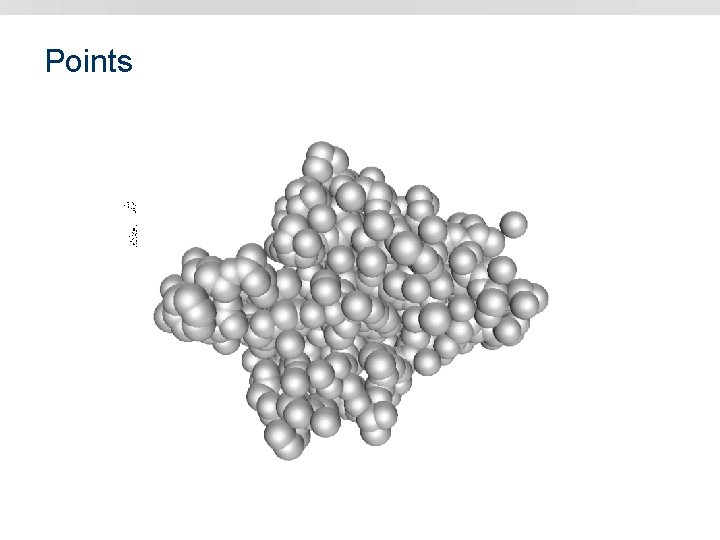

Points

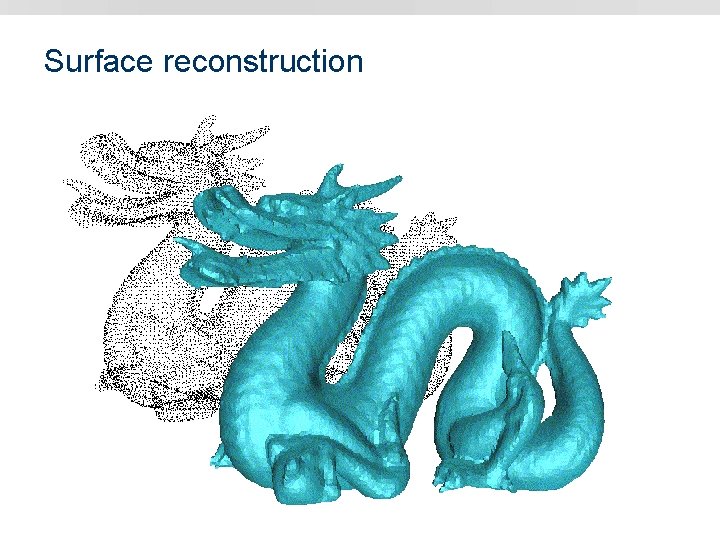

Surface reconstruction

Proteins: feature extraction

The Flow Complex joint work with Matthias John

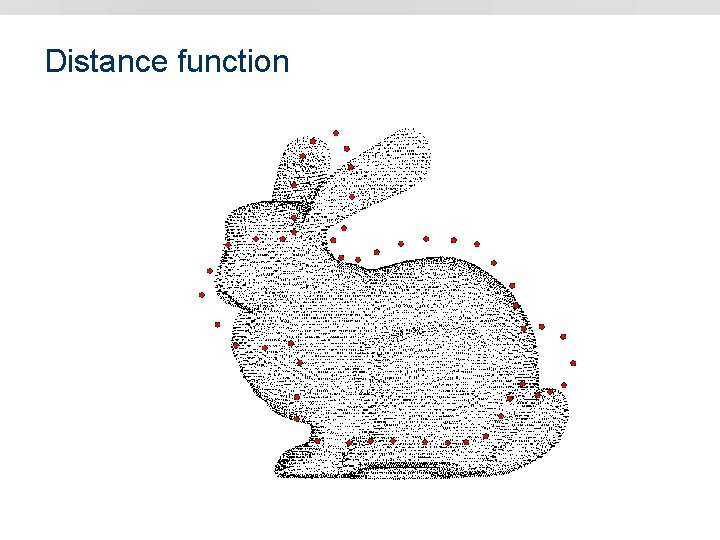

Distance function

Distance function x d(x)

Distance function

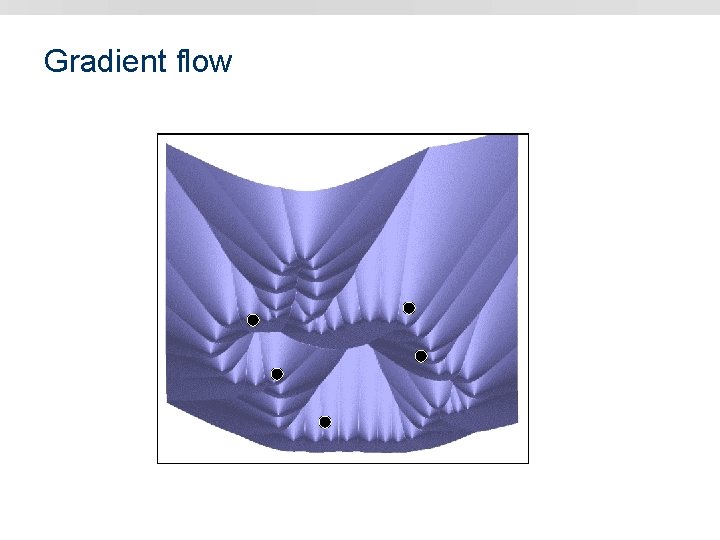

Gradient flow

Critical points maxima saddle points

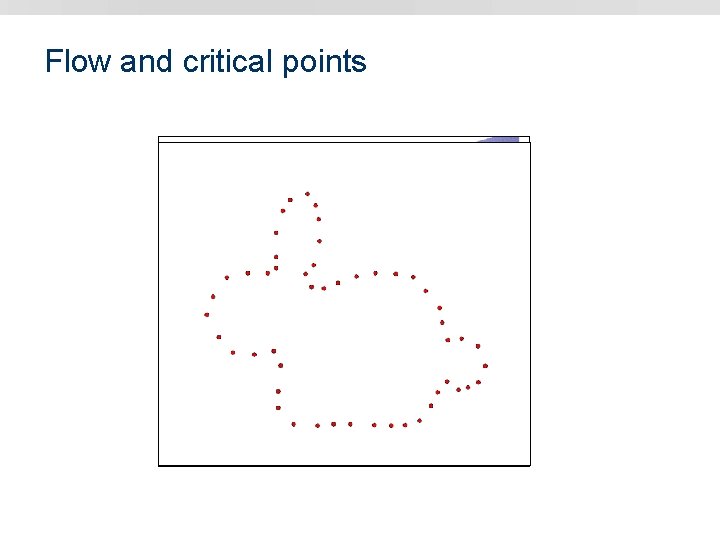

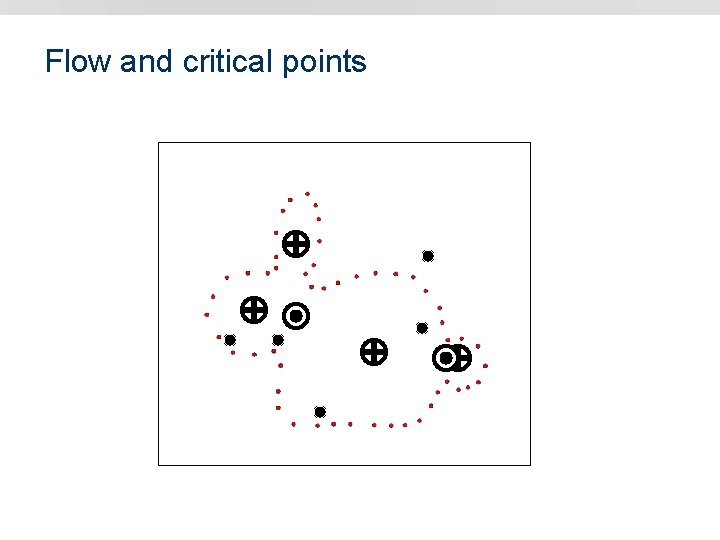

Flow and critical points

Flow and critical points

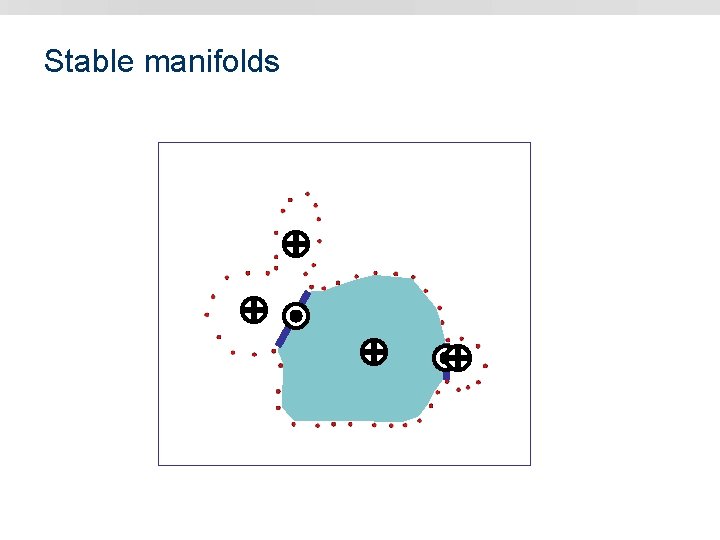

Stable manifolds

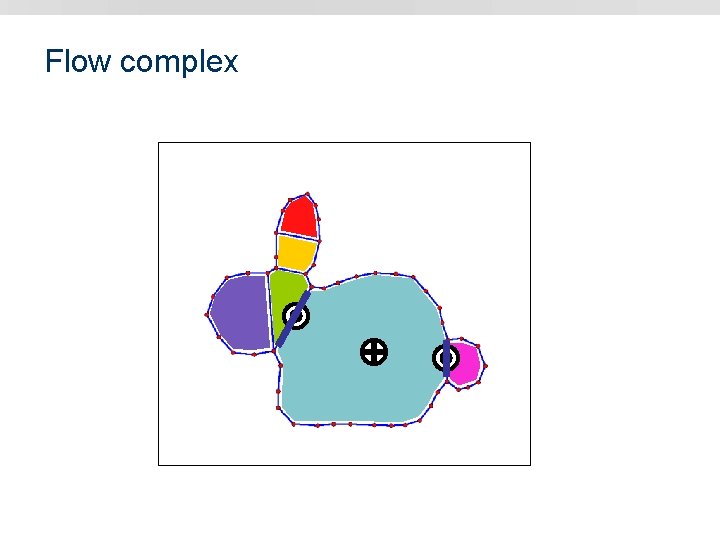

Flow complex

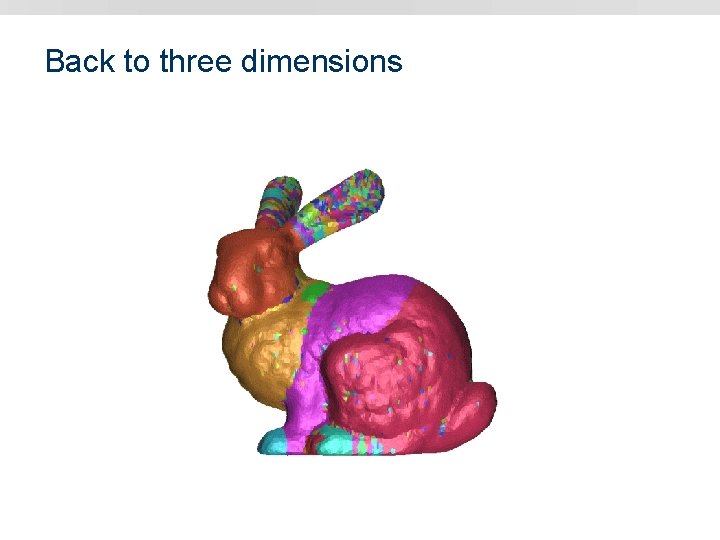

Back to three dimensions

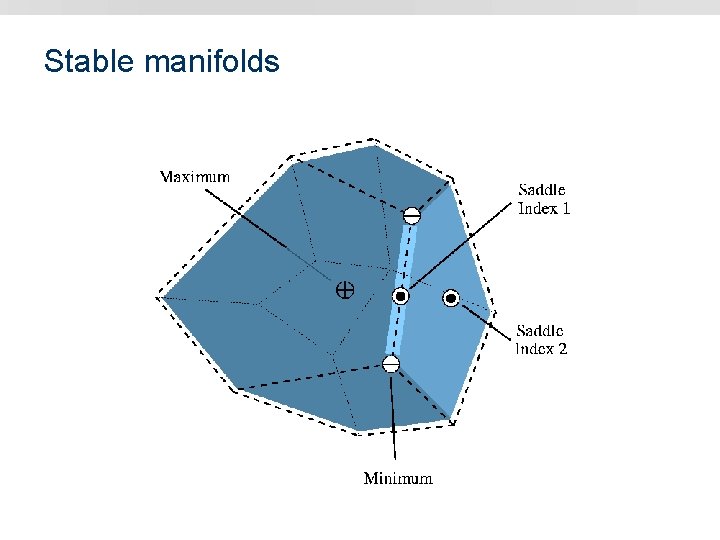

Stable manifolds

Surface Reconstruction (first attempt) joint work with Matthias John

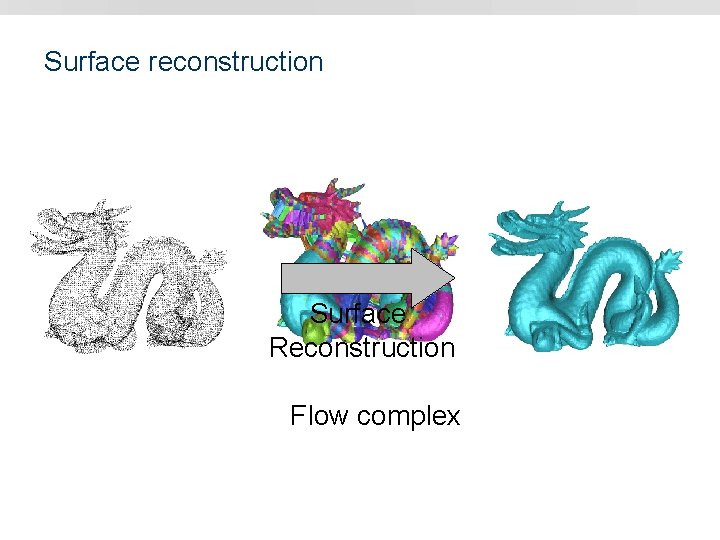

Surface reconstruction Surface Reconstruction Flow complex

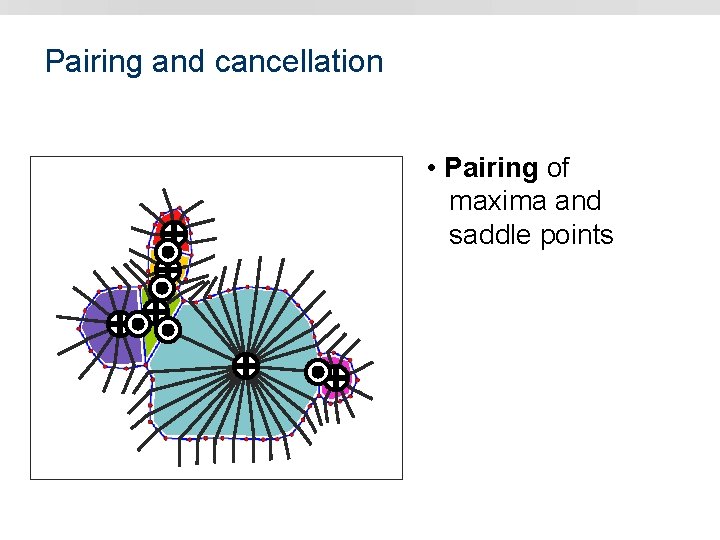

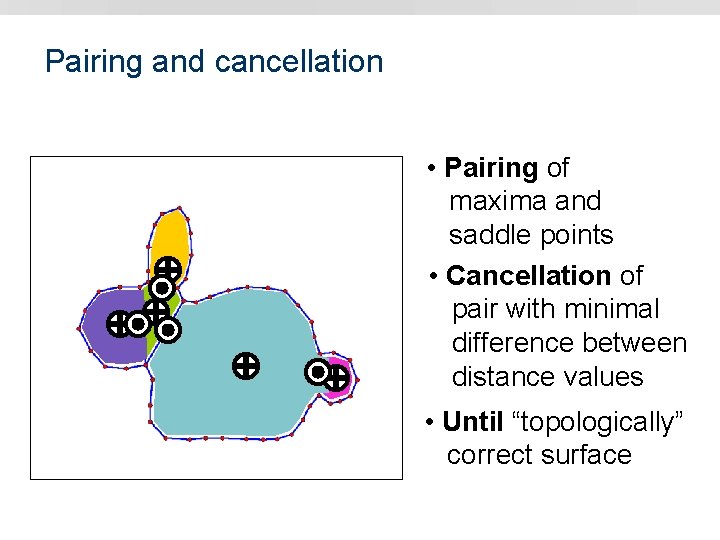

Pairing and cancellation • Pairing of maxima and saddle points

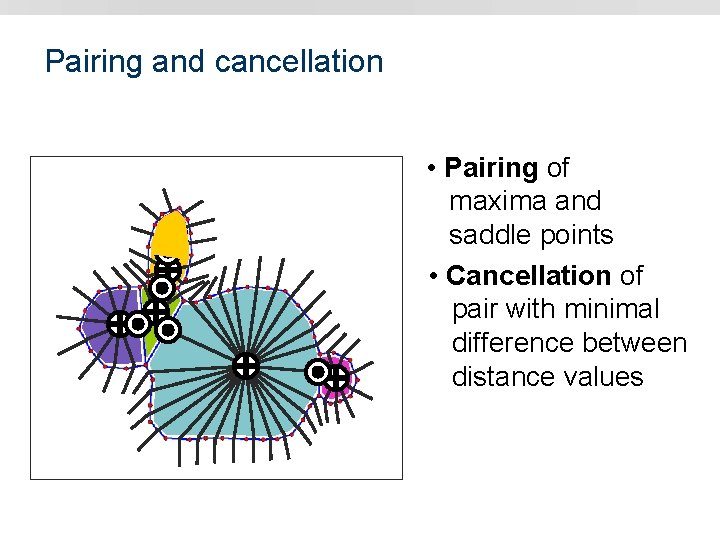

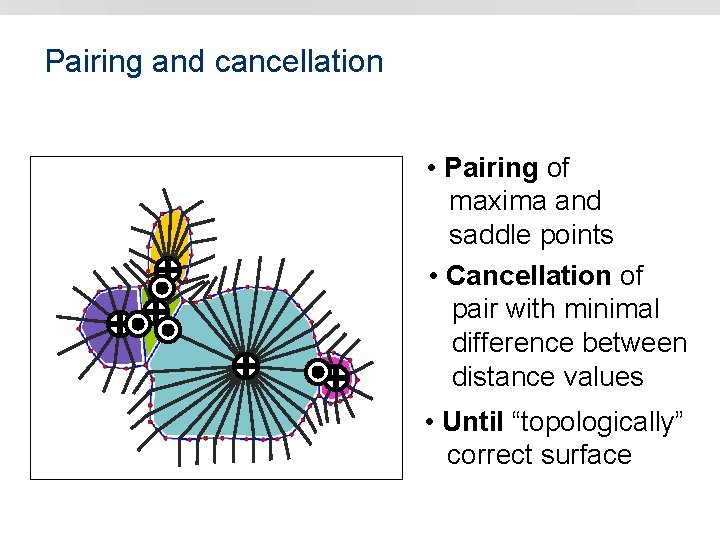

Pairing and cancellation • Pairing of maxima and saddle points • Cancellation of pair with minimal difference between distance values

Pairing and cancellation • Pairing of maxima and saddle points • Cancellation of pair with minimal difference between distance values

Pairing and cancellation • Pairing of maxima and saddle points • Cancellation of pair with minimal difference between distance values • Until “topologically” correct surface

Pairing and cancellation • Pairing of maxima and saddle points • Cancellation of pair with minimal difference between distance values • Until “topologically” correct surface

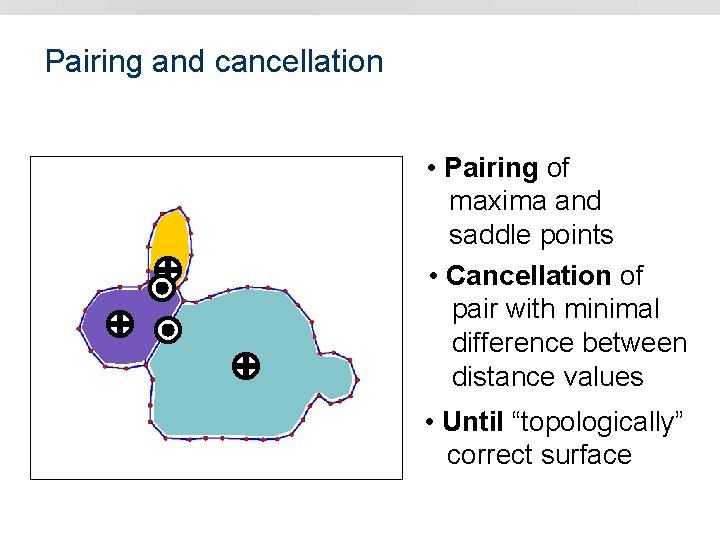

Pairing and cancellation • Pairing of maxima and saddle points • Cancellation of pair with minimal difference between distance values • Until “topologically” correct surface

Pairing and cancellation • Pairing of maxima and saddle points • Cancellation of pair with minimal difference between distance values • Until “topologically” correct surface

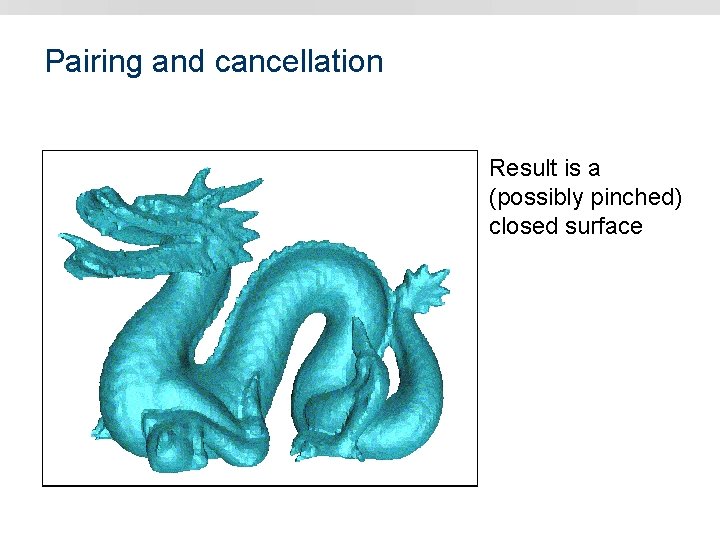

Pairing and cancellation Result is a (possibly pinched) closed surface

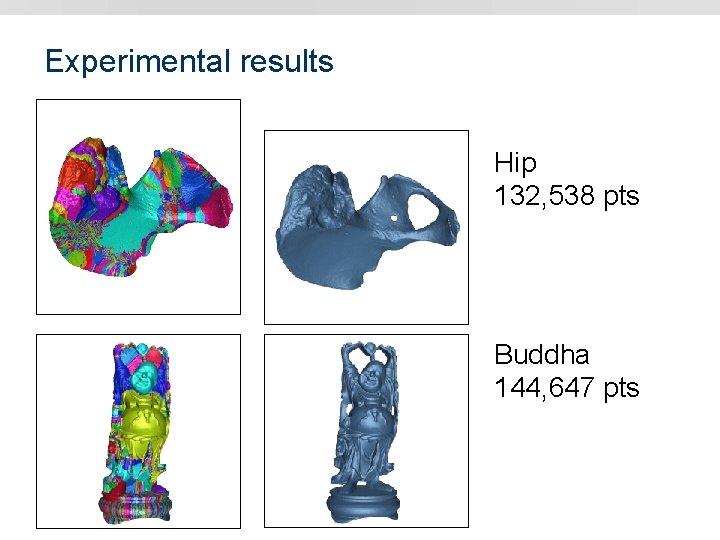

Experimental results Hip 132, 538 pts Buddha 144, 647 pts

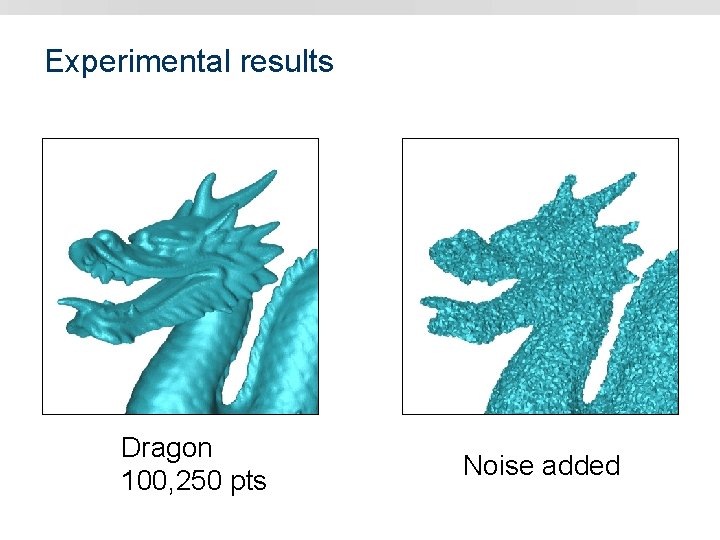

Experimental results Dragon 100, 250 pts Noise added

Pockets in Proteins joint work Matthias John

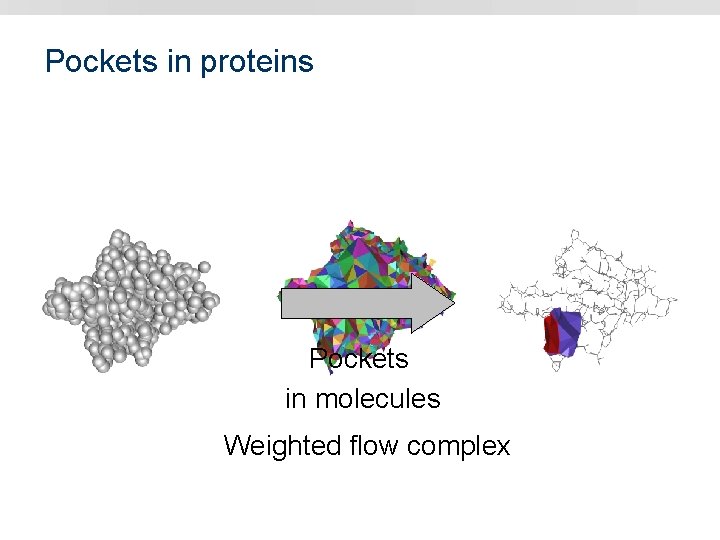

Pockets in proteins Pockets in molecules Weighted flow complex

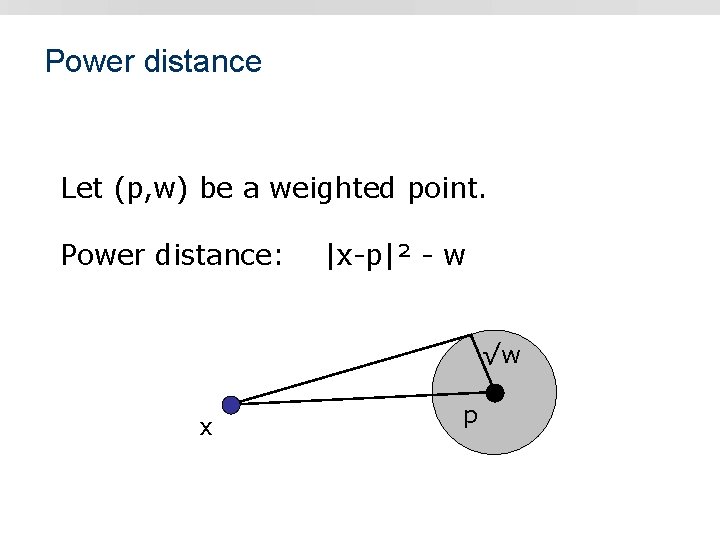

Power distance Let (p, w) be a weighted point. Power distance: |x-p|² - w √w x p

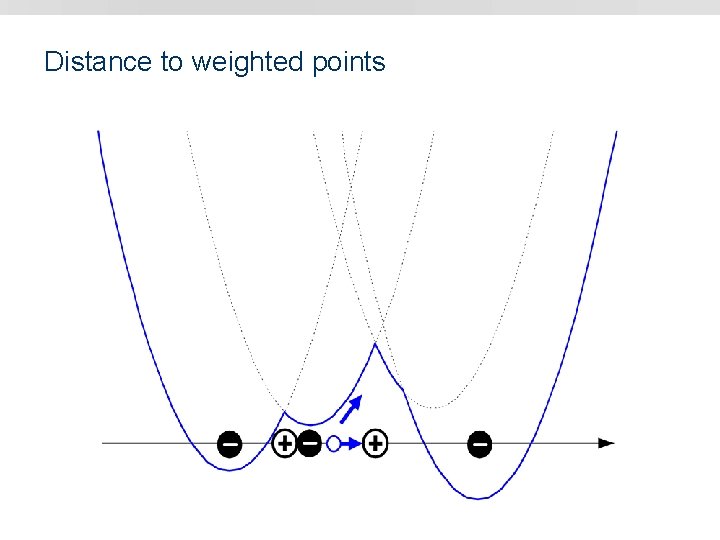

Distance to weighted points

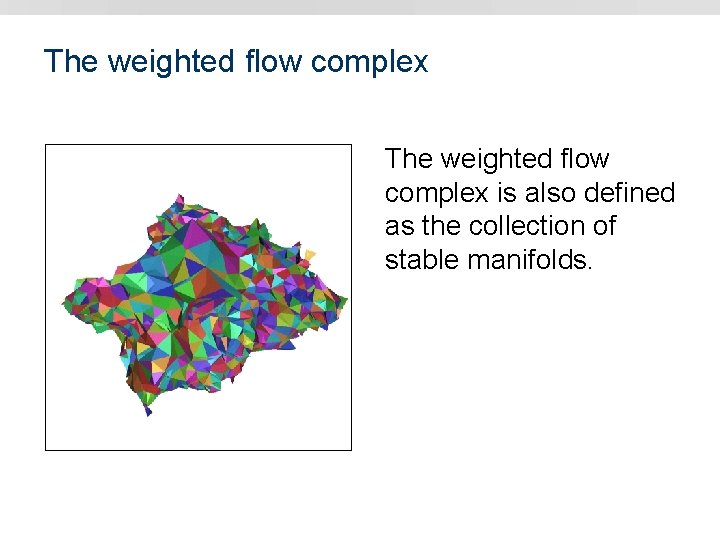

The weighted flow complex is also defined as the collection of stable manifolds.

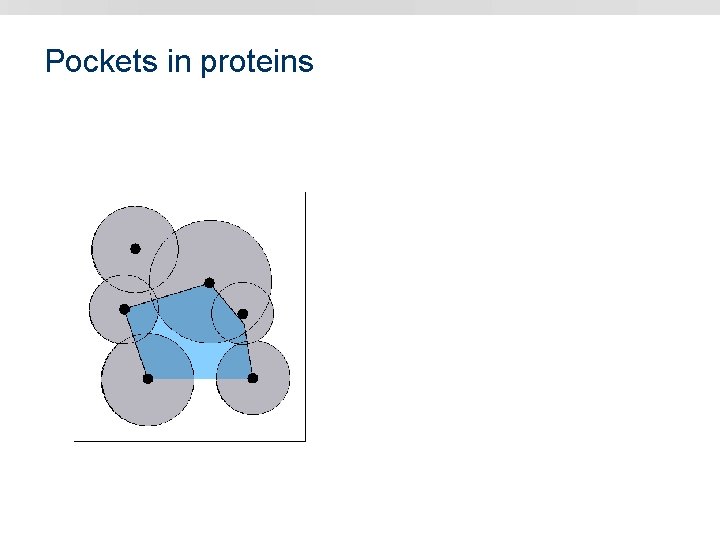

Pockets in proteins

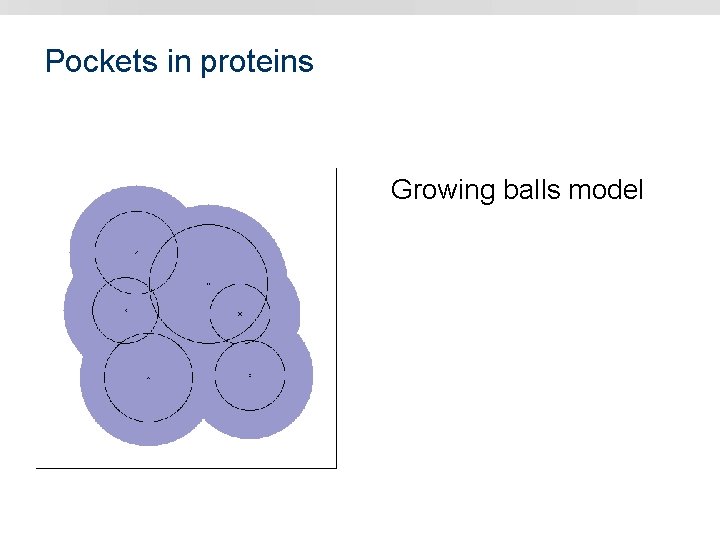

Pockets in proteins Growing balls model

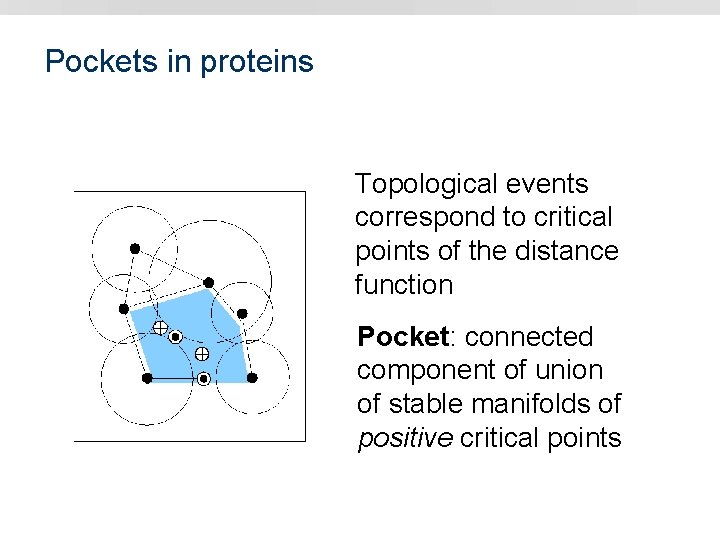

Pockets in proteins Topological events correspond to critical points of the distance function Pocket: connected component of union of stable manifolds of positive critical points

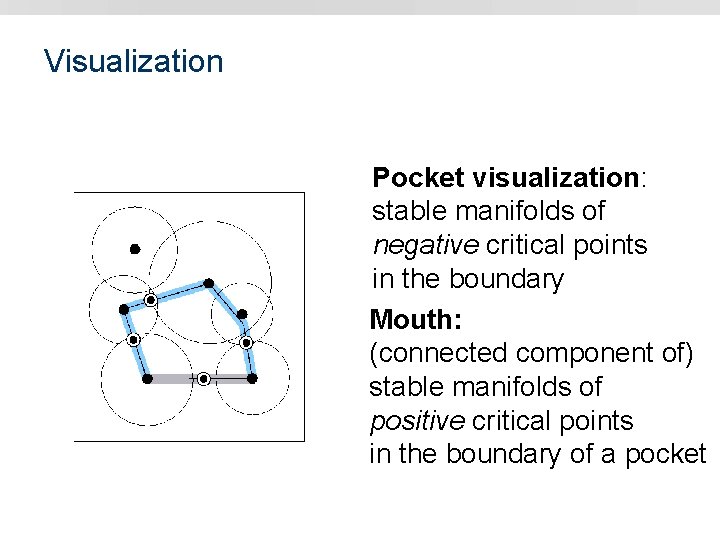

Visualization Pocket visualization: stable manifolds of negative critical points in the boundary Mouth: (connected component of) stable manifolds of positive critical points in the boundary of a pocket

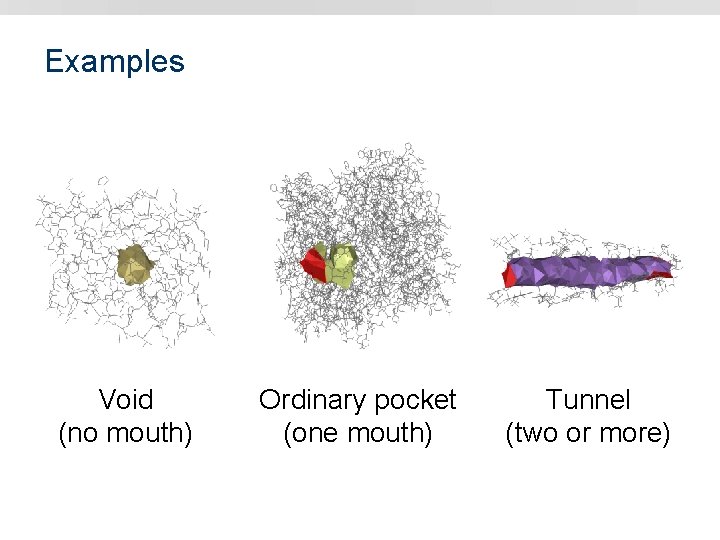

Examples Void (no mouth) Ordinary pocket (one mouth) Tunnel (two or more)

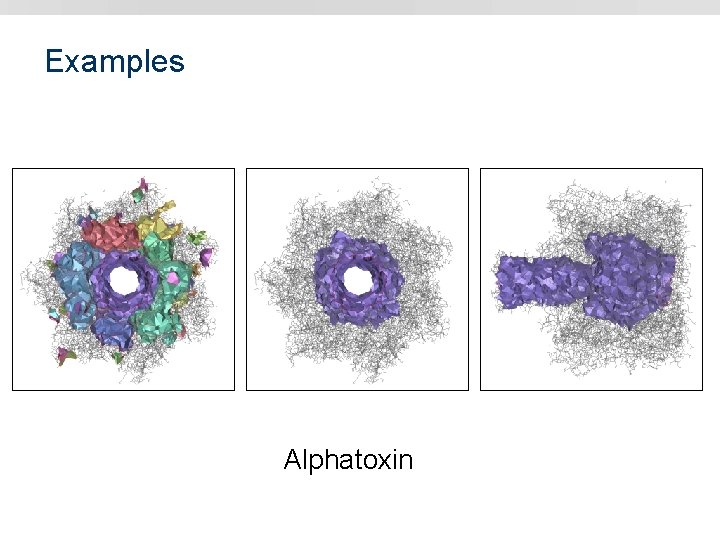

Examples Alphatoxin

Surface Reconstruction joint work with Tamal Dey, Edgar Ramos and Bardia Sadri

Theorem For a dense sample of a smooth surface the critical points are either close to the surface or close to the medial axis of the surface.

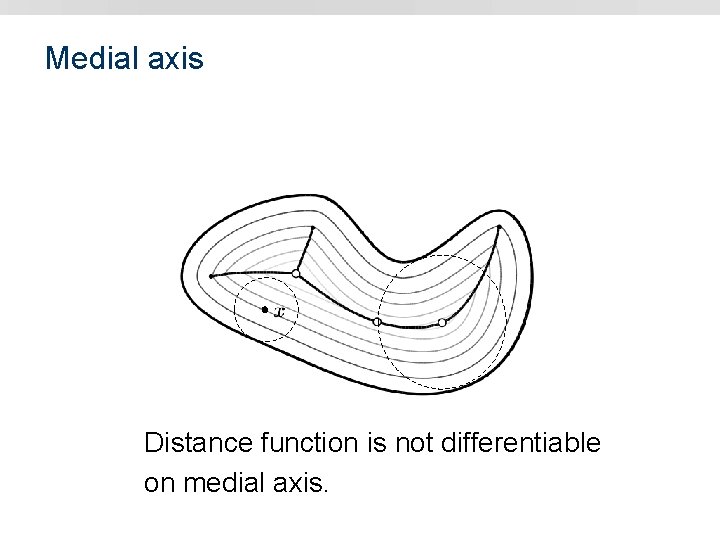

Medial axis Distance function is not differentiable on medial axis.

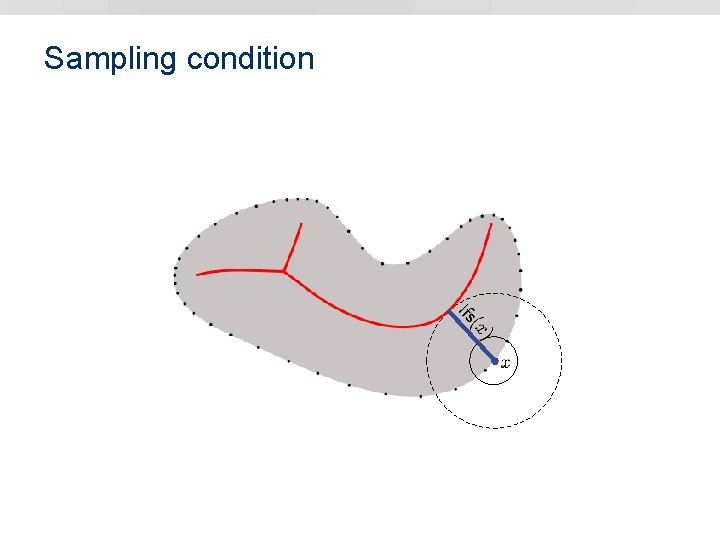

Sampling condition

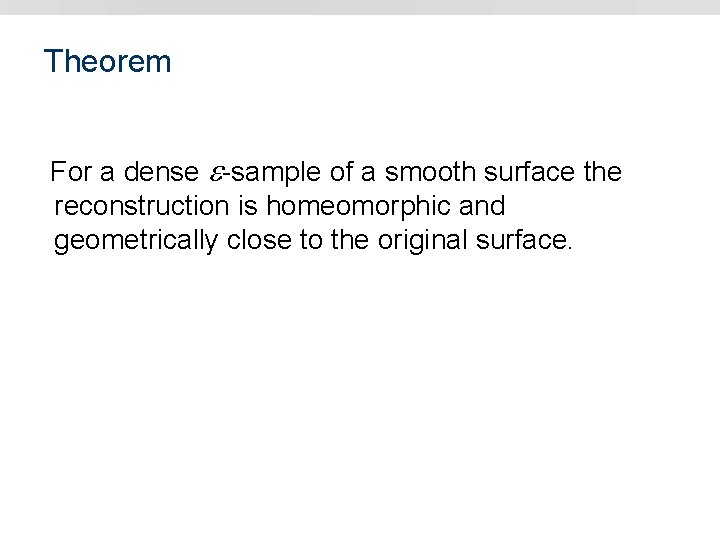

Theorem For a dense -sample of a smooth surface the reconstruction is homeomorphic and geometrically close to the original surface.

Medial Axis Approximation joint work with Edgar Ramos and Bardia Sadri

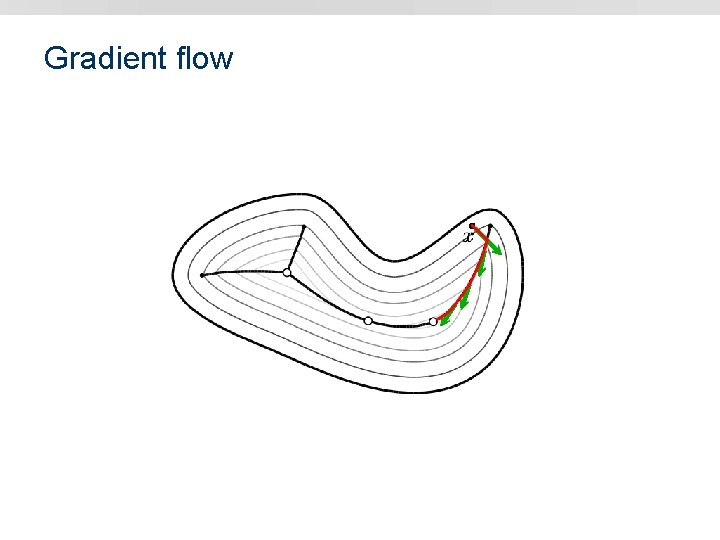

Gradient flow

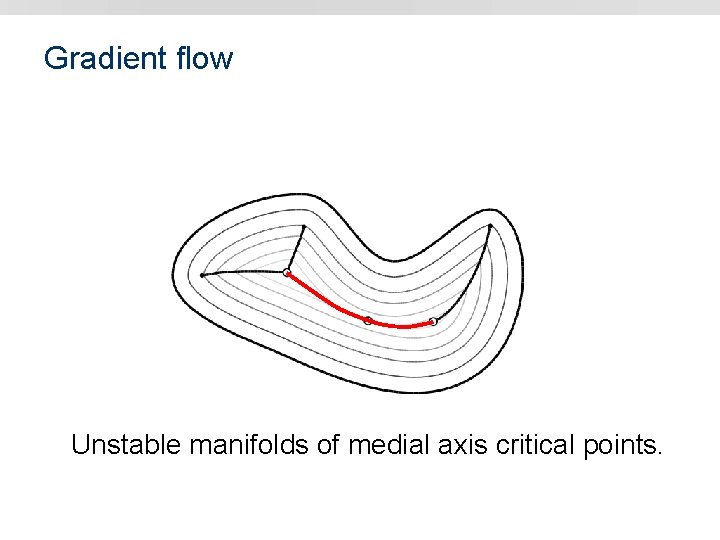

Gradient flow Unstable manifolds of medial axis critical points.

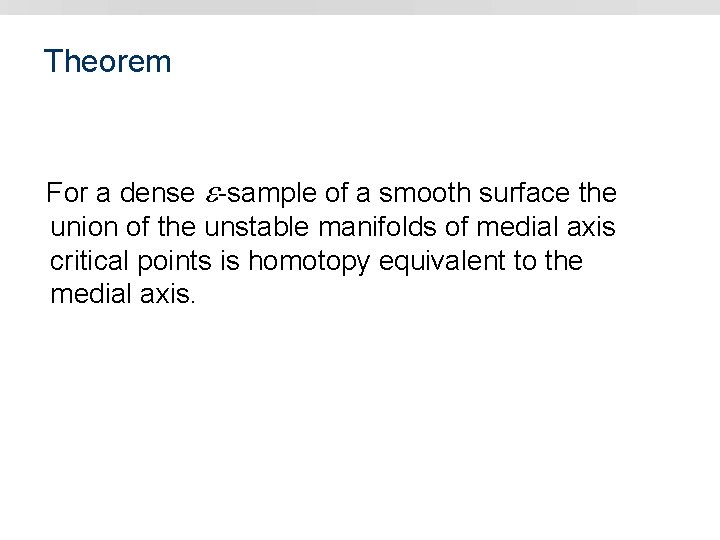

Theorem For a dense -sample of a smooth surface the union of the unstable manifolds of medial axis critical points is homotopy equivalent to the medial axis.

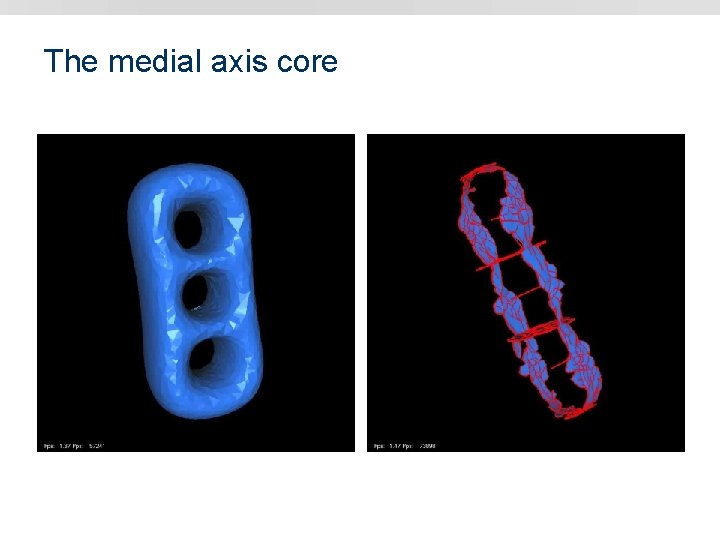

The medial axis core

Shape Segmentation / Matching joint work with Tamal Dey and Samrat Goswami

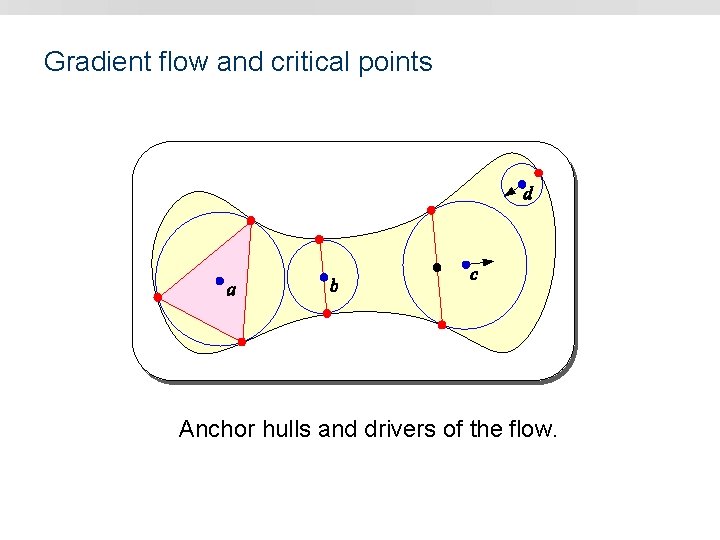

Gradient flow and critical points Anchor hulls and drivers of the flow.

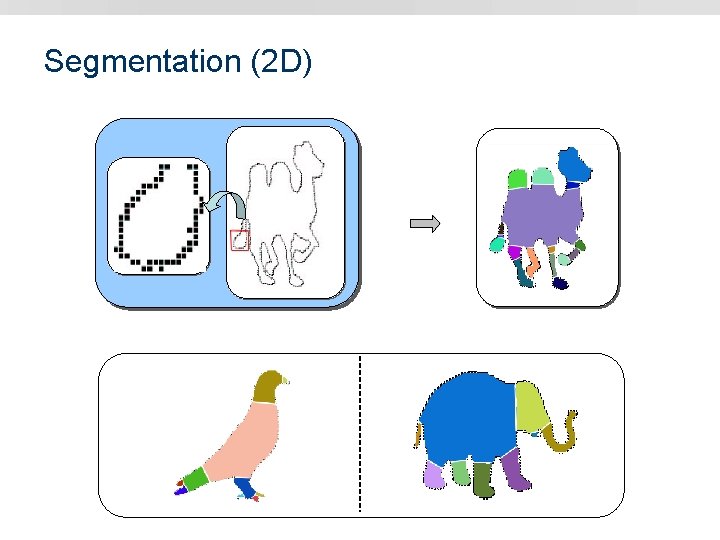

Segmentation (2 D)

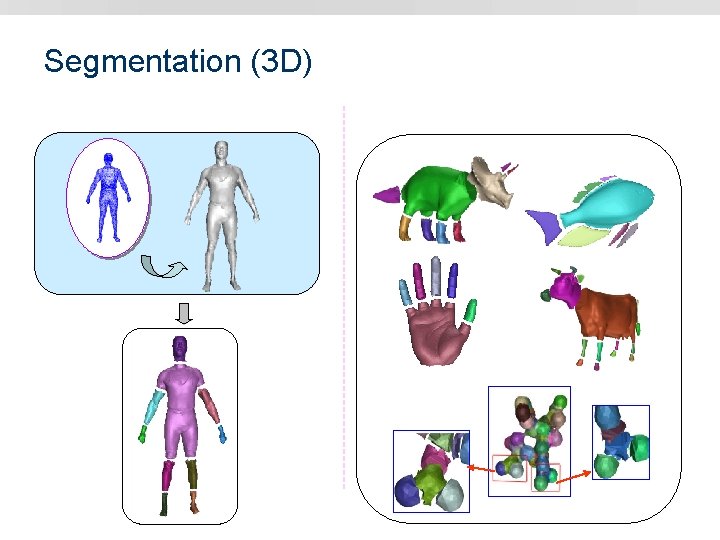

Segmentation (3 D)

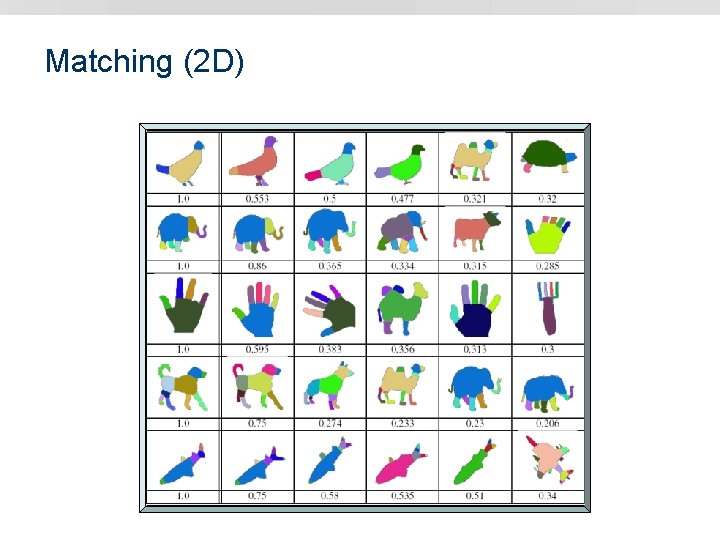

Matching (2 D)

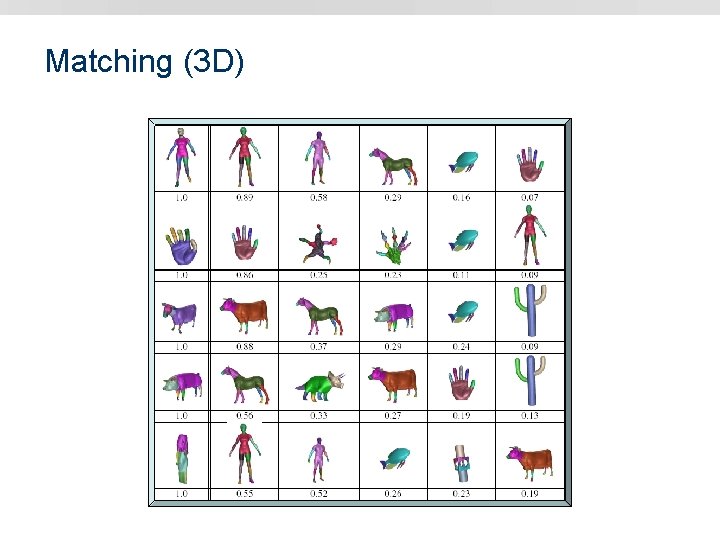

Matching (3 D)

Flow Shapes and Alpha Shapes joint work with Matthias John and Tamal Dey

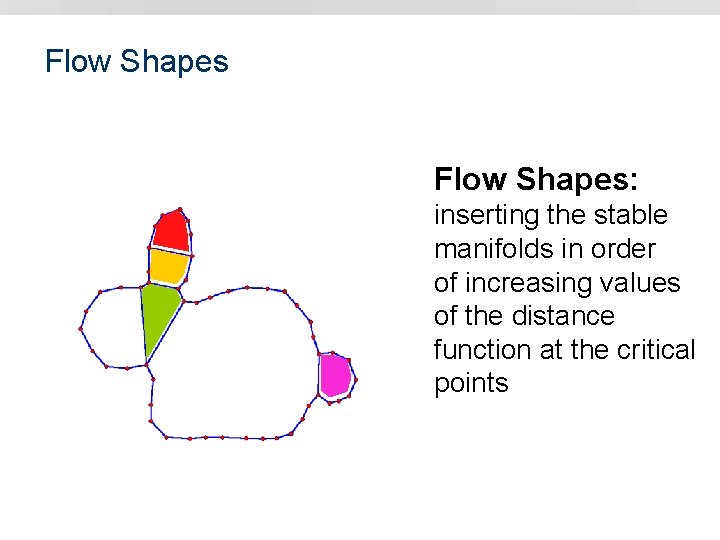

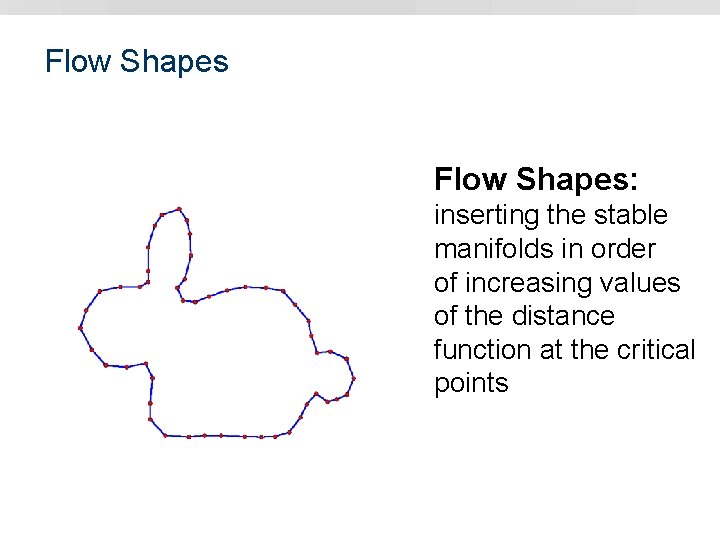

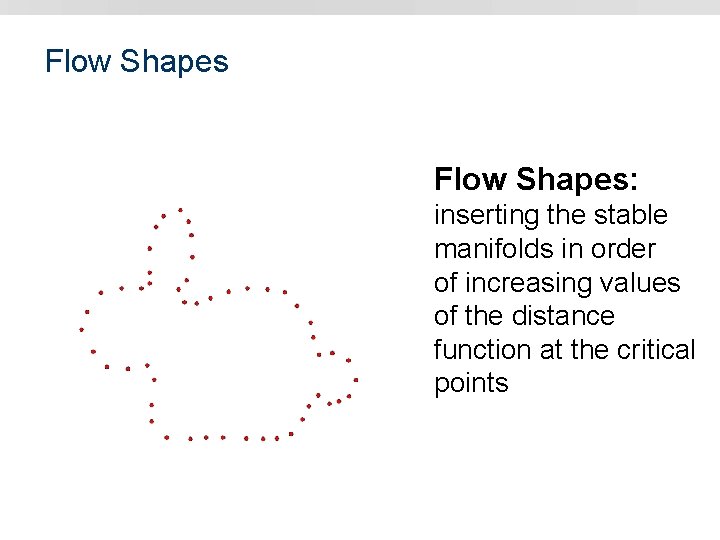

Flow Shapes: inserting the stable manifolds in order of increasing values of the distance function at the critical points

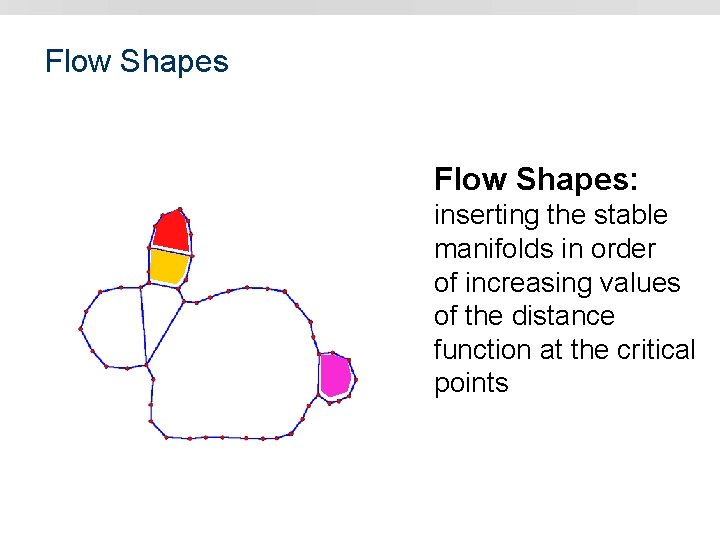

Flow Shapes: inserting the stable manifolds in order of increasing values of the distance function at the critical points

Flow Shapes: inserting the stable manifolds in order of increasing values of the distance function at the critical points

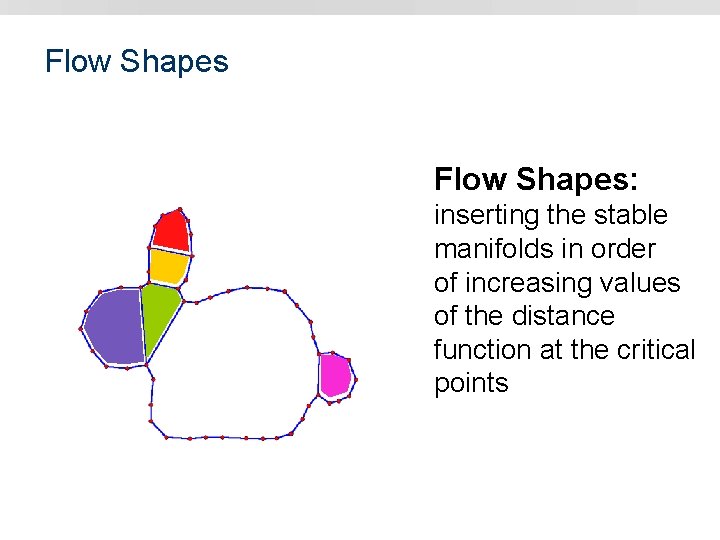

Flow Shapes: inserting the stable manifolds in order of increasing values of the distance function at the critical points

Flow Shapes: inserting the stable manifolds in order of increasing values of the distance function at the critical points

Flow Shapes: inserting the stable Finite Sequence manifolds in order C¹…Cⁿ of cell values of increasing complexes. of the distance function at the critical C¹points = P (point set) Cⁿ = Flow complex

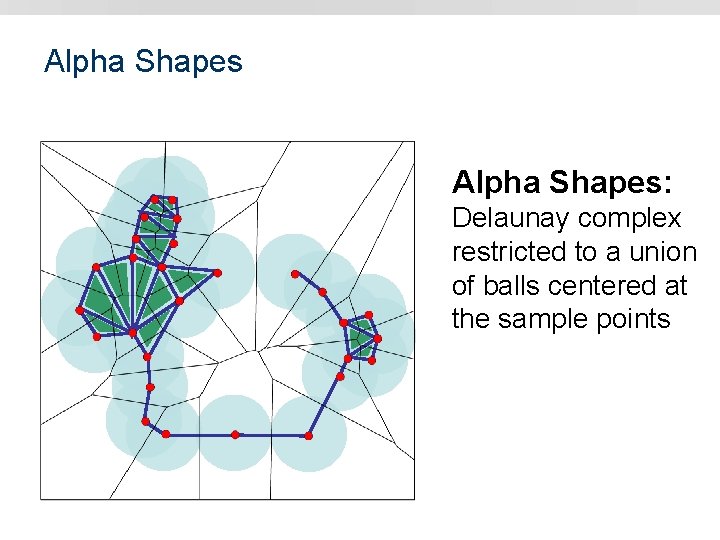

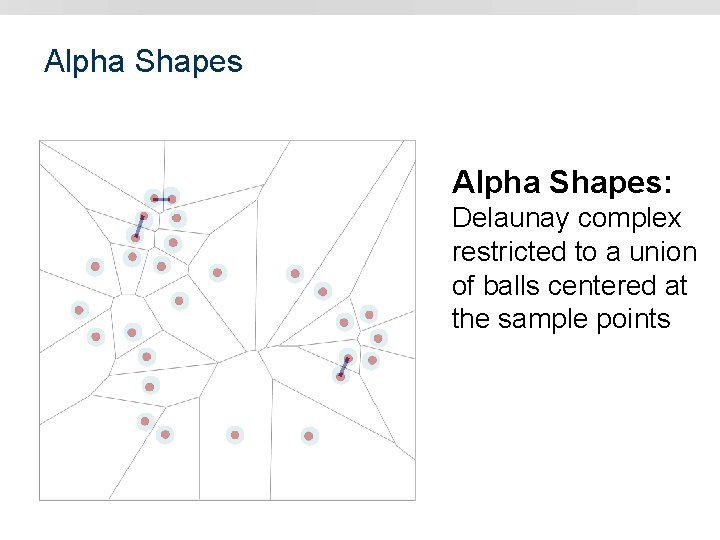

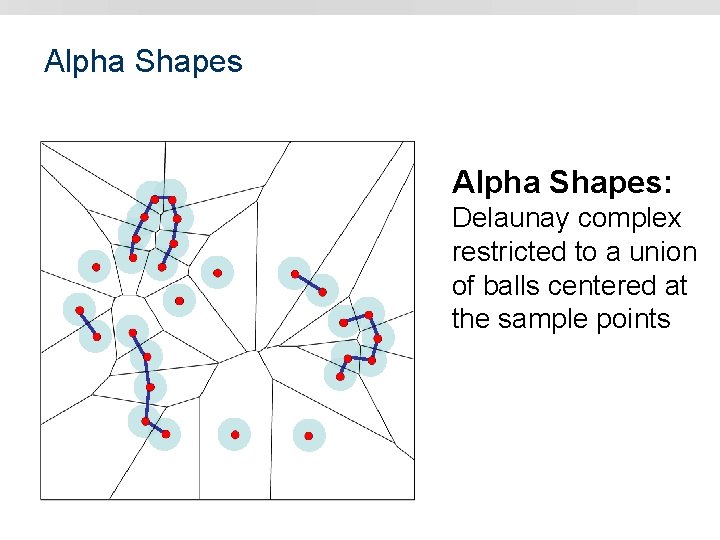

Alpha Shapes: Delaunay complex restricted to a union of balls centered at the sample points

Alpha Shapes: Delaunay complex restricted to a union of balls centered at the sample points

Alpha Shapes: Delaunay complex restricted to a union of balls centered at the sample points

Alpha Shapes: Delaunay complex restricted to a union of balls centered at the sample points

Alpha Shapes: Delaunay complex Finite Sequence restricted to a union C¹…Cⁿ´ of cell at of balls centered complexes, n´ ≥ n. the sample points C¹ = P (point set) Cⁿ´ = Delaunay triangulation

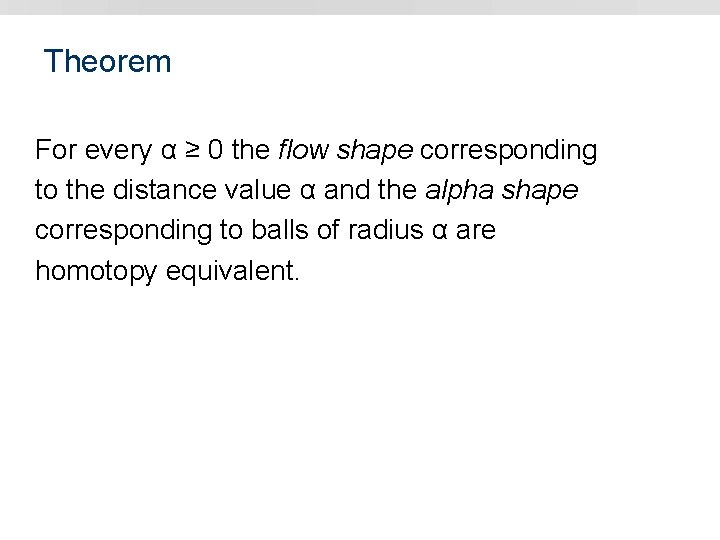

Theorem For every α ≥ 0 the flow shape corresponding to the distance value α and the alpha shape corresponding to balls of radius α are homotopy equivalent.

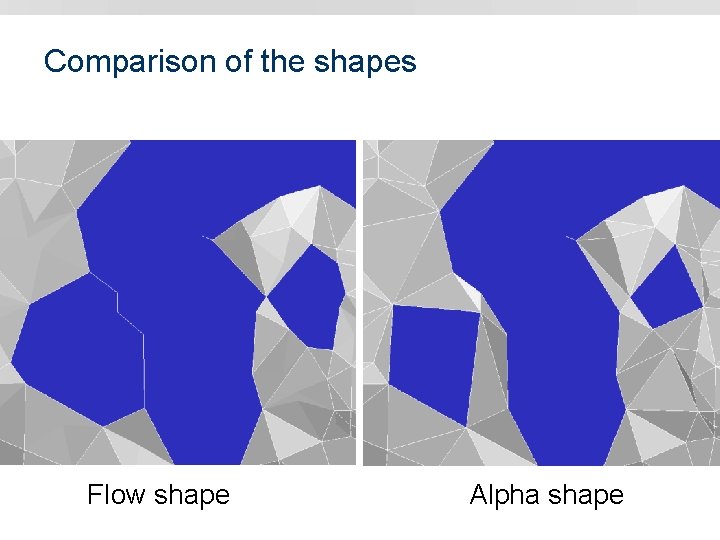

Comparison of the shapes Flow shape Alpha shape

Comparison of the shapes Flow shape Alpha shape

Comparison of the shapes Flow shape Alpha shape

Comparison of the shapes Flow shape Alpha shape

The End Thank you!
