Flow Cell Injector Tip Fluorescence signals Focused laser

Flow Cell Injector Tip Fluorescence signals Focused laser beam Sheath fluid

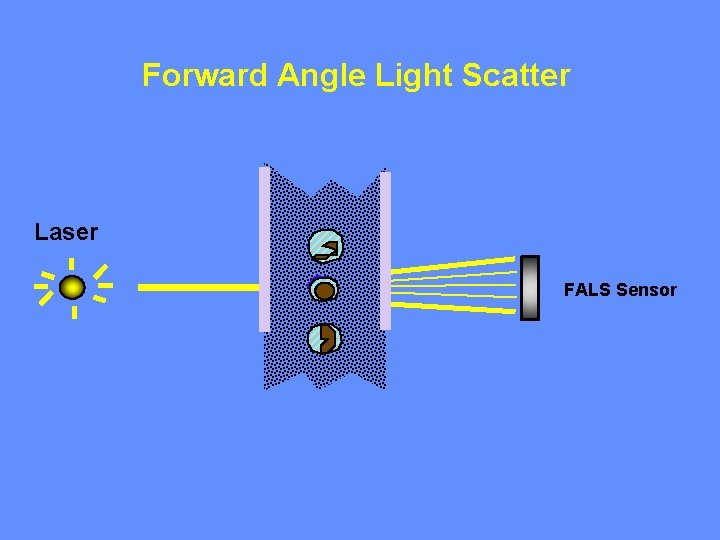

Forward Angle Light Scatter Laser FALS Sensor

90 Degree Light Scatter Laser FALS Sensor 90 LS Sensor

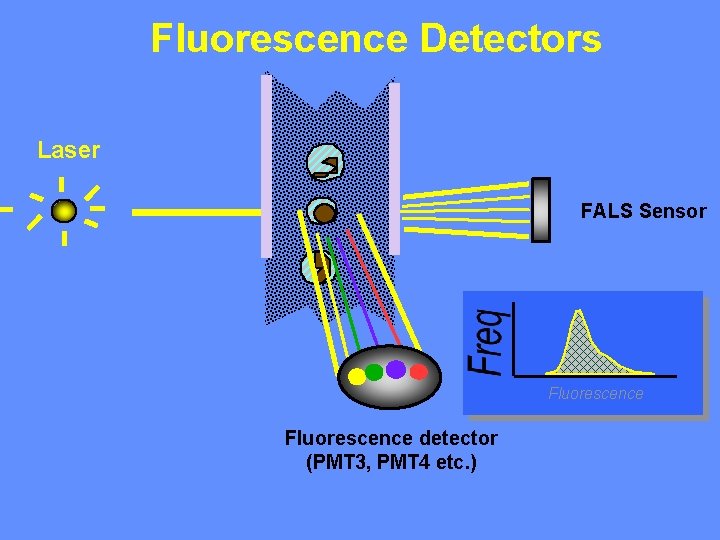

Fluorescence Detectors Laser FALS Sensor Fluorescence detector (PMT 3, PMT 4 etc. )

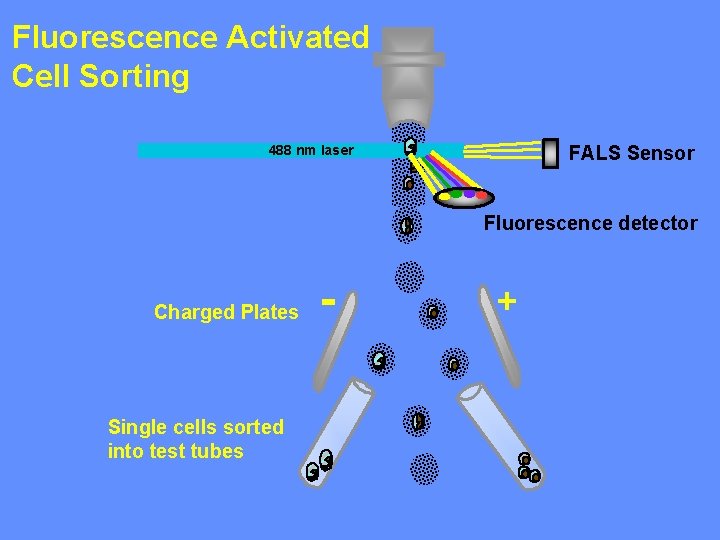

Fluorescence Activated Cell Sorting FALS Sensor 488 nm laser Fluorescence detector Charged Plates Single cells sorted into test tubes - +

Optical Filters Dichroic Filter/Mirror at 45 deg Light Source Transmitted Light Reflected light

Standard Band Pass Filters 630 nm Band. Pass Filter White Light Source Transmitted Light 620 -640 nm Light

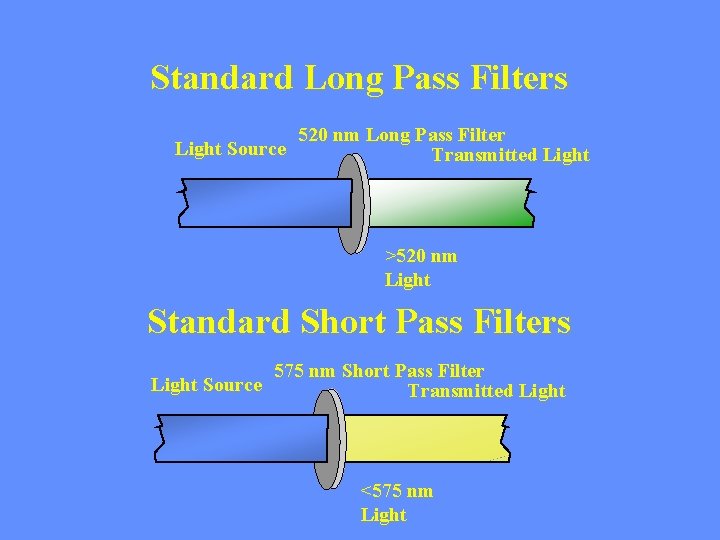

Standard Long Pass Filters Light Source 520 nm Long Pass Filter Transmitted Light >520 nm Light Standard Short Pass Filters Light Source 575 nm Short Pass Filter Transmitted Light <575 nm Light

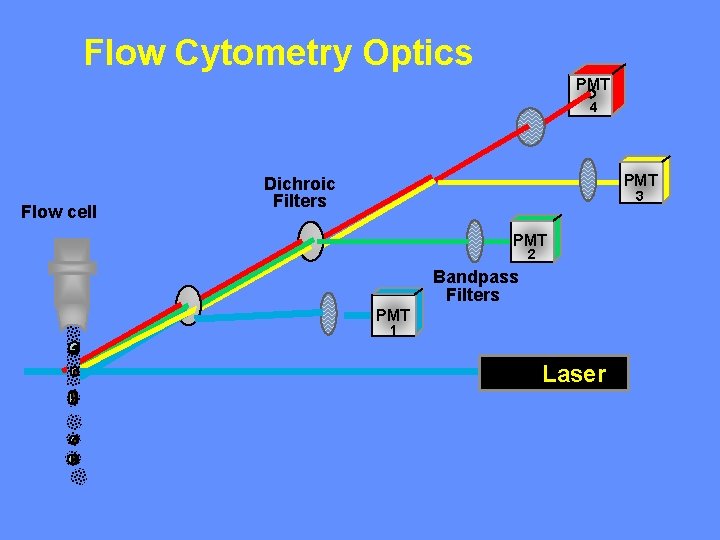

Flow Cytometry Optics PMT 4 Flow cell PMT Dichroic Filters 3 PMT 2 Bandpass Filters PMT 1 Laser

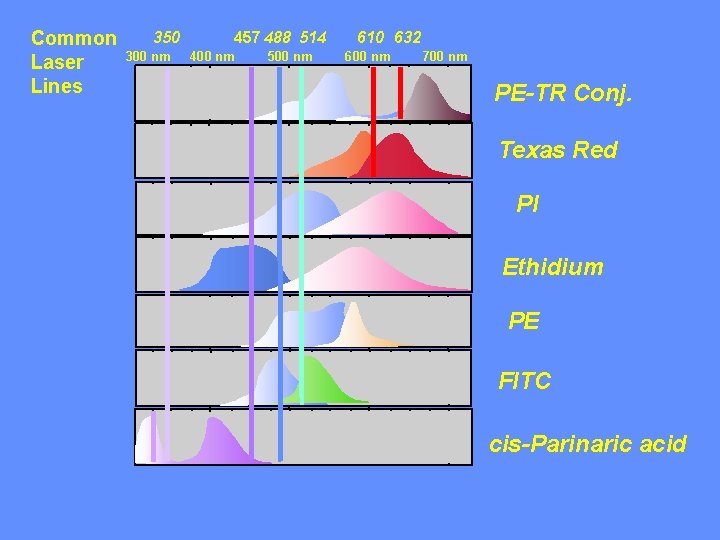

Common Laser Lines 350 300 nm 457 488 514 400 nm 500 nm 610 632 600 nm 700 nm PE-TR Conj. Texas Red PI Ethidium PE FITC cis-Parinaric acid

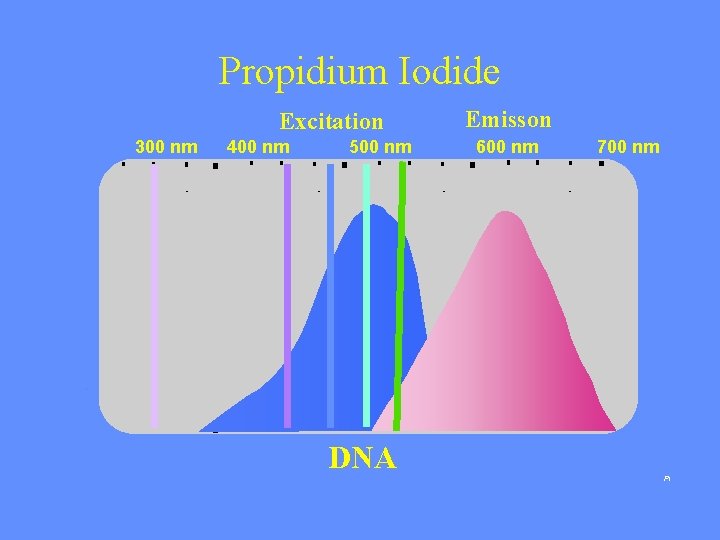

Propidium Iodide Emisson Excitation 300 nm 400 nm 500 nm 600 nm DNA 700 nm PI

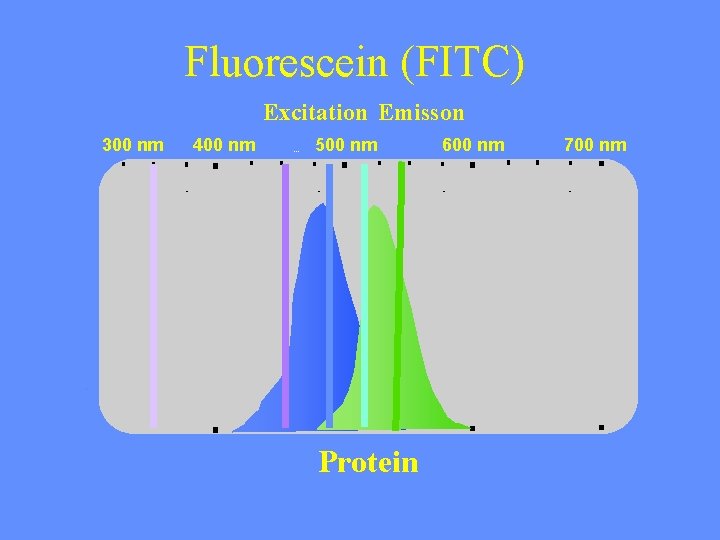

Fluorescein (FITC) Excitation Emisson 300 nm 400 nm Wavelength 500 nm Protein 600 nm 700 nm

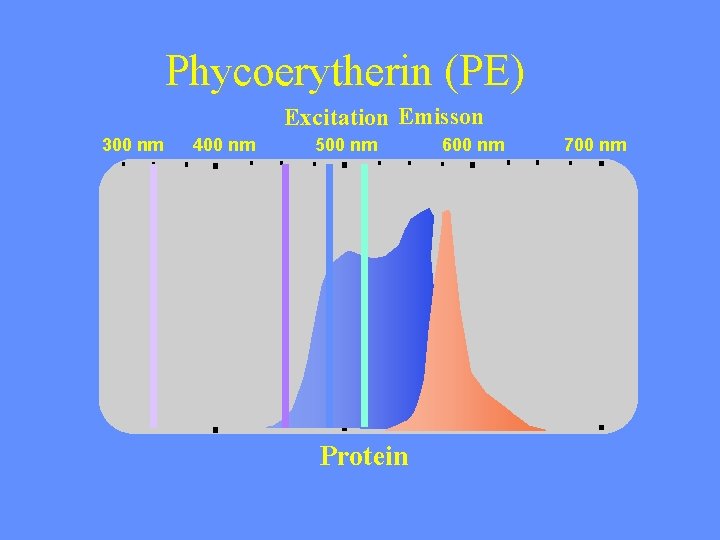

Phycoerytherin (PE) Excitation Emisson 300 nm 400 nm 500 nm Protein 600 nm 700 nm

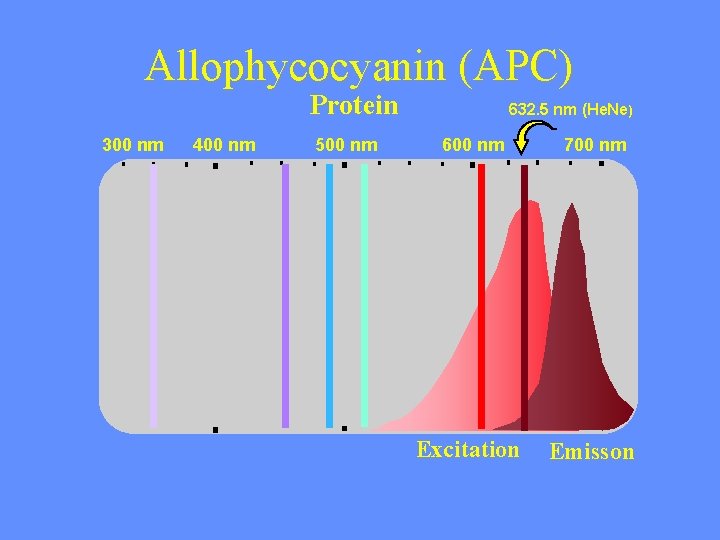

Allophycocyanin (APC) Protein 300 nm 400 nm 500 nm 632. 5 nm (He. Ne) 600 nm 700 nm Excitation Emisson

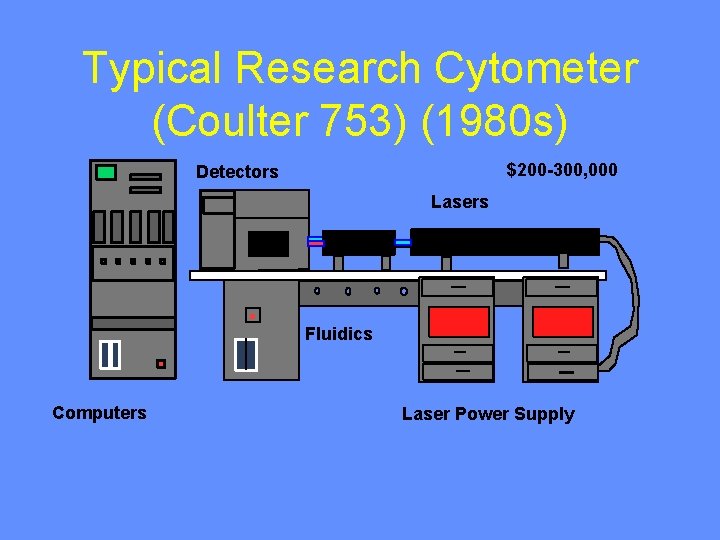

Typical Research Cytometer (Coulter 753) (1980 s) $200 -300, 000 Detectors Lasers Fluidics Computers Laser Power Supply

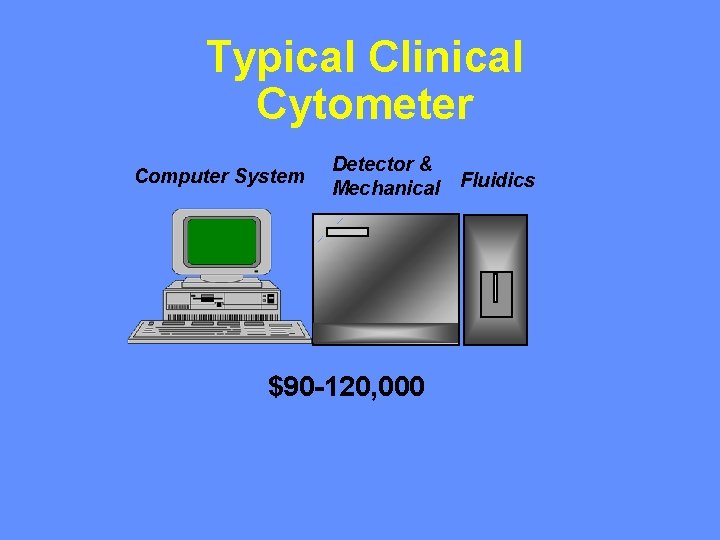

Typical Clinical Cytometer Computer System Detector & Mechanical $90 -120, 000 Fluidics

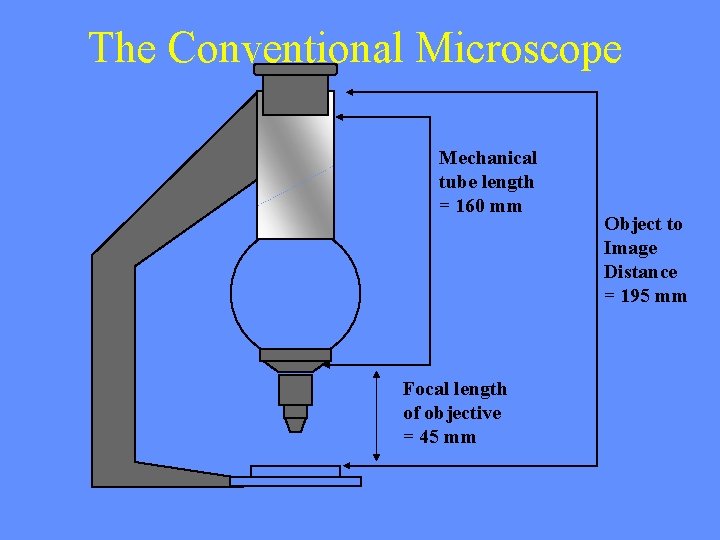

The Conventional Microscope Mechanical tube length = 160 mm Focal length of objective = 45 mm Object to Image Distance = 195 mm
