Flow 2 A Division of Thyssen Krupp Access

Flow 2 A Division of Thyssen. Krupp Access Ltd Access Business Development Division Thyssen. Krupp Introduction

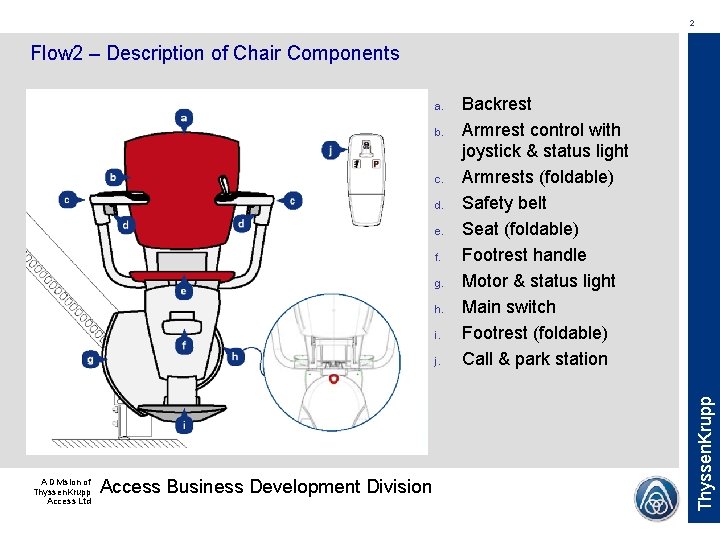

2 Flow 2 – Description of Chair Components b. c. d. e. f. g. h. i. j. A Division of Thyssen. Krupp Access Ltd Access Business Development Division Backrest Armrest control with joystick & status light Armrests (foldable) Safety belt Seat (foldable) Footrest handle Motor & status light Main switch Footrest (foldable) Call & park station Thyssen. Krupp a.

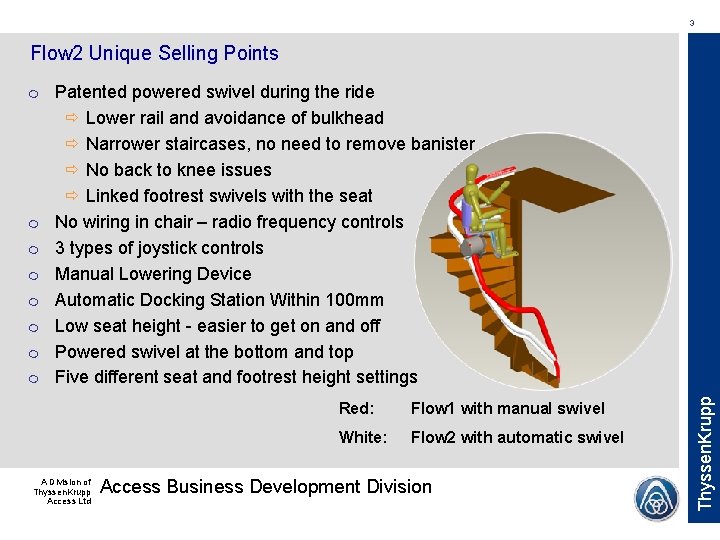

3 Flow 2 Unique Selling Points m m m m Patented powered swivel during the ride Lower rail and avoidance of bulkhead Narrower staircases, no need to remove banister No back to knee issues Linked footrest swivels with the seat No wiring in chair – radio frequency controls 3 types of joystick controls Manual Lowering Device Automatic Docking Station Within 100 mm Low seat height - easier to get on and off Powered swivel at the bottom and top Five different seat and footrest height settings A Division of Thyssen. Krupp Access Ltd Red: Flow 1 with manual swivel White: Flow 2 with automatic swivel Access Business Development Division Thyssen. Krupp m

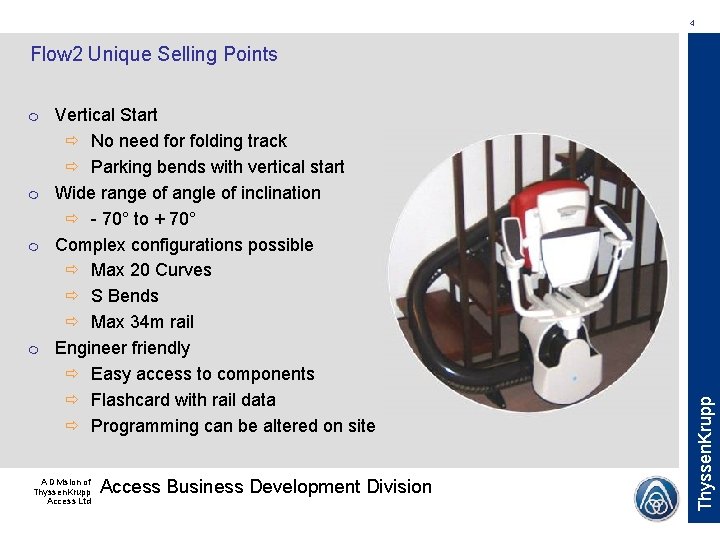

4 m m Vertical Start No need for folding track Parking bends with vertical start Wide range of angle of inclination - 70° to + 70° Complex configurations possible Max 20 Curves S Bends Max 34 m rail Engineer friendly Easy access to components Flashcard with rail data Programming can be altered on site A Division of Thyssen. Krupp Access Ltd Access Business Development Division Thyssen. Krupp Flow 2 Unique Selling Points

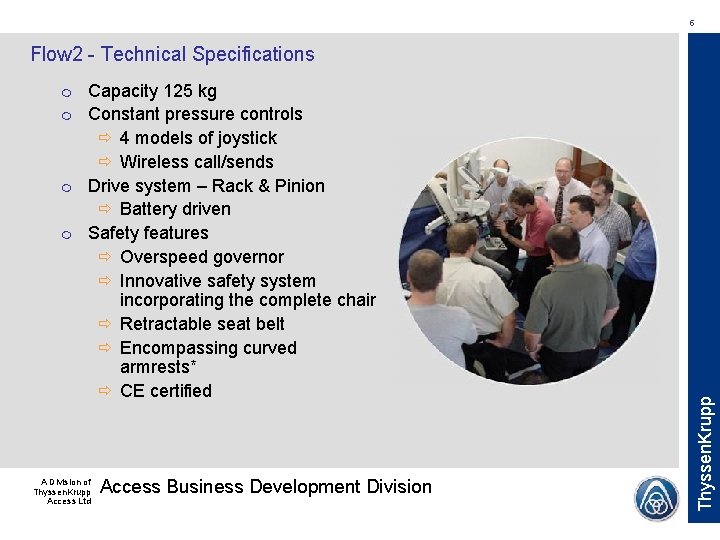

5 m m Capacity 125 kg Constant pressure controls 4 models of joystick Wireless call/sends Drive system – Rack & Pinion Battery driven Safety features Overspeed governor Innovative safety system incorporating the complete chair Retractable seat belt Encompassing curved armrests* CE certified A Division of Thyssen. Krupp Access Ltd Access Business Development Division Thyssen. Krupp Flow 2 - Technical Specifications

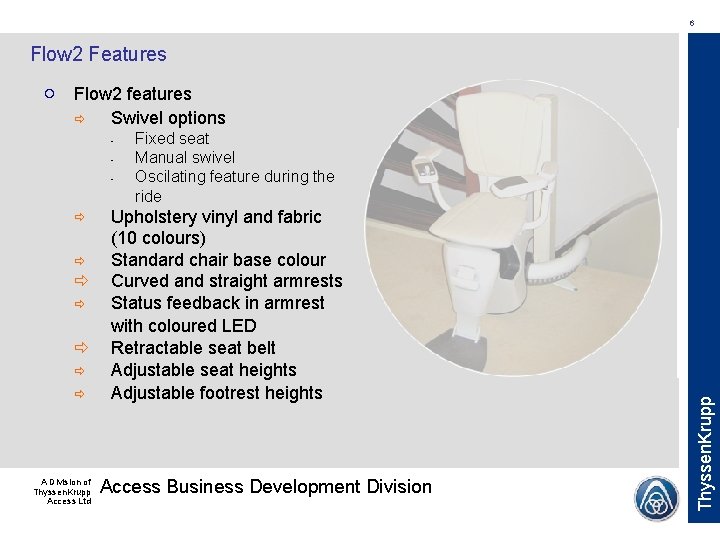

6 Flow 2 Features Flow 2 features Swivel options - A Division of Thyssen. Krupp Access Ltd Fixed seat Manual swivel Oscilating feature during the ride Upholstery vinyl and fabric (10 colours) Standard chair base colour Curved and straight armrests Status feedback in armrest with coloured LED Retractable seat belt Adjustable seat heights Adjustable footrest heights Access Business Development Division Thyssen. Krupp

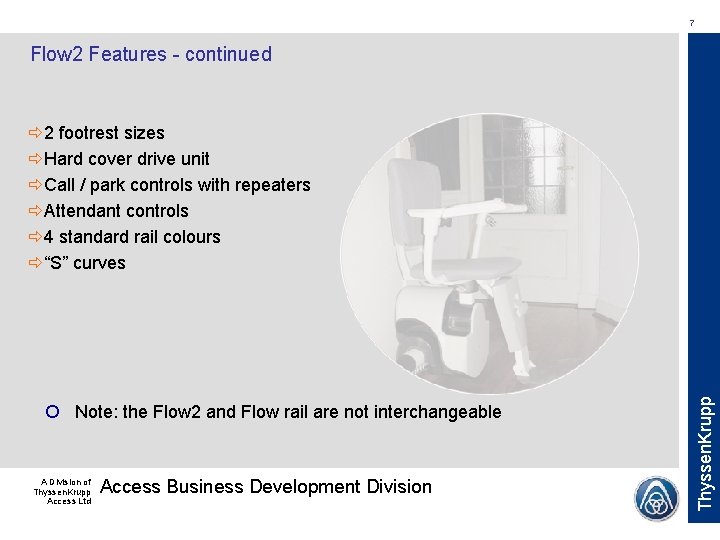

7 Flow 2 Features - continued Note: the Flow 2 and Flow rail are not interchangeable A Division of Thyssen. Krupp Access Ltd Access Business Development Division Thyssen. Krupp 2 footrest sizes Hard cover drive unit Call / park controls with repeaters Attendant controls 4 standard rail colours “S” curves

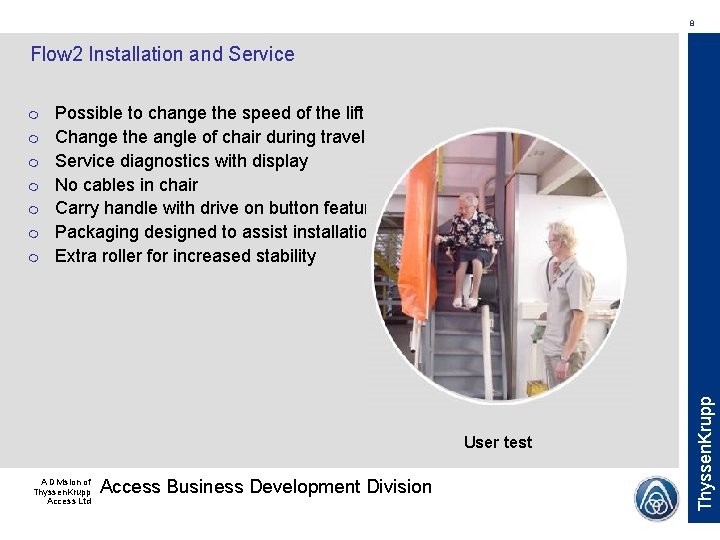

8 Flow 2 Installation and Service m m m Possible to change the speed of the lift Change the angle of chair during travel Service diagnostics with display No cables in chair Carry handle with drive on button feature Packaging designed to assist installation Extra roller for increased stability User test A Division of Thyssen. Krupp Access Ltd Access Business Development Division Thyssen. Krupp m

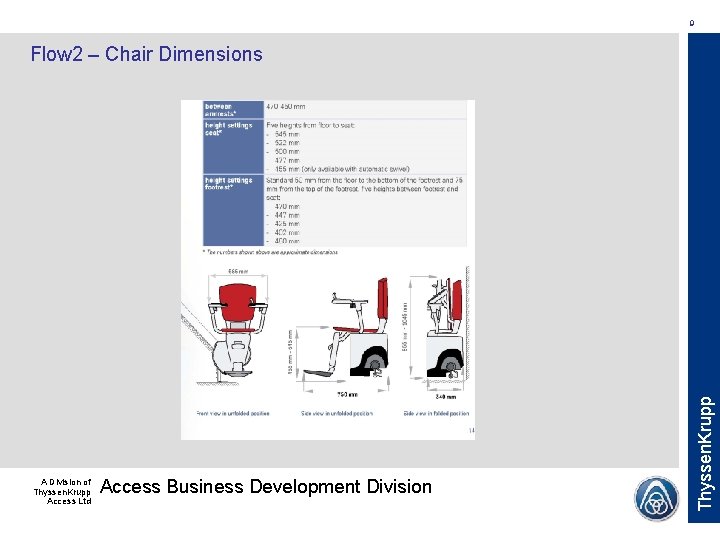

9 A Division of Thyssen. Krupp Access Ltd Access Business Development Division Thyssen. Krupp Flow 2 – Chair Dimensions

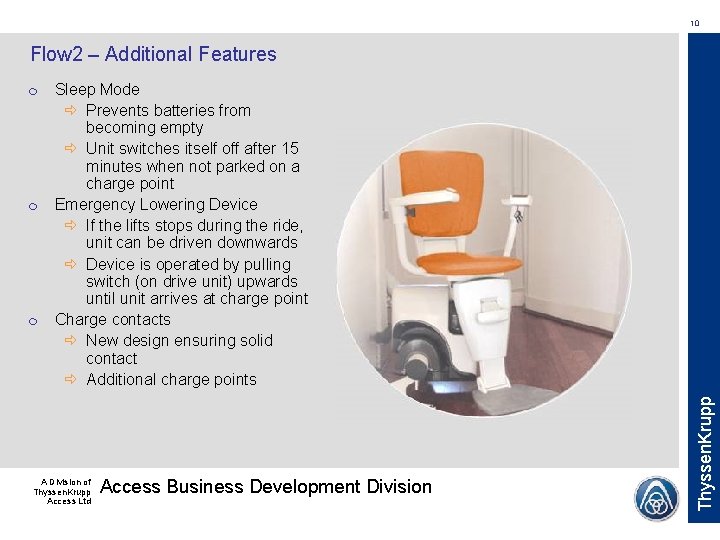

10 Flow 2 – Additional Features m m Sleep Mode Prevents batteries from becoming empty Unit switches itself off after 15 minutes when not parked on a charge point Emergency Lowering Device If the lifts stops during the ride, unit can be driven downwards Device is operated by pulling switch (on drive unit) upwards until unit arrives at charge point Charge contacts New design ensuring solid contact Additional charge points A Division of Thyssen. Krupp Access Ltd Access Business Development Division Thyssen. Krupp m

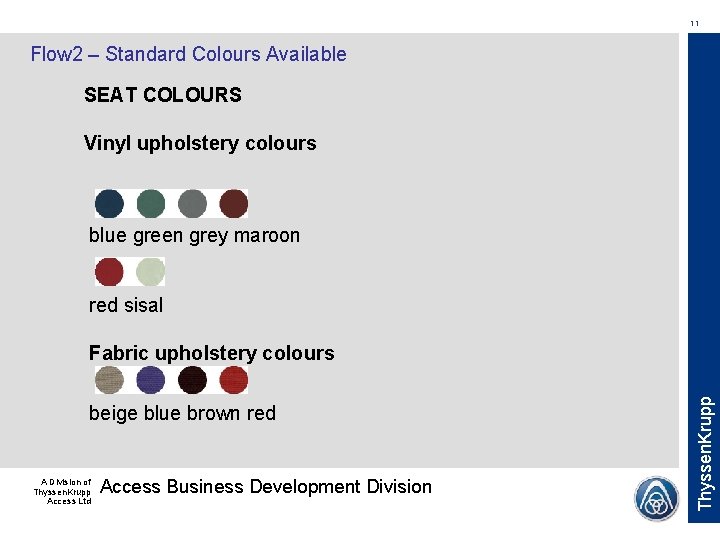

11 Flow 2 – Standard Colours Available SEAT COLOURS Vinyl upholstery colours blue green grey maroon red sisal beige blue brown red A Division of Thyssen. Krupp Access Ltd Access Business Development Division Thyssen. Krupp Fabric upholstery colours

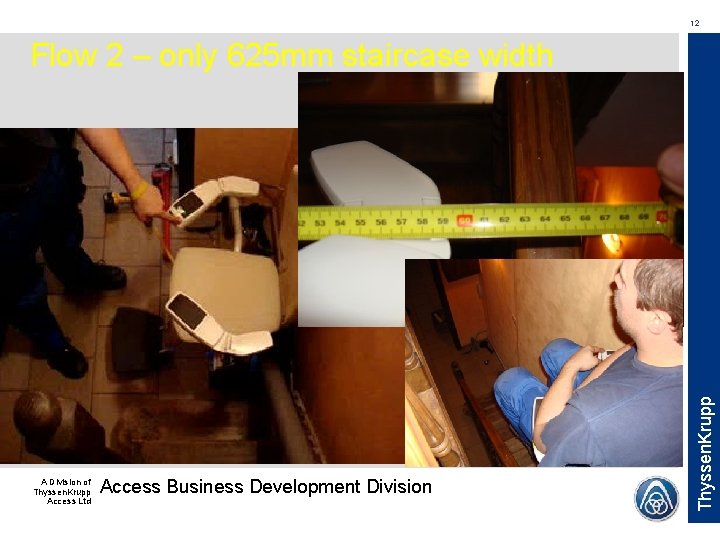

12 A Division of Thyssen. Krupp Access Ltd Access Business Development Division Thyssen. Krupp Flow 2 – only 625 mm staircase width
