FLORIDA PERMANENT REFERENCE NETWORK TODAY AND TOMORROW SPEAKER: RON HANSON COURSE NUMBER: 8493

FLORIDA PERMANENT REFERENCE NETWORK TODAY AND TOMORROW SPEAKER: RON HANSON COURSE NUMBER: 8493

IMPORTANT FPRN INFORMATION 204. 90. 21. 205 www. myfloridagps. com www. dot. state. fl.

IMPORTANT FPRN INFORMATION 204. 90. 21. 205 www. myfloridagps. com www. dot. state. fl. us/surveyingandmapping/FPRN

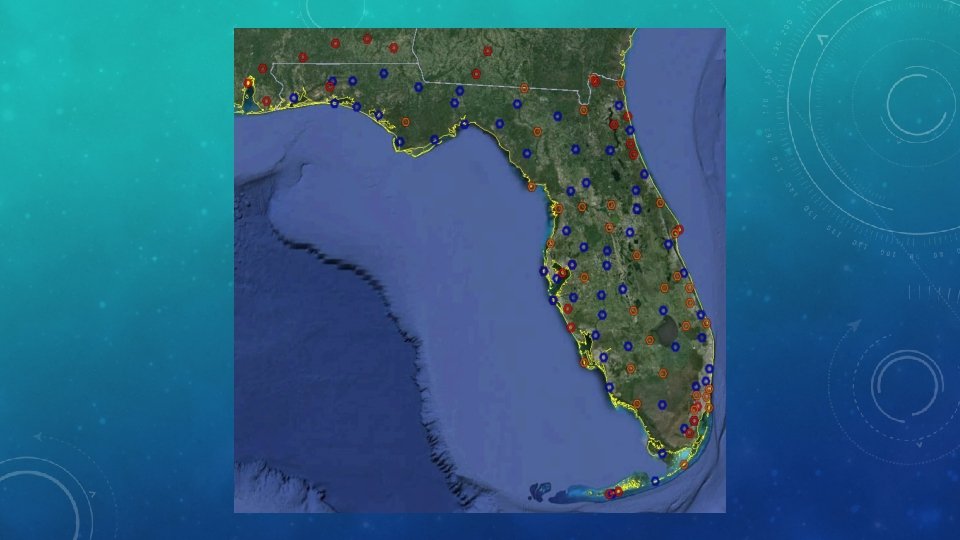

NEW FPRN WEB SITE • Maps Ø Dynamic Site Status o Ø • •

NEW FPRN WEB SITE • Maps Ø Dynamic Site Status o Ø • • FDOT Enterprise GIS foundation Google Earth Overlay Computation Service Ø OPUS utilizes 32 sites Ø FPRN utilizes 97 sites Rinex Availability Ø NGS/CORS provides data for 32 sites Ø FPRN provides data for 97 sites

SUPPORTED LANGUAGES • RTCM 2. x Ø Used for RTK Ø Includes NRTK Ø

SUPPORTED LANGUAGES • RTCM 2. x Ø Used for RTK Ø Includes NRTK Ø Includes GLONASS Ø Ideal for Legacy Sensors • CMR(+) • RTCM 3. x Ø Used for RTK Ø Includes NRTK Ø More efficient than RTCM 2. x Ø Includes GLONASS Ø More efficient than RTCM 2. x Ø Lower bandwidth than CMR(+) Ø Only for GPS Ø GLONASS extension still proprietary

SUPPORTED PROTOCOLS • NTRIP • TCP/IP Ø Multiple languages per port Ø One language

SUPPORTED PROTOCOLS • NTRIP • TCP/IP Ø Multiple languages per port Ø One language per port Ø Multiple products per port Ø One product per port Ø Works with NRTK Ø Works with Automatic Nearest Ø Works with Zones

FPRN PRODUCTS • Single Baseline Ø Direct Connect (TCP/IP) Ø State Wide (NTRIP) Ø

FPRN PRODUCTS • Single Baseline Ø Direct Connect (TCP/IP) Ø State Wide (NTRIP) Ø District Wide (NTRIP) • Network Solutions Ø Automatic Nearest Ø FKP Ø MAX Ø VRS • GIS Corrections

PORT SCHEMA Port 10000 - Network Solutions (NTRIP) i. MAX Max Nearest FKP VRS

PORT SCHEMA Port 10000 - Network Solutions (NTRIP) i. MAX Max Nearest FKP VRS 11000 series – Network Solutions (TCP/IP) i. MAX Max Nearest FKP VRS Port 10800 – GIS Solutions Panhandle North Central South

PORT SCHEMA ABCDE AB - Language 23 – RTCM 2. 3 25 – CMR+

PORT SCHEMA ABCDE AB - Language 23 – RTCM 2. 3 25 – CMR+ 31 – RTCM 3. 1 C – District DE – Station Designation

SINGLE BASELINE AUTOMATIC (NTRIP) 204. 90. 21. 205

SINGLE BASELINE AUTOMATIC (NTRIP) 204. 90. 21. 205

SINGLE BASELINE (NTRIP) 204. 90. 21. 205

SINGLE BASELINE (NTRIP) 204. 90. 21. 205

SINGLE BASELINE (TCP/IP) 204. 90. 21. 205

SINGLE BASELINE (TCP/IP) 204. 90. 21. 205

SINGLE BASELINE (TCP/IP) 204. 90. 21. 205

SINGLE BASELINE (TCP/IP) 204. 90. 21. 205

NETWORK SOLUTIONS (NTRIP) 204. 90. 21. 205

NETWORK SOLUTIONS (NTRIP) 204. 90. 21. 205

HARDWARE IMPROVEMENTS • Server Migration Ø Moved FPRN Servers to High Availability Network •

HARDWARE IMPROVEMENTS • Server Migration Ø Moved FPRN Servers to High Availability Network • Station Upgrades Ø Upgraded to provide GLONASS • Communication Upgrades Ø Upgrading from analog to digital • Coordinate Adjustment Ø Adjusted coordinates to match NSRS - NAD 83 – 2011 (epoch 2010. 00)

SCHEDULED NETWORK IMPROVEMENTS • Height Modernization Ø Obtaining precise ellipsoid heights for each station

SCHEDULED NETWORK IMPROVEMENTS • Height Modernization Ø Obtaining precise ellipsoid heights for each station • Network Realignment Ø Realigning stations to eliminate “gaps” in coverage Ø Partner Agencies using FDOT “surplus equipment”

NETWORK LIMITATIONS • Only as strong as weakest link Ø GPS only in some

NETWORK LIMITATIONS • Only as strong as weakest link Ø GPS only in some areas • Outside Network? Ø No Network Solution

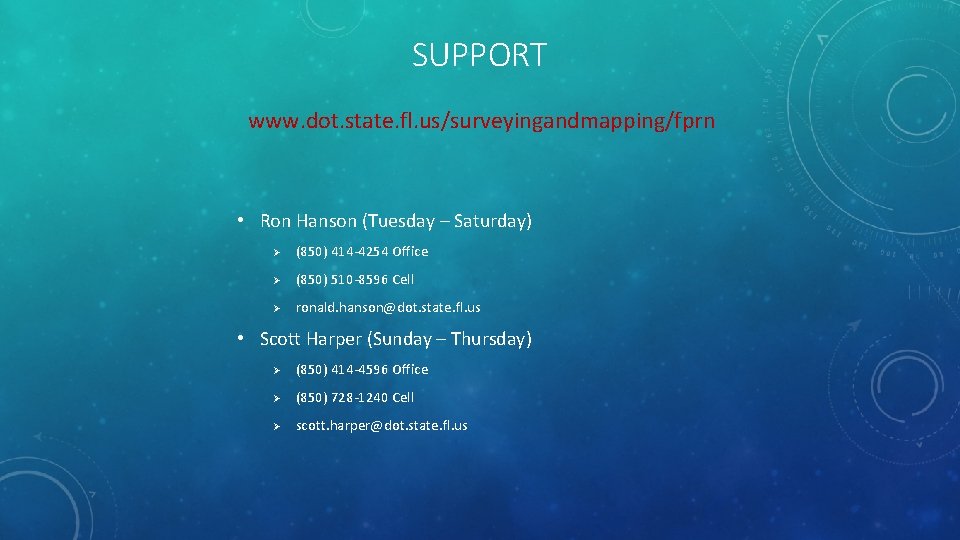

SUPPORT www. dot. state. fl. us/surveyingandmapping/fprn • Ron Hanson (Tuesday – Saturday) Ø (850)

SUPPORT www. dot. state. fl. us/surveyingandmapping/fprn • Ron Hanson (Tuesday – Saturday) Ø (850) 414 -4254 Office Ø (850) 510 -8596 Cell Ø ronald. hanson@dot. state. fl. us • Scott Harper (Sunday – Thursday) Ø (850) 414 -4596 Office Ø (850) 728 -1240 Cell Ø scott. harper@dot. state. fl. us

http: //www. dot. state. fl. us/surveyingandmapping/fprnstat/index. html

http: //www. dot. state. fl. us/surveyingandmapping/fprnstat/index. html
