Floorcare Equipment swingo 2500/3500 V 2 Firmware, Service Tool & Error Codes
Agenda Firmware § Function § Handling Service Tool § Functions § History § Installation § Handling Error codes § General § Code overview § Error code list
Firmware – Function § The firmware controls the activities of the TRIO. § The firmware is uploaded to the TRIO controller at PGDT. § It can not be updated in the field.
Firmware - Handling § Updates of the firmware can only be done by exchanging the TRIO controller § A TRIO controller electronics should only be exchange if § The issue on the machine can not be resolved or § Instructed by GTS
Service Tool – Overview Functions § The Service Tool shall support to improve the efficiency of a technical service § The actual Service Tool is only to be used on the swingo 2500/3500 V 2 § The Service Tool connects the machine with the computer and enables following actions: § Set/change machine parameter § Read out data § Read out error codes
Service Tool - History Service Tool Version Issue Date Updates V 2. 0 10/2004 • Launch V 2. 2. 18 a 02/2009 • Only Total Service Timer parameter visible • Hour counters adjustable up to 10’ 000 h Reference > TRIO+ V 4. 0
Service Tool Installation § The cables have to be available (Ord. No. 4123194) § If an old Service Tool version is installed on the computer it has to be deinstalled first § If no serial port (RS 232) is available you need to adjust the port § From the software package the setup file has to be executed to install the Service Tool § Afterwards the computer can be connected to the machine and the Service Tool can be used

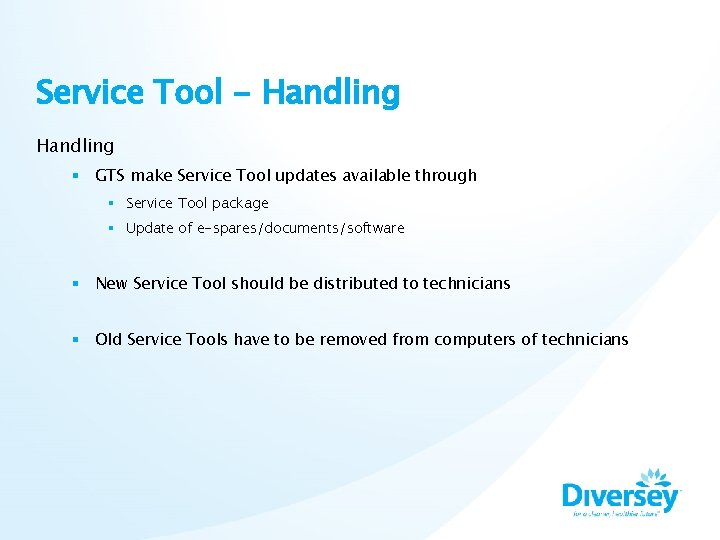

Service Tool - Handling § GTS make Service Tool updates available through § Service Tool package § Update of e-spares/documents/software § New Service Tool should be distributed to technicians § Old Service Tools have to be removed from computers of technicians
Error Codes § General § Error code overview § Error code list
Error Codes § Error codes are a feedback from the machine based on a certain condition § Some of the error codes are internal controller failures and therefore indicate an internal issue of the controller § Some of the errors are related to functionalities which are not used by the swingo 2500/3500

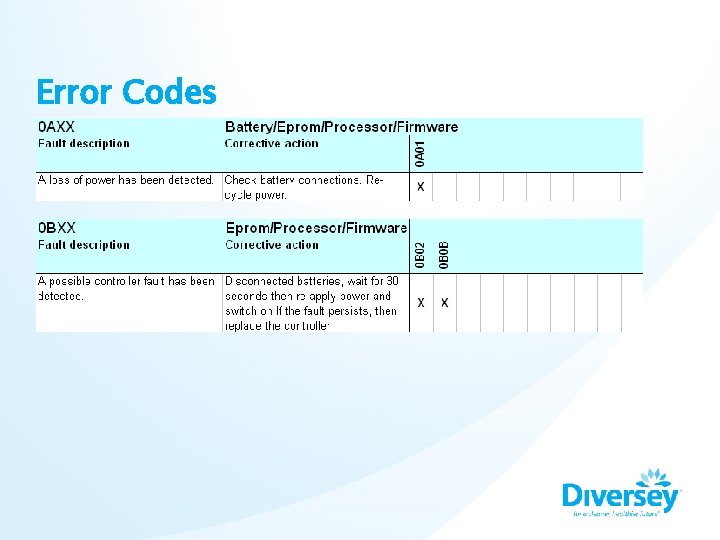

Error code overview Code range 00 XX Relation EPROM 01 XX EPROM 02 XX EPROM 07 XX Foil keyboard control 08 XX Throttle 0 AXX Battery/EPROM/Processor/Firmware 0 BXX EPROM/Processor/Firmware 13 XX Over current P 2 plug 14 XX Short circuit P 2 plug 15 XX Solenoid break
Error code overview Code range 16 XX Relation Battery 17 XX Internal relays 18 XX Processor 1 BXX Processor 1 DXX Parameter list 1 EXX Switch-Off sequence 21 XX Processor/Firmware 2 CXX Battery 2 FXX Throttle adjustment 31 XX Short circuit P 2 plug/traction/internal
Error code overview Code range 32 XX Relation Processor/EPROM 36 XX Processor 3 AXX Parameter conflict 75 XX LCD communication 76 XX Brush motor 77 XX Brush motor 78 XX Traction motor 79 XX Short circuit P 3 plug 80 XX Service mode
Error Codes
Error Codes
Error Codes
Error Codes
Error Codes
Error Codes
Error Codes
Error Codes
Error Codes
Error Codes
Error Codes
Error Codes
Error Codes
Error Codes
Error Codes

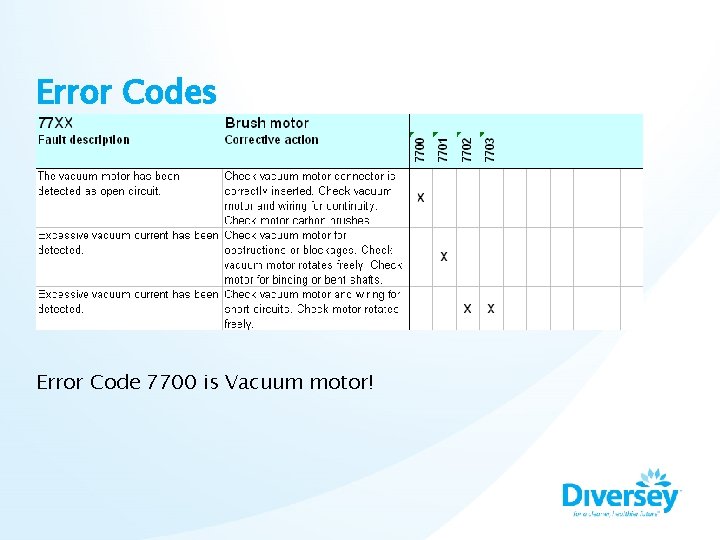

Error Codes Error Code 7700 is Vacuum motor!
Error Codes
Error Codes
