Mita floor boxes Supplying power and data via raised floor solution offers many advantages for the modern office. Mita floor boxes give you access to power and data wherever it is required. Both the enduser and the installer can benefit from the accessibility. ● High capacity ● Quick-Fix function ● Pre-wired options ● Provision for RCD protection ● All plastic parts are halogen-free Schneider Electric – ISC 01817 November 2009 2
3 and 4 compartment floor boxes Plastic, halogen-free ● The plastic is scratch-resistant so the rim of the lid will look nice even after a long time of wear ● High load capacity thanks to the 3 mm steel reinforcement of the lid ● Maximum thickness of insert material in the lid is 6 mm Stainless steel ● Providing a solid impression, aging with dignity by the wear ● With a 3 mm steel reinforcement of the lid that can also be provided with floor inserts ● Maximum thickness of the insert material in the lid is 15 mm Schneider Electric – ISC 01817 November 2009 3
Cable outlets The cable outlets are lined with foamed plastic. The lid can be rotated through 180 degrees. Lockable lid On request. Flush lid infills of linoleum or brushed stainless steel are available as optional accessories. Snap locks Snap-locks (plastic lid only) reduce the risk of cables pushing the lid open. Hinge Lid will release when opened in excess of 90 degree angle to prevent damage to box. Strong cover Lid reinforced with 3 mm steel insert plate. RCD/MCB/RCBO protection The box (3 -compartment 100 and 130 mm) comes complete with a plate to house a RCD/MCB/RCBO unit, as standard. Quick fix function Self locking function of the box. Swivel fixing Optional. Metal base box Base box in three different heights, 70, 100 and 130 mm. Schneider Electric – ISC 01817 November 2009 Compartment dividers Ensure good separation of power and data. Cable retainers To hold cables in place Various knockouts per compartment for flexible conduits. 70 mm box - Ø 20 mm 100 mm box – Ø 20/25 mm 130 mm box – Ø 20/25 mm incl. one Ø 32 mm. 4

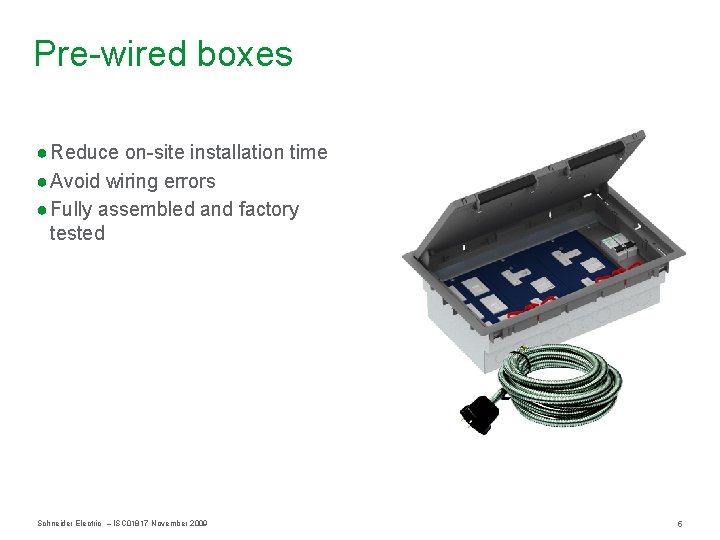

Pre-wired boxes ● Reduce on-site installation time ● Avoid wiring errors ● Fully assembled and factory tested Schneider Electric – ISC 01817 November 2009 5
Quick-Fix function – for quick and easy installation ● For quick and easy installation ● Self-locking tabs push-fit into place to secure the box ● Effective in all floor types ● No tools are needed Schneider Electric – ISC 01817 November 2009 6
High capacity Three or four plates, with compartment dividers for good separation of power and data. Schneider Electric – ISC 01817 November 2009 7
RCD/MCB/RCBO unit as standard ● The 3 -compartment 100 and 130 mm box comes complete with plate to house a RCD/MCB/ RCBO unit, as standard ● DIN rail kit and RCD/MCB/ RCBOs may be purchased separately Schneider Electric – ISC 01817 November 2009 8
Cable retainers (optional) ● To hold cables in place ● To prevent them being pulled out or get damaged between the lid and trim Schneider Electric – ISC 01817 November 2009 9
Self-closing lid The lid is self-closing to minimize the risk of accidents. When opened in excess of 90 degrees the lid will release. Schneider Electric – ISC 01817 November 2009 10
Cable outlets ● The lid has double cable outlets ● Can be turned through 180 degrees Schneider Electric – ISC 01817 November 2009 11
High loading capacity The reinforcement of the lid gives it a high loading capacity. Schneider Electric – ISC 01817 November 2009 12
Mita floor boxes Easy to install and use!
