FLNP Configurator Morkovnikov I A About Configurator is

FLNP Configurator Morkovnikov I. A.

About Configurator is the program for the working with the configuration files of software complex Sonix+ is the software package for the experiment control on the neutron spectrometers. FLNP

Sonix+ on ibr-2 Diffraction HRFD DN-2 DN-12 SKAT EPSILON FSD Reflectometry REMUR REFLEX GRAINS Inelastic scattering DIN-2 PI NERA Small-angle scattering Yu. MO FLNP

Sonix+ in Russia Obninsk GEK 3 GEK 5 NPD Moscow MOND NSD Zarechnyi D 3 FLNP

Content 1 Configuration features 2 Interface description 3 User view 4 Conclusion FLNP

Types of configuration files FLNP

Modules configuration Varman Configuration Command Channel Scrip Interpreter Adapter DAQ Server Spectra Server DAQ Driver Motor Server Motor Driver Hardware Adapter Temperature Driver FLNP

Configuration files content Configuration file Data Metadata Parameters of devices of software complex Description of structure and dependencies of data FLNP

Data processing cycle Data processing and manipulation functions View model Properties and links of the data configuration elements Layer for saving and loading data from configuration file Object model Data storage Sonix+ configuration file Configuration file FLNP

Config. Editor Select Mode Work Area FLNP

Config. Editor problems 1 No ability of metadata cleaning in configuration file 2 No device searching in configration files 3 No simple view for fast searching and editing configruation values FLNP

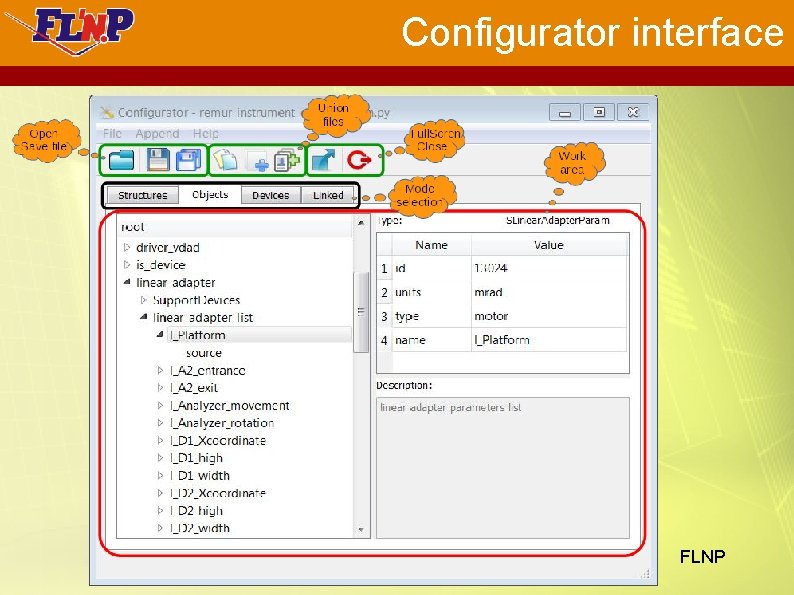

Configurator interface FLNP

Structures in configurator FLNP

Configurator data views FLNP

Device search tab FLNP

Liking table tab FLNP

User view FLNP

Conclusion Changed data display Created device view Created data sort Metadata editing User interface FLNP
