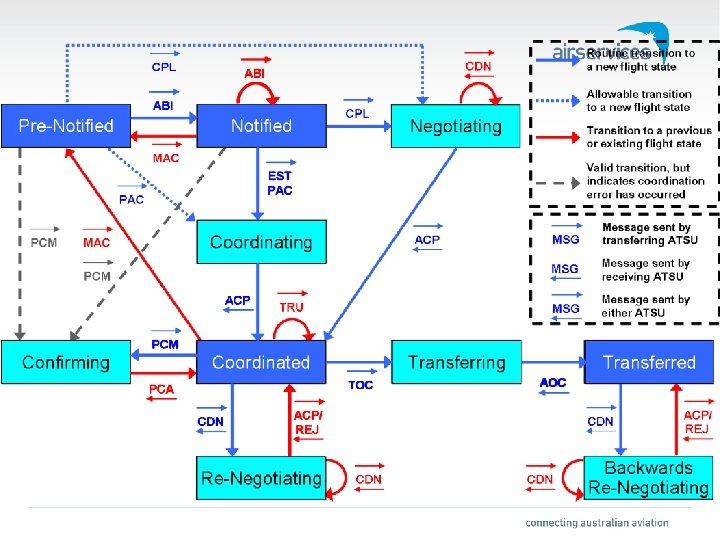

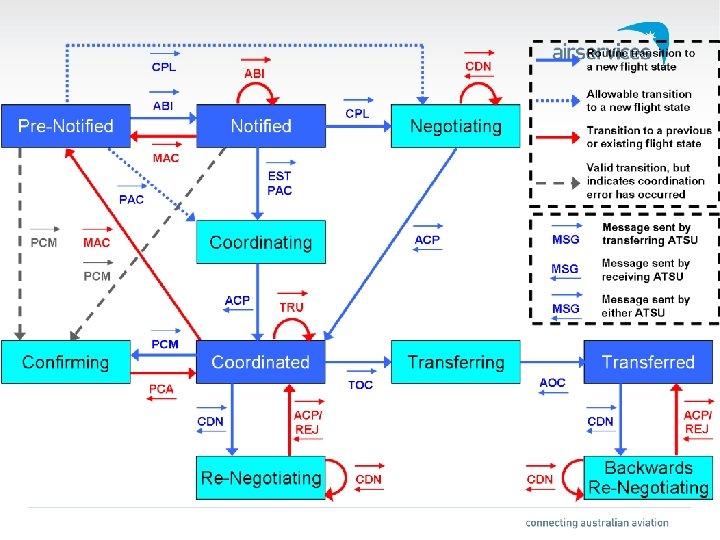

Flight State Transition diagram AIDC Implementation Seminar 28

Flight State Transition diagram AIDC Implementation Seminar 28 th – 31 st October 2014 Adam Watkin Airservices Australia

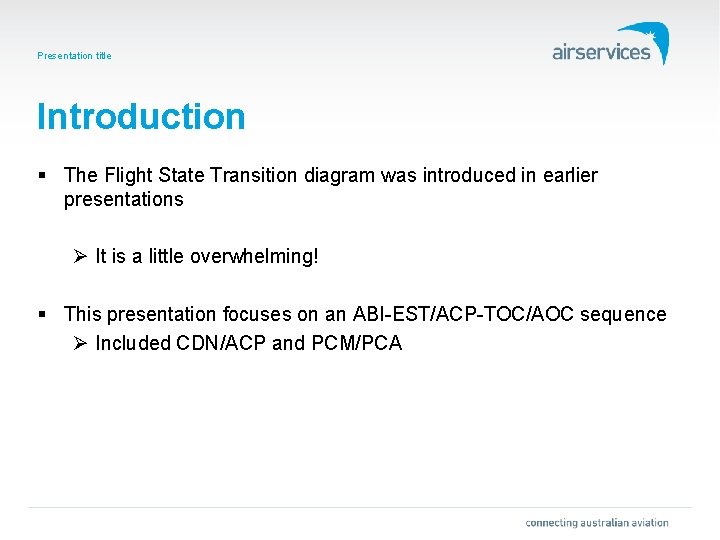

Presentation title Introduction § The Flight State Transition diagram was introduced in earlier presentations Ø It is a little overwhelming! § This presentation focuses on an ABI-EST/ACP-TOC/AOC sequence Ø Included CDN/ACP and PCM/PCA

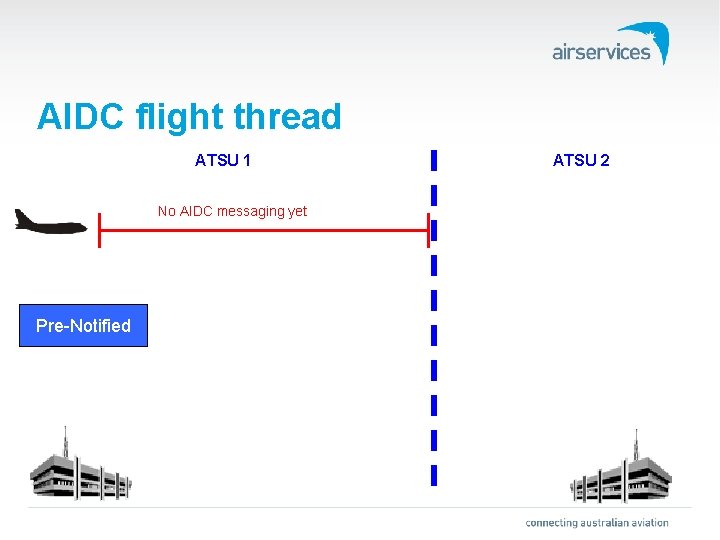

AIDC flight thread ATSU 1 No AIDC messaging yet Pre-Notified ATSU 2

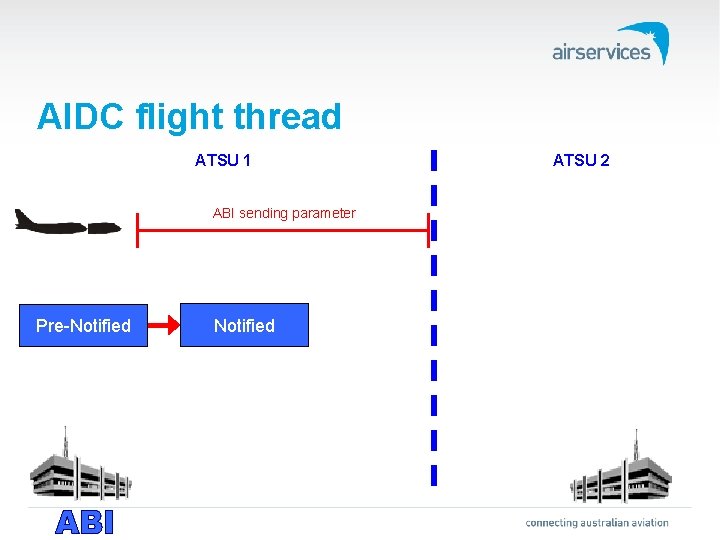

AIDC flight thread ATSU 1 ABI sending parameter Pre-Notified ATSU 2

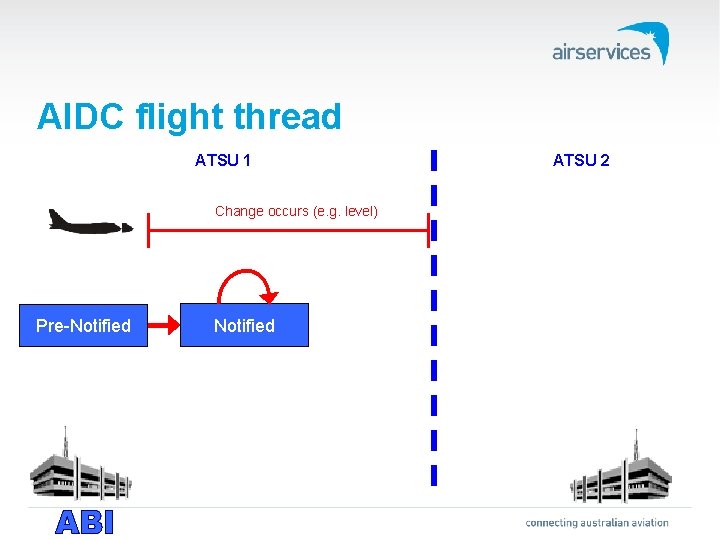

AIDC flight thread ATSU 1 Change occurs (e. g. level) Pre-Notified ATSU 2

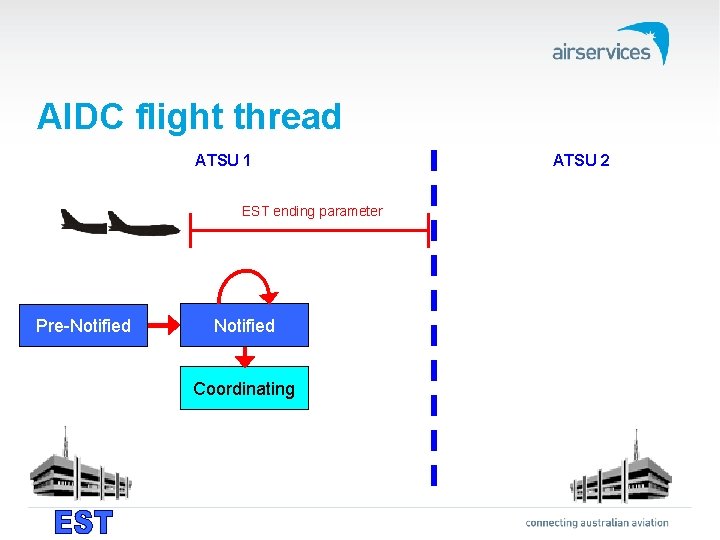

AIDC flight thread ATSU 1 EST ending parameter Pre-Notified Coordinating ATSU 2

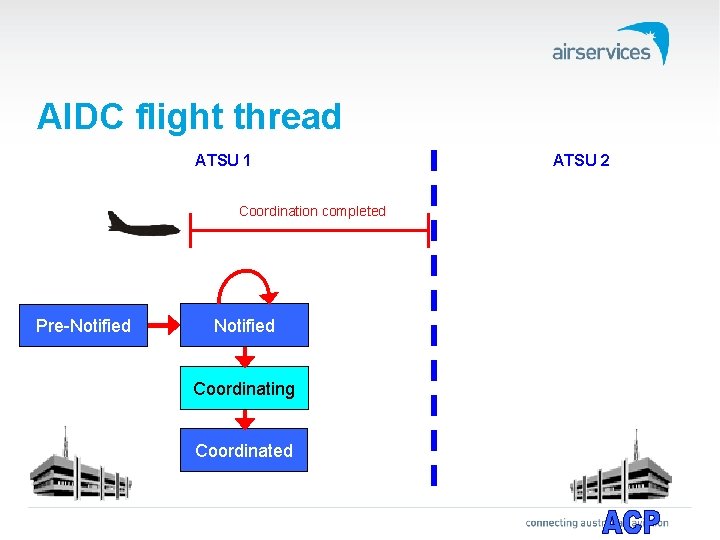

AIDC flight thread ATSU 1 Coordination completed Pre-Notified Coordinating Coordinated ATSU 2

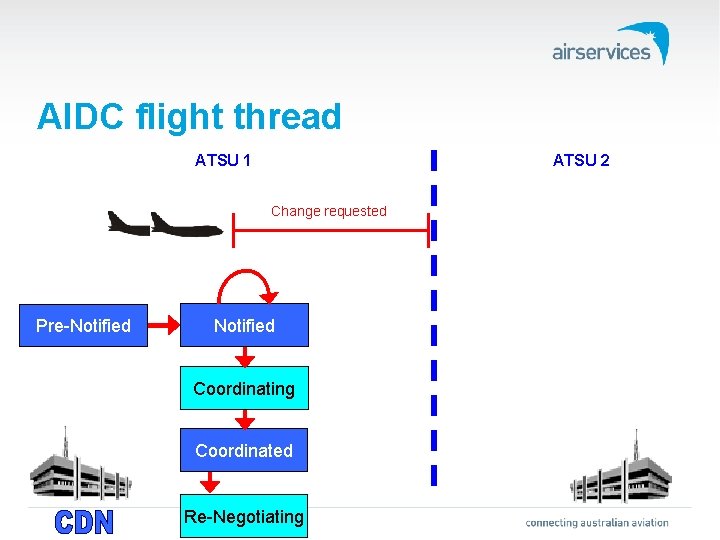

AIDC flight thread ATSU 1 ATSU 2 Change requested Pre-Notified Coordinating Coordinated Re-Negotiating

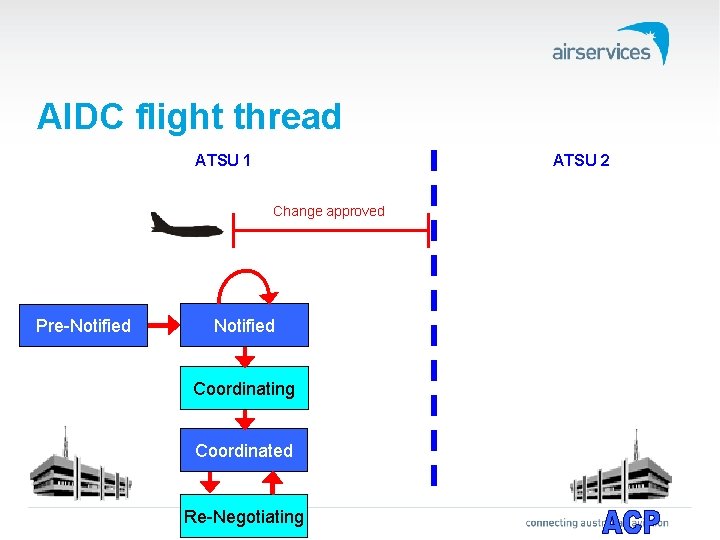

AIDC flight thread ATSU 1 ATSU 2 Change approved Pre-Notified Coordinating Coordinated Re-Negotiating

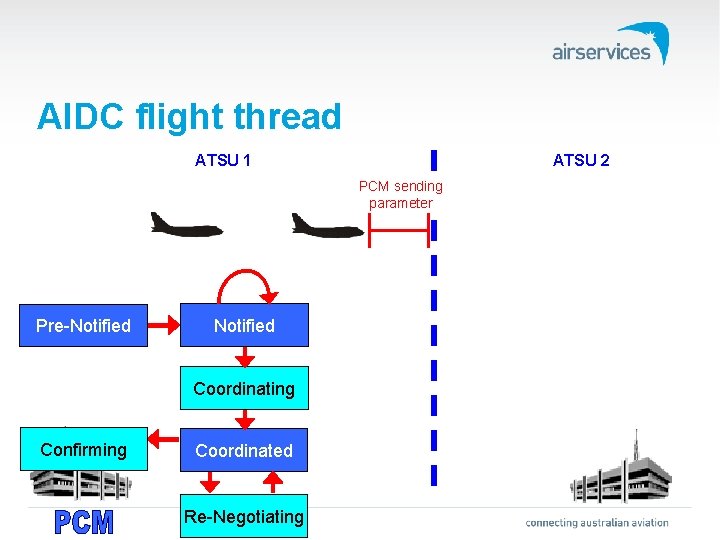

AIDC flight thread ATSU 1 ATSU 2 PCM sending parameter Pre-Notified Coordinating Confirming Coordinated Re-Negotiating

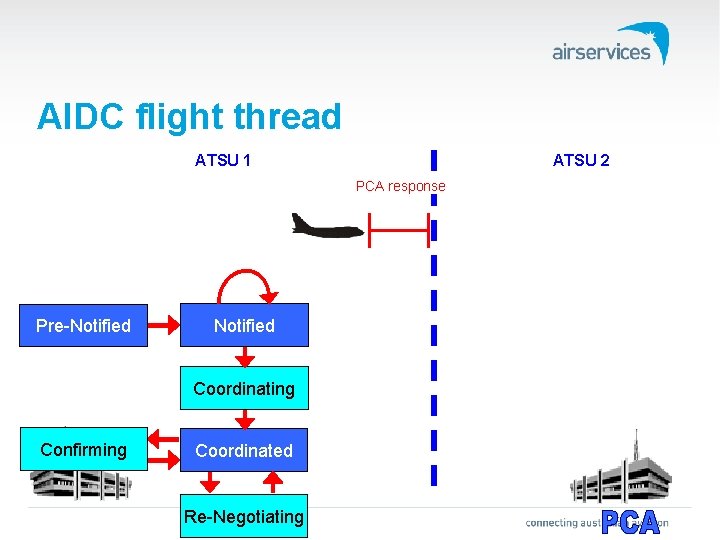

AIDC flight thread ATSU 1 ATSU 2 PCA response Pre-Notified Coordinating Confirming Coordinated Re-Negotiating

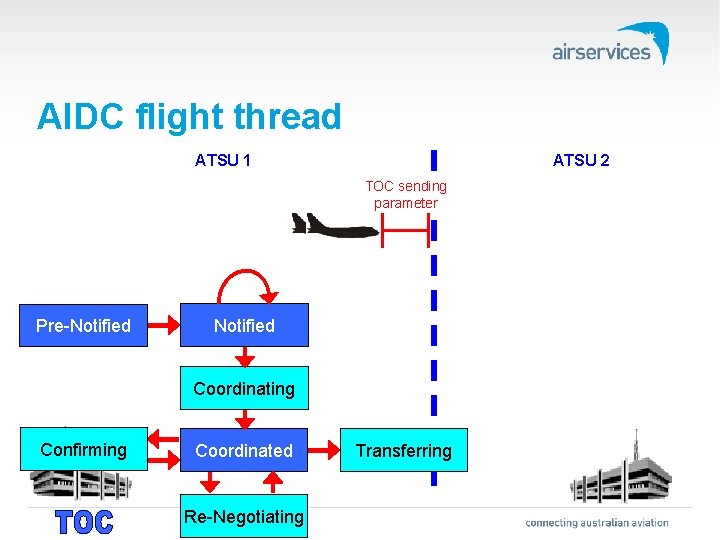

AIDC flight thread ATSU 1 ATSU 2 TOC sending parameter Pre-Notified Coordinating Confirming Coordinated Re-Negotiating Transferring

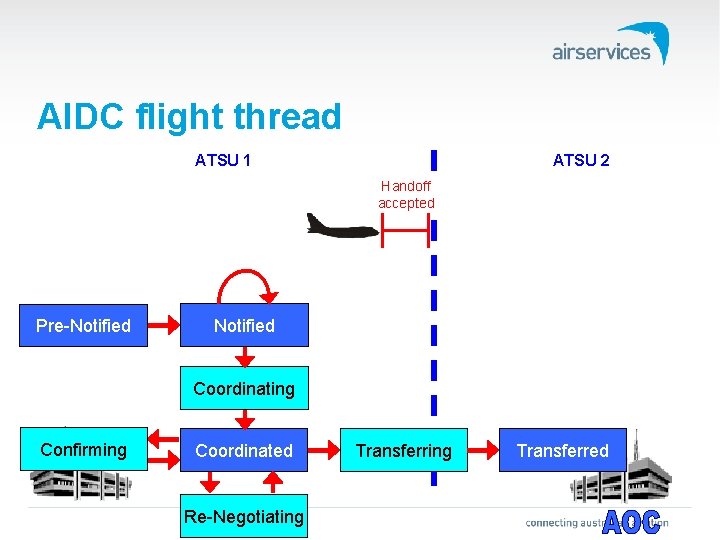

AIDC flight thread ATSU 1 ATSU 2 Handoff accepted Pre-Notified Coordinating Confirming Coordinated Re-Negotiating Transferred

More information Adam Watkin Air Traffic Controller Brisbane Centre adam. watkin@airservicesaustralia. com
