Flextronics Corporate Presentation Flextronics Corporate Presentation SCSC SC

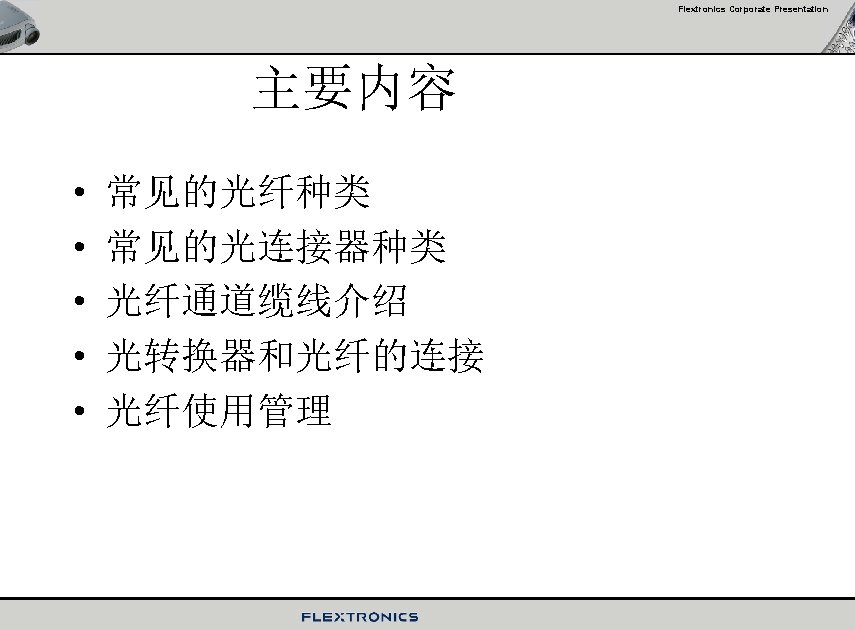

Flextronics Corporate Presentation 光纤产品基本介绍

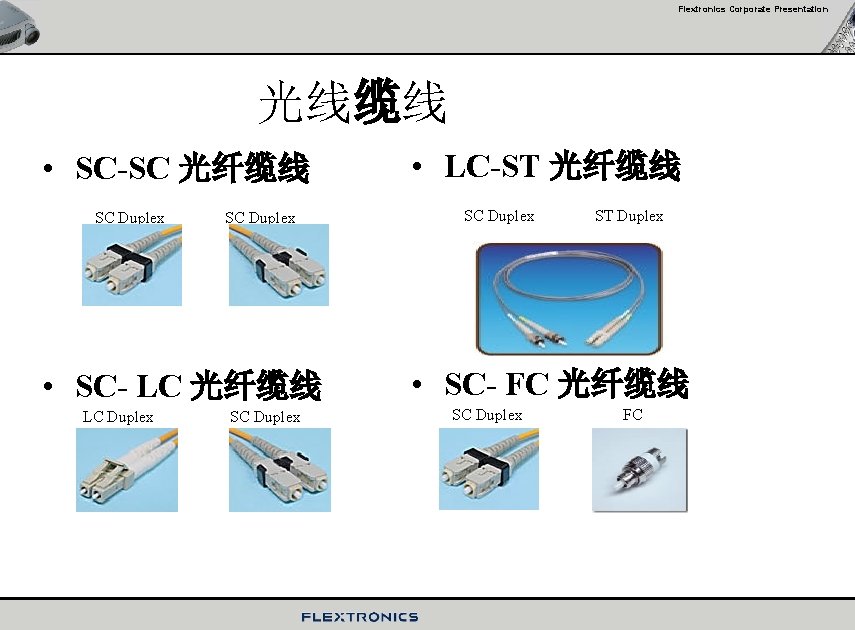

Flextronics Corporate Presentation 光线缆线 • SC-SC 光纤缆线 SC Duplex • SC- LC 光纤缆线 LC Duplex SC Duplex • LC-ST 光纤缆线 SC Duplex ST Duplex • SC- FC 光纤缆线 SC Duplex FC

Flextronics Corporate Presentation 光连接器 • LC 连接器 • SC连接器 • MU连接器 • FC连接器

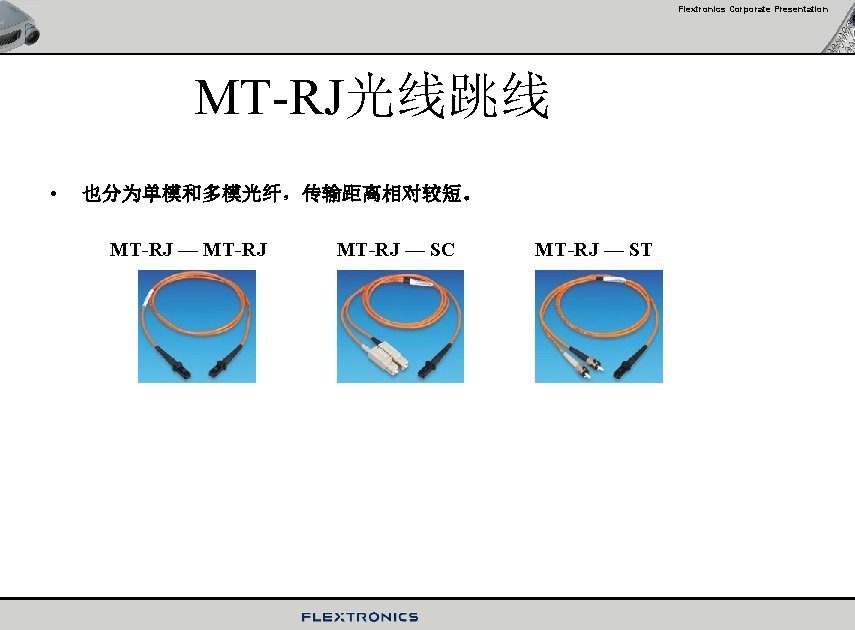

Flextronics Corporate Presentation MT-RJ光线跳线 • 也分为单模和多模光纤，传输距离相对较短。 MT-RJ — SC MT-RJ — ST

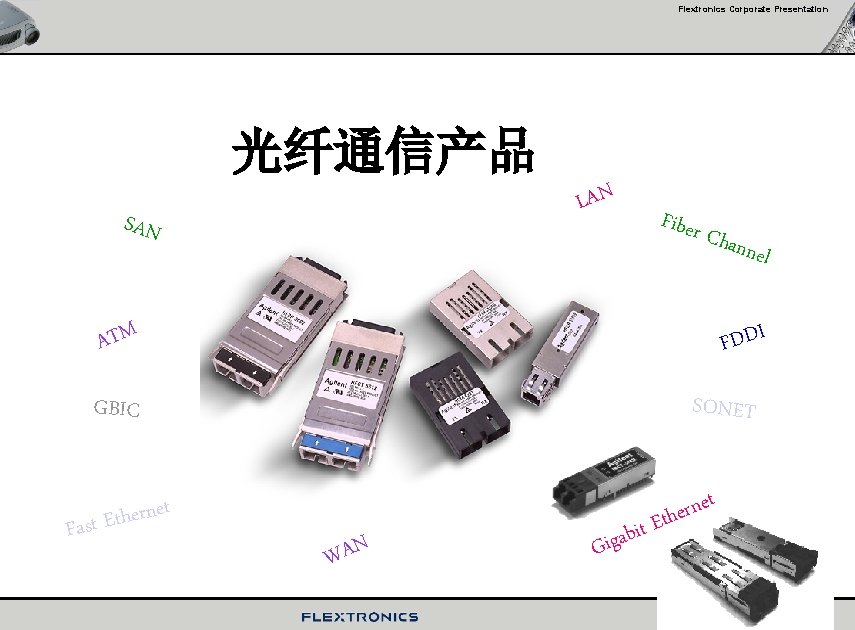

Flextronics Corporate Presentation 光纤通信产品 LAN SAN Fiber Chan nel FDDI ATM SONET GBIC Fa et n r e h t E st N A W t i b a g Gi et n r e Eth

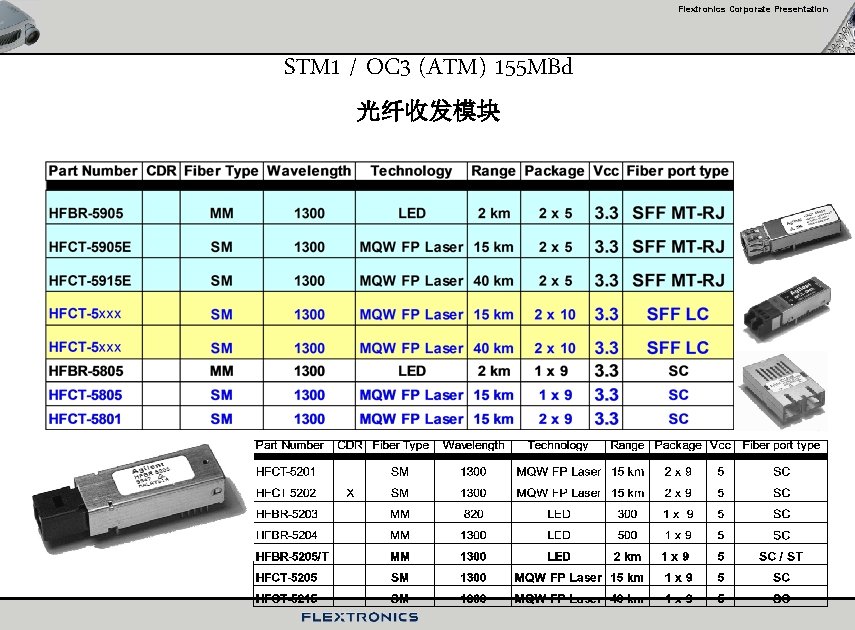

Flextronics Corporate Presentation STM 1 / OC 3 (ATM) 155 MBd 光纤收发模块

Flextronics Corporate Presentation STM 4 / OC 12 (ATM) 622 MBd 光纤收发模块

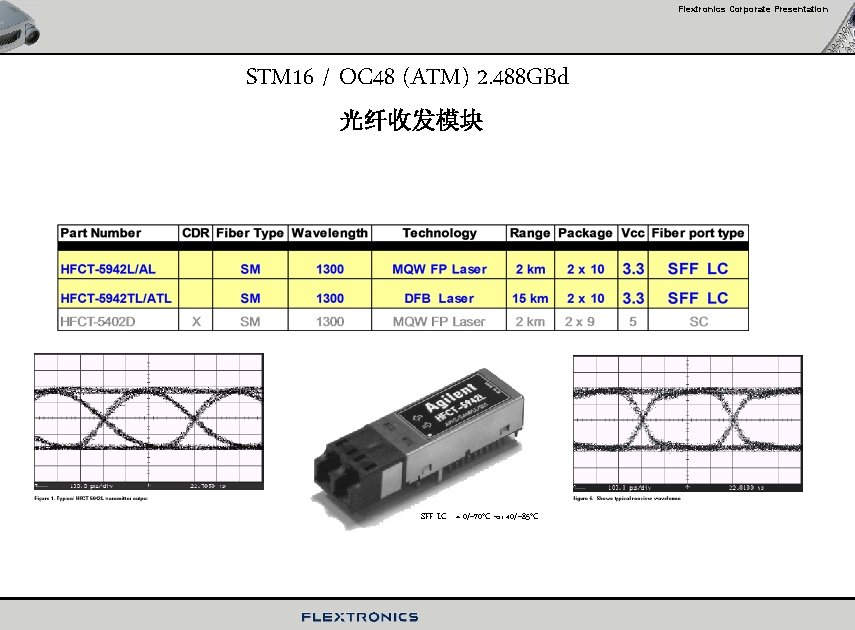

Flextronics Corporate Presentation STM 16 / OC 48 (ATM) 2. 488 GBd 光纤收发模块 SFF LC = 0/+70°C -or 40/+85°C

Flextronics Corporate Presentation WAN Small Form Factor STM 1 / OC 3 ( 155 MBd) 小封装光纤收发模块 SFF MTRJ = 0/+70°C STM 4 / OC 12 ( 622 MBd) SFF MTRJ = 0/+70°C STM 16 / OC 48 ( 2. 488 GBd) SFF LC = 0/+70°C -or 40/+85°C

Flextronics Corporate Presentation FDDI / Fast Ethernet 125 MBd 光纤收发模块

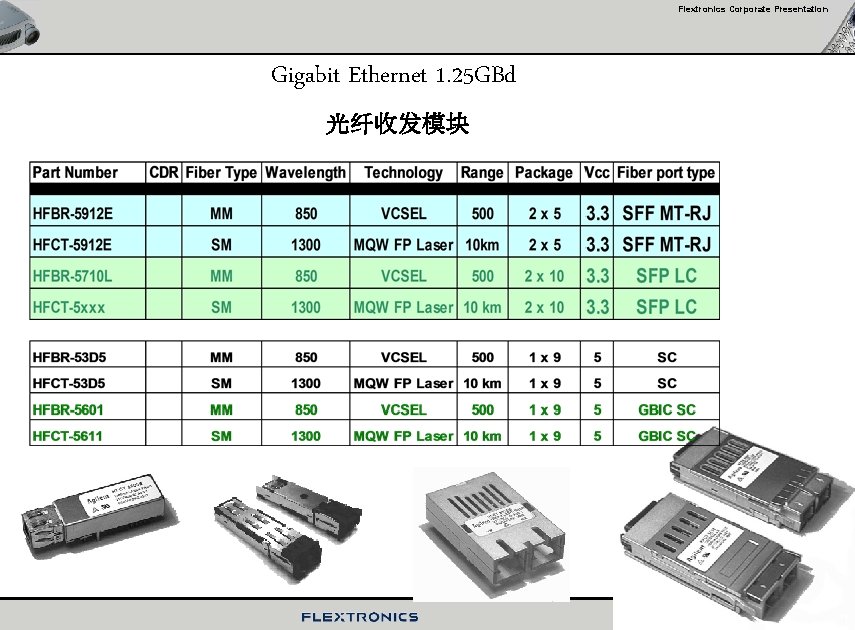

Flextronics Corporate Presentation Gigabit Ethernet 1. 25 GBd 光纤收发模块

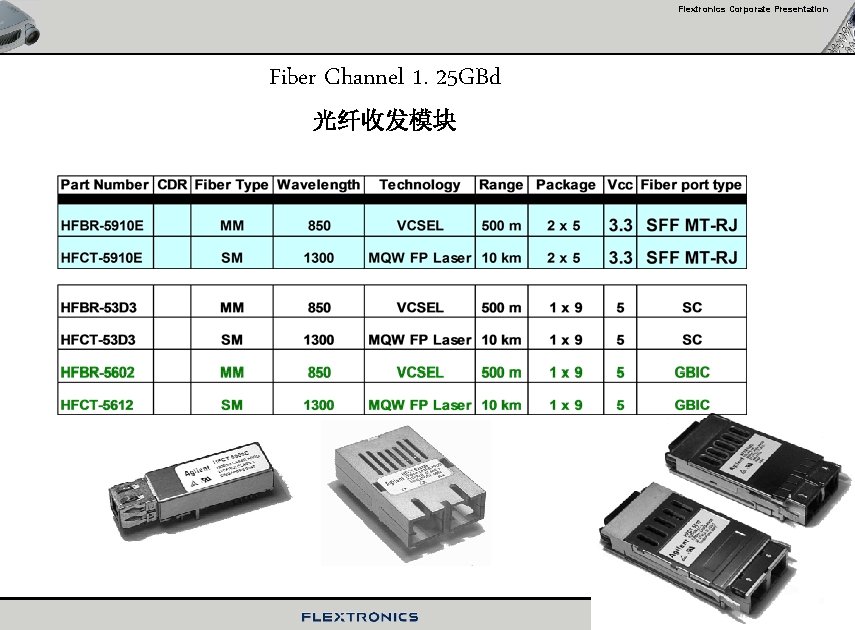

Flextronics Corporate Presentation Fiber Channel 1. 25 GBd 光纤收发模块

Flextronics Corporate Presentation Fiber Channel 2. 125 GBd 光纤收发模块 1 G / 2 G

Flextronics Corporate Presentation 光纤GBIC/MIA 转接器 • LC-SC 转换适配器 • SC 光纤 GBIC 收发器 • LC 光纤 SFP 收发器 • HSSDC GBIC 收发器

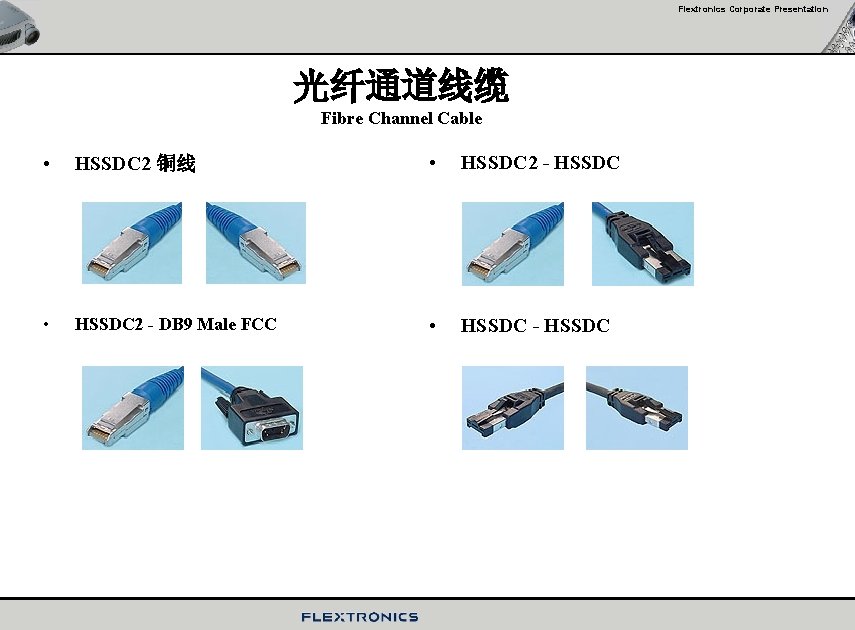

Flextronics Corporate Presentation 光纤通道线缆 Fibre Channel Cable • HSSDC 2 铜线 • HSSDC 2 - HSSDC • HSSDC 2 - DB 9 Male FCC • HSSDC - HSSDC

Flextronics Corporate Presentation 光纤介绍 1000 Base-SX(850 nm) 1000 Base-LX(1310 nm) 1000 Base-LX(1550 nm) MMF-50/125 um 525 m 550 m n/a MMF-62. 5/125 um 260 m 550 m n/a SMF-10/125 um n/a 3000 m - DSF n/a - 70 Km 光纤直径

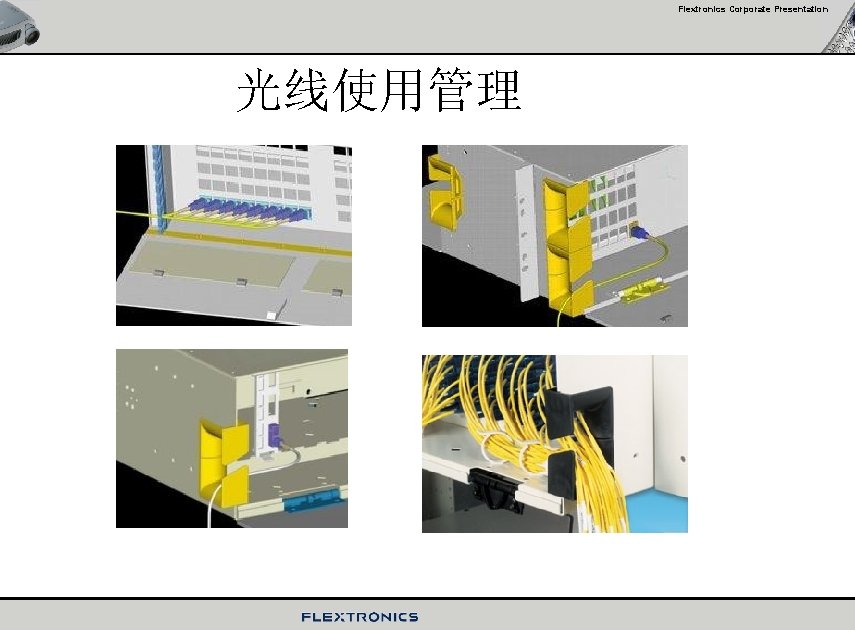

Flextronics Corporate Presentation 光线使用管理

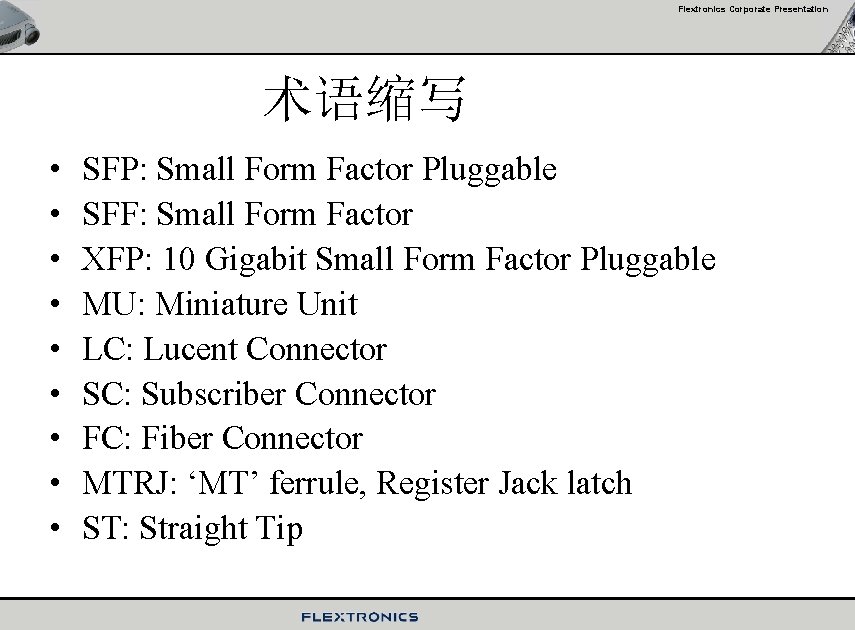

Flextronics Corporate Presentation 术语缩写 • • • SFP: Small Form Factor Pluggable SFF: Small Form Factor XFP: 10 Gigabit Small Form Factor Pluggable MU: Miniature Unit LC: Lucent Connector SC: Subscriber Connector FC: Fiber Connector MTRJ: ‘MT’ ferrule, Register Jack latch ST: Straight Tip

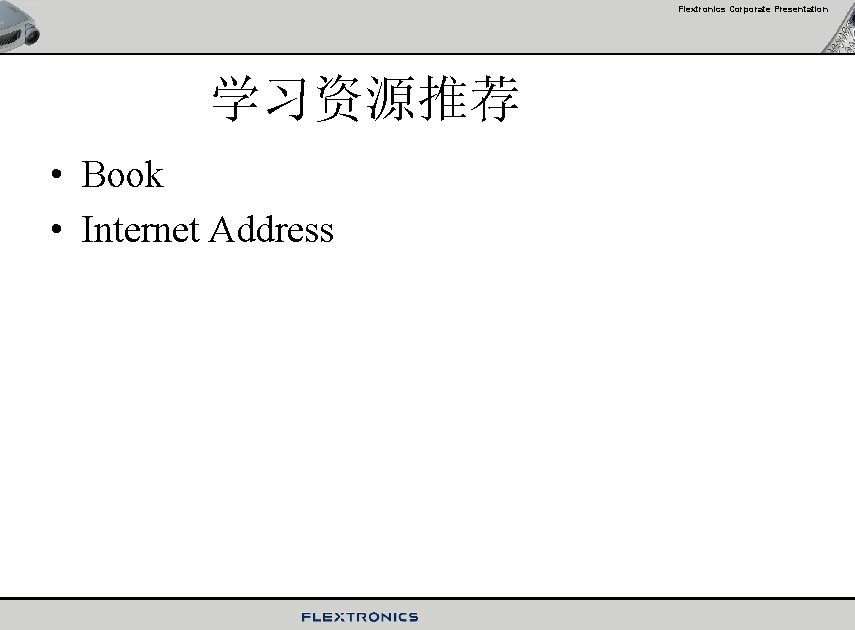

Flextronics Corporate Presentation 学习资源推荐 • Book • Internet Address
