Flexible Manufacturing Common Sheet Metal Seams Copyright Texas
Flexible Manufacturing Common Sheet Metal Seams
Copyright © Texas Education Agency, 2017. These Materials are copyrighted © and trademarked ™ as the property of the Texas Education Agency (TEA) and may not be reproduced without the express written permission of TEA, except under the following conditions: 1) Texas public school districts, charter schools, and Education Service Centers may reproduce and use copies of the Materials and Related Materials for the districts’ and schools’ educational use without obtaining permission from TEA. 2) Residents of the state of Texas may reproduce and use copies of the Materials and Related Materials for individual personal use only, without obtaining written permission of TEA. 3) Any portion reproduced must be reproduced in its entirety and remain unedited, unaltered and unchanged in any way. 4) No monetary charge can be made for the reproduced materials or any document containing them; however, a reasonable charge to cover only the cost of reproduction and distribution may be charged. Private entities or persons located in Texas that are not Texas public school districts, Texas Education Service Centers, or Texas charter schools or any entity, whether public or private, educational or non-educational, located outside the state of Texas MUST obtain written approval from TEA and will be required to enter into a license agreement that may involve the payment of a licensing fee or a royalty. For information contact: Office of Copyrights, Trademarks, License Agreements, and Royalties, Texas Education Agency, 1701 N. Congress Ave. , Austin, TX 78701 -1494; phone 512 -463 -7004; email: copyrights@tea. state. tx. us. Copyright © Texas Education Agency, 2017. All rights reserved. 2
Seam A joint formed by two pieces of metal, overlapped and held in place by spot welds, rivets, or bends. Copyright © Texas Education Agency, 2017. All rights reserved. 3
Helm This is the edge of a piece of metal that is folded over on itself for strength and smoothness. Copyright © Texas Education Agency, 2017. All rights reserved. 4
Flange This is an edge folded to a 90° angle to make a corner or part of a seam. Copyright © Texas Education Agency, 2017. All rights reserved. 5
Wire Rolled Edge This is the edge of a piece of metal that is wrapped around a piece of wire. It makes a stronger, smoother, reinforced edge. Copyright © Texas Education Agency, 2017. All rights reserved. 6
Simple Seams These seams will be welded, riveted, or glued to hold them together. Flat Lapped Seam Corner Lapped Seam Copyright © Texas Education Agency, 2017. All rights reserved. 7
Flat Locked Seam The edges are folded over and slid together to lock the seam. Copyright © Texas Education Agency, 2017. All rights reserved. 8
Grooved Locked Seam The edges are folded over and slid together. A hand groover is used to flatten the seam to lock it together. Copyright © Texas Education Agency, 2017. All rights reserved. 9
Standing Edge Seam A seam used in roofing to seal the edges of the metal panels. Copyright © Texas Education Agency, 2017. All rights reserved. 10
Single Bottom Seam This is a seam used to seal a bottom into a part. Copyright © Texas Education Agency, 2017. All rights reserved. 11
Examples of Items Made Using Seams Copyright © Texas Education Agency, 2017. All rights reserved. 12
Tools and Equipment Copyright © Texas Education Agency, 2017. All rights reserved. 13
Tin Snips A hand tool to shear sheet metal. They have long handles and short sturdy cutting jaws. Copyright © Texas Education Agency, 2017. All rights reserved. 14
Aviation Snips Aviation snips have compound handles, and are made to cut sheet metal easier than regular snips. Color-coded handles identify the way they cut circles and curves. Red Left Yellow Straight Green Right Copyright © Texas Education Agency, 2017. All rights reserved. 15
Hand Seamer This is a plier-style tool with wide jaws, used to bend seams on sheet metal. Some hand seamers have adjustments for depth of a bend. Copyright © Texas Education Agency, 2017. All rights reserved. 16
Hand Groover This is a tool used to flatten a seam. The hand groover fits the seam and forces the seam flat, locking it together. Copyright © Texas Education Agency, 2017. All rights reserved. 17
Sheet Metal Shear A foot operated shear is used to cut larger sheets of metal. Copyright © Texas Education Agency, 2017. All rights reserved. 18
Sheet Metal Shear Safety Keep fingers away from hold down and cutting edge. Keep your foot away from the treadle of the shear. Copyright © Texas Education Agency, 2017. All rights reserved. 19

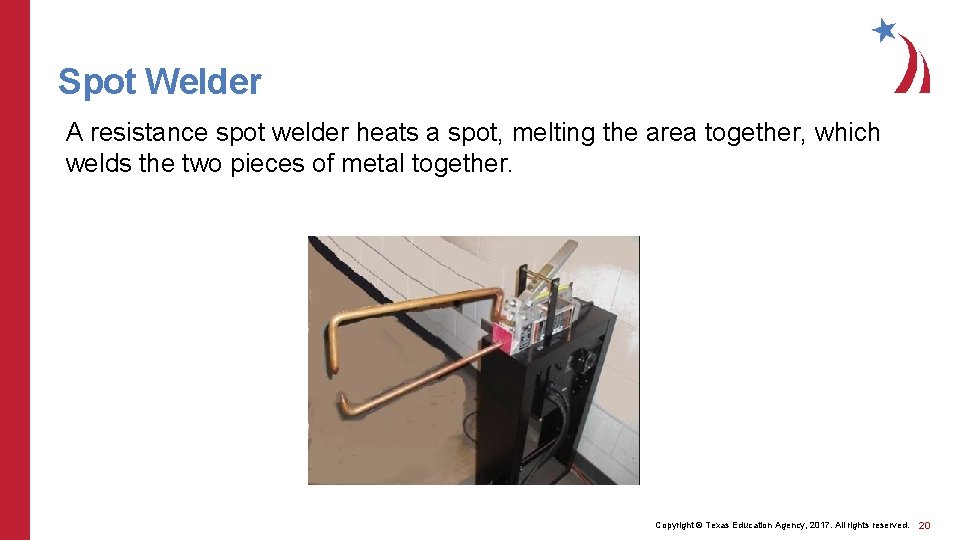

Spot Welder A resistance spot welder heats a spot, melting the area together, which welds the two pieces of metal together. Copyright © Texas Education Agency, 2017. All rights reserved. 20
Box and Pan Brake This is a machine used to bend folds of sheet metal to form seams and sides of projects. Copyright © Texas Education Agency, 2017. All rights reserved. 21
Safety First > Always wear personal protective equipment (PPE). > Always use the tools and equipment safely. Copyright © Texas Education Agency, 2017. All rights reserved. 22
Assignment #1 Using eight pieces of 3” X 5” sheet metal form the following: > ¼” Helm > corner lapped seam > flat locked seam > grooved locked seam > standing seam Copyright © Texas Education Agency, 2017. All rights reserved. 23
Assignment #2 Construct a Small Sheet Metal Box. Copyright © Texas Education Agency, 2017. All rights reserved. 24
Copyright © Texas Education Agency, 2017. All rights reserved. 25
Layout Use the Small Sheet Metal Box Plan and draw the layout on the sheet metal. Copyright © Texas Education Agency, 2017. All rights reserved. 26
Cut Out Box Using snips, cut the box out. Do Not Cut the seams and helms off. Copyright © Texas Education Agency, 2017. All rights reserved. 27
Fold Side and Seams Fold the first side with seams, using a box and pan brake. Copyright © Texas Education Agency, 2017. All rights reserved. 28
Fold Second Side Fold the second side. Copyright © Texas Education Agency, 2017. All rights reserved. 29
Fold First End Fold the helms of both ends down, then fold the ends up into place. The seam flanges should fold into the inside of the box. Copyright © Texas Education Agency, 2017. All rights reserved. 30
Fold Second End Fold the second end up in place, make sure that the seam flanges fold inside the box. Copyright © Texas Education Agency, 2017. All rights reserved. 31
Fold the Last Two Helms Fold the last two helms into the box, locking the side seams in place. Copyright © Texas Education Agency, 2017. All rights reserved. 32
Finished Box The box is completed. The top edges should be smooth because of the helms. Turn in the box and worksheets for a grade. Copyright © Texas Education Agency, 2017. All rights reserved. 33
Rubrics for Assignment #I Example # 1 2 3 4 5 6 7 8 Name of Seam Smooth bend Correct (3 pts) development (8 pts) Label (4 pts) Total ¼” helm Corner lapped seam Flat locked seam Grooved locked seam Standing seam Total Copyright © Texas Education Agency, 2017. All rights reserved. 34
Rubrics for Assignment #2 Small Sheet Metal Box Points 1. The box is the size specified in the plans. ___ Yes (12 points) ____ No (0 points) ______ 2. The seams are the correct size. (4 seams; 4 points for each smooth bend) ______ 3. The helms are the correct size. (4 helms; 4 points for each smooth bend) ______ 4. The seams are correctly bent. (4 seams; 2 points for each smooth bend) ______ 4. The helms are correctly bent. (4 helms; 2 points for each smooth bend) ______ 5. The bends are smooth. (8 bends; 5 points for each smooth bend) Total ___________ Comments______________________________________________________________________ ________________________________________ Copyright © Texas Education Agency, 2017. All rights reserved. ________________________________________ 35
