Flame Spray Technologies AWS-400 Arc-Spray System FST-2005 -07 FST AWS-400 REV. 1

Why Arc Spray? l Simple, Reliable, Field Proven l Portable l Wide Operating Parameters l Excellent Quality Coatings l Low Operating Costs l Low Capital Costs l High Spray Rates l High Bond Strengths l Pseudo Alloys and Cored Wires

The AWS-400 System AWS-400 Wire Feed Unit incl. Controls AWS-400 Power Supply AWS-400 Hose & Cable Set AWS-400 Spray Gun

The AWS-400 System Introduction l The AWS-400 is 400 Amp Arc-Spray system l The AWS-400 required Low Initial Investment Cost l Designed to operate at the lowest possible maintenance cost l The AWS-400 is a so-called Push Arc-Spray System l The AWS-400 system uses a robust wire drive motor located within the control console instead of the gun head, and therefore, has a bigger the driving force, resulting in a reliable and more consistent wire feed l Pull-type systems can’t offer the power or the lightweight (1, 15 kg) gun head of the AWS-400 l The AWS-400 Arc-Spray System offers high performance and unbeatable power

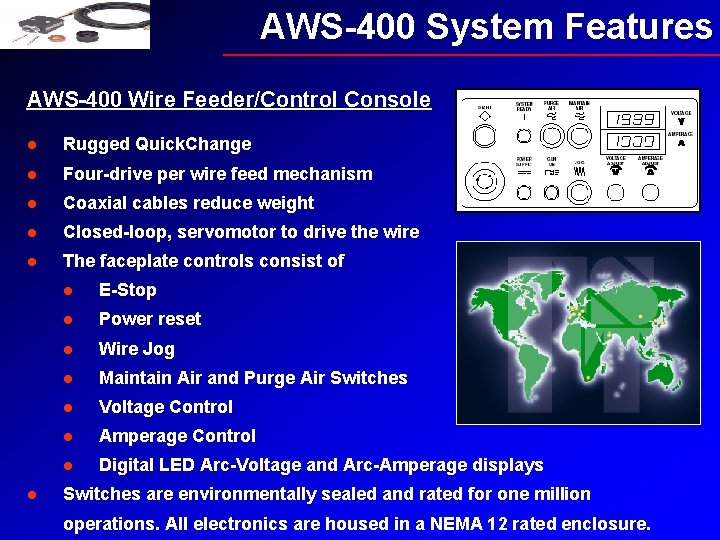

AWS-400 System Features AWS-400 Wire Feeder/Control Console l Rugged Quick. Change l Four-drive per wire feed mechanism l Coaxial cables reduce weight l Closed-loop, servomotor to drive the wire l The faceplate controls consist of l l E-Stop l Power reset l Wire Jog l Maintain Air and Purge Air Switches l Voltage Control l Amperage Control l Digital LED Arc-Voltage and Arc-Amperage displays Switches are environmentally sealed and rated for one million operations. All electronics are housed in a NEMA 12 rated enclosure.

AWS-400 System Features AWS-400 Side Panel Controls l Wire Counter l Time Counter l Remote/Local Voltage Control Switch l Remote/Local Amperage Control Switch l Preflow Adjust l Burnback Adjust l Display Hold Adjust

AWS-400 System Features AWS-400 Arc-Spray Gun Head l Consumable wire electrodes are fed through the wire guides and into the Quick Change Wire Guides l Converging/Diverging Air Chamber and Air Cap direct the high velocity, laminar flow air across the arc zone, and create optimum atomization, and the perfect spray pattern l Insulated power cables, charged positive and negative, connect the AWS-400 Gunhead to the AWS-400 Wire Feeder l These insulated coaxial cables also provide an internalpathway for the consumable wire to reach the wire guides of the AWS-400 Gunhead l An on/off trigger switch is supplied on the detachable gunhandle to control the wire feed, compressed air and contactor of the AWS-400 power supply l The AWS-400 Gunhead is supplied with several hard points for mounting to robots, gun manipulators and fixtures

Sprays All Wire Types l Hard Wires including: Stainless Steels, Inconels, 13% Cr-Steel l Cored Wires including: WC, Cr. C, Ni. Cr. Si. B cored wires l Soft wires: including Zinc, Aluminium, Zinc- Aluminium l Spray. Tech 06 MA. WI. 100 l Also available are aerospace approved wires
