Flagging This presentation was prepared by Rich Lobdell

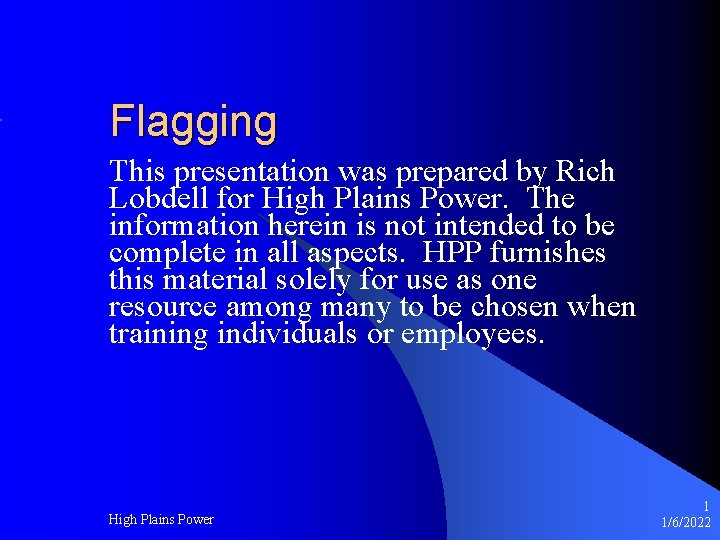

Flagging This presentation was prepared by Rich Lobdell for High Plains Power. The information herein is not intended to be complete in all aspects. HPP furnishes this material solely for use as one resource among many to be chosen when training individuals or employees. High Plains Power 1 1/6/2022

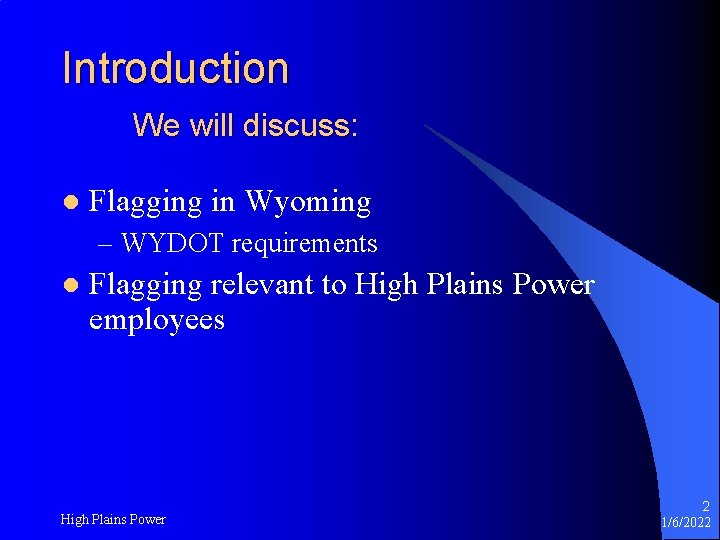

Introduction We will discuss: l Flagging in Wyoming – WYDOT requirements l Flagging relevant to High Plains Power employees High Plains Power 2 1/6/2022
Agenda Attributes of a flagger l Flagger PPE l Flagger Equipment l Traffic Control Devices l Traffic Control l Channeling l Flagger Station l Flagging Procedures l High Plains Power 3 1/6/2022

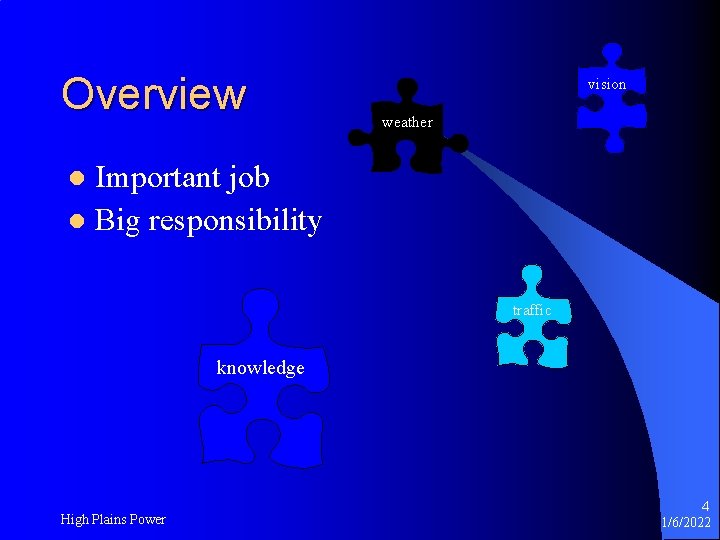

Overview vision weather Important job l Big responsibility l traffic knowledge High Plains Power 4 1/6/2022

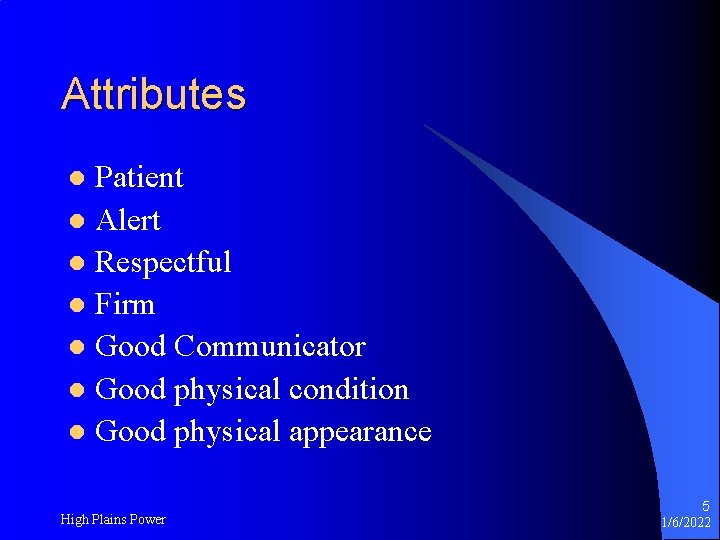

Attributes Patient l Alert l Respectful l Firm l Good Communicator l Good physical condition l Good physical appearance l High Plains Power 5 1/6/2022

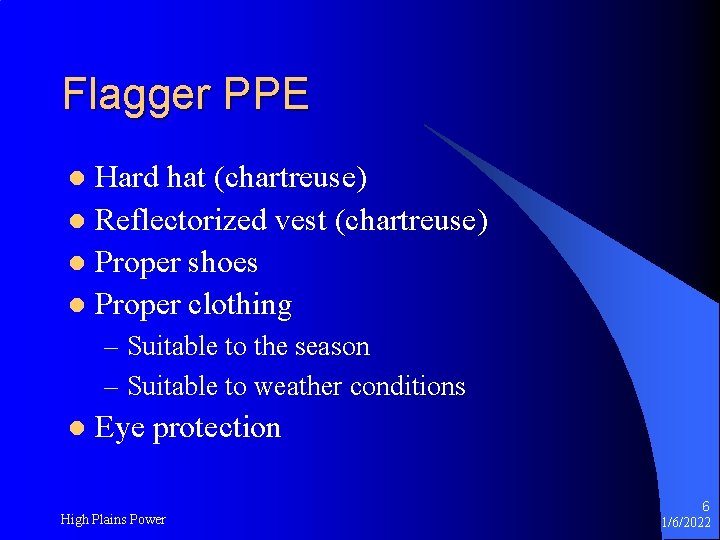

Flagger PPE Hard hat (chartreuse) l Reflectorized vest (chartreuse) l Proper shoes l Proper clothing l – Suitable to the season – Suitable to weather conditions l Eye protection High Plains Power 6 1/6/2022

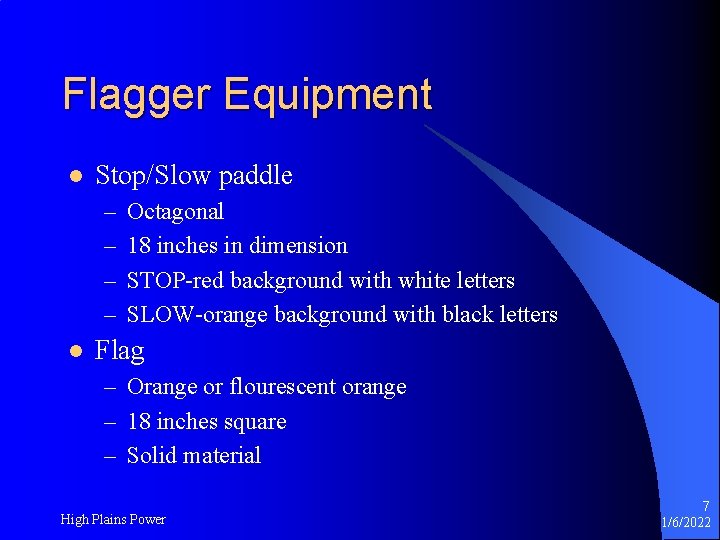

Flagger Equipment l Stop/Slow paddle – – l Octagonal 18 inches in dimension STOP-red background with white letters SLOW-orange background with black letters Flag – Orange or flourescent orange – 18 inches square – Solid material High Plains Power 7 1/6/2022

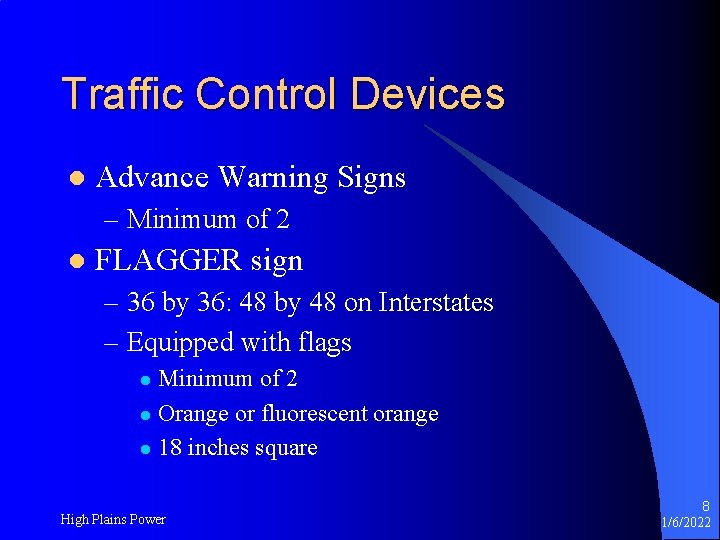

Traffic Control Devices l Advance Warning Signs – Minimum of 2 l FLAGGER sign – 36 by 36: 48 by 48 on Interstates – Equipped with flags Minimum of 2 l Orange or fluorescent orange l 18 inches square l High Plains Power 8 1/6/2022
Traffic Control Devices …. . l BE PREPARED TO STOP sign – 36 by 36: 48 by 48 on Interstates – Equipped with flags Minimum of 2 l Orange or fluorescent orange l 18 inches square l l Informational signs – Utility Work Ahead High Plains Power 9 1/6/2022
Traffic Control Devices …. . l Channelizing devices – Barricades – Drums – Cones Orange or fluorescent orange l Retroreflectorized l Minimum of 28” in height l 3” from top – 6” Rr band – 2” – 4” Rr band l High Plains Power 10 1/6/2022

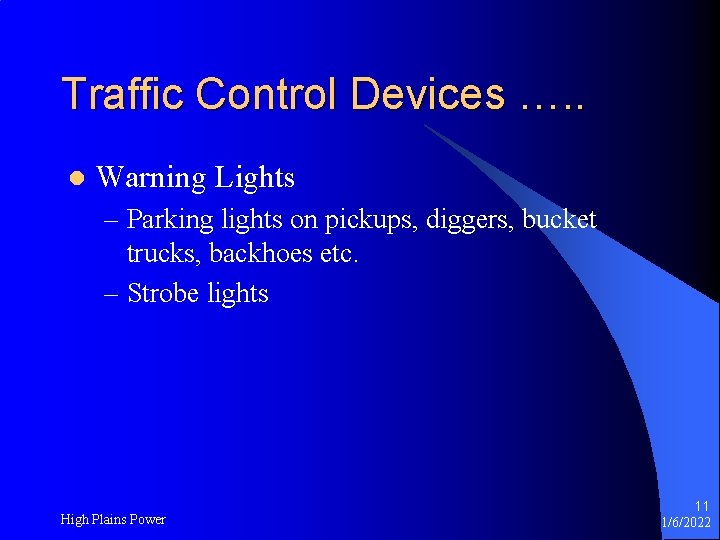

Traffic Control Devices …. . l Warning Lights – Parking lights on pickups, diggers, bucket trucks, backhoes etc. – Strobe lights High Plains Power 11 1/6/2022

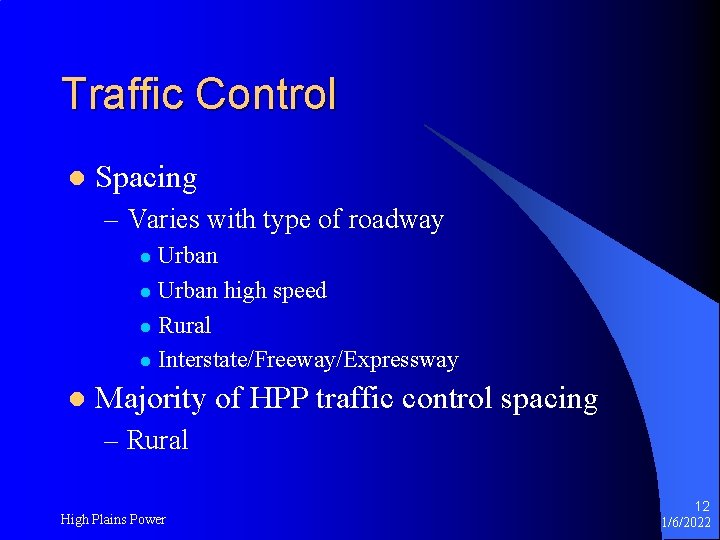

Traffic Control l Spacing – Varies with type of roadway Urban l Urban high speed l Rural l Interstate/Freeway/Expressway l l Majority of HPP traffic control spacing – Rural High Plains Power 12 1/6/2022

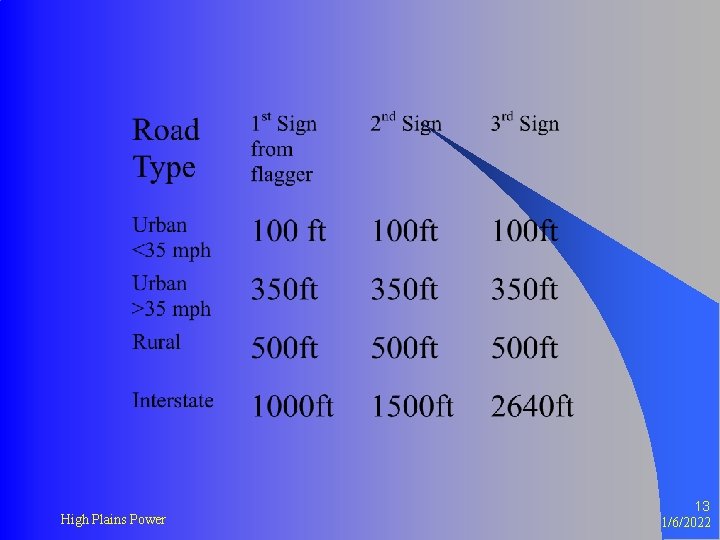

High Plains Power 13 1/6/2022
Channeling l Channelizing devices – Warn and alert drivers – Guide and direct drivers – Delineate work areas l Most common channelizing device – Traffic cone High Plains Power 14 1/6/2022

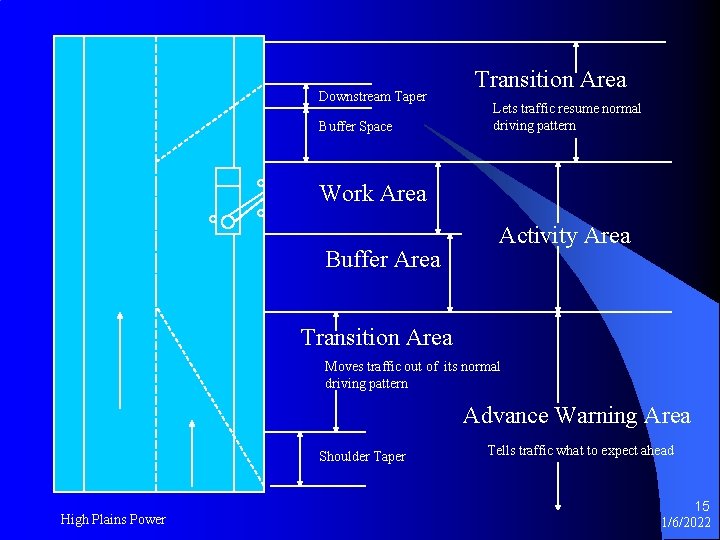

Downstream Taper Buffer Space Transition Area Lets traffic resume normal driving pattern Work Area Buffer Area Activity Area Transition Area Moves traffic out of its normal driving pattern Advance Warning Area Shoulder Taper High Plains Power Tells traffic what to expect ahead 15 1/6/2022

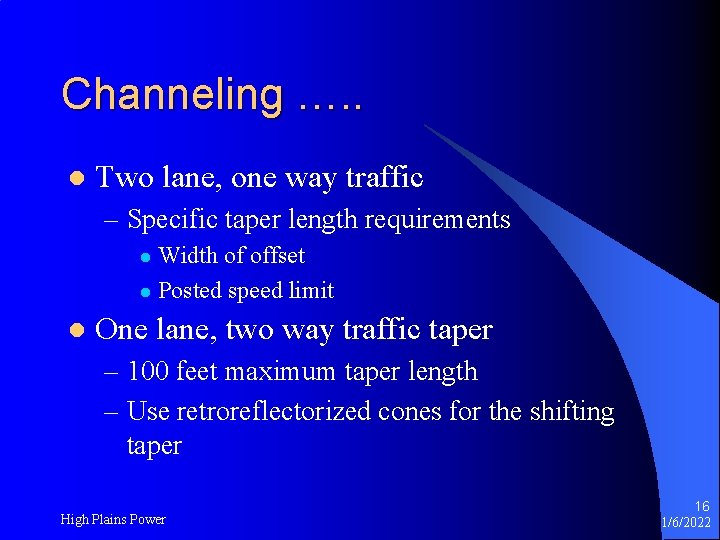

Channeling …. . l Two lane, one way traffic – Specific taper length requirements Width of offset l Posted speed limit l l One lane, two way traffic taper – 100 feet maximum taper length – Use retroreflectorized cones for the shifting taper High Plains Power 16 1/6/2022

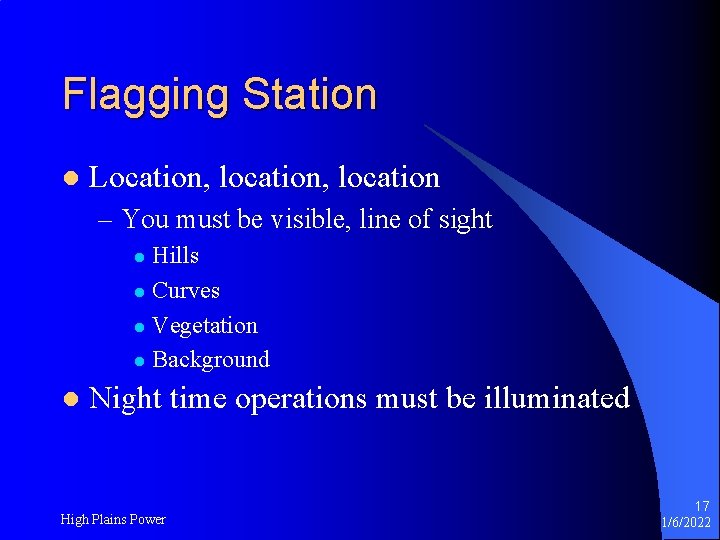

Flagging Station l Location, location – You must be visible, line of sight Hills l Curves l Vegetation l Background l l Night time operations must be illuminated High Plains Power 17 1/6/2022

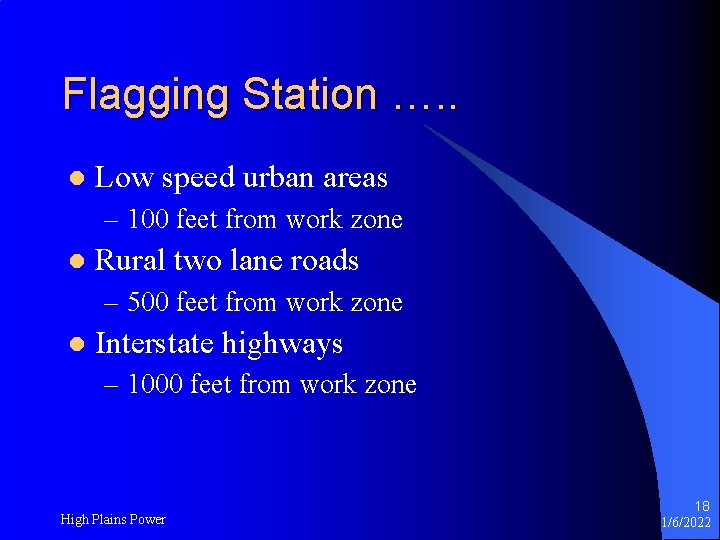

Flagging Station …. . l Low speed urban areas – 100 feet from work zone l Rural two lane roads – 500 feet from work zone l Interstate highways – 1000 feet from work zone High Plains Power 18 1/6/2022

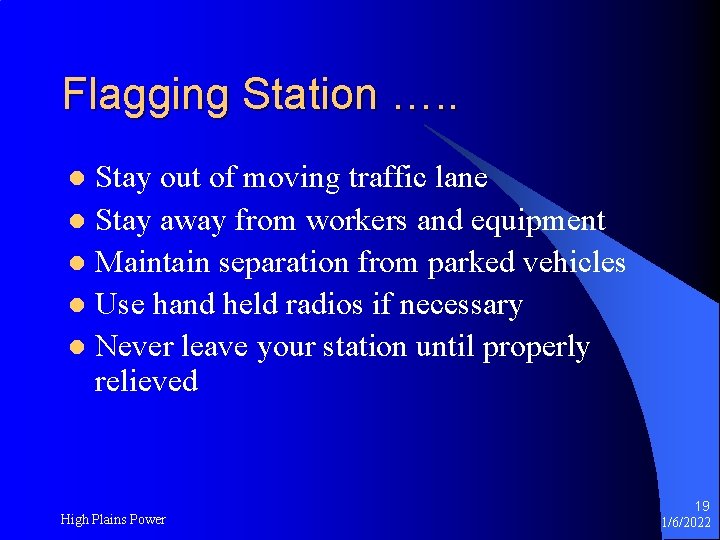

Flagging Station …. . Stay out of moving traffic lane l Stay away from workers and equipment l Maintain separation from parked vehicles l Use hand held radios if necessary l Never leave your station until properly relieved l High Plains Power 19 1/6/2022

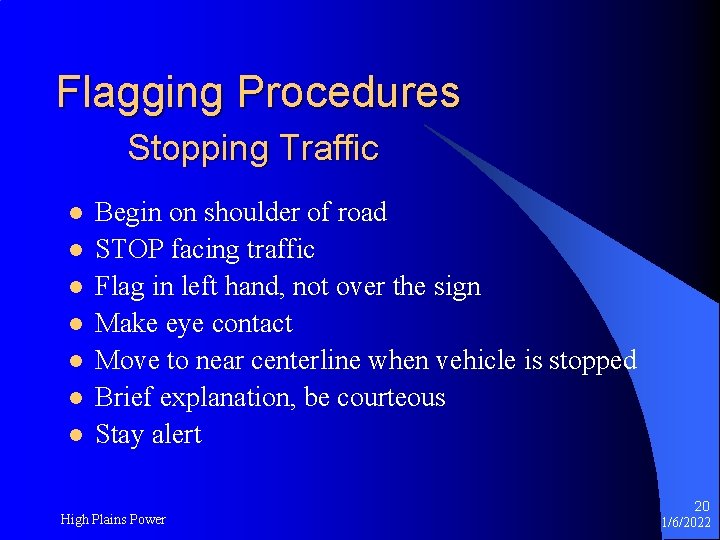

Flagging Procedures Stopping Traffic l l l l Begin on shoulder of road STOP facing traffic Flag in left hand, not over the sign Make eye contact Move to near centerline when vehicle is stopped Brief explanation, be courteous Stay alert High Plains Power 20 1/6/2022

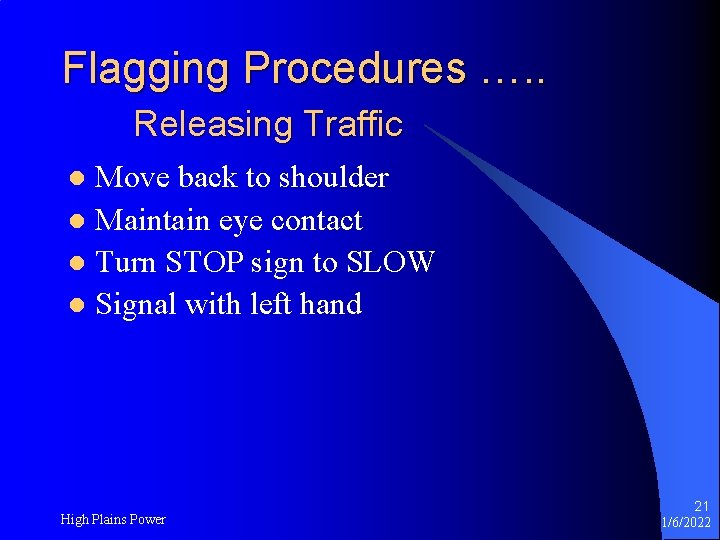

Flagging Procedures …. . Releasing Traffic Move back to shoulder l Maintain eye contact l Turn STOP sign to SLOW l Signal with left hand l High Plains Power 21 1/6/2022

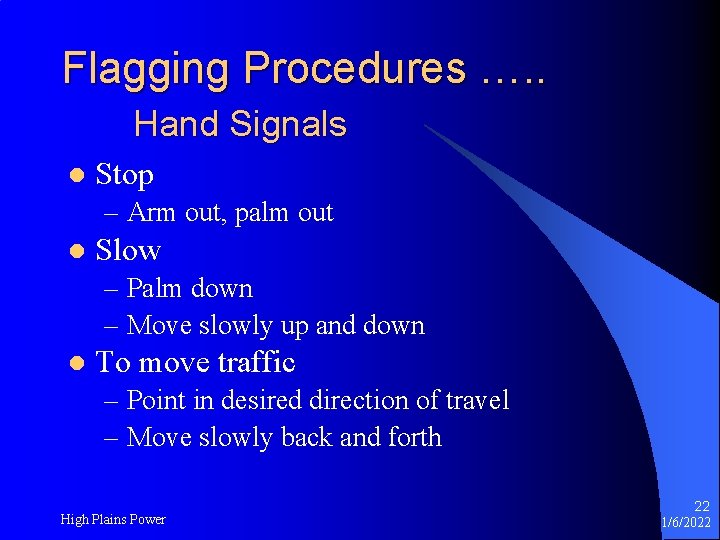

Flagging Procedures …. . Hand Signals l Stop – Arm out, palm out l Slow – Palm down – Move slowly up and down l To move traffic – Point in desired direction of travel – Move slowly back and forth High Plains Power 22 1/6/2022

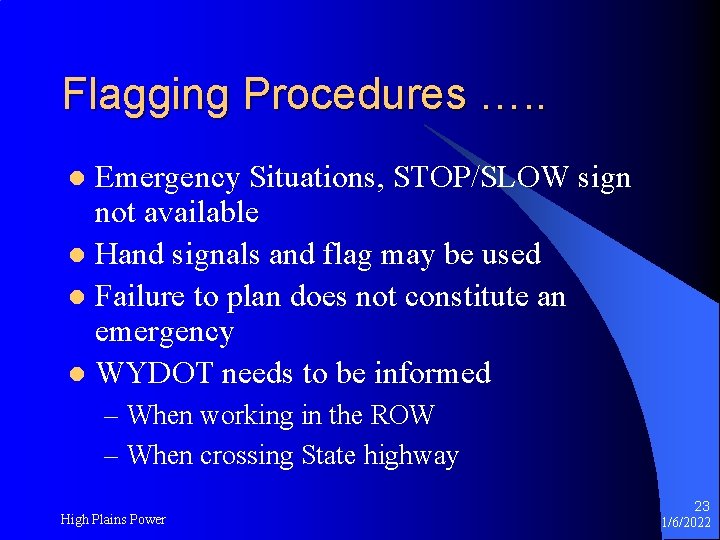

Flagging Procedures …. . Emergency Situations, STOP/SLOW sign not available l Hand signals and flag may be used l Failure to plan does not constitute an emergency l WYDOT needs to be informed l – When working in the ROW – When crossing State highway High Plains Power 23 1/6/2022

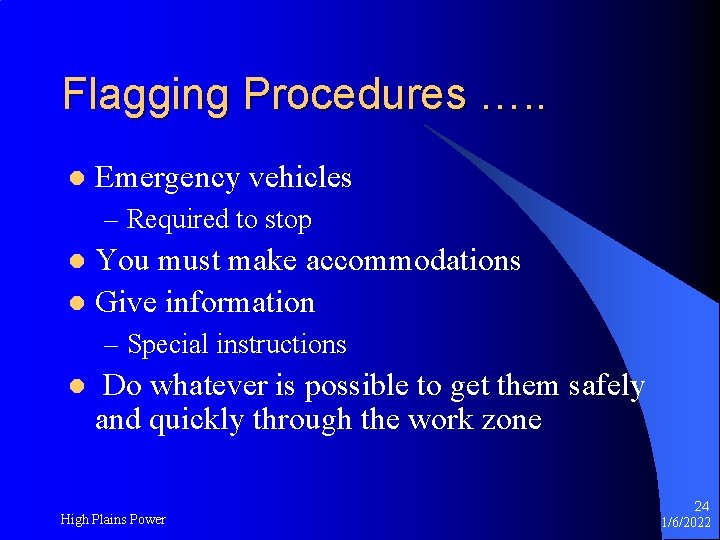

Flagging Procedures …. . l Emergency vehicles – Required to stop You must make accommodations l Give information l – Special instructions l Do whatever is possible to get them safely and quickly through the work zone High Plains Power 24 1/6/2022

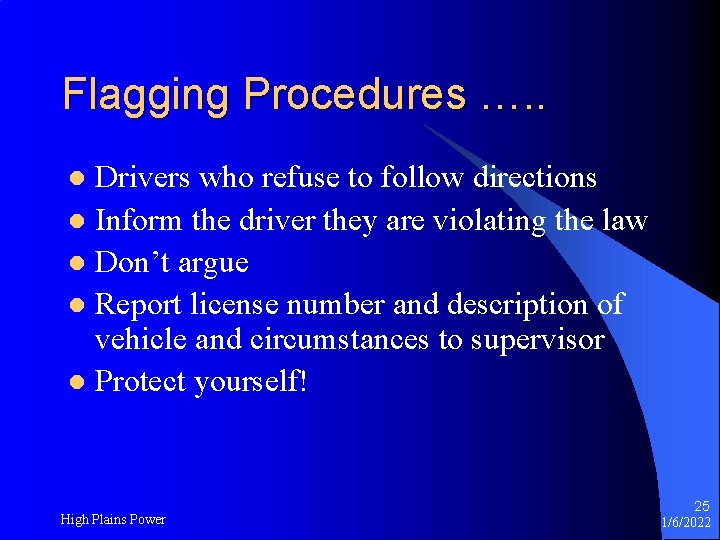

Flagging Procedures …. . Drivers who refuse to follow directions l Inform the driver they are violating the law l Don’t argue l Report license number and description of vehicle and circumstances to supervisor l Protect yourself! l High Plains Power 25 1/6/2022

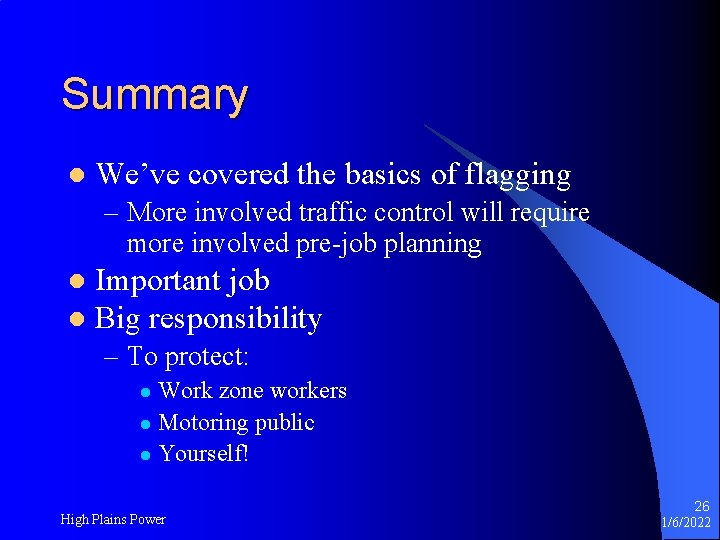

Summary l We’ve covered the basics of flagging – More involved traffic control will require more involved pre-job planning Important job l Big responsibility l – To protect: Work zone workers l Motoring public l Yourself! l High Plains Power 26 1/6/2022

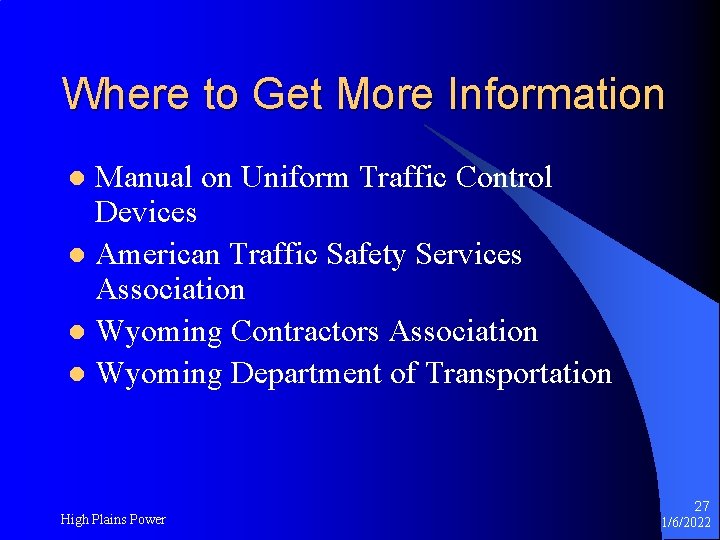

Where to Get More Information Manual on Uniform Traffic Control Devices l American Traffic Safety Services Association l Wyoming Contractors Association l Wyoming Department of Transportation l High Plains Power 27 1/6/2022
