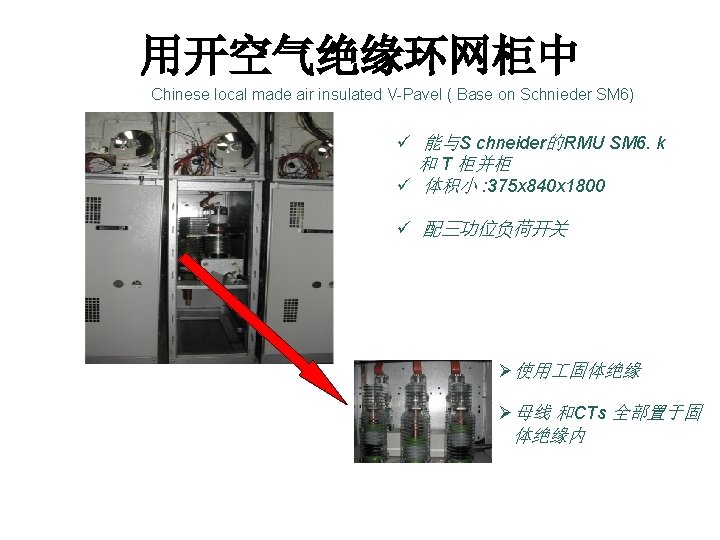

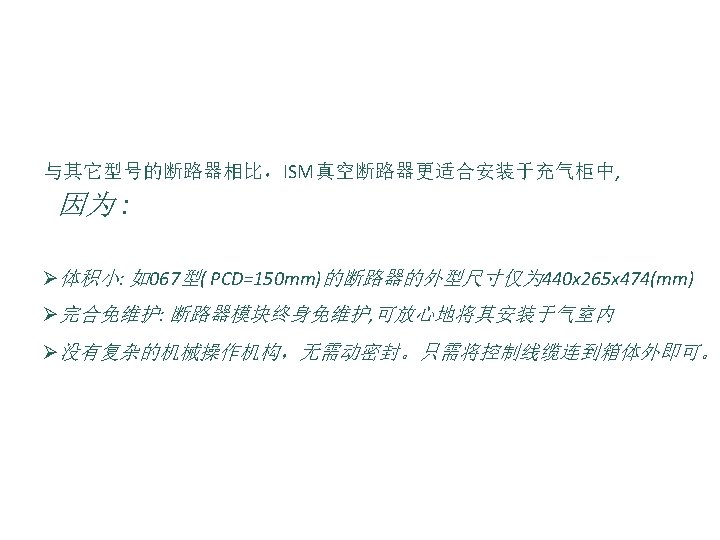

Fixed type panel Driescher VPavel Fixed type panel

  • Slides: 14
Download presentation

Fixed type panel Driescher V-Pavel

Fixed type panel Driescher V-Pavel

Fixed type panel Imported SF 6 gas insulated V-Pavel Overall dimension 500 x 878

Fixed type panel Imported SF 6 gas insulated V-Pavel Overall dimension 500 x 878 x 1700(1300)

Fixed type panel Imported SF 6 gas insulated V-Pavel 1 Plug-in, metalencapsulated PT with

Fixed type panel Imported SF 6 gas insulated V-Pavel 1 Plug-in, metalencapsulated PT with integrated fuseholder (at 12 k. V) 2 Inner cone for plug-in PT 3 Disconnector/Earthingswitch for PT 4 Make-proof earthing switch 5 Bushings to the cable compartment 6 Overpressure valve 7 Kabeltrageisen 8 Low voltage compartment 9 Bushings to solid insulated busbar system 10 Busbarsystem 11 Disconnector 12 Vacuum circuit breaker with single coil magnetic drive mechnism 13 Cable plug 14 Surge Arrestor 15 CT 16 Cable compartment cover

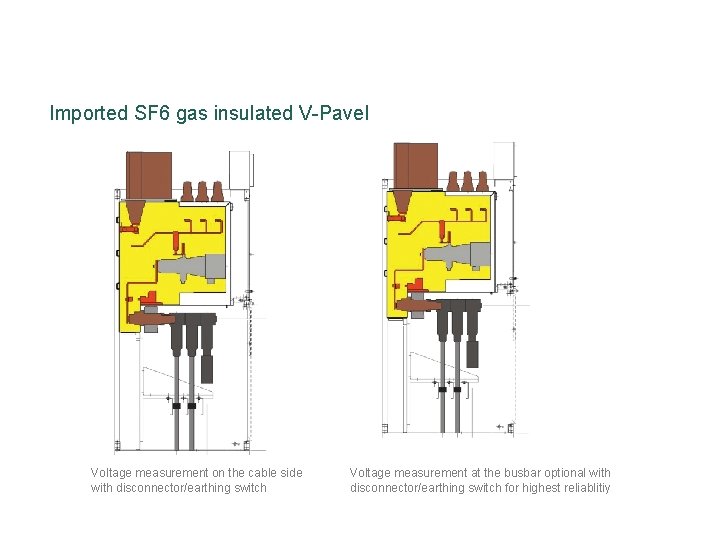

Fixed type panel Imported SF 6 gas insulated V-Pavel Voltage measurement on the cable

Fixed type panel Imported SF 6 gas insulated V-Pavel Voltage measurement on the cable side with disconnector/earthing switch Voltage measurement at the busbar optional with disconnector/earthing switch for highest reliablitiy
