Fischer Tropsch Separation Train By the same people

Fischer Tropsch Separation Train! By the same people who brought you Cyclohexanone Center, C. 2014 E. T. Diesel-Electric Locomotives. https: //edisontechcenter. org/Dieseltrains. html (accessed Feb 1, 2020).

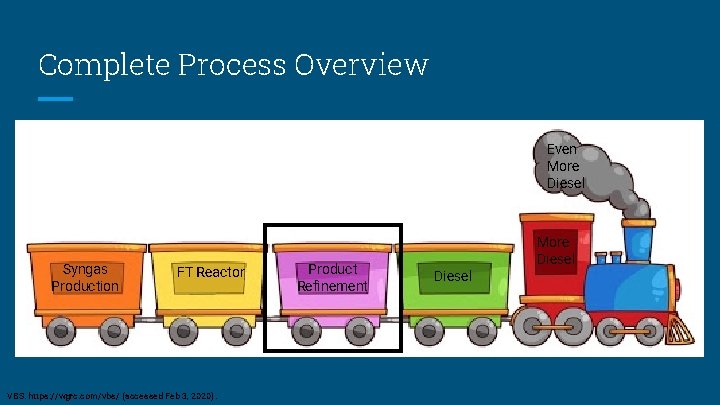

Complete Process Overview Even More Diesel Syngas Production FT Reactor VBS. https: //wgrc. com/vbs/ (accessed Feb 3, 2020). Product Refinement More Diesel

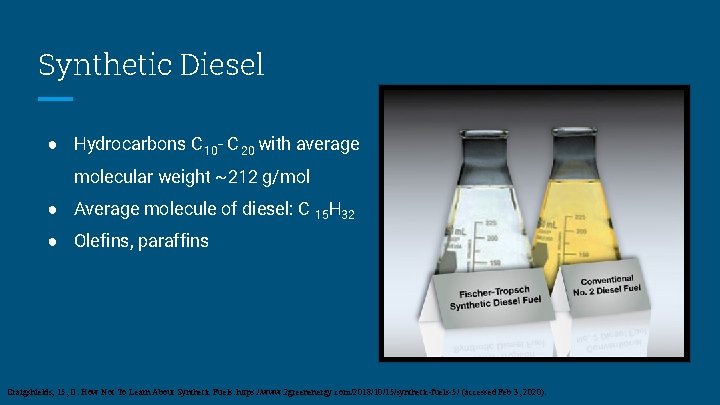

Synthetic Diesel ● Hydrocarbons C 10 - C 20 with average molecular weight ~212 g/mol ● Average molecule of diesel: C 15 H 32 ● Olefins, paraffins Craigshields; 15, O. How Not To Learn About Synthetic Fuels. https: //www. 2 greenenergy. com/2018/10/15/synthetic-fuels-5/ (accessed Feb 3, 2020).

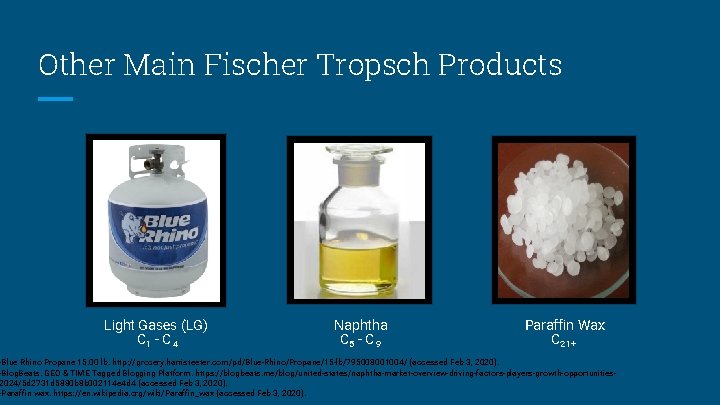

Other Main Fischer Tropsch Products Light Gases (LG) C 1 - C 4 Naphtha C 5 - C 9 Paraffin Wax C 21+ -Blue Rhino Propane 15. 00 lb. http: //grocery. harristeeter. com/pd/Blue-Rhino/Propane/15 -lb/795008001004/ (accessed Feb 3, 2020). -Blog. Beats. GEO & TIME Tagged Blogging Platform. https: //blogbeats. me/blog/united-states/naphtha-market-overview-driving-factors-players-growth-opportunities 2024/5 d 2731 d 5880 b 8 b 002114 e 4 d 4 (accessed Feb 3, 2020). -Paraffin wax. https: //en. wikipedia. org/wiki/Paraffin_wax (accessed Feb 3, 2020).

Fischer Tropsch Products Continued Pub. Chem. https: //pubchem. ncbi. nlm. nih. gov/ (accessed Feb 3, 2020).

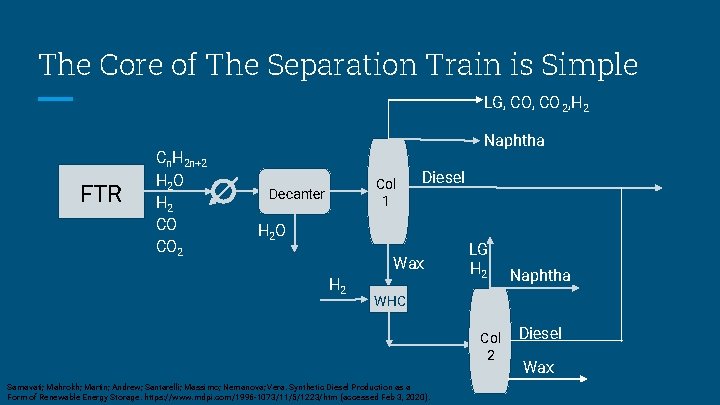

The Core of The Separation Train is Simple LG, CO 2, H 2 FTR Cn. H 2 n+2 H 2 O H 2 CO CO 2 Naphtha Col 1 Decanter Diesel H 2 O Wax H 2 LG H 2 Naphtha WHC Col 2 Samavati; Mahrokh; Martin; Andrew; Santarelli; Massimo; Nemanova; Vera. Synthetic Diesel Production as a Form of Renewable Energy Storage. https: //www. mdpi. com/1996 -1073/11/5/1223/htm (accessed Feb 3, 2020). Diesel Wax

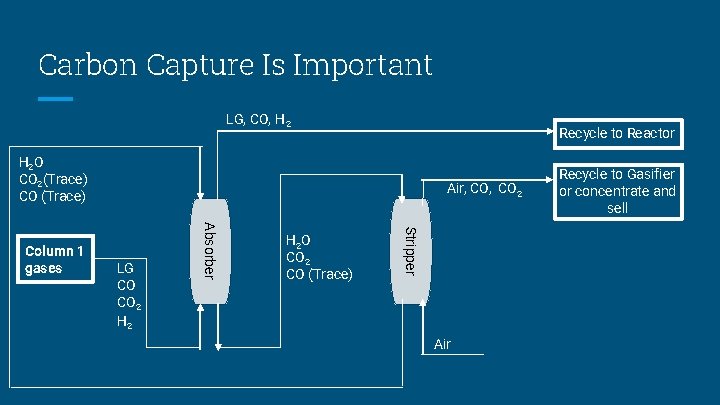

Carbon Capture Is Important LG, CO, H 2 Recycle to Reactor H 2 O CO 2(Trace) CO (Trace) H 2 O CO 2 CO (Trace) Stripper LG CO CO 2 H 2 Absorber Column 1 gases Air, CO 2 Air Recycle to Gasifier or concentrate and sell

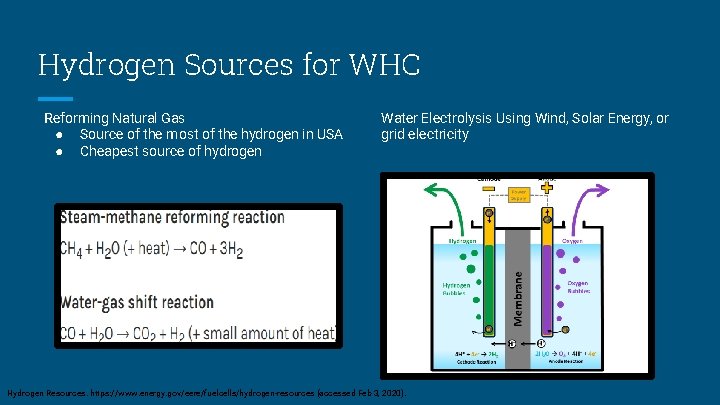

Hydrogen Sources for WHC Reforming Natural Gas ● Source of the most of the hydrogen in USA ● Cheapest source of hydrogen Water Electrolysis Using Wind, Solar Energy, or grid electricity Hydrogen Resources. https: //www. energy. gov/eere/fuelcells/hydrogen-resources (accessed Feb 3, 2020).

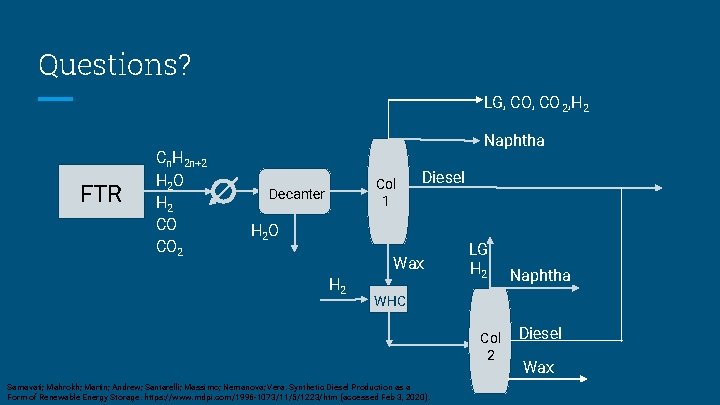

Questions? LG, CO 2, H 2 FTR Cn. H 2 n+2 H 2 O H 2 CO CO 2 Naphtha Col 1 Decanter Diesel H 2 O Wax H 2 LG H 2 Naphtha WHC Col 2 Samavati; Mahrokh; Martin; Andrew; Santarelli; Massimo; Nemanova; Vera. Synthetic Diesel Production as a Form of Renewable Energy Storage. https: //www. mdpi. com/1996 -1073/11/5/1223/htm (accessed Feb 3, 2020). Diesel Wax

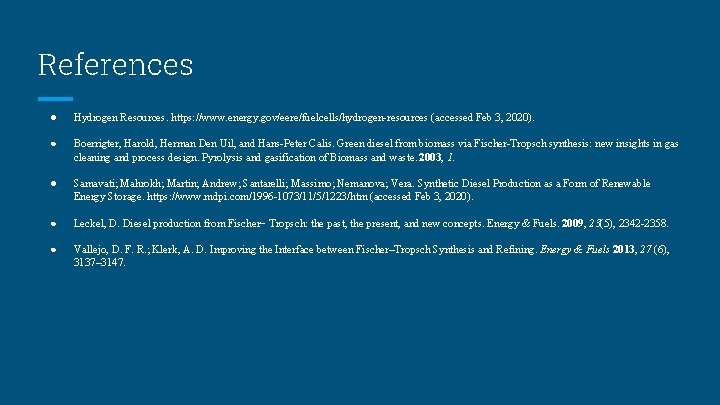

References ● Hydrogen Resources. https: //www. energy. gov/eere/fuelcells/hydrogen-resources (accessed Feb 3, 2020). ● Boerrigter, Harold, Herman Den Uil, and Hans-Peter Calis. Green diesel from biomass via Fischer-Tropsch synthesis: new insights in gas cleaning and process design. Pyrolysis and gasification of Biomass and waste. 2003, 1. ● Samavati; Mahrokh; Martin; Andrew; Santarelli; Massimo; Nemanova; Vera. Synthetic Diesel Production as a Form of Renewable Energy Storage. https: //www. mdpi. com/1996 -1073/11/5/1223/htm (accessed Feb 3, 2020). ● Leckel, D. Diesel production from Fischer− Tropsch: the past, the present, and new concepts. Energy & Fuels. 2009, 23(5), 2342 -2358. ● Vallejo, D. F. R. ; Klerk, A. D. Improving the Interface between Fischer–Tropsch Synthesis and Refining. Energy & Fuels 2013, 27 (6), 3137– 3147.
