First semester Grade 10 Advanced Unit 2 Cell

First semester Grade 10 Advanced Unit 2 Cell ultra structure Name : --------------------- Class : ----------

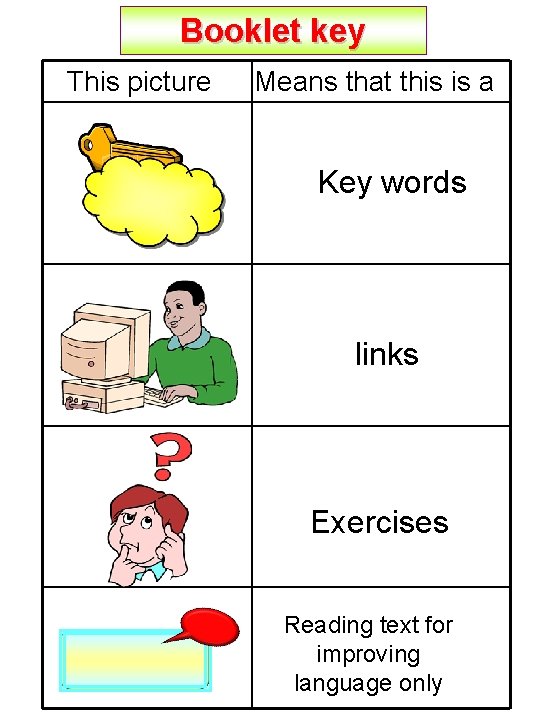

Booklet key This picture Means that this is a Key words links Exercises Reading text for improving language only

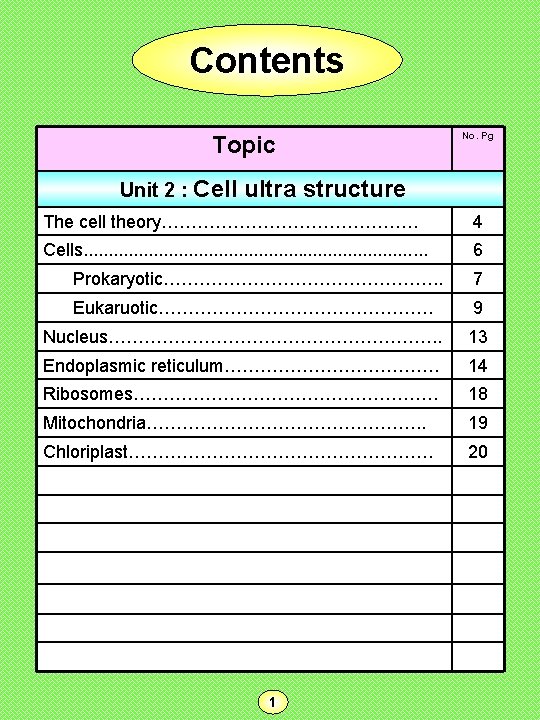

Contents Topic Unit 2 : Cell No. Pg ultra structure The cell theory…………………. 4 Cells. . . . . 6 Prokaryotic……………………. . 7 Eukaruotic……………………. 9 Nucleus………………………. . 13 Endoplasmic reticulum……………… 14 Ribosomes……………………… 18 Mitochondria……………………. . 19 Chloriplast……………………… 20 1

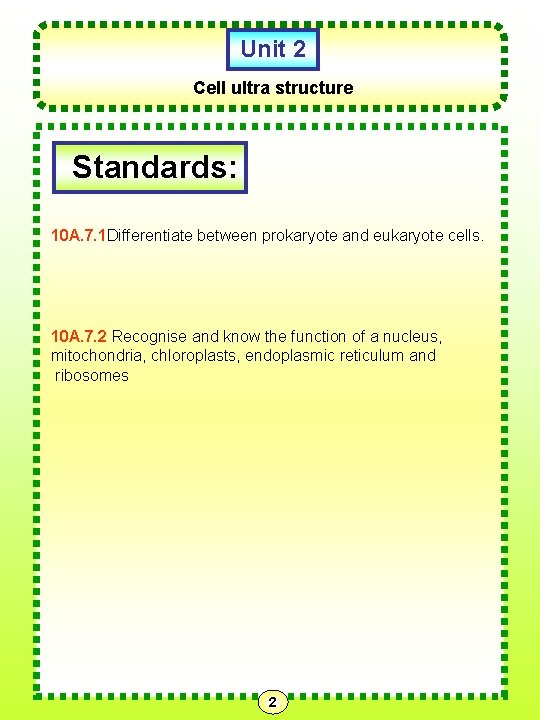

Unit 2 Cell ultra structure Standards: 10 A. 7. 1 Differentiate between prokaryote and eukaryote cells. 10 A. 7. 2 Recognise and know the function of a nucleus, mitochondria, chloroplasts, endoplasmic reticulum and ribosomes 2

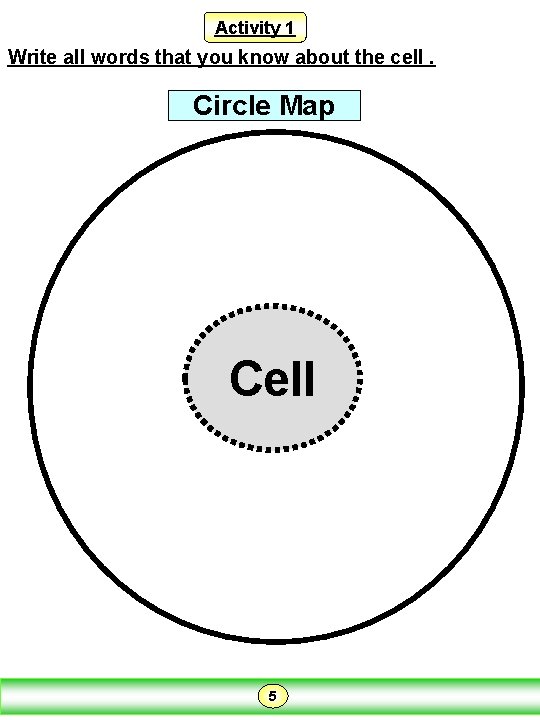

Activity 1 Write all words that you know about the cell. Circle Map Cell 5

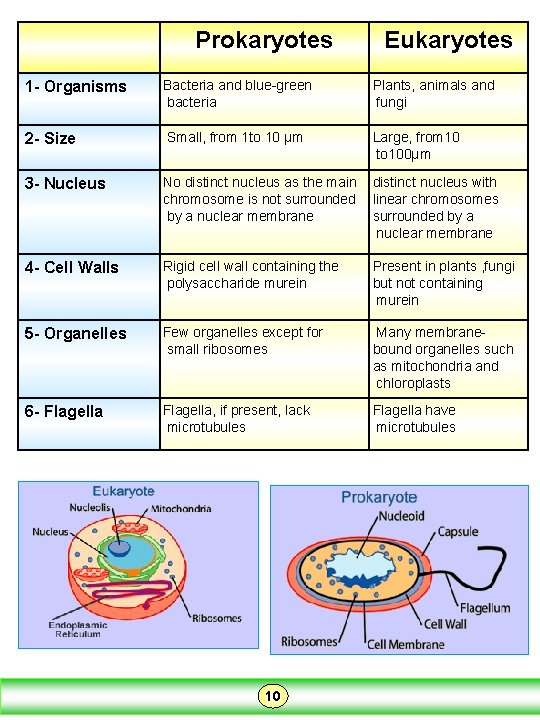

Prokaryotes Eukaryotes 1 - Organisms Bacteria and blue-green bacteria Plants, animals and fungi 2 - Size Small, from 1 to 10 µm Large, from 10 to 100µm 3 - Nucleus No distinct nucleus as the main distinct nucleus with chromosome is not surrounded linear chromosomes by a nuclear membrane surrounded by a nuclear membrane 4 - Cell Walls Rigid cell wall containing the polysaccharide murein Present in plants , fungi but not containing murein 5 - Organelles Few organelles except for small ribosomes Many membranebound organelles such as mitochondria and chloroplasts 6 - Flagella, if present, lack microtubules Flagella have microtubules 10

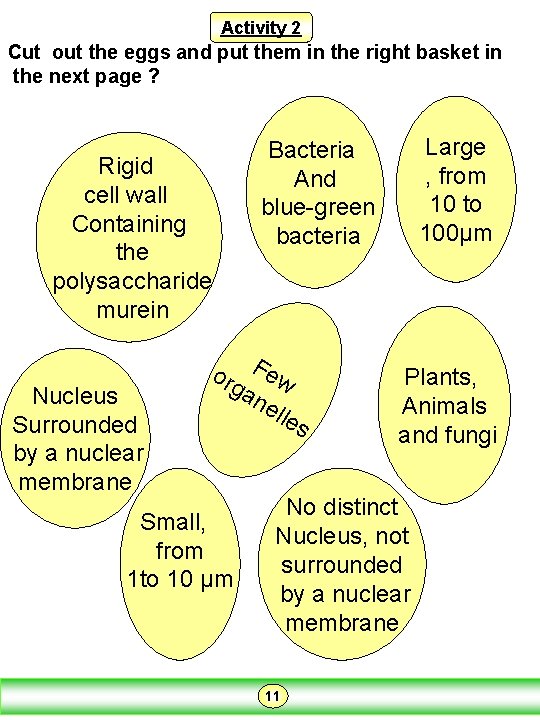

Activity 2 Cut out the eggs and put them in the right basket in the next page ? Rigid cell wall Containing the polysaccharide murein Nucleus Surrounded by a nuclear membrane org Few an ell es Small, from 1 to 10 µm Large , from 10 to 100µm Bacteria And blue-green bacteria Plants, Animals and fungi No distinct Nucleus, not surrounded by a nuclear membrane 11

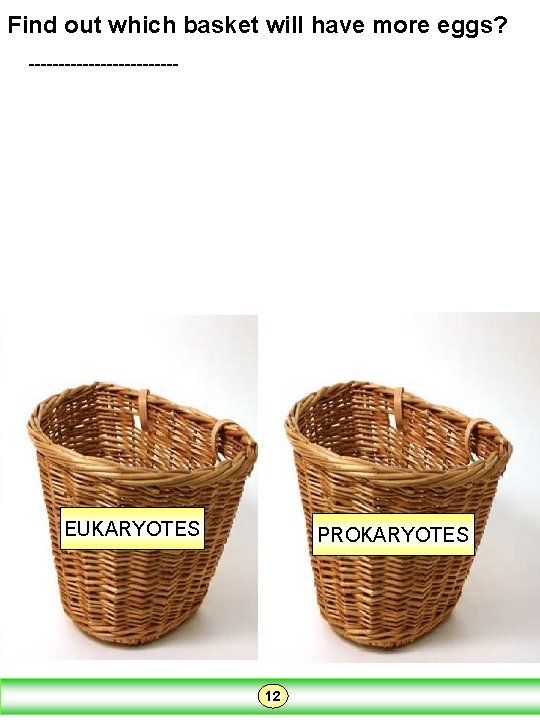

Find out which basket will have more eggs? ------------- EUKARYOTES PROKARYOTES 12

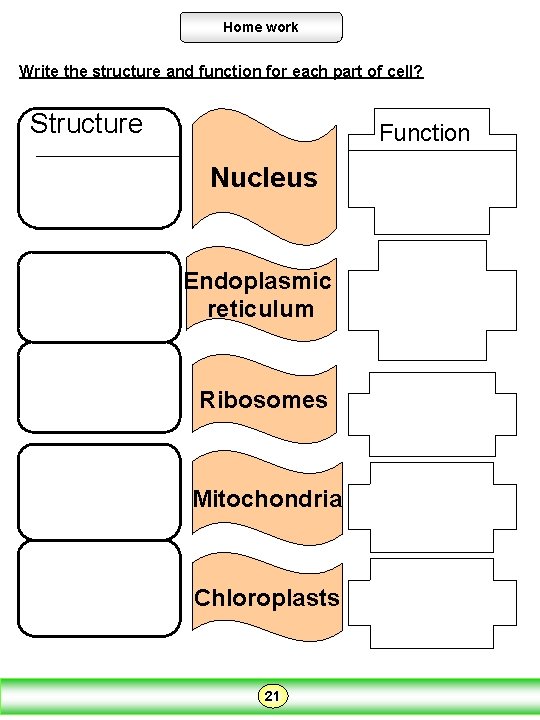

Home work Write the structure and function for each part of cell? Structure Function Nucleus Endoplasmic reticulum Ribosomes Mitochondria Chloroplasts 21

Activity 3 To identify the parts of an animal cell. Animal Cell Coloring Directions: Choose a colour for each of the parts below and fill in the square with the colour of your choice. Color the cell part to match the code. Cell Membrane Cytoplasm Nucleolus Ribosome Smooth Endoplasmic Reticulum Rough Endoplasmic Reticulum Nucleus Mitochondria 22

An Animal Cell 23

Activity 4 To identify the parts of a plant cell. Plant Cell Colouring Directions: Choose a colour for each of the parts below and fill in the square with the color of your choice. Color the cell part to match the code. Cell Membrane Cytoplasm Cell Wall Ribosome Smooth Endoplasmic Reticulum Rough Endoplasmic Reticulum Vacuole Mitochondria Nucleus Chloroplasts 24

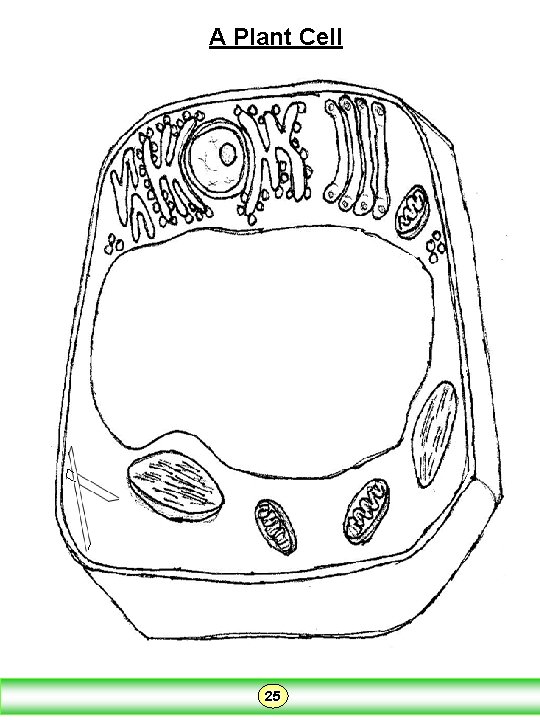

A Plant Cell 25

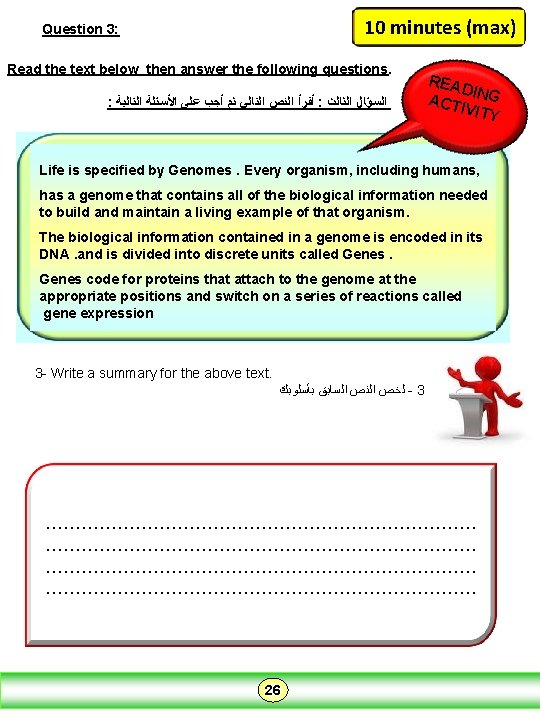

10 minutes (max) Question 3: Read the text below then answer the following questions. : ﺃﻘﺮﺃ ﺍﻟﻨﺺ ﺍﻟﺘﺎﻟﻲ ﺛﻢ ﺃﺠﺐ ﻋﻠﻰ ﺍﻷﺴﺌﻠﺔ ﺍﻟﺘﺎﻟﻴﺔ : ﺍﻟﺴﺆﺎﻝ ﺍﻟﺜﺎﻟﺚ REA DI ACTI NG VITY Life is specified by Genomes. Every organism, including humans, has a genome that contains all of the biological information needed to build and maintain a living example of that organism. The biological information contained in a genome is encoded in its DNA. and is divided into discrete units called Genes code for proteins that attach to the genome at the appropriate positions and switch on a series of reactions called gene expression 3 - Write a summary for the above text. ﺑﺄﺴﻠﻮﺑﻚ ﺍﻟﺴﺎﺑﻖ ﺍﻟﻨﺺ ﻟﺨﺺ - 3 ……………………………………………………………… 26

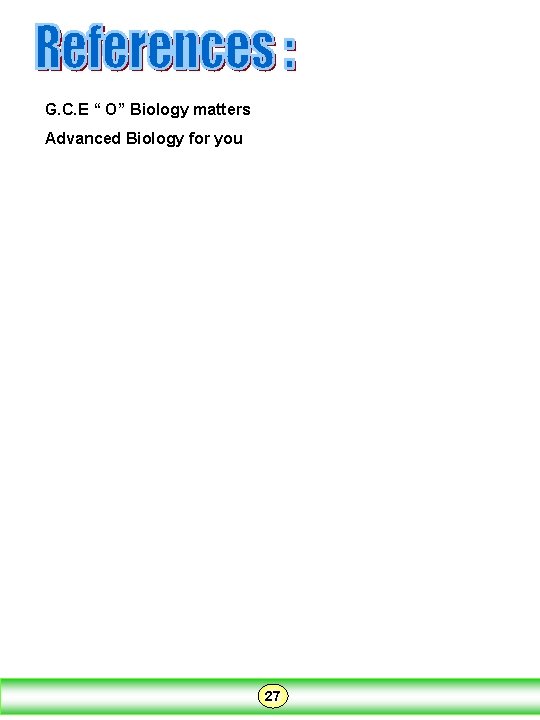

G. C. E “ O” Biology matters Advanced Biology for you 27
