First Nations Launch 2021 Rock. Sim Webinar Mark Abotossaway, FNL Advisor Liaison December 10, 2020 The material contained in this document is based upon work supported by a National Aeronautics and Space Administration (NASA) grant or cooperative agreement. Any opinions, findings, conclusions or recommendations expressed in this material are those of the author and do not necessarily reflect the views of NASA.

Presentation Overview n n n How to Acquire and Install Rock. Sim General User Interface Loading a Model (Importing a Rocket Kit for Simulation) Setup and Run a Simple Simulation Analyzing Simulation Results Modifying the Simulation for Challenge Goals / Performance n n n 2 Adding and Modifying Components Rock. Sim Mass Override and CD Override Rock. Sim Dual Deployment Kit for Comparison 9/24/2021 Rock. Sim Webinar

Simulation Process n n Every engineering project begins with simulations Simulations tell you how the vehicle will perform n n Simulations are used to make design choices n n Must be continually updated as changes to design are made/confirmed Simulations continue until build begins and beyond n 3 Material, diameter, length, finish, configuration, motor selection etc. Simulations are an iterative process n n Altitude, velocity, acceleration, rail exit velocity, descent rate etc. Should be used to verify/update performance once build complete 9/24/2021 Rock. Sim Webinar

Acquire / Install Rock. Sim n Team members can initially sign up for the free 30 -day trial Rock. Sim version n Apogee Rockets n n https: //www. apogeerockets. com/Rock. Sim_Trial? pg=rocksim License can be obtained later to activate full version You will be emailed a link to executable to install the software (on your personal computer) 4 9/24/2021 Rock. Sim Webinar

Acquire / Install Rock. Sim n Faculty Advisor should be consulted before purchasing a license to ensure proper steps are followed for reimbursement n n To get the discounted rate, the ‘purchasing individual’ must use the ‘Educational TARC’ discount page n 5 You will receive an activation code to convert your trial version to full version https: //www. apogeerockets. com/Rocket_Software/Rock. Sim_Educational_TARC 9/24/2021 Rock. Sim Webinar

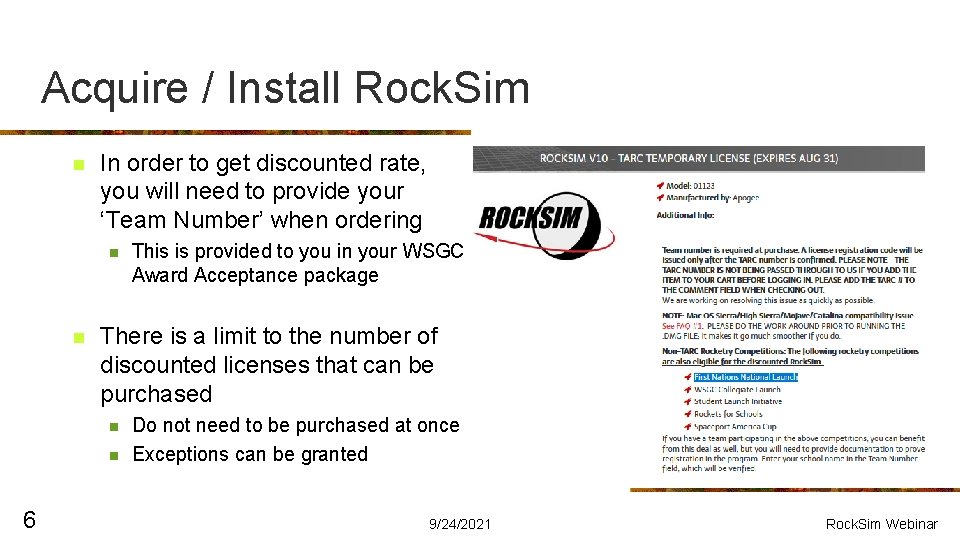

Acquire / Install Rock. Sim n In order to get discounted rate, you will need to provide your ‘Team Number’ when ordering n n There is a limit to the number of discounted licenses that can be purchased n n 6 This is provided to you in your WSGC Award Acceptance package Do not need to be purchased at once Exceptions can be granted 9/24/2021 Rock. Sim Webinar

Our Demo Kit – LOC Precision Caliber ISP During this demo, we will use: Level 1 Kit Single Deploy Rocket Stock 54 mm Motor Mount 3. 1” Diameter Phenolic Material 4 Thru. The. Wall slotted fins https: //locprecision. com/product/caliber-isp/ 7 9/24/2021 Rock. Sim Webinar

Recap n We have acquired and installed Rock. Sim n n n We have done some online research and selected a kit that we want to simulate n n 8 Apogee Components Can start with a Trial Version, then upgrade to a TARC License LOC Precision Caliber ISP – Single Deployment - Level 1 9/24/2021 Rock. Sim Webinar

General User Interface Quick Action Icons Functional Tabs Working Area Rocket Model Window 9 9/24/2021 Rock. Sim Webinar

General User Interface – Loading Model 10 9/24/2021 Rock. Sim Webinar

General User Interface – Loading Model 11 9/24/2021 Rock. Sim Webinar

General User Interface – Loading Model 12 9/24/2021 Rock. Sim Webinar

General User Interface – Loading Model 13 9/24/2021 Rock. Sim Webinar

Importing Rocket Models n Although the Rock. Sim database is extensive, you may find it does not contain the model of the rocket you have researched n You may download and import. rkt files from the Internet in this case n n Some vendors may include Rock. Sim files on their websites n n As you research kits, look for Rock. Sim links A ‘User Supported’ Rock. Sim Library can be found at Rocketry. Reviews n n 14 You may also create the model from scratch in Rock. Sim (experienced user) https: //www. rocketreviews. com/rocksim-library. html As you research your kit, save the. rkt file to the Rock. Sim Designs folder on your computer 9/24/2021 Rock. Sim Webinar

Importing Rocket Models https: //www. rocketreviews. com/rocksim-806183. html https: //wildmanrocketry. com/products/competitor-4 15 9/24/2021 Rock. Sim Webinar

Recap n We have opened an existing rocket kit model from the Rock. Sim database n n We have examined how to import other rocket kit models into the Rock. Sim database n n n 16 The database is large but may not contain every model Vendors / manufacturers may have a link to download the. rkt file A ‘User Library’ can be used to search and import. rkt files Although possible, we haven’t explained how to create a model from scratch – this is an advanced exercise 9/24/2021 Rock. Sim Webinar

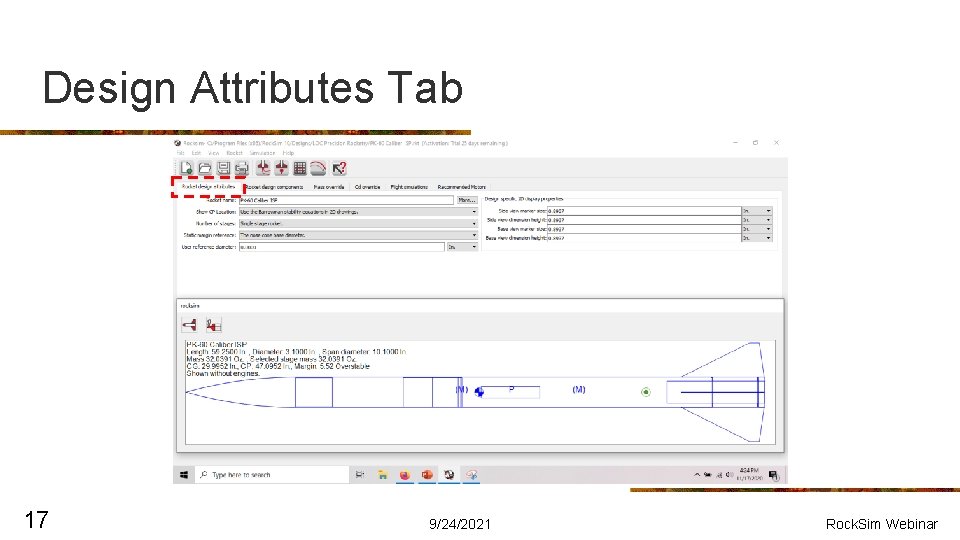

Design Attributes Tab 17 9/24/2021 Rock. Sim Webinar

Design Attributes Tab 18 9/24/2021 Rock. Sim Webinar

Design Components Tab 19 9/24/2021 Rock. Sim Webinar

Design Components Tab 20 9/24/2021 Rock. Sim Webinar

Design Components Tab 21 9/24/2021 Rock. Sim Webinar

Prepare For Launch Function 22 9/24/2021 Rock. Sim Webinar

Simulation Properties 23 9/24/2021 Rock. Sim Webinar

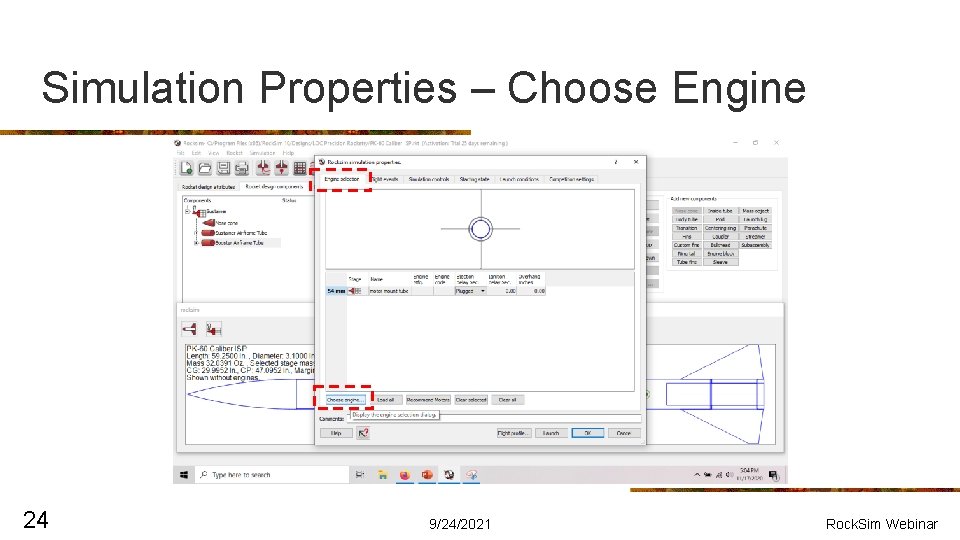

Simulation Properties – Choose Engine 24 9/24/2021 Rock. Sim Webinar

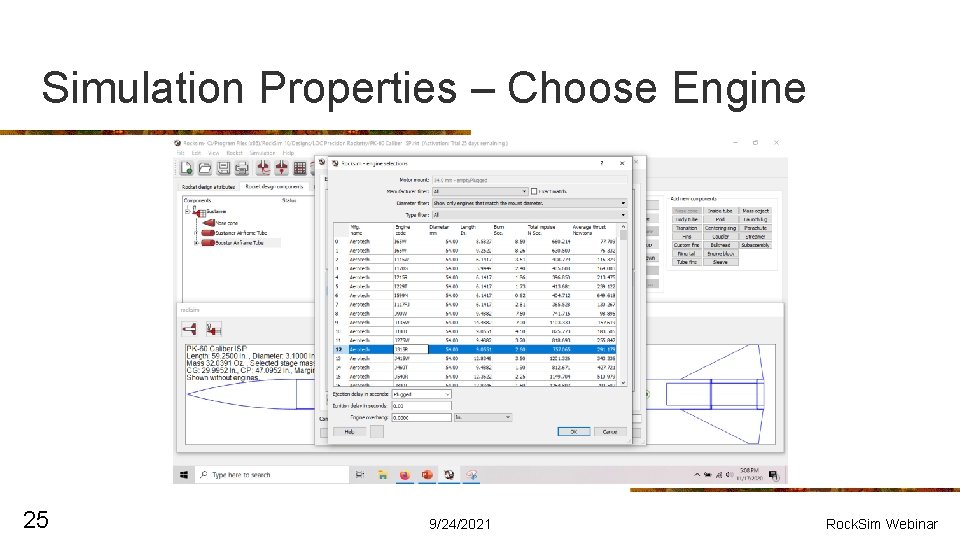

Simulation Properties – Choose Engine 25 9/24/2021 Rock. Sim Webinar

Simulation Properties – Ejection Delay 26 9/24/2021 Rock. Sim Webinar

Simulation Properties – Flight Events 27 9/24/2021 Rock. Sim Webinar

Simulation Properties – Starting State 28 9/24/2021 Rock. Sim Webinar

Simulation Properties – Launch Conditions 29 9/24/2021 Rock. Sim Webinar

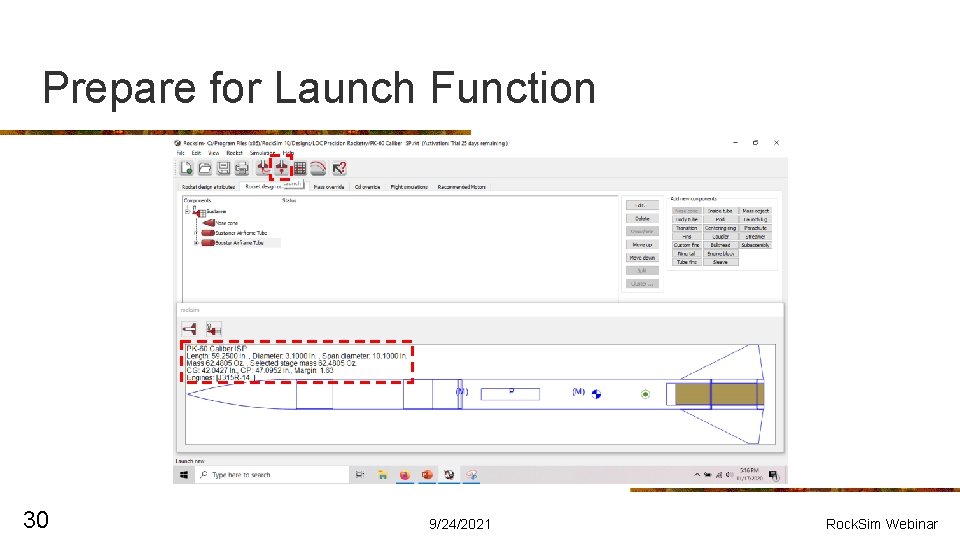

Prepare for Launch Function 30 9/24/2021 Rock. Sim Webinar

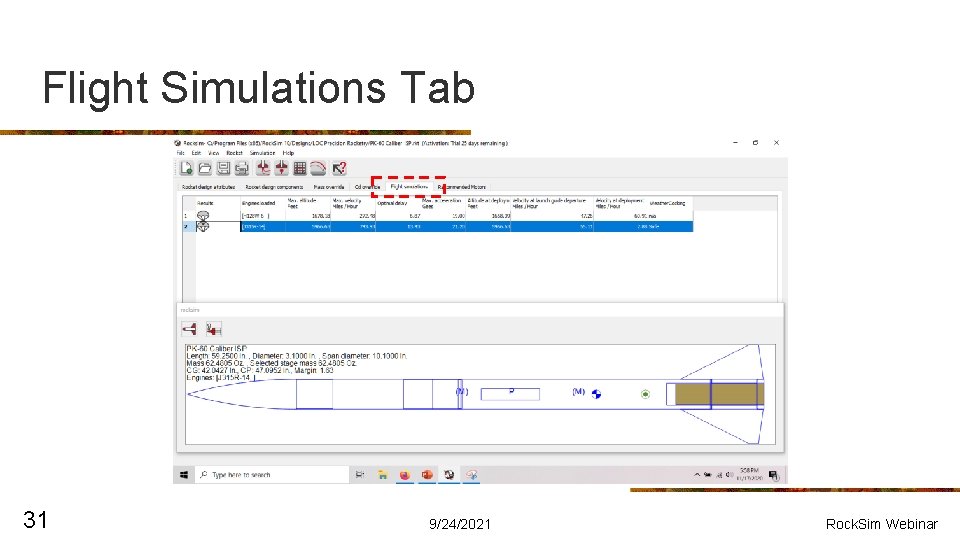

Flight Simulations Tab 31 9/24/2021 Rock. Sim Webinar

Flight Simulations Tab 32 9/24/2021 Rock. Sim Webinar

Flight Simulations Tab 33 9/24/2021 Rock. Sim Webinar

Flight Simulations Tab 34 9/24/2021 Rock. Sim Webinar

Flight Simulations Tab – Flight Profile 35 9/24/2021 Rock. Sim Webinar

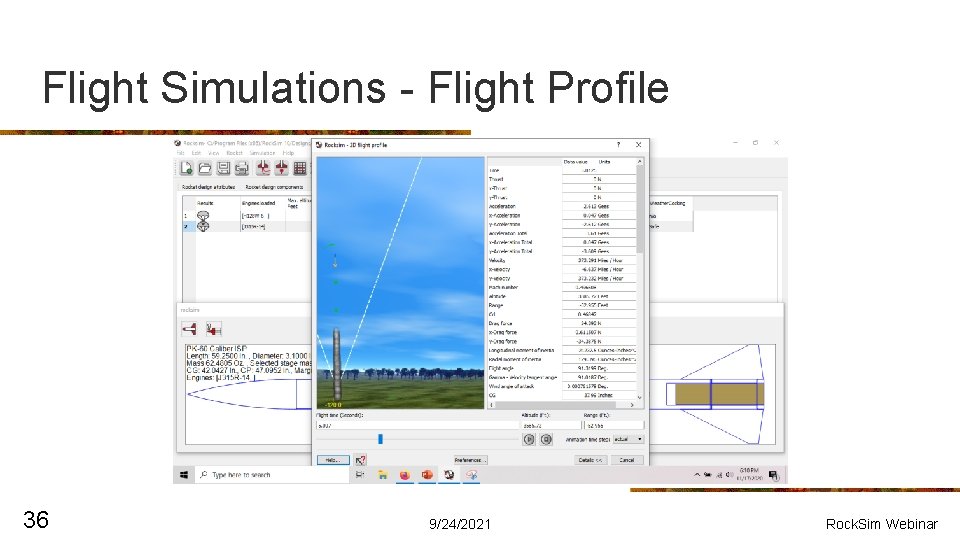

Flight Simulations - Flight Profile 36 9/24/2021 Rock. Sim Webinar

Flight Simulations – Plot Graph 37 9/24/2021 Rock. Sim Webinar

Flight Simulations – Plot Graph 38 9/24/2021 Rock. Sim Webinar

Flight Simulations – Plot Graph 39 9/24/2021 Rock. Sim Webinar

Recap n We have examined the essential tabs and functions of Rock. Sim n n n We have successfully simulated a stock rocket kit flight n 40 Design attributes Design components Prepare for Launch Flight simulations (inspecting results) We selected an arbitrary motor, with no concern about the performance 9/24/2021 Rock. Sim Webinar

Modifying Simulation for Challenge Goals n High powered rocket kits are not typically designed to accommodate ‘challenge’ payloads n There will need to be modification made to your rocket kit (both in the simulation design and physically) to incorporate the challenge payload n In addition, most kit models do not contain all necessary components which should be added to the model, as to best represent the physical rocket once built n During procurement, kit components can usually be exchanged by the vendor if requested (motor mount diameter, tube length, etc. ) 41 9/24/2021 Rock. Sim Webinar

Adding Design Components 42 9/24/2021 Rock. Sim Webinar

Adding Design Component – Motor Retention 43 9/24/2021 Rock. Sim Webinar

Adding Design Component – Motor Retention 44 9/24/2021 Rock. Sim Webinar

Adding Design Component – Motor Retention 45 9/24/2021 Rock. Sim Webinar

Adding Design Component – Rail Buttons 46 9/24/2021 Rock. Sim Webinar

Adding Design Component – Rail Buttons 47 9/24/2021 Rock. Sim Webinar

Adding Design Component – Rail Buttons 48 9/24/2021 Rock. Sim Webinar

Adding Design Component – Rail Buttons 49 9/24/2021 Rock. Sim Webinar

Adding Design Component - Rerun 50 9/24/2021 Rock. Sim Webinar

Modifying Design Components 51 9/24/2021 Rock. Sim Webinar

Modifying Design Components - Airframe 52 9/24/2021 Rock. Sim Webinar

Modifying Design Components - Airframe 53 9/24/2021 Rock. Sim Webinar

Adding Design Components - Payload 54 9/24/2021 Rock. Sim Webinar

Adding Design Components - Payload 55 9/24/2021 Rock. Sim Webinar

Adding Design Components 56 9/24/2021 Rock. Sim Webinar

Recap n We have added design components to the stock kit model n n We have modified design components of the stock kit model n n 57 We added a motor retainer (weight) which affects performance We added rail buttons (drag) which affects performance We added a payload / challenge solution (weight) which affects performance We modified the airframe size (weight) which affects performance We modified the airframe finish (drag) which affects performance 9/24/2021 Rock. Sim Webinar

Mass Override Tab – Vehicle Level 58 9/24/2021 Rock. Sim Webinar

Mass Override – Component Level 59 9/24/2021 Rock. Sim Webinar

Mass Override – Component Level 60 9/24/2021 Rock. Sim Webinar

Coefficient of Drag (Cd) Override 61 9/24/2021 Rock. Sim Webinar

Dual Deployment Model 62 9/24/2021 Rock. Sim Webinar

Dual Deployment Model 63 9/24/2021 Rock. Sim Webinar

Recap n Vehicle Level Mass Override is BAD n Component Level Mass Override is OK (use sparingly) n Vehicle Level Cd Override is BAD n Dual Deployment (your competition rocket) is more detailed and challenging than Single Deployment (your certification rocket) 64 9/24/2021 Rock. Sim Webinar

Simulation Process – Design Steps n Estimate size of challenge solution payload (weight and volume) n Select an existing kit that will accommodate the payload (volume) n Open or import kit model into Rock. Sim n Ensure all components of the kit are accounted for in the model n Select a motor such that rocket achieves technical criteria n Iterate 65 9/24/2021 Rock. Sim Webinar

Simulation Tips n Try to incorporate all components in your simulations as early as possible (we see they affect performance) n Update your simulations weekly or bi-weekly (as your team confirms component selections) n Your final kit should be selected before CDR phase n Your final motor selection is due at the start of CDR n n 66 All component selections should be made by this point There should be little to no design changes after this point 9/24/2021 Rock. Sim Webinar

Resources n Rock. Sim Trial Version n n Rock. Sim License Order Page (Educational TARC) n n https: //www. thrustcurve. org/ Rocket. Reviews (Rocket kit data) n 67 https: //www. apogeerockets. com/Rock. Sim/Rocksim_Video_Tutorials Thrustcurve (Motor data) n n https: //www. apogeerockets. com/Rocket_Software/Rock. Sim_Educational_TARC Rock. Sim Tutorials n n https: //www. apogeerockets. com/Rock. Sim_Trial https: //www. rocketreviews. com/rocksim-library. html 9/24/2021 Rock. Sim Webinar

Resources n Aerotech (Motor Manufacturer) n n Kit Manufacturer - Public Missiles n n https: //www. madcowrocketry. com/ Kit Manufacturer – Wildman n 68 https: //locprecision. com/ Kit Manufacturer – Madcow n n https: //publicmissiles. com/ Kit Manufacturer – Loc. Precision n n http: //www. aerotech-rocketry. com/products 2. aspx https: //wildmanrocketry. com/ 9/24/2021 Rock. Sim Webinar
