First Edition CHAPTER 1 6 Statics and Mechanics

  • Slides: 28
Download presentation
First Edition CHAPTER 1 6 Statics and Mechanics of Materials Ferdinand P. Beer E.

First Edition CHAPTER 1 6 Statics and Mechanics of Materials Ferdinand P. Beer E. Russell Johnston, Jr. John T. De. Wolf 기둥(Columns) 9 David M. Mazurek © 2011 The Mc. Graw-Hill Companies, Inc. All rights reserved.

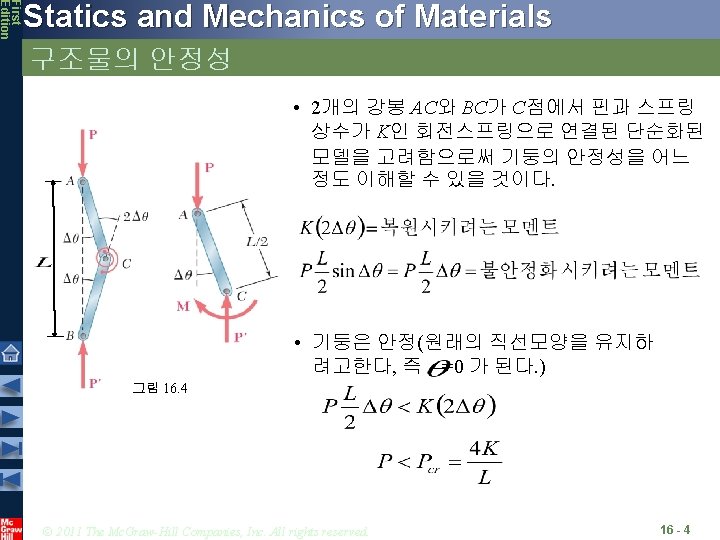

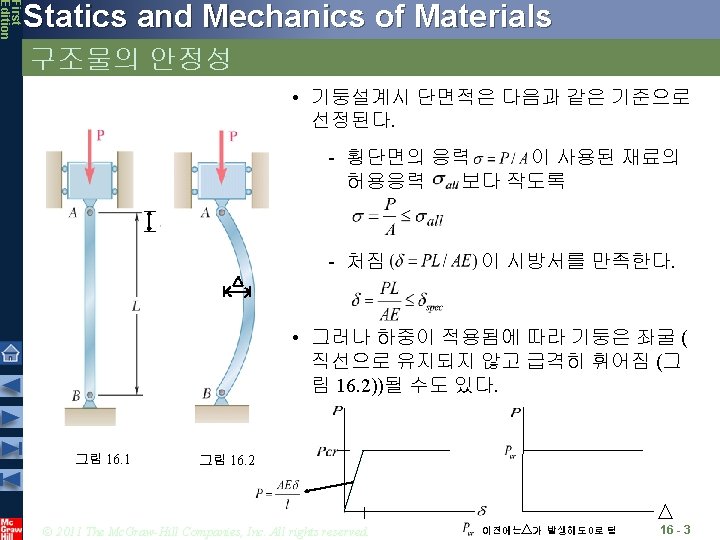

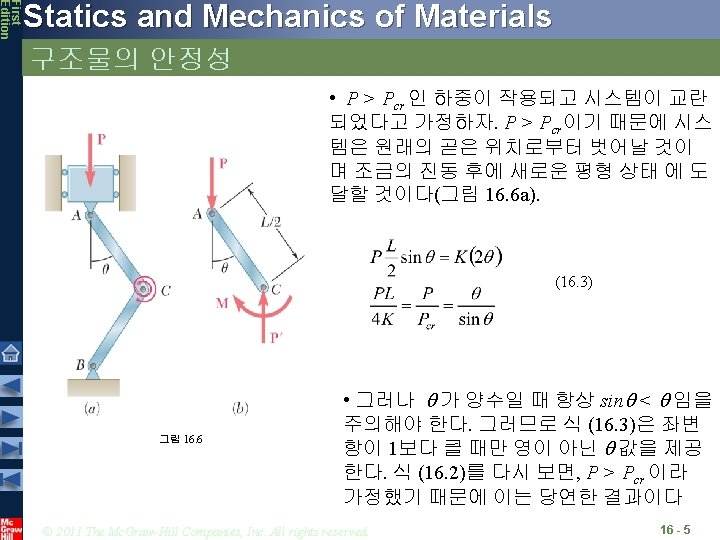

First Edition Statics and Mechanics of Materials 기둥 구조물의 안정성 양단이 핀으로 지지된 기둥의

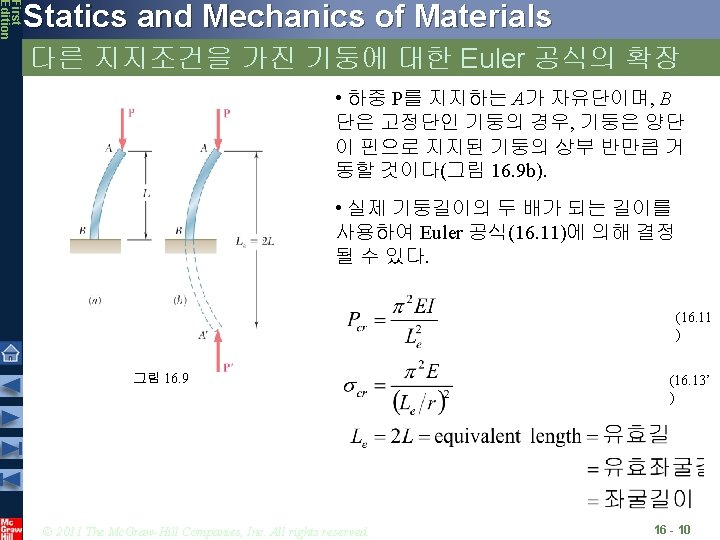

First Edition Statics and Mechanics of Materials 기둥 구조물의 안정성 양단이 핀으로 지지된 기둥의 Euler 공식 다른 지지조건을 가진 기둥에 대한 Euler 공식의 확장 문제 16. 1 중심축하중을 받는 기둥의 설계 문제 16. 3 © 2011 The Mc. Graw-Hill Companies, Inc. All rights reserved. 16 - 2

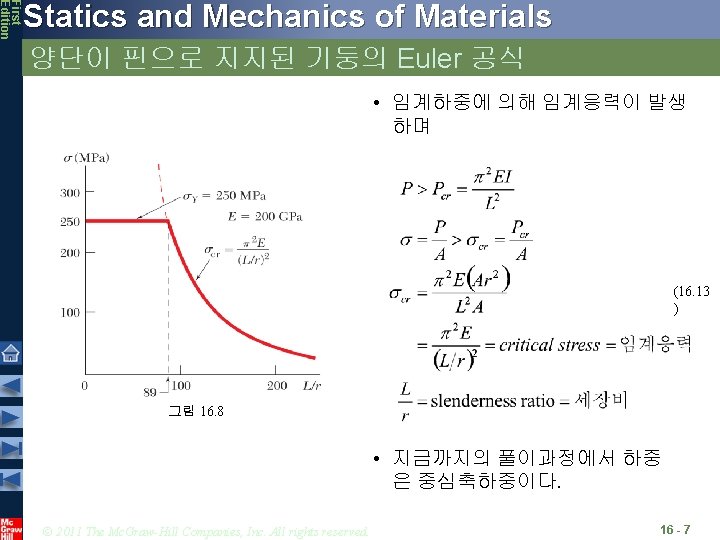

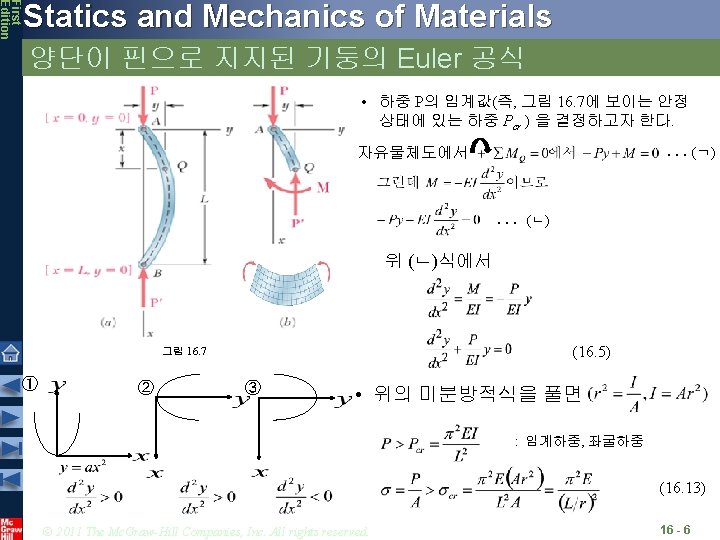

First Edition Statics and Mechanics of Materials 양단이 핀으로 지지된 기둥의 Euler 공식 •

First Edition Statics and Mechanics of Materials 양단이 핀으로 지지된 기둥의 Euler 공식 • 임계하중에 의해 임계응력이 발생 하며 (16. 13 ) 그림 16. 8 • 지금까지의 풀이과정에서 하중 은 중심축하중이다. © 2011 The Mc. Graw-Hill Companies, Inc. All rights reserved. 16 - 7

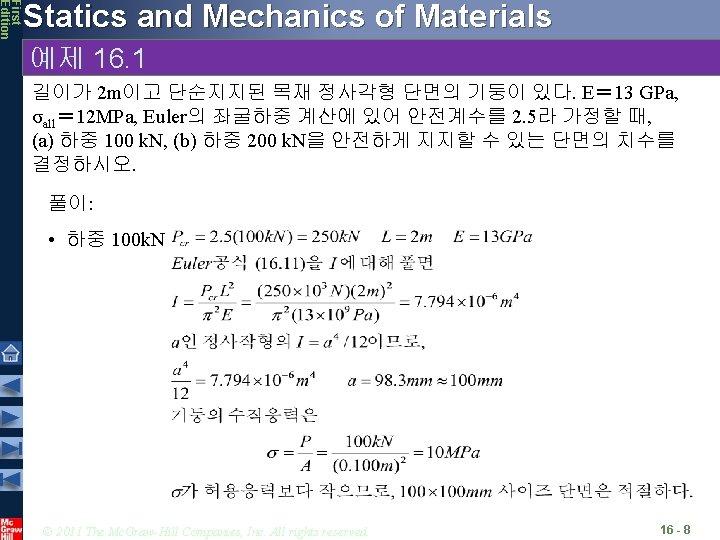

First Edition Statics and Mechanics of Materials 예제 16. 1 풀이: • 하중 200

First Edition Statics and Mechanics of Materials 예제 16. 1 풀이: • 하중 200 k. N © 2011 The Mc. Graw-Hill Companies, Inc. All rights reserved. 16 - 9

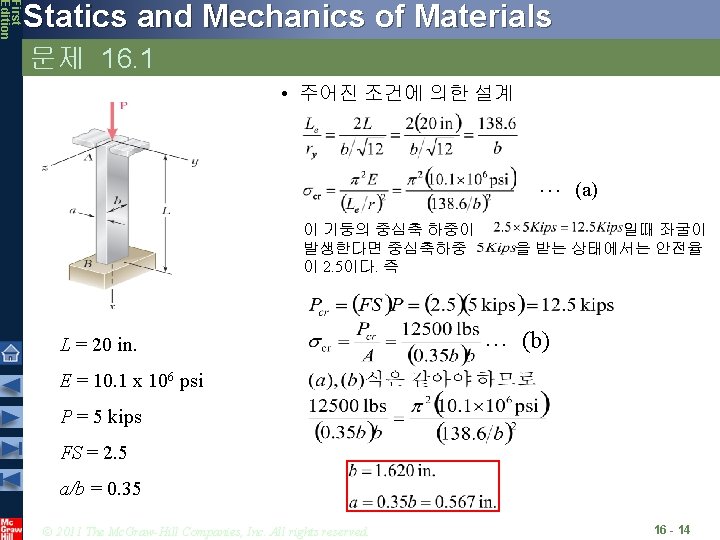

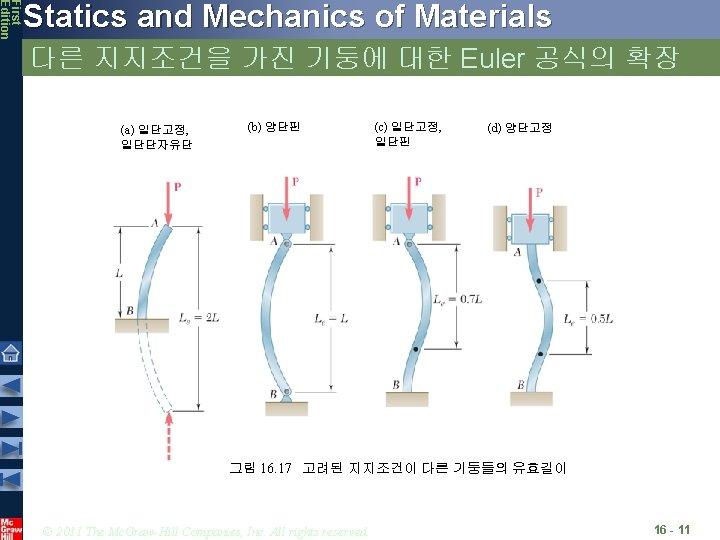

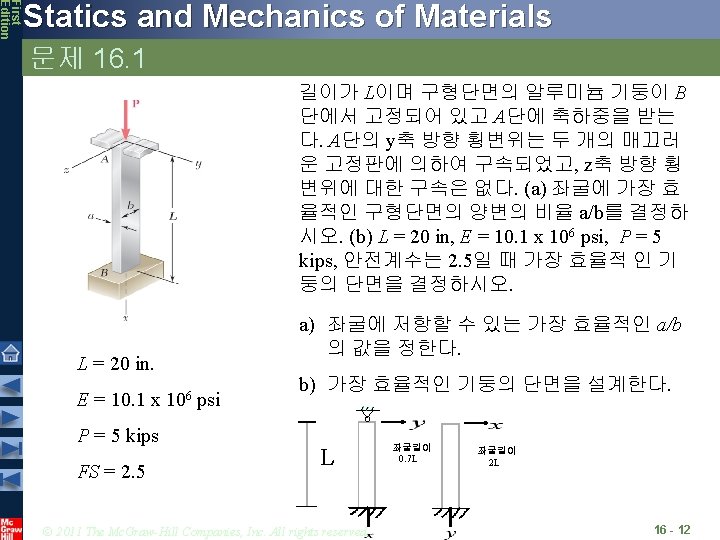

First Edition Statics and Mechanics of Materials 문제 16. 1 • 주어진 조건에 의한

First Edition Statics and Mechanics of Materials 문제 16. 1 • 주어진 조건에 의한 설계 … (a) 이 기둥의 중심축 하중이 발생한다면 중심축하중 이 2. 5이다. 즉 L = 20 in. 일때 좌굴이 을 받는 상태에서는 안전율 … (b) E = 10. 1 x 106 psi P = 5 kips FS = 2. 5 a/b = 0. 35 © 2011 The Mc. Graw-Hill Companies, Inc. All rights reserved. 16 - 14

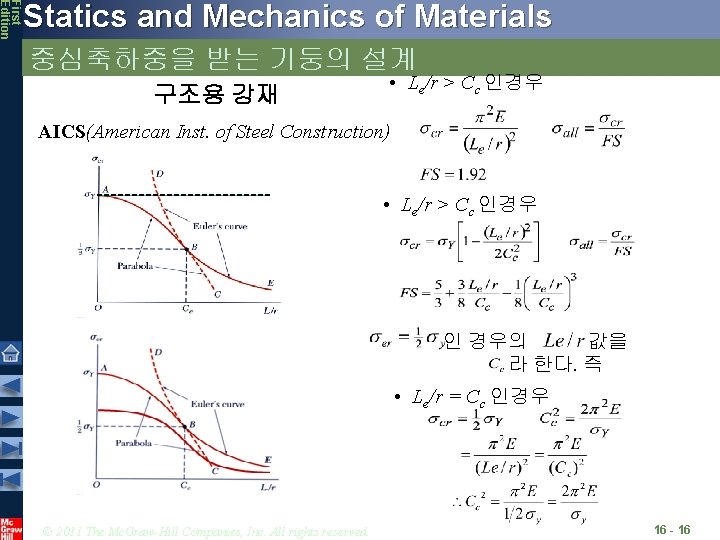

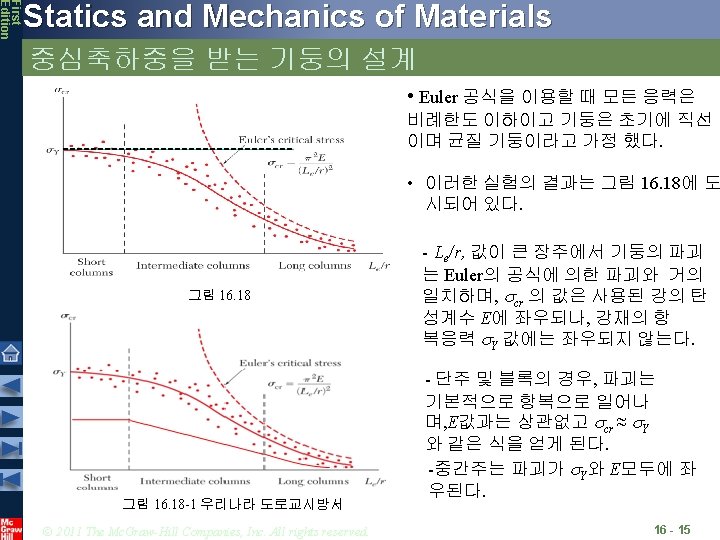

First Edition Statics and Mechanics of Materials 중심축하중을 받는 기둥의 설계 구조용 강재 •

First Edition Statics and Mechanics of Materials 중심축하중을 받는 기둥의 설계 구조용 강재 • Le/r > Cc 인경우 AICS(American Inst. of Steel Construction) • Le/r > Cc 인경우 인 경우의 값을 라 한다. 즉 • Le/r = Cc 인경우 © 2011 The Mc. Graw-Hill Companies, Inc. All rights reserved. 16 - 16

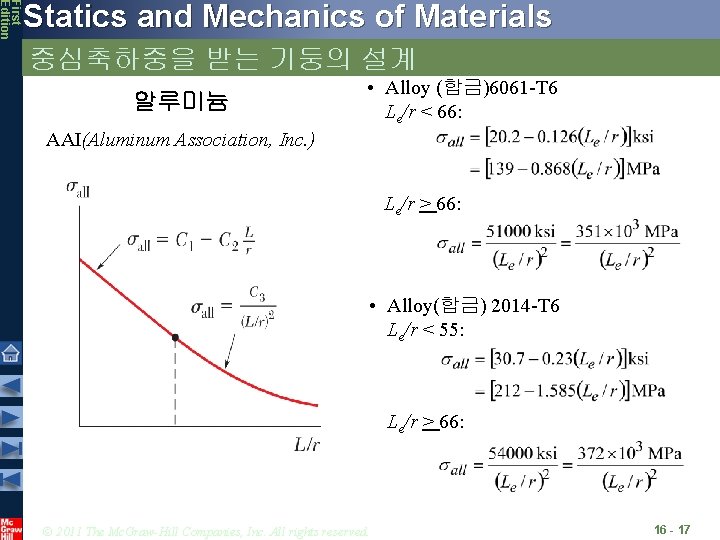

First Edition Statics and Mechanics of Materials 중심축하중을 받는 기둥의 설계 알루미늄 • Alloy

First Edition Statics and Mechanics of Materials 중심축하중을 받는 기둥의 설계 알루미늄 • Alloy (합금)6061 -T 6 Le/r < 66: AAI(Aluminum Association, Inc. ) Le/r > 66: • Alloy(합금) 2014 -T 6 Le/r < 55: Le/r > 66: © 2011 The Mc. Graw-Hill Companies, Inc. All rights reserved. 16 - 17

First Edition Statics and Mechanics of Materials 예제 16. 2 풀이: • 최대 비지지

First Edition Statics and Mechanics of Materials 예제 16. 2 풀이: • 최대 비지지 길이 그림 16. 22 © 2011 The Mc. Graw-Hill Companies, Inc. All rights reserved. 16 - 19

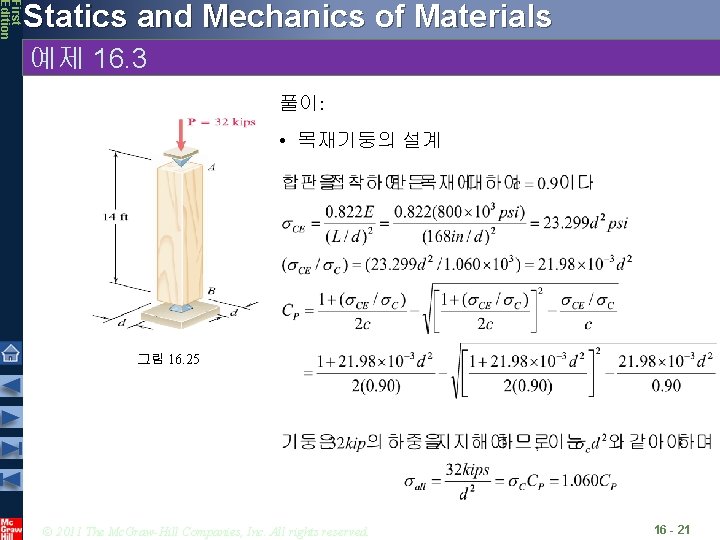

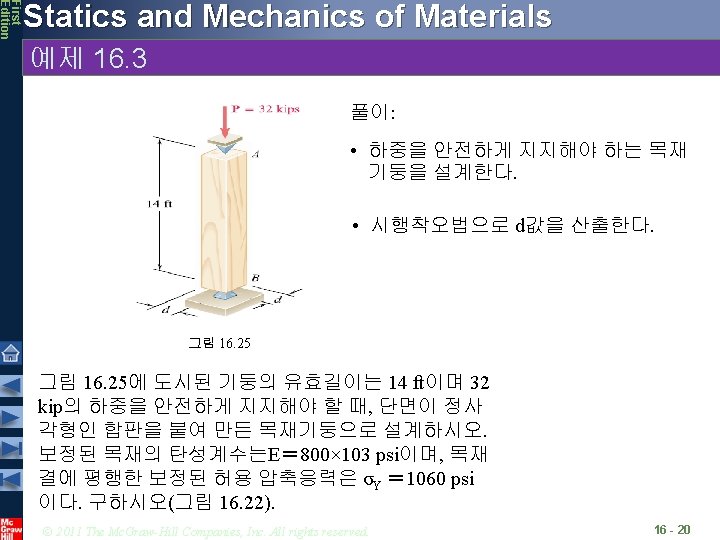

First Edition Statics and Mechanics of Materials 예제 16. 3 풀이: • 목재기둥의 설계

First Edition Statics and Mechanics of Materials 예제 16. 3 풀이: • 목재기둥의 설계 그림 16. 25 © 2011 The Mc. Graw-Hill Companies, Inc. All rights reserved. 16 - 21

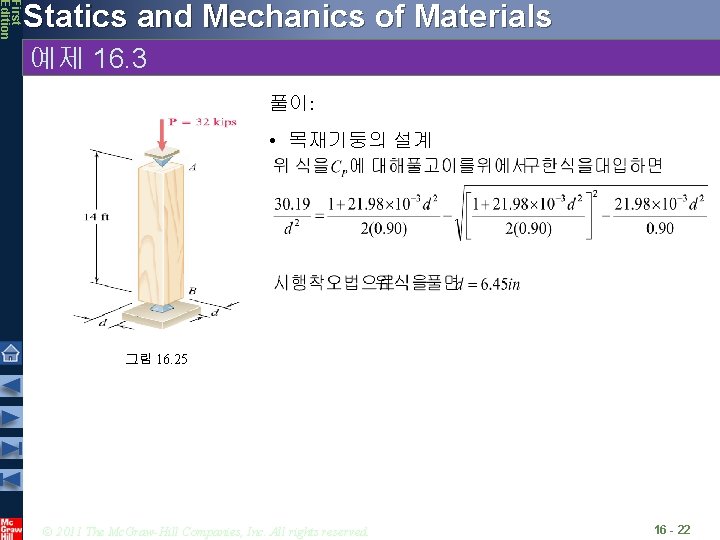

First Edition Statics and Mechanics of Materials 예제 16. 3 풀이: • 목재기둥의 설계

First Edition Statics and Mechanics of Materials 예제 16. 3 풀이: • 목재기둥의 설계 그림 16. 25 © 2011 The Mc. Graw-Hill Companies, Inc. All rights reserved. 16 - 22

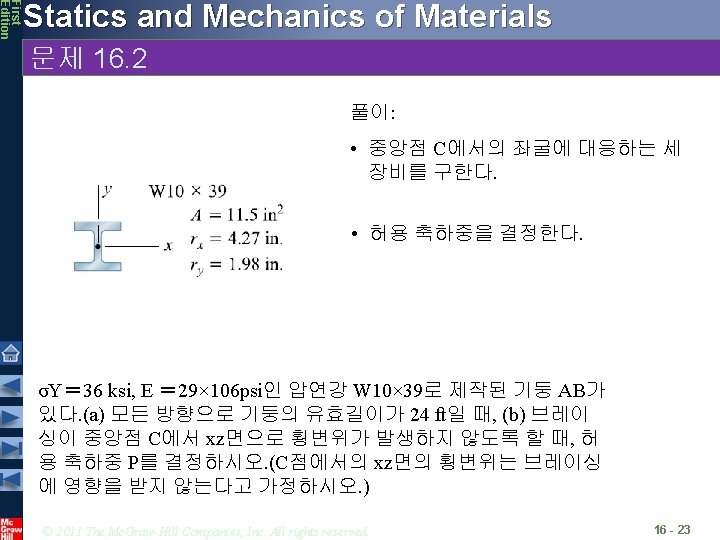

First Edition Statics and Mechanics of Materials 문제 16. 2 • 유효길이=24 ft ©

First Edition Statics and Mechanics of Materials 문제 16. 2 • 유효길이=24 ft © 2011 The Mc. Graw-Hill Companies, Inc. All rights reserved. 16 - 24

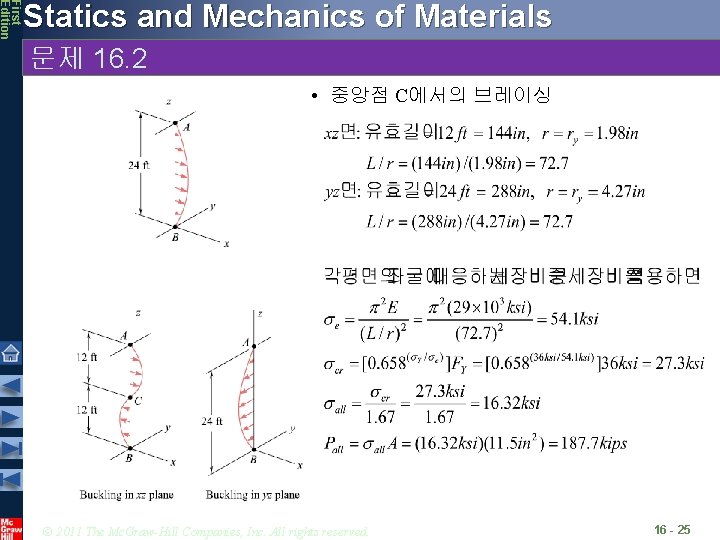

First Edition Statics and Mechanics of Materials 문제 16. 2 • 중앙점 C에서의 브레이싱

First Edition Statics and Mechanics of Materials 문제 16. 2 • 중앙점 C에서의 브레이싱 © 2011 The Mc. Graw-Hill Companies, Inc. All rights reserved. 16 - 25

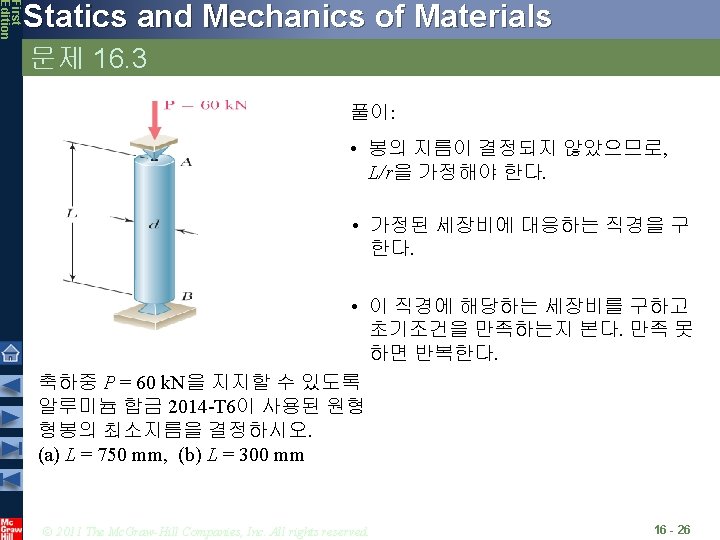

First Edition Statics and Mechanics of Materials 문제 16. 3 • L = 750

First Edition Statics and Mechanics of Materials 문제 16. 3 • L = 750 mm, L/r > 55 라고 가정 • 원형봉 반경을 정하자: • 세장비에 대한 초기가정을 점검하자: 가정은 적절하였다. © 2011 The Mc. Graw-Hill Companies, Inc. All rights reserved. 16 - 27

First Edition Statics and Mechanics of Materials 문제 16. 3 • L = 300

First Edition Statics and Mechanics of Materials 문제 16. 3 • L = 300 mm, L/r < 55 라고 가정 • 원형봉 반경을 정하자: • 세장비에 대한 초기가정을 점검하자: 가정은 적절하였다. © 2011 The Mc. Graw-Hill Companies, Inc. All rights reserved. 16 - 28
