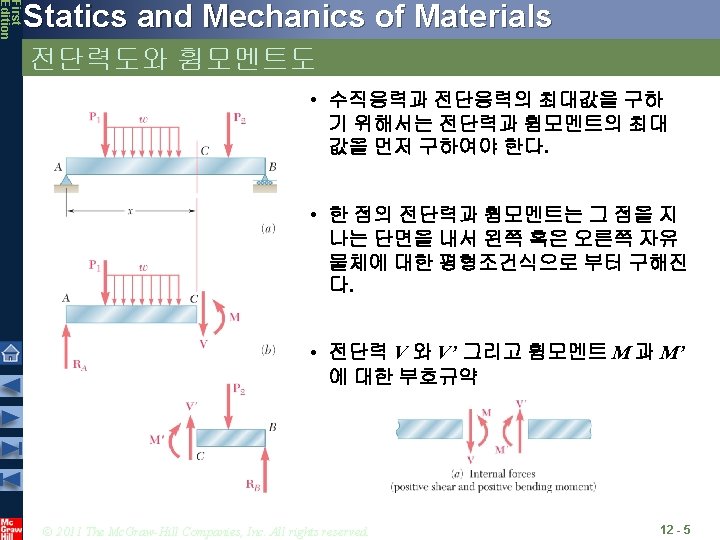

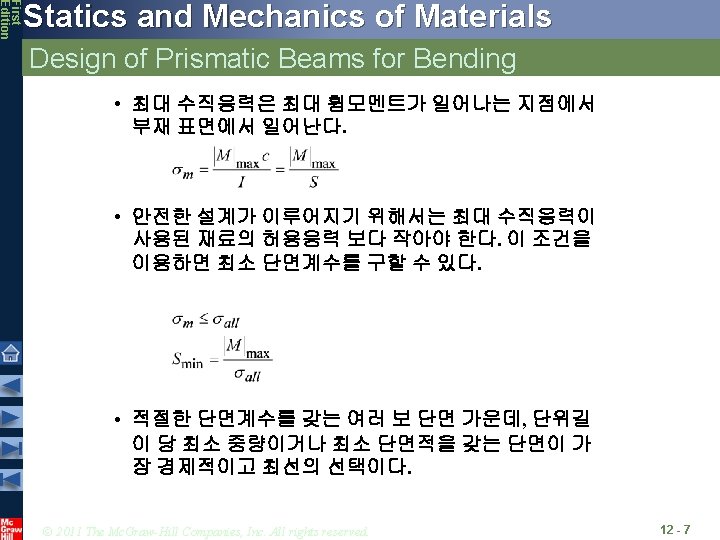

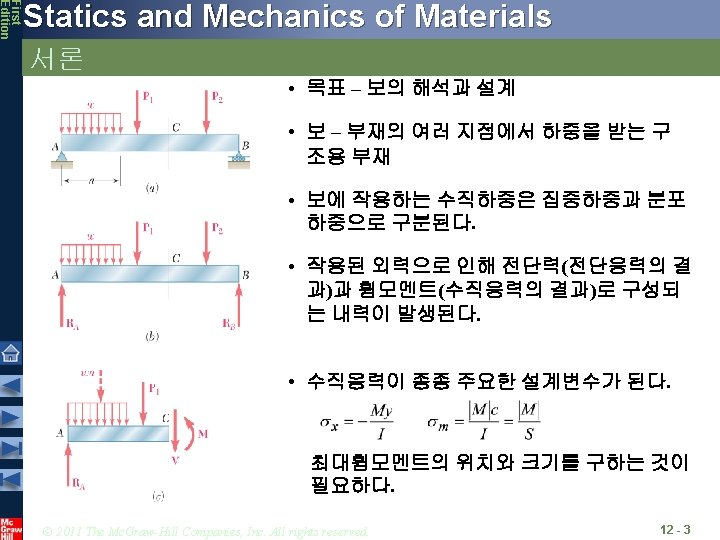

First Edition CHAPTER 1 2 Statics and Mechanics Slides: 7 Download presentation First Edition CHAPTER 1 2 Statics and Mechanics of Materials Ferdinand P. Beer E. Russell Johnston, Jr. John T. De. Wolf 휨을 받는 보의 해석과 설계 David M. Mazurek © 2011 The Mc. Graw-Hill Companies, Inc. All rights reserved. First Edition Statics and Mechanics of Materials Analysis and Design of Beams for Bending 서론 전단력도와 휨모멘트도 하중, 전단력, 휨모멘트 사이의 상관관계 휨을 받는 일정단면 보의 설계 © 2011 The Mc. Graw-Hill Companies, Inc. All rights reserved. 12 - 2 First Edition Statics and Mechanics of Materials 서론 보 지점의 종류 © 2011 The Mc. Graw-Hill Companies, Inc. All rights reserved. 12 - 4 First Edition Statics and Mechanics of Materials 하중, 전단력, 휨모멘트 사이의 상관관계 • 하중과 전단력 사이의 관계: • 전단력과 휨모멘트 사이의 관계: © 2011 The Mc. Graw-Hill Companies, Inc. All rights reserved. 12 - 6 Vector mechanics for engineers 10th editionVector mechanicsVector mechanics for engineers statics 10th editionVector mechanics for engineers 10th edition2d force systemStatic equilibriumEngineering mechanics: statics in si unitsLine of action of force
