FIREARM WOUNDS Randanan Bandaso Department of Forensic and

FIREARM WOUNDS Randanan Bandaso Department of Forensic and Medicolegal Faculty of Medicine Hasanuddin University

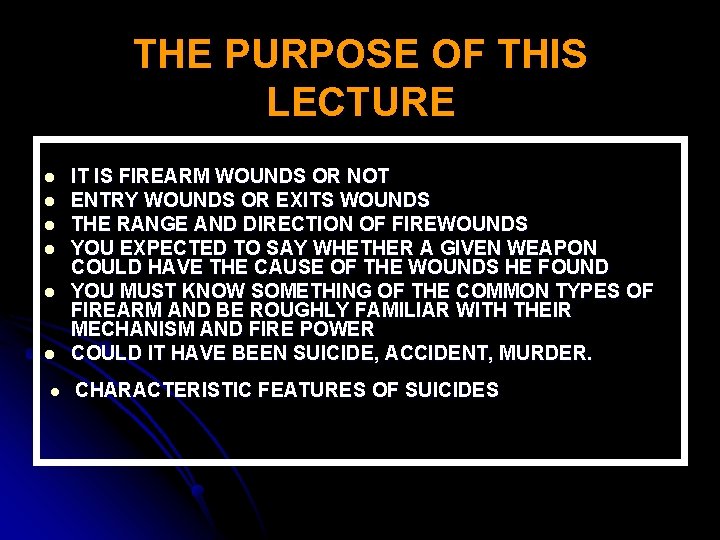

THE PURPOSE OF THIS LECTURE l l l l IT IS FIREARM WOUNDS OR NOT ENTRY WOUNDS OR EXITS WOUNDS THE RANGE AND DIRECTION OF FIREWOUNDS YOU EXPECTED TO SAY WHETHER A GIVEN WEAPON COULD HAVE THE CAUSE OF THE WOUNDS HE FOUND YOU MUST KNOW SOMETHING OF THE COMMON TYPES OF FIREARM AND BE ROUGHLY FAMILIAR WITH THEIR MECHANISM AND FIRE POWER COULD IT HAVE BEEN SUICIDE, ACCIDENT, MURDER. CHARACTERISTIC FEATURES OF SUICIDES

WHAT IS FIRE ARM WOUNDS LOSS OF CONTINUITY OF TISSUE BY THE BULLET OF FIRE ARM OR EXPLOSIONS

The doctor must know something of the common types of firearm and be roughly familiar with their mechanism and fire-power

The study of firearms and ammunition – ballistics is sufficiently complex

TYPES OF FIREARMS l l l RIFLED SMOOTHBORED WEAPONS RIFLED WEAPONS BARRELLED SHORT- BARRELLED LONG - BARRELLED CALIBRE OR GAUGE INTERNAL DIMENSION OF THE BARREL BRITAIN ( IN DECIMALS OF AN INCH. 22, . 303, . 45) METRIC SYSTEM (6. 35, 8, 0, 9. 3 MM)

RIM BOTTLE NECK CYLINDER LONG BARRELLED

REVOLVER SHORT BARRELED AUTOMATIC

RIFLED WEAPONS l l l THE BORE IS SCORED INTERNALLY WITH A NUMBER OF SPIRAL GROOVES WHICH RUN PARALLEL TO EACH OTHER, BUT TWISTED SPIRALLY FROM BREECH TO MUZZLE THE PROJECTING RIDGES BETWEEN GROOVES ARE CALLED LANDS MAY BE EITHER LONG-BARRELED (RIFLES) OR SHORT-BARRELED (PISTOLS)

SMOOTH-BORED WEAPONS THE BORE OR INSIDE OF THE BARREL IS PERPECTLY SMOOTH FROM END TO END. l THE DIAMETER OF THE BORE MAY BECOME NARROWER OR CHOCKED TOWARDS THE MUZZLE. l

SENJATA RAKITAN

BULLETS l l l CONSIST OF SOLID TIN-HARDENED LEAD A CORE OF LEAD COVERED BY JACKET OF TOUGH CUPRONICKEL-COATED STEEL OR BRASS WITH CUPRONICKEL SOME PACKED WITH PHOSPHORUS BURNING TRACES DURING FLIGHT. EXPLOSIVE CHARGES EXPLOSIVE

ALUR

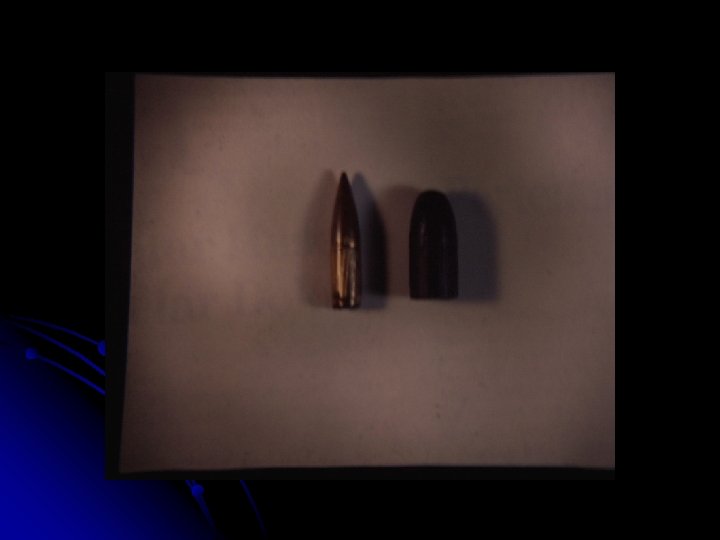

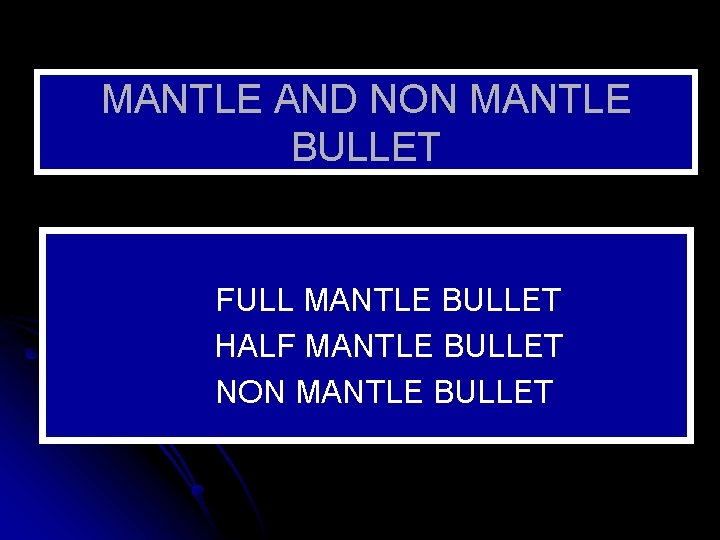

MANTLE AND NON MANTLE BULLET FULL MANTLE BULLET HALF MANTLE BULLET NON MANTLE BULLET

VIRGIN BULLET = NAKED BULLET THE BULLET DONOT PASS THE BARREL l BURNING OF RUBBISH WHERE THERE IS A BULLET. l BURNING OF BULLET STOREHOUSE l

SPECIAL BULLET RICHOCHET BULLET l DUM-DUM BULLET l LIGHT BULLET l SMOKE BULLET l TWIN BULLET l GRENADE l

GRANADE SMOKE OR LIGHT DUM-DUM RICHOCHETE TWIN

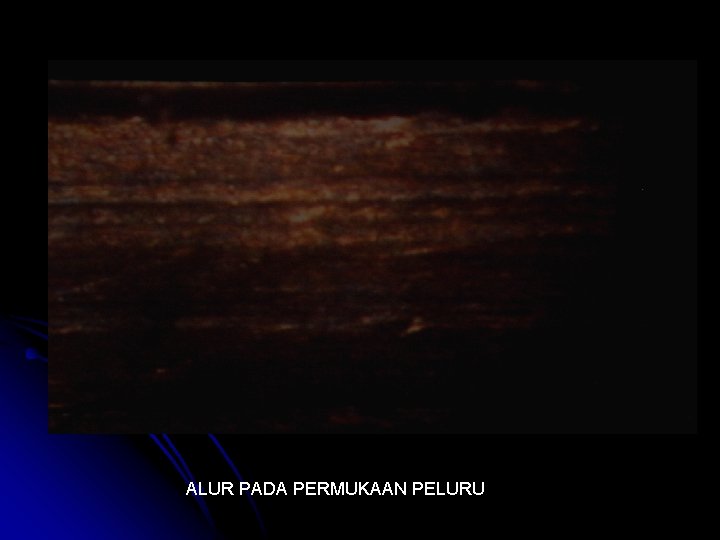

ALUR PADA PERMUKAAN PELURU

PAPER FIREARM COTTON BULLET EXPERIMENTAL SHOOTING

MIKROSKOP UNTUK UJI PELURU TERSANGKA

MIKROSKOP KHUSUS YANG DIHUBUNGKAN DENGAN KOMPUTER

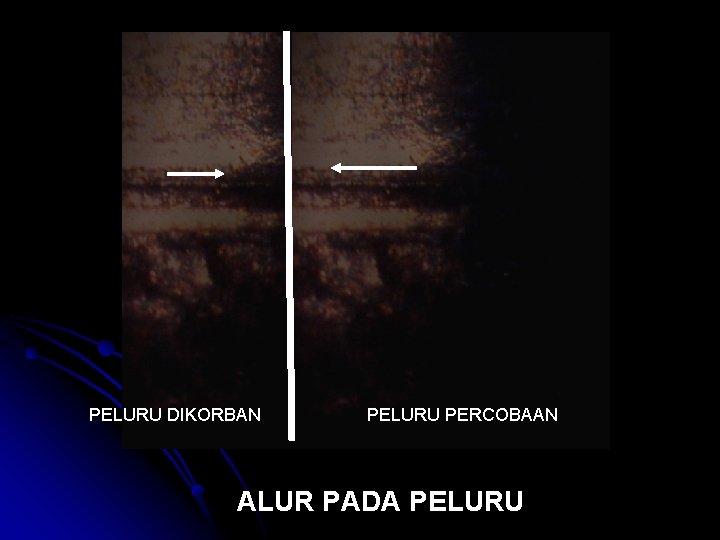

PELURU DIKORBAN PELURU PERCOBAAN ALUR PADA PELURU

CARTRIDGES l l Made of brass or brass base and plastic tube. Consist of a cartridge case with a central firing cap at the base. The base of the cartridge project as a rim, to ensure that it does not moved forward barrel. The cap contains small amount priming powder ignited by the heat generated by sudden blow of the trigger hummer.

CARTRIDGES PLASTIC BRASS RIM CYLINDER BOTTLE

DASAR PELURU

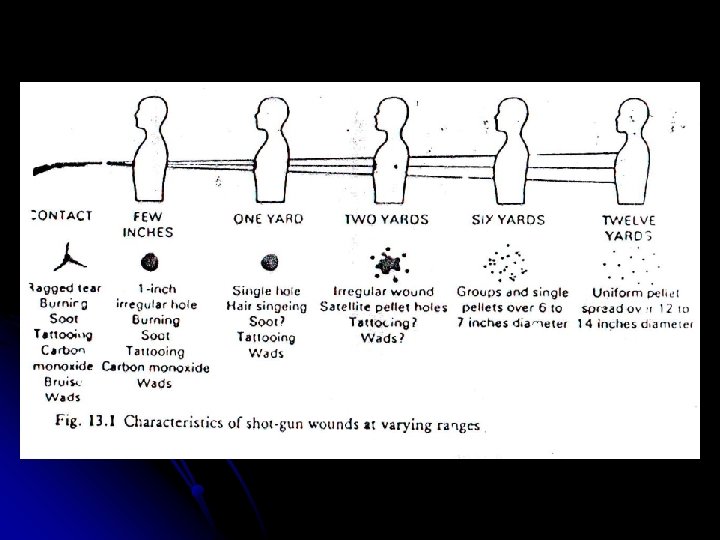

ENTRY WOUND A. CONTACT WOUND B. VERY NEAR WOUND C. NEAR WOUND D. A MORE DISTANT WOUND A B C D

CONTUSIO RING (KLIM LECET)

Exit wound

l l CONSIST MERELY OF A HOLE IN THE SKIN THE DEGREE OF SKIN TORN DEPENDENT UPON THE MOMENTUM OF THE BULLET LEAVING THE BODY NOSE-ON WOBBLING TURNING OVER AND OVER THE AMOUNT OF BONE SPLINTER IT CARRIES AWAY WITH IT MAY BE NO EXIT WOUND AT DISTANCE RANGE THE ENTRY AND EXIT ARE THE SAME SIZE.

CORONG KELUAR(FUNNEL)

THE COURSE OF PROJECTILE ENTRY WOUND RUNNING INTO THE BODY ALONG THE TRACK MISSILE STRAIGHT COURSE l THE BULLET MEET DENSE TISSUE THE PROJECTILE MAY SUFFER A VIOLENT CHANGE DIRECTION l

LUKA TEMBAK MASUK LUKA TEMBAK KELUAR (CORONG KELUAR)

HISTOPATOLOGI BULLET X- Ray CT- Scan

SINGEING HAIR

SUICIDE ACCIDENT MURDER

SOME USEFUL RULES l l l WOMEN RARELY SHOOT THEMSELVES SUICIDALLY “SHOT WOMAN IS A MURDERED WOMAN” THERE ARE DEFINITE SITES OF PREDILECTION IN SUICIDAL SHOOTING IT IS VERY RARE A SUICIDE TO SHOOT HIMSELF THROUGH THE ABDOMEN, EYE AND INACESSIBLE SITES SUCH US THE BACK OF THE HEAD, NECK OR BACK OF THE TRUNK THE RANGE IS IMPORTANT, AS BEYOND ARM’S REACH OF THE TRIGGER SUICIDES ARE ABLE TO FIRE REPEATED SHOTS INTO THEMSELVES EVEN THOUGH PATHOLOGICALLY EACH ONE TO APPEARS TO BE RAPIDLY FATAL.

SUICIDE ACCIDENT MURDER

SUICIDE FIREARMS WOUND l l l ALMOST ALWAYS CONTACT OR VIRTUALLY CONTACT CERTAIN CLASSIC SITES OF ELECTION: THE RIGHT TEMPLE OR LEFT INLEFT HANDED PERSONS CENTRE BROW THE ROOF OF THE MOUTH OVER THE HEART THE GUN MUST BE ARM’S REACH EASY TO REACH NOT THE BACK OF THE BODY, OR THE LEG THE FACE

POLISI BUNUH DIRI

POLISI BUNUH DIRI

ISTERI YANG DITEMBAK SEBELUM SUAMI BUNUH DIRI

ARAH TEMBAKAN

LUKA BUNUH DIRI DIPELIPIS

GIGI GELIGI UTUH

SUICIDE ACCIDENT MURDER

BERITA KORAN TENTANG PREMAN YANG TIKAM POLISI

KAKI PREMAN DENGAN TATOAGE

LENGAN PREMAN

LUKA PERINGATAN PADA KAKI

LUKA PADA PERUT YANG MEMATIKAN

PREMAN DI MACCINI RAYA SETIAP ORANG LEWAT DIMINTAI UANG

EXPLOSIVES l l l INDUSTRIAL CATASTROPHES OR TERRORISM DAMAGE CAUSE BY MULTIPLE MISSILE INJURIES FROM EXPLOSION OF THE CASING AND ADJACENT OBJECTS MAYBE VERY FOCAL AFFECTING THE FACING BODY SURFACE EG STOMACH, LEG SECONDARY INJURIES ARE COMMON ROOF, FIRE ETC LARGE BOMB EXPLODES VERY CLOSE TO PEOPLE TOTAL DISRUPTION A GREAT PROBLEMS IN INDENTIFICATION
