FineGrained Mobility in the Emerald System Eric Jul

Fine-Grained Mobility in the Emerald System Eric Jul, Henry Levy, Norman Hutchinson, Andrew Black SOSP 1987 & TOCS 1988 Presentation by: norm

Short summary • A solution in search of a problem! • We can send objects anywhere, almost for free, but why would you want to?

Goals • Experiment with mobility in distributed systems – Objects, not processes – Language, not system support • Single object model • Excellent local performance • Two Ph. D. theses!

Benefits • Process migration – – – Load sharing Communications performance Availability Reconfiguration Specialized hardware • + object migration – Data movement – Invocation performance – Garbage collection

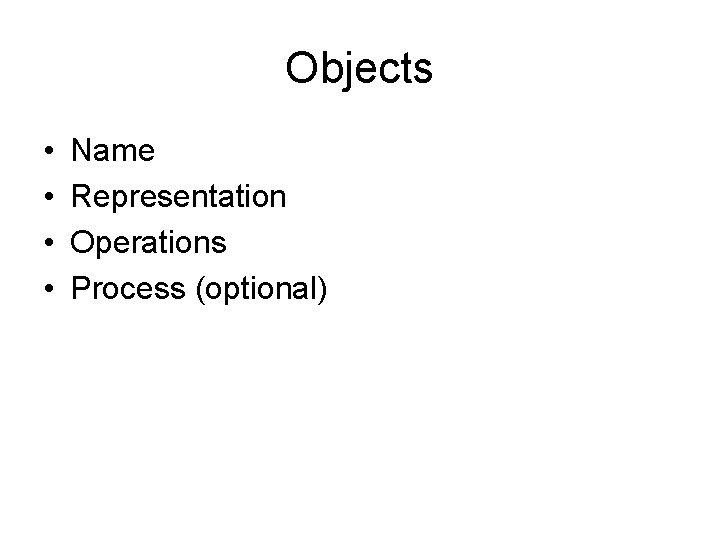

Objects • • Name Representation Operations Process (optional)

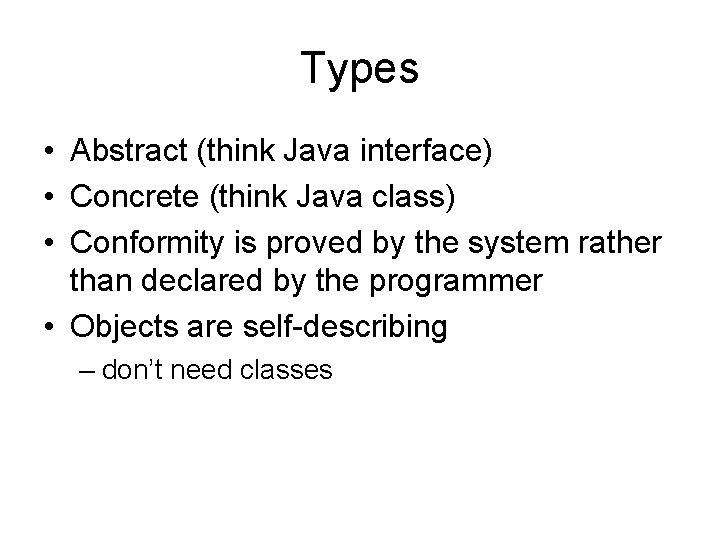

Types • Abstract (think Java interface) • Concrete (think Java class) • Conformity is proved by the system rather than declared by the programmer • Objects are self-describing – don’t need classes

Mobility • • Locate Move Fix Unfix Refix Attach Call by move / visit

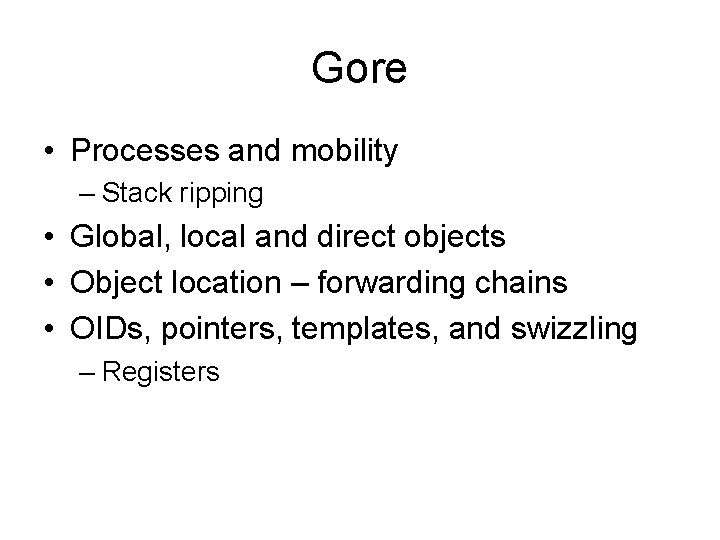

Gore • Processes and mobility – Stack ripping • Global, local and direct objects • Object location – forwarding chains • OIDs, pointers, templates, and swizzling – Registers

Example const start <- object start process const all <- (locate self). get. Active. Nodes for i : Integer <- 0 while i <= all. upperbound by i <- i + 1 const m <- Manager. create[self] move m to all[i]. get. The. Node. get. Stdout. Put. String["Created manager heren"] end for end process end start

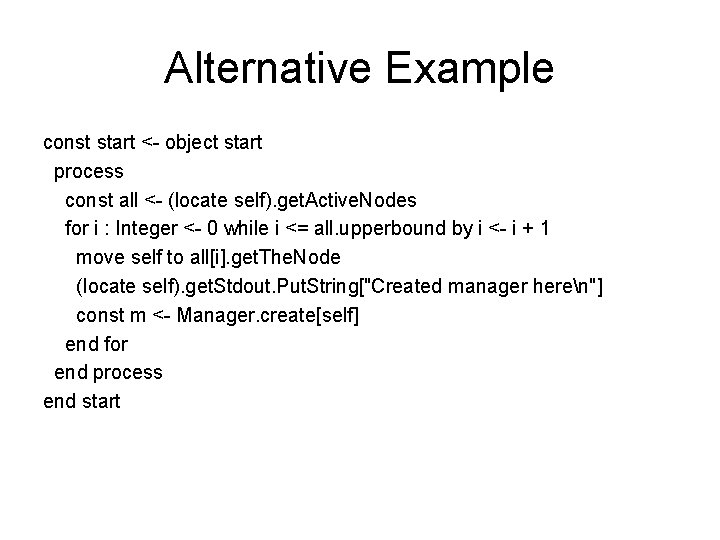

Alternative Example const start <- object start process const all <- (locate self). get. Active. Nodes for i : Integer <- 0 while i <= all. upperbound by i <- i + 1 move self to all[i]. get. The. Node (locate self). get. Stdout. Put. String["Created manager heren"] const m <- Manager. create[self] end for end process end start

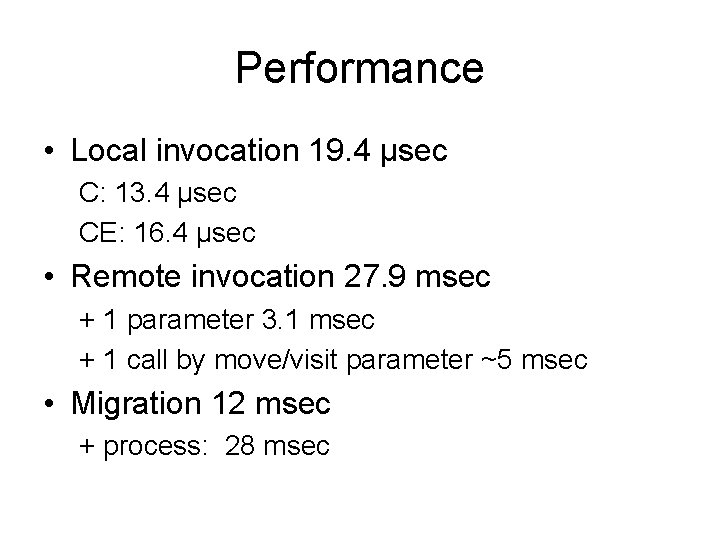

Performance • Local invocation 19. 4 μsec C: 13. 4 μsec CE: 16. 4 μsec • Remote invocation 27. 9 msec + 1 parameter 3. 1 msec + 1 call by move/visit parameter ~5 msec • Migration 12 msec + process: 28 msec

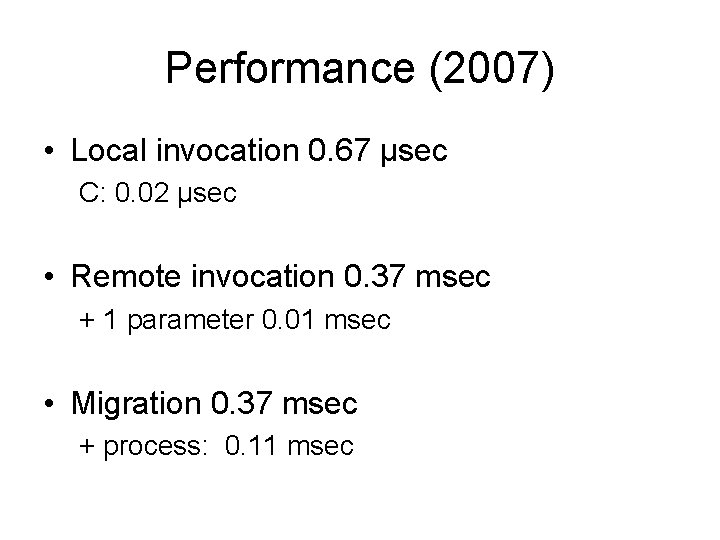

Performance (2007) • Local invocation 0. 67 μsec C: 0. 02 μsec • Remote invocation 0. 37 msec + 1 parameter 0. 01 msec • Migration 0. 37 msec + process: 0. 11 msec

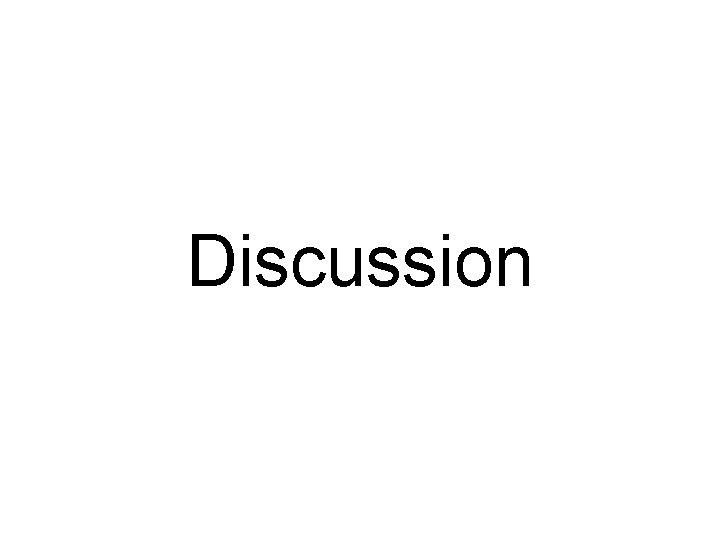

Discussion

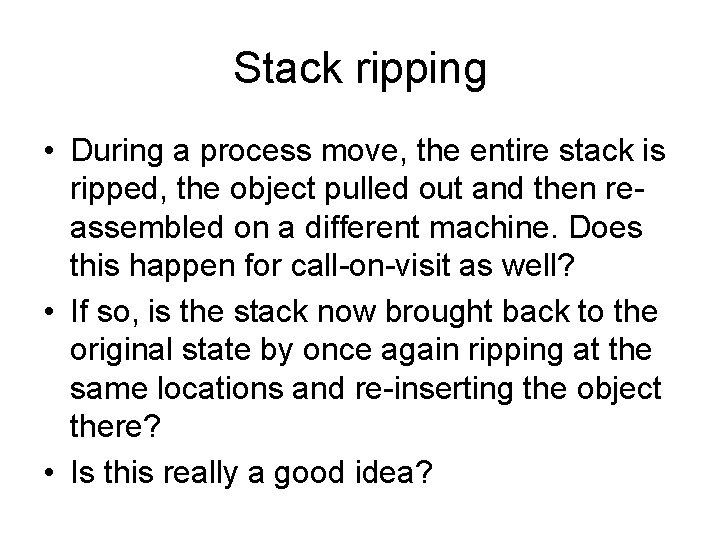

Stack ripping • During a process move, the entire stack is ripped, the object pulled out and then reassembled on a different machine. Does this happen for call-on-visit as well? • If so, is the stack now brought back to the original state by once again ripping at the same locations and re-inserting the object there? • Is this really a good idea?

Yet another language? • Which language is the Emerald language based on? • If it is a new language, will many users want to use it? • Why not just extend the functionality of a compiler for an existing language?

Scalability • The most questionable thing is the scalability of Emerald. • Since the unit of distribution and mobility is the object, and objects as described here are not lightweight, do you think this scheme will be scalable when dealing with a heavy workload?

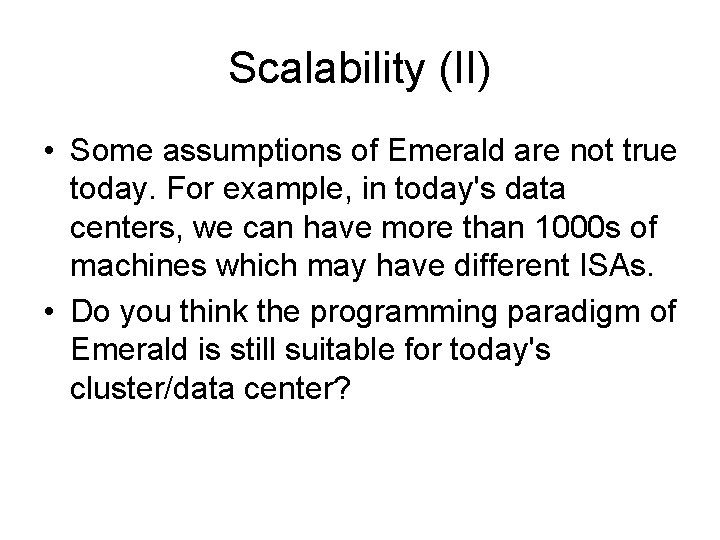

Scalability (II) • Some assumptions of Emerald are not true today. For example, in today's data centers, we can have more than 1000 s of machines which may have different ISAs. • Do you think the programming paradigm of Emerald is still suitable for today's cluster/data center?

Fault Tolerance • Is it the programmer’s responsibility to implement the fault tolerance mechanisms in this system? • Is there any way that the system can provide that?

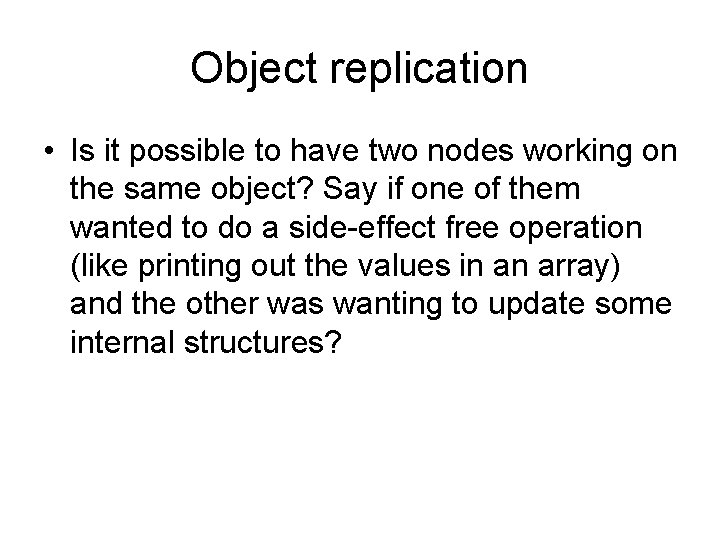

Object replication • Is it possible to have two nodes working on the same object? Say if one of them wanted to do a side-effect free operation (like printing out the values in an array) and the other was wanting to update some internal structures?

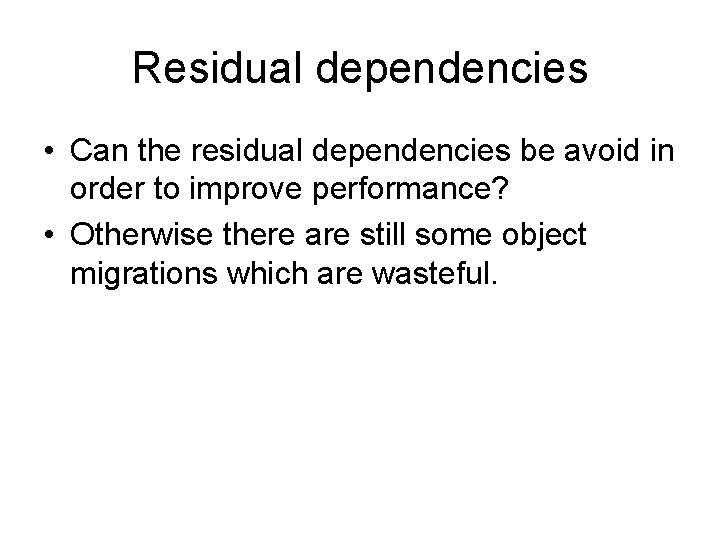

Residual dependencies • Can the residual dependencies be avoid in order to improve performance? • Otherwise there are still some object migrations which are wasteful.

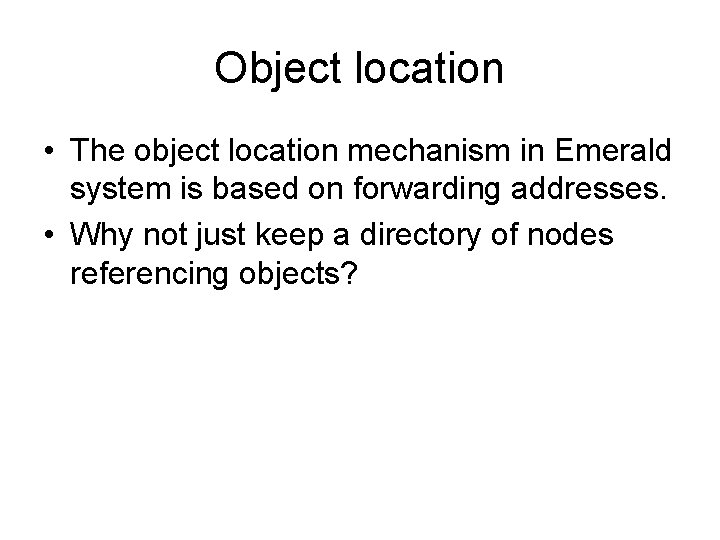

Object location • The object location mechanism in Emerald system is based on forwarding addresses. • Why not just keep a directory of nodes referencing objects?

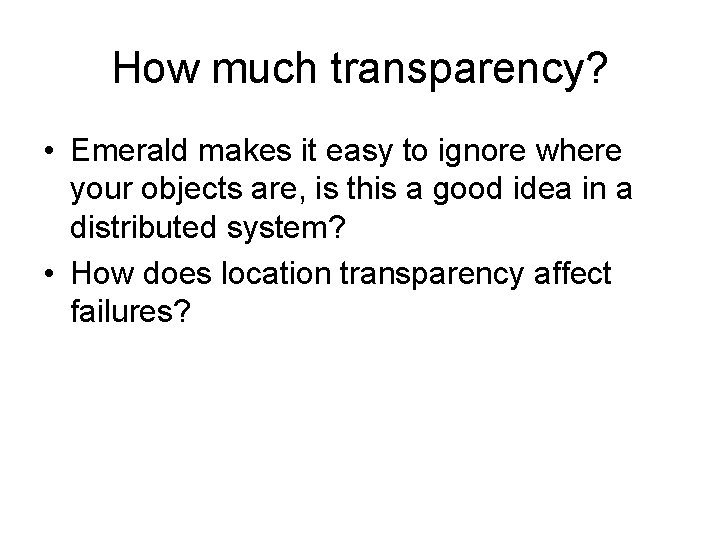

How much transparency? • Emerald makes it easy to ignore where your objects are, is this a good idea in a distributed system? • How does location transparency affect failures?

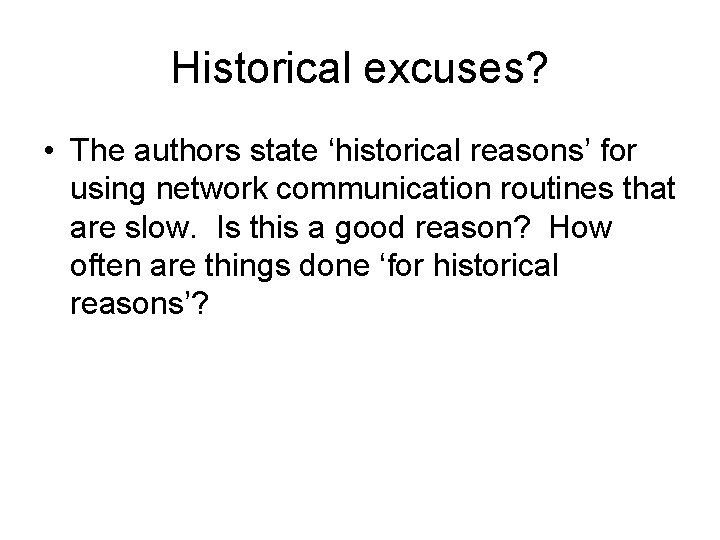

Historical excuses? • The authors state ‘historical reasons’ for using network communication routines that are slow. Is this a good reason? How often are things done ‘for historical reasons’?
