Finding Harm’s Way (Mapping Disaster Risk in the Philippines) Department of Environment and Natural Resources Manila Observatory 14 April 2005

TYPHOON TRACKS

EARTHQUAKE EPICENTERS

RISK likelihood of harm, loss, disaster

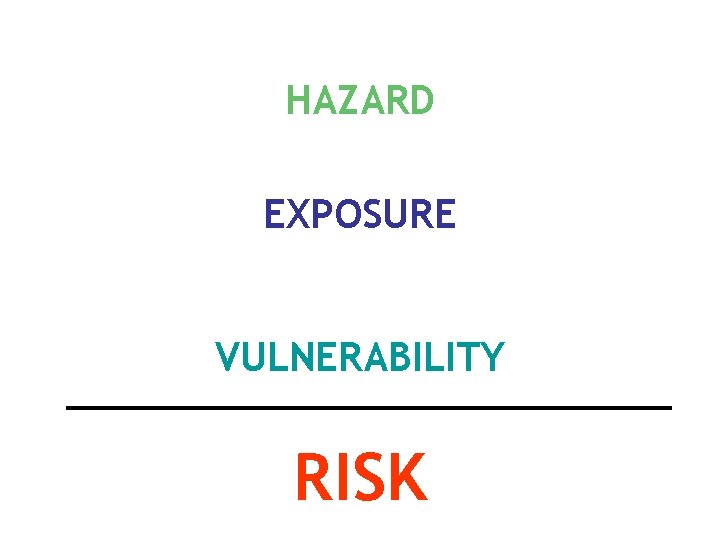

Physical impact of disturbance HAZARD Elements affected by hazard EXPOSURE Capacity of a community to prepare, absorb and recover from hazard VULNERABILITY RISK

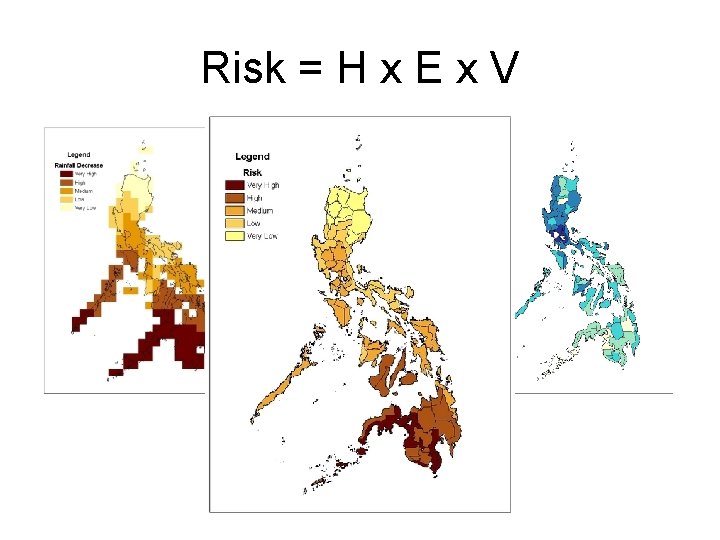

Risk = H x E x V

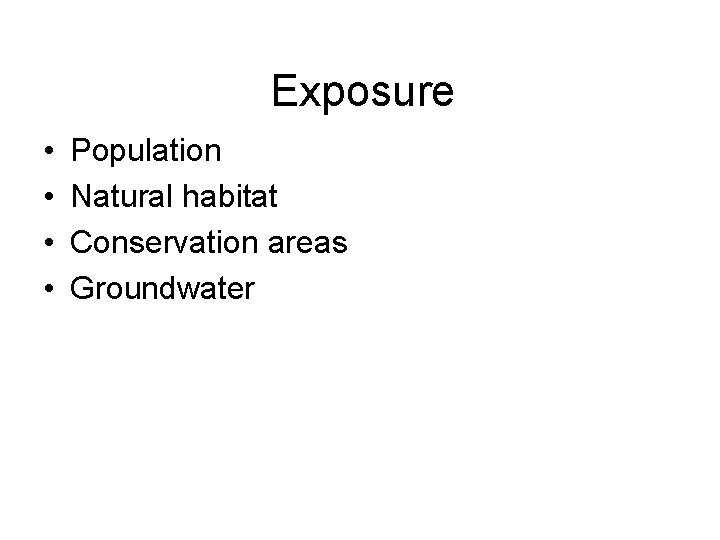

Exposure • • Population Natural habitat Conservation areas Groundwater

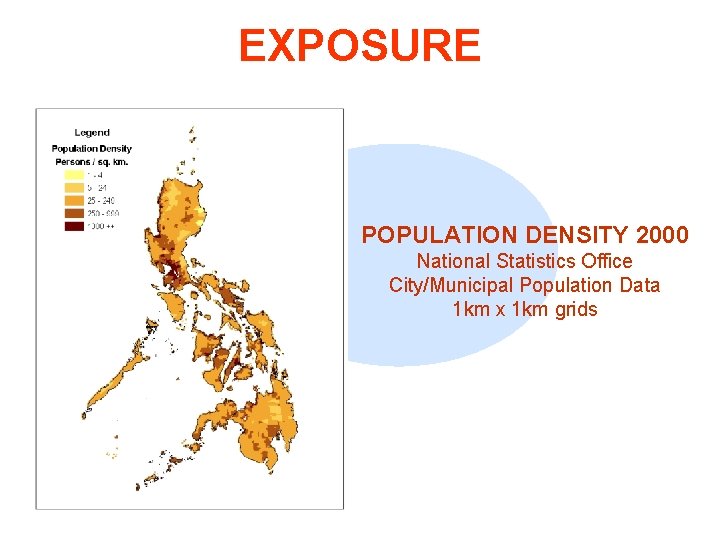

EXPOSURE POPULATION DENSITY 2000 National Statistics Office City/Municipal Population Data 1 km x 1 km grids

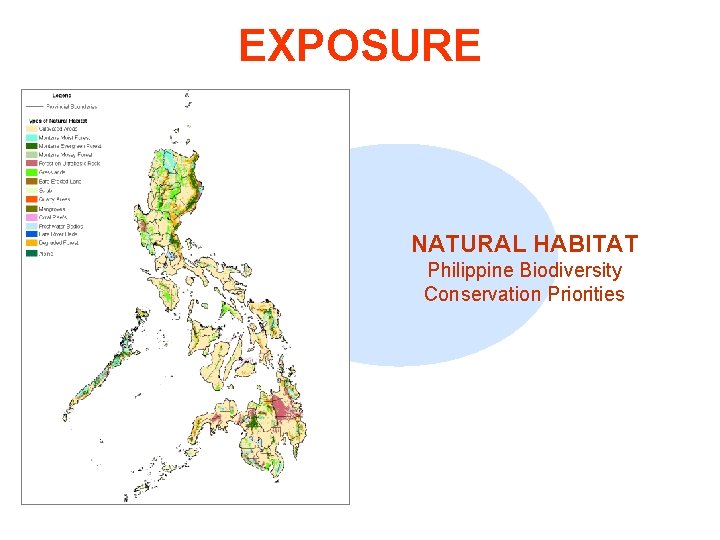

EXPOSURE NATURAL HABITAT Philippine Biodiversity Conservation Priorities

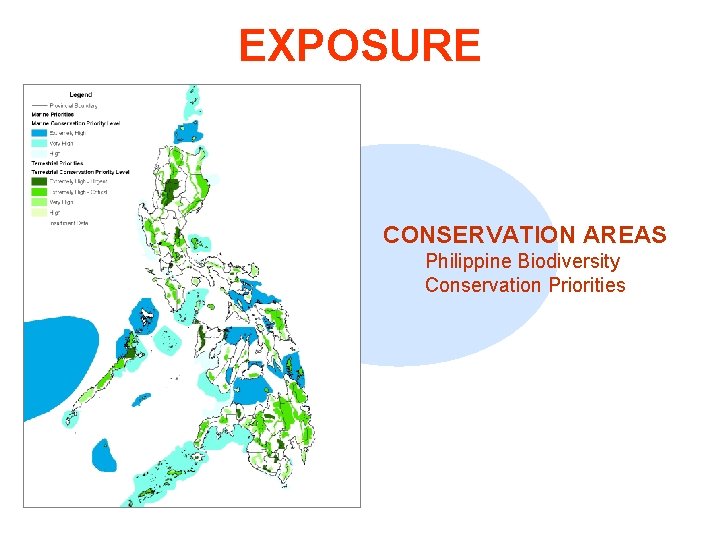

EXPOSURE CONSERVATION AREAS Philippine Biodiversity Conservation Priorities

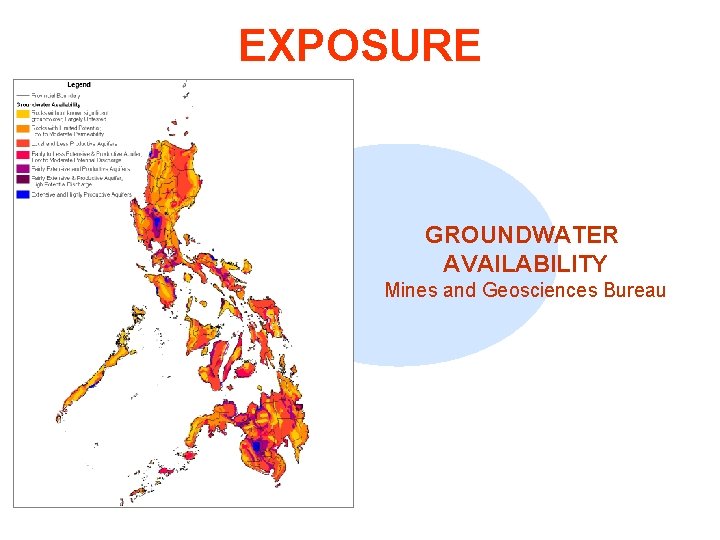

EXPOSURE GROUNDWATER AVAILABILITY Mines and Geosciences Bureau

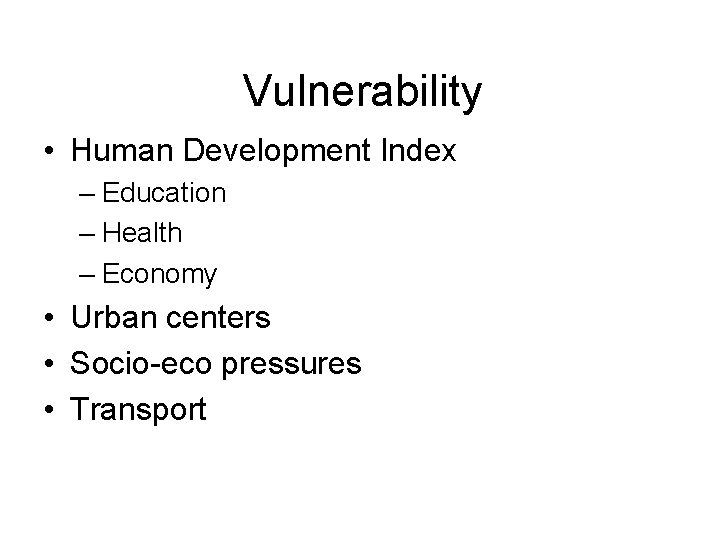

Vulnerability • Human Development Index – Education – Health – Economy • Urban centers • Socio-eco pressures • Transport

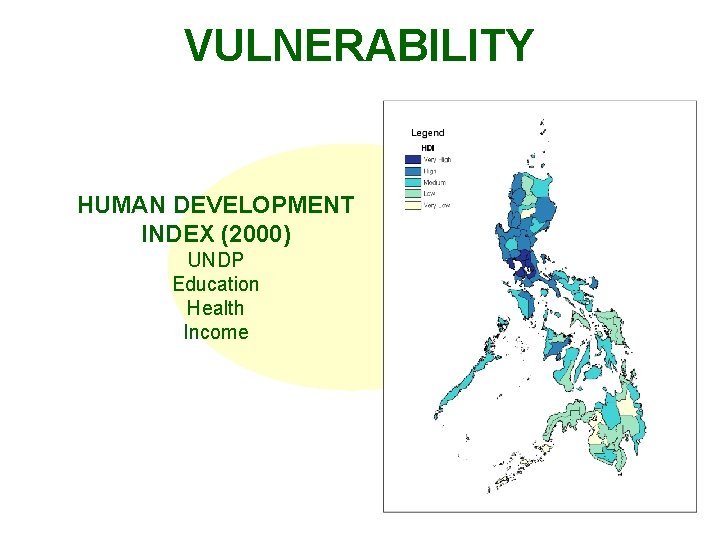

VULNERABILITY HUMAN DEVELOPMENT INDEX (2000) UNDP Education Health Income

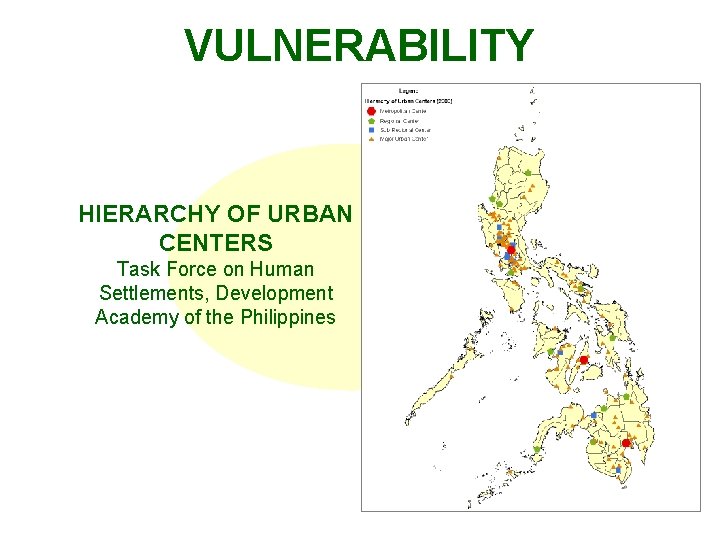

VULNERABILITY HIERARCHY OF URBAN CENTERS Task Force on Human Settlements, Development Academy of the Philippines

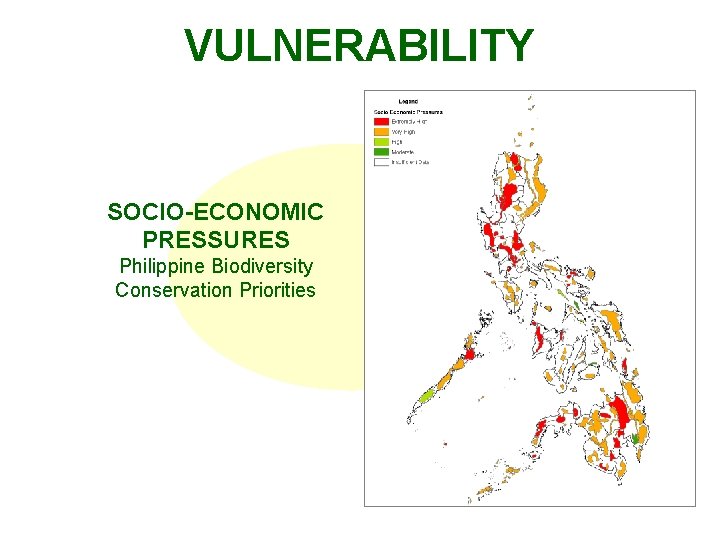

VULNERABILITY SOCIO-ECONOMIC PRESSURES Philippine Biodiversity Conservation Priorities

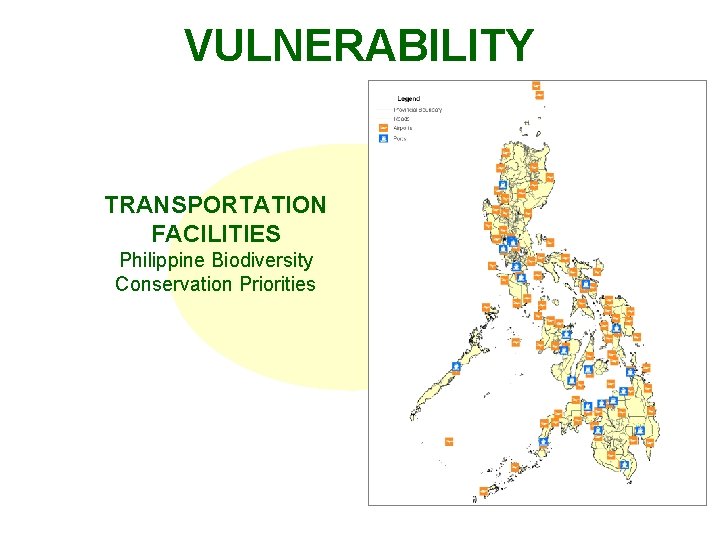

VULNERABILITY TRANSPORTATION FACILITIES Philippine Biodiversity Conservation Priorities

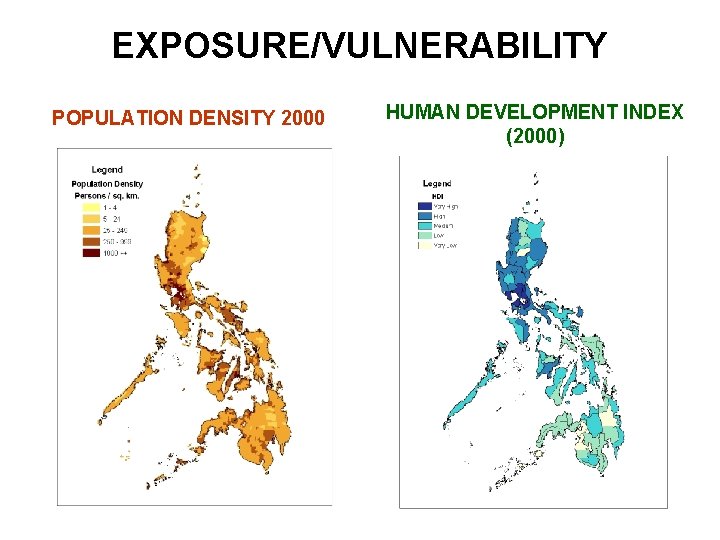

EXPOSURE/VULNERABILITY POPULATION DENSITY 2000 HUMAN DEVELOPMENT INDEX (2000)

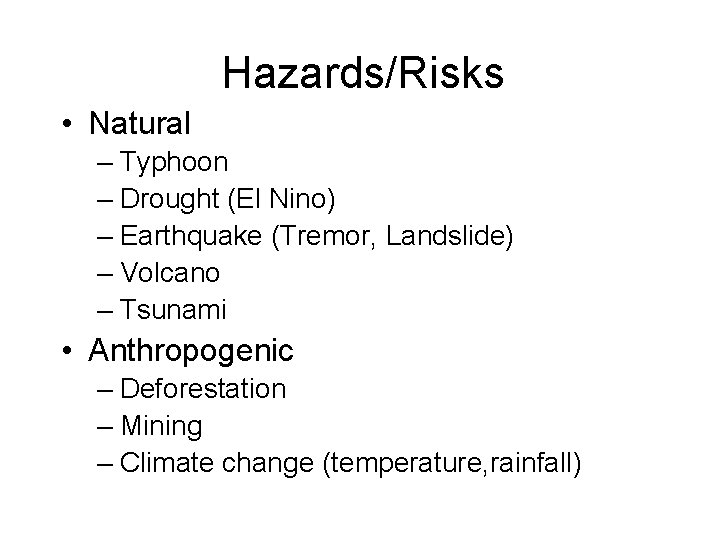

Hazards/Risks • Natural – Typhoon – Drought (El Nino) – Earthquake (Tremor, Landslide) – Volcano – Tsunami • Anthropogenic – Deforestation – Mining – Climate change (temperature, rainfall)

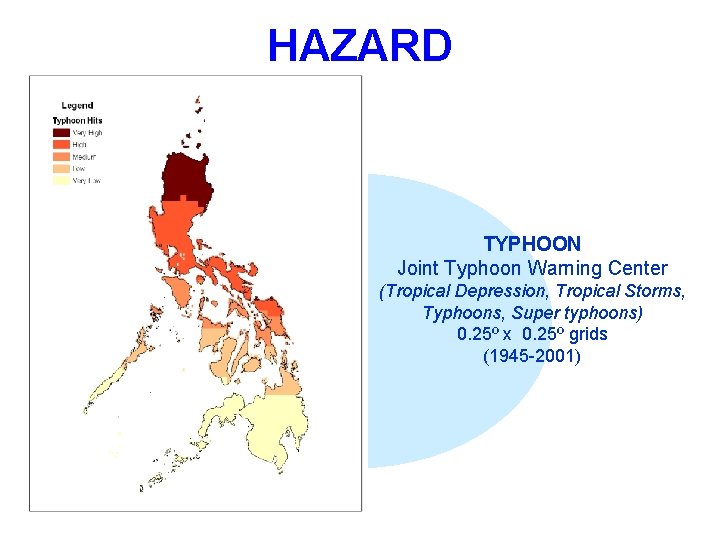

HAZARD TYPHOON Joint Typhoon Warning Center (Tropical Depression, Tropical Storms, Typhoons, Super typhoons) 0. 25º x 0. 25º grids (1945 -2001)

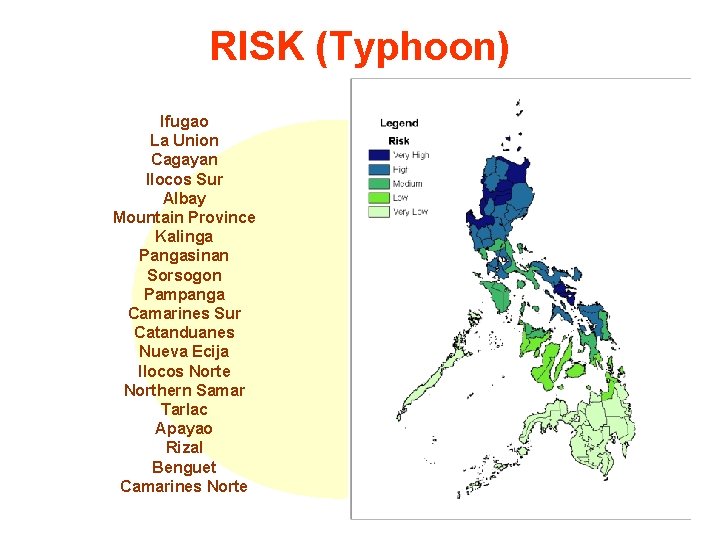

RISK (Typhoon) Ifugao La Union Cagayan Ilocos Sur Albay Mountain Province Kalinga Pangasinan Sorsogon Pampanga Camarines Sur Catanduanes Nueva Ecija Ilocos Norte Northern Samar Tarlac Apayao Rizal Benguet Camarines Norte

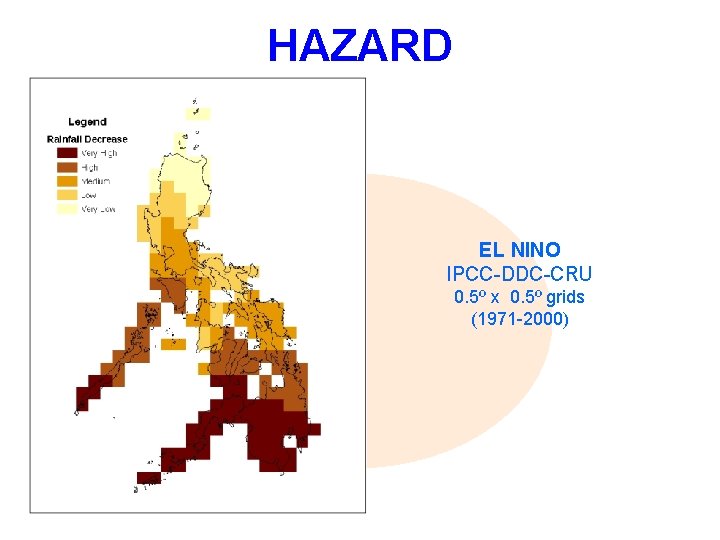

HAZARD EL NINO IPCC-DDC-CRU 0. 5º x 0. 5º grids (1971 -2000)

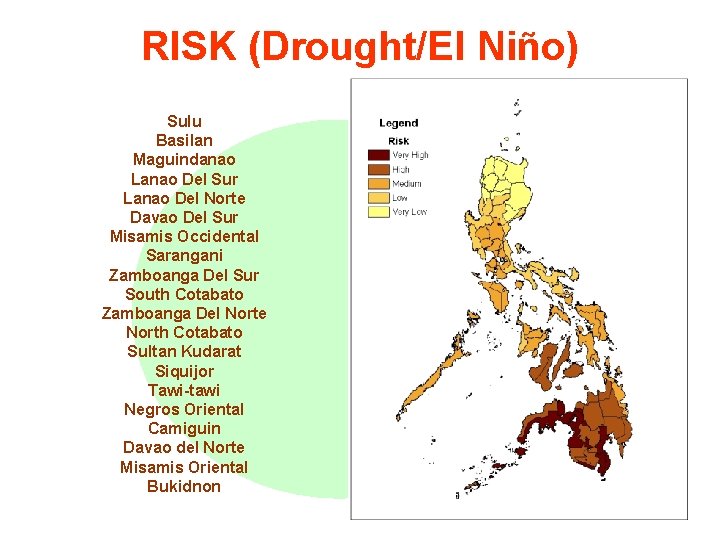

RISK (Drought/El Niño) Sulu Basilan Maguindanao Lanao Del Sur Lanao Del Norte Davao Del Sur Misamis Occidental Sarangani Zamboanga Del Sur South Cotabato Zamboanga Del Norte North Cotabato Sultan Kudarat Siquijor Tawi-tawi Negros Oriental Camiguin Davao del Norte Misamis Oriental Bukidnon

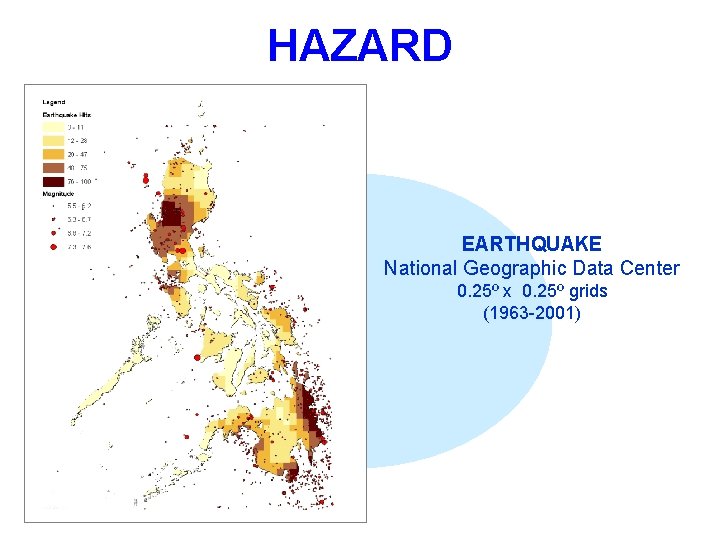

HAZARD EARTHQUAKE National Geographic Data Center 0. 25º x 0. 25º grids (1963 -2001)

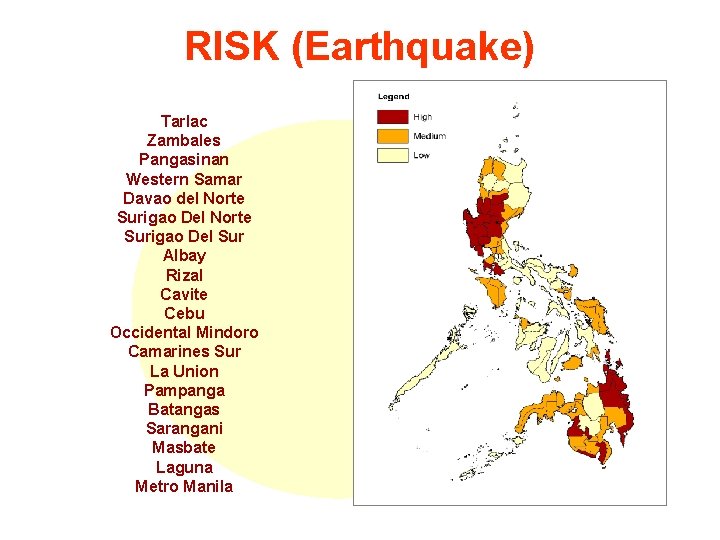

RISK (Earthquake) Tarlac Zambales Pangasinan Western Samar Davao del Norte Surigao Del Sur Albay Rizal Cavite Cebu Occidental Mindoro Camarines Sur La Union Pampanga Batangas Sarangani Masbate Laguna Metro Manila

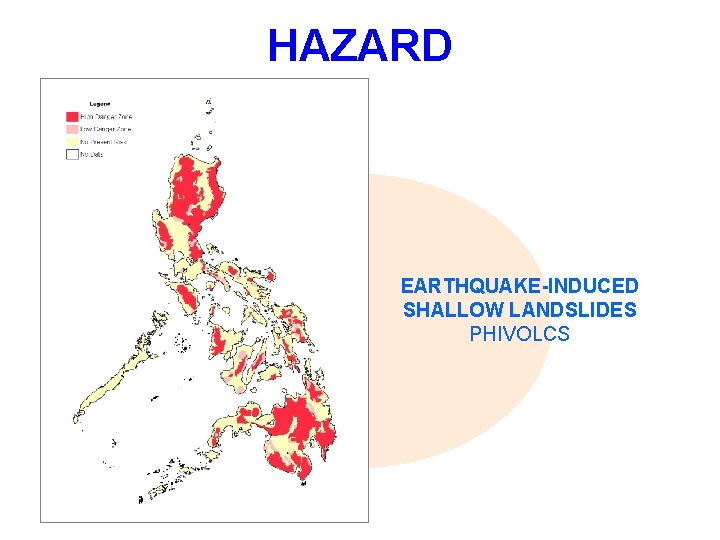

HAZARD EARTHQUAKE-INDUCED SHALLOW LANDSLIDES PHIVOLCS

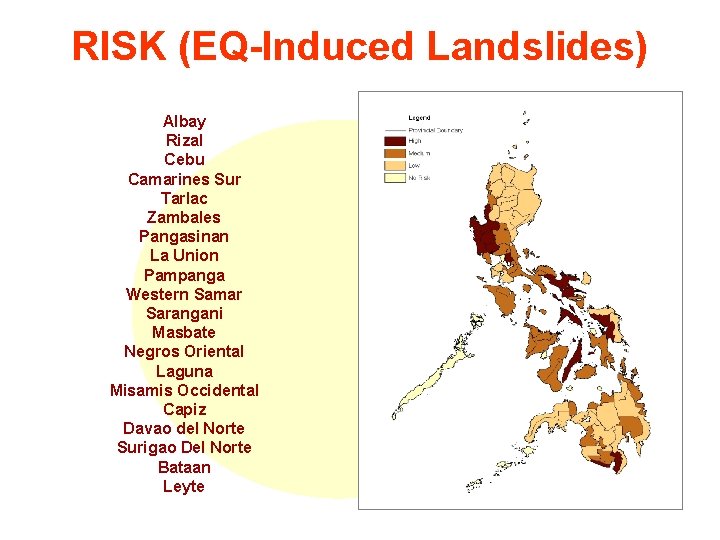

RISK (EQ-Induced Landslides) Albay Rizal Cebu Camarines Sur Tarlac Zambales Pangasinan La Union Pampanga Western Samar Sarangani Masbate Negros Oriental Laguna Misamis Occidental Capiz Davao del Norte Surigao Del Norte Bataan Leyte

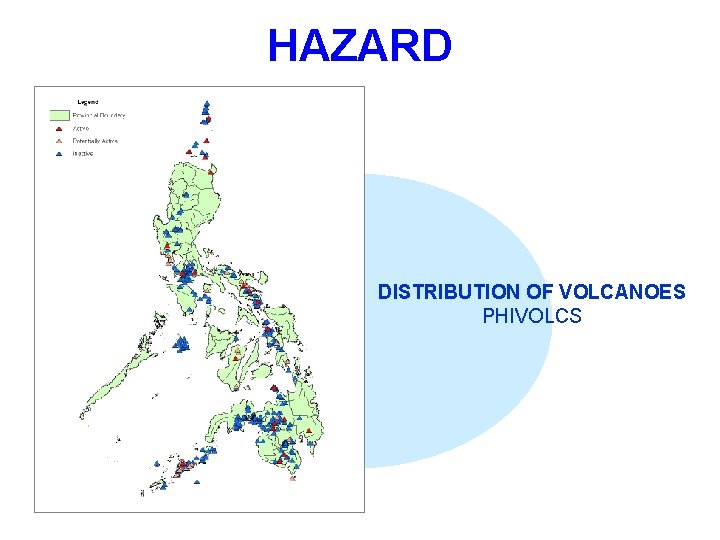

HAZARD DISTRIBUTION OF VOLCANOES PHIVOLCS

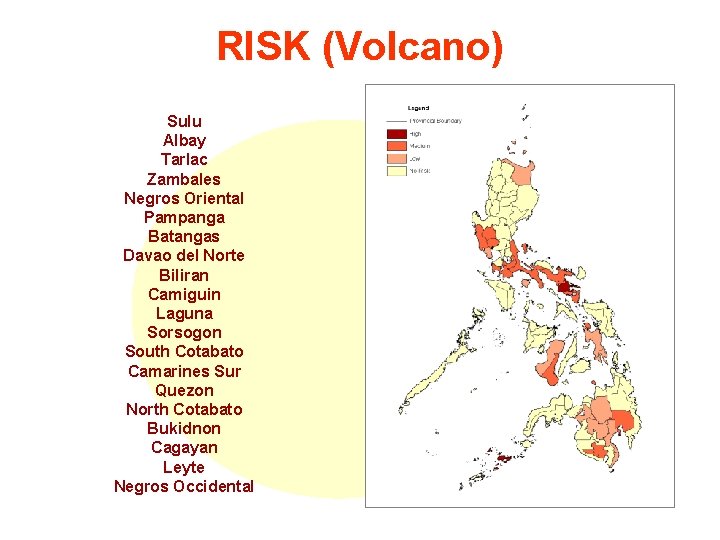

RISK (Volcano) Sulu Albay Tarlac Zambales Negros Oriental Pampanga Batangas Davao del Norte Biliran Camiguin Laguna Sorsogon South Cotabato Camarines Sur Quezon North Cotabato Bukidnon Cagayan Leyte Negros Occidental

HAZARD TSUNAMI Environmental and Natural Resources Atlas of the Philippines, ECPF

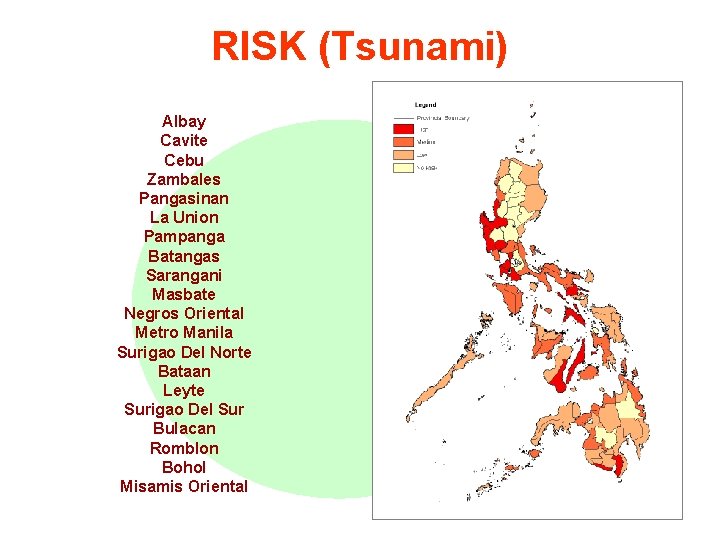

RISK (Tsunami) Albay Cavite Cebu Zambales Pangasinan La Union Pampanga Batangas Sarangani Masbate Negros Oriental Metro Manila Surigao Del Norte Bataan Leyte Surigao Del Sur Bulacan Romblon Bohol Misamis Oriental

HAZARD PROJECTED TEMPERATURE CHANGE Commonwealth and Scientific Research Organization 5. 625º x 3. 2º grids (2066 -2095)

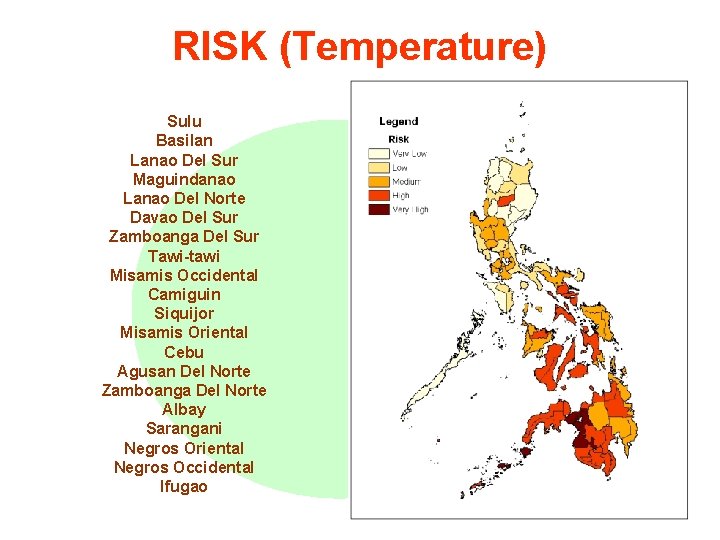

RISK (Temperature) Sulu Basilan Lanao Del Sur Maguindanao Lanao Del Norte Davao Del Sur Zamboanga Del Sur Tawi-tawi Misamis Occidental Camiguin Siquijor Misamis Oriental Cebu Agusan Del Norte Zamboanga Del Norte Albay Sarangani Negros Oriental Negros Occidental Ifugao

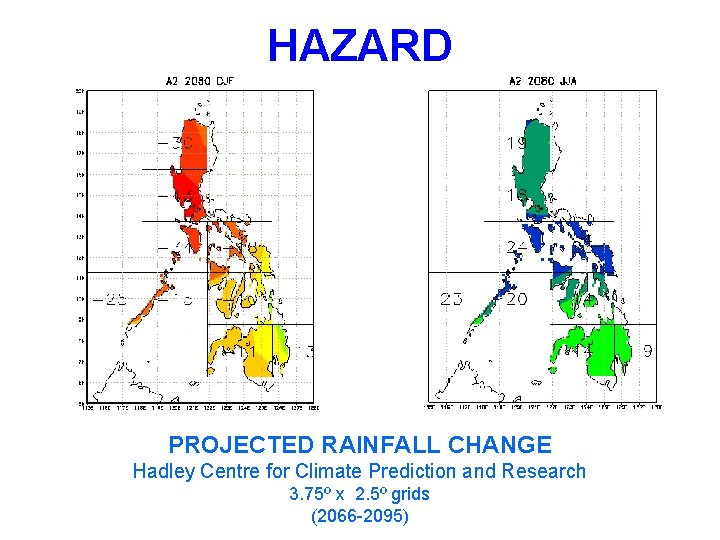

HAZARD PROJECTED RAINFALL CHANGE Hadley Centre for Climate Prediction and Research 3. 75º x 2. 5º grids (2066 -2095)

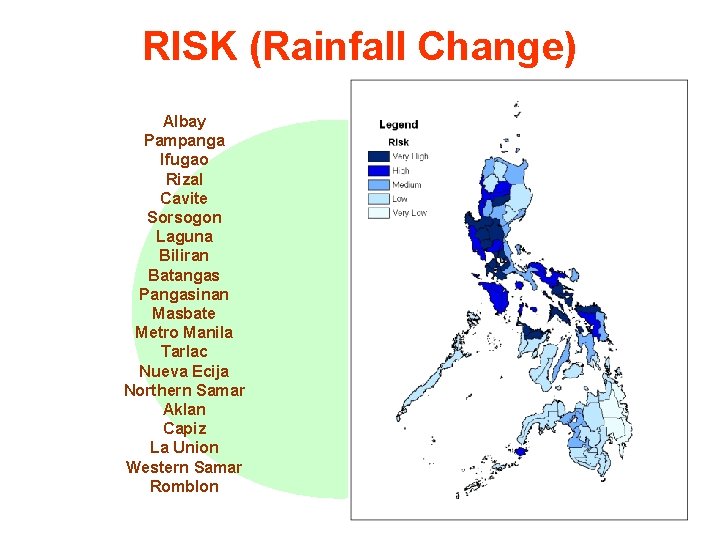

RISK (Rainfall Change) Albay Pampanga Ifugao Rizal Cavite Sorsogon Laguna Biliran Batangas Pangasinan Masbate Metro Manila Tarlac Nueva Ecija Northern Samar Aklan Capiz La Union Western Samar Romblon

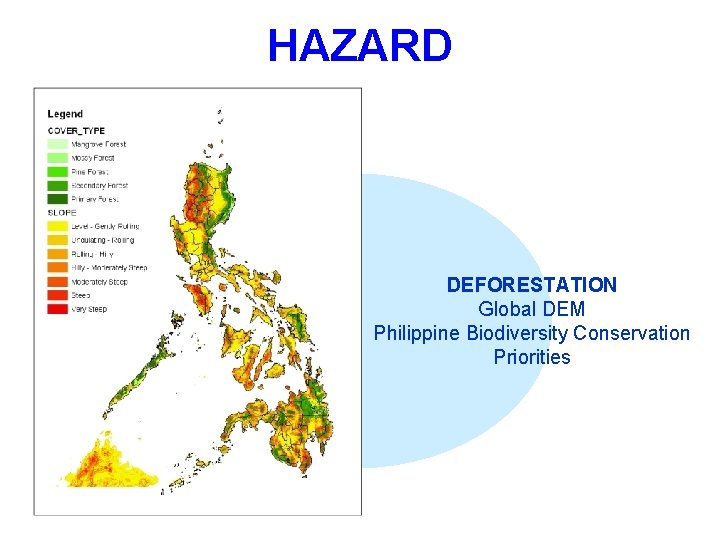

HAZARD DEFORESTATION Global DEM Philippine Biodiversity Conservation Priorities

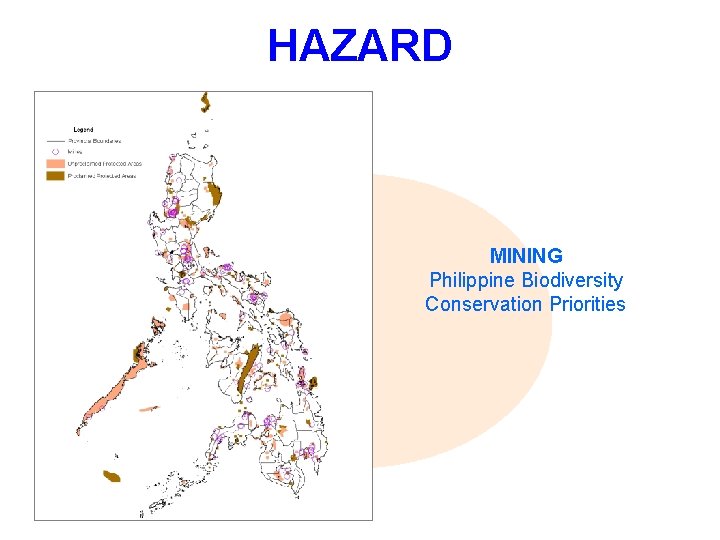

HAZARD MINING Philippine Biodiversity Conservation Priorities

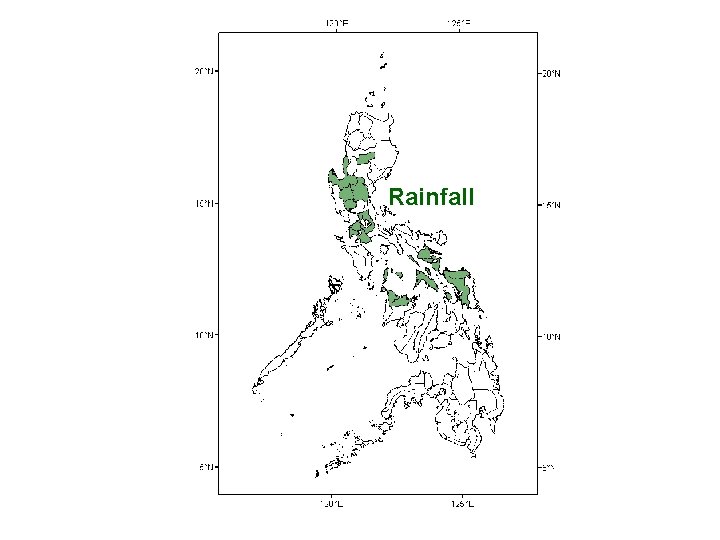

Volcano Tsunami EQ-Induced Typhoons Landslides Rainfall Temperature El Niño Earthquake

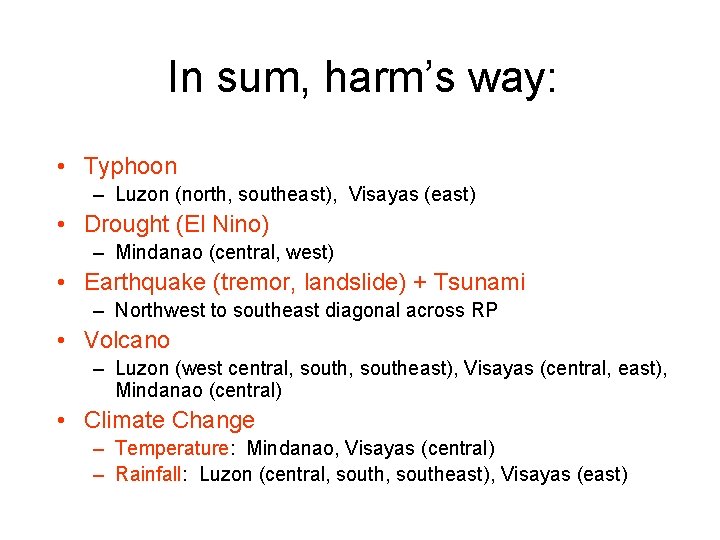

In sum, harm’s way: • Typhoon – Luzon (north, southeast), Visayas (east) • Drought (El Nino) – Mindanao (central, west) • Earthquake (tremor, landslide) + Tsunami – Northwest to southeast diagonal across RP • Volcano – Luzon (west central, southeast), Visayas (central, east), Mindanao (central) • Climate Change – Temperature: Mindanao, Visayas (central) – Rainfall: Luzon (central, southeast), Visayas (east)
