Finding blind faults using ground roll reflection Craig

Finding blind faults using ground roll reflection Craig Hyslop Robert Stewart Houston, TX | May 2, 2012

Outline • • • Purpose Process Synthetics Field data Conclusions 2

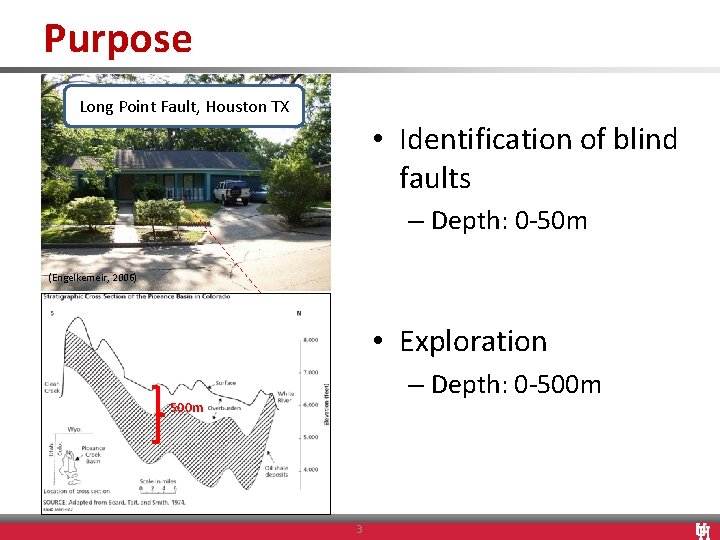

Purpose Long Point Fault, Houston TX • Identification of blind faults – Depth: 0 -50 m (Engelkemeir, 2006) • Exploration – Depth: 0 -500 m 3

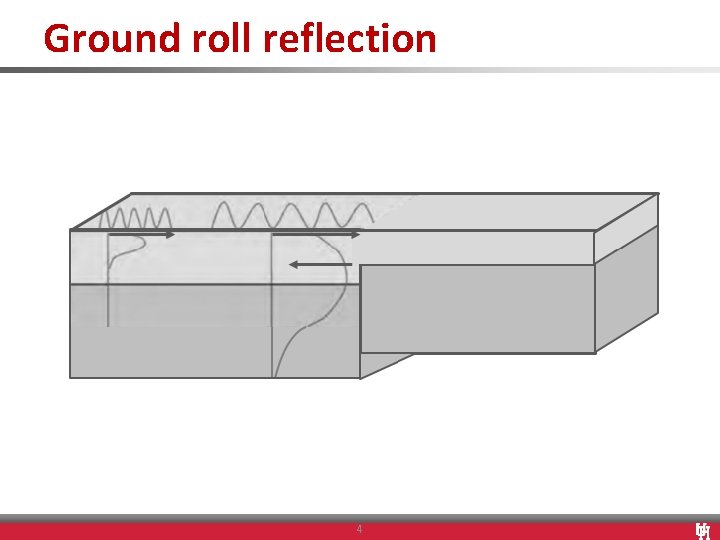

Ground roll reflection 4

A horizontal SP Flattened u Bo 1 ry a nd Bo da un 2 ry Enhanced Subtracted time Shot record distance Deconvolved 5 Flattened/Stacked

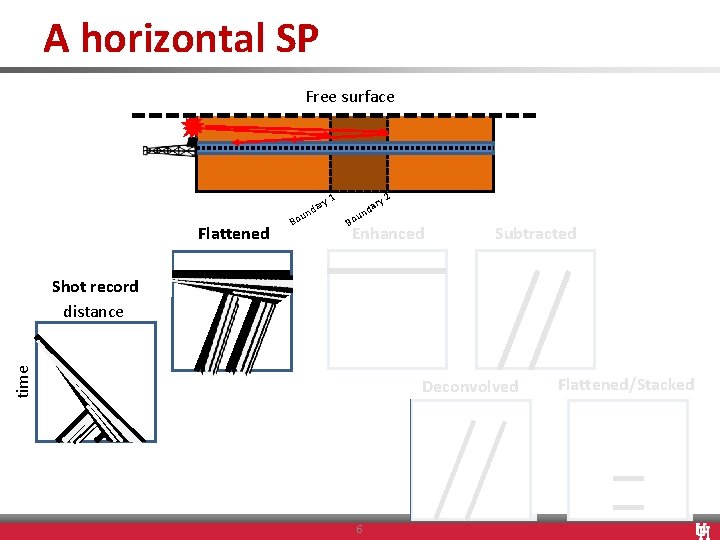

A horizontal SP Free surface Flattened u Bo 1 ry a nd Bo da un 2 ry Enhanced Subtracted time Shot record distance Deconvolved 6 Flattened/Stacked

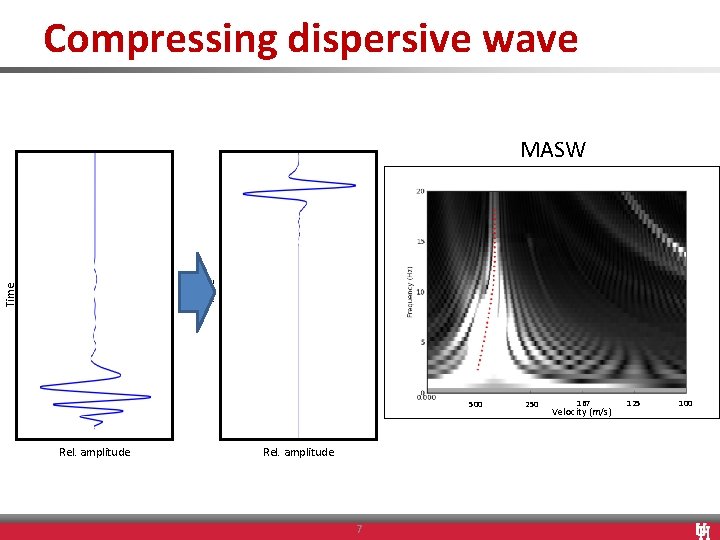

Compressing dispersive wave Time MASW 500 Rel. amplitude 7 250 167 Velocity (m/s) 125 100

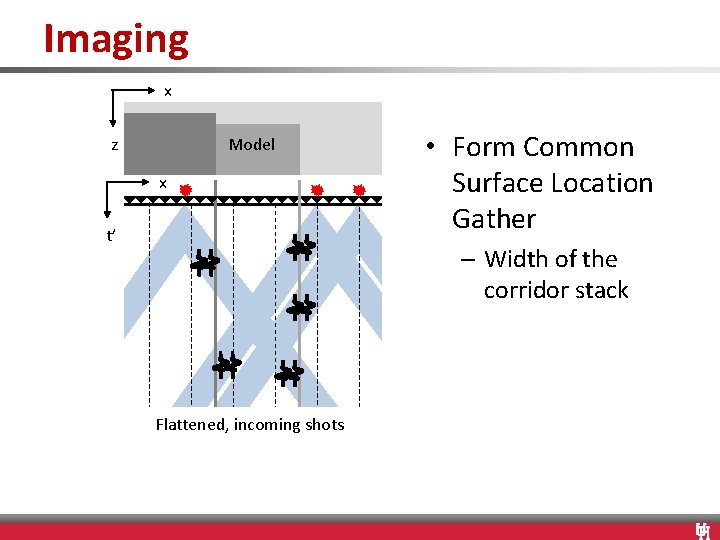

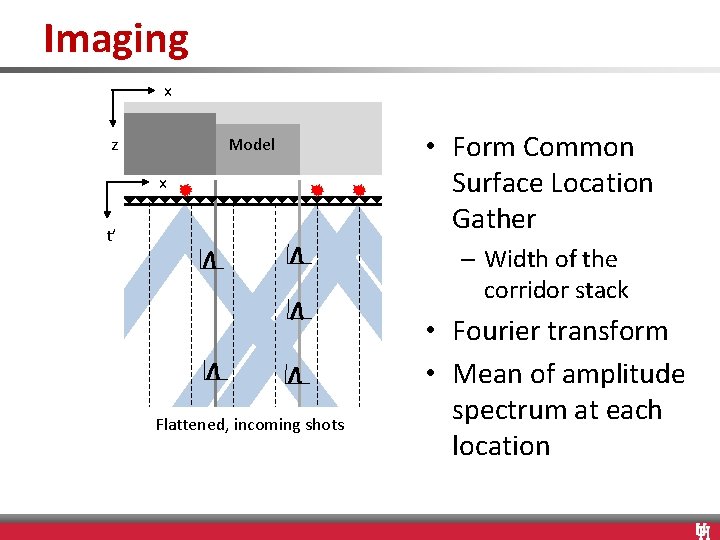

Imaging x z Model x t’ • Form Common Surface Location Gather – Width of the corridor stack Flattened, incoming shots

Imaging x z Model x t’ • Form Common Surface Location Gather – Width of the corridor stack Flattened, incoming shots • Fourier transform • Mean of amplitude spectrum at each location

Synthetic, two faults 300 m/s 700 m/s 600 m/s 500 m/s Model – 2000 m wide 150 receivers @ 10 m spacing: 250 m -1750 m 15 sources @ 100 m spacing: 250 m-1750 m - central frequency – 6 Hz 10

Synthetic, two faults 300 m/s 700 m/s 600 m/s 500 m/s Higher frequencies are reflected from the shallow fault 11

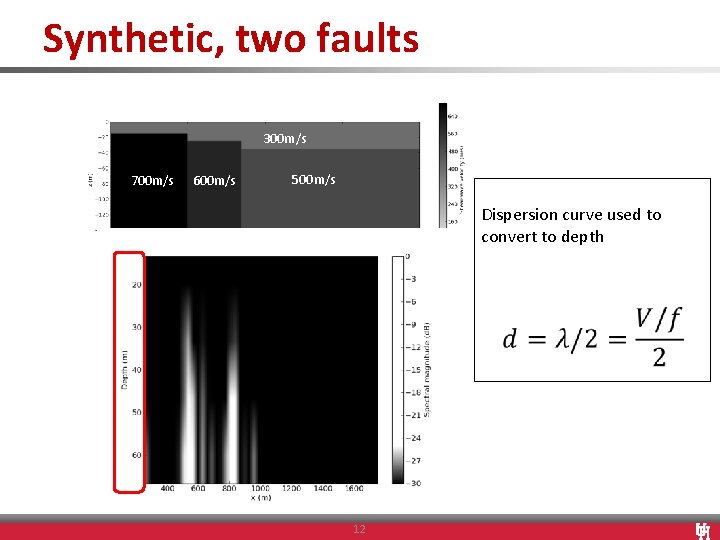

Synthetic, two faults 300 m/s 700 m/s 600 m/s 500 m/s Dispersion curve used to convert to depth 12

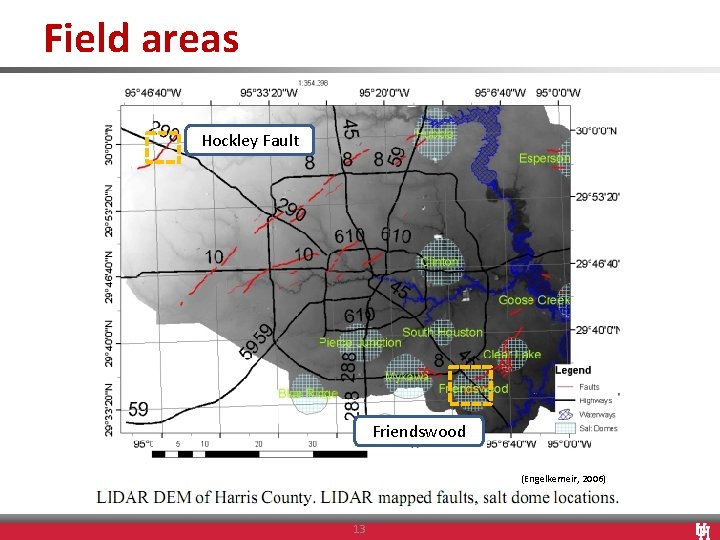

Field areas Hockley Fault Friendswood (Engelkemeir, 2006) 13

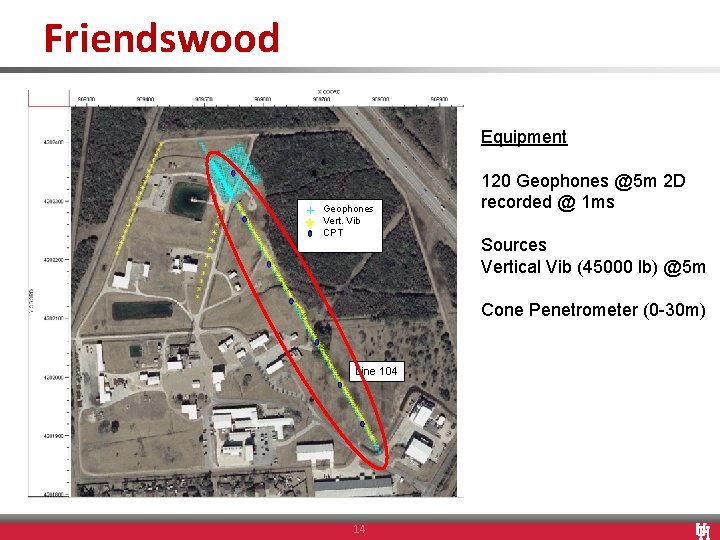

Friendswood Equipment + * Geophones Vert. Vib CPT 120 Geophones @5 m 2 D recorded @ 1 ms Sources Vertical Vib (45000 lb) @5 m Cone Penetrometer (0 -30 m) Line 104 14

Friendswood: shot record 15

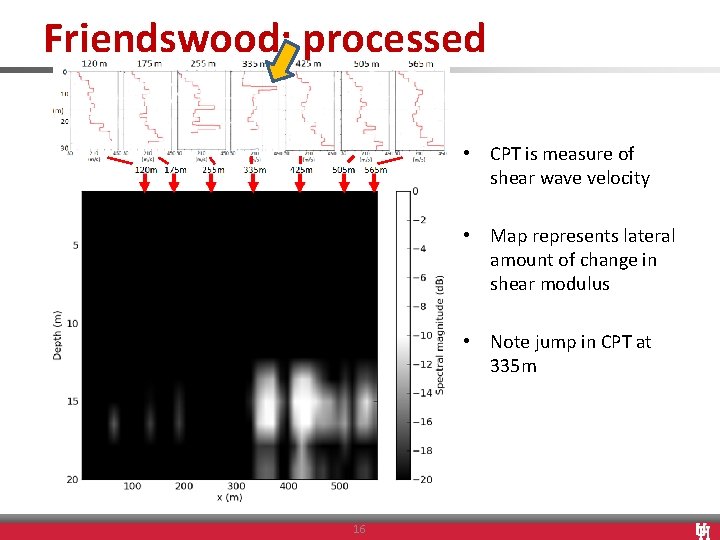

Friendswood: processed • CPT is measure of shear wave velocity • Map represents lateral amount of change in shear modulus • Note jump in CPT at 335 m 16

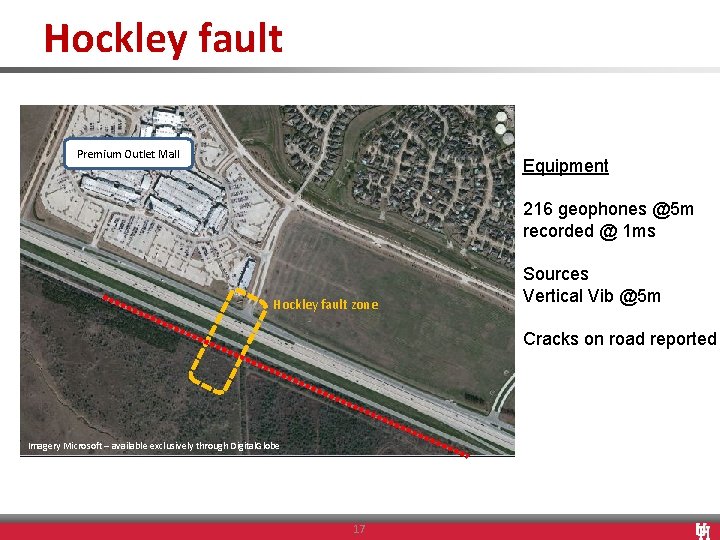

Hockley fault Premium Outlet Mall Equipment 216 geophones @5 m recorded @ 1 ms Hockley fault zone Sources Vertical Vib @5 m Cracks on road reported Imagery Microsoft – available exclusively through Digital. Globe 17

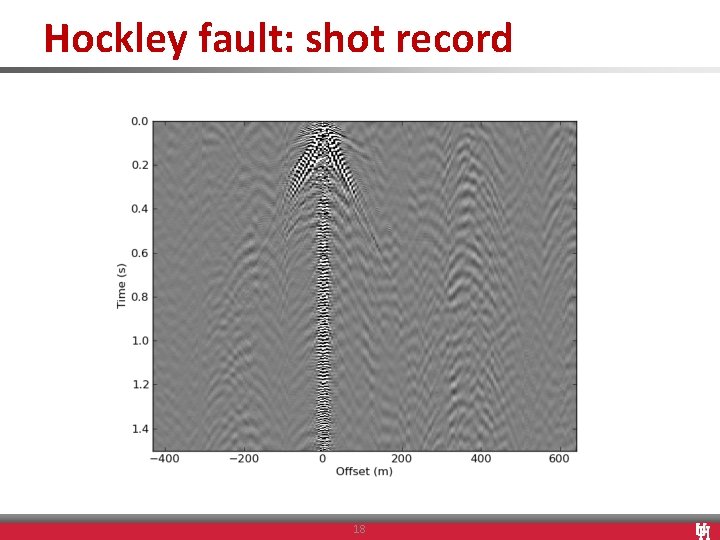

Hockley fault: shot record 18

Hockley fault: processed • Location of fault indicated with dashed red line • Location of cracks on road indicated by red lines at top 19

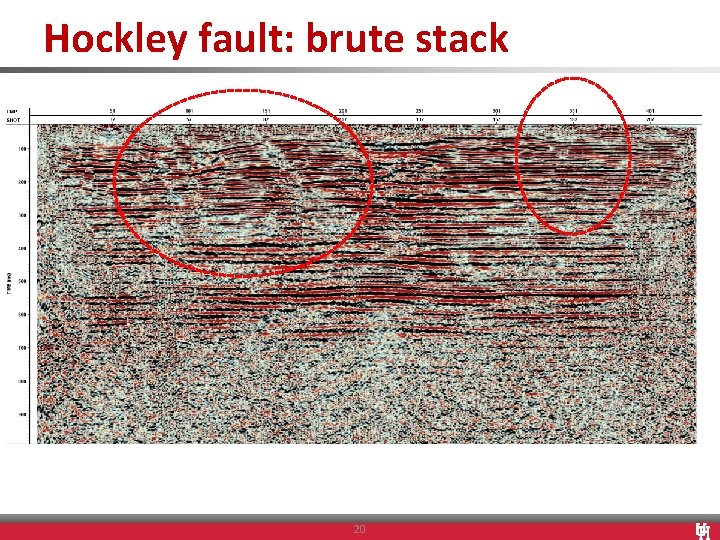

Hockley fault: brute stack 20

Conclusions • Unique reflectivity spectrum for differing depths of blind faults can be recovered from ground roll. • Processed Friendswood 2 D line correlates with CPT data. • Processed 2 D line over Hockley fault relates to crack locations and brute stack. 21
