Find KCE E 2 9 107 lbin 2
![Find: KCE E = 2. 9 * 107 [lb/in 2] λc>1. 50 unbraced A](https://slidetodoc.com/presentation_image/138c229a3d202d79fe883427f934dd38/image-1.jpg "Find: KCE E = 2. 9 * 107 [lb/in 2] λc>1. 50 unbraced A")

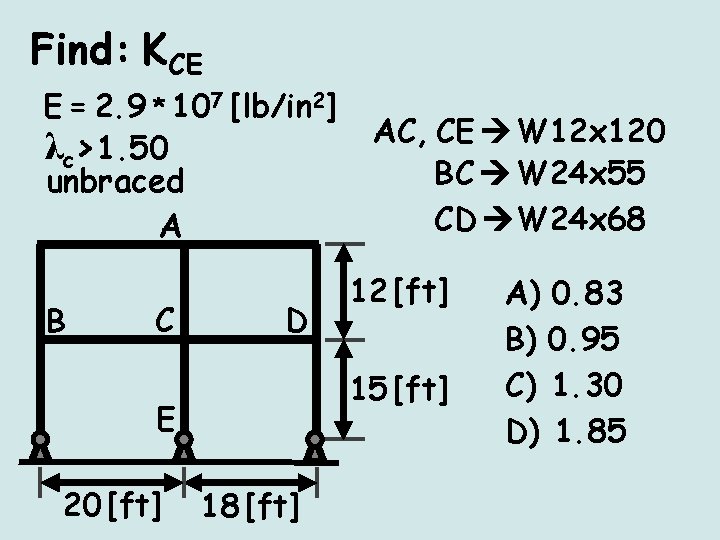

Find: KCE E = 2. 9 * 107 [lb/in 2] λc>1. 50 unbraced A B C D 12 [ft] 15 [ft] E 20 [ft] AC, CE W 12 x 120 BC W 24 x 55 CD W 24 x 68 18 [ft] A) 0. 83 B) 0. 95 C) 1. 30 D) 1. 85
![Find: KCE E = 2. 9 * 107 [lb/in 2] λc>1. 50 unbraced A](http://slidetodoc.com/presentation_image/138c229a3d202d79fe883427f934dd38/image-2.jpg "Find: KCE E = 2. 9 * 107 [lb/in 2] λc>1. 50 unbraced A")
Find: KCE E = 2. 9 * 107 [lb/in 2] λc>1. 50 unbraced A B C D 12 [ft] 15 [ft] E 20 [ft] AC, CE W 12 x 120 BC W 24 x 55 CD W 24 x 68 18 [ft] A) 0. 83 B) 0. 95 C) 1. 30 D) 1. 85
![Find: KCE E = 2. 9 * 107 [lb/in 2] λc>1. 50 unbraced A](http://slidetodoc.com/presentation_image/138c229a3d202d79fe883427f934dd38/image-3.jpg "Find: KCE E = 2. 9 * 107 [lb/in 2] λc>1. 50 unbraced A")
Find: KCE E = 2. 9 * 107 [lb/in 2] λc>1. 50 unbraced A B C D 12 [ft] 15 [ft] E 20 [ft] AC, CE W 12 x 120 BC W 24 x 55 CD W 24 x 68 18 [ft] A) 0. 83 B) 0. 95 C) 1. 30 D) 1. 85
![Find: KCE E = 2. 9 * 107 [lb/in 2] λc>1. 50 unbraced A](http://slidetodoc.com/presentation_image/138c229a3d202d79fe883427f934dd38/image-4.jpg "Find: KCE E = 2. 9 * 107 [lb/in 2] λc>1. 50 unbraced A")
Find: KCE E = 2. 9 * 107 [lb/in 2] λc>1. 50 unbraced A B C D 12 [ft] 15 [ft] E 20 [ft] AC, CE W 12 x 120 BC W 24 x 55 CD W 24 x 68 18 [ft] A) 0. 83 B) 0. 95 C) 1. 30 D) 1. 85
![Find: KCE E = 2. 9 * 107 [lb/in 2] λc>1. 50 unbraced A](http://slidetodoc.com/presentation_image/138c229a3d202d79fe883427f934dd38/image-5.jpg "Find: KCE E = 2. 9 * 107 [lb/in 2] λc>1. 50 unbraced A")

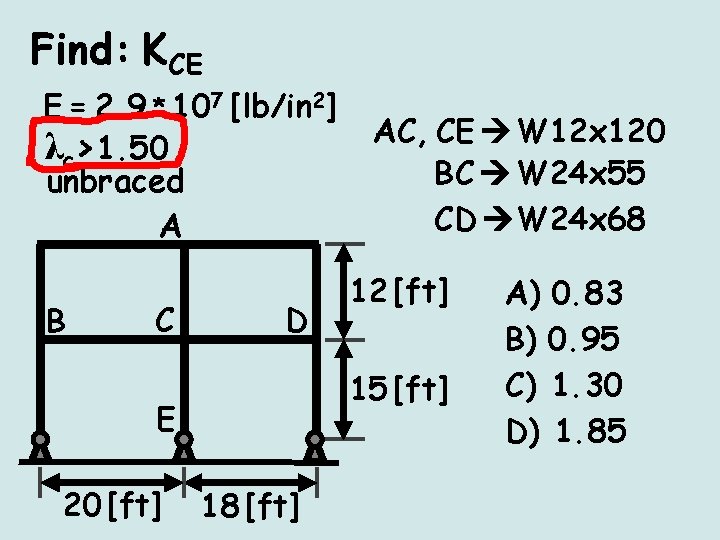

Find: KCE E = 2. 9 * 107 [lb/in 2] λc>1. 50 unbraced A B C D 12 [ft] 15 [ft] E 20 [ft] AC, CE W 12 x 120 BC W 24 x 55 CD W 24 x 68 18 [ft] A) 0. 83 B) 0. 95 C) 1. 30 D) 1. 85
![Find: KCE E= 2. 9 * 107 λc>1. 50 [lb/in 2] unbraced A B](http://slidetodoc.com/presentation_image/138c229a3d202d79fe883427f934dd38/image-6.jpg "Find: KCE E= 2. 9 * 107 λc>1. 50 [lb/in 2] unbraced A B")

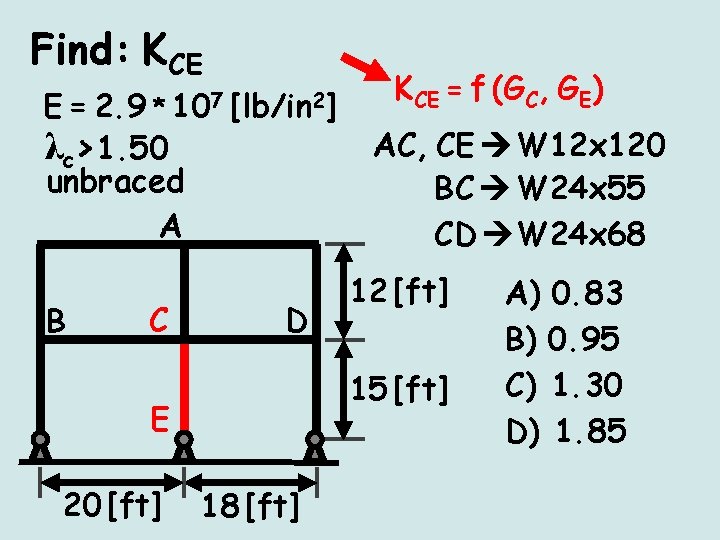

Find: KCE E= 2. 9 * 107 λc>1. 50 [lb/in 2] unbraced A B C D AC, CE W 12 x 120 BC W 24 x 55 CD W 24 x 68 12 [ft] 15 [ft] E 20 [ft] KCE = f (GC, GE) 18 [ft] A) 0. 83 B) 0. 95 C) 1. 30 D) 1. 85
Find: KCE E= 2. 9 * 107 λc>1. 50 unbraced A B C [lb/in 2] end condition coefficient D 12 [ft] 15 [ft] E 20 [ft] KCE = f (GC, GE) 18 [ft] A) 0. 83 B) 0. 95 C) 1. 30 D) 1. 85
Find: KCE E= 2. 9 * 107 λc>1. 50 unbraced A B C [lb/in 2] end condition coefficient D 12 [ft] 15 [ft] E 20 [ft] KCE = f (GC, GE) 18 [ft] A) 0. 83 B) 0. 95 C) 1. 30 D) 1. 85
Find: KCE E= 2. 9 * 107 λc>1. 50 unbraced A B C [lb/in 2] end condition coefficient D 12 [ft] 15 [ft] E 20 [ft] KCE = f (GC, GE) 18 [ft] A) 0. 83 B) 0. 95 C) 1. 30 D) 1. 85

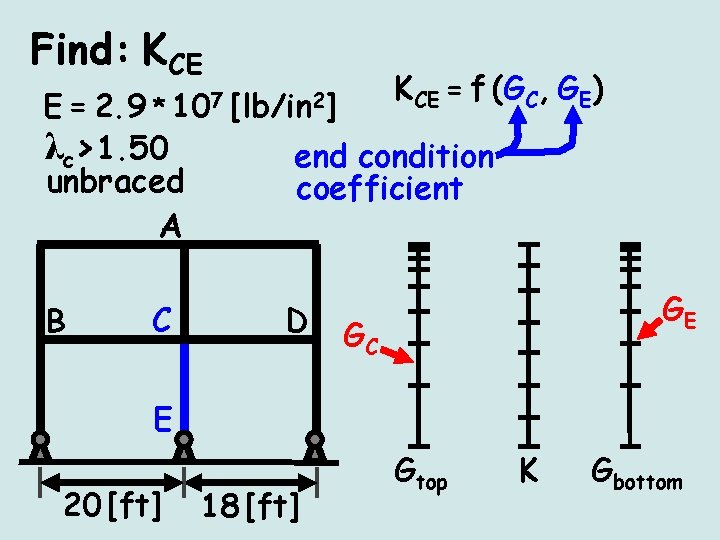

Find: KCE E= 2. 9 * 107 λc>1. 50 unbraced A B C KCE = f (GC, GE) [lb/in 2] end condition coefficient D GE GC E 20 [ft] 18 [ft] Gtop K Gbottom
Find: KCE E= 2. 9 * 107 λc>1. 50 unbraced A B C KCE = f (GC, GE) [lb/in 2] end condition coefficient D KCE GC GE E 20 [ft] 18 [ft] Gtop K Gbottom
![Find: KCE E = 2. 9 * 107 [lb/in 2] KCE = f (GC,](http://slidetodoc.com/presentation_image/138c229a3d202d79fe883427f934dd38/image-12.jpg "Find: KCE E = 2. 9 * 107 [lb/in 2] KCE = f (GC,")

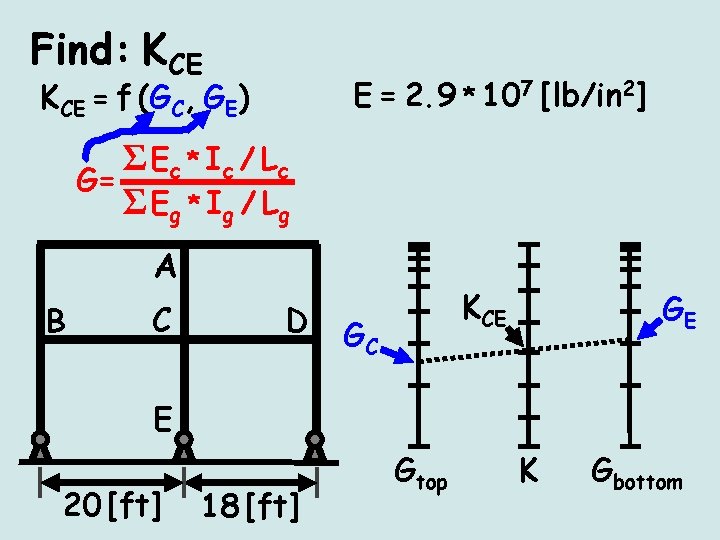

Find: KCE E = 2. 9 * 107 [lb/in 2] KCE = f (GC, GE) Σ E c * Ic / L c G= Σ E g * Ig / L g A B C D KCE GC GE E 20 [ft] 18 [ft] Gtop K Gbottom
![Find: KCE E = 2. 9 * 107 [lb/in 2] KCE = f (GC,](http://slidetodoc.com/presentation_image/138c229a3d202d79fe883427f934dd38/image-13.jpg "Find: KCE E = 2. 9 * 107 [lb/in 2] KCE = f (GC,")
Find: KCE E = 2. 9 * 107 [lb/in 2] KCE = f (GC, GE) Σ E c * Ic / L c G= Σ E g * Ig / L g adjoining columns adjoining girders A B C D KCE GC GE E 20 [ft] 18 [ft] Gtop K Gbottom
![Find: KCE E = 2. 9 * 107 [lb/in 2] KCE = f (GC,](http://slidetodoc.com/presentation_image/138c229a3d202d79fe883427f934dd38/image-14.jpg "Find: KCE E = 2. 9 * 107 [lb/in 2] KCE = f (GC,")
Find: KCE E = 2. 9 * 107 [lb/in 2] KCE = f (GC, GE) Σ E c * Ic / L c G C= Σ E g * Ig / L g adjoining columns adjoining girders A B C D KCE GC GE E 20 [ft] 18 [ft] Gtop K Gbottom
![Find: KCE E = 2. 9 * 107 [lb/in 2] KCE = f (GC,](http://slidetodoc.com/presentation_image/138c229a3d202d79fe883427f934dd38/image-15.jpg "Find: KCE E = 2. 9 * 107 [lb/in 2] KCE = f (GC,")
Find: KCE E = 2. 9 * 107 [lb/in 2] KCE = f (GC, GE) Σ E c * Ic / L c G C= Σ E g * Ig / L g adjoining columns adjoining girders A B C D KCE GC GE E 20 [ft] 18 [ft] Gtop K Gbottom
![Find: KCE E = 2. 9 * 107 [lb/in 2] KCE = f (GC,](http://slidetodoc.com/presentation_image/138c229a3d202d79fe883427f934dd38/image-16.jpg "Find: KCE E = 2. 9 * 107 [lb/in 2] KCE = f (GC,")
Find: KCE E = 2. 9 * 107 [lb/in 2] KCE = f (GC, GE) Σ E c * Ic / L c G C= Σ E g * Ig / L g B A C D adjoining columns adjoining girders KCE GC GE E 20 [ft] 18 [ft] Gtop K Gbottom
![Find: KCE E = 2. 9 * 107 [lb/in 2] KCE = f (GC,](http://slidetodoc.com/presentation_image/138c229a3d202d79fe883427f934dd38/image-17.jpg "Find: KCE E = 2. 9 * 107 [lb/in 2] KCE = f (GC,")
Find: KCE E = 2. 9 * 107 [lb/in 2] KCE = f (GC, GE) Σ E c * Ic / L c G C= Σ E g * Ig / L g A B C D adjoining columns adjoining girders AC, CE W 12 x 120 CD W 24 x 68 E 20 [ft] 18 [ft] BC W 24 x 55
![Find: KCE E = 2. 9 * 107 [lb/in 2] KCE = f (GC,](http://slidetodoc.com/presentation_image/138c229a3d202d79fe883427f934dd38/image-18.jpg "Find: KCE E = 2. 9 * 107 [lb/in 2] KCE = f (GC,")
Find: KCE E = 2. 9 * 107 [lb/in 2] KCE = f (GC, GE) Σ E c * Ic / L c G C= Σ E g * Ig / L g A B C D E 20 [ft] 18 [ft] adjoining columns adjoining girders AC, CE W 12 x 120 I=1, 070 [in 4] CD W 24 x 68 I=1, 830 [in 4] BC W 24 x 55 I=1, 350 [in 4]
![Find: KCE E = 2. 9 * 107 [lb/in 2] KCE = f (GC,](http://slidetodoc.com/presentation_image/138c229a3d202d79fe883427f934dd38/image-19.jpg "Find: KCE E = 2. 9 * 107 [lb/in 2] KCE = f (GC,")
Find: KCE E = 2. 9 * 107 [lb/in 2] KCE = f (GC, GE) Ec*IAC/LAC + Ec*ICE/LCE G C= Eg*IBC/LBC + Eg*ICD/LCD A B C D E 20 [ft] 18 [ft] joint C AC, CE W 12 x 120 I=1, 070 [in 4] CD W 24 x 68 I=1, 830 [in 4] BC W 24 x 55 I=1, 350 [in 4]
![Find: KCE E = 2. 9 * 107 [lb/in 2] KCE = f (GC,](http://slidetodoc.com/presentation_image/138c229a3d202d79fe883427f934dd38/image-20.jpg "Find: KCE E = 2. 9 * 107 [lb/in 2] KCE = f (GC,")
Find: KCE E = 2. 9 * 107 [lb/in 2] KCE = f (GC, GE) Ec*IAC/LAC + Ec*ICE/LCE G C= Eg*IBC/LBC + Eg*ICD/LCD A B C D E 20 [ft] 18 [ft] joint C AC, CE W 12 x 120 I=1, 070 [in 4] CD W 24 x 68 I=1, 830 [in 4] BC W 24 x 55 I=1, 350 [in 4]
![Find: KCE E = 2. 9 * 107 [lb/in 2] KCE = f (GC,](http://slidetodoc.com/presentation_image/138c229a3d202d79fe883427f934dd38/image-21.jpg "Find: KCE E = 2. 9 * 107 [lb/in 2] KCE = f (GC,")
Find: KCE E = 2. 9 * 107 [lb/in 2] KCE = f (GC, GE) Ec*IAC/LAC + Ec*ICE/LCE G C= Eg*IBC/LBC + Eg*ICD/LCD A B C D E 20 [ft] 18 [ft] joint C AC, CE W 12 x 120 I=1, 070 [in 4] CD W 24 x 68 I=1, 830 [in 4] BC W 24 x 55 I=1, 350 [in 4]
![Find: KCE E = 2. 9 * 107 [lb/in 2] KCE = f (GC,](http://slidetodoc.com/presentation_image/138c229a3d202d79fe883427f934dd38/image-22.jpg "Find: KCE E = 2. 9 * 107 [lb/in 2] KCE = f (GC,")
Find: KCE E = 2. 9 * 107 [lb/in 2] KCE = f (GC, GE) Ec*IAC/LAC + Ec*ICE/LCE IAC/LAC+ICE/LCE G C= = Eg*IBC/LBC + Eg*ICD/LCD IBC/LBC+ICD/LCD A B C D E 20 [ft] 18 [ft] AC, CE W 12 x 120 I=1, 070 [in 4] CD W 24 x 68 I=1, 830 [in 4] BC W 24 x 55 I=1, 350 [in 4]
![Find: KCE E = 2. 9 * 107 [lb/in 2] KCE = f (GC,](http://slidetodoc.com/presentation_image/138c229a3d202d79fe883427f934dd38/image-23.jpg "Find: KCE E = 2. 9 * 107 [lb/in 2] KCE = f (GC,")
Find: KCE E = 2. 9 * 107 [lb/in 2] KCE = f (GC, GE) Ec*IAC/LAC + Ec*ICE/LCE IAC/LAC+ICE/LCE G C= = Eg*IBC/LBC + Eg*ICD/LCD IBC/LBC+ICD/LCD A B C D E 20 [ft] 18 [ft] AC, CE W 12 x 120 I=1, 070 [in 4] CD W 24 x 68 I=1, 830 [in 4] BC W 24 x 55 I=1, 350 [in 4]
![Find: KCE E = 2. 9 * 107 [lb/in 2] KCE = f (GC,](http://slidetodoc.com/presentation_image/138c229a3d202d79fe883427f934dd38/image-24.jpg "Find: KCE E = 2. 9 * 107 [lb/in 2] KCE = f (GC,")
Find: KCE E = 2. 9 * 107 [lb/in 2] KCE = f (GC, GE) Ec*IAC/LAC + Ec*ICE/LCE IAC/LAC+ICE/LCE G C= = Eg*IBC/LBC + Eg*ICD/LCD IBC/LBC+ICD/LCD A B C D E 20 [ft] 18 [ft] 12 [ft] AC, CE I=1, 070 [in 4] 15 [ft] CD I=1, 830 [in 4] BC I=1, 350 [in 4]
Find: KCE GC=0. 95 KCE = f (GC, GE) Ec*IAC/LAC + Ec*ICE/LCE IAC/LAC+ICE/LCE G C= = Eg*IBC/LBC + Eg*ICD/LCD IBC/LBC+ICD/LCD A B C D E 20 [ft] 18 [ft] 12 [ft] AC, CE I=1, 070 [in 4] 15 [ft] CD I=1, 830 [in 4] BC I=1, 350 [in 4]
Find: KCE GC=0. 95 KCE = f (GC, GE) Ec*IAC/LAC + Ec*ICE/LCE IAC/LAC+ICE/LCE G C= = Eg*IBC/LBC + Eg*ICD/LCD IBC/LBC+ICD/LCD A B C D E 20 [ft] 18 [ft] 12 [ft] AC, CE I=1, 070 [in 4] 15 [ft] CD I=1, 830 [in 4] BC I=1, 350 [in 4]

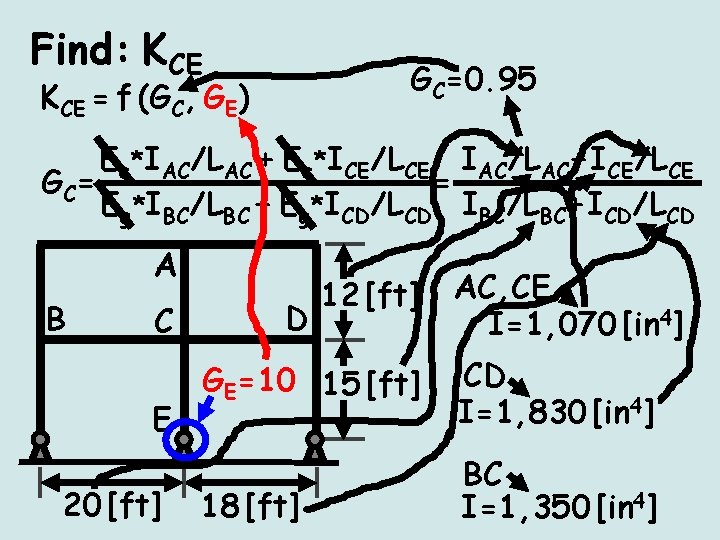

Find: KCE GC=0. 95 KCE = f (GC, GE) Ec*IAC/LAC + Ec*ICE/LCE IAC/LAC+ICE/LCE G C= = Eg*IBC/LBC + Eg*ICD/LCD IBC/LBC+ICD/LCD A B C E 20 [ft] D 12 [ft] AC, CE I=1, 070 [in 4] GE=10 15 [ft] CD I=1, 830 [in 4] 18 [ft] BC I=1, 350 [in 4]
Find: KCE GC=0. 95 KCE = f (GC, GE) Ec*IAC/LAC + Ec*ICE/LCE IAC/LAC+ICE/LCE G C= = Eg*IBC/LBC + Eg*ICD/LCD IBC/LBC+ICD/LCD A B C E 20 [ft] D GE=10 18 [ft] Gtop K Gbottom
Find: KCE GC=0. 95 KCE = f (GC, GE) Ec*IAC/LAC + Ec*ICE/LCE IAC/LAC+ICE/LCE G C= = Eg*IBC/LBC + Eg*ICD/LCD IBC/LBC+ICD/LCD A B C E 20 [ft] GE D GE=10 18 [ft] GC Gtop K Gbottom
Find: KCE GC=0. 95 KCE = f (GC, GE) Ec*IAC/LAC + Ec*ICE/LCE IAC/LAC+ICE/LCE G C= = Eg*IBC/LBC + Eg*ICD/LCD IBC/LBC+ICD/LCD A B C E 20 [ft] GE D GE=10 18 [ft] GC KCE Gtop K Gbottom
Find: KCE GC=0. 95 KCE = f (GC, GE) Ec*IAC/LAC + Ec*ICE/LCE IAC/LAC+ICE/LCE G C= = Eg*IBC/LBC + Eg*ICD/LCD IBC/LBC+ICD/LCD A B C E 20 [ft] GE D GE=10 18 [ft] GC KCE=1. 85 Gtop K Gbottom
Find: KCE GC=0. 95 KCE = f (GC, GE) Ec*IAC/LAC + Ec*ICE/LCE IAC/LAC+ICE/LCE G C= = Eg*IBC/LBC + Eg*ICD/LCD IBC/LBC+ICD/LCD A) 0. 83 B) 0. 95 C) 1. 30 D) 1. 85 GE GC KCE=1. 85 Gtop K Gbottom
Find: KCE GC=0. 95 KCE = f (GC, GE) Ec*IAC/LAC + Ec*ICE/LCE IAC/LAC+ICE/LCE G C= = Eg*IBC/LBC + Eg*ICD/LCD IBC/LBC+ICD/LCD A) 0. 83 B) 0. 95 C) 1. 30 D) 1. 85 answer D GE GC KCE=1. 85 Gtop K Gbottom
