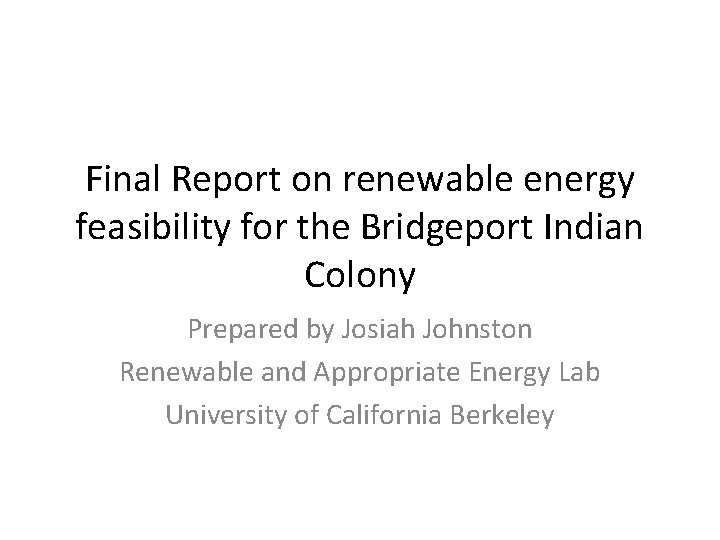

Final Report on renewable energy feasibility for the Bridgeport Indian Colony Prepared by Josiah Johnston Renewable and Appropriate Energy Lab University of California Berkeley

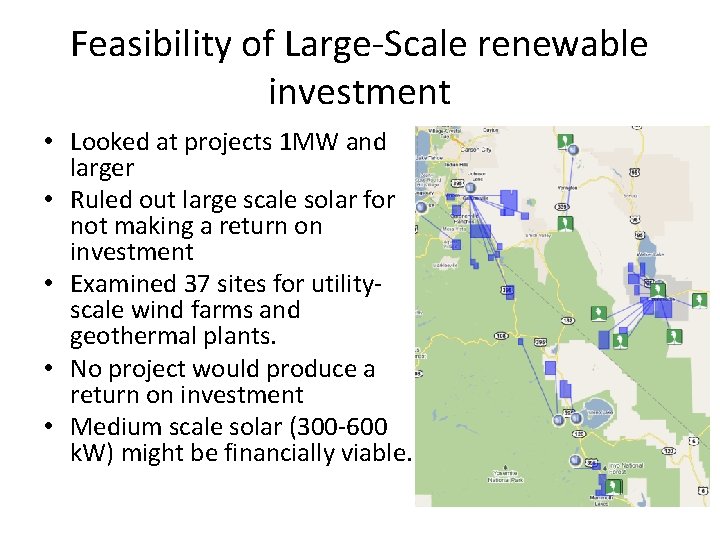

Feasibility of Large-Scale renewable investment • Looked at projects 1 MW and larger • Ruled out large scale solar for not making a return on investment • Examined 37 sites for utilityscale wind farms and geothermal plants. • No project would produce a return on investment • Medium scale solar (300 -600 k. W) might be financially viable.

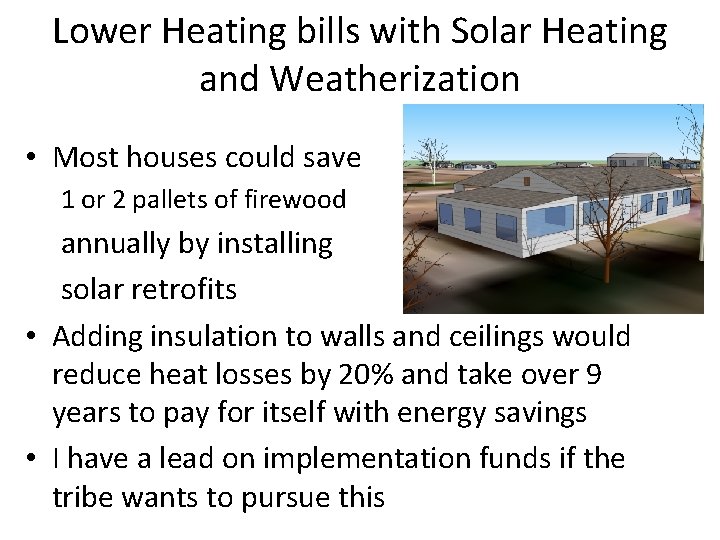

Lower Heating bills with Solar Heating and Weatherization • Most houses could save 1 or 2 pallets of firewood annually by installing solar retrofits • Adding insulation to walls and ceilings would reduce heat losses by 20% and take over 9 years to pay for itself with energy savings • I have a lead on implementation funds if the tribe wants to pursue this

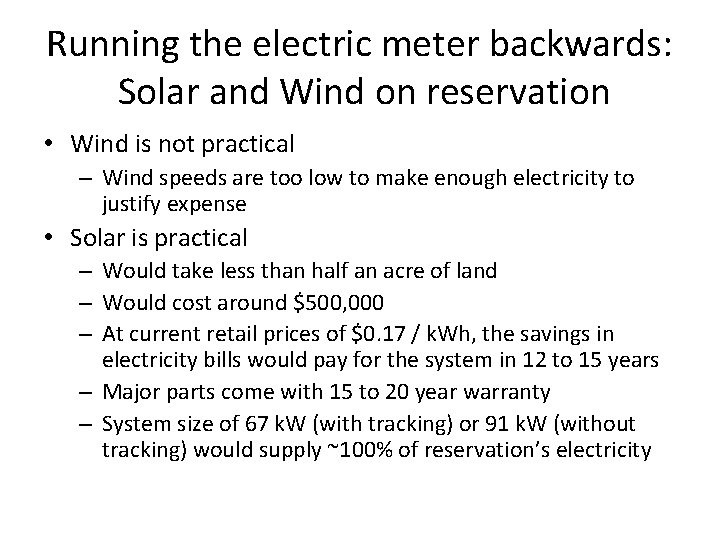

Running the electric meter backwards: Solar and Wind on reservation • Wind is not practical – Wind speeds are too low to make enough electricity to justify expense • Solar is practical – Would take less than half an acre of land – Would cost around $500, 000 – At current retail prices of $0. 17 / k. Wh, the savings in electricity bills would pay for the system in 12 to 15 years – Major parts come with 15 to 20 year warranty – System size of 67 k. W (with tracking) or 91 k. W (without tracking) would supply ~100% of reservation’s electricity

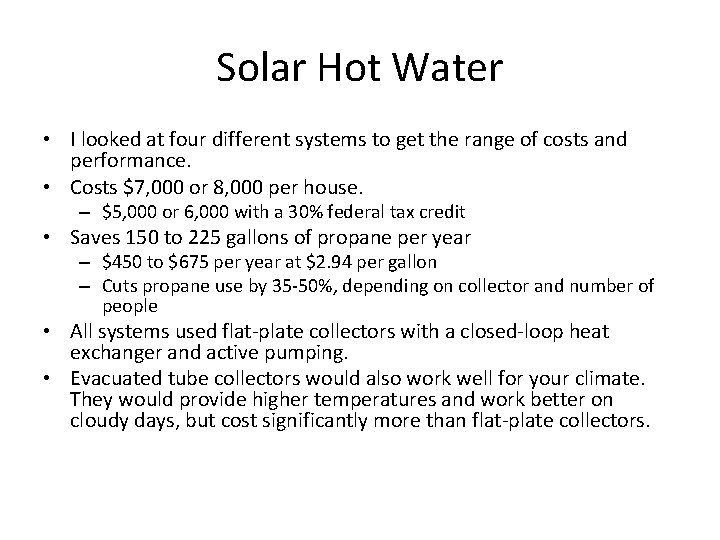

Solar Hot Water • I looked at four different systems to get the range of costs and performance. • Costs $7, 000 or 8, 000 per house. – $5, 000 or 6, 000 with a 30% federal tax credit • Saves 150 to 225 gallons of propane per year – $450 to $675 per year at $2. 94 per gallon – Cuts propane use by 35 -50%, depending on collector and number of people • All systems used flat-plate collectors with a closed-loop heat exchanger and active pumping. • Evacuated tube collectors would also work well for your climate. They would provide higher temperatures and work better on cloudy days, but cost significantly more than flat-plate collectors.

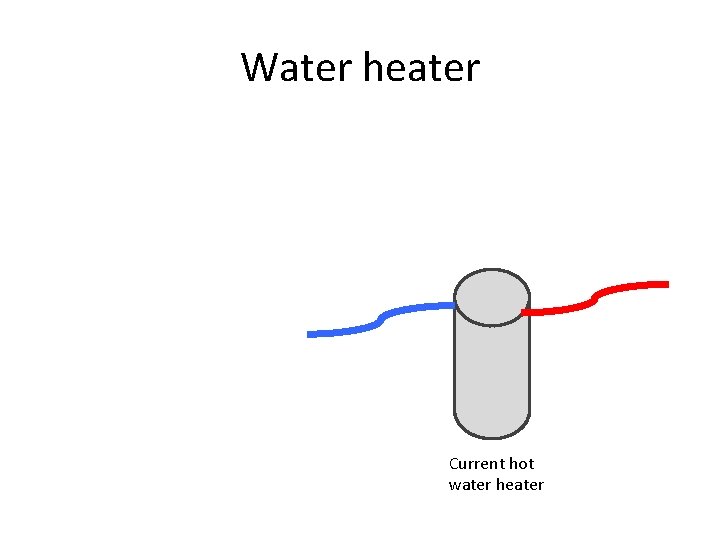

Water heater Current hot water heater

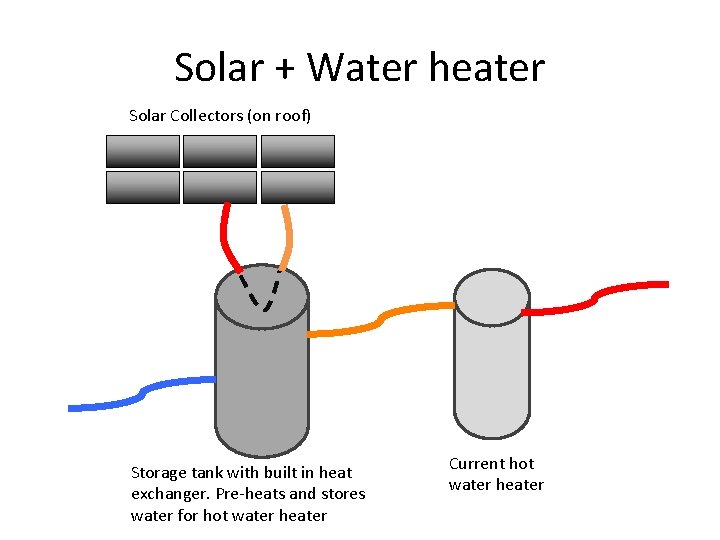

Solar + Water heater Solar Collectors (on roof) Storage tank with built in heat exchanger. Pre-heats and stores water for hot water heater Current hot water heater

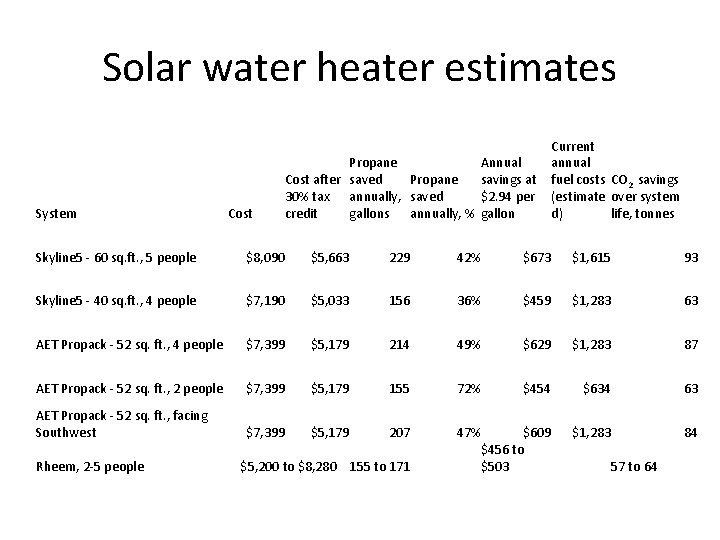

Solar water heater estimates System Cost Propane Cost after saved Propane 30% tax annually, saved gallons annually, % credit Annual savings at $2. 94 per gallon Current annual fuel costs CO 2 savings (estimate over system d) life, tonnes Skyline 5 - 60 sq. ft. , 5 people $8, 090 $5, 663 229 42% $673 $1, 615 93 Skyline 5 - 40 sq. ft. , 4 people $7, 190 $5, 033 156 36% $459 $1, 283 63 AET Propack - 52 sq. ft. , 4 people $7, 399 $5, 179 214 49% $629 $1, 283 87 AET Propack - 52 sq. ft. , 2 people $7, 399 $5, 179 155 72% $454 $634 63 AET Propack - 52 sq. ft. , facing Southwest $7, 399 $5, 179 207 47% $609 $456 to $503 $1, 283 84 Rheem, 2 -5 people $5, 200 to $8, 280 155 to 171 57 to 64

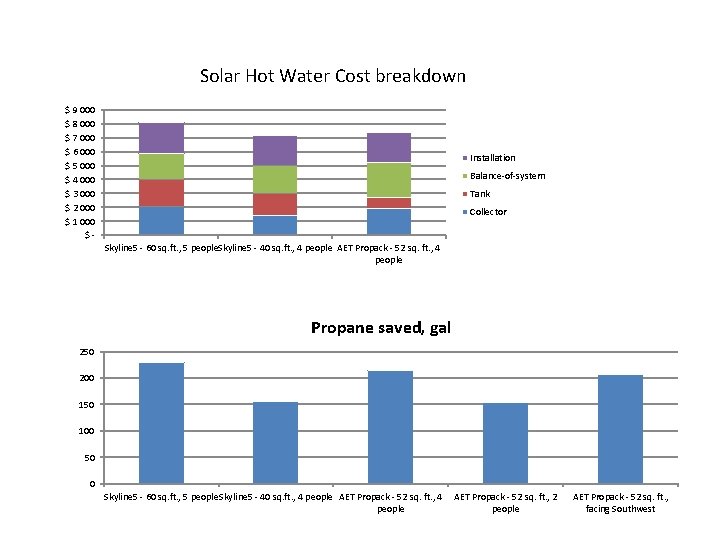

Solar Hot Water Cost breakdown $ 9 000 $ 8 000 $ 7 000 $ 6 000 $ 5 000 $ 4 000 $ 3 000 $ 2 000 $ 1 000 $- Installation Balance-of-system Tank Collector Skyline 5 - 60 sq. ft. , 5 people. Skyline 5 - 40 sq. ft. , 4 people AET Propack - 52 sq. ft. , 4 people Propane saved, gal 250 200 150 100 50 0 Skyline 5 - 60 sq. ft. , 5 people. Skyline 5 - 40 sq. ft. , 4 people AET Propack - 52 sq. ft. , 2 people AET Propack - 52 sq. ft. , facing Southwest
