Final Jeopardy Rel humidity Station Models Weather Maps
- Slides: 30
Final Jeopardy Rel. humidity Station Models Weather Maps Dew Point Left Over Weather $100 $200 $300 $400 $500 $100 $200 $300 $400 $500

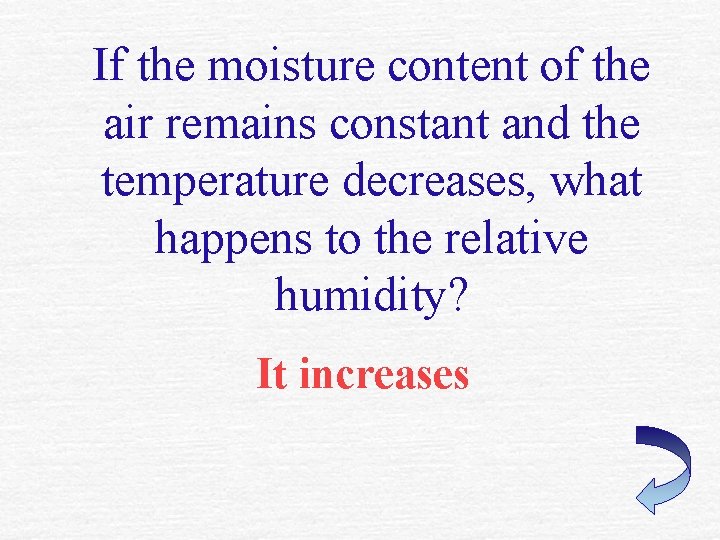

If the moisture content of the air remains constant and the temperature decreases, what happens to the relative humidity? It increases
If the wet bulb reads 19 o. C o and the dry bulb reads 24 C, what is the relative humidity? 62%
What is the relative humidity if both the wet and dry bulbs read o 8 C? 100%
What happens to the relative humidity as the difference between the wet and dry bulb thermometers increases? It decreases
What is the relative humidity according to thermometers on the right? 67%

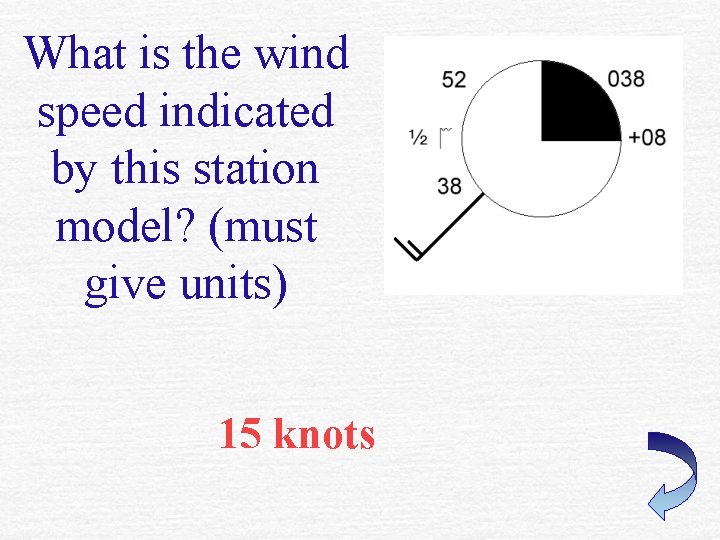

What is the wind speed indicated by this station model? (must give units) 15 knots
What is the present weather at this location? Sleet

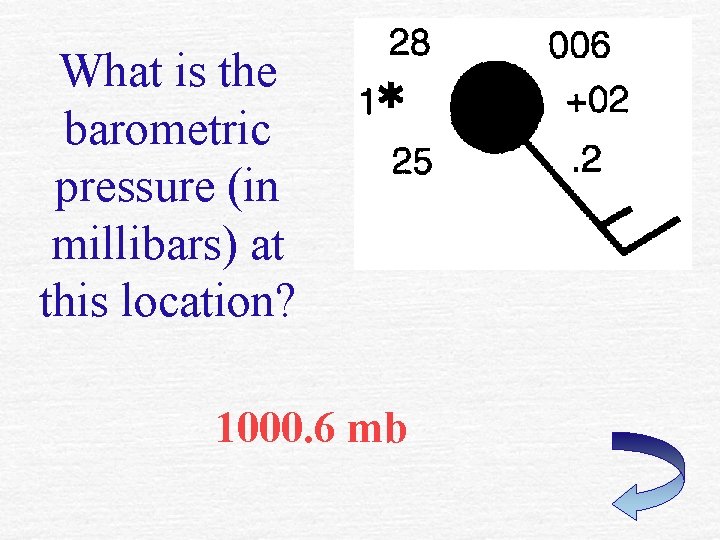

What is the barometric pressure (in millibars) at this location? 1000. 6 mb
DAILY DOUBLE

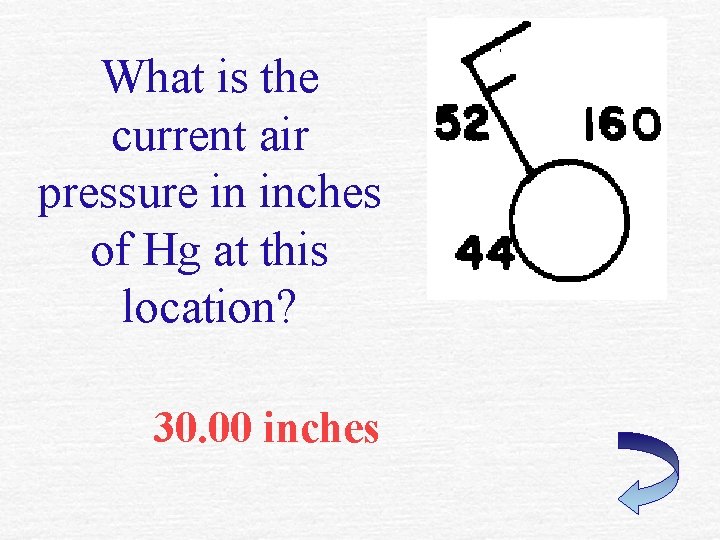

What is the current air pressure in inches of Hg at this location? 30. 00 inches

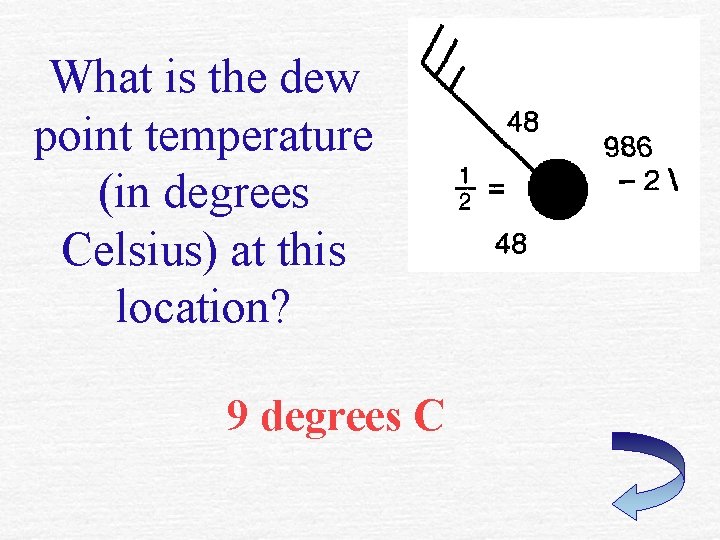

What is the dew point temperature (in degrees Celsius) at this location? 9 degrees C

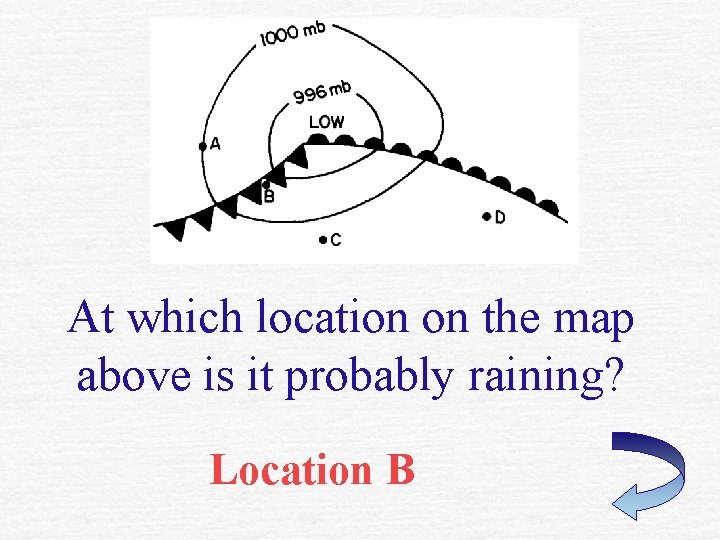

At which location on the map above is it probably raining? Location B

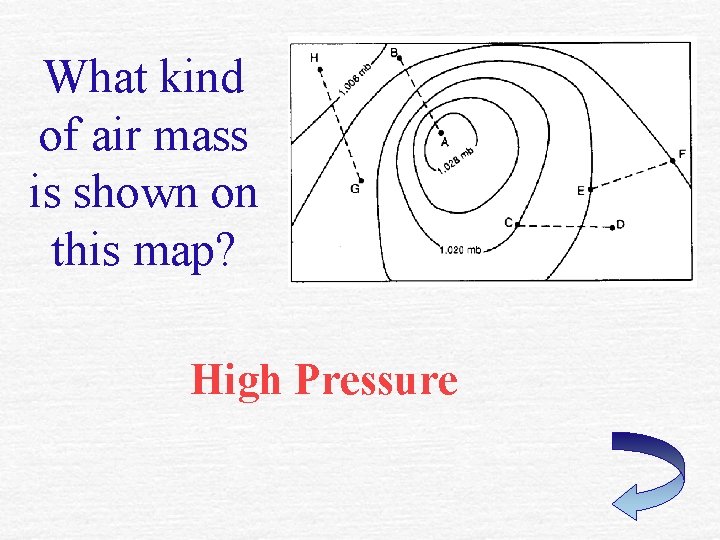

What kind of air mass is shown on this map? High Pressure

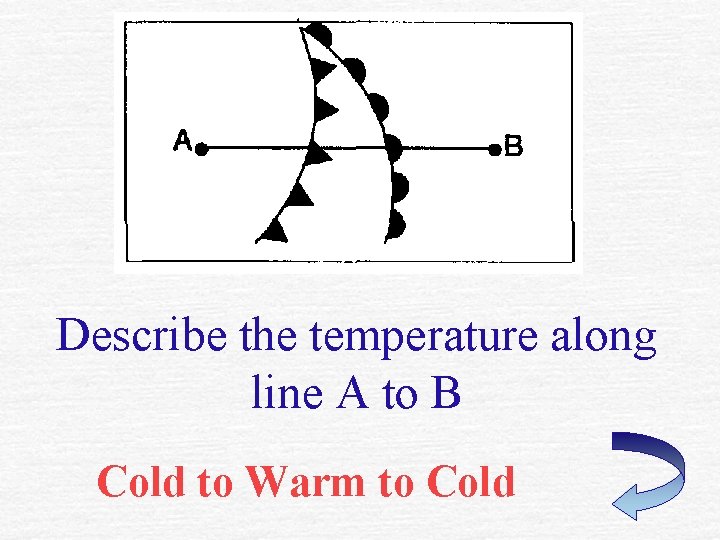

Describe the temperature along line A to B Cold to Warm to Cold

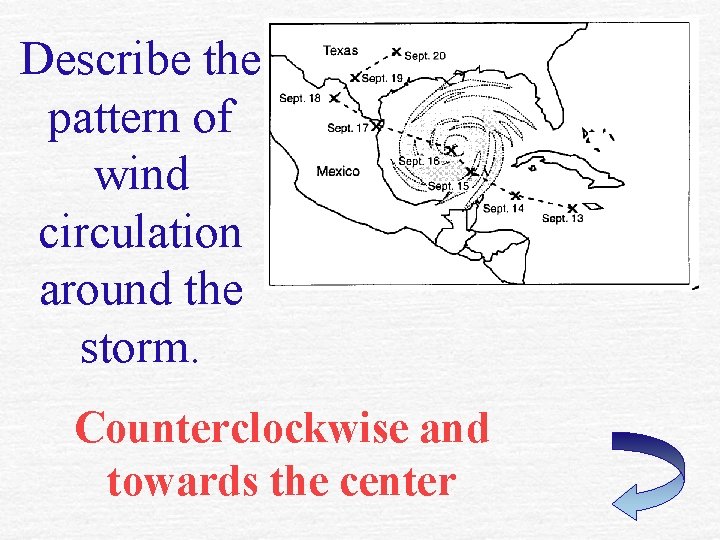

Describe the pattern of wind circulation around the storm. Counterclockwise and towards the center

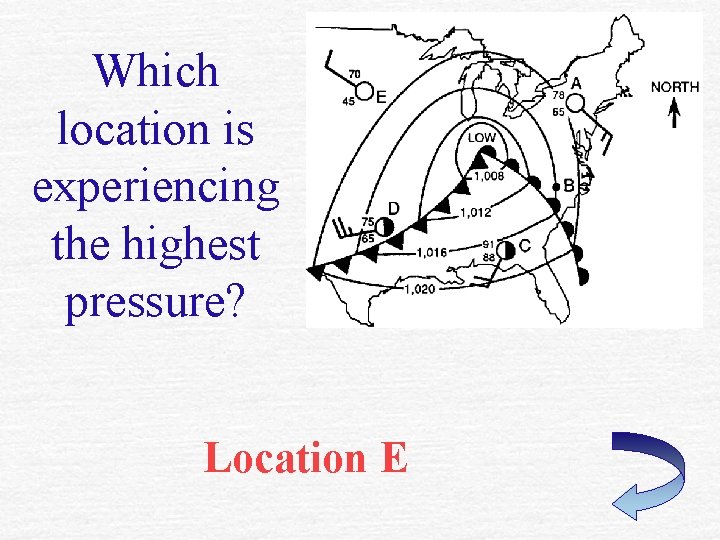

Which location is experiencing the highest pressure? Location E
At what temperature will precipitation occur? 68 degrees F

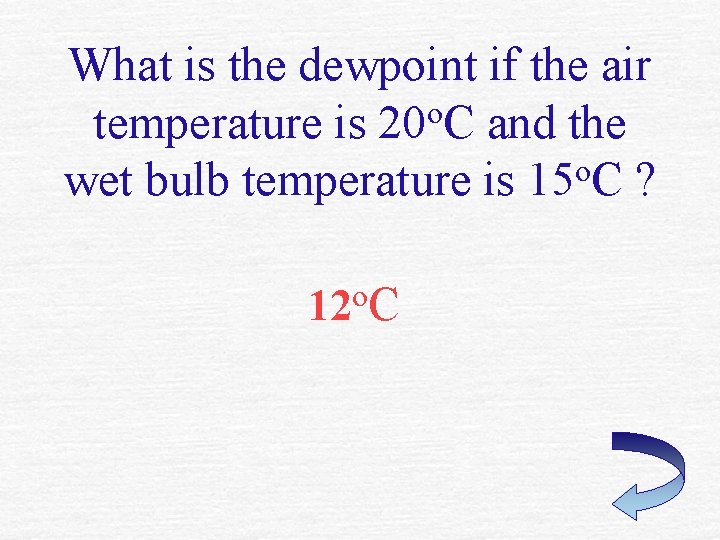

What is the dewpoint if the air o temperature is 20 C and the wet bulb temperature is 15 o. C ? 12 o. C

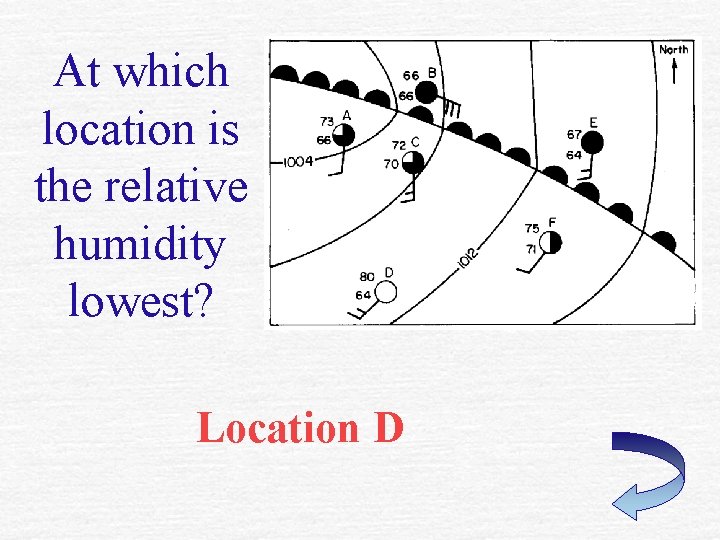

At which location is the relative humidity lowest? Location D

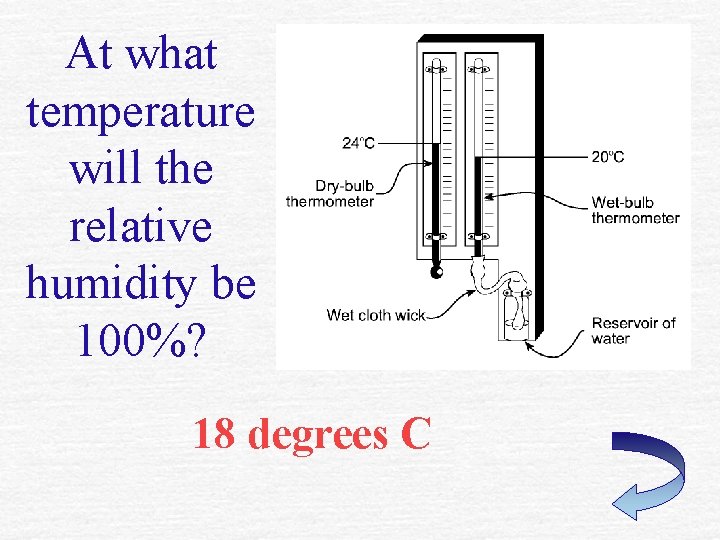

At what temperature will the relative humidity be 100%? 18 degrees C

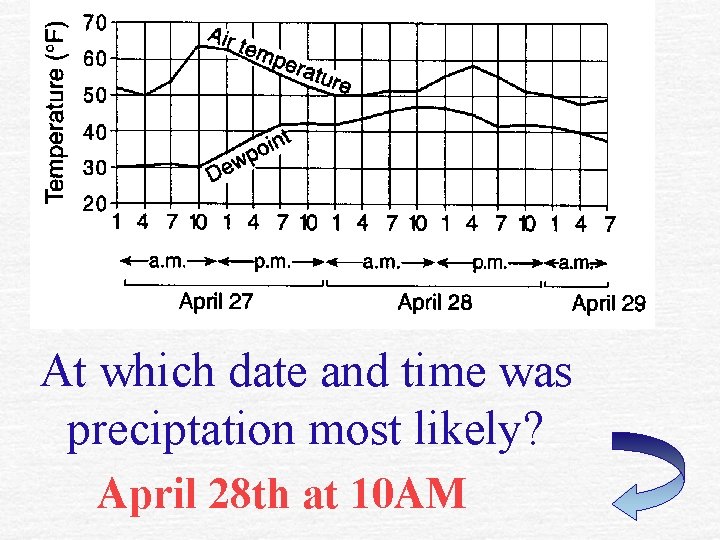

At which date and time was preciptation most likely? April 28 th at 10 AM

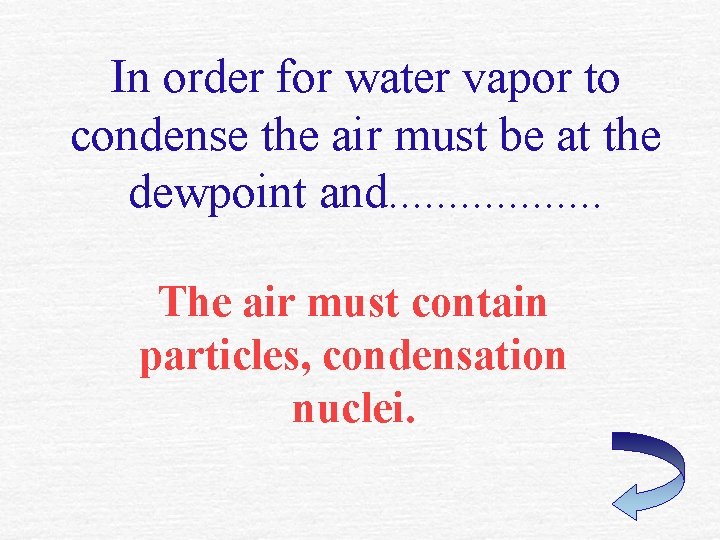

In order for water vapor to condense the air must be at the dewpoint and. . . . The air must contain particles, condensation nuclei.

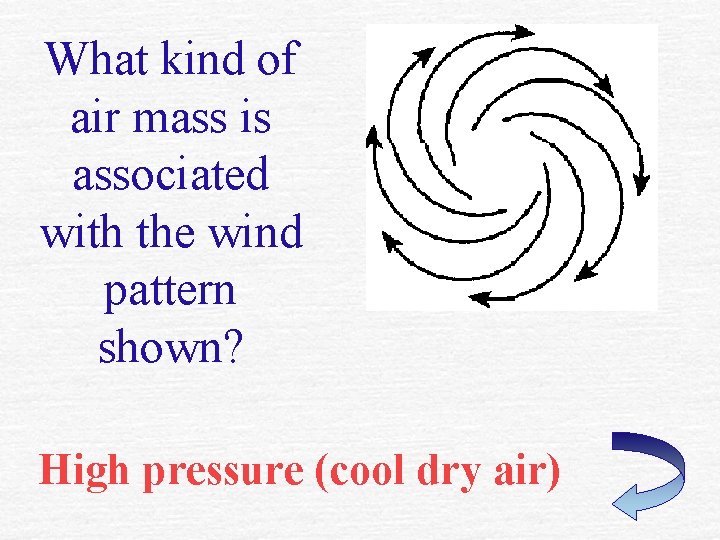

What kind of air mass is associated with the wind pattern shown? High pressure (cool dry air)

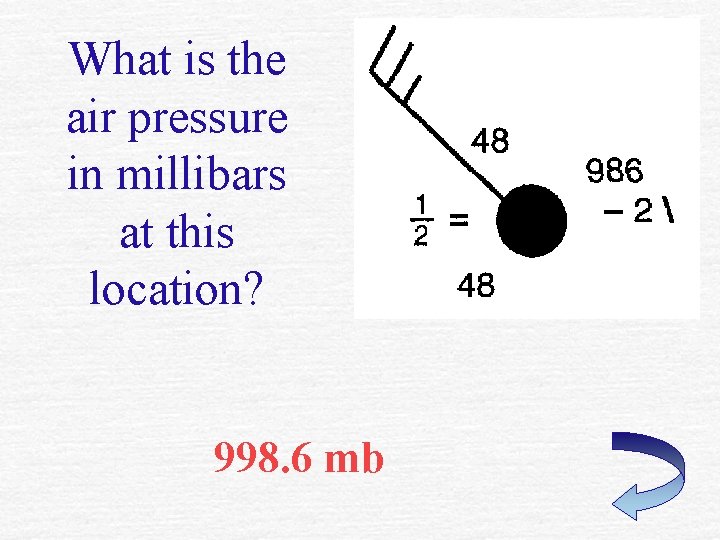

What is the air pressure in millibars at this location? 998. 6 mb

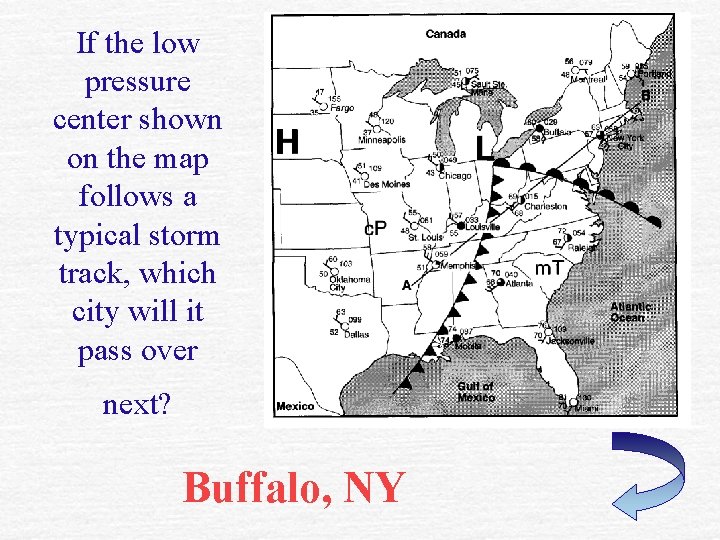

If the low pressure center shown on the map follows a typical storm track, which city will it pass over next? Buffalo, NY
If the present trend continues, describe the weather for this location on Saturday. Warmer with rain likely
FINAL JEOPARDY Impossible Questions! ?

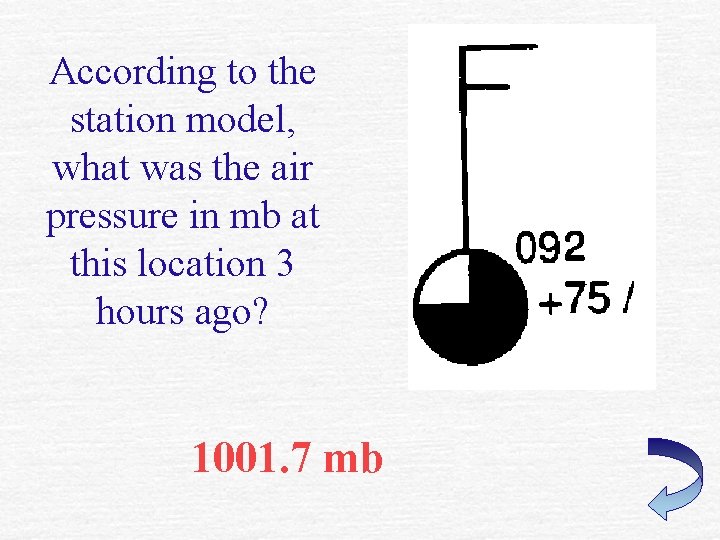

According to the station model, what was the air pressure in mb at this location 3 hours ago? 1001. 7 mb
