FILTER Gold D Frequency LPF BPF HPF BSF

FILTER Gold. D. 건

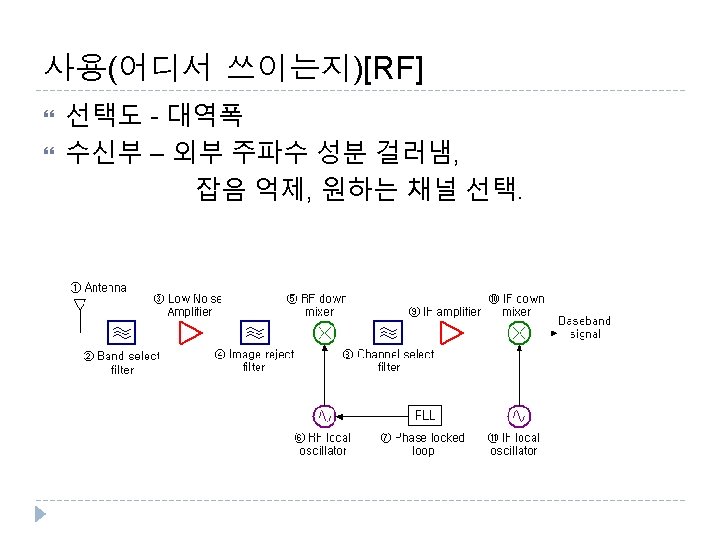

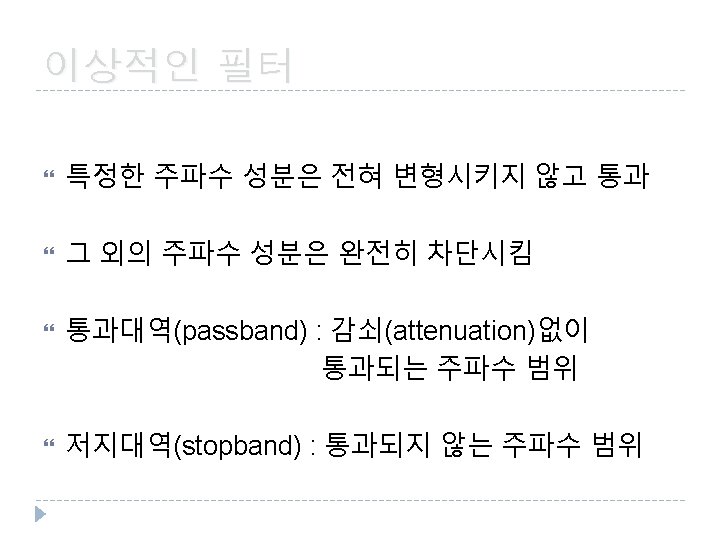

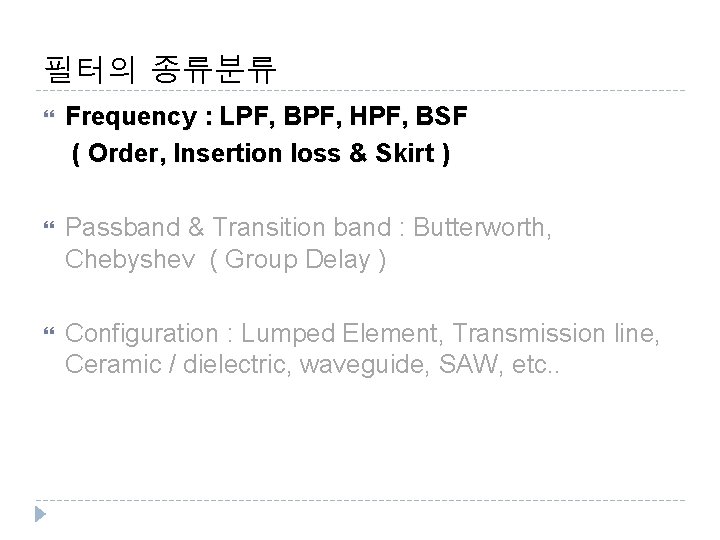

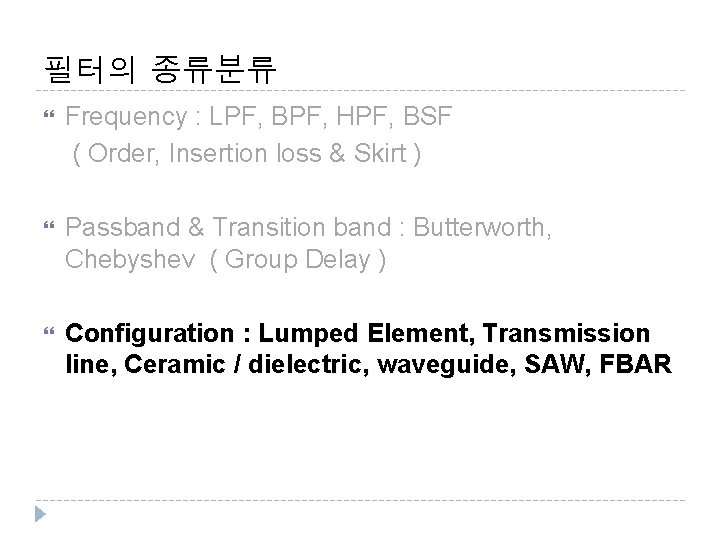

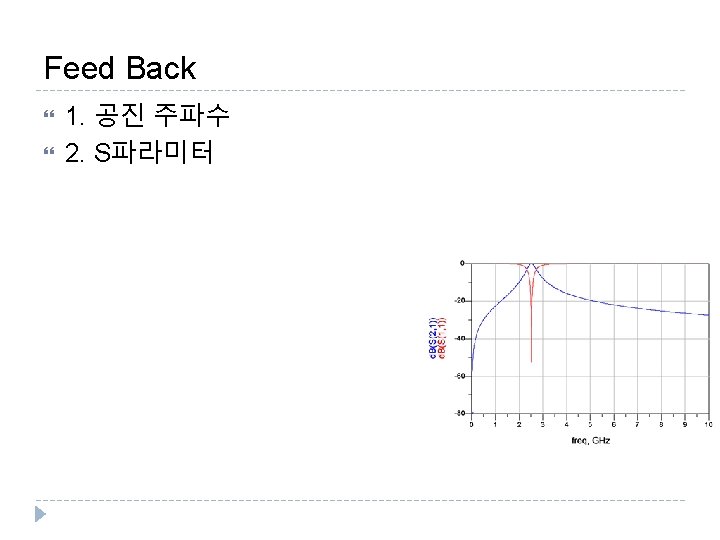

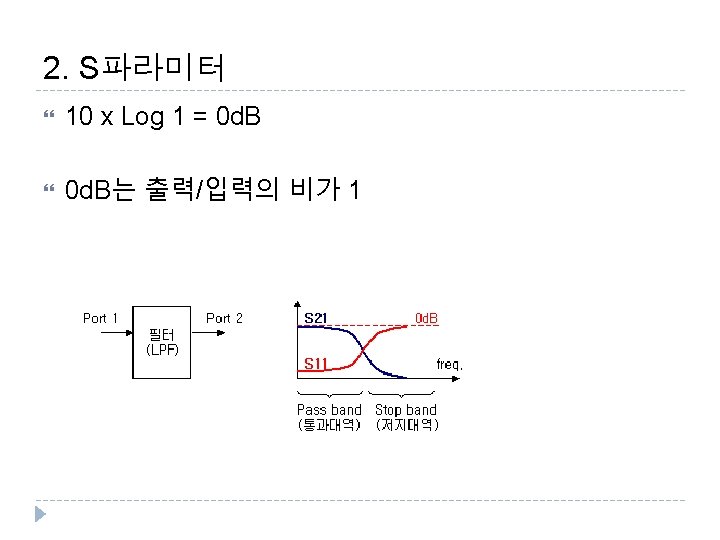

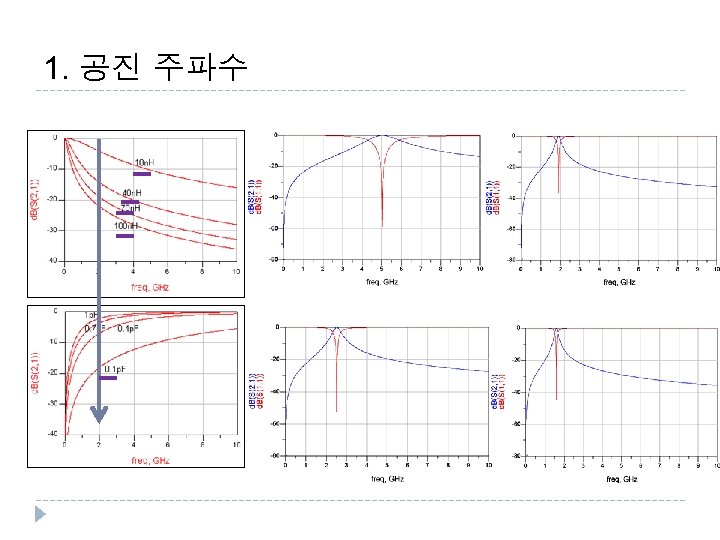

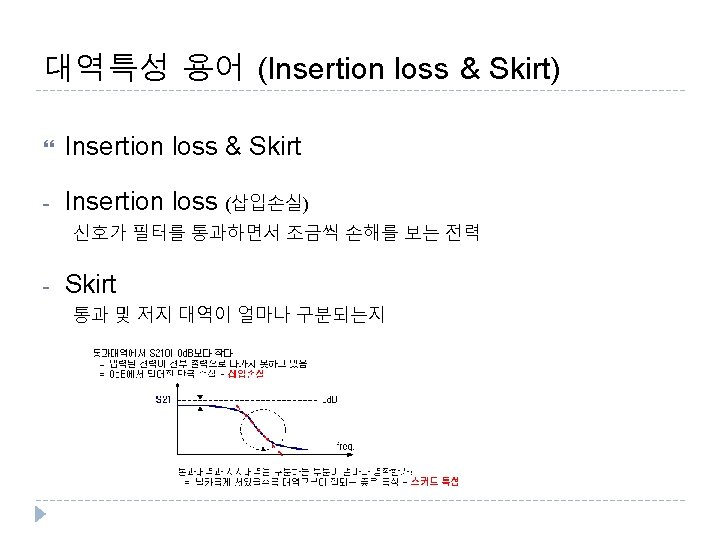

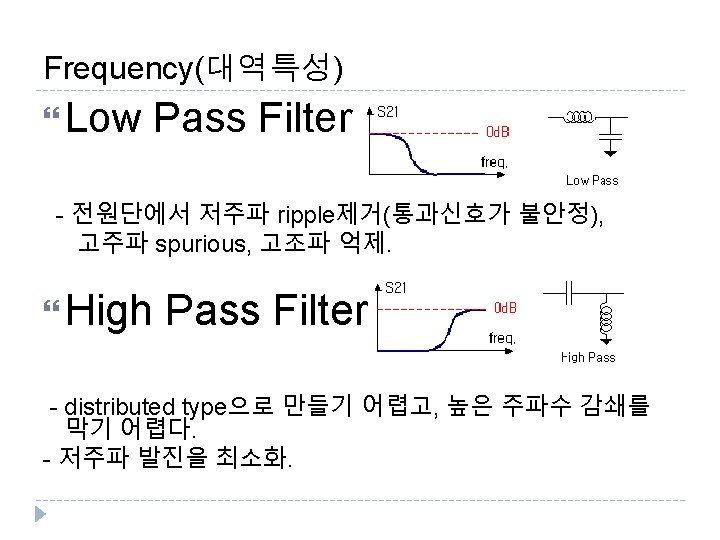

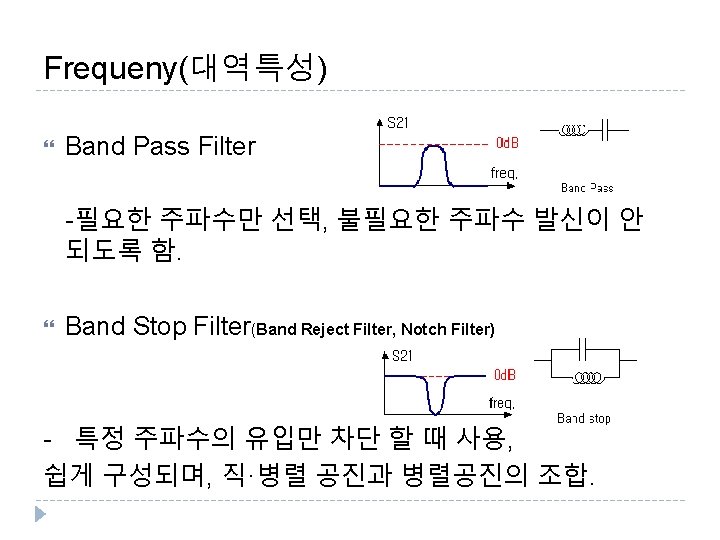

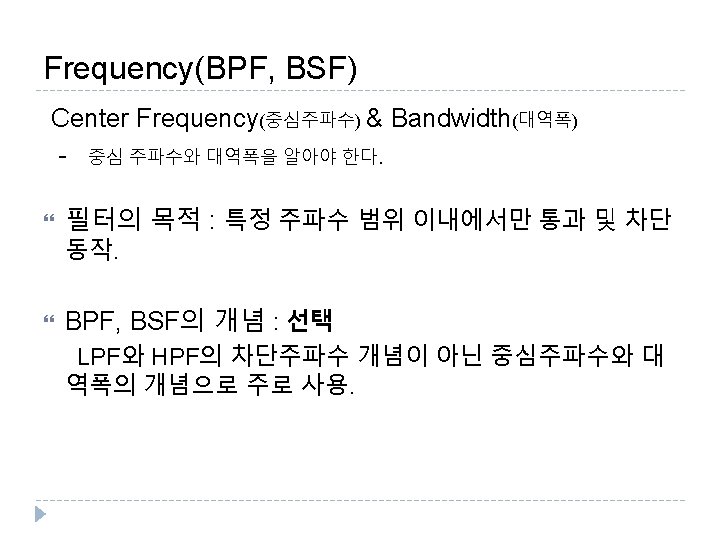

필터의 종류분류 Frequency : LPF, BPF, HPF, BSF ( Order, Insertion loss & Skirt ) Passband & Transition band : Butterworth, Chebyshev ( Group Delay ) Configuration : Lumped Element, Transmission line, Ceramic / dielectric, waveguide, SAW, etc. .

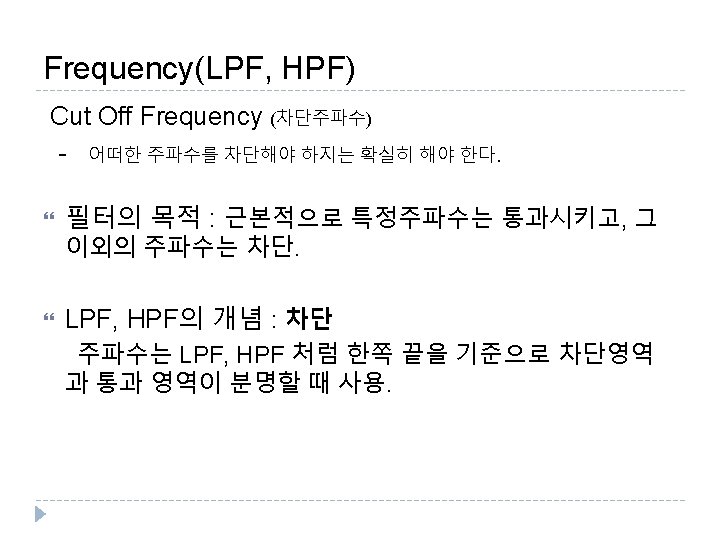

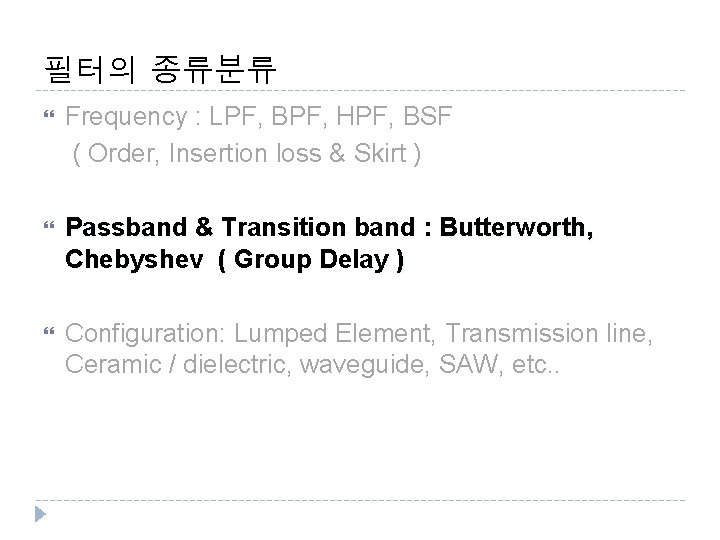

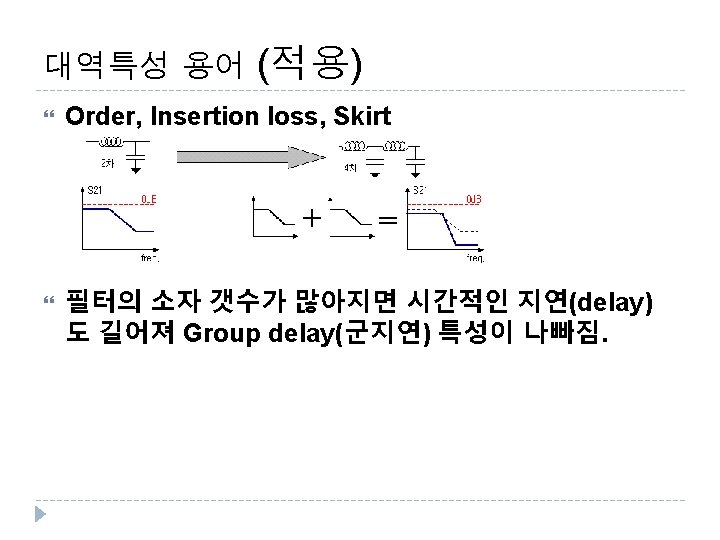

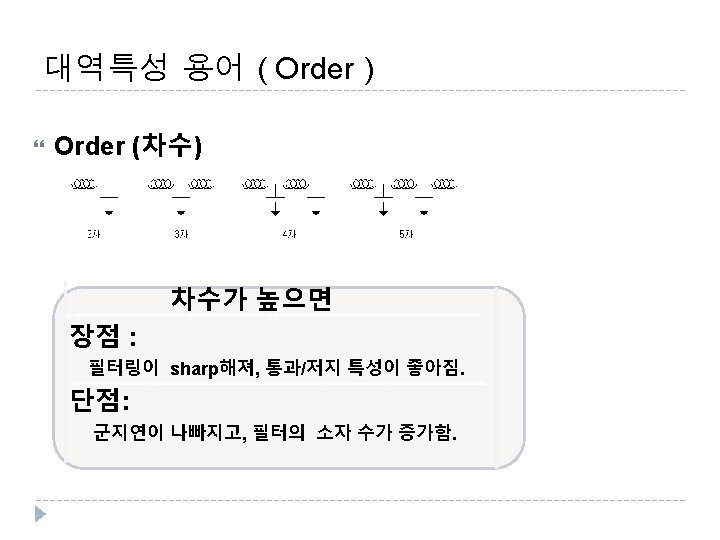

필터의 종류분류 Frequency : LPF, BPF, HPF, BSF ( Order, Insertion loss & Skirt ) Passband & Transition band : Butterworth, Chebyshev ( Group Delay ) Configuration: Lumped Element, Transmission line, Ceramic / dielectric, waveguide, SAW, etc. .

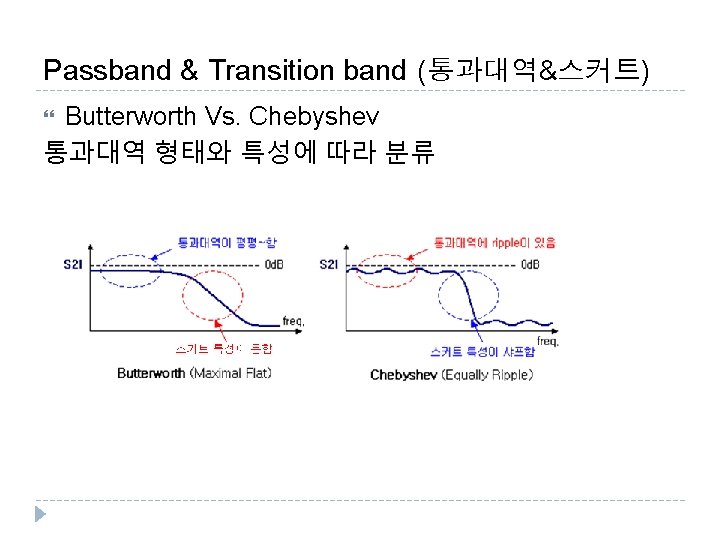

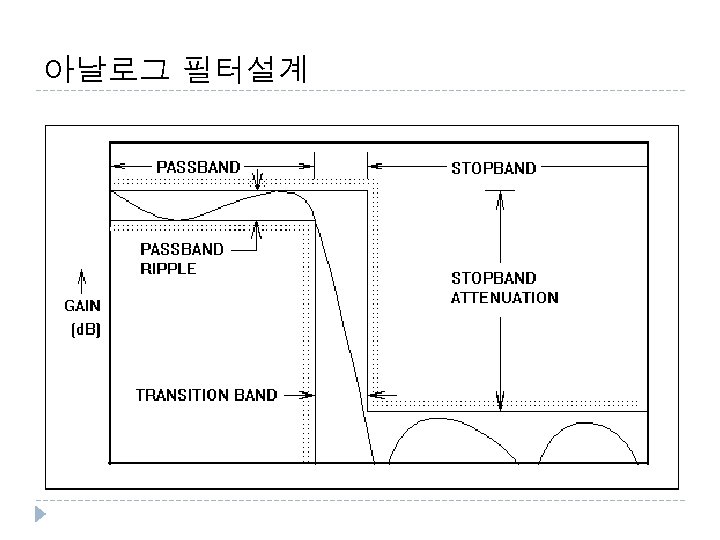

Passband & Transition band (통과대역&스커트) Butterworth Vs. Chebyshev 통과대역 형태와 특성에 따라 분류

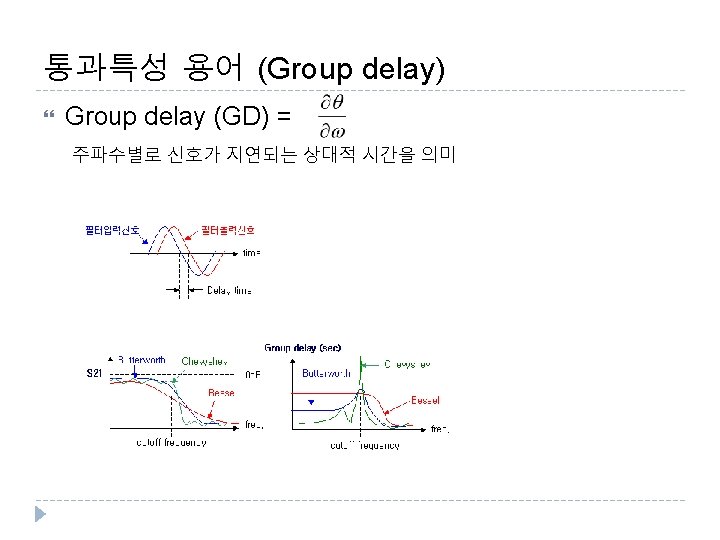

필터의 종류분류 Frequency : LPF, BPF, HPF, BSF ( Order, Insertion loss & Skirt ) Passband & Transition band : Butterworth, Chebyshev ( Group Delay ) Configuration : Lumped Element, Transmission line, Ceramic / dielectric, waveguide, SAW, FBAR

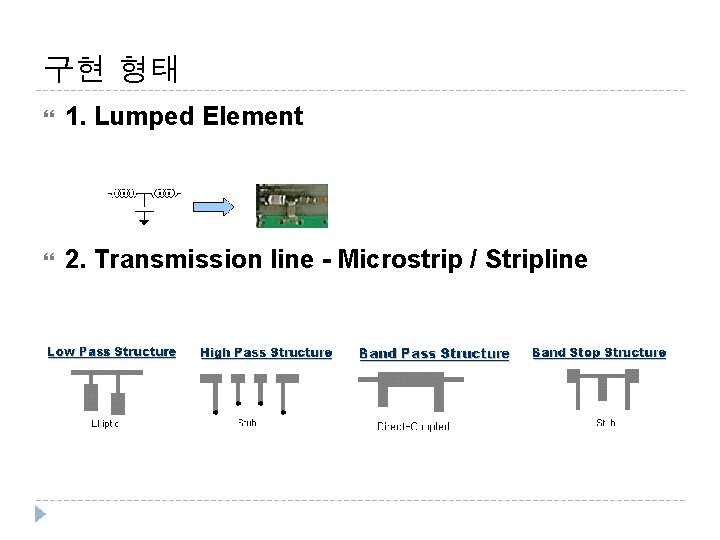

구현 형태 1. Lumped Element 2. Transmission line - Microstrip / Stripline

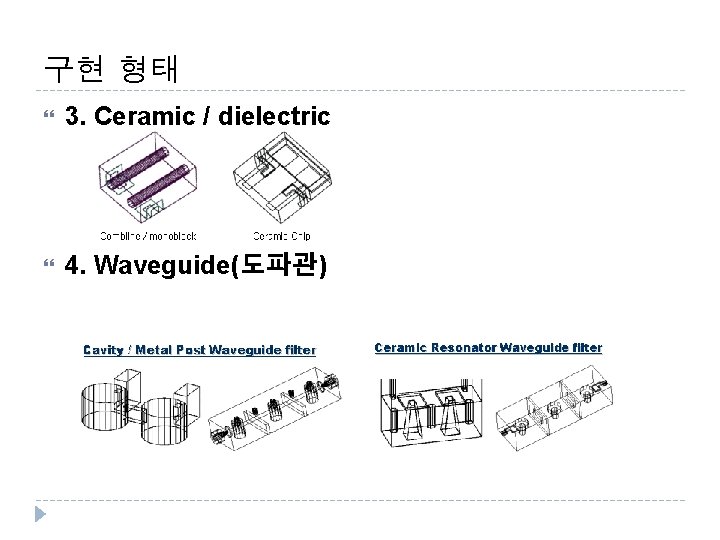

구현 형태 3. Ceramic / dielectric 4. Waveguide(도파관)

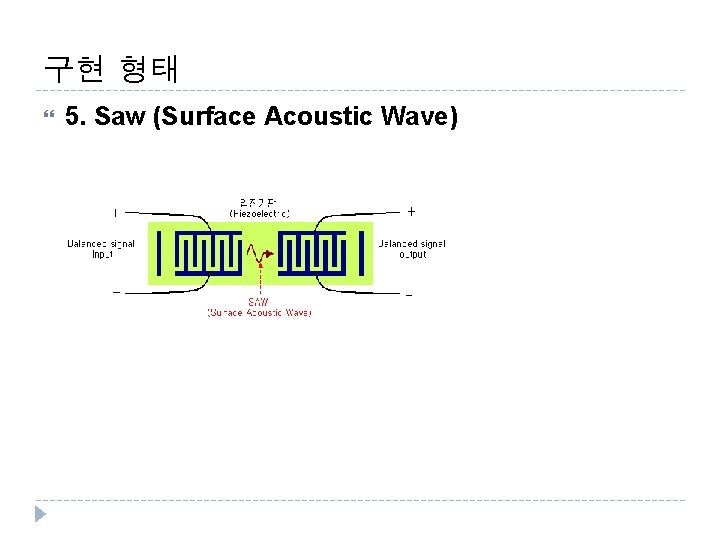

구현 형태 5. Saw (Surface Acoustic Wave)
