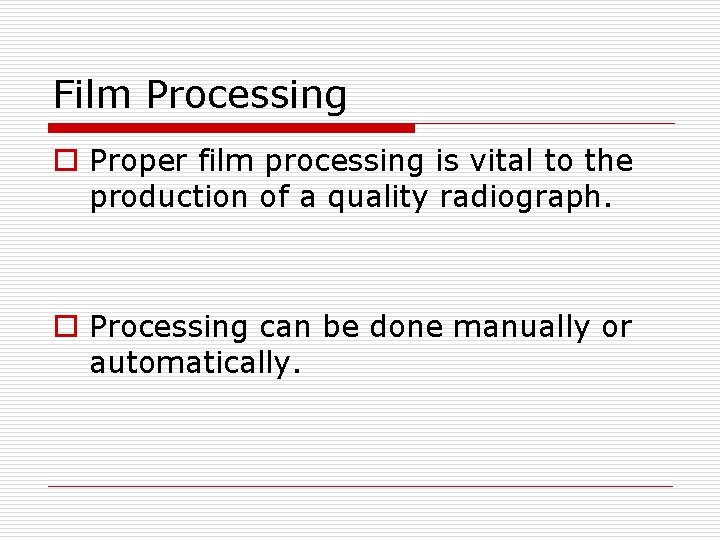

Film Processing o Proper film processing is vital to the production of a quality radiograph. o Processing can be done manually or automatically.

The Darkroom o Three qualities of a good darkroom n 1. Clean n 2. Organized n 3. Lightproof

Darkroom continued o Individual darkrooms may vary in design, but should all possess the same qualities. o Should be separate from the radiographic suite and should be used for only one purpose, processing exposed radiographs.

Darkrooms o Most of work in darkrooms is with minimal light (hence the word “Dark”). o Therefore layout should be such as to help reduce possibility of film damage.

Darkroom cleanliness o Should be clean as only room where intensifying screens and x-ray film is exposed to the air. o Should have proper climate control. Don’t want too humid. n Why?

Darkroom Organization o Should be organized so that all equipment can be located quickly and easily. o Should be two sides to the darkroom a dry side and a wet side.

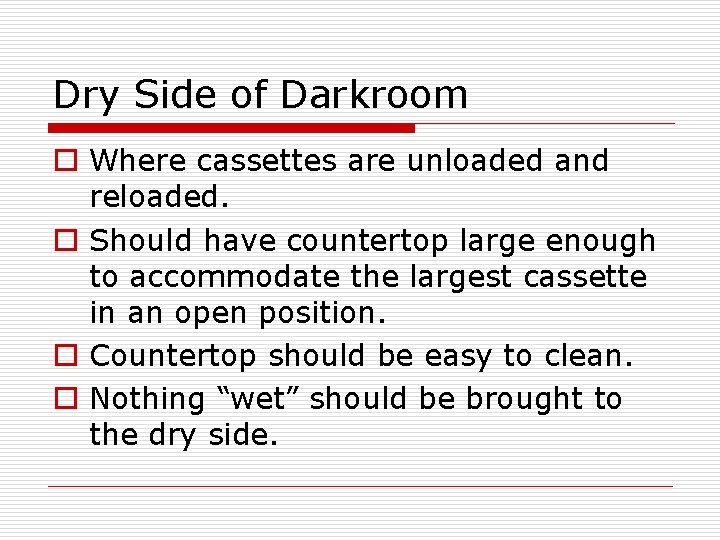

Dry Side of Darkroom o Where cassettes are unloaded and reloaded. o Should have countertop large enough to accommodate the largest cassette in an open position. o Countertop should be easy to clean. o Nothing “wet” should be brought to the dry side.

Dry side of Darkroom continued o Customary to store film under the dry table in a bin or cupboard. n How should film be stored? o Film hangers for each size film should be hung above the table on the dry side.

Film Hangers o Available in two designs: n Channel Hangers o Tend to retain water and chemicals and need special cleaning and drying to prevent contaminations of the dry side. o Film must be removed from the channel hangers in order to be dried. n Clip Hangers o More fragile than channel hangers. o Clips can become weakened over time. o Lose ability to stretch the film. o Can puncture the corners of the film. o Can scratch other films.

Film Hangers

Wet Side of Darkroom o Where actual chemical processing occurs. o Hand or manual processing consists of three tanks. n Developer n Water n Fixer

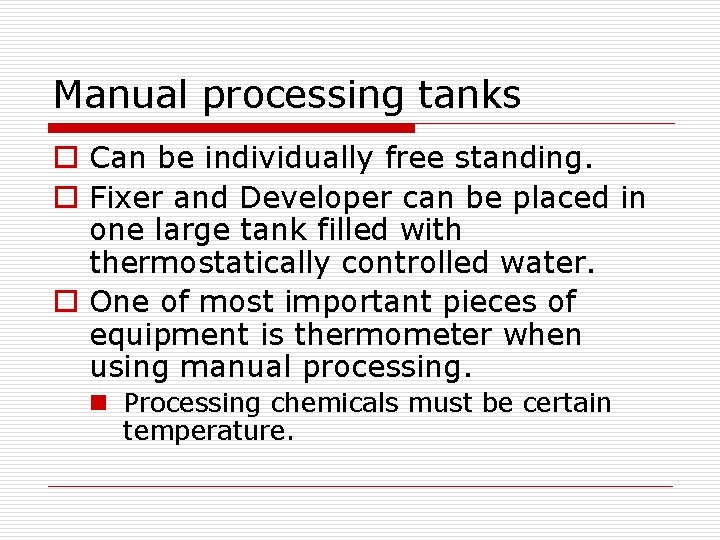

Manual processing tanks o Can be individually free standing. o Fixer and Developer can be placed in one large tank filled with thermostatically controlled water. o One of most important pieces of equipment is thermometer when using manual processing. n Processing chemicals must be certain temperature.

Wet side/ Drying area o Film drying area can consist of a film drying rack or a drying cabinet. o Drying rack should be dust free. o Drying cabinet is a heated forced-air unit that hastens the drying process. o Viewing screen is recommended on wet side of darkroom.

Darkroom Lightproofing Light leaks can cause film fog.

Light leaks o May be hard to perceive. o Common sources of light leaks. n Entrance to dark room n Ceiling n From adjacent rooms

Lightproofing continued o Entrance should have double door or revolving door preferred but not always practical. o Make sure that door fits tightly into its frame. n Use weather stripping if needed to ensure light proofing. n Make sure that door LOCKS!

Ceiling/walls/etc o Suspended ceiling may have light leaks from adjacent rooms. o Walls should be light color as gives more reflection from the safety light.

Darkroom Safelight o Appropriate lighting in darkroom is crucial to good film development. o “Safe” light means light will not affect the film. o Safelights use a small-wattage bulb and a special filter to eliminate the light from the blue and green spectrum. n Bulb should be 15 watts or less.

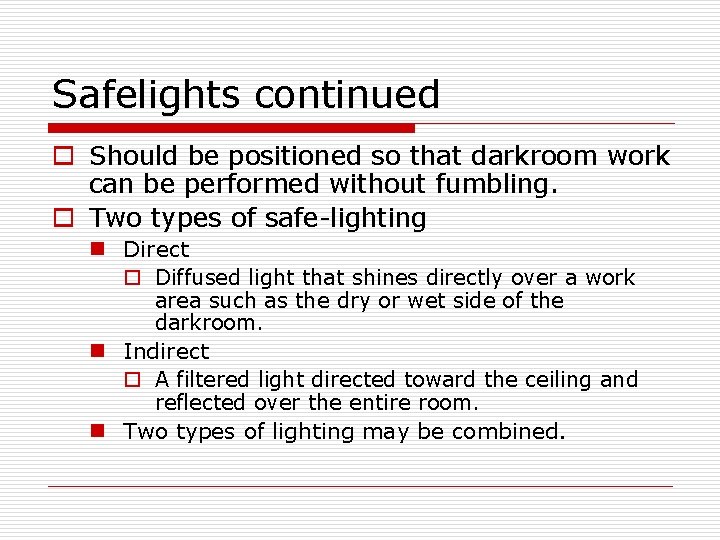

Safelights continued o Should be positioned so that darkroom work can be performed without fumbling. o Two types of safe-lighting n Direct o Diffused light that shines directly over a work area such as the dry or wet side of the darkroom. n Indirect o A filtered light directed toward the ceiling and reflected over the entire room. n Two types of lighting may be combined.

Safelights continued o Safelight should never be closer than 4 feet to work area. o If too close may cause some film fog.

Film-Processing Solutions o Film processing consists of five basic steps. n n n 1. 2. 3. 4. 5. Developing Rinsing or stop bath Fixing Washing Drying

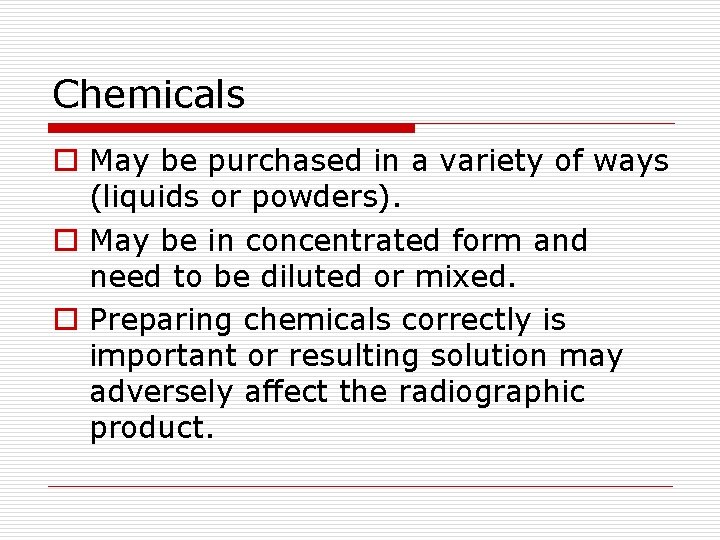

Chemicals o May be purchased in a variety of ways (liquids or powders). o May be in concentrated form and need to be diluted or mixed. o Preparing chemicals correctly is important or resulting solution may adversely affect the radiographic product.

Chemicals continued o Chemicals should be kept at specified room temperature. n Variances may adversely affect the radiographic product. n Too low temps, some of the chemicals may become sluggish in action and produce an under-developed or underfixed radiograph. n Too high temps, may be too hot for manual control.

Chemicals o All chemicals should be kept at same temperature. o Variances in temperature between the chemicals can result in film reticulation. n Reticulation- a darkroom artifact produced by variable chemical temperatures that cause irregular expansion and contraction of the film emulsion, resulting in a mottled density appearance.

Reticulation

The Developer o Developer-a chemical solution that converts the latent image to a visible image. o Primary function is to convert the exposed silver halide crystals to black metallic silver. o Developing time is specified by chemical manufacturer. Be sure to know this in your practice.

The Developer Continued o Developer temperatures affects the developing time. o Time-temperature developing is preferred over visual inspection when using manual processing. o Developer consists of developing agents, accelerators, preservatives, restrainers, hardeners, and a solvent.

Developing Agents o Composed of chemical compounds such as hydroquinone or phenidone that can convert exposed grains of silver halide to black metallic silver. The developing agent has little or no effect on the unexposed silver halide crystals.

Accelerators o Chemicals that increase the activity of the developer. Substances such as potassium carbonate or sodium carbonate are used to increase the p. H to an alkaline range of 9. 8 to 11. 4. This increase in p. H causes the emulsion to swell and soften, allowing the developing agent to work more effectively.

Preservatives o Prevent the rapid oxidation that can occur with alkaline developing agents. They also help maintain a stable development rate and prevent straining of the emulsion layer.

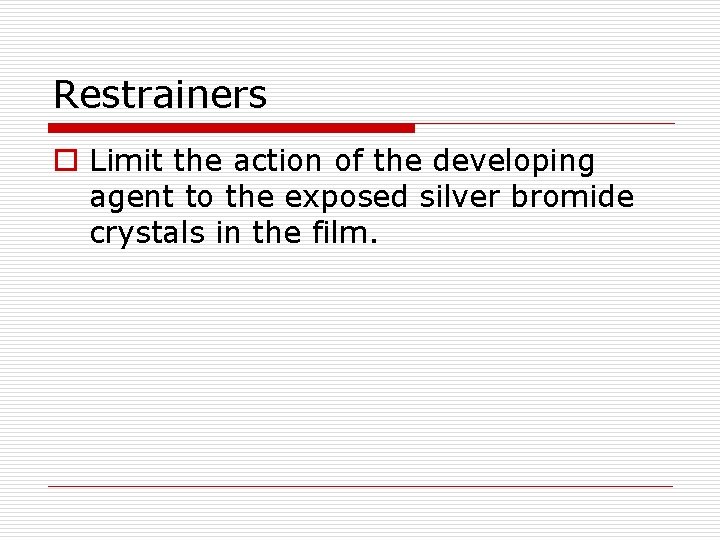

Restrainers o Limit the action of the developing agent to the exposed silver bromide crystals in the film.

Hardeners o Often added to developers in automatic processors. They harden the film during processing and prevent excessive swelling of the emulsion. If the gelatin emulsion were to swell extensively, it could be damaged by the rollers in the automatic processor.

Solvent o Consists of water to dissolve the chemicals.

The Rinse Bath o After film is in Developer, retains a substantial amount of developer in the gelatin. o If film went straight from developer to fixer, then alkaline developer would neutralize acid of the fixer. o Rinse bath serves to stop the developing process, rinse the developer from film, and prevent carryover contamination to the fixer.

The Fixer o Serves two basic functions n 1. Clears unexposed silver halide crystals from the film. n 2. It hardens the gelatin coating so that it can be dried without damaging the film surface. n General guideline is that film should be fixed for twice the development time.

Fixer consists of o Clearing or fixing agents n Dissolve and remove unexposed silver halide crystals from the film emulsion. o Preservatives n Prevent decomposition of the fixing agent. o Hardeners n Prevent excessive swelling of gelatinous emulsion during fixation procedure and softening during the wash procedure. Shorten drying time.

Fixers Composition Continued o Acidifiers n Compounds that accelerate action of other chemicals and neutralize any alkaline developer possibly carried over into the acidic fix solution. o Buffers n Chemical compounds added to the solution to maintain the desired p. H. Help to stabilize the acidity against the addition of alkaline developer carryover. Without buffer, developer would neutralize fix solution. Can also prevent sludge formation in the fix bath.

Fixer Composition continued o Solvent n Consists of water. n Purpose is to dissolve other ingredients and assist in the fixing agent to diffuse into the emulsion layer of the film. n Carried silver halide away from film.

The Wash bath o Wash portion is vital to a quality radiograph. o If film is not washed properly for a long enough period of time, the image will eventually discolor and fade. o Films should be washed in circulating water so both surfaces of film receive water continuously. o Manual processing wash time is recommended 20 -30 mins.

Wetting Agent o Water spots and streaks is a problem with drip drying films in manual processing. o A wetting agent bath can hasten drying process. Called Surfacetension reducing agent.

Water spots/bubbles

Solution Replenisher o In manual processing, chemical depletion is a natural result of chemical carryover into adjacent tanks. n Up to 60 m. L of developer can be carried on a film into rinse bath. o Developer and fixer need frequent replenishment. n Replenishment is available in powder and liquid concentration form. n Generally will have higher concentration than original solution in order to maintain chemical potency.

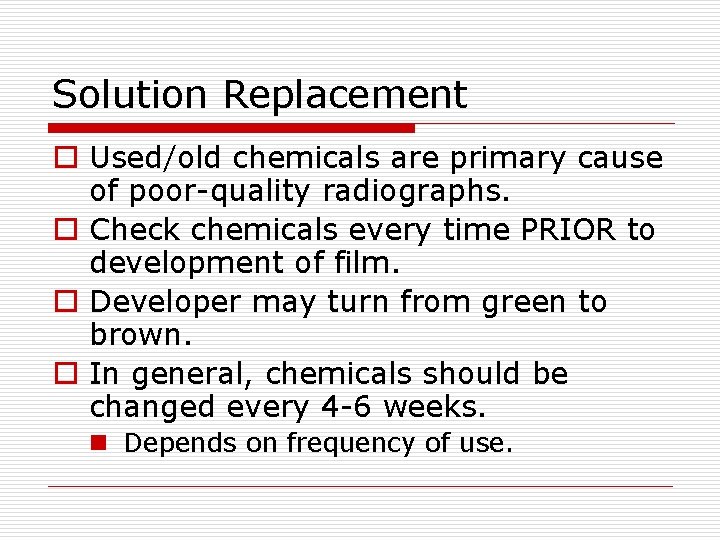

Solution Replacement o Used/old chemicals are primary cause of poor-quality radiographs. o Check chemicals every time PRIOR to development of film. o Developer may turn from green to brown. o In general, chemicals should be changed every 4 -6 weeks. n Depends on frequency of use.

Biologic Growth o In manual processing may have bacterial growth. o Need to be controlled. o When changing chemicals, clean tanks as well. o Wash tank of automatic processor should be drained at end of day to prevent growth.

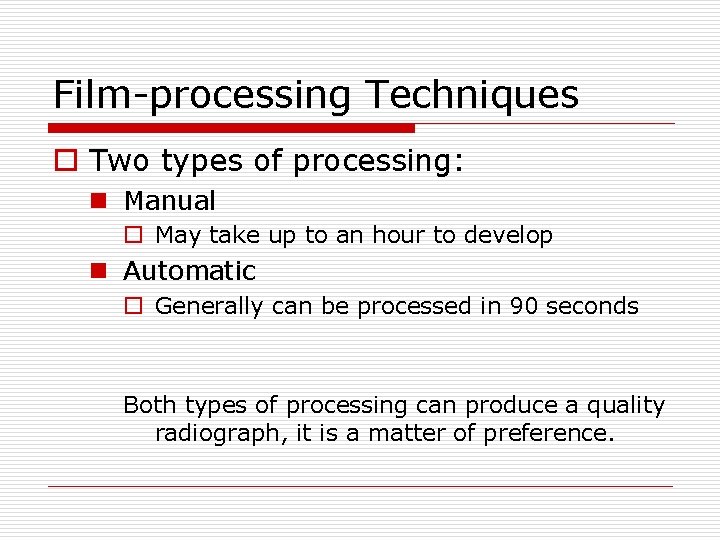

Film-processing Techniques o Two types of processing: n Manual o May take up to an hour to develop n Automatic o Generally can be processed in 90 seconds Both types of processing can produce a quality radiograph, it is a matter of preference.

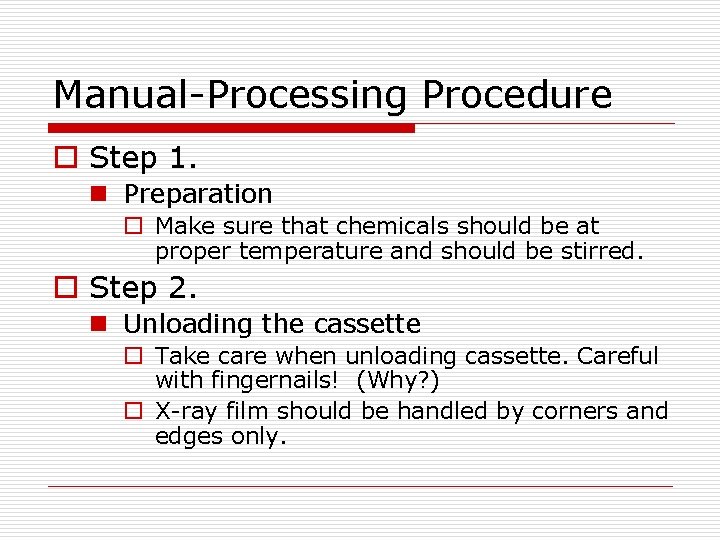

Manual-Processing Procedure o Step 1. n Preparation o Make sure that chemicals should be at proper temperature and should be stirred. o Step 2. n Unloading the cassette o Take care when unloading cassette. Careful with fingernails! (Why? ) o X-ray film should be handled by corners and edges only.

Manual Processing Procedure cont. o Step 3. n Loading the film on a hanger n Clip hanger – load the bottom first o Stretch to “bounce a coin on it” n Will prevent the film from touching other films or walls while developing n Channel hanger o Held in one hand while sliding the film into the channels with the other o All sides and corners should be checked for proper placement o Once in place, the top can be closed

Manual Processing Continued o Step 4. n Developing the film o Immersed in developing tank and agitated two or three times. o Step 5. n Rinsing the film o Remove film from developer. o Immerse in rinse bath and agitated for 30 seconds.

Over-rinsed film

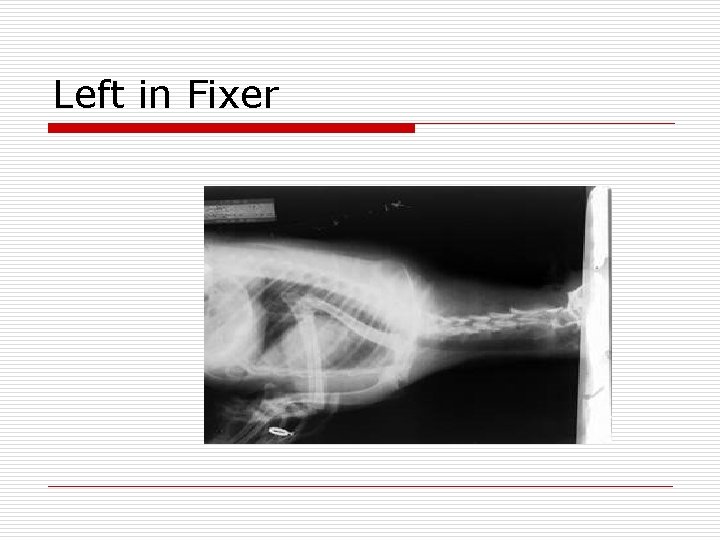

Manual Processing Cont. o Step 6. n Fixing the Film o Removed from rinse tank and immersed in the fix tank. o Step 7. n Washing the Film o Removed from Fixer and washed 20 -30 mins.

Left in Fixer

Under washed film

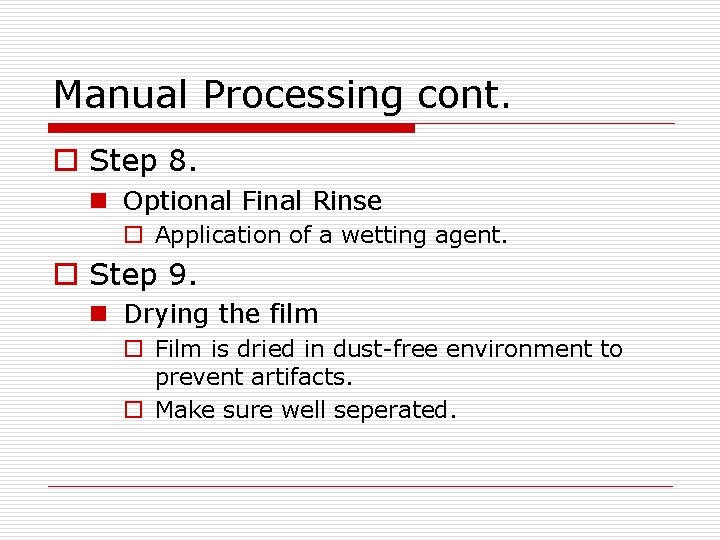

Manual Processing cont. o Step 8. n Optional Final Rinse o Application of a wetting agent. o Step 9. n Drying the film o Film is dried in dust-free environment to prevent artifacts. o Make sure well seperated.

No Final Wash Applied

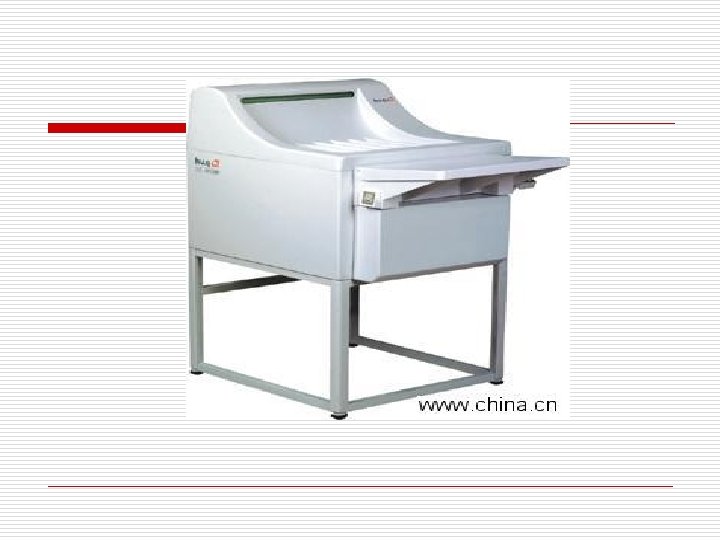

Automatic Processing o Advantages over the manual method. n 1. highly standardized procedure with consistent quality. n 2. can produce a dry radiograph in a short amount of time. n 3. reduces labor time of employees. n 4. smaller darkroom space required.

Automatic Processors o Roughly same procedure as manual processing. o Operate at higher temps and have specifically formulated chemicals to speed development. o Film is transported through processor by a series of rollers.

Automatic Processor continued o Chemicals still need to be checked and processor warmed up. o Make sure that films are fed one at a time to prevent sticking together. o Will be signaled by the processor when can feed next film.

Stuck in processor

Films stuck together

Folded Film

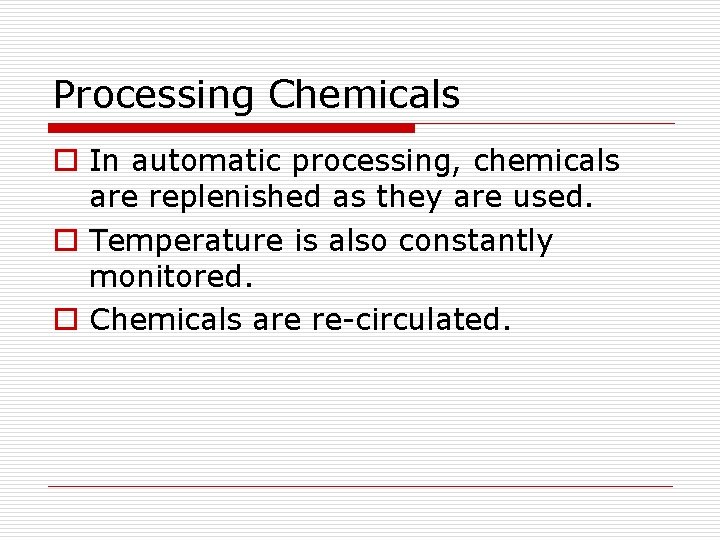

Processing Chemicals o In automatic processing, chemicals are replenished as they are used. o Temperature is also constantly monitored. o Chemicals are re-circulated.

Processor Maintenance o Can be serviced by a professional o Quick tech checks: n n n Check solution levels Check replenishment rate Check temperature Check roller operation Rinse and wipe rollers racks Clean tanks

Silver Recovery o Recycle to obtain silver from development process. n 3 methods of silver recovery o 1. Metallic replacement o 2. Electrolyte recovery o 3. Chemical precipitation

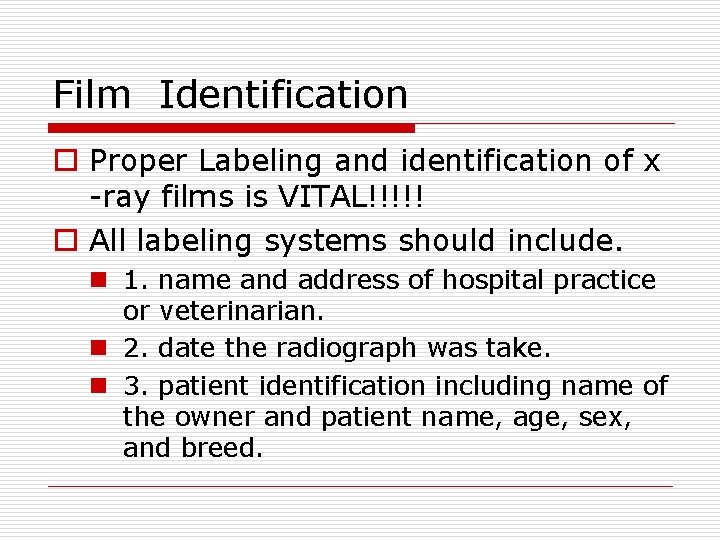

Film Identification o Proper Labeling and identification of x -ray films is VITAL!!!!! o All labeling systems should include. n 1. name and address of hospital practice or veterinarian. n 2. date the radiograph was take. n 3. patient identification including name of the owner and patient name, age, sex, and breed.

Lead Blockers o Identification can be done via lead lettering, lead impregnated tape, or photoimprinting labels.

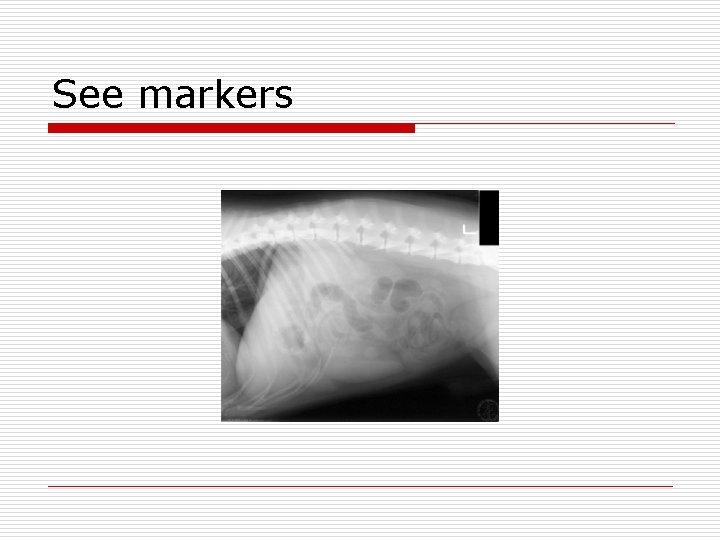

Other markers o Right (R) and Left (L) markers are essential to identify size and position of image on radiograph. o May need to label front and rear as well especially in large animals. o If label not a part of film itself, then can add later with marker, or scratching into film while still wet.

See markers

Film Filing o Organized film filing system is needed in veterinary practice. o Must be placed in suitable holder and filed appropriately. n Should be labeled, numbered if necessary and filed correctly for easy future reference. n X-ray logs also help with film identification.
