File-System Interface • • • File Concept Access Methods Directory Structure File-System Mounting File Sharing Protection

File Concept • Contiguous logical address space OS maps a file onto a physical device. • Types: – Data • numeric • character • binary – Program • Basic Definition “File”: named collection of related information that is recorded on secondary storage

File Structure • Different Types of File Structures: – None - sequence of words, bytes – Simple record structure • Lines (text file) • Fixed length • Variable length – Complex Structures • Formatted document (word document) • Relocatable load file • Can simulate last two with first method by inserting appropriate control characters • Who decides the structure: the creator – Operating system – Program

File Attributes • Name – only information kept in human-readable form • Identifier – unique tag (number) identifies file within file system • Type – needed for systems that support different types • Location – pointer to file location on device • Size – current file size • Protection – controls who can do reading, writing, executing • Time, date, and user identification – data for protection, security, and usage monitoring Information about files are kept in the directory structure, which is maintained on the disk

drwxr-xr-x 7 brinton 238 Nov 27 19: 31 brinton_HW 6_DPL drwxr-xr-x 13 brinton 442 Oct 18 2007 brinton_hw 2_files drwx------ 9 brinton 306 Oct 10 2007 brinton_hw 3_DPL -rw-r--r--@ 1 brinton 27415 Oct 23 2007 cheatsheet. pdf -rw-r--r-- 1 brinton 1049019 Oct 17 2007 denotational_semantics. pdf -rw-r--r-- 1 brinton 302100 Oct 17 2007 foundations_functional_programming. pdf -rw-r--r-- 1 brinton 591836 Oct 17 2007 lambda_calculus. pdf -rw-r--r--@ 1 brinton 635904 Oct 18 2007 lecture 04. ppt -rw-r--r--@ 1 brinton 935406 Oct 23 2007 offline. pdf -rw-r--r-- 1 brinton 1109552 Oct 17 2007 prolog. pdf -rw-r--r--@ 1 brinton 119786 Oct 23 2007 scheme. Quick. Ref. pdf -rw-r--r-- 1 brinton 3647033 Oct 17 2007 semantics_applications. pdf drwxr-xr-x 10 brinton 340 Nov 27 16: 18 timpcore drwxr-xr-x 6 brinton 204 Nov 24 15: 30 tuscheme -rw-r--r-- 1 brinton 294375 Oct 17 2007 type_systems. pdf

File Operations File is an abstract data type and should have at least 6 basic operations: • Create • Write • Read • Reposition within file • Delete • Truncate (reset length to zero and release file space) Open(Fi) – search the directory structure on disk for entry Fi, and move the content of entry to memory Close (Fi) – move the content of entry Fi in memory to directory structure on disk

Open Files • Data needed to manage open files: – File pointer: pointer to last read/write location, unique to each process that has the file open {used when offset not included with read/write} – File-open count: counter of number of times a file is open – to allow removal of data from open-file table when last processes closes it – Disk location of the file: data access information – Access rights: per-process access mode information

Open File Locking • Provided by some operating systems and file systems • Mediates access to a file • Mandatory or advisory: – Mandatory – access is denied depending on locks held and requested (Win OS) – Advisory – processes can find status of locks and decide what to do (up to developers) (Unix)

C# example using(File. Stream file. Stream = new File. Stream( "Test#@@#. dat", File. Mode. Open. Or. Create, File. Access. Read. Write, File. Share. Read. Write)) try { file. Stream. Lock(text. Length - 1, byte. Count); Console. Write. Line("The specified part " + "of file has been locked. "); } catch(IOException e) { Console. Write. Line( "{0}: The specified part of file is" + " already locked. ", e. Get. Type(). Name); }

File Locking Example – Java API import java. io. *; import java. nio. channels. *; public class Locking. Example { public static final boolean EXCLUSIVE = false; public static final boolean SHARED = true; public static void main(String arsg[]) throws IOException { File. Lock shared. Lock = null; File. Lock exclusive. Lock = null; try { Random. Access. File raf = new Random. Access. File("file. txt", "rw"); // get the channel for the file File. Channel ch = raf. get. Channel(); // this locks the first half of the file - exclusive. Lock = ch. lock(0, raf. length()/2, EXCLUSIVE); /** Now modify the data. . . */ // release the lock exclusive. Lock. release();

File Locking Example – Java API (cont) // this locks the second half of the file - shared. Lock = ch. lock(raf. length()/2+1, raf. length(), SHARED) ; /** Now read the data. . . */ // release the lock exclusive. Lock. release(); } catch (java. io. IOException ioe) { System. err. println(ioe); }finally { if (exclusive. Lock != null) exclusive. Lock. release(); if (shared. Lock != null) shared. Lock. release(); } } }

File Types • Should the OS recognize and support file types? • How? – Include type as part of name (file extension) – Magic number – UNIX – stored at beginning of file – Name of program in file - Mac OS X • Examples of use: – Open a file and it automatically is associated with a program – TOPS-20 OS: execute a program, if modified then OS recompiles and then executes

File Types – Name, Extension

File Structure File types often used to indicate internal structure of file Executable – OS expects a certain structure: dynamically load it into memory Disadvantage OS can become massive Force a file to conform to one of the expected types? All OS must support the executable file type

Internal File Structure Disk-system has well-defined block size determined by size of sector. - Logical records can vary in length - Physical records are based on block (sector size) on disk Internal Fragmentation – wasted space at the end of the last physical record used. Packing – placing a number of logical records into physical blocks

Access Methods How do you choose the correct method to use? Sequential Access (most common) read next write next reset (more to initial) advance (advance forward) Direct Access read n position to n write next write n read next rewrite n viewed as a numbered sequence of blocks or records On top of direct access: index file or hash function “read n” get L bytes starting at n*L (logical record length = L) n = relative block number

Accessing Files Sequential Access the file pointer is advanced after each operation Doing sequential access on a direct-access file

Example of Index and Relative Files

Directory Structure A Typical Filesystem Organization Directory Operations: Search for a file Create a file Delete a file List a directory Rename a file Traverse the file system

Single-Level Directory A single directory for all users: simple and “flat” Limitations: 1. 2. Naming problem Grouping problem

Two-Level Directory Separate directory for each user þ Same file name - different users allowed (name collision problem solved) þ Efficient searching ý No grouping capability (no user directories) Path – user name & filename Search Path – sequence of directories searched

Search Path Windows Sets the command path in the PATH environment variable, which is the set of directories used to search for executable files. Used without parameters, path displays the current command path. Syntax path [[%path%] [Drive: ]Path [; . . . ]] Linux $ echo $PATH The directories to search for executables in absence of an absolute or relative pathname containing a / character

Tree-Structured Directories • Efficient searching • Grouping Capability • Current directory (working directory) – cd /spell/mail/prog –. /othello

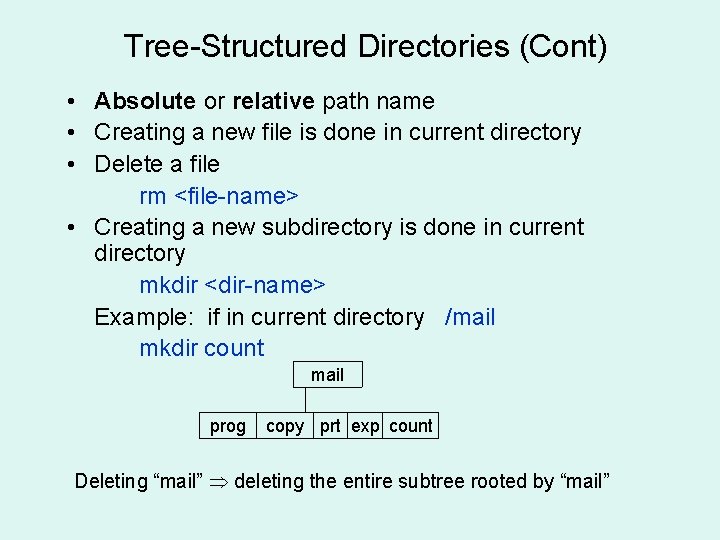

Tree-Structured Directories (Cont) • Absolute or relative path name • Creating a new file is done in current directory • Delete a file rm <file-name> • Creating a new subdirectory is done in current directory mkdir <dir-name> Example: if in current directory /mail mkdir count mail prog copy prt exp count Deleting “mail” deleting the entire subtree rooted by “mail”

Acyclic-Graph Directories Allows directories to share subdirectories and files Must contain no cycles

Acyclic-Graph Directories (Cont. ) • Two different names (aliasing) • If /dict/all/ is deleted dangling pointer “list” Solutions: – Backpointers, so we can delete all pointers – Entry-hold-count solution – keep count in file info – Let user keep up with the problem – delete dangling pointers • New directory entry type (linux - hard and symbolic links) – Link – another name (pointer) to an existing file – Resolve the link – follow pointer to locate the file

General Graph Directory How do we guarantee no cycles? • Allow only links to file not subdirectories • Garbage collection – walk the graph and pickup garbage • Every time a new link is added use a cycle detection algorithm to determine whether it is OK

File System Mounting • A file system must be mounted before it can be accessed • A unmounted file system (bottom right) is mounted at a mount point File system Unmounted volume

File System Mounting • A file system must be mounted before it can be accessed • A unmounted file system (bottom right) is mounted at a mount point Unmounted volume

File Sharing • Sharing of files on multi-user systems is desirable • Sharing may be done through a protection scheme – owner, group, universe • On distributed systems, files may be shared across a network • Network File System (NFS) is a common distributed file-sharing method Windows file sharing

File Sharing – Multiple Users • User IDs identify users, allowing permissions and protections to be peruser • Group IDs allow users to be in groups, permitting group access rights

File Sharing – Remote File Systems • • • Uses networking to allow file system access between systems – Manually via programs like FTP – Automatically, seamlessly using distributed file systems – Semi automatically via the world wide web Client-server model allows clients to mount remote file systems from servers – Server can serve multiple clients – Client and user-on-client identification is insecure (spoof) or complicated – NFS is standard UNIX client-server file sharing protocol – CIFS is standard Windows protocol – Standard operating system file calls are translated into remote calls Distributed Information Systems (distributed naming services) such as LDAP, DNS, NIS, Active Directory implement unified access to information needed for remote computing

File Sharing – Failure Modes • Remote file systems add new failure modes, due to network failure, server failure • Recovery from failure can involve state information about status of each remote request • Stateless protocols such as NFS include all information in each request, allowing easy recovery but less security

File Sharing – Consistency Semantics • Consistency semantics specify how multiple users are to access a shared file simultaneously – Similar to process synchronization algorithms • Tend to be less complex due to disk I/O and network latency (for remote file systems) • File session – open, file operations, close – Unix file system (UFS) implements: • Writes to an open file visible immediately to other users of the same open file • Sharing file pointer to allow multiple users to read and write concurrently (one type of mode)

Protection • File owner/creator should be able to control: – what can be done – by whom • Types of access – – – Read Write Execute Append Delete List

Access Lists and Groups • Mode of access: read, write, execute • Three classes of users RWX a) owner access 7 111 RWX b) group access 6 110 RWX c) public access 1 001 • Ask manager to create a group (unique name), say G, and add some users to the group. • For a particular file (say game) or subdirectory, define an appropriate access. owner chmod Attach a group to a file: chgrp G group 761 game public game chown : G game

Windows XP Access-control List Management
