Filename 2006 Advantech MPEG ITUT JPEG MPEG 1

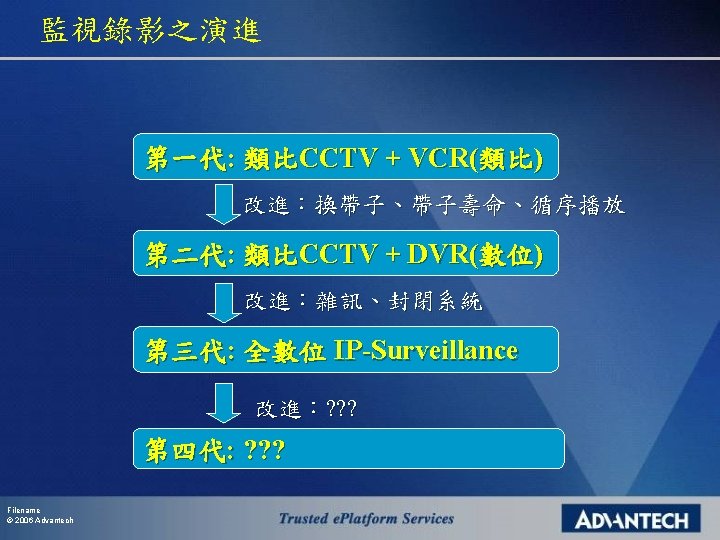

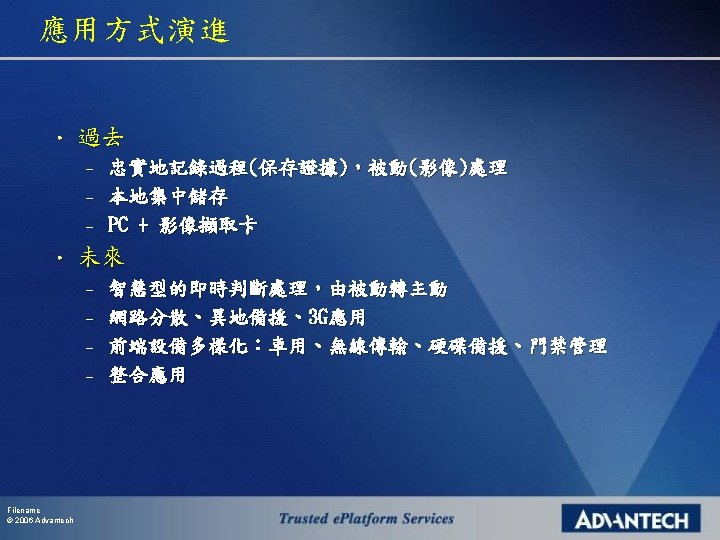

影像壓縮技術的演進 Filename © 2006 Advantech

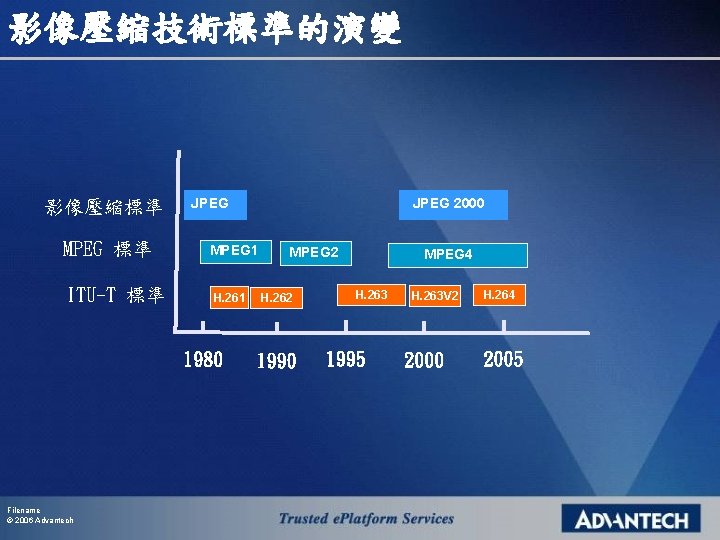

影像壓縮技術標準的演變 影像壓縮標準 MPEG 標準 ITU-T 標準 JPEG MPEG 1 H. 261 1980 Filename © 2006 Advantech JPEG 2000 MPEG 2 H. 262 1990 MPEG 4 H. 263 1995 H. 263 V 2 2000 H. 264 2005

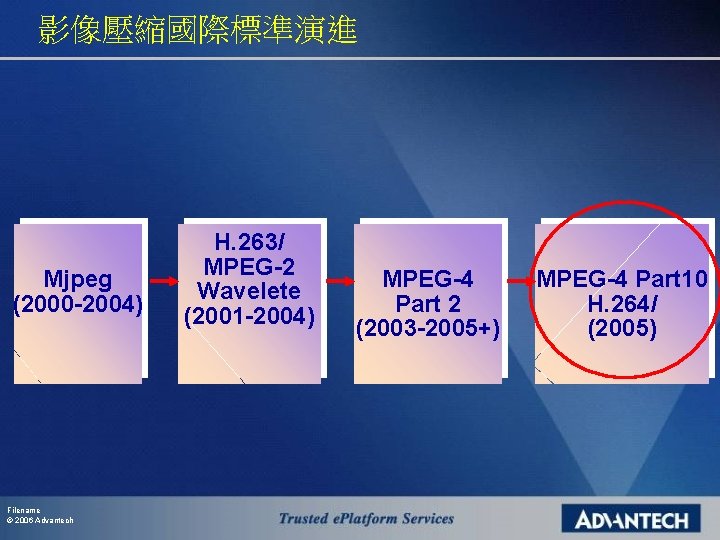

影像壓縮國際標準演進 Mjpeg (2000 -2004) Filename © 2006 Advantech H. 263/ MPEG-2 Wavelete (2001 -2004) MPEG-4 Part 2 (2003 -2005+) MPEG-4 Part 10 H. 264/ (2005)

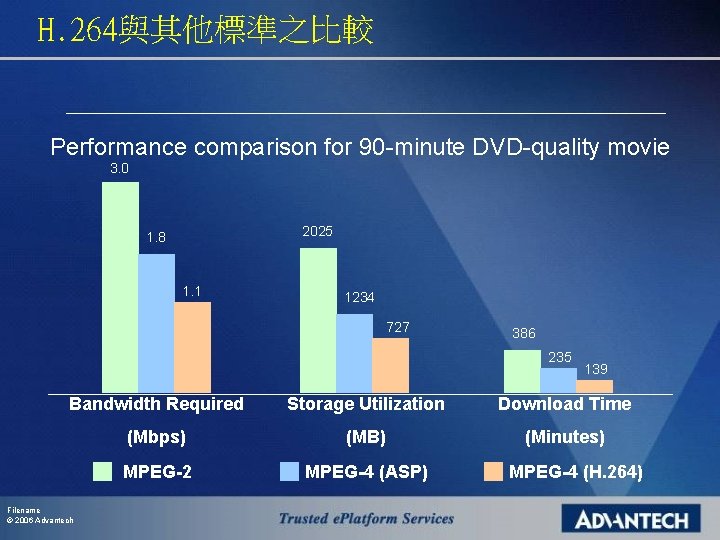

H. 264與其他標準之比較 Performance comparison for 90 -minute DVD-quality movie 3. 0 2025 1. 8 1. 1 1234 727 386 235 139 Bandwidth Required Storage Utilization Download Time (Mbps) (MB) (Minutes) MPEG-2 MPEG-4 (ASP) Filename © 2006 Advantech MPEG-4 (H. 264)

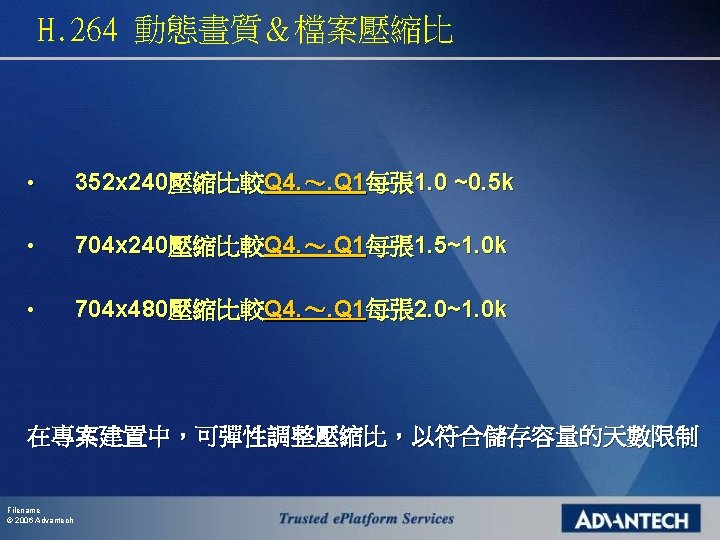

影像品質＆檔案大小比較 Filename © 2006 Advantech

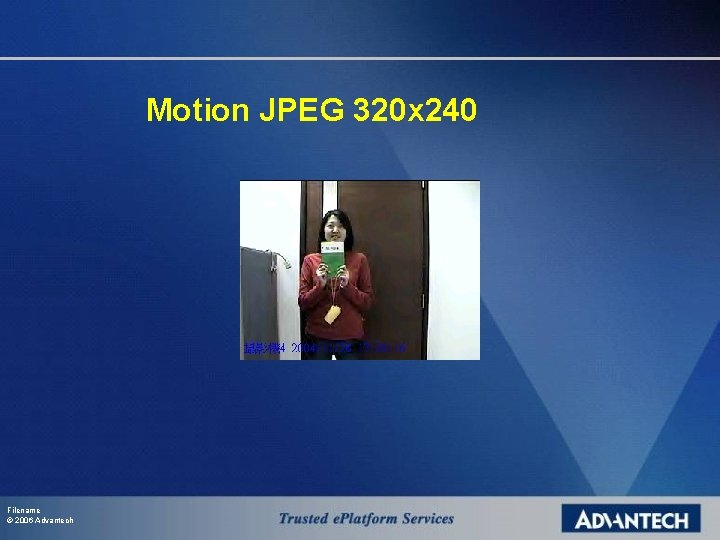

Motion JPEG 320 x 240 Filename © 2006 Advantech

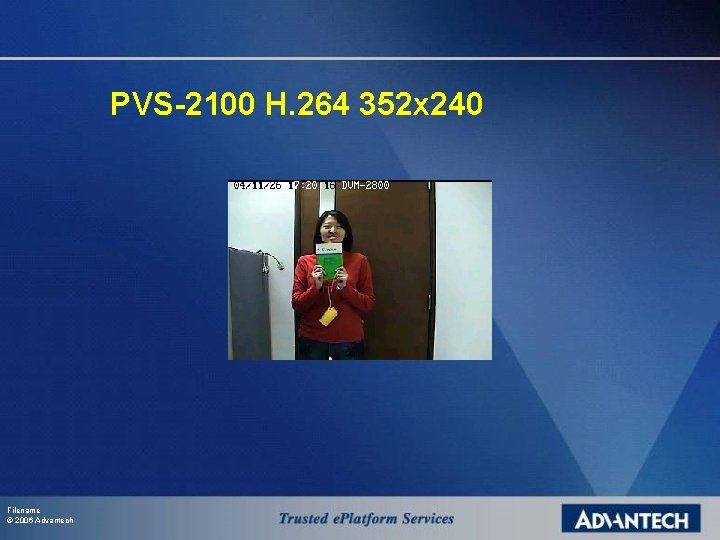

PVS-2100 H. 264 352 x 240 Filename © 2006 Advantech

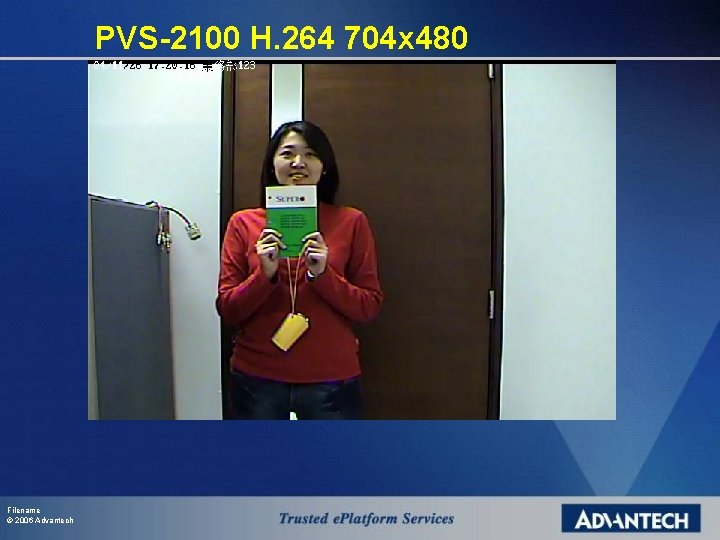

PVS-2100 H. 264 704 x 480 Filename © 2006 Advantech

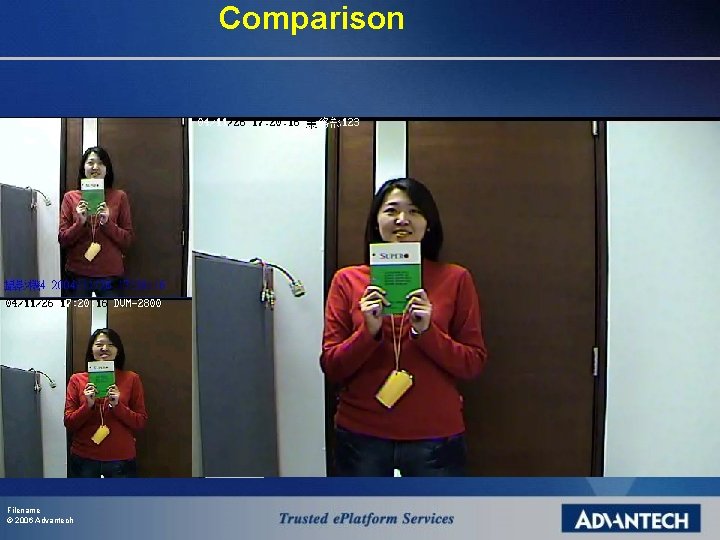

Comparison Filename © 2006 Advantech

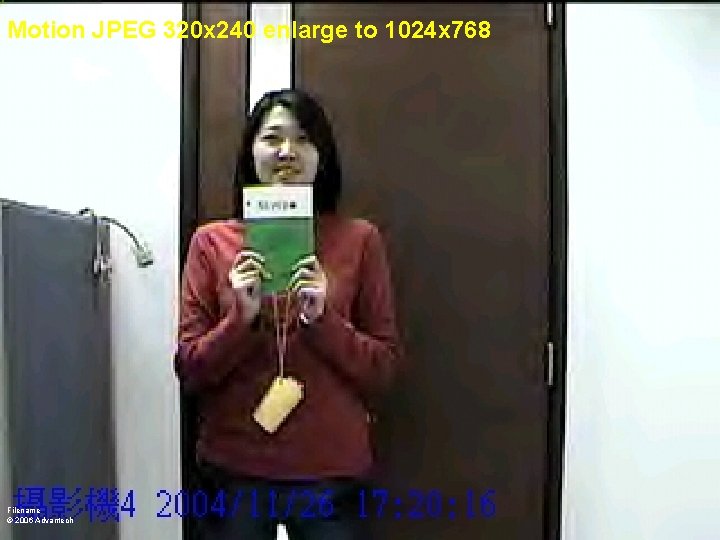

Motion JPEG 320 x 240 enlarge to 1024 x 768 Filename © 2006 Advantech

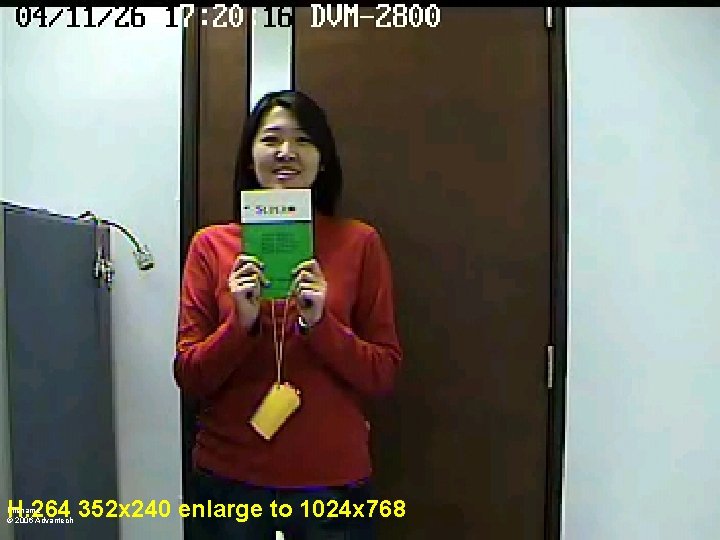

H. 264 352 x 240 enlarge to 1024 x 768 Filename © 2006 Advantech

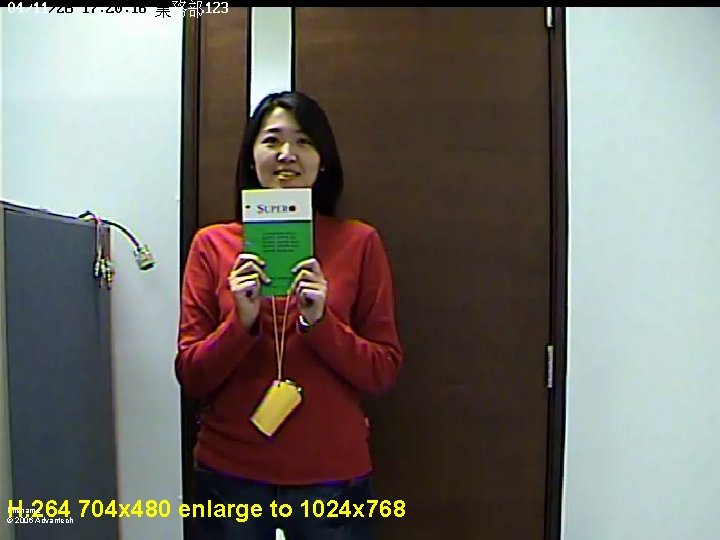

H. 264 704 x 480 enlarge to 1024 x 768 Filename © 2006 Advantech

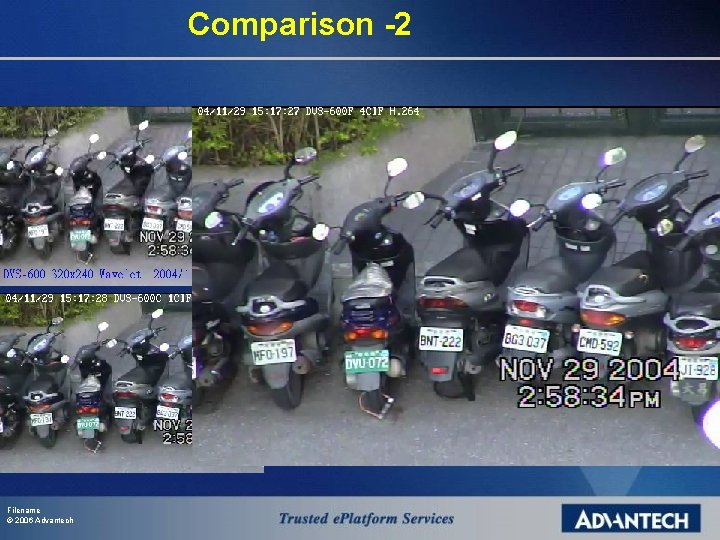

Comparison -2 Filename © 2006 Advantech

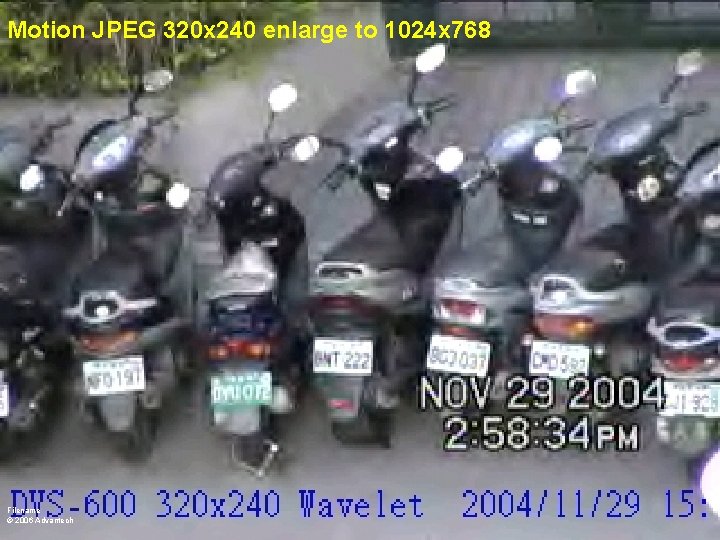

Motion JPEG 320 x 240 enlarge to 1024 x 768 Filename © 2006 Advantech

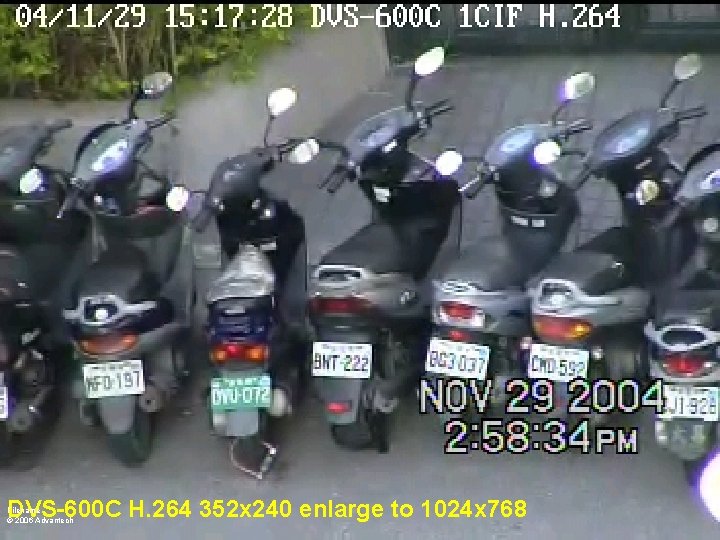

DVS-600 C H. 264 352 x 240 enlarge to 1024 x 768 Filename © 2006 Advantech

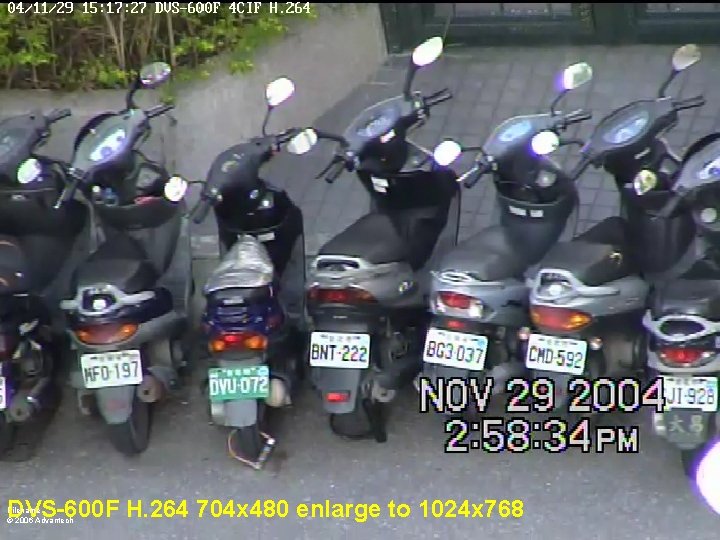

DVS-600 F H. 264 704 x 480 enlarge to 1024 x 768 Filename © 2006 Advantech

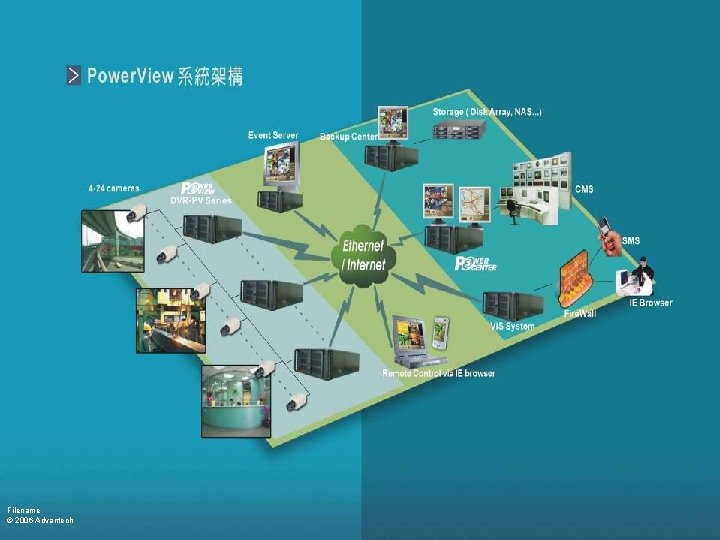

Power. View系統架構 Filename © 2006 Advantech

Filename © 2006 Advantech

POWER View DVR(new) Filename © 2006 Advantech PV-2100 -32(-1/2 FPS) PV-2100 -32(-2 CIF) Channel 32 32 Video Chip TI TI Resolution 4 CIF(704 x 480) CIF(352 x 240) 2 CIF(704 x 240) Display /Record Rate (fps) 400(PAL) 480 (NTSC) 800 (PAL) 960 (NTSC) Max Stack Card 4+1(Option) Compression Format H. 264 Audio 32 32 DI/O 16/16 (option) WDT Y Y

硬體規格 規 格 Filename © 2006 Advantech ＣＰＵ Intel P 4 3. 0 G 主機板 Intel 800 外頻 作業系統 Windows XP Pro, Windows XP Embedded 記憶體 512 MB 網路 10/100自動切換 硬碟規格 SATA 250 GB 燒錄 CD-RW or DVD-RW 語言 繁體中文、簡體中文、英文

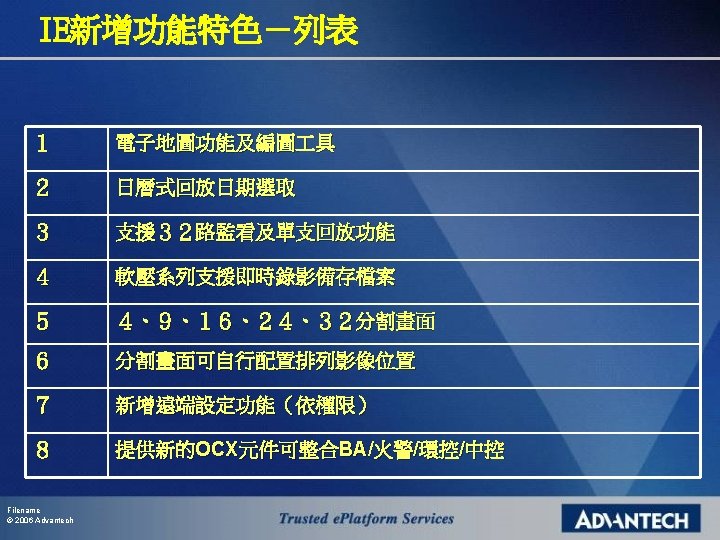

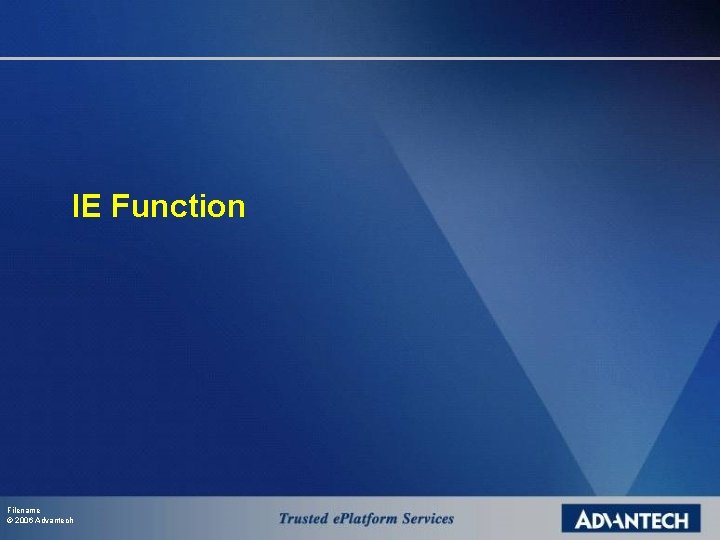

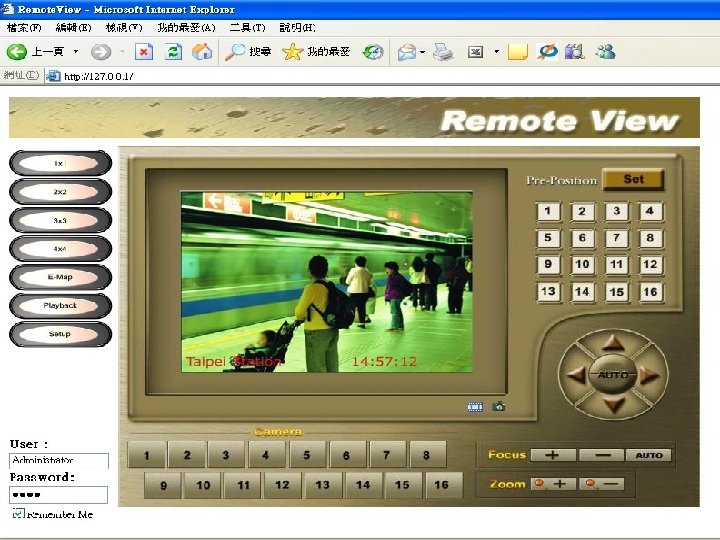

IE Function Filename © 2006 Advantech

Filename © 2006 Advantech

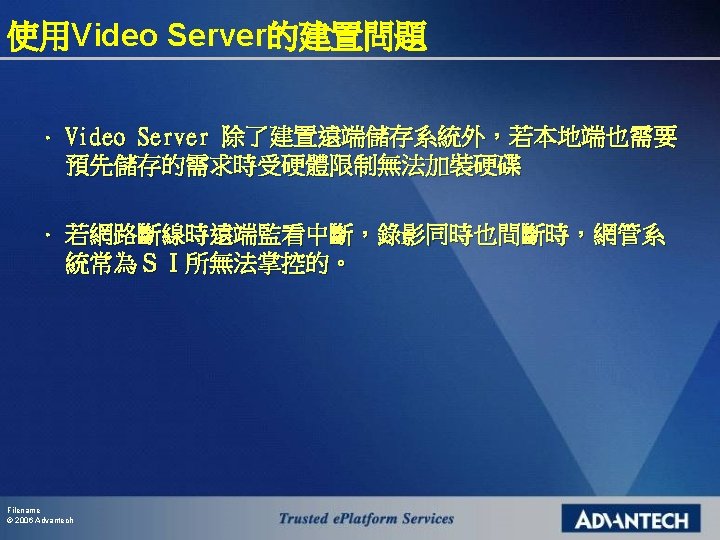

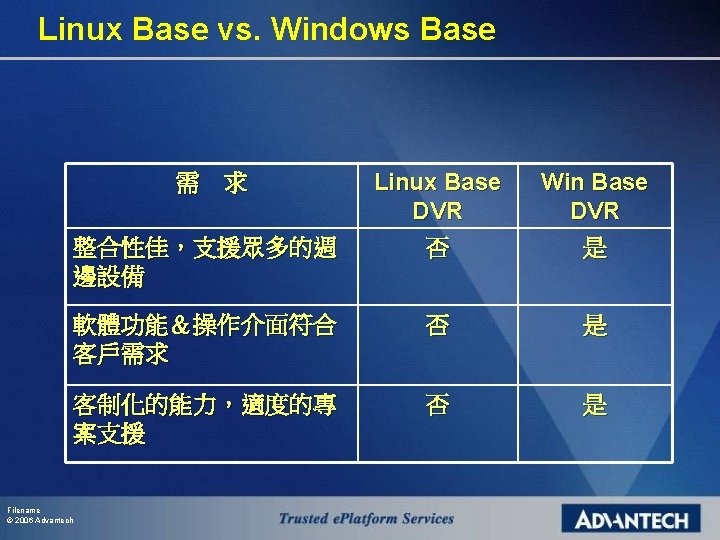

系統建置評估建議 Filename © 2006 Advantech

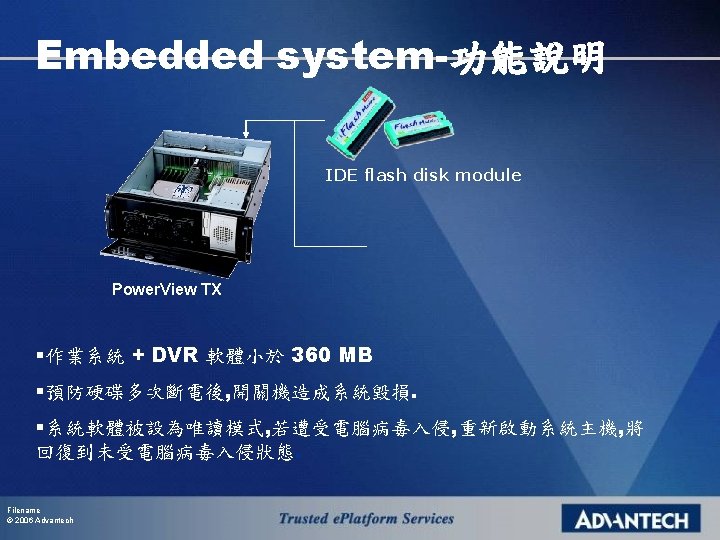

Embedded DVR System • • Filename © 2006 Advantech CPU: Intel P 4 3. 0 M/B: Advantech AIMB 742 RAM: 512 MB VGA: ASUS 9550 Capture Cards: HW/SW compression Series DOM: 512 MB with MS. XP embedded OS and Power View software Case: Industrial grade design for DVR Purpose

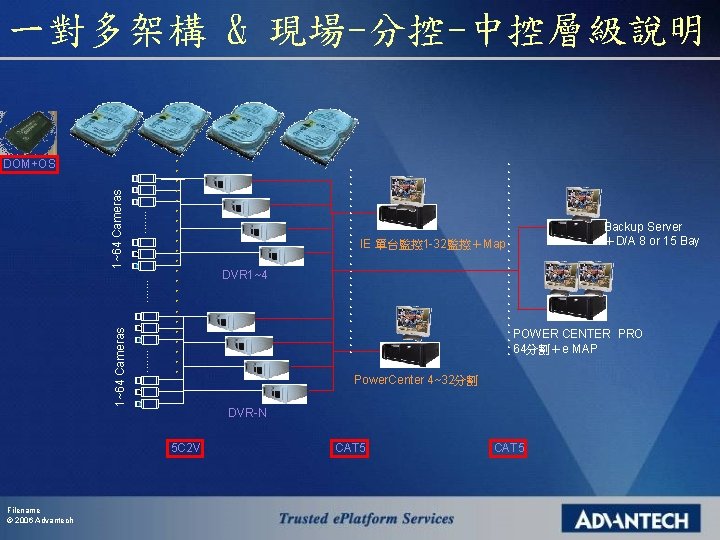

一對多架構 & 現場-分控-中控層級說明 ……. 1~64 Cameras DOM+OS ……. 1~64 Cameras ……. ． ． ． ． ． ． IE ． ． ． ． ． Backup Server ． ． ＋D/A 8 or 15 Bay 單台監控 1 -32監控＋Map． ． ． ．POWER CENTER PRO ． ．64分割＋e MAP ． Power. Center 4~32分割 DVR-N 5 C 2 V Filename © 2006 Advantech DVR 1~4 ． ． ． ． ． ． ． CAT 5

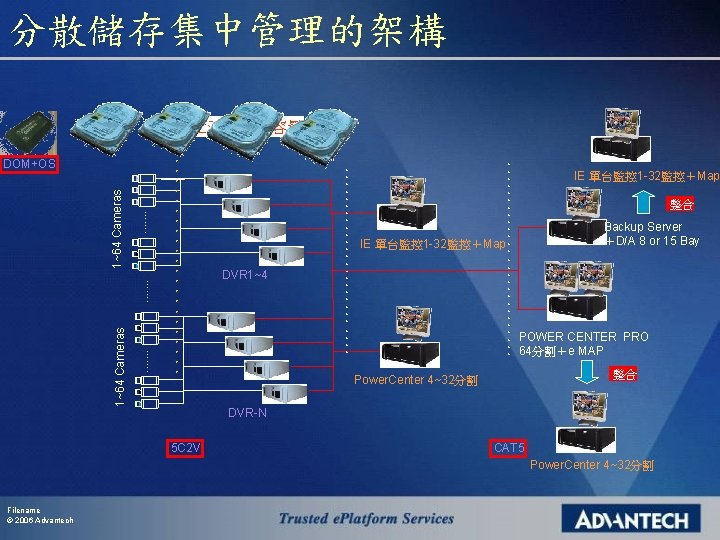

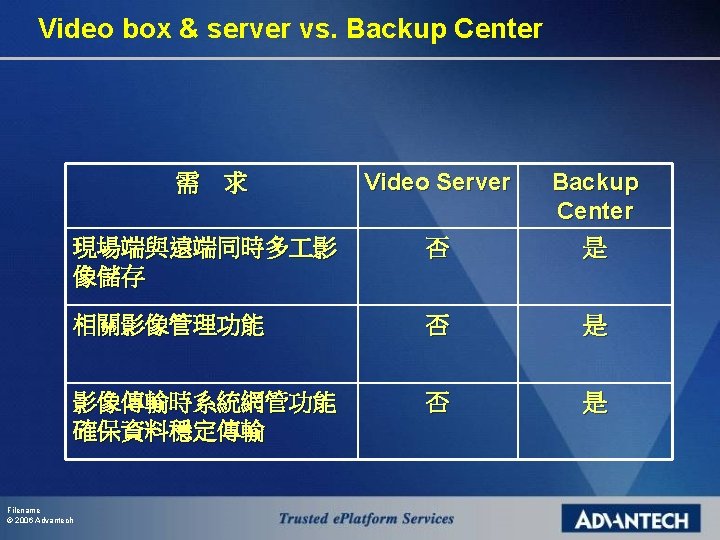

分散儲存集中管理的架構 保留七天的硬碟容量 ……. 1~64 Cameras DOM+OS ……. 1~64 Cameras ……. ． ． ． ． ． ． DVR 1~4 ． ． ． ． ． ． ． IE ． ． ． 單台監控 1 -32監控＋Map． ． ． ． IE 單台監控 1 -32監控＋Map 整合 Backup Server ＋D/A 8 or 15 Bay POWER CENTER PRO 64分割＋e MAP 整合 Power. Center 4~32分割 DVR-N 5 C 2 V CAT 5 Power. Center 4~32分割 Filename © 2006 Advantech
