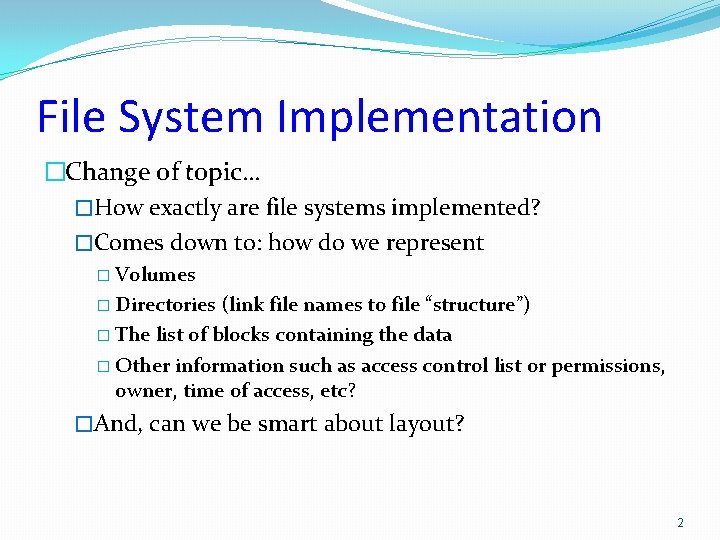

File System Implementation �Change of topic… �How exactly are file systems implemented? �Comes down to: how do we represent � Volumes � Directories (link file names to file “structure”) � The list of blocks containing the data � Other information such as access control list or permissions, owner, time of access, etc? �And, can we be smart about layout? 2

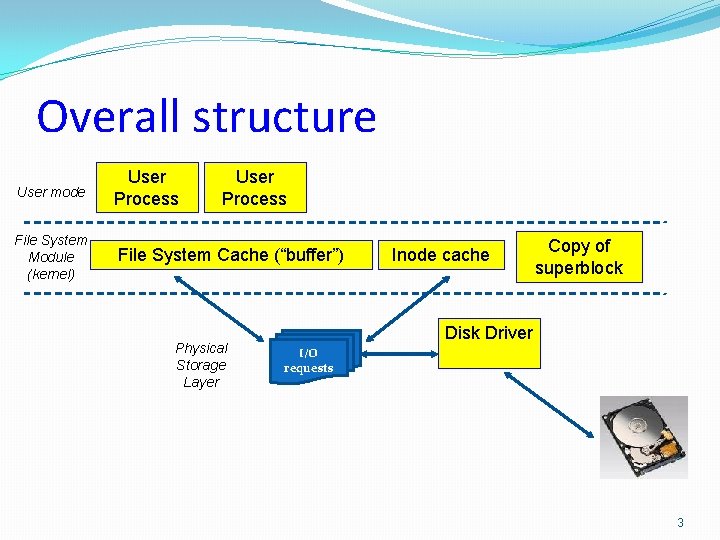

Overall structure User mode User Process File System Module (kernel) File System Cache (“buffer”) Physical Storage Layer Inode cache Copy of superblock Disk Driver I/O requests 3

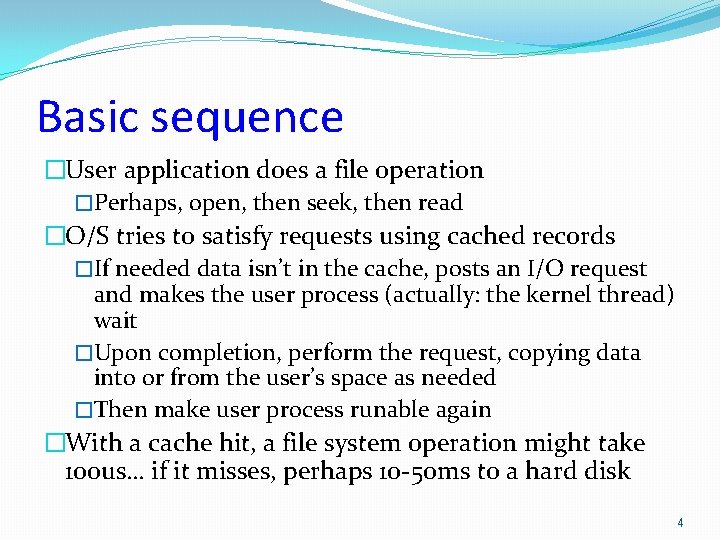

Basic sequence �User application does a file operation �Perhaps, open, then seek, then read �O/S tries to satisfy requests using cached records �If needed data isn’t in the cache, posts an I/O request and makes the user process (actually: the kernel thread) wait �Upon completion, perform the request, copying data into or from the user’s space as needed �Then make user process runable again �With a cache hit, a file system operation might take 100 us… if it misses, perhaps 10 -50 ms to a hard disk 4

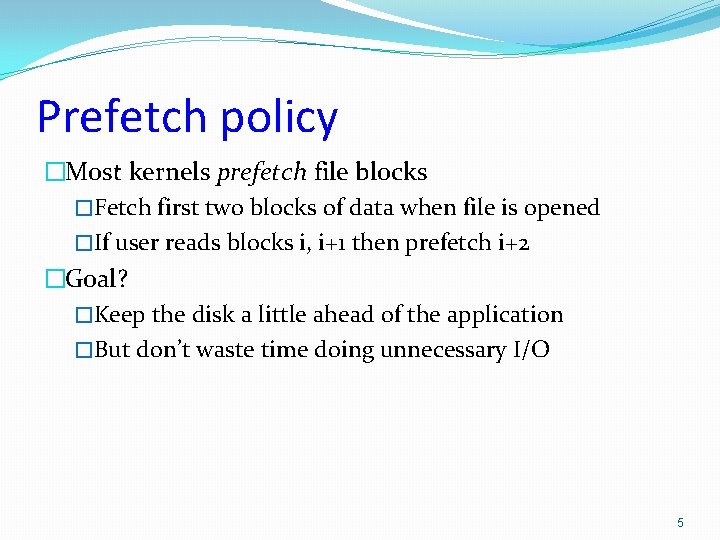

Prefetch policy �Most kernels prefetch file blocks �Fetch first two blocks of data when file is opened �If user reads blocks i, i+1 then prefetch i+2 �Goal? �Keep the disk a little ahead of the application �But don’t waste time doing unnecessary I/O 5

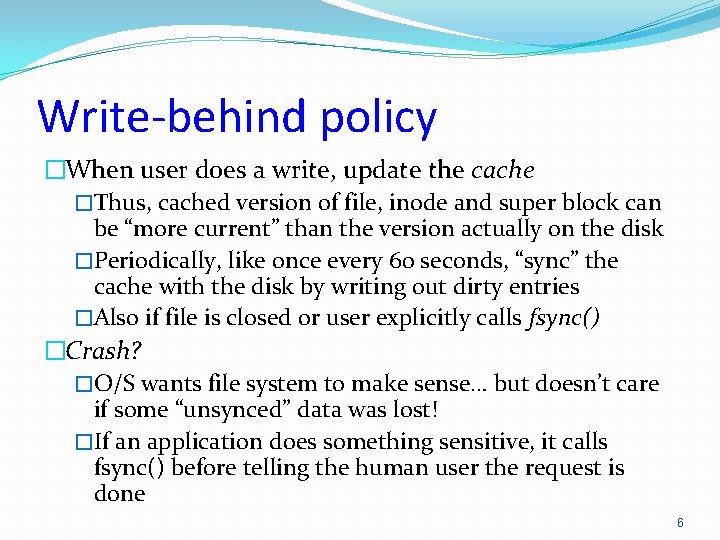

Write-behind policy �When user does a write, update the cache �Thus, cached version of file, inode and super block can be “more current” than the version actually on the disk �Periodically, like once every 60 seconds, “sync” the cache with the disk by writing out dirty entries �Also if file is closed or user explicitly calls fsync() �Crash? �O/S wants file system to make sense… but doesn’t care if some “unsynced” data was lost! �If an application does something sensitive, it calls fsync() before telling the human user the request is done 6

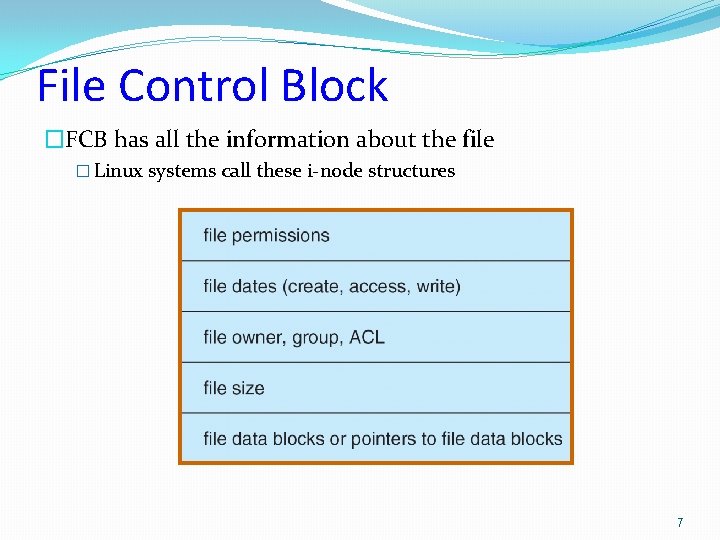

File Control Block �FCB has all the information about the file � Linux systems call these i-node structures 7

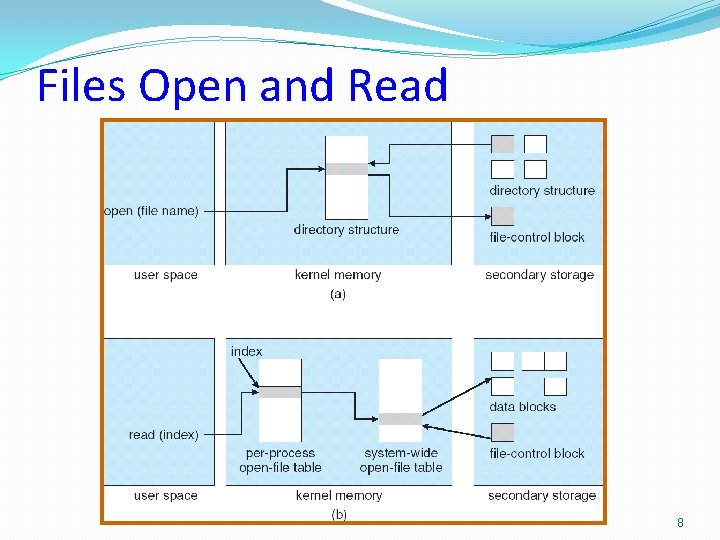

Files Open and Read 8

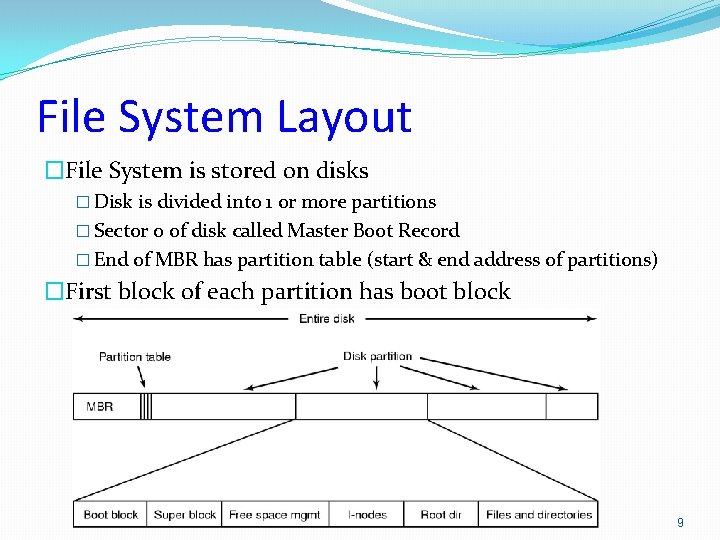

File System Layout �File System is stored on disks � Disk is divided into 1 or more partitions � Sector 0 of disk called Master Boot Record � End of MBR has partition table (start & end address of partitions) �First block of each partition has boot block � Loaded by MBR and executed on boot 9

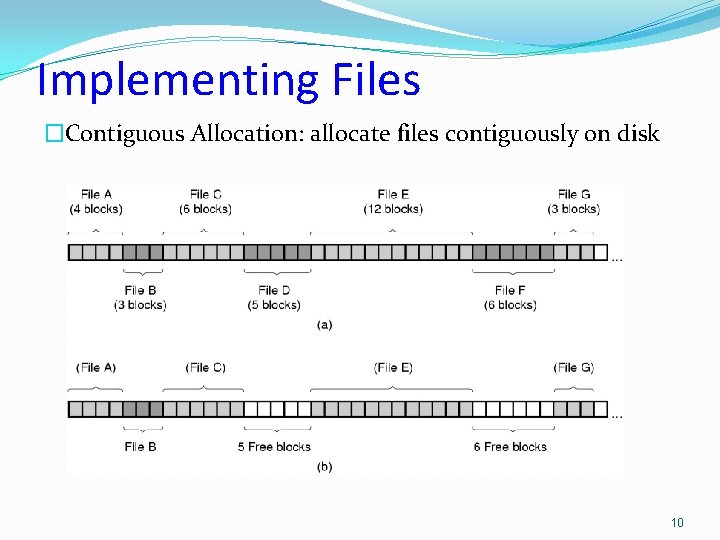

Implementing Files �Contiguous Allocation: allocate files contiguously on disk 10

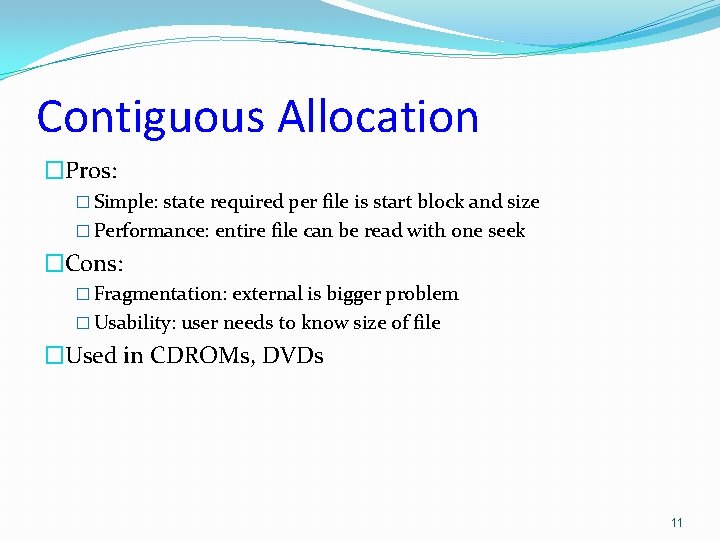

Contiguous Allocation �Pros: � Simple: state required per file is start block and size � Performance: entire file can be read with one seek �Cons: � Fragmentation: external is bigger problem � Usability: user needs to know size of file �Used in CDROMs, DVDs 11

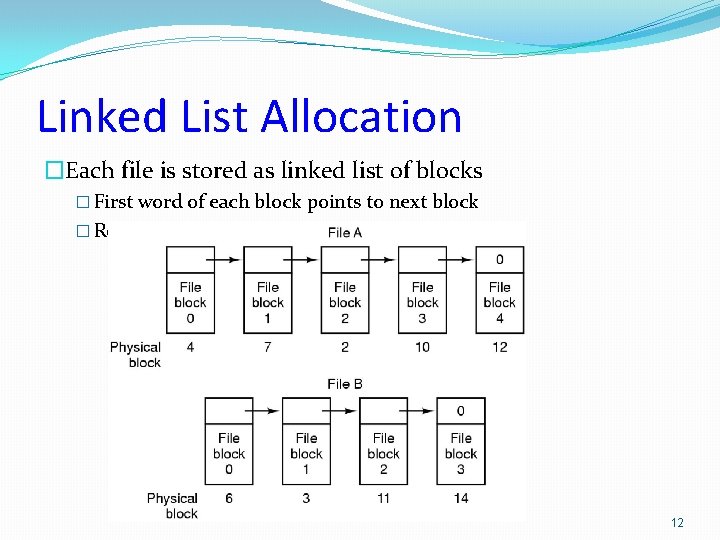

Linked List Allocation �Each file is stored as linked list of blocks � First word of each block points to next block � Rest of disk block is file data 12

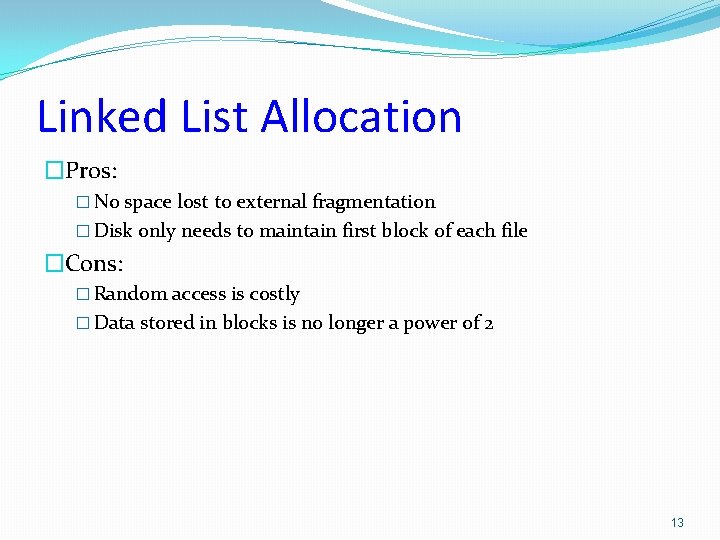

Linked List Allocation �Pros: � No space lost to external fragmentation � Disk only needs to maintain first block of each file �Cons: � Random access is costly � Data stored in blocks is no longer a power of 2 13

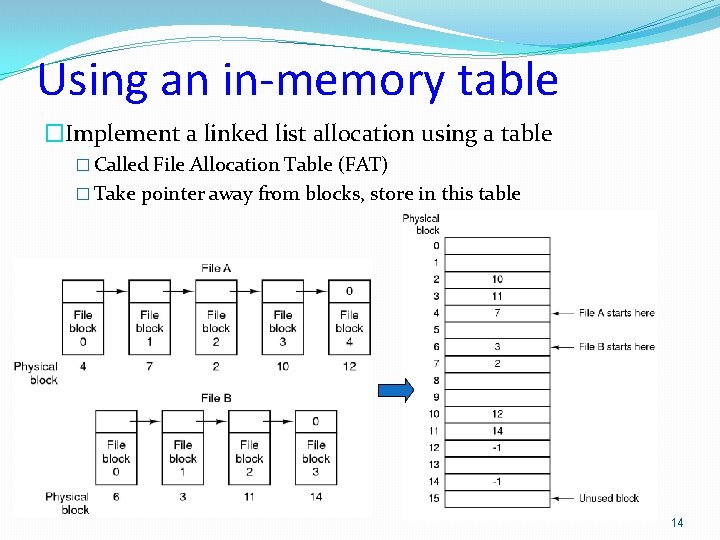

Using an in-memory table �Implement a linked list allocation using a table � Called File Allocation Table (FAT) � Take pointer away from blocks, store in this table 14

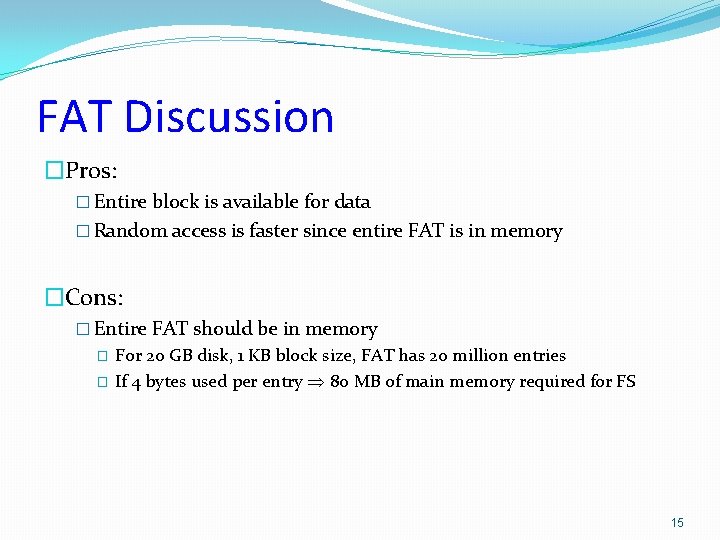

FAT Discussion �Pros: � Entire block is available for data � Random access is faster since entire FAT is in memory �Cons: � Entire FAT should be in memory � � For 20 GB disk, 1 KB block size, FAT has 20 million entries If 4 bytes used per entry 80 MB of main memory required for FS 15

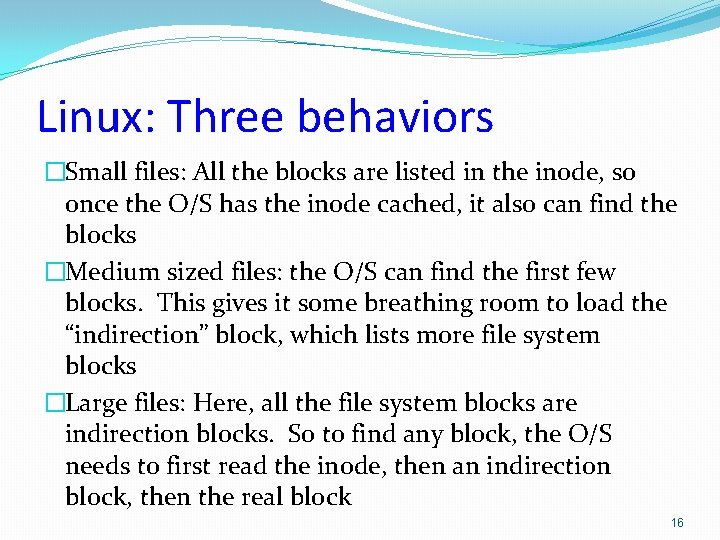

Linux: Three behaviors �Small files: All the blocks are listed in the inode, so once the O/S has the inode cached, it also can find the blocks �Medium sized files: the O/S can find the first few blocks. This gives it some breathing room to load the “indirection” block, which lists more file system blocks �Large files: Here, all the file system blocks are indirection blocks. So to find any block, the O/S needs to first read the inode, then an indirection block, then the real block 16

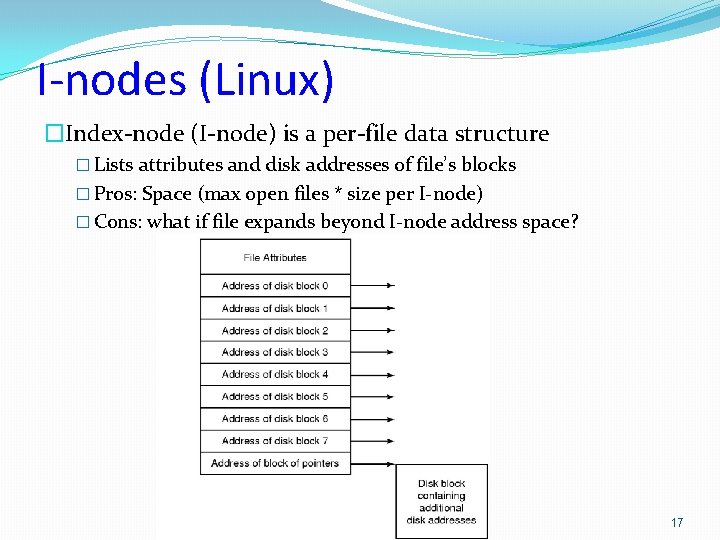

I-nodes (Linux) �Index-node (I-node) is a per-file data structure � Lists attributes and disk addresses of file’s blocks � Pros: Space (max open files * size per I-node) � Cons: what if file expands beyond I-node address space? 17

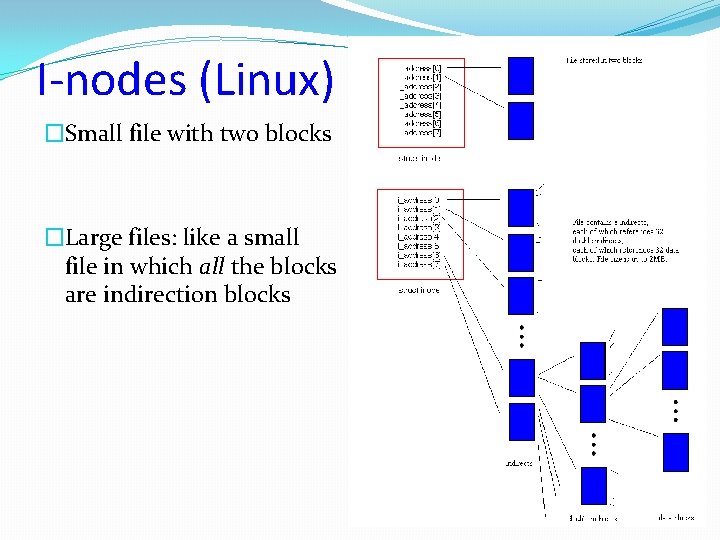

I-nodes (Linux) �Small file with two blocks �Large files: like a small file in which all the blocks are indirection blocks 18

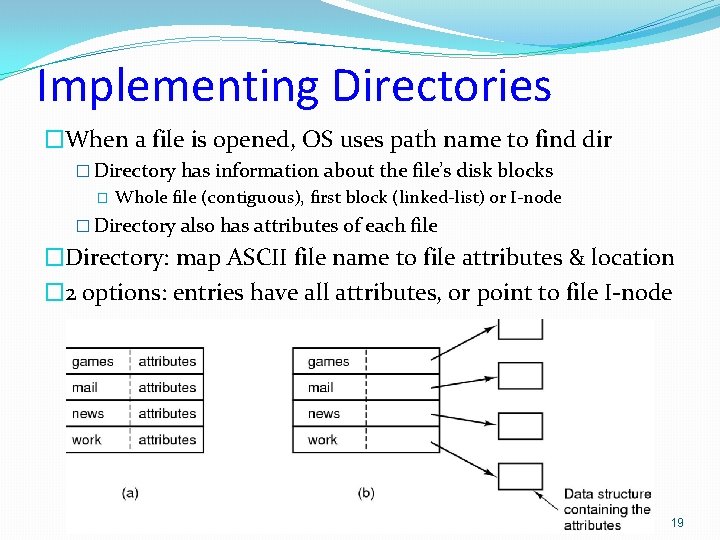

Implementing Directories �When a file is opened, OS uses path name to find dir � Directory has information about the file’s disk blocks � Whole file (contiguous), first block (linked-list) or I-node � Directory also has attributes of each file �Directory: map ASCII file name to file attributes & location � 2 options: entries have all attributes, or point to file I-node 19

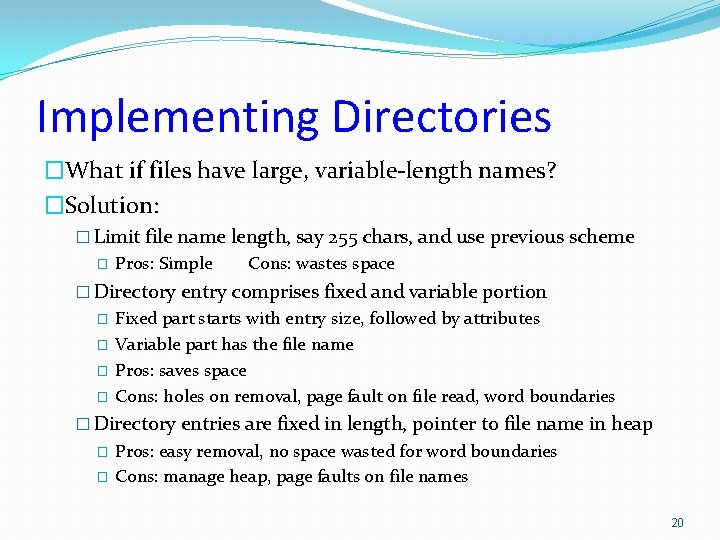

Implementing Directories �What if files have large, variable-length names? �Solution: � Limit file name length, say 255 chars, and use previous scheme � Pros: Simple Cons: wastes space � Directory entry comprises fixed and variable portion � � Fixed part starts with entry size, followed by attributes Variable part has the file name Pros: saves space Cons: holes on removal, page fault on file read, word boundaries � Directory entries are fixed in length, pointer to file name in heap � � Pros: easy removal, no space wasted for word boundaries Cons: manage heap, page faults on file names 20

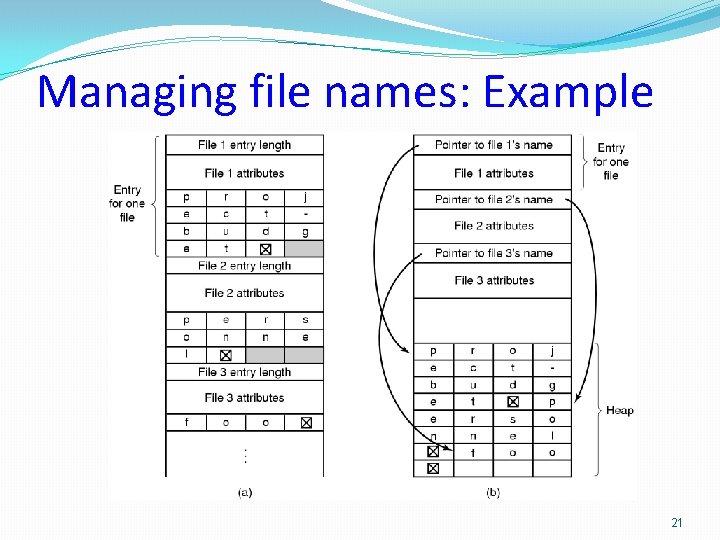

Managing file names: Example 21

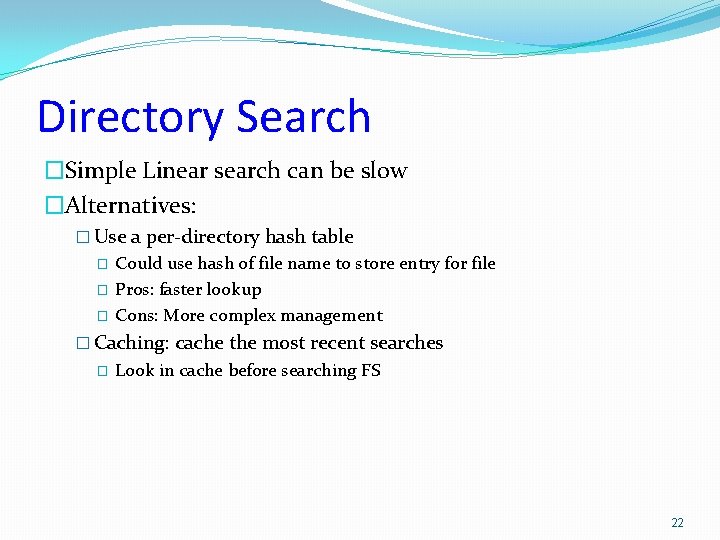

Directory Search �Simple Linear search can be slow �Alternatives: � Use a per-directory hash table � � � Could use hash of file name to store entry for file Pros: faster lookup Cons: More complex management � Caching: cache the most recent searches � Look in cache before searching FS 22

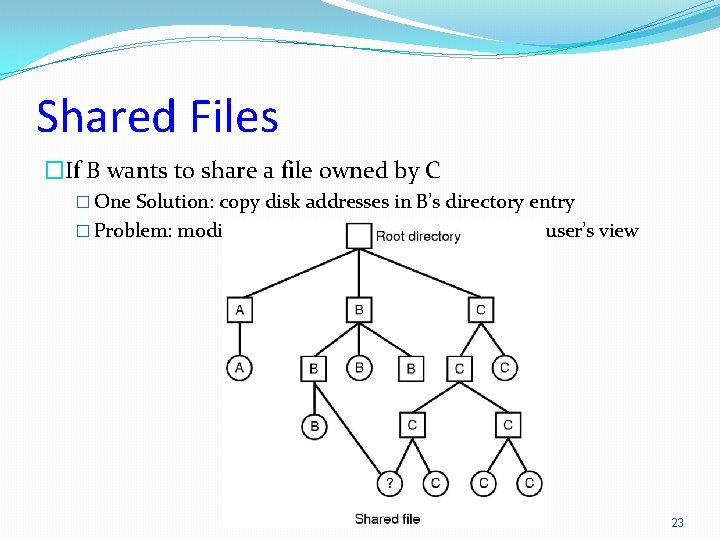

Shared Files �If B wants to share a file owned by C � One Solution: copy disk addresses in B’s directory entry � Problem: modification by one not reflected in other user’s view 23

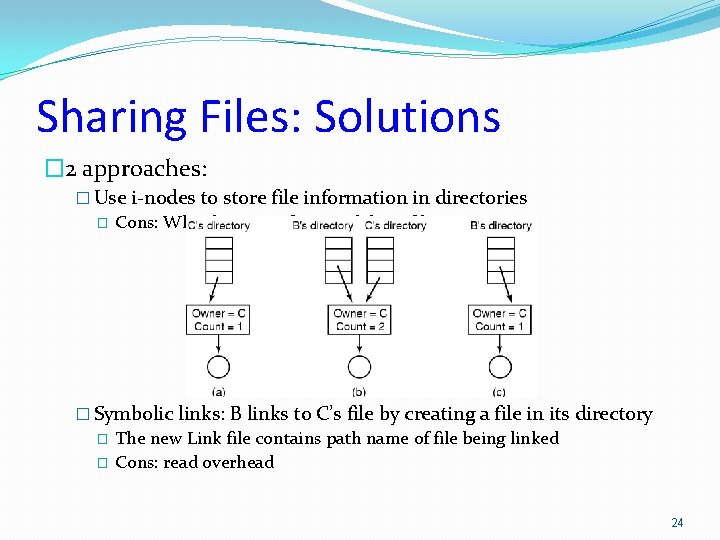

Sharing Files: Solutions � 2 approaches: � Use i-nodes to store file information in directories � Cons: What happens if owner deletes file? � Symbolic links: B links to C’s file by creating a file in its directory � The new Link file contains path name of file being linked � Cons: read overhead 24

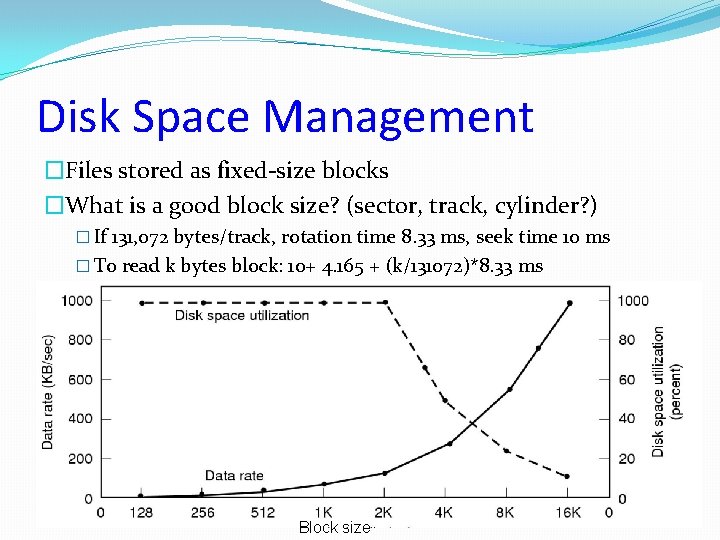

Disk Space Management �Files stored as fixed-size blocks �What is a good block size? (sector, track, cylinder? ) � If 131, 072 bytes/track, rotation time 8. 33 ms, seek time 10 ms � To read k bytes block: 10+ 4. 165 + (k/131072)*8. 33 ms � Median file size: 2 KB Block size 25

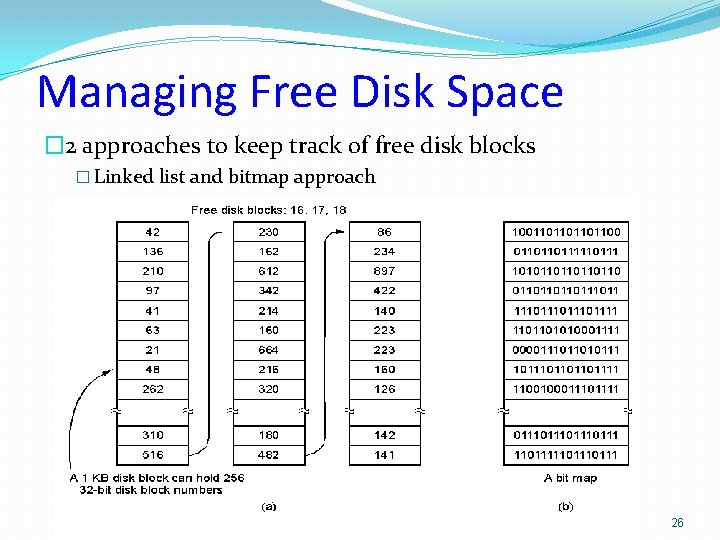

Managing Free Disk Space � 2 approaches to keep track of free disk blocks � Linked list and bitmap approach 26

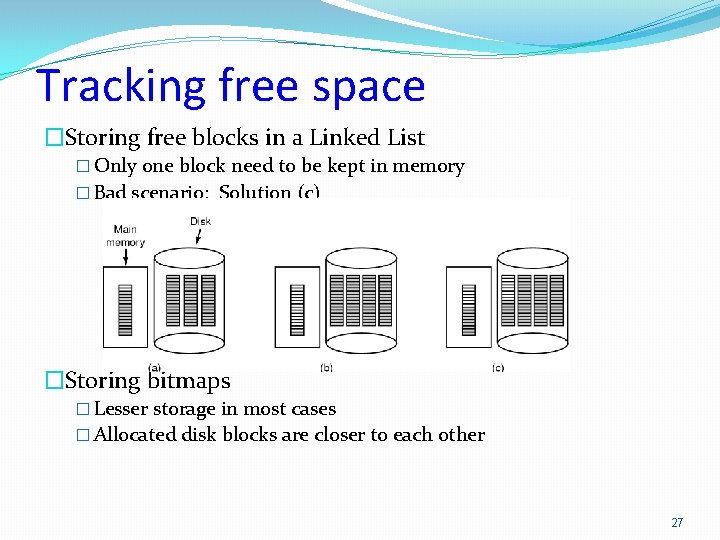

Tracking free space �Storing free blocks in a Linked List � Only one block need to be kept in memory � Bad scenario: Solution (c) �Storing bitmaps � Lesser storage in most cases � Allocated disk blocks are closer to each other 27

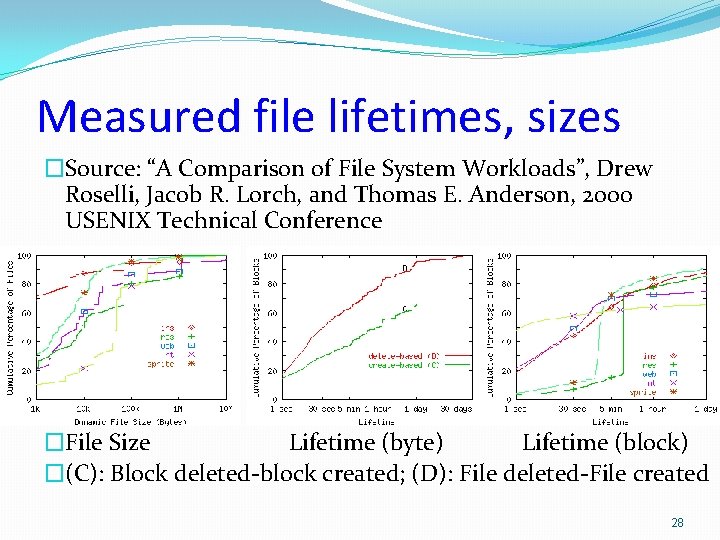

Measured file lifetimes, sizes �Source: “A Comparison of File System Workloads”, Drew Roselli, Jacob R. Lorch, and Thomas E. Anderson, 2000 USENIX Technical Conference �File Size Lifetime (byte) Lifetime (block) �(C): Block deleted-block created; (D): File deleted-File created 28

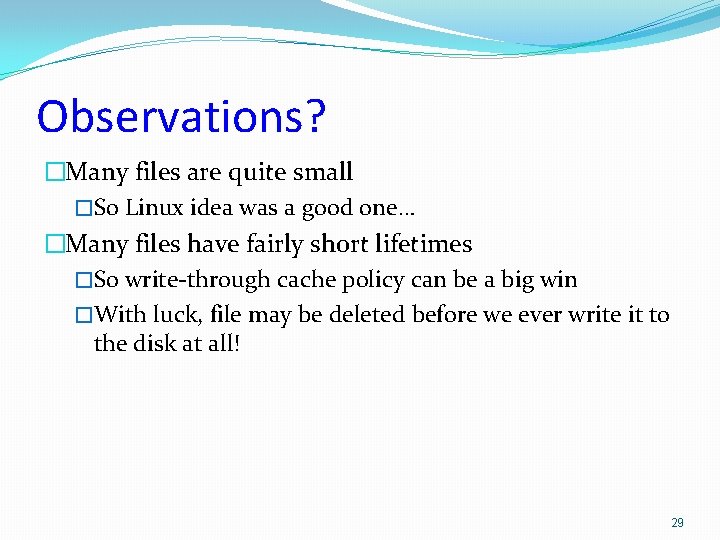

Observations? �Many files are quite small �So Linux idea was a good one… �Many files have fairly short lifetimes �So write-through cache policy can be a big win �With luck, file may be deleted before we ever write it to the disk at all! 29

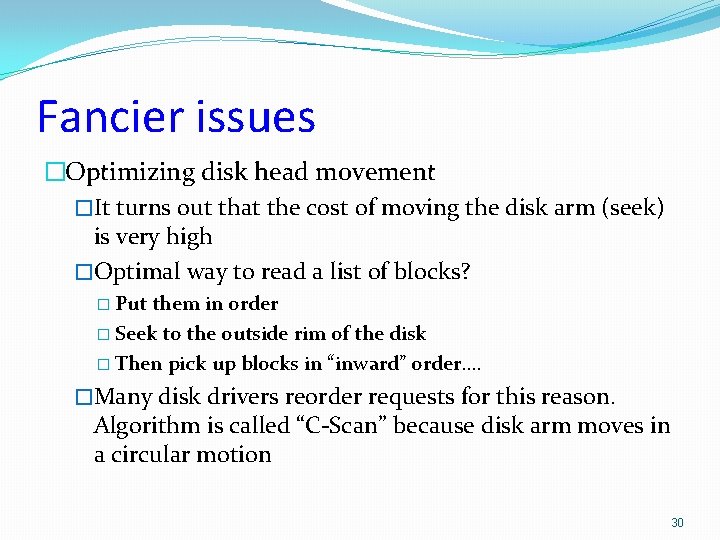

Fancier issues �Optimizing disk head movement �It turns out that the cost of moving the disk arm (seek) is very high �Optimal way to read a list of blocks? � Put them in order � Seek to the outside rim of the disk � Then pick up blocks in “inward” order…. �Many disk drivers reorder requests for this reason. Algorithm is called “C-Scan” because disk arm moves in a circular motion 30

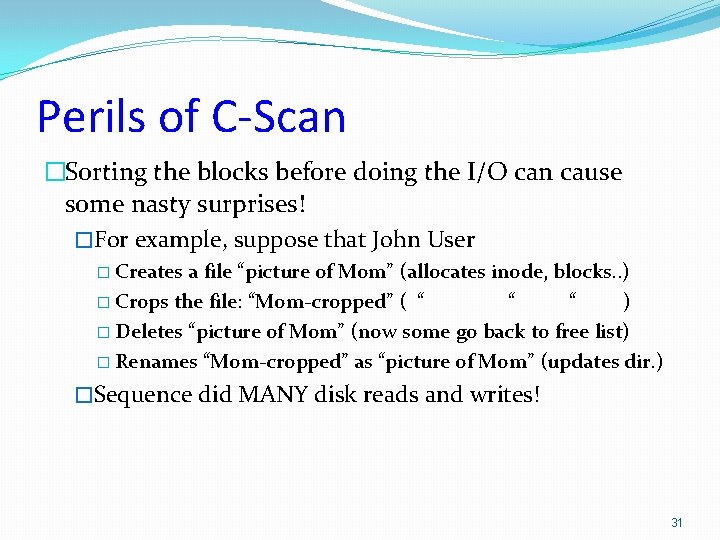

Perils of C-Scan �Sorting the blocks before doing the I/O can cause some nasty surprises! �For example, suppose that John User � Creates a file “picture of Mom” (allocates inode, blocks. . ) � Crops the file: “Mom-cropped” ( “ “ “ ) � Deletes “picture of Mom” (now some go back to free list) � Renames “Mom-cropped” as “picture of Mom” (updates dir. ) �Sequence did MANY disk reads and writes! 31

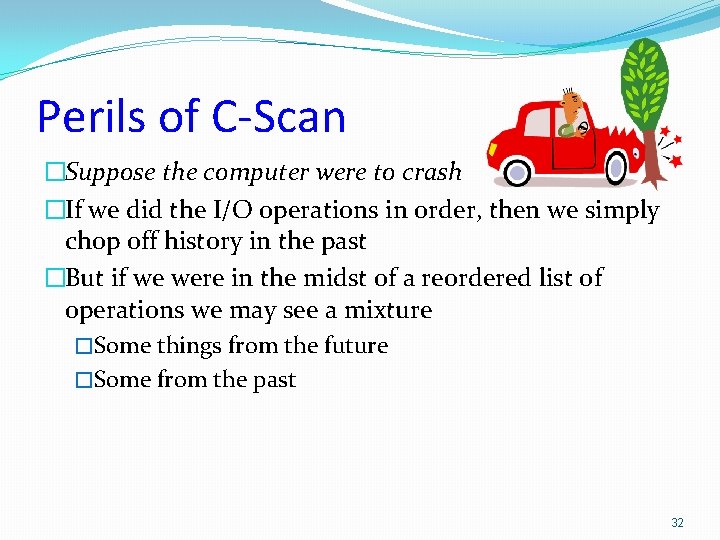

Perils of C-Scan �Suppose the computer were to crash �If we did the I/O operations in order, then we simply chop off history in the past �But if we were in the midst of a re 0 rdered list of operations we may see a mixture �Some things from the future �Some from the past 32

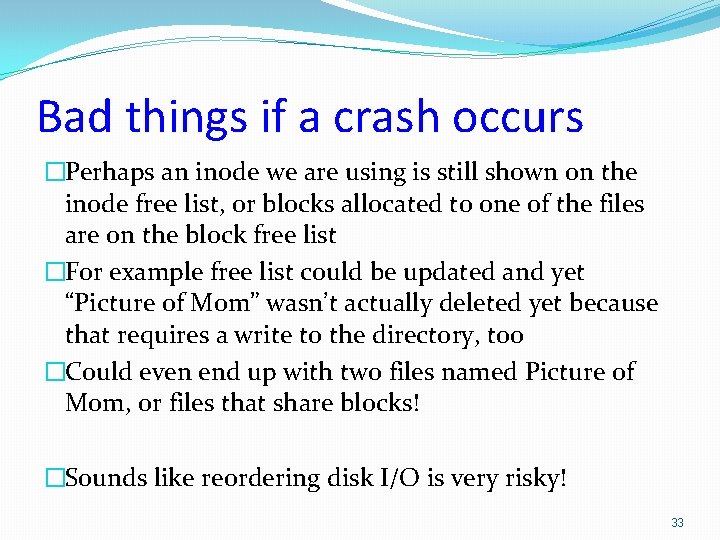

Bad things if a crash occurs �Perhaps an inode we are using is still shown on the inode free list, or blocks allocated to one of the files are on the block free list �For example free list could be updated and yet “Picture of Mom” wasn’t actually deleted yet because that requires a write to the directory, too �Could even end up with two files named Picture of Mom, or files that share blocks! �Sounds like reordering disk I/O is very risky! 33

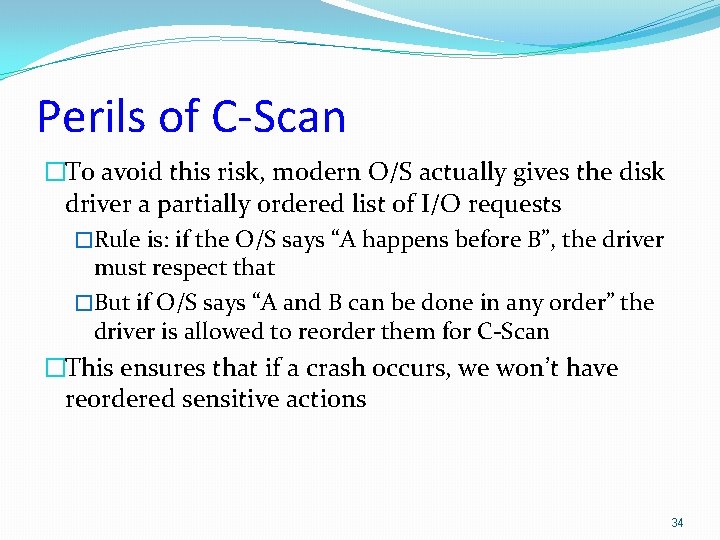

Perils of C-Scan �To avoid this risk, modern O/S actually gives the disk driver a partially ordered list of I/O requests �Rule is: if the O/S says “A happens before B”, the driver must respect that �But if O/S says “A and B can be done in any order” the driver is allowed to reorder them for C-Scan �This ensures that if a crash occurs, we won’t have reordered sensitive actions 34
