FILCO sizing for thermoplastic reinforcement 113 2016 FILCO

FILCO: sizing for thermoplastic reinforcement 浸润剂用于 增强热塑性 1/13 2016

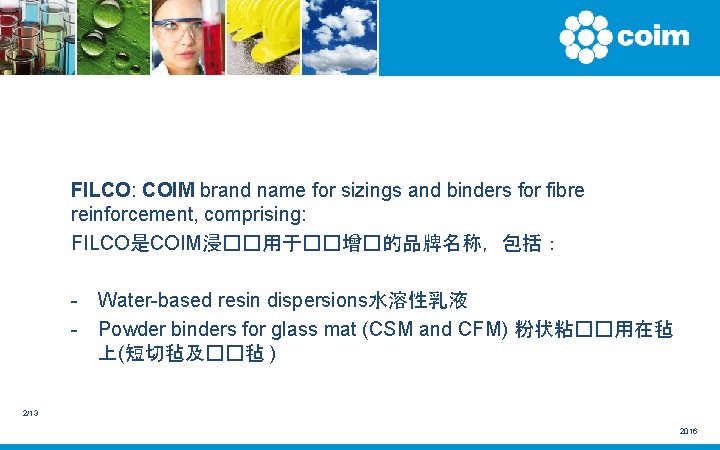

FILCO: COIM brand name for sizings and binders for fibre reinforcement, comprising: FILCO是COIM浸��用于��增�的品牌名称，包括： - Water-based resin dispersions水溶性乳液 - Powder binders for glass mat (CSM and CFM) 粉状粘��用在毡 上(短切毡及��毡 ) 2/13 2016

FILCO water-based emulsions and dispersions 水性乳液和分散液 Non-ionic or partially anionic emulsions and dispersions obtained via phase-inversion emulsification of taylor-made resins: 通过订造的树脂的相转化乳化得到的非离子型或部份阴离子乳液和分散液: 3/13 Unsaturated polyester resins不饱和聚酯 Saturated polyester resins饱和聚酯 Pure epoxies纯环氧树脂 Modified epoxies改性环氧树脂 Hybrid resins混合树脂 2016

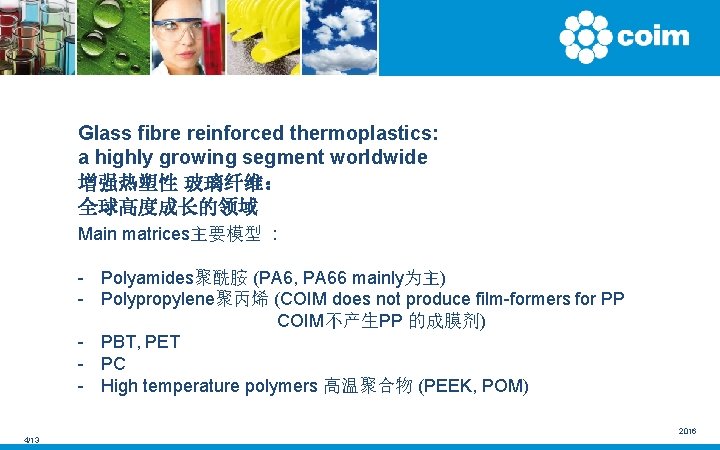

Glass fibre reinforced thermoplastics: a highly growing segment worldwide 增强热塑性 玻璃纤维： 全球高度成长的领域 Main matrices主要模型 : - Polyamides聚酰胺 (PA 6, PA 66 mainly为主) - Polypropylene聚丙烯 (COIM does not produce film-formers for PP COIM不产生PP 的成膜剂) - PBT, PET - PC - High temperature polymers 高温聚合物 (PEEK, POM) 4/13 2016

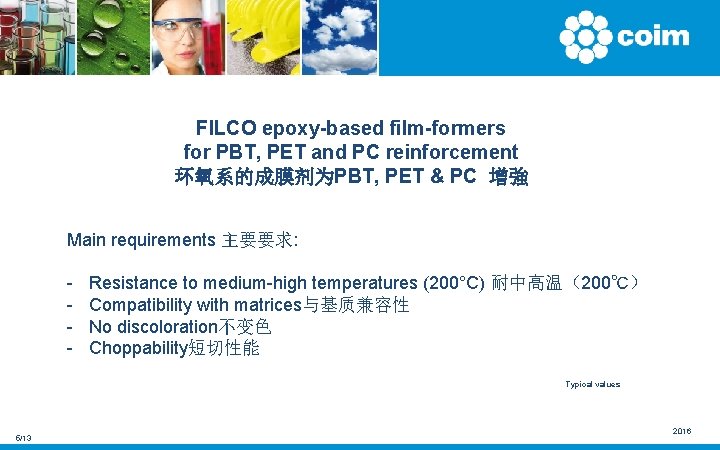

FILCO epoxy-based film-formers for PBT, PET and PC reinforcement 环氧系的成膜剂为PBT, PET & PC 增強 Main requirements 主要要求: - Resistance to medium-high temperatures (200°C) 耐中高温（200℃） Compatibility with matrices与基质兼容性 No discoloration不变色 Choppability短切性能 Typical values 5/13 2016

Product 产品 性质 固含量 分子大小 EEW 环氧当量 FILCO 394 Tough and flexible 坚韧有弹性 55 % 8 600 nm 30°C 1800 g/eq FILCO 74012 VOC-free不含甲醛 55 % 7 500 nm 30°C 1800 g/eq FILCO 7875 Pure epoxy纯环氧 55 % 7 400 nm 22°C 580 g/eq FILCO 74015 Epoxy-ester 环氧酯类 42 % 7 300 nm 20°C 800 g/eq Tough and flexible 坚韧有弹性 55 % FILCO 8002 6/13 FILCO epoxy-based film-formers for PBT, PET and PC reinforcement 环氧系的成膜剂为PBT, PET & PC 增強 t p. H Characteristi Solid Content Particle Size Tg Typical values 8, 5 300 nm 15°C 900 g/eq 2016

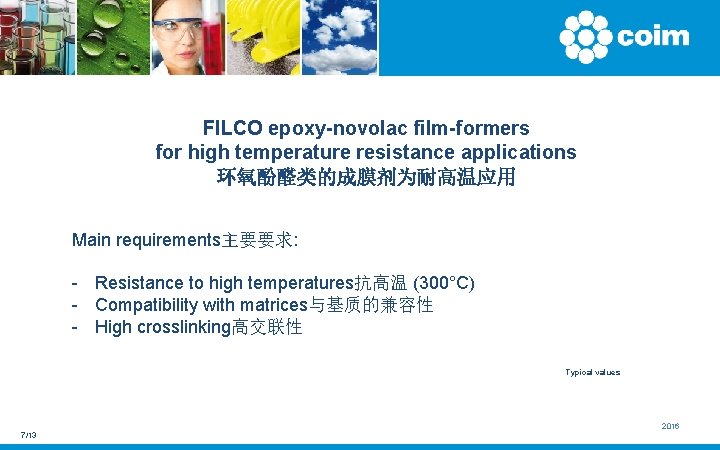

FILCO epoxy-novolac film-formers for high temperature resistance applications 环氧酚醛类的成膜剂为耐高温应用 Main requirements主要要求: - Resistance to high temperatures抗高温 (300°C) - Compatibility with matrices与基质的兼容性 - High crosslinking高交联性 Typical values 7/13 2016

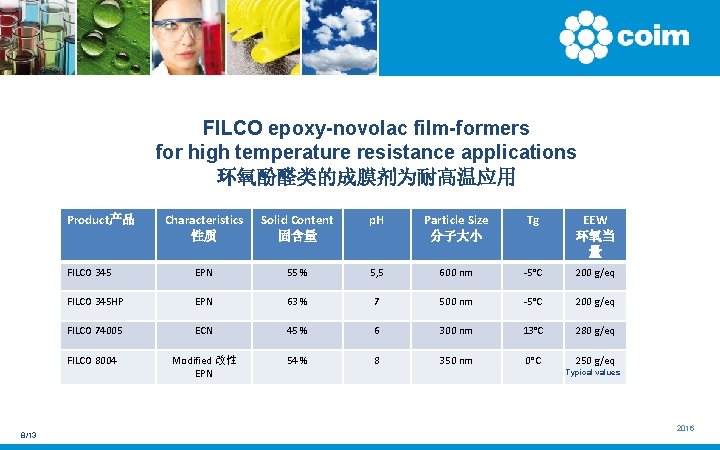

FILCO epoxy-novolac film-formers for high temperature resistance applications 环氧酚醛类的成膜剂为耐高温应用 Product产品 8/13 Characteristics 性质 Solid Content 固含量 p. H Particle Size 分子大小 Tg EEW 环氧当 量 FILCO 345 EPN 55 % 5, 5 600 nm -5°C 200 g/eq FILCO 345 HP EPN 63 % 7 500 nm -5°C 200 g/eq FILCO 74005 ECN 45 % 6 300 nm 13°C 280 g/eq FILCO 8004 Modified 改性 EPN 54 % 8 350 nm 0°C 250 g/eq Typical values 2016

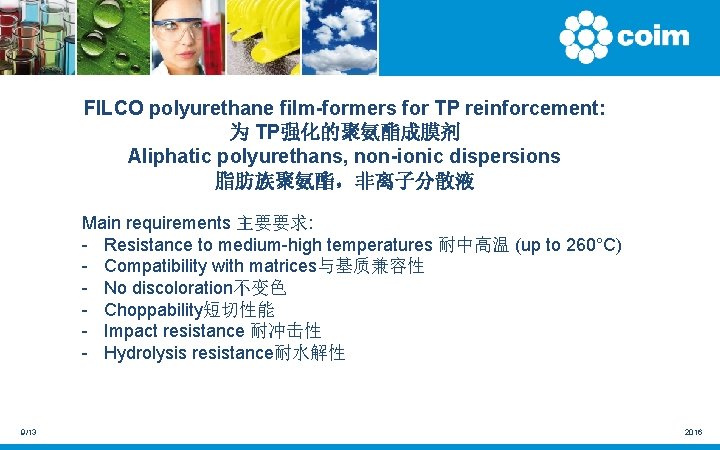

FILCO polyurethane film-formers for TP reinforcement: 为 TP强化的聚氨酯成膜剂 Aliphatic polyurethans, non-ionic dispersions 脂肪族聚氨酯，非离子分散液 Main requirements 主要要求: - Resistance to medium-high temperatures 耐中高温 (up to 260°C) - Compatibility with matrices与基质兼容性 - No discoloration不变色 - Choppability短切性能 - Impact resistance 耐冲击性 - Hydrolysis resistance耐水解性 9/13 2016

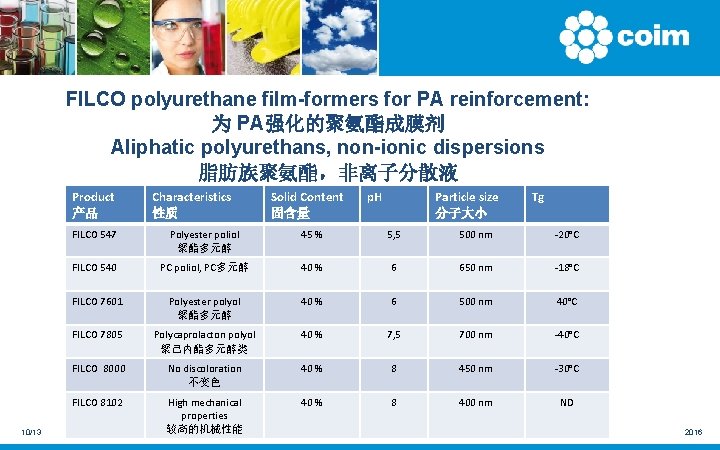

FILCO polyurethane film-formers for PA reinforcement: 为 PA强化的聚氨酯成膜剂 Aliphatic polyurethans, non-ionic dispersions 脂肪族聚氨酯，非离子分散液 Product 产品 10/13 Characteristics 性质 Solid Content 固含量 p. H Particle size 分子大小 Tg FILCO 547 Polyester poliol 聚酯多元醇 45 % 5, 5 500 nm -20°C FILCO 540 PC poliol, PC多元醇 40 % 6 650 nm -18°C FILCO 7601 Polyester polyol 聚酯多元醇 40 % 6 500 nm 40°C FILCO 7805 Polycaprolacton polyol 聚己内酯多元醇类 40 % 7, 5 700 nm -40°C FILCO 8000 No discoloration 不变色 40 % 8 450 nm -30°C FILCO 8102 High mechanical properties 较高的机械性能 40 % 8 400 nm ND 2016

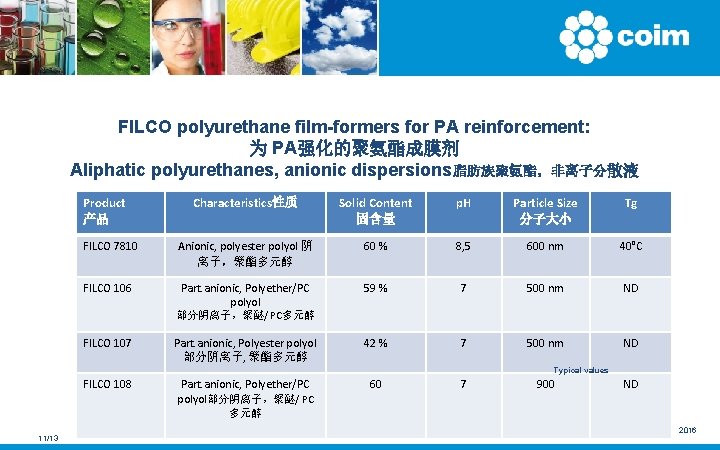

FILCO polyurethane film-formers for PA reinforcement: 为 PA强化的聚氨酯成膜剂 Aliphatic polyurethanes, anionic dispersions脂肪族聚氨酯，非离子分散液 Product 产品 Characteristics性质 Solid Content 固含量 p. H Particle Size 分子大小 Tg FILCO 7810 Anionic, polyester polyol 阴 离子，聚酯多元醇 60 % 8, 5 600 nm 40°C FILCO 106 Part. anionic, Polyether/PC polyol 59 % 7 500 nm ND Part. anionic, Polyester polyol 部分阴离子, 聚酯多元醇 42 % 7 500 nm ND 部分阴离子，聚醚/ PC多元醇 FILCO 107 Typical values FILCO 108 Part. anionic, Polyether/PC polyol部分阴离子，聚醚/ PC 60 7 900 ND 多元醇 11/13 2016

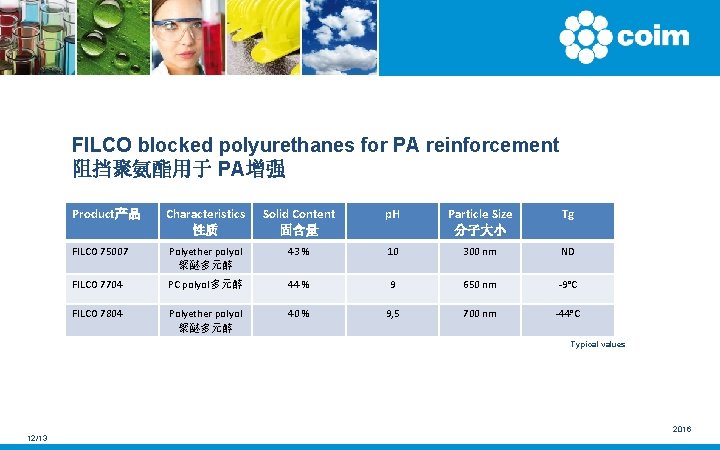

FILCO blocked polyurethanes for PA reinforcement 阻挡聚氨酯用于 PA增强 Product产品 Characteristics 性质 Solid Content 固含量 p. H Particle Size 分子大小 Tg FILCO 75007 Polyether polyol 聚醚多元醇 43 % 10 300 nm ND FILCO 7704 PC polyol多元醇 44 % 9 650 nm -9°C FILCO 7804 Polyether polyol 聚醚多元醇 40 % 9, 5 700 nm -44°C Typical values 12/13 2016

Thank you for your attention 感谢您的关注！ 2016
