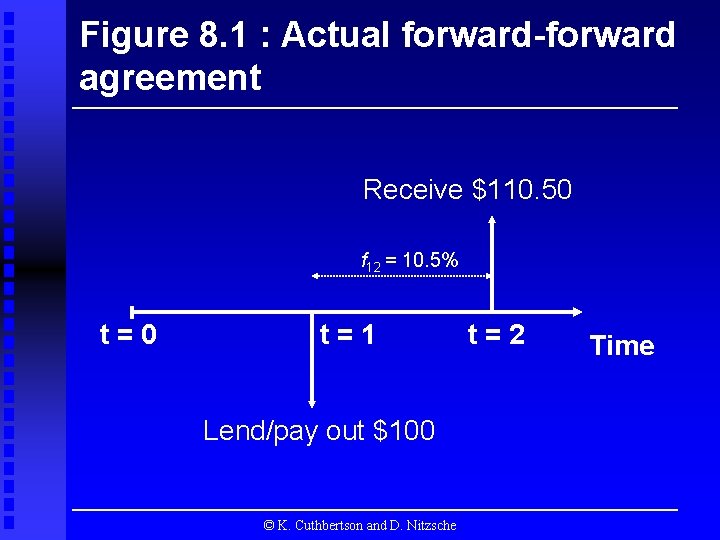

Figure 8. 1 : Actual forward-forward agreement Receive $110. 50 f 12 = 10. 5% t=0 t=1 Lend/pay out $100 © K. Cuthbertson and D. Nitzsche t=2 Time

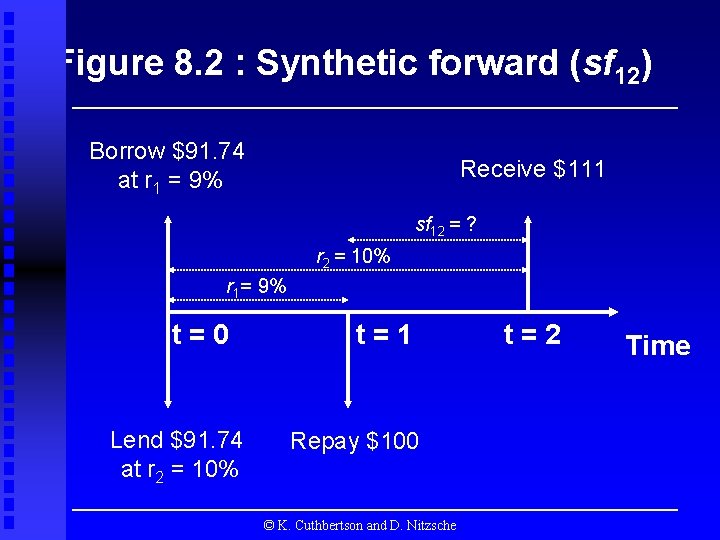

Figure 8. 2 : Synthetic forward (sf 12) Borrow $91. 74 at r 1 = 9% Receive $111 sf 12 = ? r 2 = 10% r 1= 9% t=0 Lend $91. 74 at r 2 = 10% t=1 Repay $100 © K. Cuthbertson and D. Nitzsche t=2 Time

Figure 8. 3 : Synthetic forward rate (sf 12) Difference (year-1) = 10% - 9% = 1% sf 12 = 10% + (10% - 9%) = 2 r 2 - r 1 = 9% sf 12 = 11% r 2 = 10% t=0 t=1 t=2 Time sf 12 plus 1 -year investment at r 1 yields the same dollar amount as the 2 -year investment at r 2. © K. Cuthbertson and D. Nitzsche

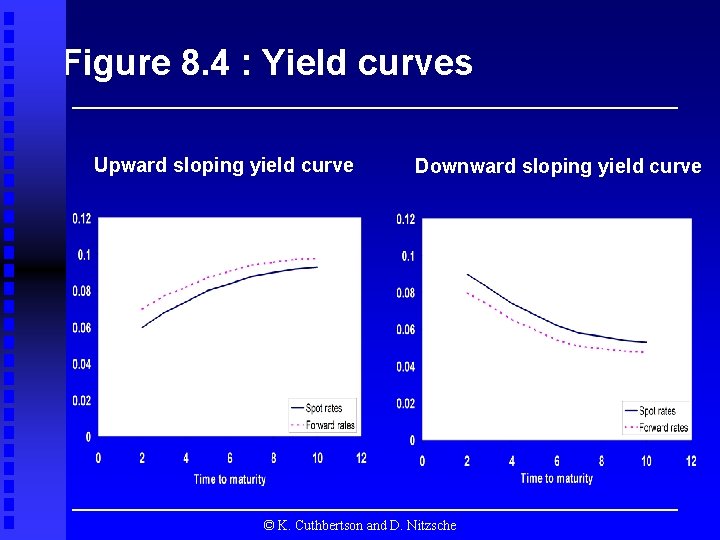

Figure 8. 4 : Yield curves Upward sloping yield curve Downward sloping yield curve © K. Cuthbertson and D. Nitzsche

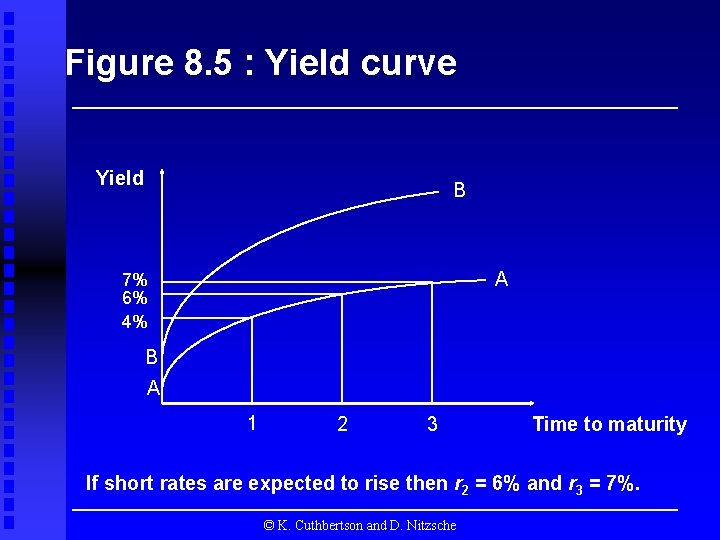

Figure 8. 5 : Yield curve Yield B A 7% 6% 4% B A 1 2 3 Time to maturity If short rates are expected to rise then r 2 = 6% and r 3 = 7%. © K. Cuthbertson and D. Nitzsche

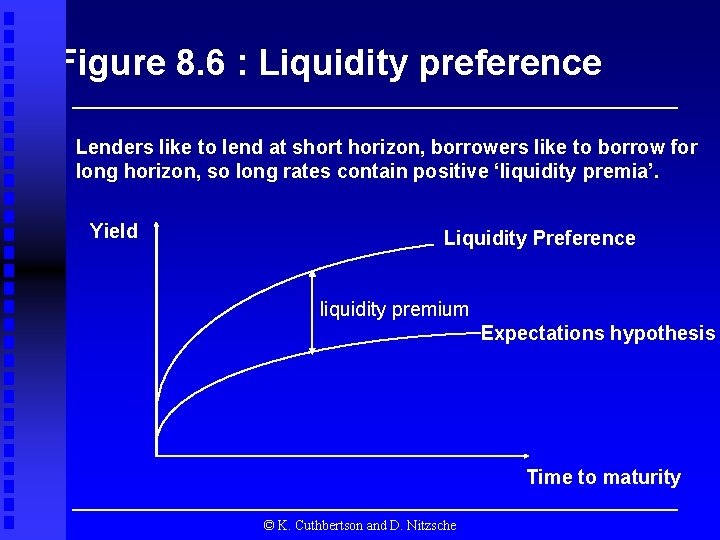

Figure 8. 6 : Liquidity preference Lenders like to lend at short horizon, borrowers like to borrow for long horizon, so long rates contain positive ‘liquidity premia’. Yield Liquidity Preference liquidity premium Expectations hypothesis Time to maturity © K. Cuthbertson and D. Nitzsche
