Figures and Tables excerpted from Business Dynamics: Systems Thinking and Modeling for a Complex World Chapter 9 Dynamics of Growth_ S Shape Growth John D. Sterman Massachusetts Institute of Technology Sloan School of Management Figures and Tables excerpted from BUSINESS DYNAMICS: SYSTEMS THINKING AND MODELING FOR A COMPLEX WORLD John D. Sterman Published by Irwin/Mc. Graw-Hill, an imprint of the Mc. Graw-Hill Companies, Inc. , 1221 Avenue of the Americas, New York, NY 10020. Copyright 2001 by the Mc. Graw-Hill Companies, Inc. All rights reserved. The contents, or parts thereof, may be reproduced in print form solely for classroom use with BUSINESS DYNAMICS: SYSTEMS THINKING AND MODELING FOR A COMPLEX WORLD provided such reproductions bear copyright notice, but may not be reproduced in any other form or for any other purpose without the prior written consent the Mc. Graw-Hill Companies, Inc. , including, but not limited to, in any network or other electronic storage or transmission, or broadcast for distance learning. Business Dynamics

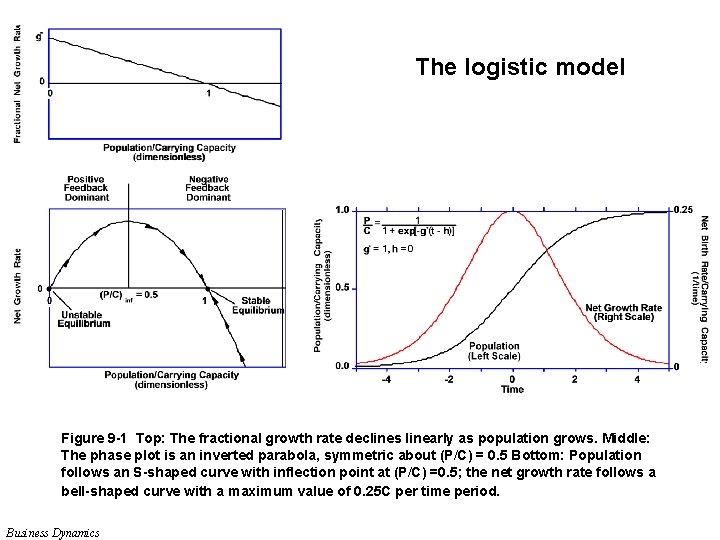

The logistic model Figure 9 -1 Top: The fractional growth rate declines linearly as population grows. Middle: The phase plot is an inverted parabola, symmetric about (P/C) = 0. 5 Bottom: Population follows an S-shaped curve with inflection point at (P/C) =0. 5; the net growth rate follows a bell-shaped curve with a maximum value of 0. 25 C per time period. Business Dynamics

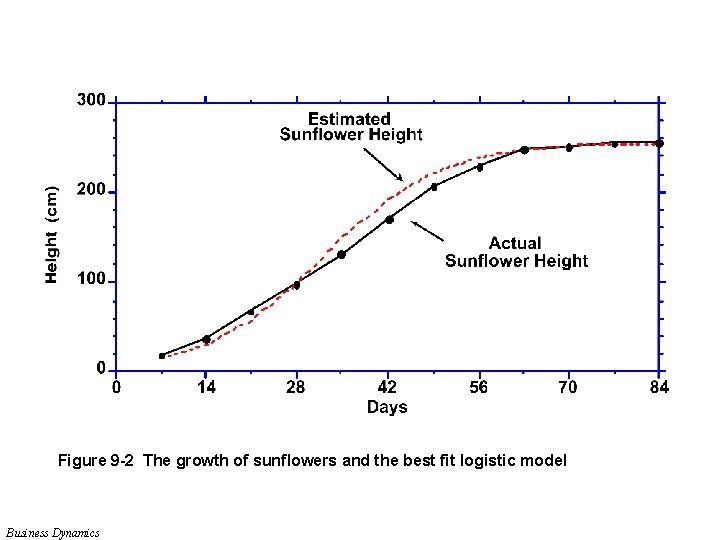

Figure 9 -2 The growth of sunflowers and the best fit logistic model Business Dynamics

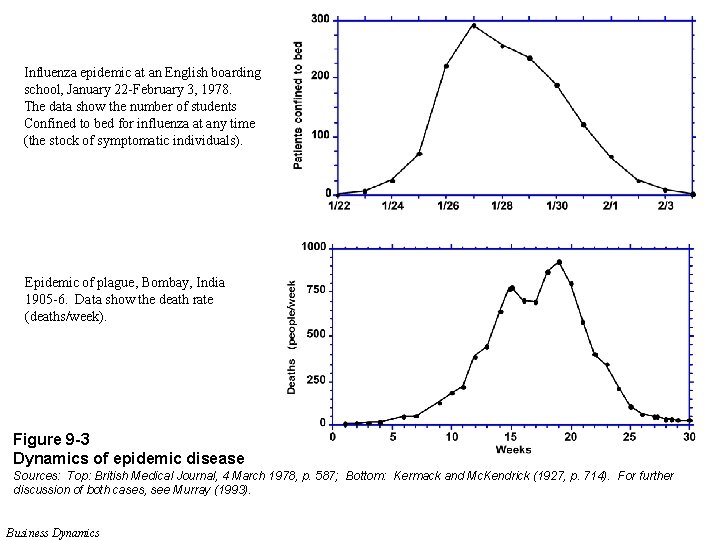

Influenza epidemic at an English boarding school, January 22 -February 3, 1978. The data show the number of students Confined to bed for influenza at any time (the stock of symptomatic individuals). Epidemic of plague, Bombay, India 1905 -6. Data show the death rate (deaths/week). Figure 9 -3 Dynamics of epidemic disease Sources: Top: British Medical Journal, 4 March 1978, p. 587; Bottom: Kermack and Mc. Kendrick (1927, p. 714). For further discussion of both cases, see Murray (1993). Business Dynamics

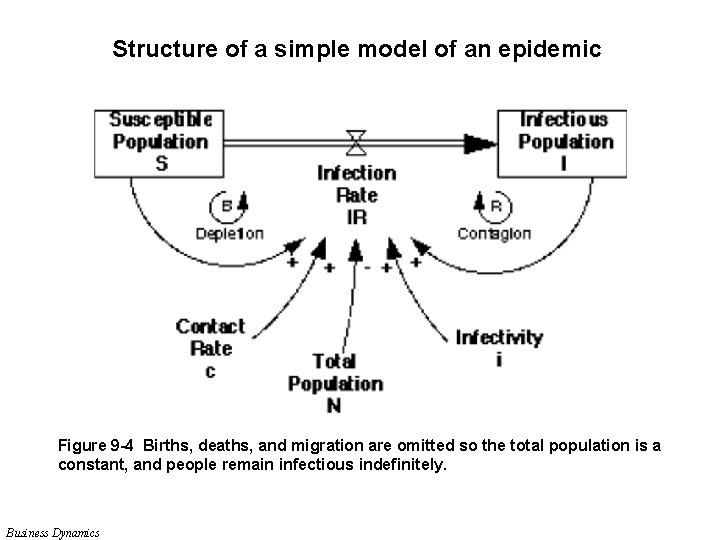

Structure of a simple model of an epidemic Figure 9 -4 Births, deaths, and migration are omitted so the total population is a constant, and people remain infectious indefinitely. Business Dynamics

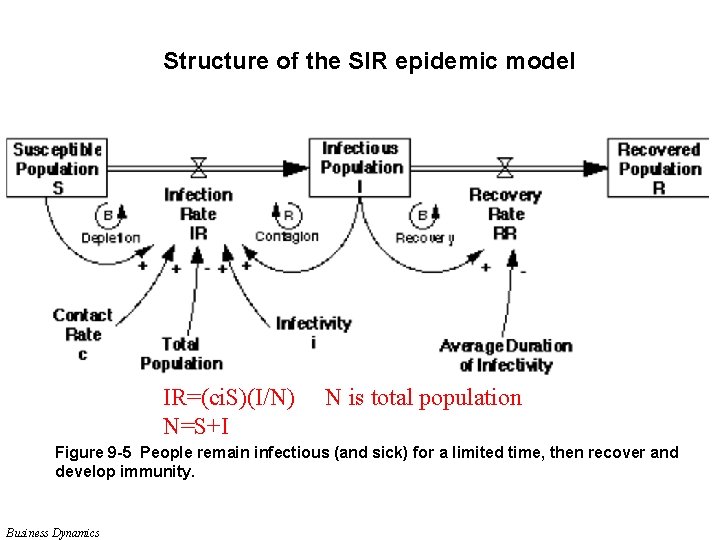

Structure of the SIR epidemic model IR=(ci. S)(I/N) N=S+I N is total population Figure 9 -5 People remain infectious (and sick) for a limited time, then recover and develop immunity. Business Dynamics

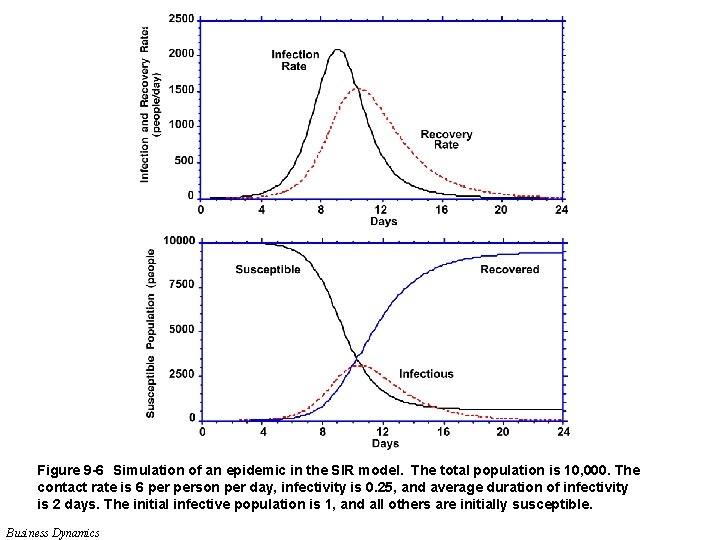

Figure 9 -6 Simulation of an epidemic in the SIR model. The total population is 10, 000. The contact rate is 6 person per day, infectivity is 0. 25, and average duration of infectivity is 2 days. The initial infective population is 1, and all others are initially susceptible. Business Dynamics

Epidemic dynamics for different contact rates Figure 9 -7 The contact rate is noted on each curve; all other parameters are as in Figure 9 -6. Business Dynamics

Figure 9 -8 Dependence of the tipping point on the contact number and susceptible population Business Dynamics

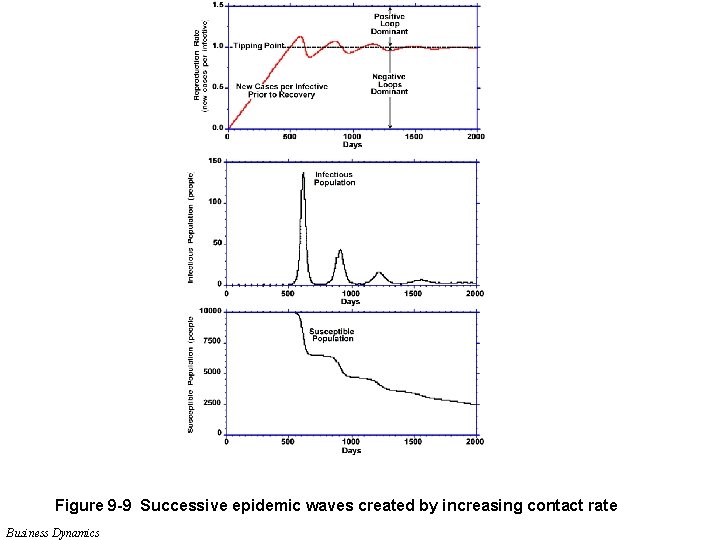

Figure 9 -9 Successive epidemic waves created by increasing contact rate Business Dynamics

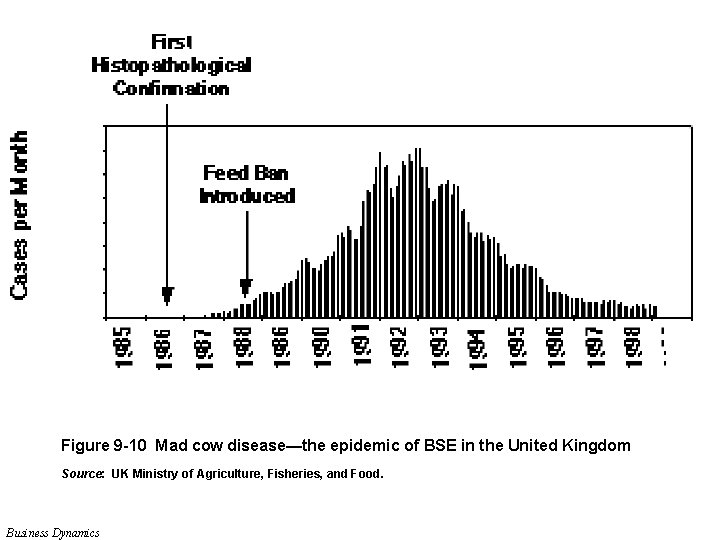

Figure 9 -10 Mad cow disease—the epidemic of BSE in the United Kingdom Source: UK Ministry of Agriculture, Fisheries, and Food. Business Dynamics

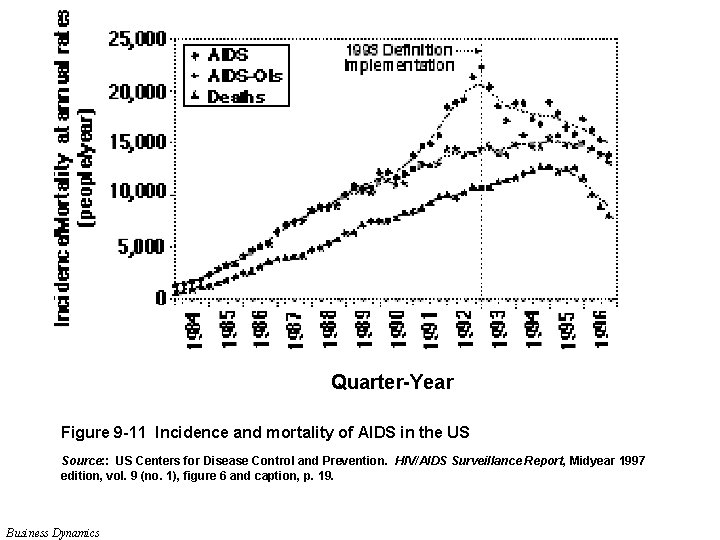

Quarter-Year Figure 9 -11 Incidence and mortality of AIDS in the US Source: : US Centers for Disease Control and Prevention. HIV/AIDS Surveillance Report, Midyear 1997 edition, vol. 9 (no. 1), figure 6 and caption, p. 19. Business Dynamics

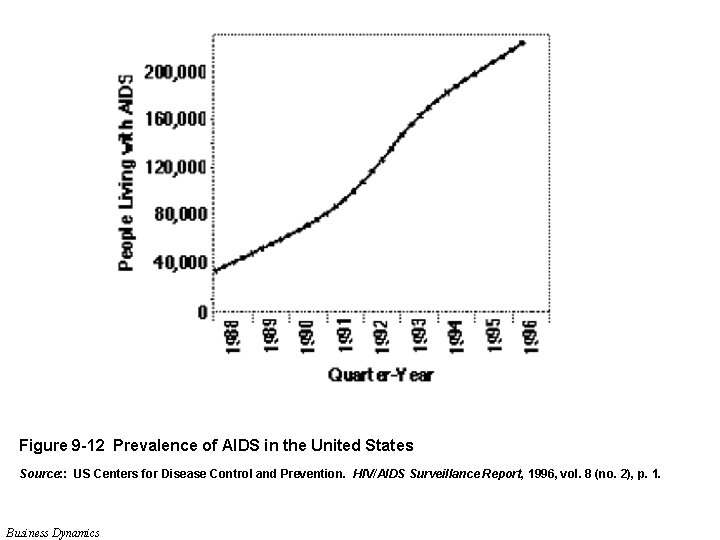

Figure 9 -12 Prevalence of AIDS in the United States Source: : US Centers for Disease Control and Prevention. HIV/AIDS Surveillance Report, 1996, vol. 8 (no. 2), p. 1. Business Dynamics

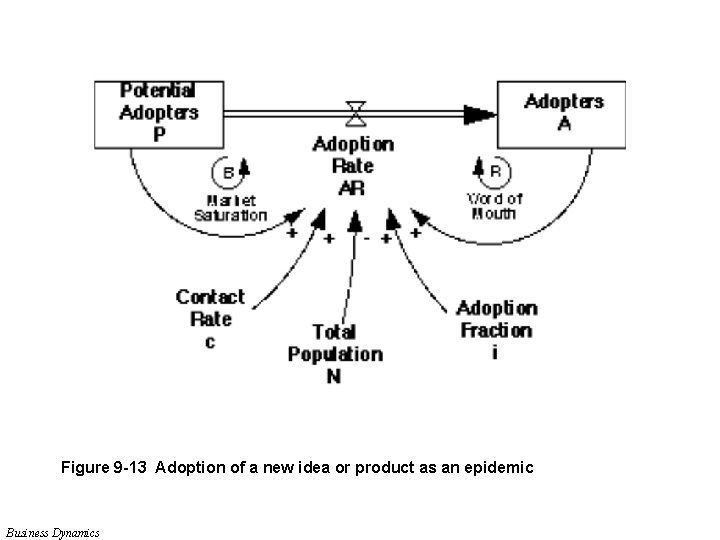

Figure 9 -13 Adoption of a new idea or product as an epidemic Business Dynamics

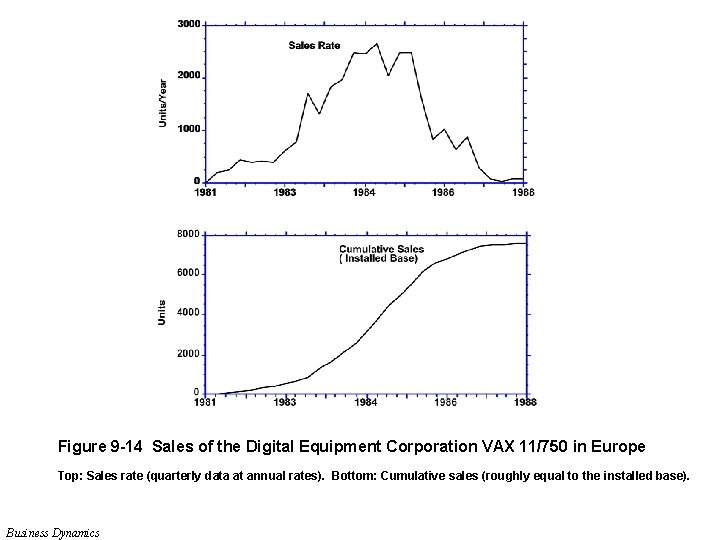

Figure 9 -14 Sales of the Digital Equipment Corporation VAX 11/750 in Europe Top: Sales rate (quarterly data at annual rates). Bottom: Cumulative sales (roughly equal to the installed base). Business Dynamics

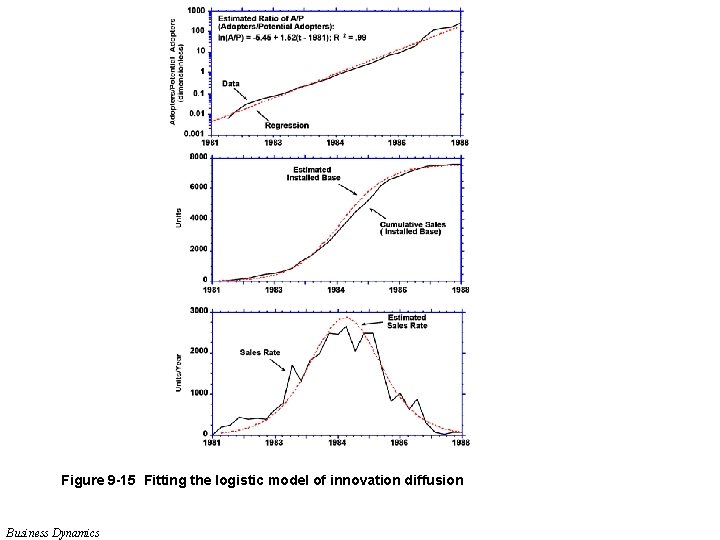

Figure 9 -15 Fitting the logistic model of innovation diffusion Business Dynamics

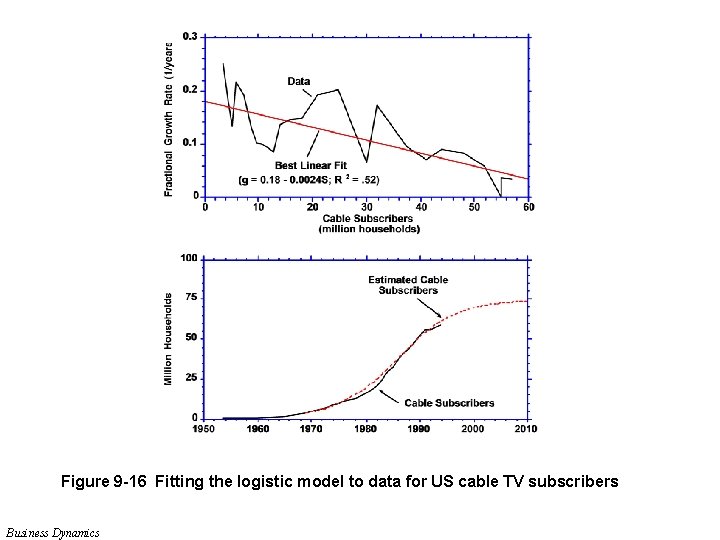

Figure 9 -16 Fitting the logistic model to data for US cable TV subscribers Business Dynamics

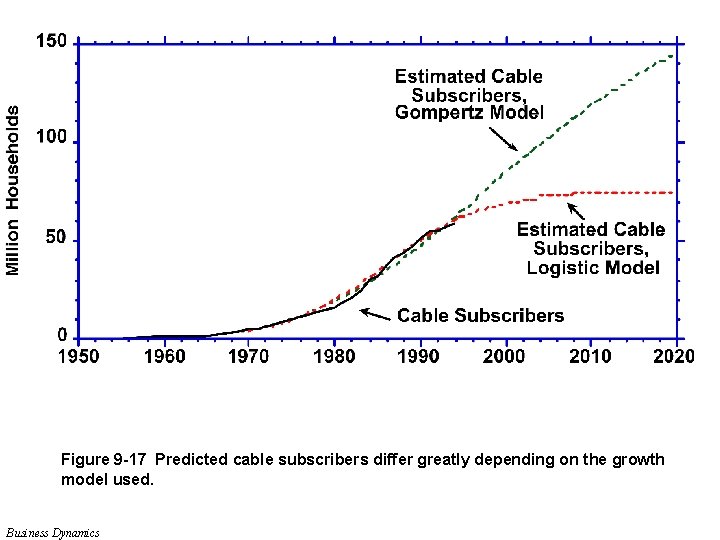

Figure 9 -17 Predicted cable subscribers differ greatly depending on the growth model used. Business Dynamics

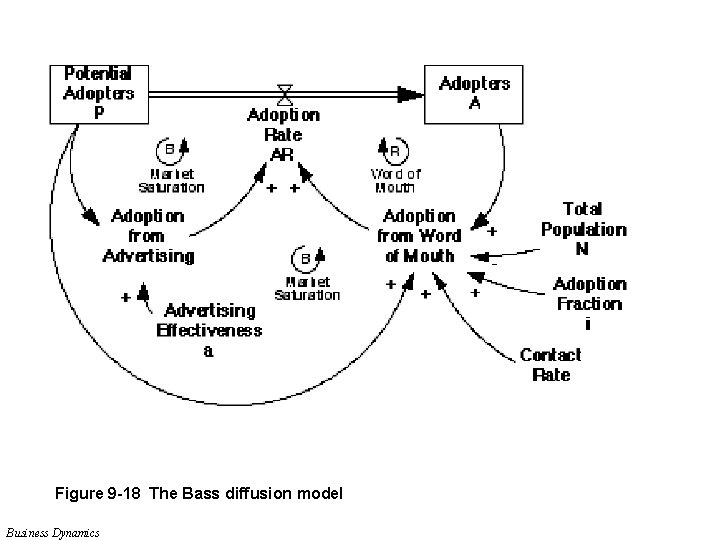

Figure 9 -18 The Bass diffusion model Business Dynamics

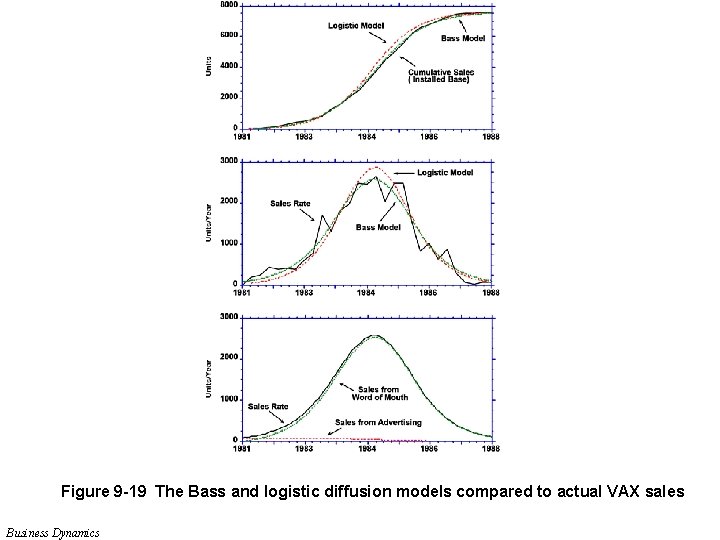

Figure 9 -19 The Bass and logistic diffusion models compared to actual VAX sales Business Dynamics

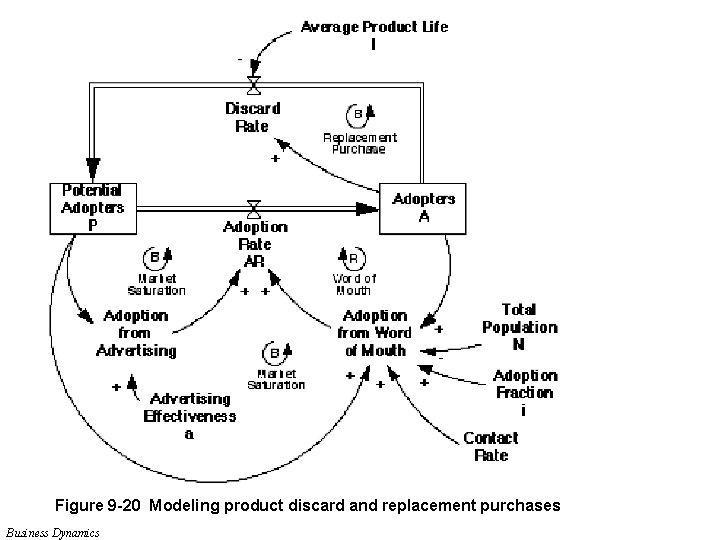

Figure 9 -20 Modeling product discard and replacement purchases Business Dynamics

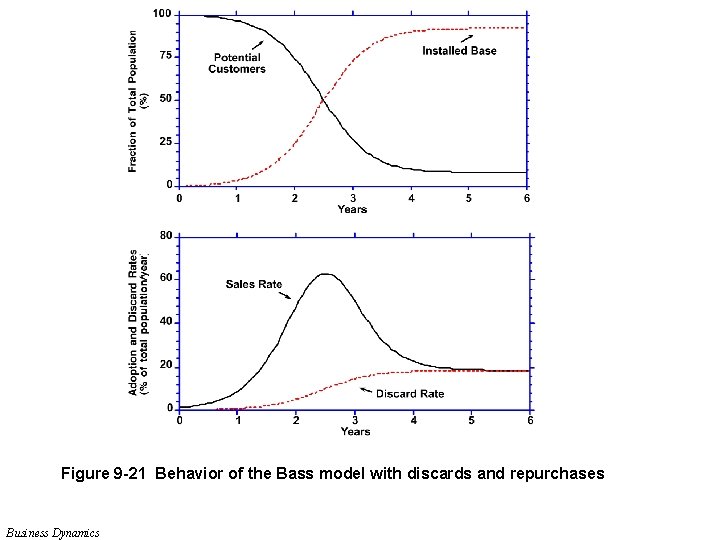

Figure 9 -21 Behavior of the Bass model with discards and repurchases Business Dynamics

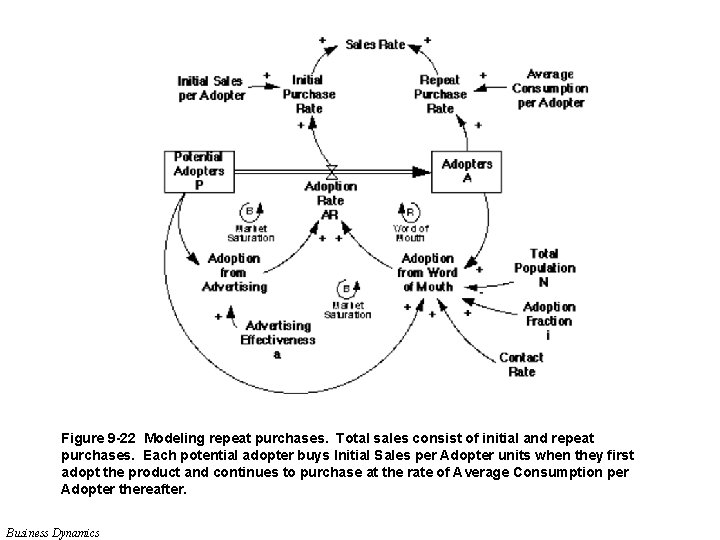

Figure 9 -22 Modeling repeat purchases. Total sales consist of initial and repeat purchases. Each potential adopter buys Initial Sales per Adopter units when they first adopt the product and continues to purchase at the rate of Average Consumption per Adopter thereafter. Business Dynamics

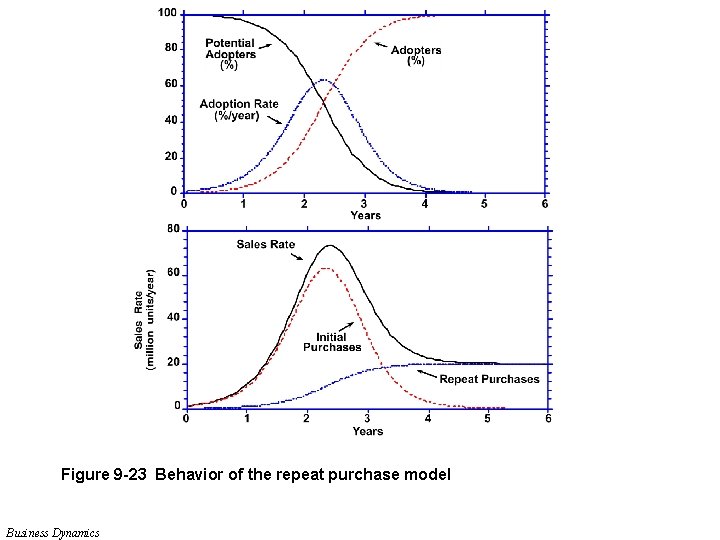

Figure 9 -23 Behavior of the repeat purchase model Business Dynamics
