Resolution of biological objects

Capturing and interpreting light images

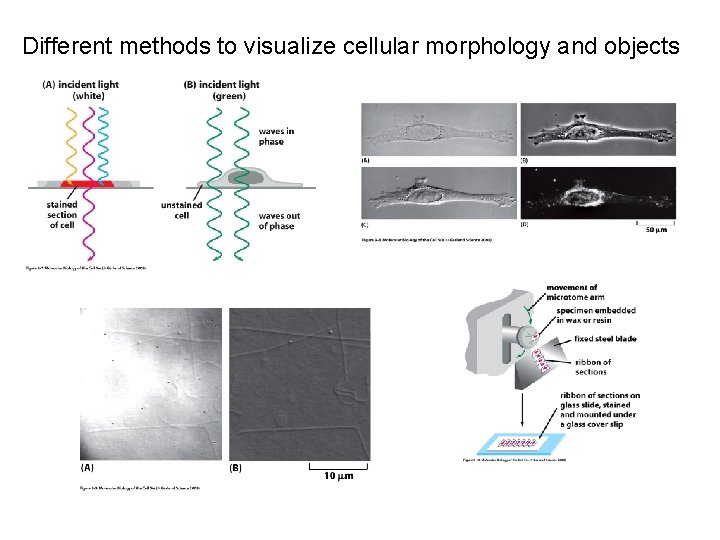

Different methods to visualize cellular morphology and objects

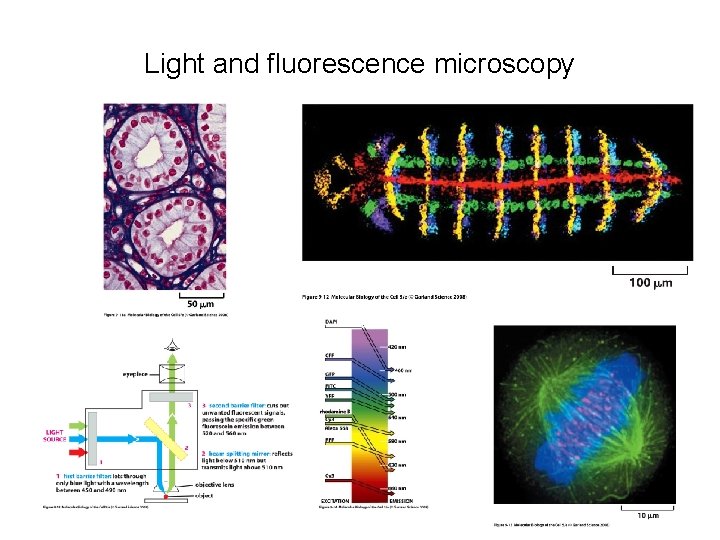

Light and fluorescence microscopy

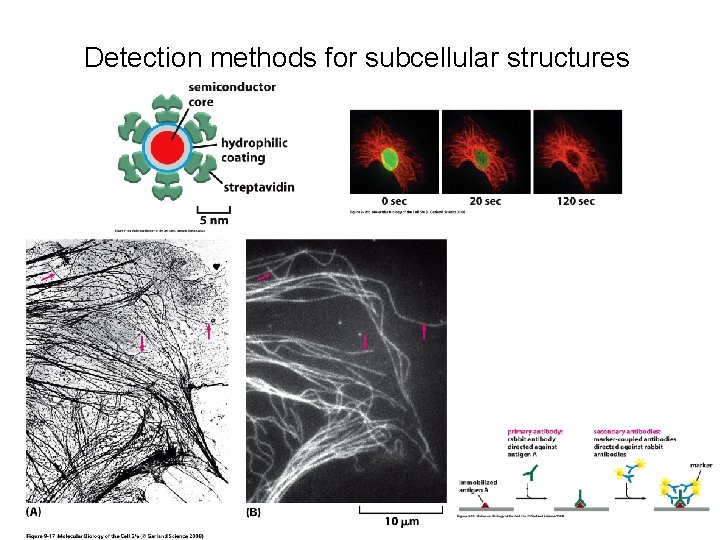

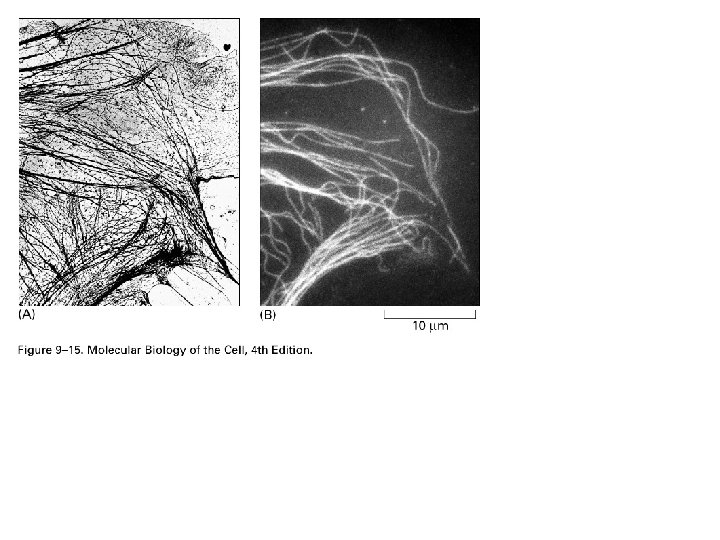

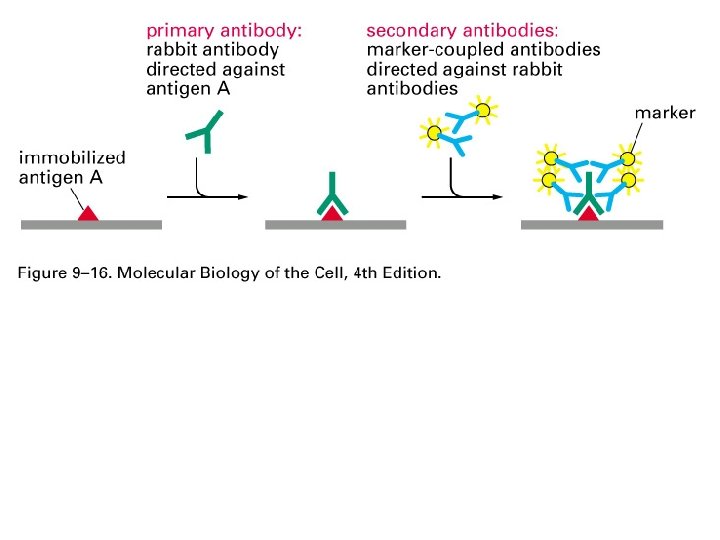

Detection methods for subcellular structures

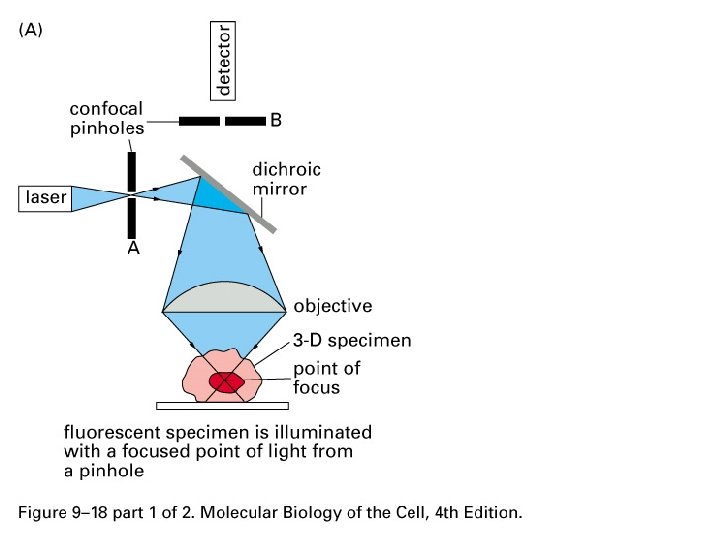

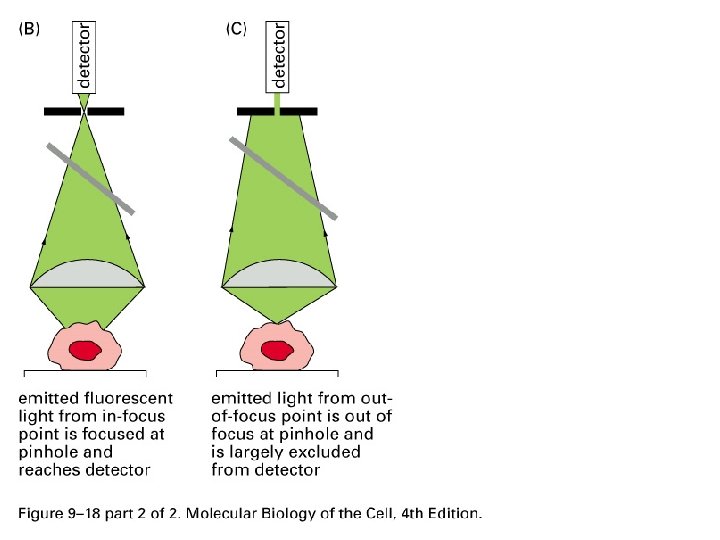

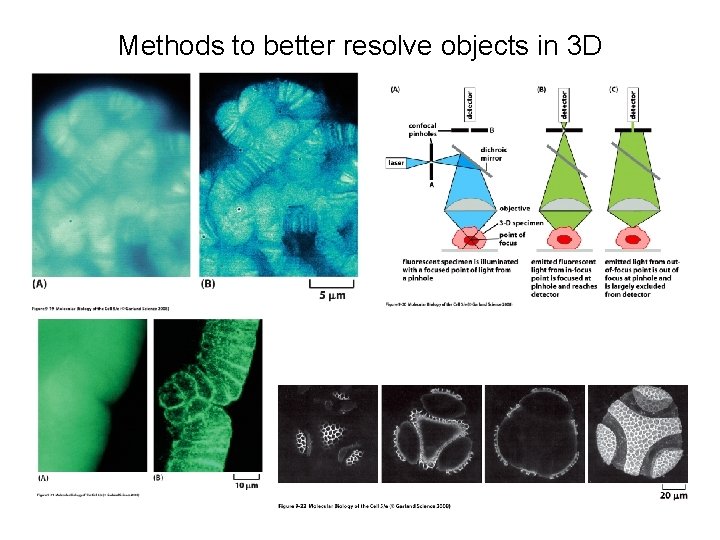

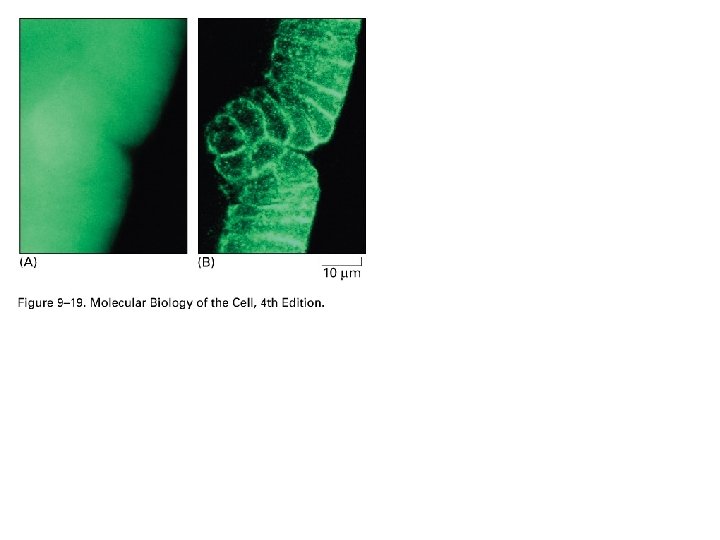

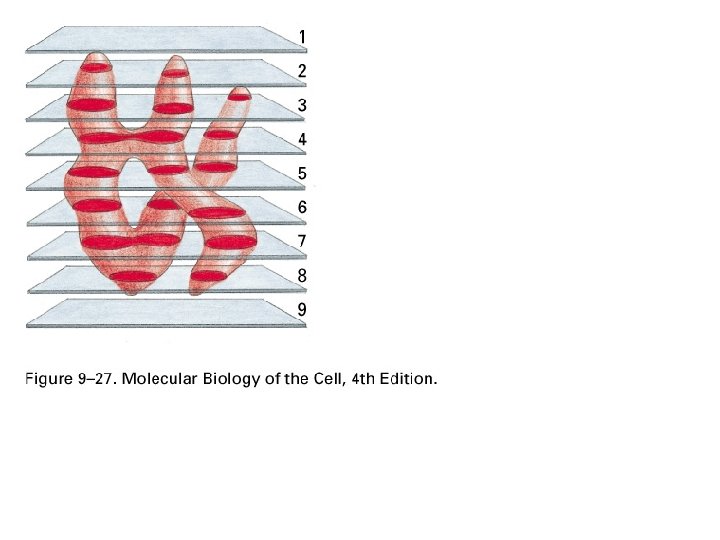

Methods to better resolve objects in 3 D

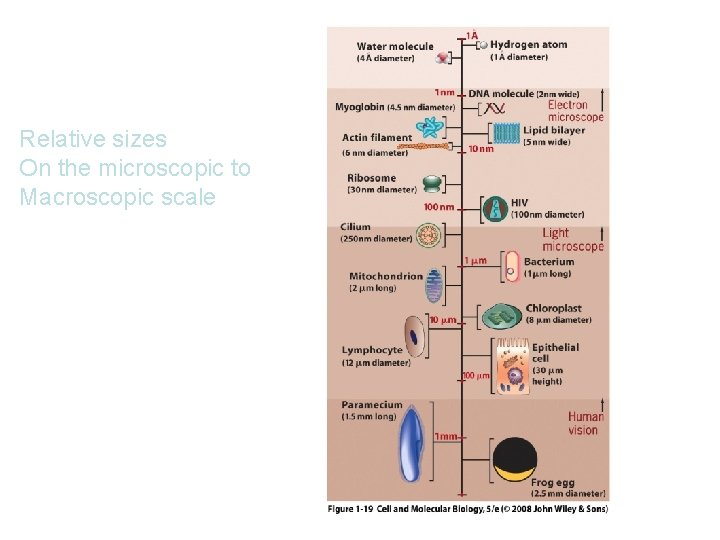

Relative sizes On the microscopic to Macroscopic scale

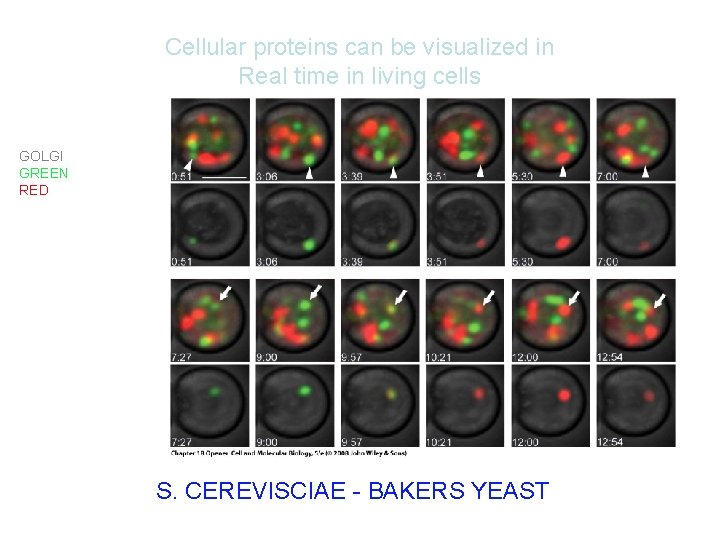

Cellular proteins can be visualized in Real time in living cells GOLGI GREEN AND RED FLUORESCENT PROTEINS S. CEREVISCIAE - BAKERS YEAST

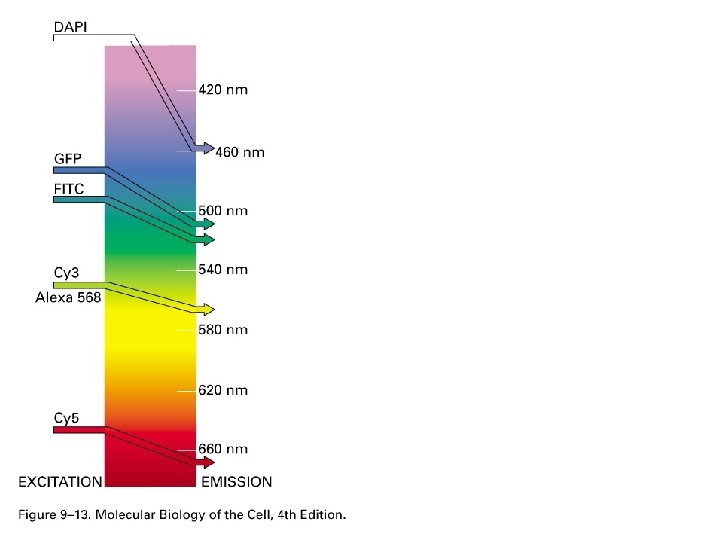

How Flourescence works

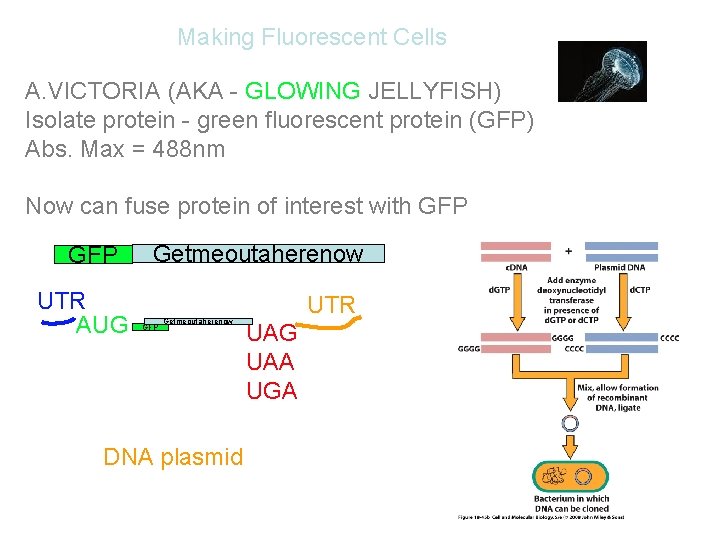

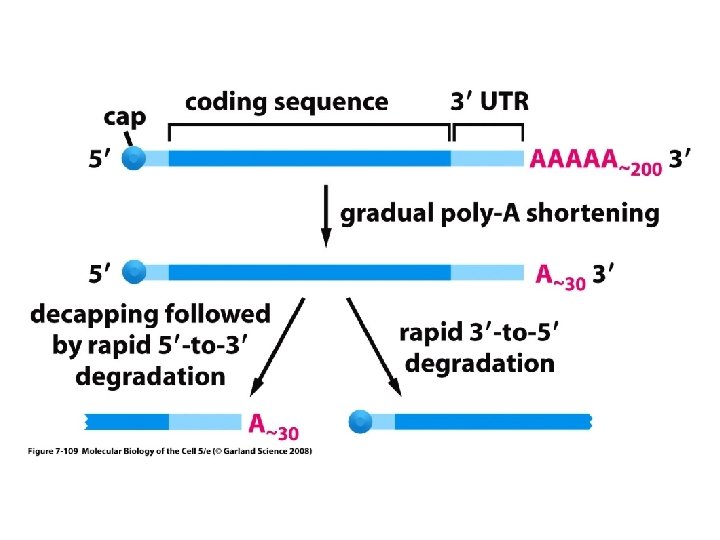

Making Fluorescent Cells A. VICTORIA (AKA - GLOWING JELLYFISH) Isolate protein - green fluorescent protein (GFP) Abs. Max = 488 nm Now can fuse protein of interest with GFP 5’ UTRAUG Getmeoutaherenow GFP Getmeoutaherenow DNA plasmid UAG UAA UGA UTR 3’

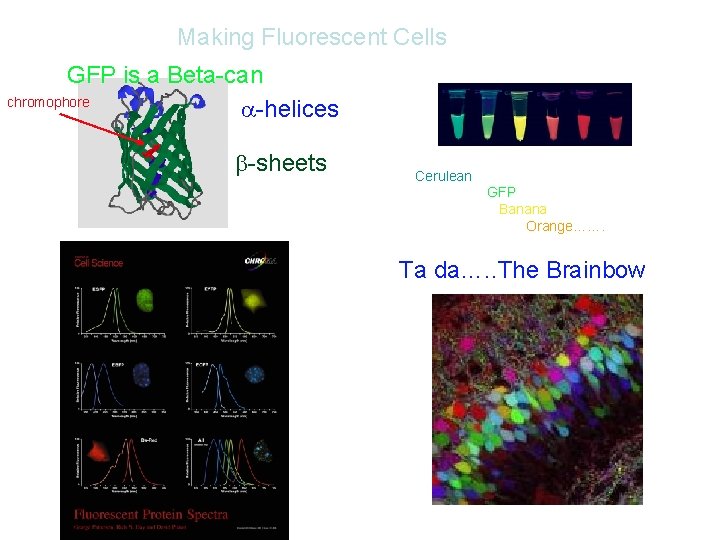

Making Fluorescent Cells GFP is a Beta-can chromophore -helices -sheets Cerulean GFP Banana Orange……. Ta da…. . The Brainbow

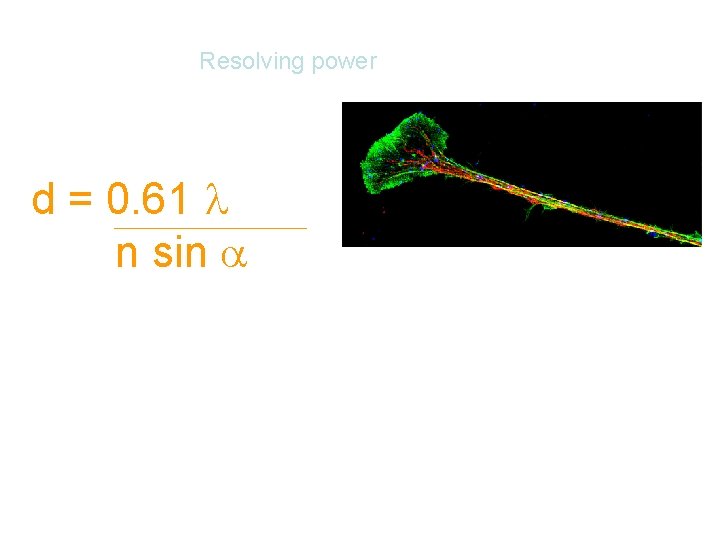

Resolving power d = 0. 61 n sin D = minimum distance of 2 points = wavelength n = numerical aperture = angle of cone of light (1/2)

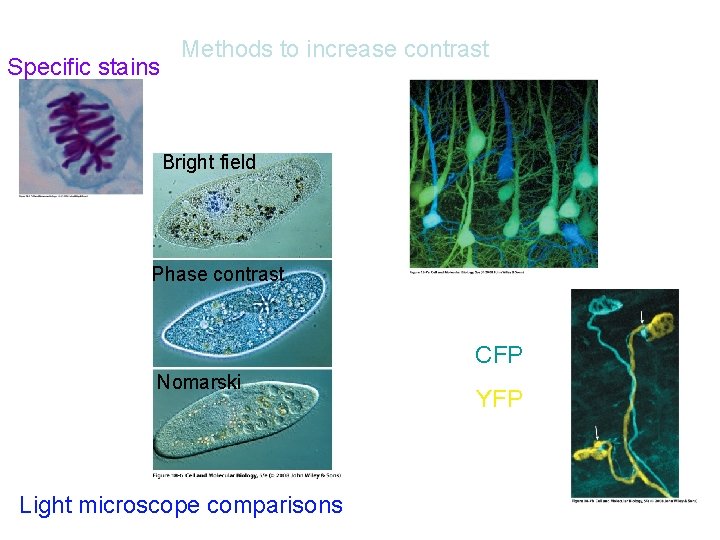

Specific stains Methods to increase contrast Bright field Phase contrast CFP Nomarski Light microscope comparisons YFP axons

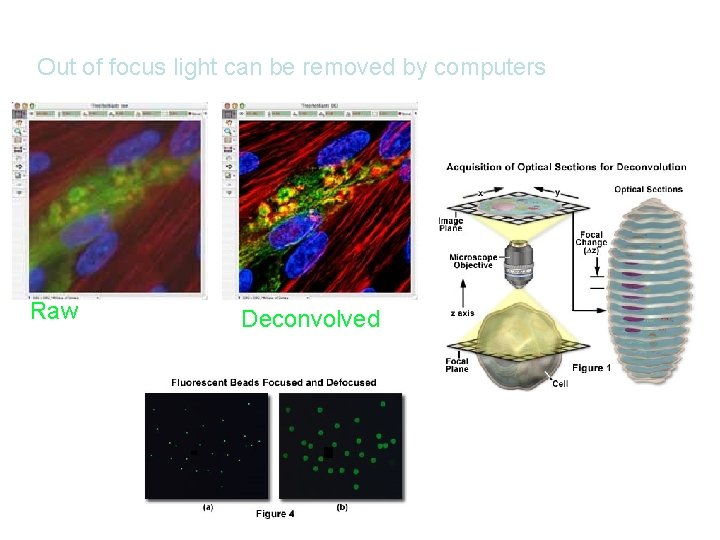

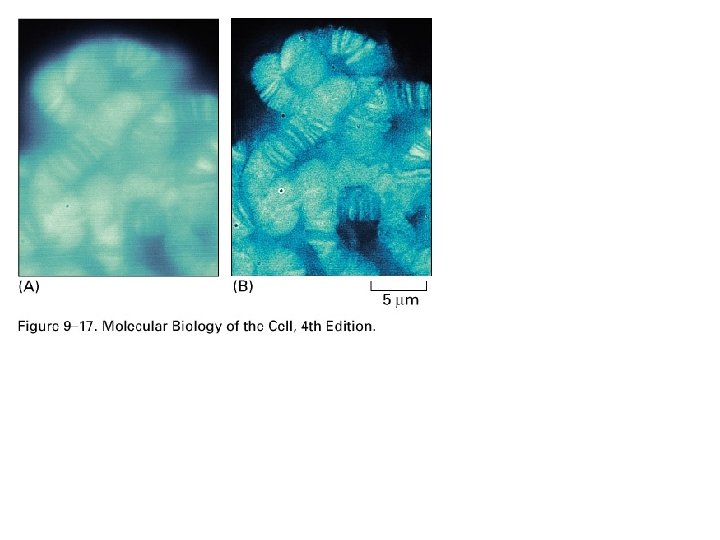

Out of focus light can be removed by computers Raw Deconvolved

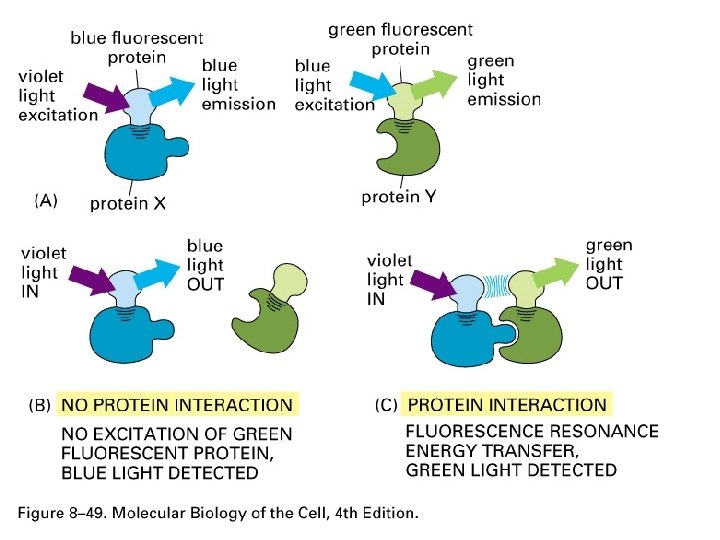

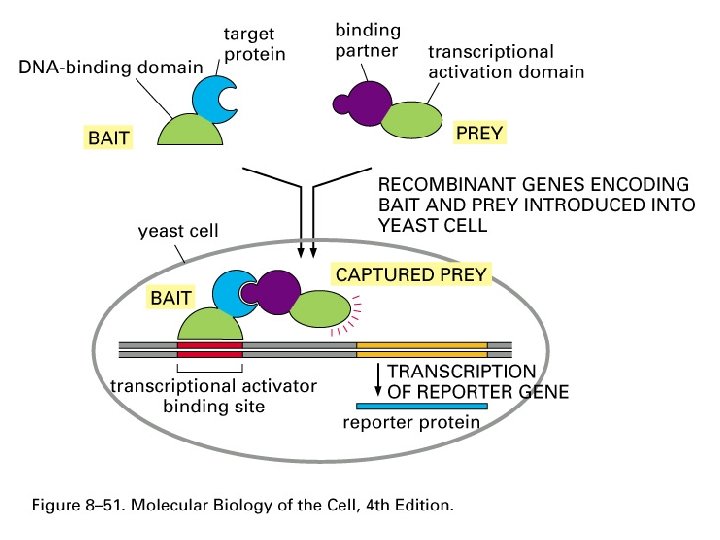

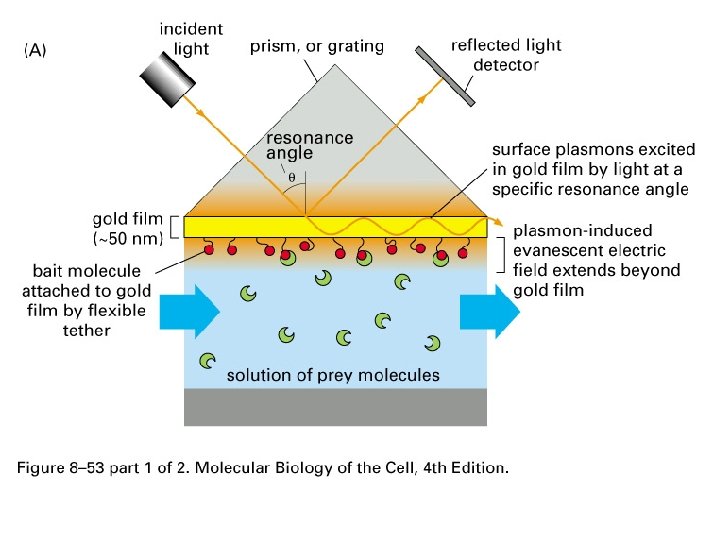

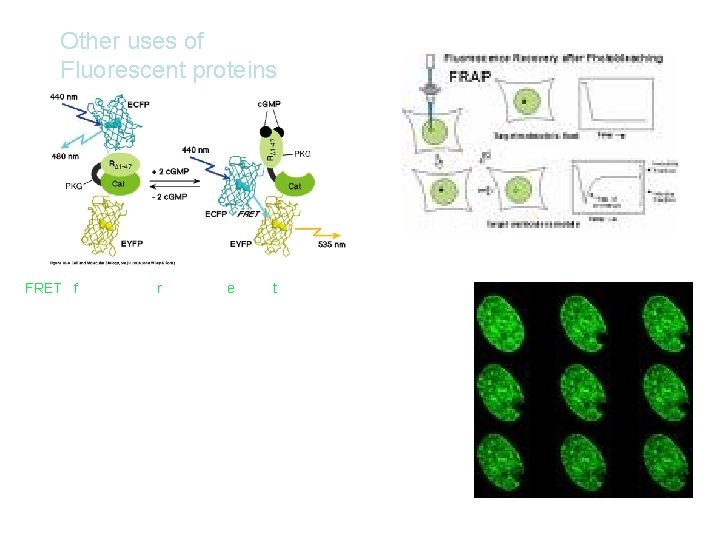

Other uses of Fluorescent proteins FRET - fluorescence resonance energy transfer -can detect changes in interactions -donor FL energy reduced while acceptor increased Bi-molecular complementation Caged proteins

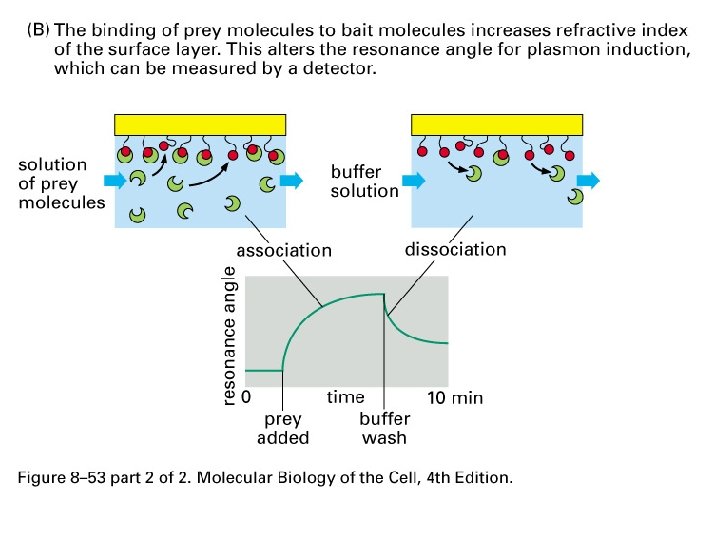

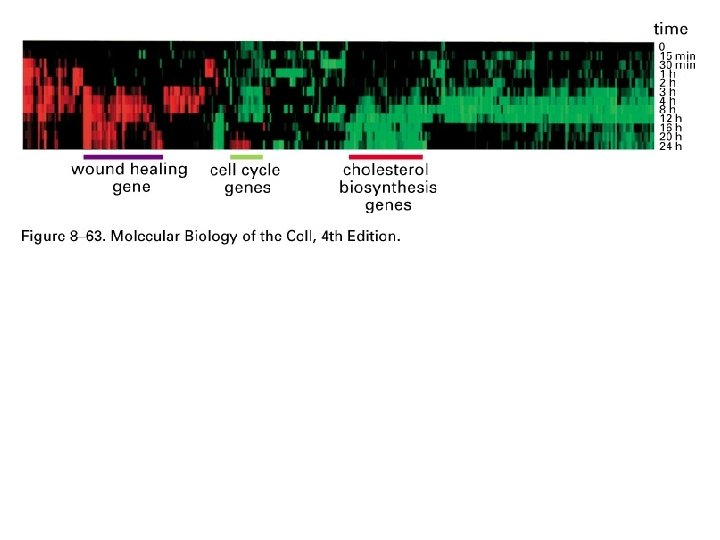

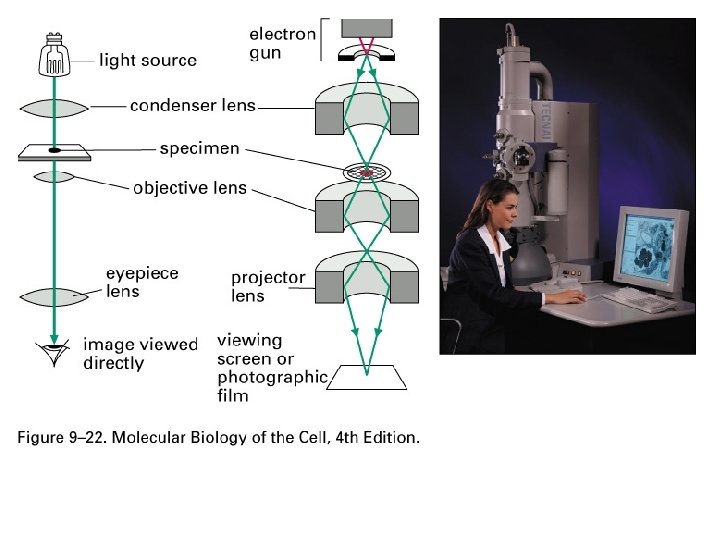

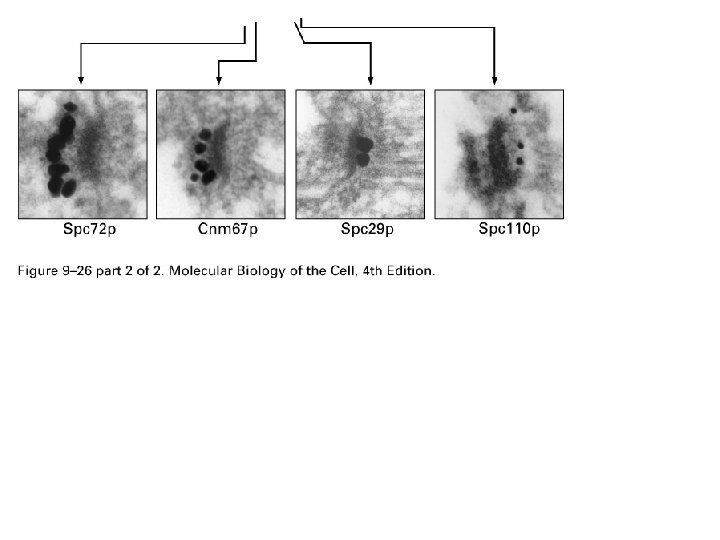

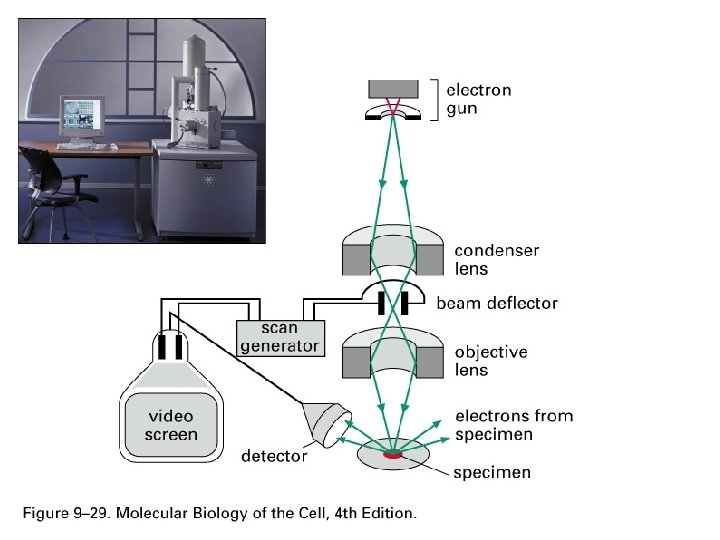

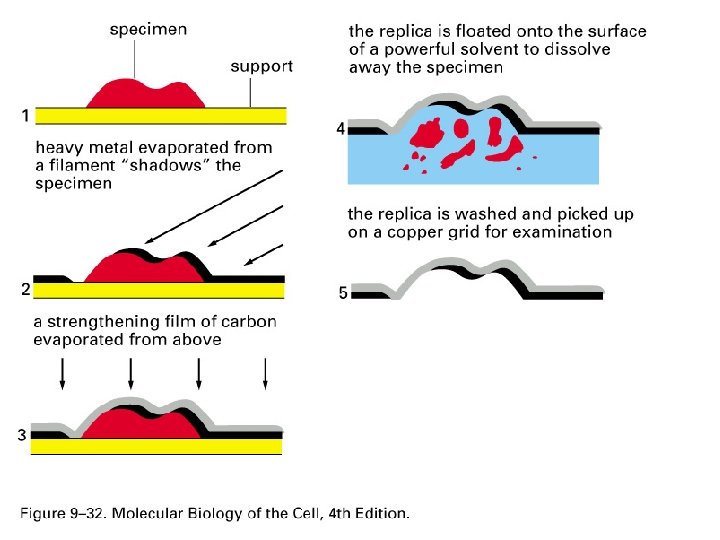

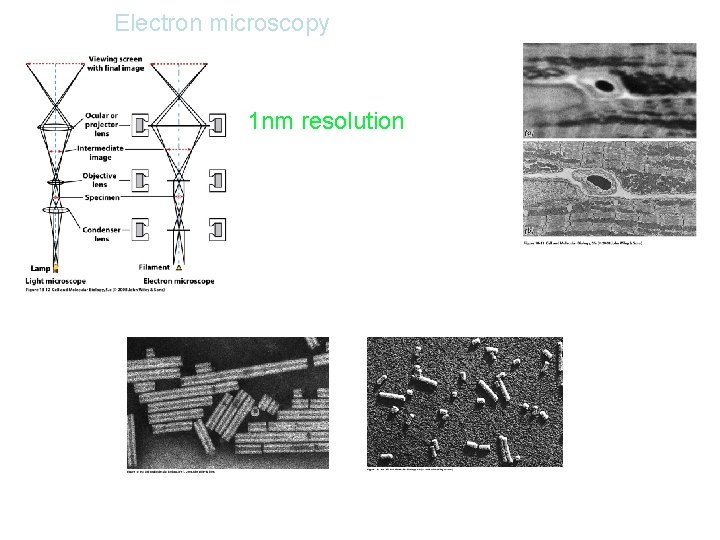

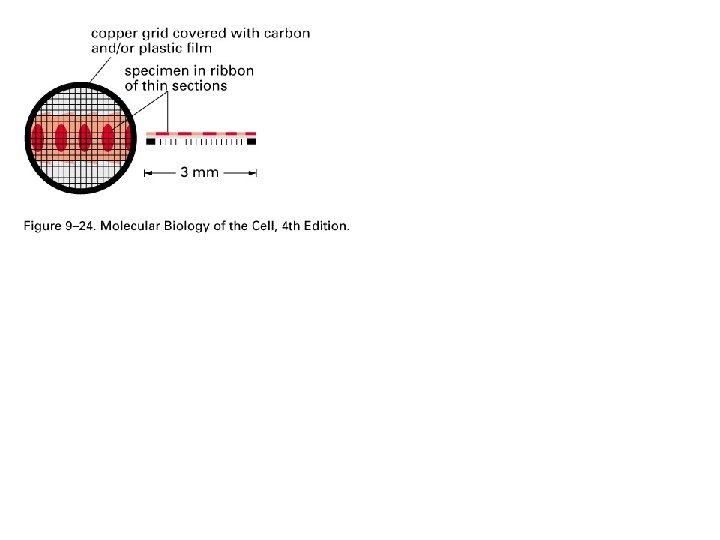

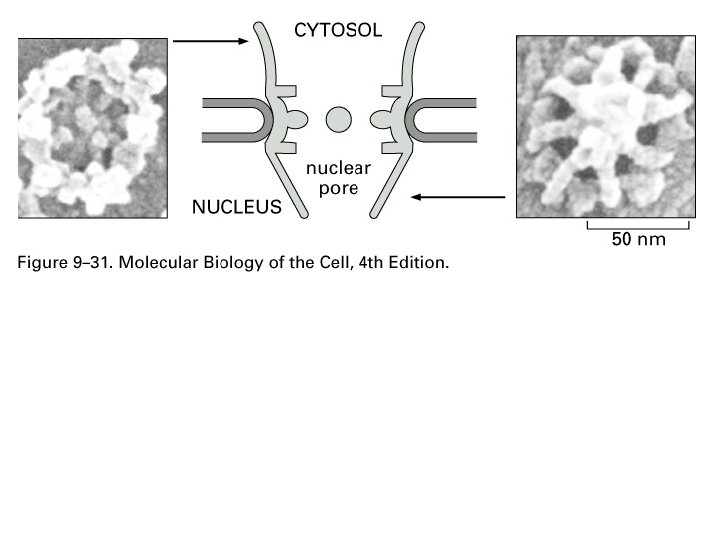

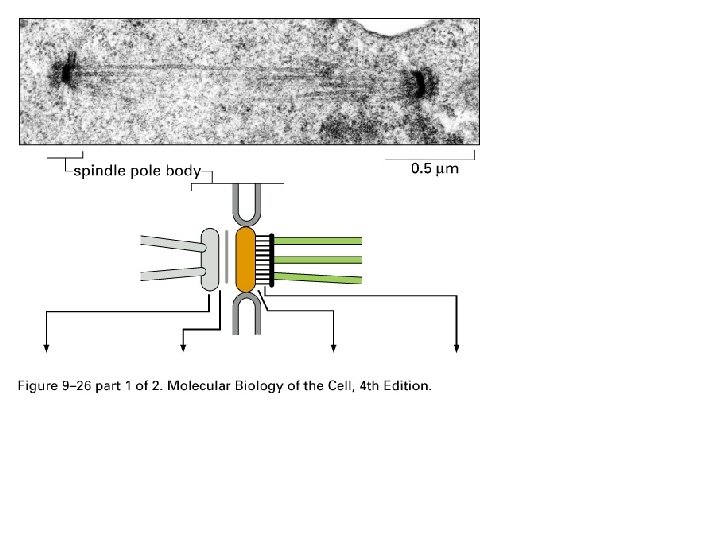

Electron microscopy Light microscope 1 nm resolution Electron microscope Negative stain Shadow casting

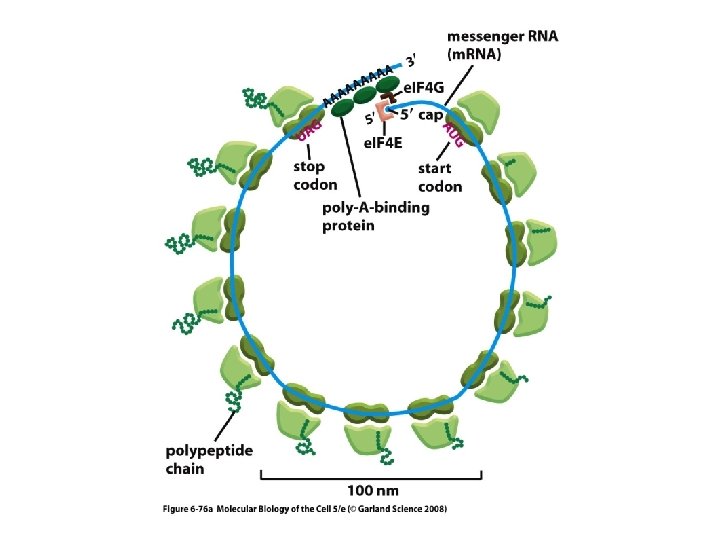

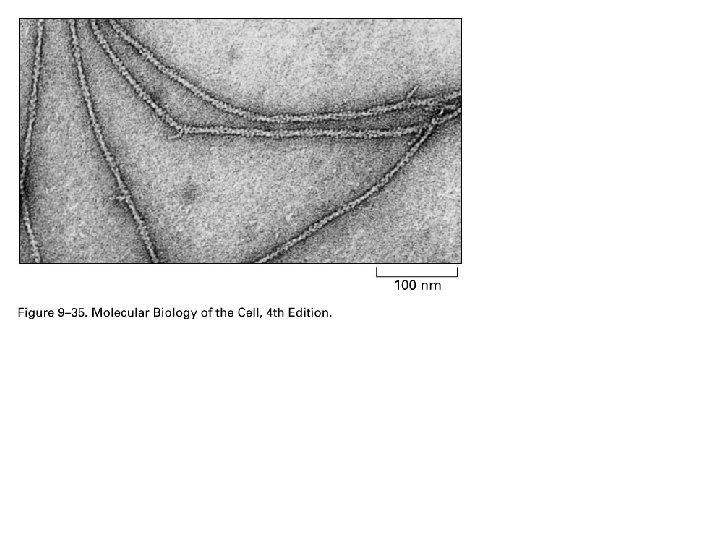

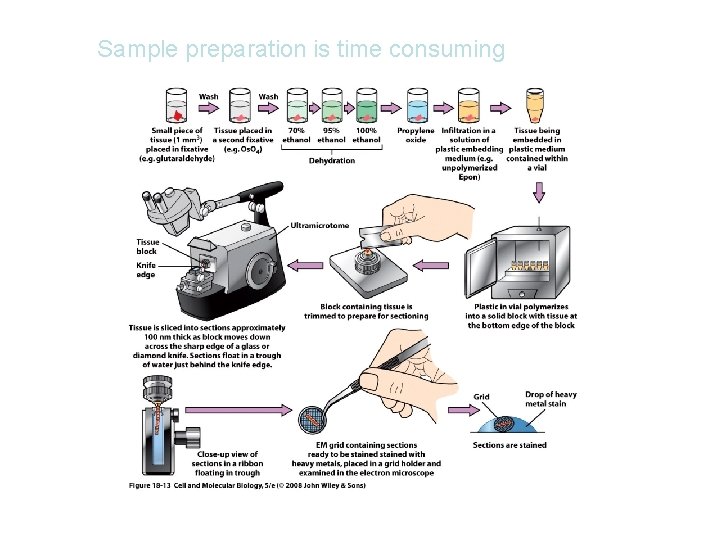

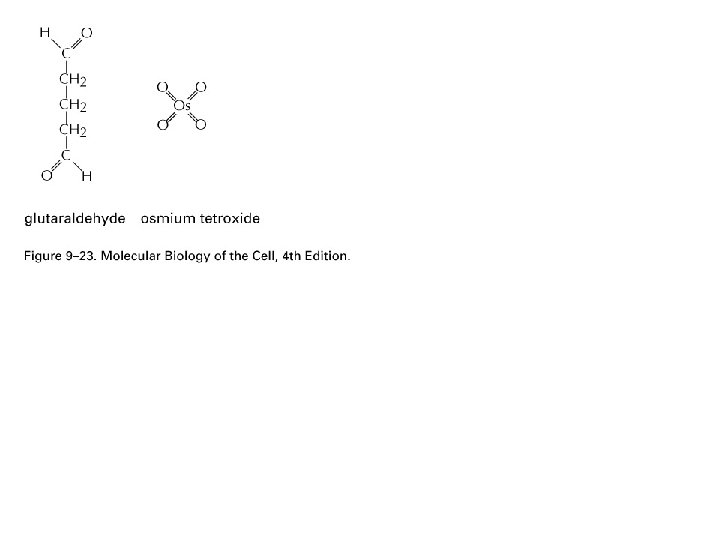

Sample preparation is time consuming

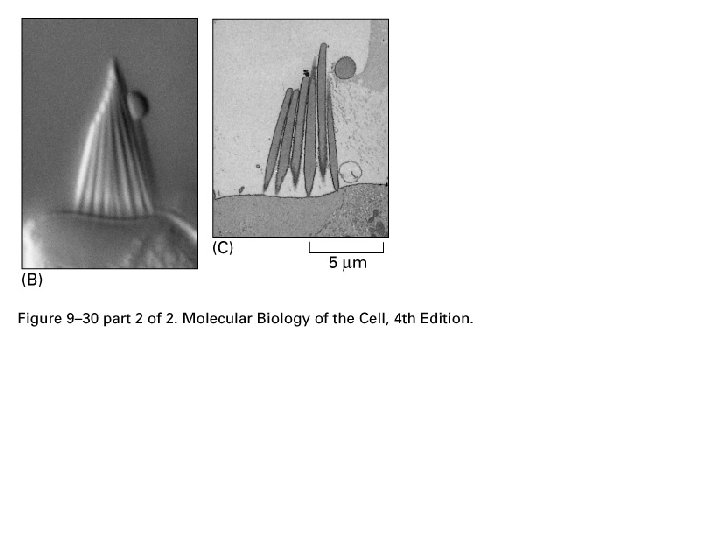

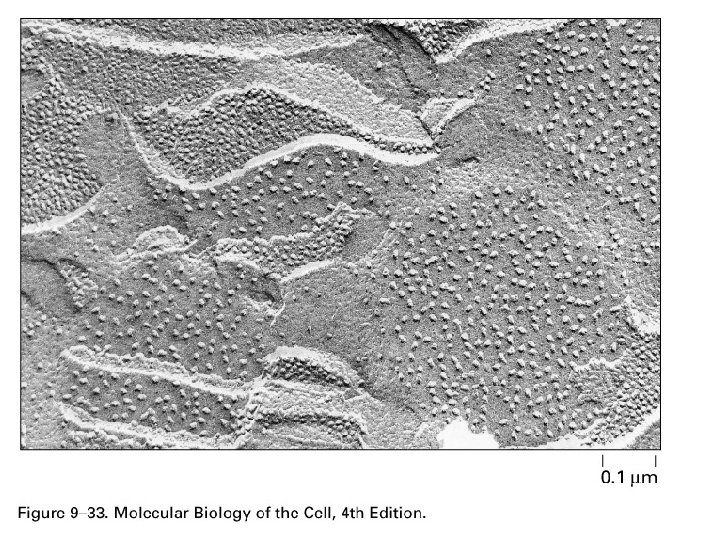

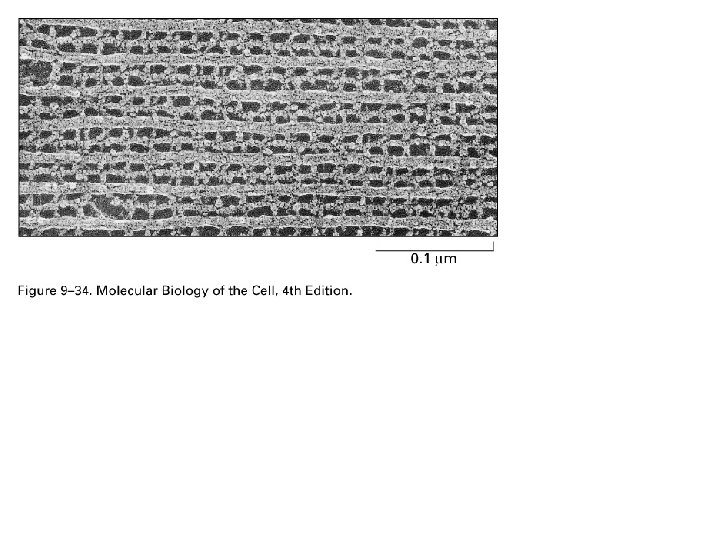

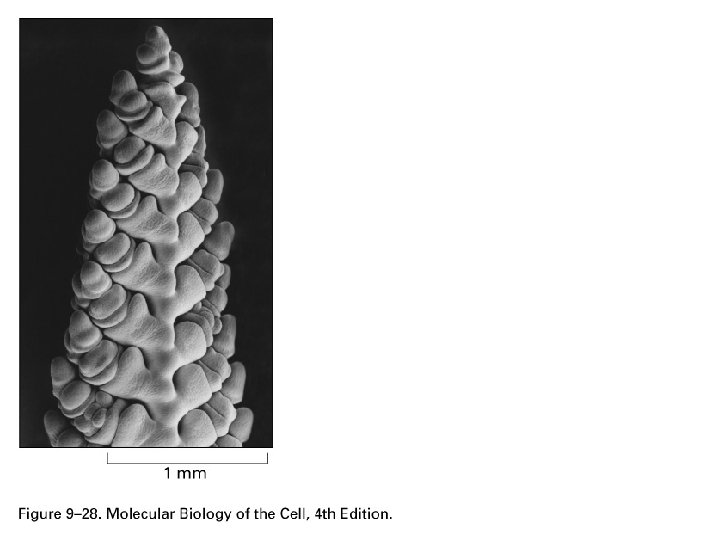

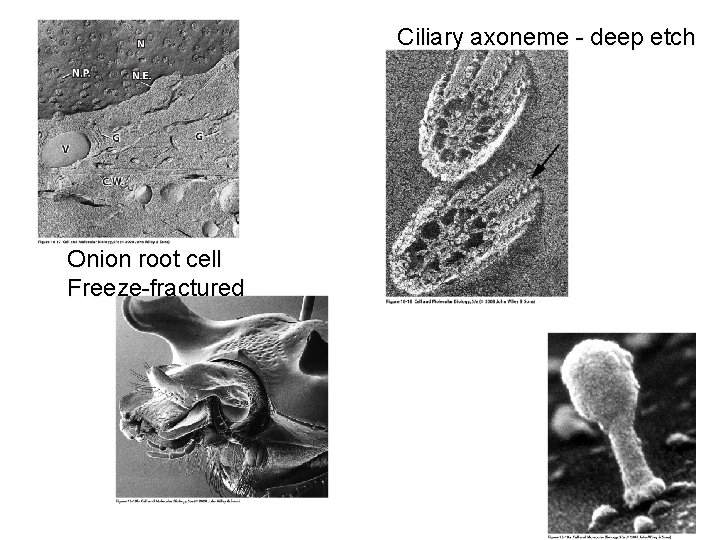

Ciliary axoneme - deep etch Onion root cell Freeze-fractured Insect head - SEM - bacteriophage
