Figure 4 -1. The three functional subdivisions of the auditory system. Reprinted from Deutsch

Figure 4 -1. The three functional subdivisions of the auditory system. Reprinted from Deutsch and Richards (1979).

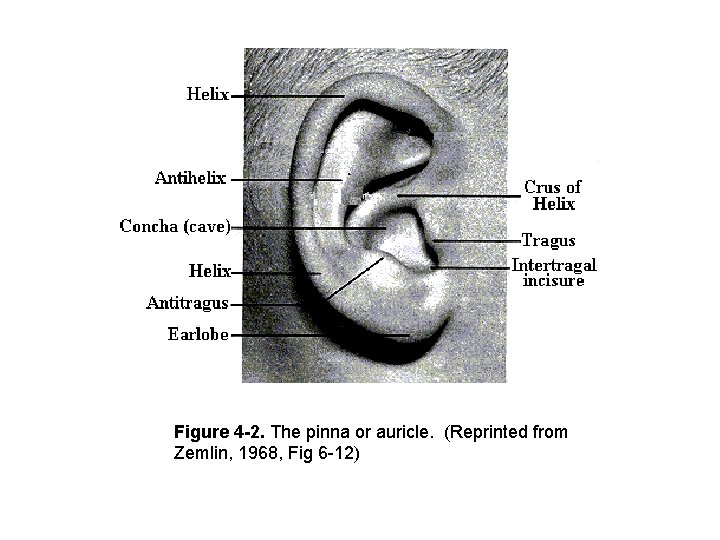

Figure 4 -2. The pinna or auricle. (Reprinted from Zemlin, 1968, Fig 6 -12)

Figure 4 -2. The pinna or auricle. (Reprinted from Zemlin, 1968, Fig 6 -12)

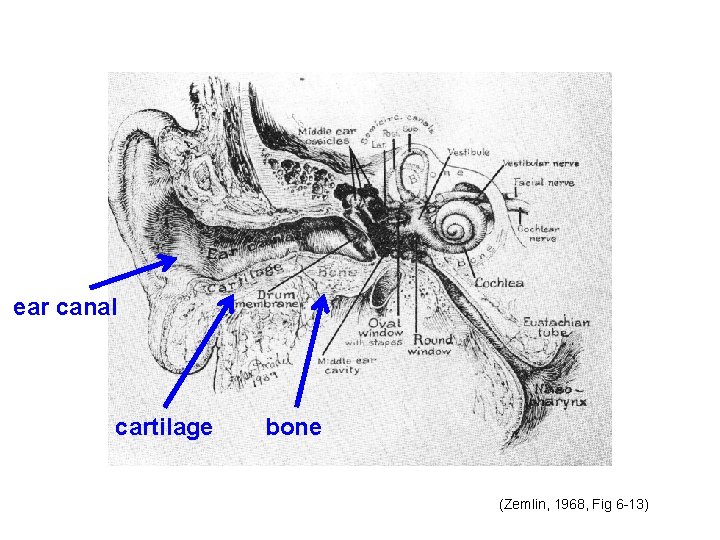

ear canal cartilage bone (Zemlin, 1968, Fig 6 -13)

ear canal cartilage bone (Zemlin, 1968, Fig 6 -13)

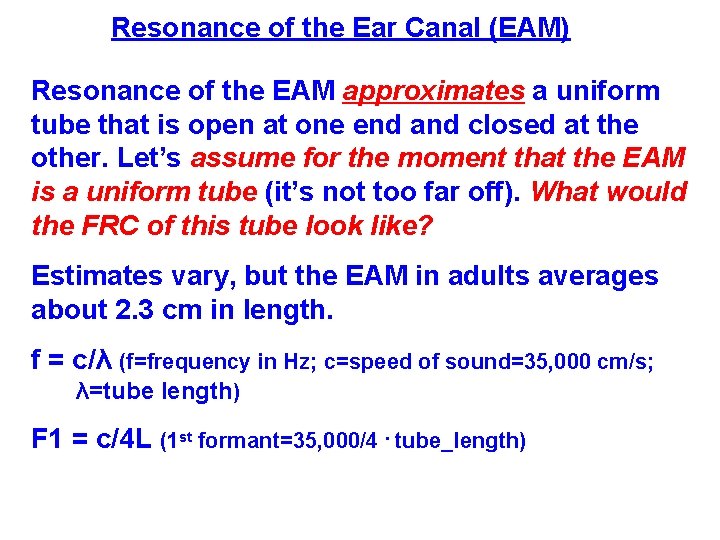

Resonance of the Ear Canal (EAM) Resonance of the EAM approximates a uniform tube

Resonance of the Ear Canal (EAM) Resonance of the EAM approximates a uniform tube that is open at one end and closed at the other. Let’s assume for the moment that the EAM is a uniform tube (it’s not too far off). What would the FRC of this tube look like? Estimates vary, but the EAM in adults averages about 2. 3 cm in length. f = c/λ (f=frequency in Hz; c=speed of sound=35, 000 cm/s; λ=tube length) F 1 = c/4 L (1 st formant=35, 000/4. tube_length)

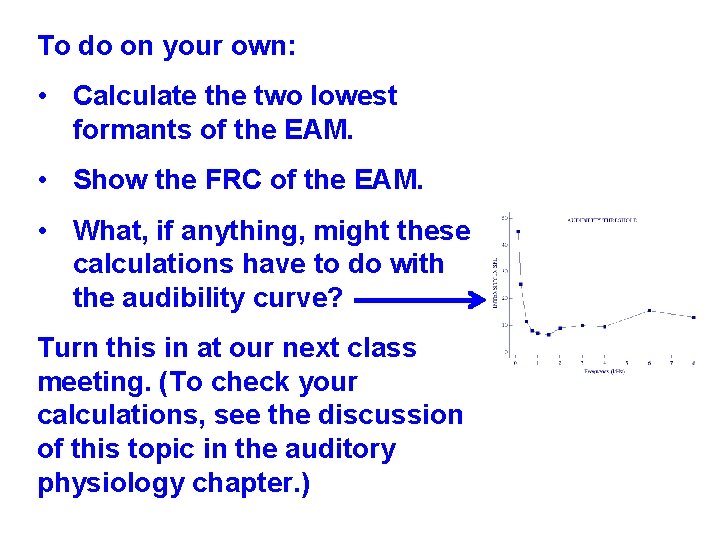

To do on your own: • Calculate the two lowest formants of the EAM.

To do on your own: • Calculate the two lowest formants of the EAM. • Show the FRC of the EAM. • What, if anything, might these calculations have to do with the audibility curve? Turn this in at our next class meeting. (To check your calculations, see the discussion of this topic in the auditory physiology chapter. )

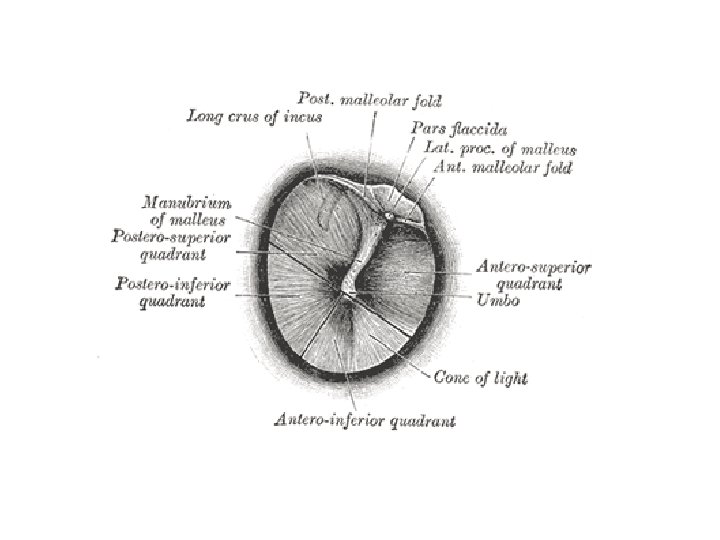

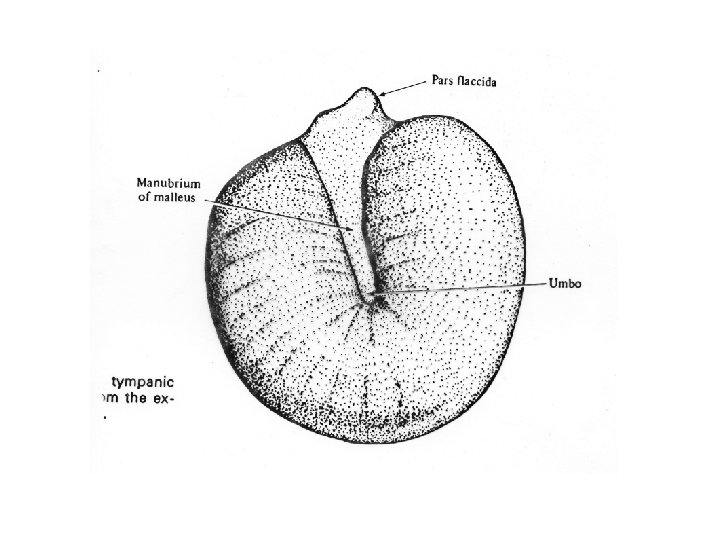

Tympanic Membrane (ear drum) Note: (1) the cone shape of the TM, (2) attachment

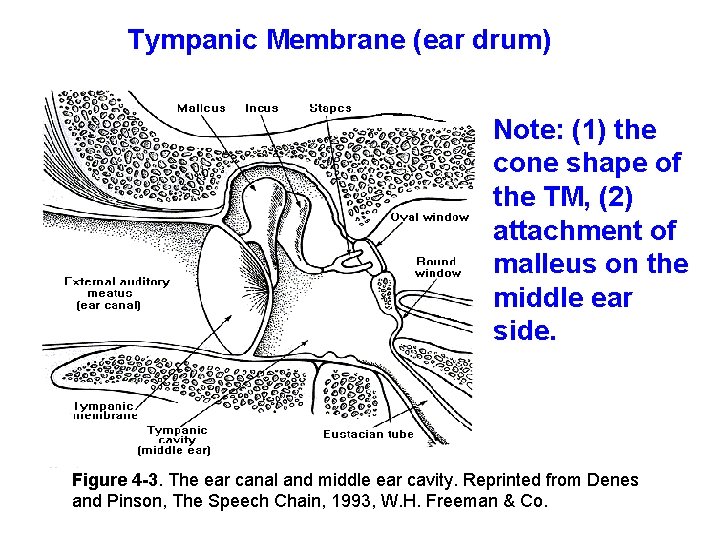

Tympanic Membrane (ear drum) Note: (1) the cone shape of the TM, (2) attachment of malleus on the middle ear side. Figure 4 -3. The ear canal and middle ear cavity. Reprinted from Denes and Pinson, The Speech Chain, 1993, W. H. Freeman & Co.

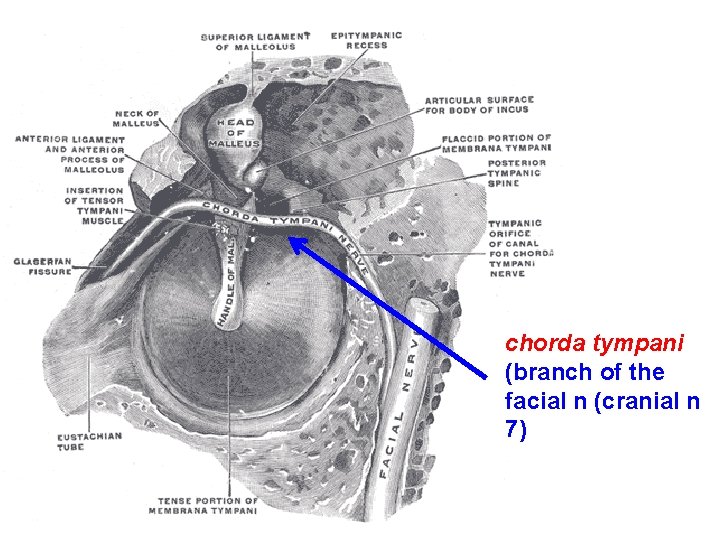

chorda tympani (branch of the facial n (cranial n 7)

chorda tympani (branch of the facial n (cranial n 7)

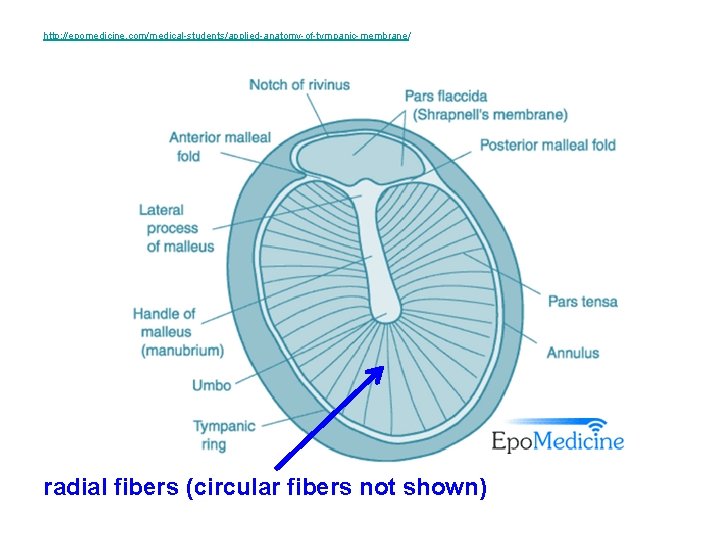

http: //epomedicine. com/medical-students/applied-anatomy-of-tympanic-membrane/ radial fibers (circular fibers not shown)

http: //epomedicine. com/medical-students/applied-anatomy-of-tympanic-membrane/ radial fibers (circular fibers not shown)

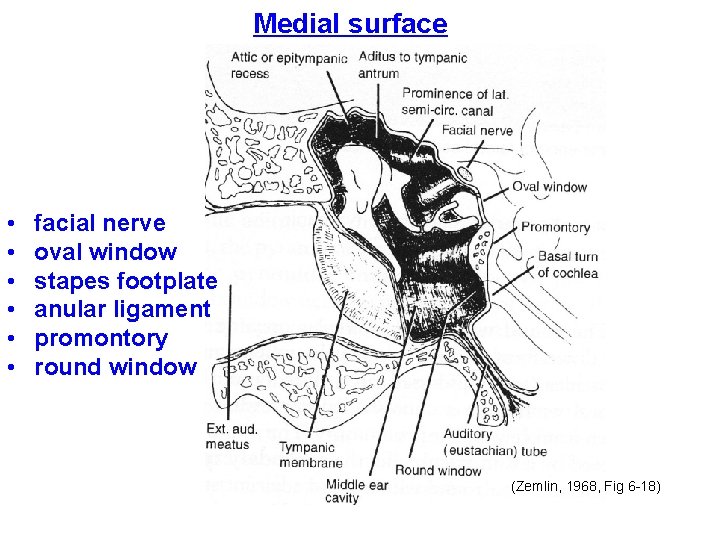

Medial surface • • • facial nerve oval window stapes footplate anular ligament promontory

Medial surface • • • facial nerve oval window stapes footplate anular ligament promontory round window (Zemlin, 1968, Fig 6 -18)

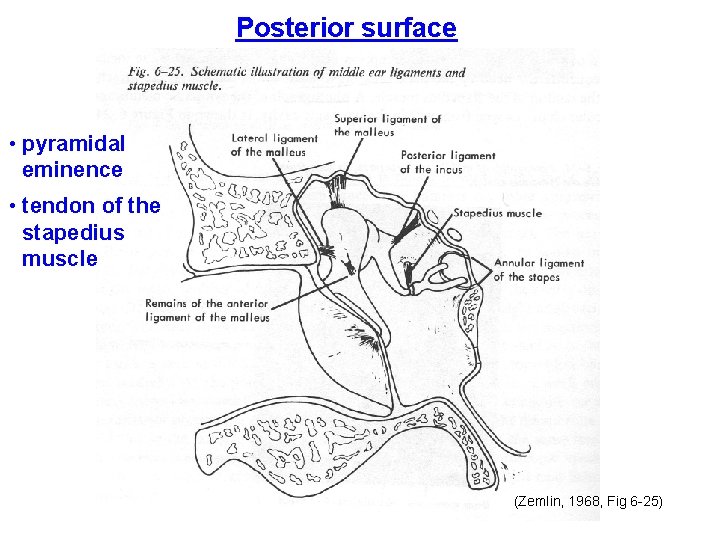

Posterior surface • pyramidal eminence • tendon of the stapedius muscle (Zemlin, 1968, Fig

Posterior surface • pyramidal eminence • tendon of the stapedius muscle (Zemlin, 1968, Fig 6 -25)

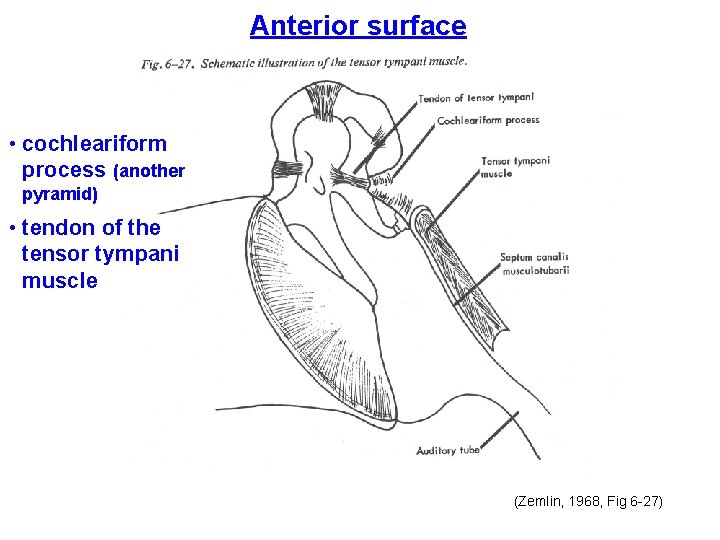

Anterior surface • cochleariform process (another pyramid) • tendon of the tensor tympani muscle

Anterior surface • cochleariform process (another pyramid) • tendon of the tensor tympani muscle (Zemlin, 1968, Fig 6 -27)

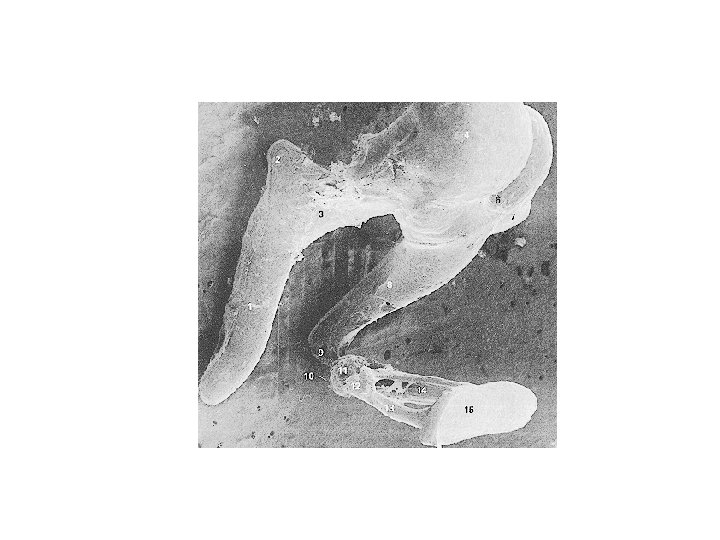

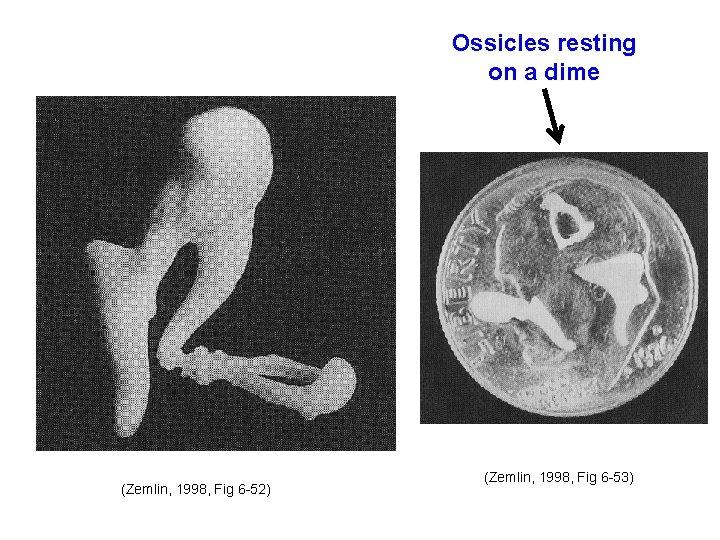

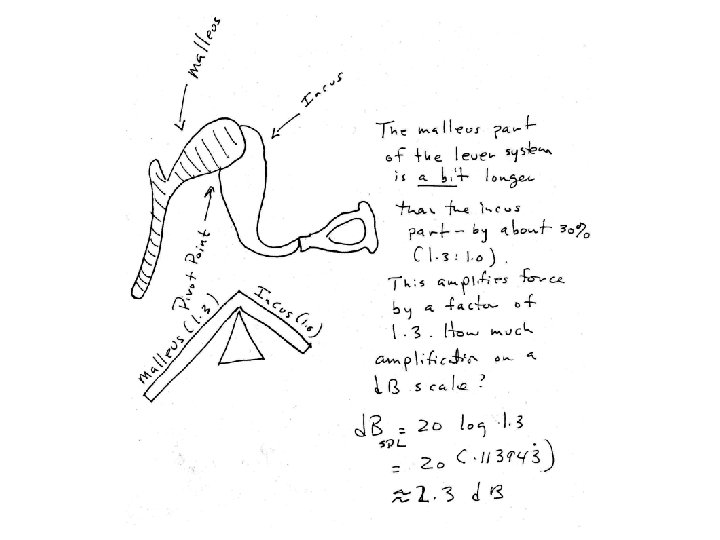

Ossicles resting on a dime (Zemlin, 1998, Fig 6 -52) (Zemlin, 1998, Fig 6

Ossicles resting on a dime (Zemlin, 1998, Fig 6 -52) (Zemlin, 1998, Fig 6 -53)

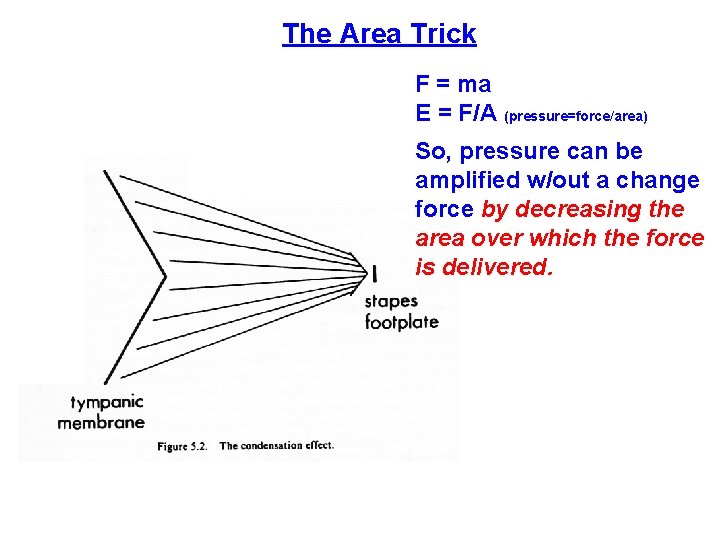

The Area Trick F = ma E = F/A (pressure=force/area) So, pressure can be

The Area Trick F = ma E = F/A (pressure=force/area) So, pressure can be amplified w/out a change force by decreasing the area over which the force is delivered.

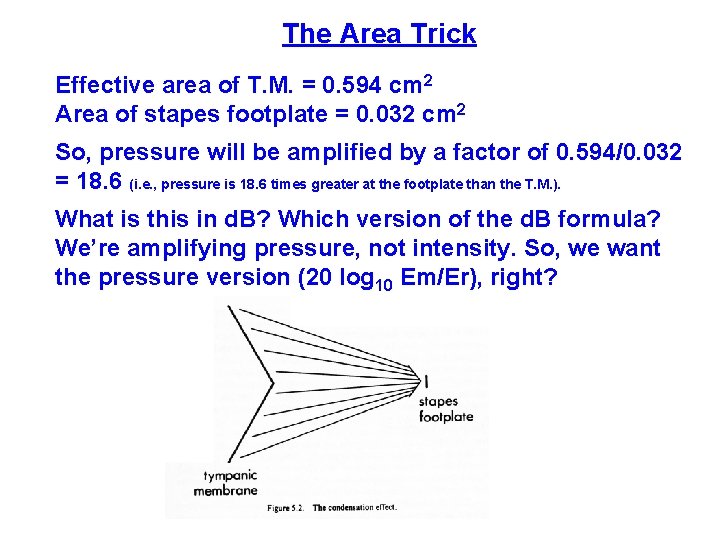

The Area Trick Effective area of T. M. = 0. 594 cm 2 Area

The Area Trick Effective area of T. M. = 0. 594 cm 2 Area of stapes footplate = 0. 032 cm 2 So, pressure will be amplified by a factor of 0. 594/0. 032 = 18. 6 (i. e. , pressure is 18. 6 times greater at the footplate than the T. M. ). What is this in d. B? Which version of the d. B formula? We’re amplifying pressure, not intensity. So, we want the pressure version (20 log 10 Em/Er), right?

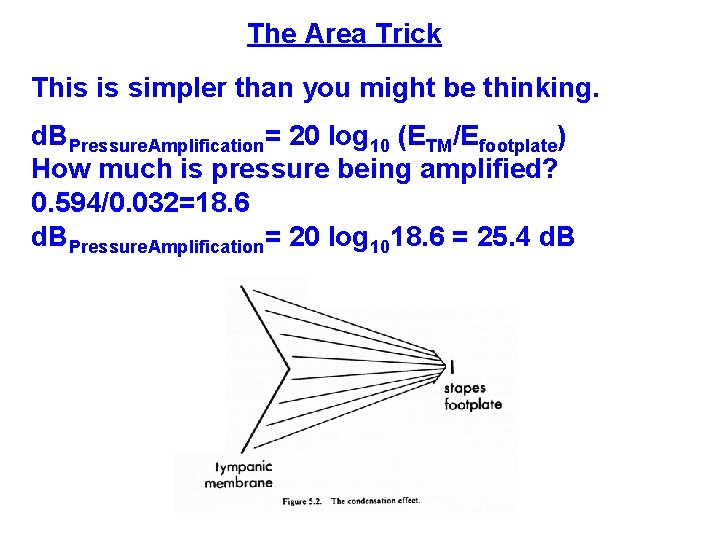

The Area Trick This is simpler than you might be thinking. d. BPressure. Amplification=

The Area Trick This is simpler than you might be thinking. d. BPressure. Amplification= 20 log 10 (ETM/Efootplate) How much is pressure being amplified? 0. 594/0. 032=18. 6 d. BPressure. Amplification= 20 log 1018. 6 = 25. 4 d. B
