Figure 13 1 Patterns of fascicle arrangement in

  • Slides: 33
Download presentation
Figure 13. 1 Patterns of fascicle arrangement in muscles. Circular (Orbicularis oris) Convergent (Pectoralis

Figure 13. 1 Patterns of fascicle arrangement in muscles. Circular (Orbicularis oris) Convergent (Pectoralis major) Multipennate (Deltoid) (a) (b) (e) (f) Parallel (Sartorius) (c) Fusiform (Biceps brachii) (g) (d) Unipennate (Extensor digitorum longus) © 2014 Pearson Education, Inc. Bipennate (Rectus femoris)

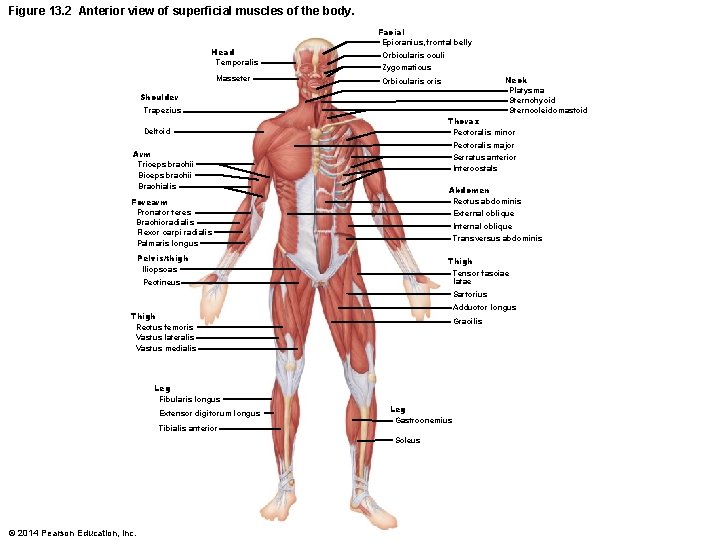

Figure 13. 2 Anterior view of superficial muscles of the body. Head Temporalis Masseter

Figure 13. 2 Anterior view of superficial muscles of the body. Head Temporalis Masseter Facial Epicranius, frontal belly Orbicularis oculi Zygomaticus Neck Platysma Sternohyoid Sternocleidomastoid Orbicularis oris Shoulder Trapezius Thorax Pectoralis minor Deltoid Pectoralis major Serratus anterior Intercostals Arm Triceps brachii Brachialis Abdomen Rectus abdominis Forearm Pronator teres Brachioradialis Flexor carpi radialis Palmaris longus External oblique Internal oblique Transversus abdominis Pelvis/thigh Iliopsoas Thigh Tensor fasciae latae Pectineus Sartorius Adductor longus Thigh Rectus femoris Vastus lateralis Vastus medialis Leg Fibularis longus Extensor digitorum longus Tibialis anterior Gracilis Leg Gastrocnemius Soleus © 2014 Pearson Education, Inc.

Figure 13. 3 Posterior view of superficial muscles of the body. Neck Epicranius, occipital

Figure 13. 3 Posterior view of superficial muscles of the body. Neck Epicranius, occipital belly Sternocleidomastoid Arm Triceps brachii Brachialis Forearm Brachioradialis Extensor carpi radialis longus Flexor carpi ulnaris Extensor digitorum Trapezius Shoulder Deltoid Infraspinatus Teres major Rhomboid major Latissimus dorsi Hip Gluteus medius Gluteus maximus Iliotibial tract Thigh Adductor magnus Hamstrings: Biceps femoris Semitendinosus Semimembranosus Leg Gastrocnemius Soleus Fibularis longus Calcaneal tendon © 2014 Pearson Education, Inc.

Table 13. 1 Major Muscles of Human Head (see Figure 13. 4) (1 of

Table 13. 1 Major Muscles of Human Head (see Figure 13. 4) (1 of 3) © 2014 Pearson Education, Inc.

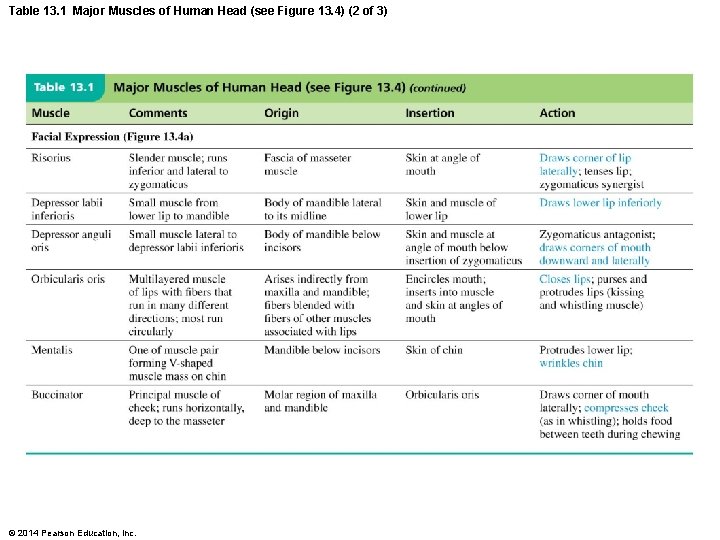

Table 13. 1 Major Muscles of Human Head (see Figure 13. 4) (2 of

Table 13. 1 Major Muscles of Human Head (see Figure 13. 4) (2 of 3) © 2014 Pearson Education, Inc.

Table 13. 1 Major Muscles of Human Head (3 of 3) © 2014 Pearson

Table 13. 1 Major Muscles of Human Head (3 of 3) © 2014 Pearson Education, Inc.

Table 13. 2 Anterolateral Muscles of Human Neck (see Figure 13. 5) (1 of

Table 13. 2 Anterolateral Muscles of Human Neck (see Figure 13. 5) (1 of 2) © 2014 Pearson Education, Inc.

Table 13. 2 Anterolateral Muscles of Human Neck (2 of 2) © 2014 Pearson

Table 13. 2 Anterolateral Muscles of Human Neck (2 of 2) © 2014 Pearson Education, Inc.

Table 13. 3 Anterior Muscles of Human Thorax, Shoulder, and Abdominal Wall (see Figures

Table 13. 3 Anterior Muscles of Human Thorax, Shoulder, and Abdominal Wall (see Figures 13. 6, 13. 7, and 13. 8) (1 of 3) © 2014 Pearson Education, Inc.

Table 13. 3 Anterior Muscles of Human Thorax, Shoulder, and Abdominal Wall (2 of

Table 13. 3 Anterior Muscles of Human Thorax, Shoulder, and Abdominal Wall (2 of 3) © 2014 Pearson Education, Inc.

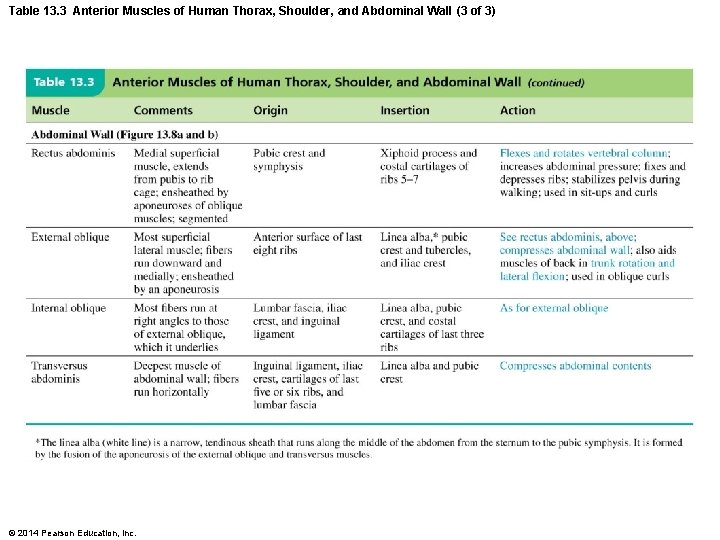

Table 13. 3 Anterior Muscles of Human Thorax, Shoulder, and Abdominal Wall (3 of

Table 13. 3 Anterior Muscles of Human Thorax, Shoulder, and Abdominal Wall (3 of 3) © 2014 Pearson Education, Inc.

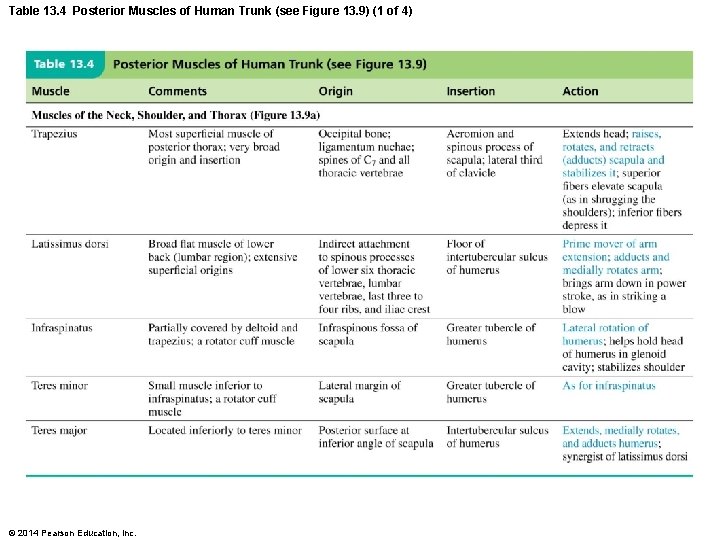

Table 13. 4 Posterior Muscles of Human Trunk (see Figure 13. 9) (1 of

Table 13. 4 Posterior Muscles of Human Trunk (see Figure 13. 9) (1 of 4) © 2014 Pearson Education, Inc.

Table 13. 4 Posterior Muscles of Human Trunk (2 of 4) © 2014 Pearson

Table 13. 4 Posterior Muscles of Human Trunk (2 of 4) © 2014 Pearson Education, Inc.

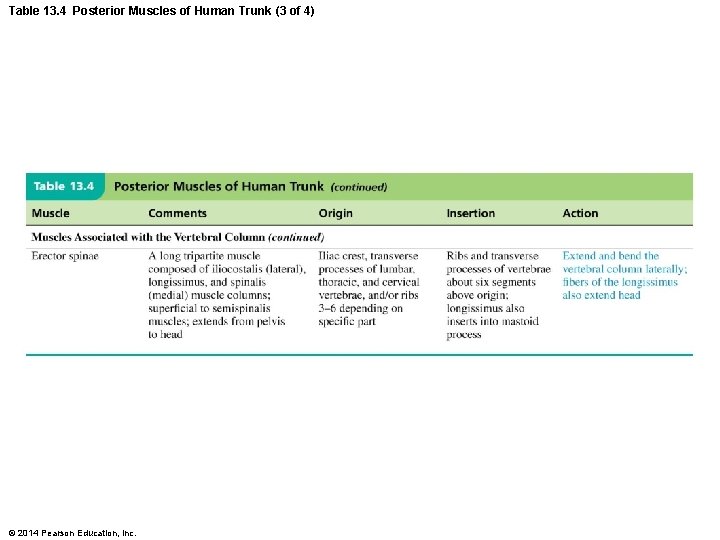

Table 13. 4 Posterior Muscles of Human Trunk (3 of 4) © 2014 Pearson

Table 13. 4 Posterior Muscles of Human Trunk (3 of 4) © 2014 Pearson Education, Inc.

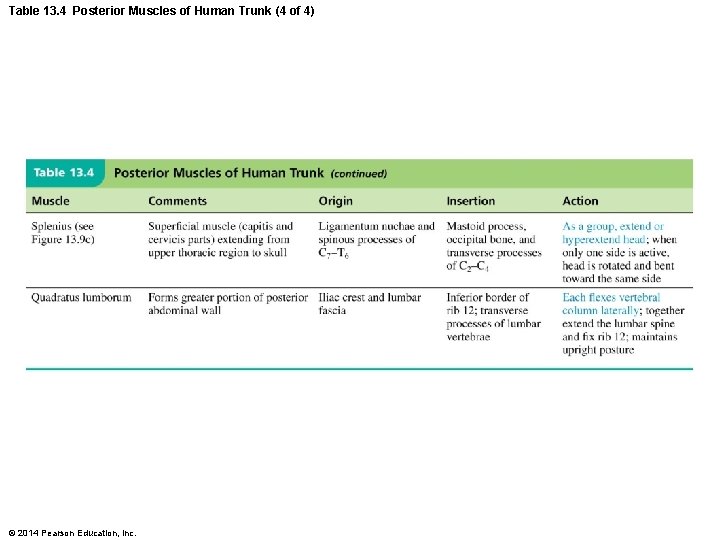

Table 13. 4 Posterior Muscles of Human Trunk (4 of 4) © 2014 Pearson

Table 13. 4 Posterior Muscles of Human Trunk (4 of 4) © 2014 Pearson Education, Inc.

Table 13. 5 Muscles of Human Humerus That Act on the Forearm (see Figure

Table 13. 5 Muscles of Human Humerus That Act on the Forearm (see Figure 13. 10) © 2014 Pearson Education, Inc.

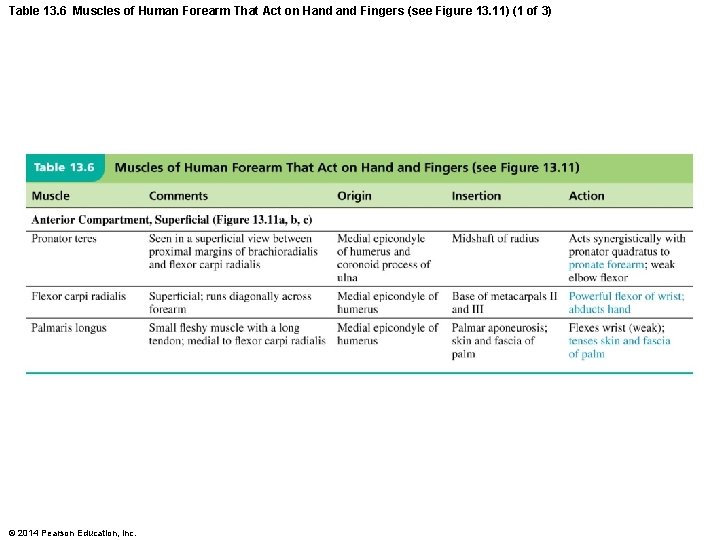

Table 13. 6 Muscles of Human Forearm That Act on Hand Fingers (see Figure

Table 13. 6 Muscles of Human Forearm That Act on Hand Fingers (see Figure 13. 11) (1 of 3) © 2014 Pearson Education, Inc.

Table 13. 6 Muscles of Human Forearm That Act on Hand Fingers (2 of

Table 13. 6 Muscles of Human Forearm That Act on Hand Fingers (2 of 3) © 2014 Pearson Education, Inc.

Table 13. 6 Muscles of Human Forearm That Act on Hand Fingers (3 of

Table 13. 6 Muscles of Human Forearm That Act on Hand Fingers (3 of 3) © 2014 Pearson Education, Inc.

Table 13. 7 Muscles Acting on Human Thigh and Leg, Anterior and Medial Aspects

Table 13. 7 Muscles Acting on Human Thigh and Leg, Anterior and Medial Aspects (see Figure 13. 12) (1 of 3) © 2014 Pearson Education, Inc.

Table 13. 7 Muscles Acting on Human Thigh and Leg, Anterior and Medial Aspects

Table 13. 7 Muscles Acting on Human Thigh and Leg, Anterior and Medial Aspects (see Figure 13. 12) (2 of 3) © 2014 Pearson Education, Inc.

Table 13. 7 Muscles Acting on Human Thigh and Leg, Anterior and Medial Aspects

Table 13. 7 Muscles Acting on Human Thigh and Leg, Anterior and Medial Aspects (3 of 3) © 2014 Pearson Education, Inc.

Table 13. 8 Muscles Acting on Human Thigh and Leg, Posterior Aspect (see Figure

Table 13. 8 Muscles Acting on Human Thigh and Leg, Posterior Aspect (see Figure 13. 13) (1 of 2) © 2014 Pearson Education, Inc.

Table 13. 8 Muscles Acting on Human Thigh and Leg, Posterior Aspect (2 of

Table 13. 8 Muscles Acting on Human Thigh and Leg, Posterior Aspect (2 of 2) © 2014 Pearson Education, Inc.

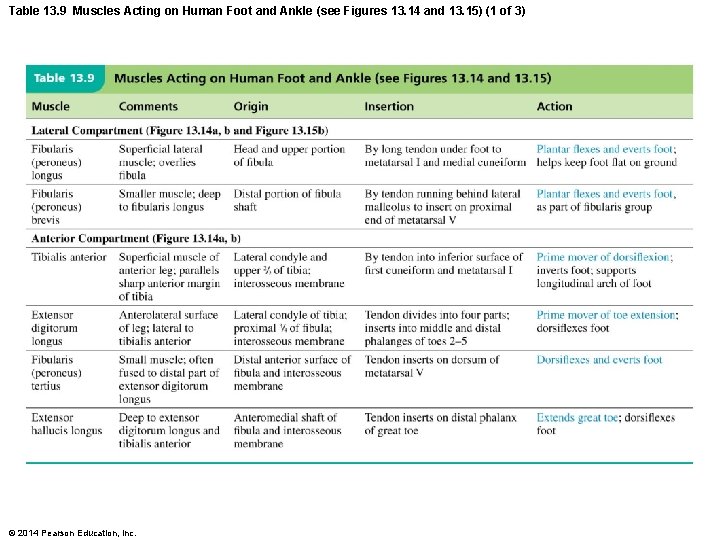

Table 13. 9 Muscles Acting on Human Foot and Ankle (see Figures 13. 14

Table 13. 9 Muscles Acting on Human Foot and Ankle (see Figures 13. 14 and 13. 15) (1 of 3) © 2014 Pearson Education, Inc.

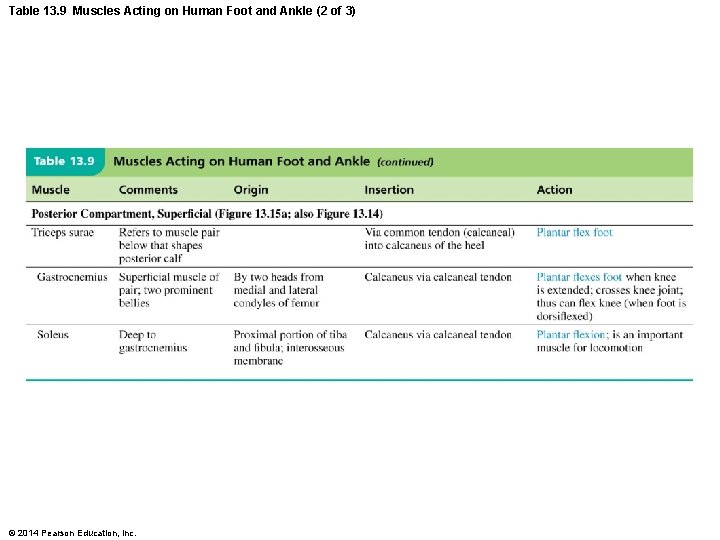

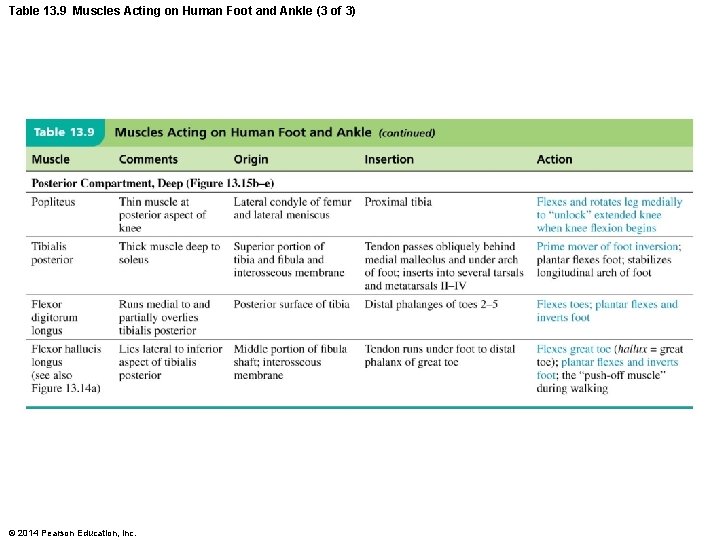

Table 13. 9 Muscles Acting on Human Foot and Ankle (2 of 3) ©

Table 13. 9 Muscles Acting on Human Foot and Ankle (2 of 3) © 2014 Pearson Education, Inc.

Table 13. 9 Muscles Acting on Human Foot and Ankle (3 of 3) ©

Table 13. 9 Muscles Acting on Human Foot and Ankle (3 of 3) © 2014 Pearson Education, Inc.

Review Figure 13. 1 Epicranial aponeurosis © 2014 Pearson Education, Inc.

Review Figure 13. 1 Epicranial aponeurosis © 2014 Pearson Education, Inc.

Review Figure 13. 2 Coracoid process Bursa © 2014 Pearson Education, Inc. Clavicle Sternum

Review Figure 13. 2 Coracoid process Bursa © 2014 Pearson Education, Inc. Clavicle Sternum

Review Figure 13. 3 Medial epicondyle of humerus Flexor retinaculum Palmar aponeurosis © 2014

Review Figure 13. 3 Medial epicondyle of humerus Flexor retinaculum Palmar aponeurosis © 2014 Pearson Education, Inc.

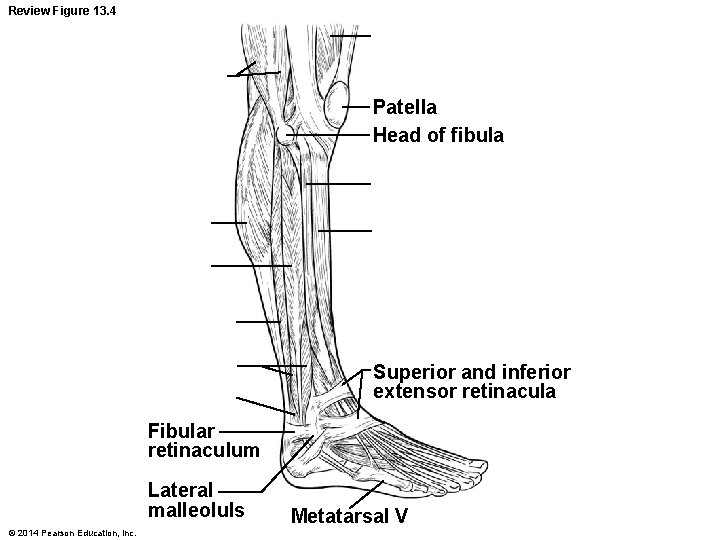

Review Figure 13. 4 Patella Head of fibula Superior and inferior extensor retinacula Fibular

Review Figure 13. 4 Patella Head of fibula Superior and inferior extensor retinacula Fibular retinaculum Lateral malleoluls © 2014 Pearson Education, Inc. Metatarsal V

Review Figure 13. 5 a b c u v w x y z d

Review Figure 13. 5 a b c u v w x y z d e aa f bb cc g h i dd ee j m n ff gg k l hh ii jj kk o p q r s t © 2014 Pearson Education, Inc. ll mm

Review Figure 13. 6 j k l m n o a b c p

Review Figure 13. 6 j k l m n o a b c p d e f g q r s t u h v w x i © 2014 Pearson Education, Inc.
