Figure 1 Basic Software Testing Words Error An
Figure 1. Basic Software Testing Words Error An error is a mistake of commission or omission that a person makes. An error causes a defect. In software development one error may cause one or more defects in requirements, designs, programs, or tests. Defect Also called a fault or a bug, a defect is an incorrect part of code that is caused by an error. An error of commission causes a defect of wrong or extra code. An error of omission results in a defect of missing code. A defect may cause one or more failures. Error of omission: missing design components OR design omission Failure A failure is a deviation from expected behaviour exhibited by software and observed as a set of symptoms by a tester or user. A failure is caused by one or more defects. The Causal Trail person A makes error anthat causes a defect that causes a failure. Root Cause Analysis needs traceability mechanism and pref. A TOOL Sources of errors: FIXES REQTS DESIGN CODE CHANGES Based on V&V FAULT MODEL

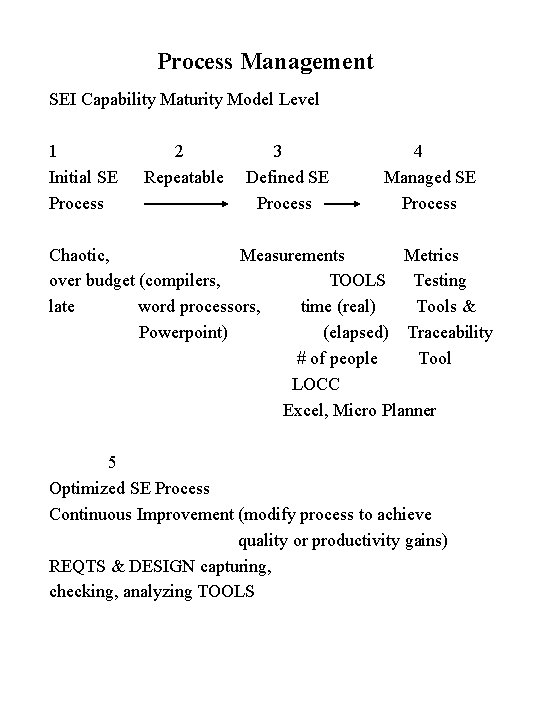

Process Management SEI Capability Maturity Model Level 1 Initial SE Process 2 Repeatable 3 Defined SE Process 4 Managed SE Process Chaotic, Measurements Metrics over budget (compilers, TOOLS Testing late word processors, time (real) Tools & Powerpoint) (elapsed) Traceability # of people Tool LOCC Excel, Micro Planner 5 Optimized SE Process Continuous Improvement (modify process to achieve quality or productivity gains) REQTS & DESIGN capturing, checking, analyzing TOOLS

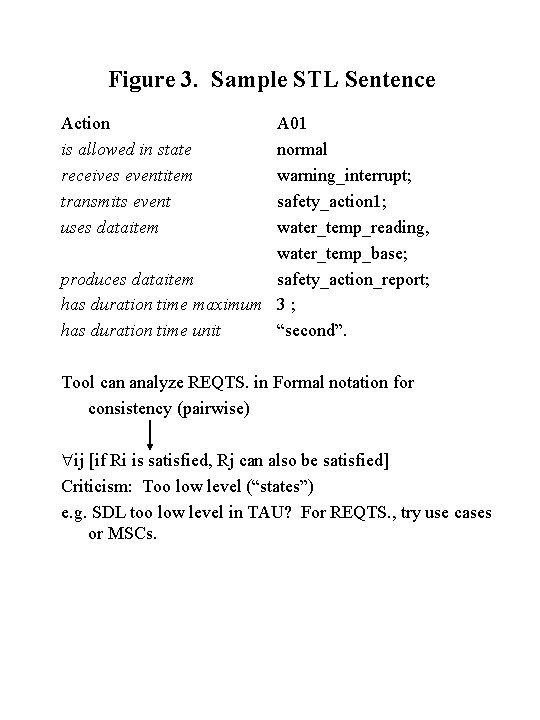

Figure 3. Sample STL Sentence Action is allowed in state receives eventitem transmits event uses dataitem A 01 normal warning_interrupt; safety_action 1; water_temp_reading, water_temp_base; produces dataitem safety_action_report; has duration time maximum 3 ; has duration time unit “second”. Tool can analyze REQTS. in Formal notation for consistency (pairwise) ij [if Ri is satisfied, Rj can also be satisfied] Criticism: Too low level (“states”) e. g. SDL too low level in TAU? For REQTS. , try use cases or MSCs.

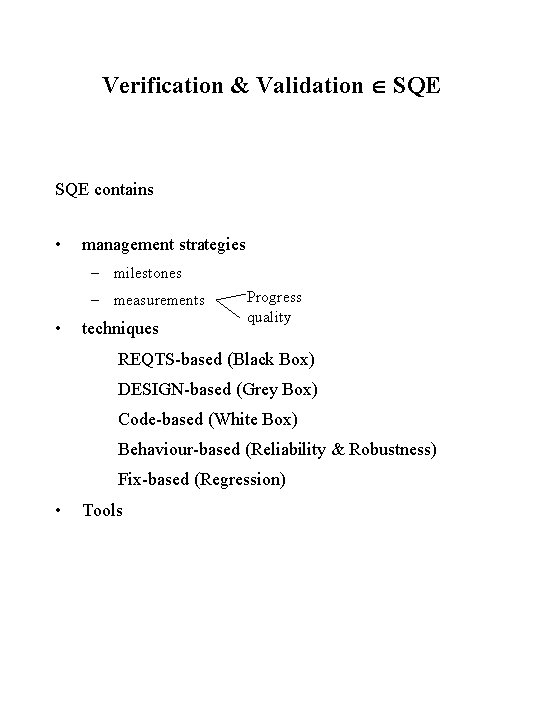

Verification & Validation SQE contains • management strategies – milestones – measurements • techniques Progress quality REQTS-based (Black Box) DESIGN-based (Grey Box) Code-based (White Box) Behaviour-based (Reliability & Robustness) Fix-based (Regression) • Tools

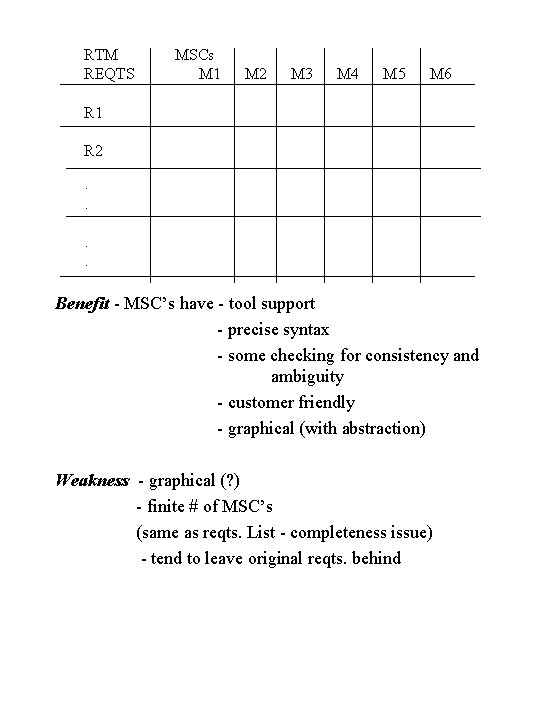

RTM REQTS MSCs M 1 M 2 M 3 M 4 M 5 M 6 R 1 R 2 · · Benefit - MSC’s have - tool support - precise syntax - some checking for consistency and ambiguity - customer friendly - graphical (with abstraction) Weakness - graphical (? ) - finite # of MSC’s (same as reqts. List - completeness issue) - tend to leave original reqts. behind

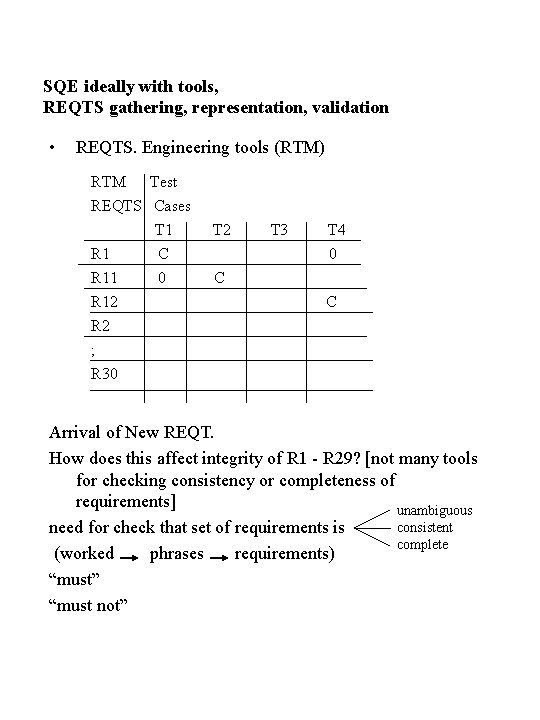

SQE ideally with tools, REQTS gathering, representation, validation • REQTS. Engineering tools (RTM) RTM Test REQTS Cases T 1 R 1 C R 11 0 R 12 R 2 ; R 30 T 2 T 3 T 4 0 C C Arrival of New REQT. How does this affect integrity of R 1 - R 29? [not many tools for checking consistency or completeness of requirements] unambiguous consistent need for check that set of requirements is complete (worked phrases requirements) “must” “must not”

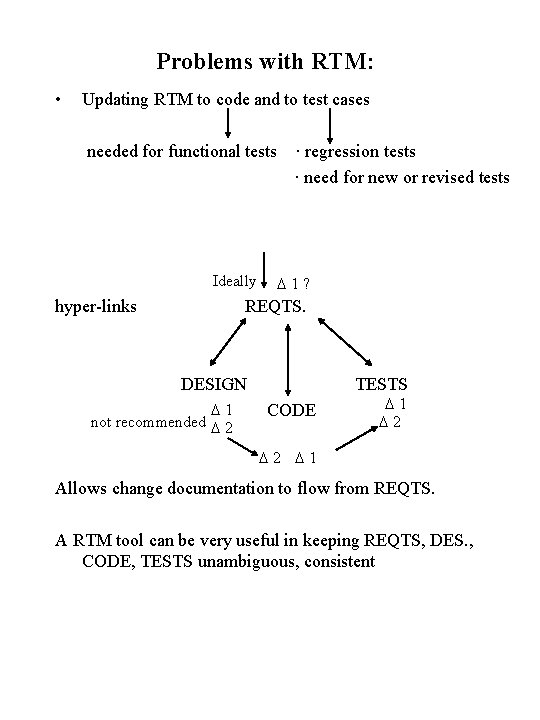

Problems with RTM: • Updating RTM to code and to test cases needed for functional tests Ideally hyper-links · regression tests · need for new or revised tests 1? REQTS. DESIGN 1 not recommended 2 TESTS CODE 1 2 2 1 Allows change documentation to flow from REQTS. A RTM tool can be very useful in keeping REQTS, DES. , CODE, TESTS unambiguous, consistent

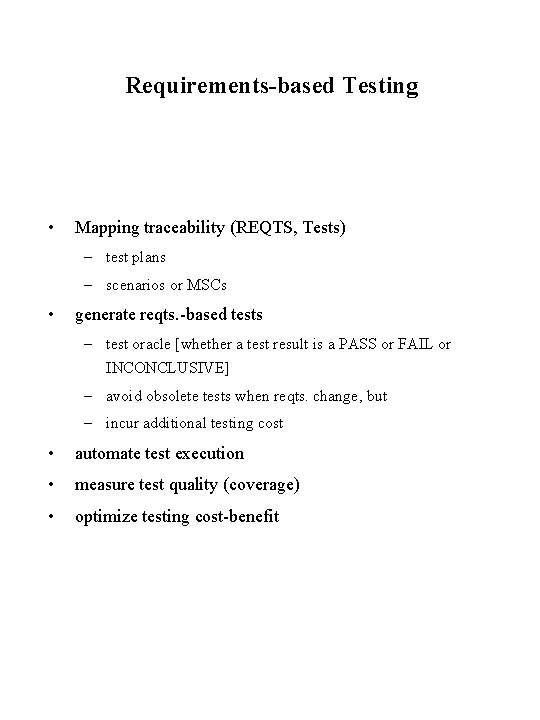

Requirements-based Testing • Mapping traceability (REQTS, Tests) – test plans – scenarios or MSCs • generate reqts. -based tests – test oracle [whether a test result is a PASS or FAIL or INCONCLUSIVE] – avoid obsolete tests when reqts. change, but – incur additional testing cost • automate test execution • measure test quality (coverage) • optimize testing cost-benefit

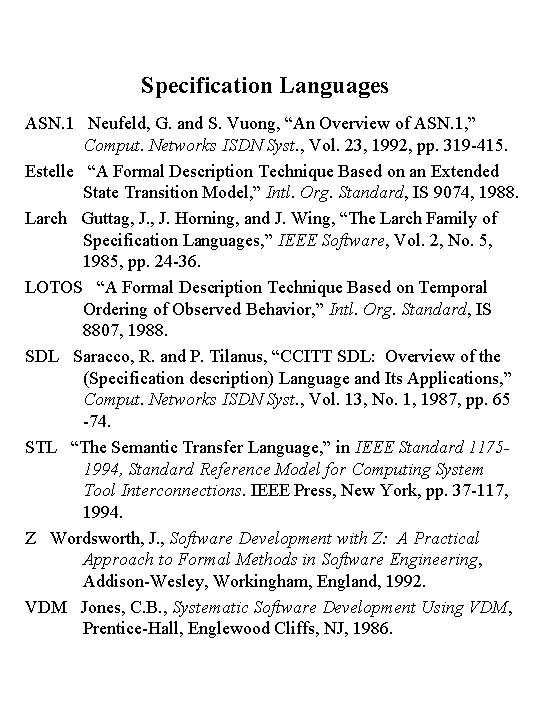

Specification Languages ASN. 1 Neufeld, G. and S. Vuong, “An Overview of ASN. 1, ” Comput. Networks ISDN Syst. , Vol. 23, 1992, pp. 319 -415. Estelle “A Formal Description Technique Based on an Extended State Transition Model, ” Intl. Org. Standard, IS 9074, 1988. Larch Guttag, J. Horning, and J. Wing, “The Larch Family of Specification Languages, ” IEEE Software, Vol. 2, No. 5, 1985, pp. 24 -36. LOTOS “A Formal Description Technique Based on Temporal Ordering of Observed Behavior, ” Intl. Org. Standard, IS 8807, 1988. SDL Saracco, R. and P. Tilanus, “CCITT SDL: Overview of the (Specification description) Language and Its Applications, ” Comput. Networks ISDN Syst. , Vol. 13, No. 1, 1987, pp. 65 -74. STL “The Semantic Transfer Language, ” in IEEE Standard 11751994, Standard Reference Model for Computing System Tool Interconnections. IEEE Press, New York, pp. 37 -117, 1994. Z Wordsworth, J. , Software Development with Z: A Practical Approach to Formal Methods in Software Engineering, Addison-Wesley, Workingham, England, 1992. VDM Jones, C. B. , Systematic Software Development Using VDM, Prentice-Hall, Englewood Cliffs, NJ, 1986.
