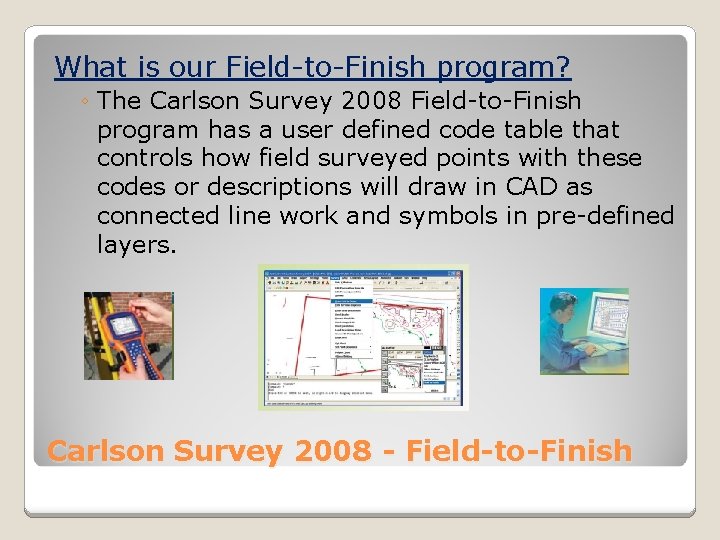

What is our Field-to-Finish program? ◦ The Carlson Survey 2008 Field-to-Finish program has a user defined code table that controls how field surveyed points with these codes or descriptions will draw in CAD as connected line work and symbols in pre-defined layers. Carlson Survey 2008 - Field-to-Finish

Setup your Office CAD Standards with Field to Finish ◦ Field Codes Define e. g. BLD, BC, FH, UP, … Layers for: ◦ 2 DPolylines Layer (zero elevation) ◦ 3 DPolylines Layer (at their true elevation) ◦ Both 2 D & 3 DPolylines Drawn in Separate Layers ◦ Symbols and their Layers ◦ Point Labels and their Layers Create multiple Field-Code-Tables for each customers CAD Standards Carlson Survey 2008 - Field-to-Finish

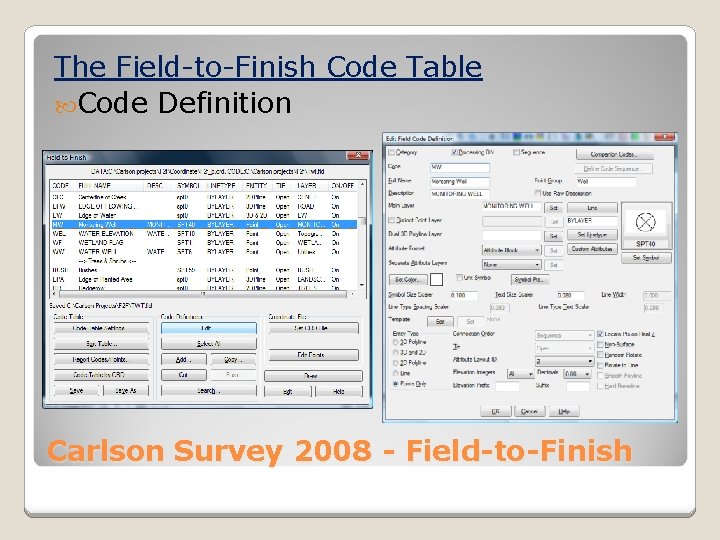

The Field-to-Finish Code Table Code Definition Carlson Survey 2008 - Field-to-Finish

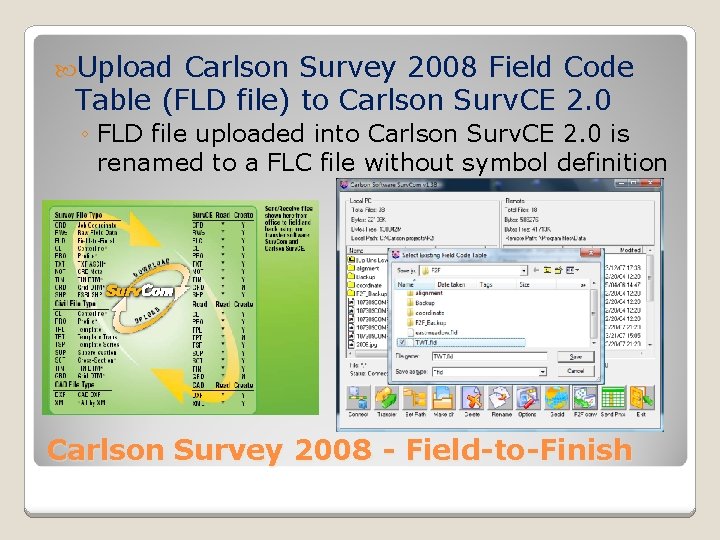

Upload Carlson Survey 2008 Field Code Table (FLD file) to Carlson Surv. CE 2. 0 ◦ FLD file uploaded into Carlson Surv. CE 2. 0 is renamed to a FLC file without symbol definition Carlson Survey 2008 - Field-to-Finish

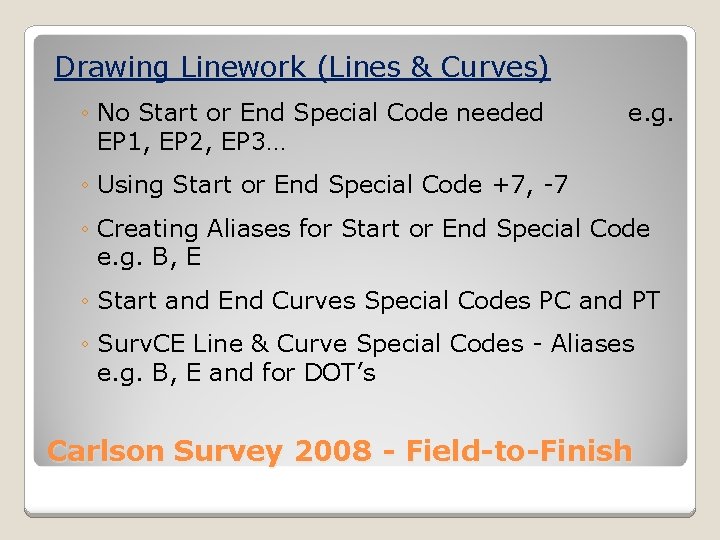

Drawing Linework (Lines & Curves) ◦ No Start or End Special Code needed EP 1, EP 2, EP 3… e. g. ◦ Using Start or End Special Code +7, -7 ◦ Creating Aliases for Start or End Special Code e. g. B, E ◦ Start and End Curves Special Codes PC and PT ◦ Surv. CE Line & Curve Special Codes - Aliases e. g. B, E and for DOT’s Carlson Survey 2008 - Field-to-Finish

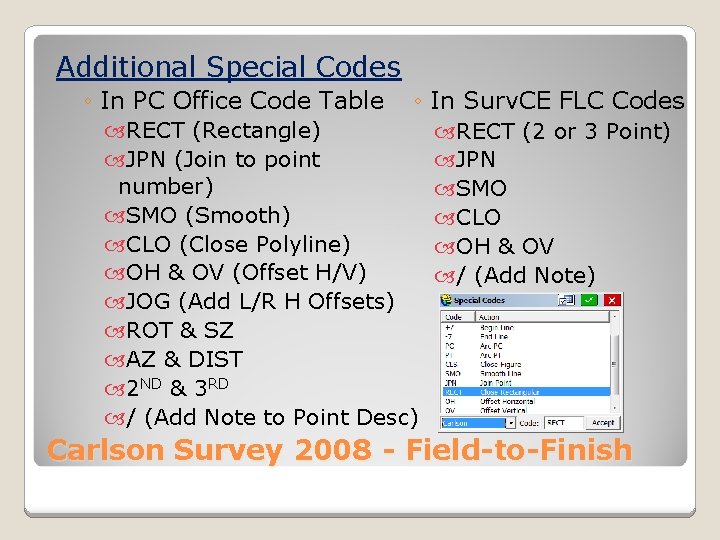

Additional Special Codes ◦ In PC Office Code Table ◦ In Surv. CE FLC Codes RECT (Rectangle) JPN (Join to point number) SMO (Smooth) CLO (Close Polyline) OH & OV (Offset H/V) JOG (Add L/R H Offsets) ROT & SZ AZ & DIST 2 ND & 3 RD / (Add Note to Point Desc) RECT (2 or 3 Point) JPN SMO CLO OH & OV / (Add Note) Carlson Survey 2008 - Field-to-Finish

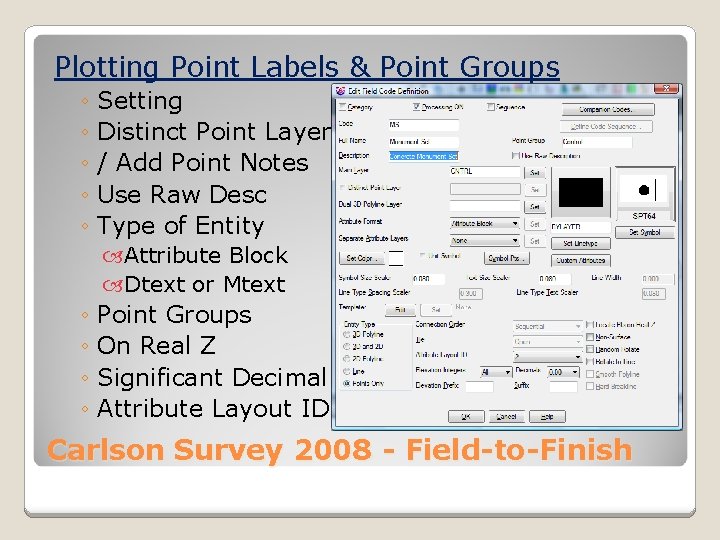

Plotting Point Labels & Point Groups ◦ Setting ◦ Distinct Point Layer ◦ / Add Point Notes ◦ Use Raw Desc ◦ Type of Entity Attribute Block Dtext or Mtext ◦ Point Groups ◦ On Real Z ◦ Significant Decimal ◦ Attribute Layout ID Carlson Survey 2008 - Field-to-Finish

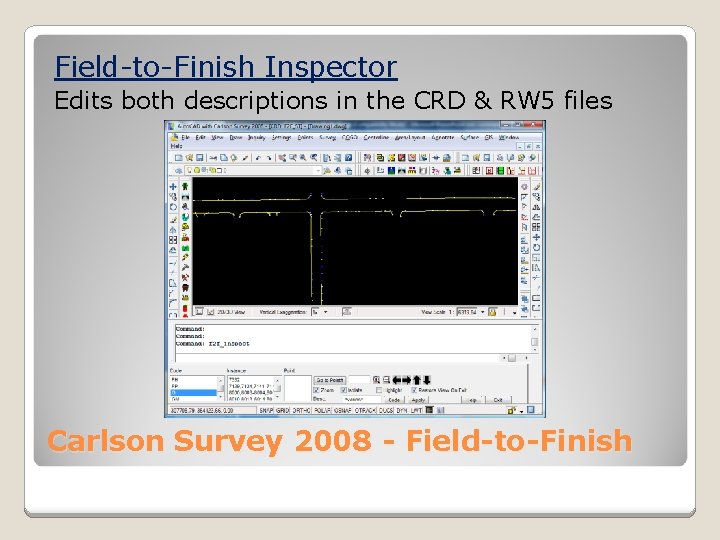

Field-to-Finish Inspector Edits both descriptions in the CRD & RW 5 files Carlson Survey 2008 - Field-to-Finish
