Field Trip 19 Animations with Java By Keith

Field Trip #19 Animations with Java By Keith Lynn

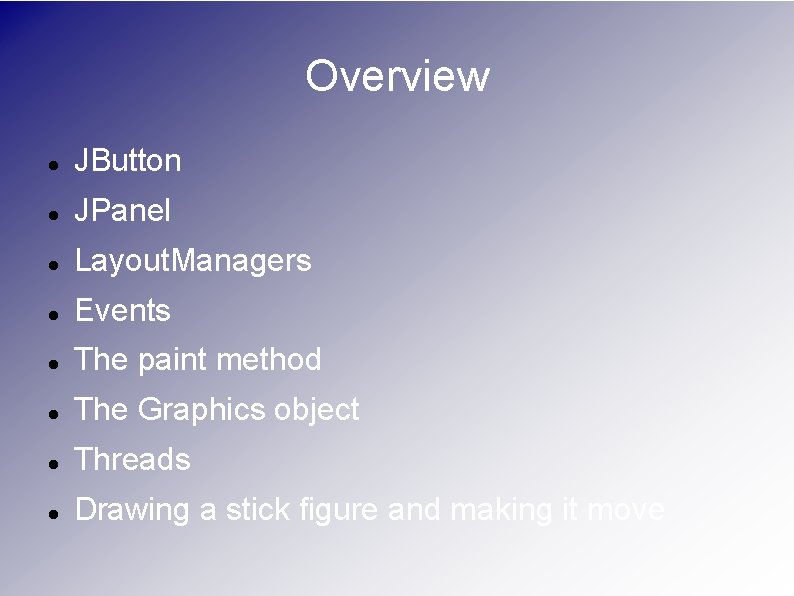

Overview JButton JPanel Layout. Managers Events The paint method The Graphics object Threads Drawing a stick figure and making it move

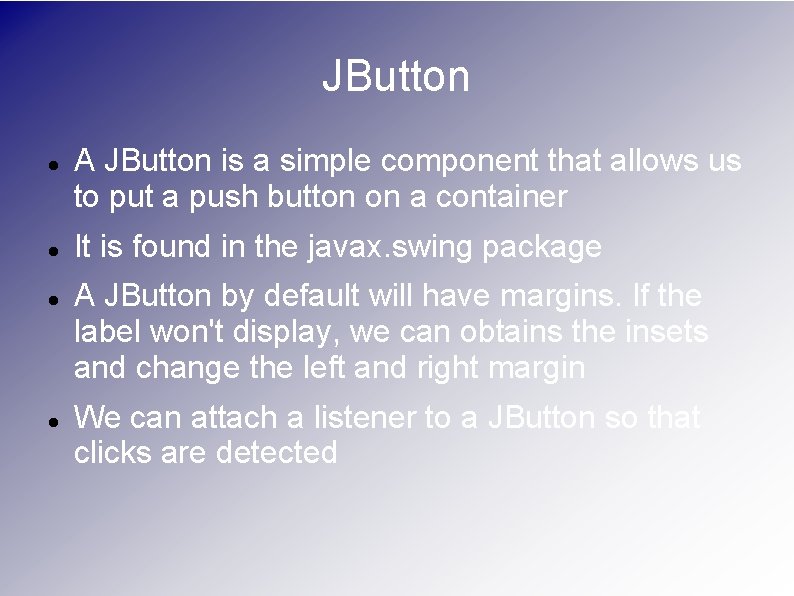

JButton A JButton is a simple component that allows us to put a push button on a container It is found in the javax. swing package A JButton by default will have margins. If the label won't display, we can obtains the insets and change the left and right margin We can attach a listener to a JButton so that clicks are detected

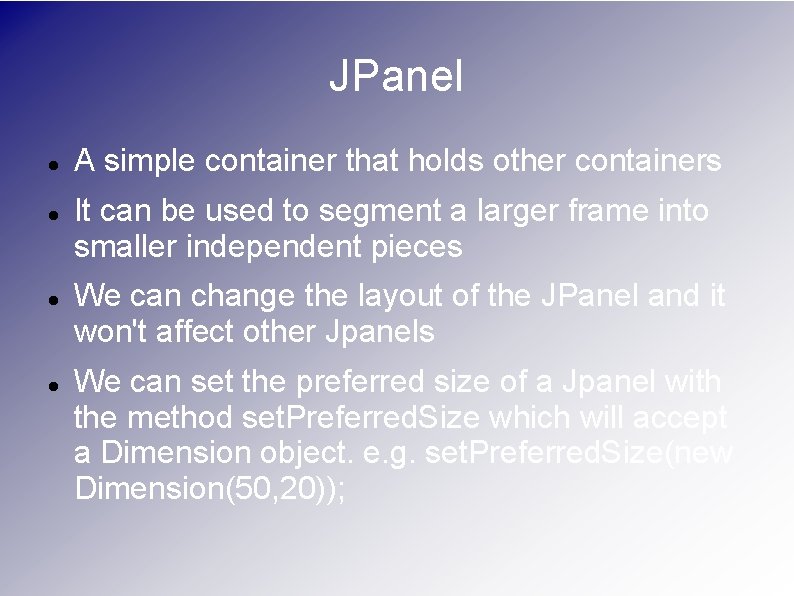

JPanel A simple container that holds other containers It can be used to segment a larger frame into smaller independent pieces We can change the layout of the JPanel and it won't affect other Jpanels We can set the preferred size of a Jpanel with the method set. Preferred. Size which will accept a Dimension object. e. g. set. Preferred. Size(new Dimension(50, 20));

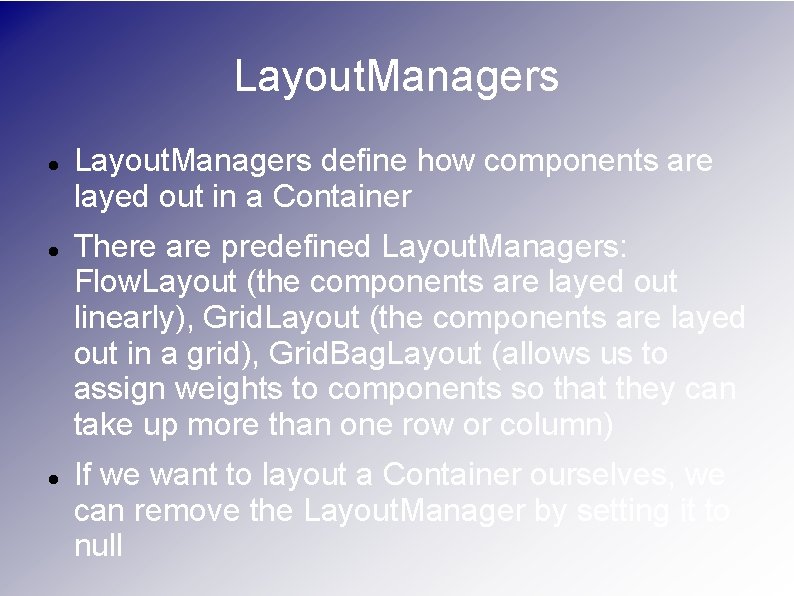

Layout. Managers Layout. Managers define how components are layed out in a Container There are predefined Layout. Managers: Flow. Layout (the components are layed out linearly), Grid. Layout (the components are layed out in a grid), Grid. Bag. Layout (allows us to assign weights to components so that they can take up more than one row or column) If we want to layout a Container ourselves, we can remove the Layout. Manager by setting it to null

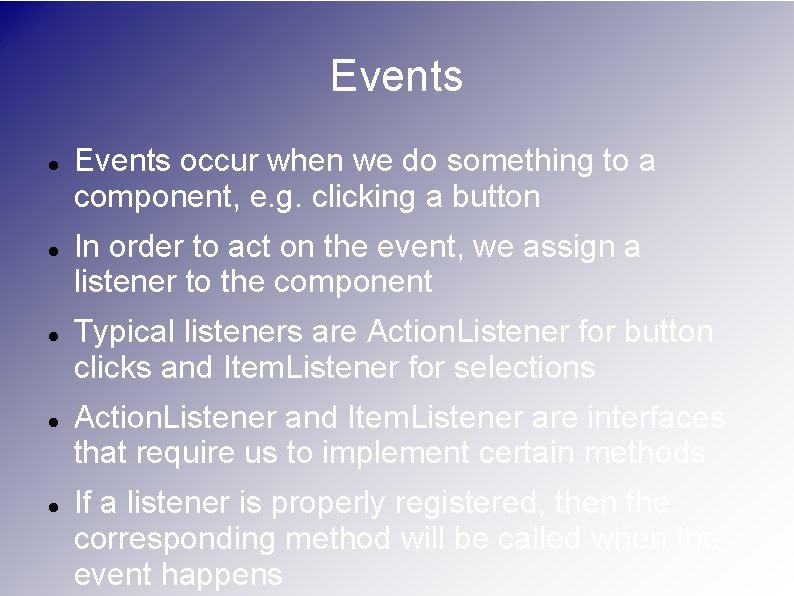

Events Events occur when we do something to a component, e. g. clicking a button In order to act on the event, we assign a listener to the component Typical listeners are Action. Listener for button clicks and Item. Listener for selections Action. Listener and Item. Listener are interfaces that require us to implement certain methods If a listener is properly registered, then the corresponding method will be called when the event happens

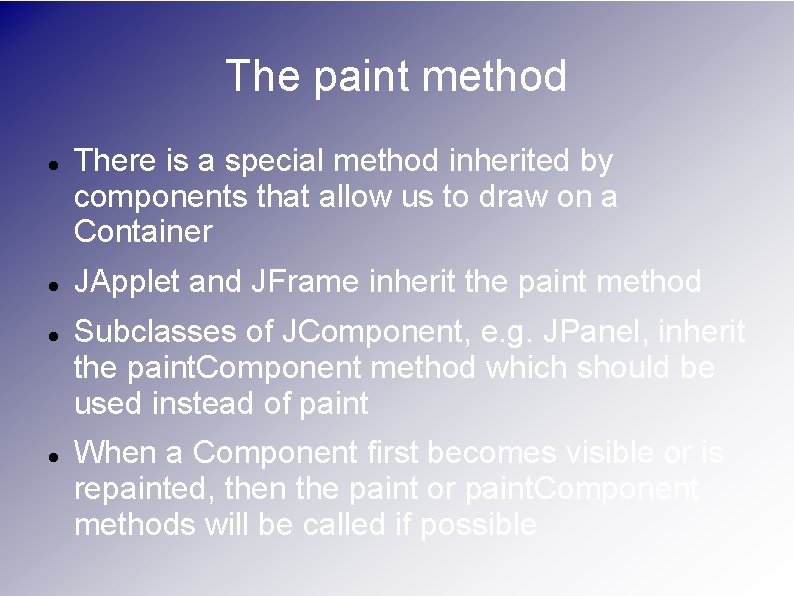

The paint method There is a special method inherited by components that allow us to draw on a Container JApplet and JFrame inherit the paint method Subclasses of JComponent, e. g. JPanel, inherit the paint. Component method which should be used instead of paint When a Component first becomes visible or is repainted, then the paint or paint. Component methods will be called if possible

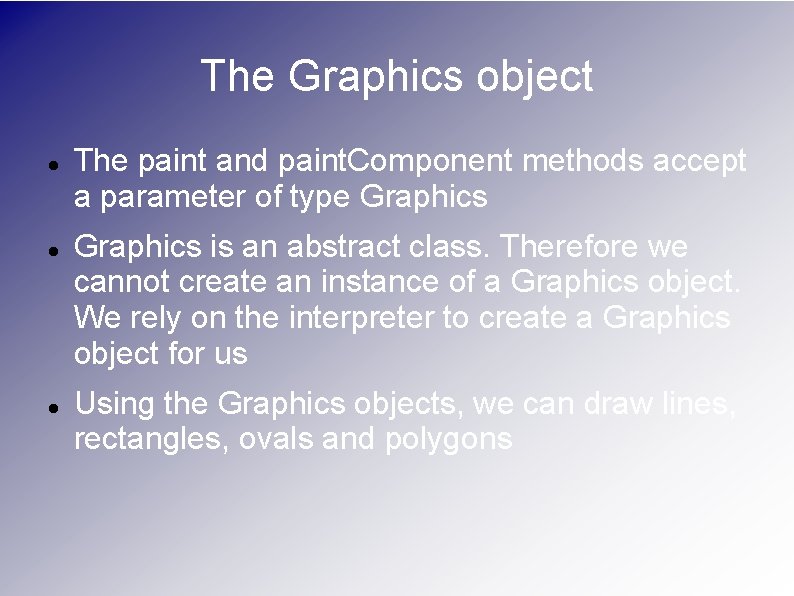

The Graphics object The paint and paint. Component methods accept a parameter of type Graphics is an abstract class. Therefore we cannot create an instance of a Graphics object. We rely on the interpreter to create a Graphics object for us Using the Graphics objects, we can draw lines, rectangles, ovals and polygons

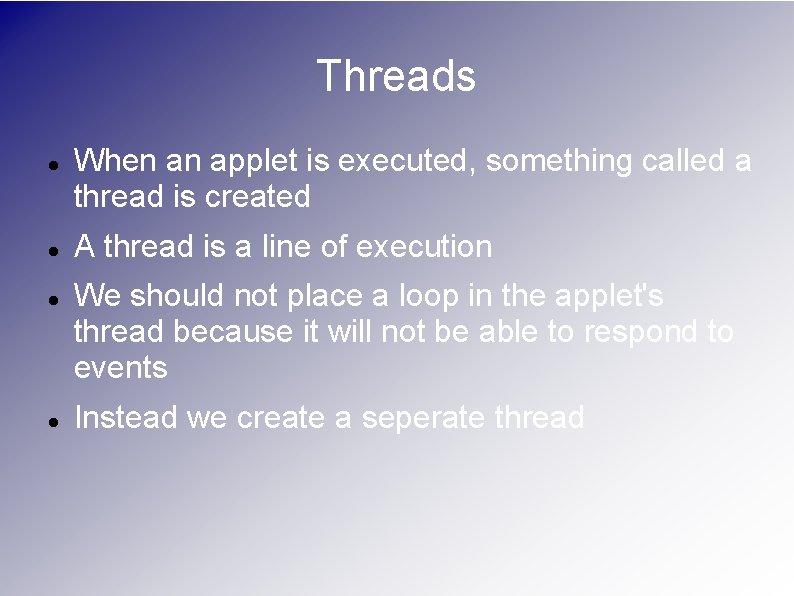

Threads When an applet is executed, something called a thread is created A thread is a line of execution We should not place a loop in the applet's thread because it will not be able to respond to events Instead we create a seperate thread

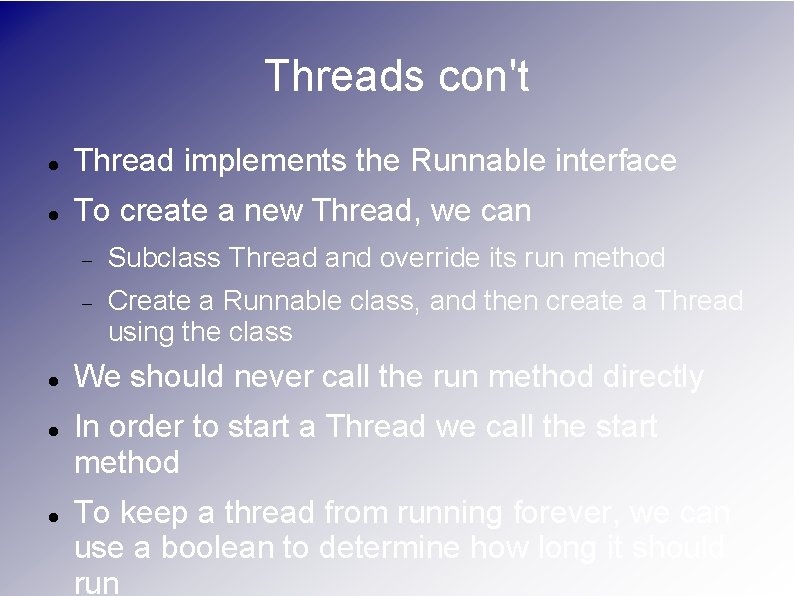

Threads con't Thread implements the Runnable interface To create a new Thread, we can Subclass Thread and override its run method Create a Runnable class, and then create a Thread using the class We should never call the run method directly In order to start a Thread we call the start method To keep a thread from running forever, we can use a boolean to determine how long it should run

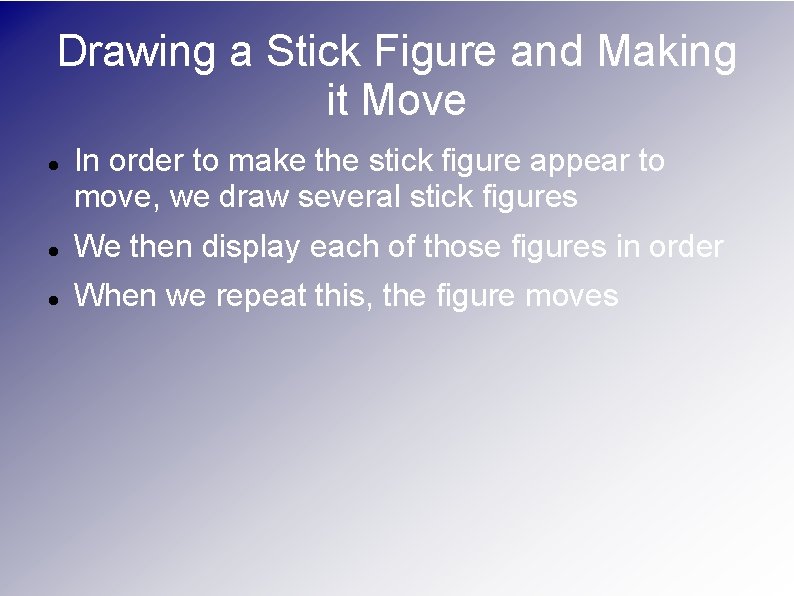

Drawing a Stick Figure and Making it Move In order to make the stick figure appear to move, we draw several stick figures We then display each of those figures in order When we repeat this, the figure moves
