Fiber Analysis Hair and Fiber 3 Fiber Evidence

Fiber Analysis Hair and Fiber 3

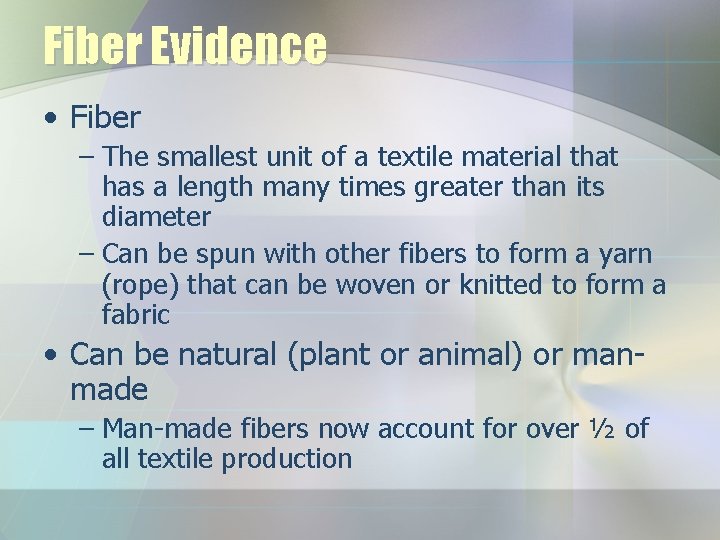

Fiber Evidence • Fiber – The smallest unit of a textile material that has a length many times greater than its diameter – Can be spun with other fibers to form a yarn (rope) that can be woven or knitted to form a fabric • Can be natural (plant or animal) or manmade – Man-made fibers now account for over ½ of all textile production

Forensic Value • Are considered class evidence • Are common trace evidence at a crime scene • Can be characterized based on comparison of both physical and chemical properties

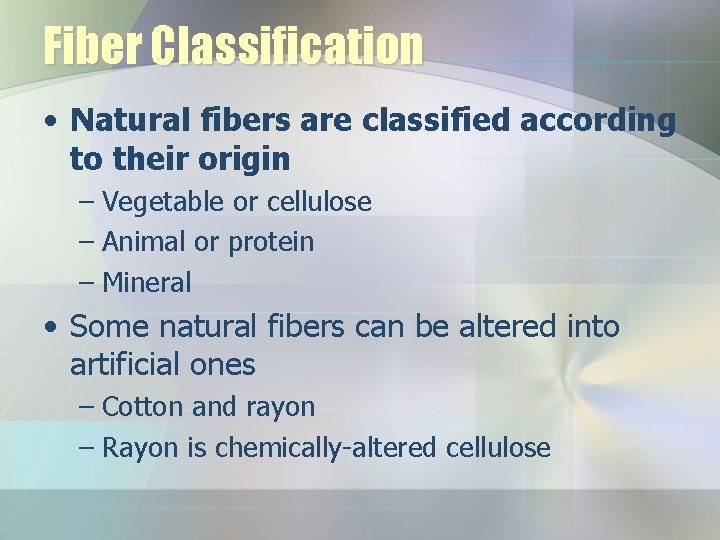

Fiber Classification • Natural fibers are classified according to their origin – Vegetable or cellulose – Animal or protein – Mineral • Some natural fibers can be altered into artificial ones – Cotton and rayon – Rayon is chemically-altered cellulose

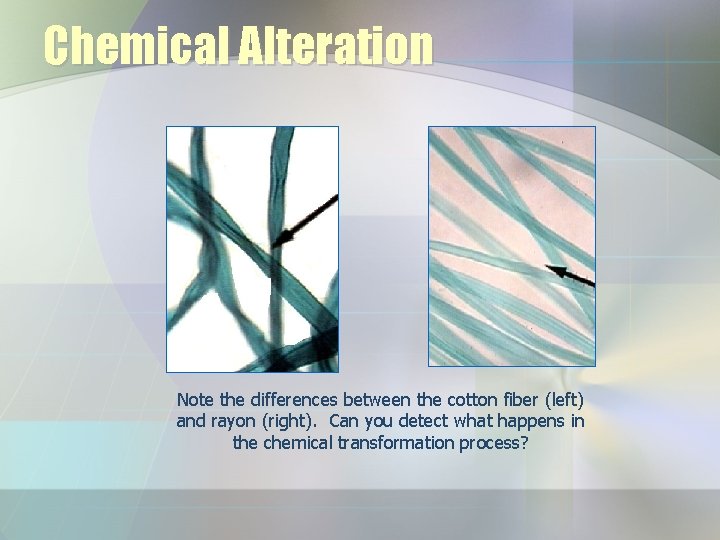

Chemical Alteration Note the differences between the cotton fiber (left) and rayon (right). Can you detect what happens in the chemical transformation process?

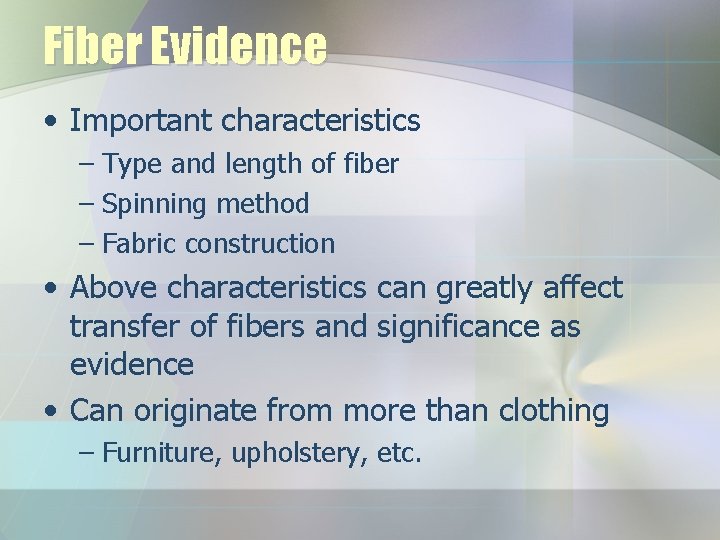

Fiber Evidence • Important characteristics – Type and length of fiber – Spinning method – Fabric construction • Above characteristics can greatly affect transfer of fibers and significance as evidence • Can originate from more than clothing – Furniture, upholstery, etc.

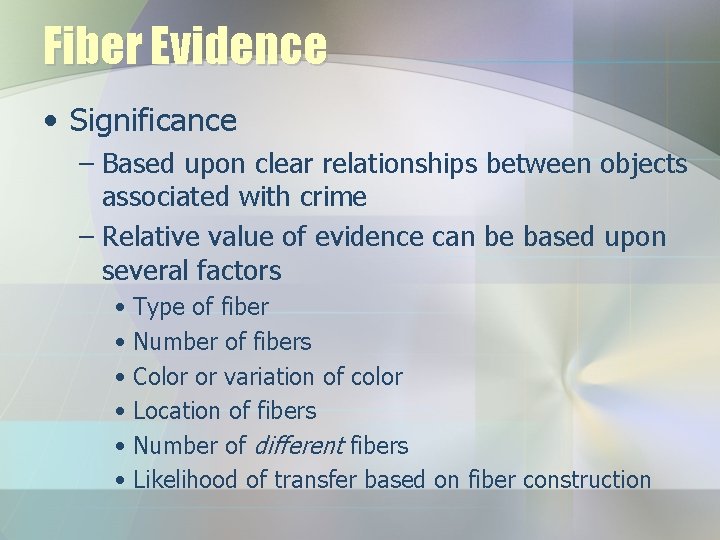

Fiber Evidence • Significance – Based upon clear relationships between objects associated with crime – Relative value of evidence can be based upon several factors • Type of fiber • Number of fibers • Color or variation of color • Location of fibers • Number of different fibers • Likelihood of transfer based on fiber construction

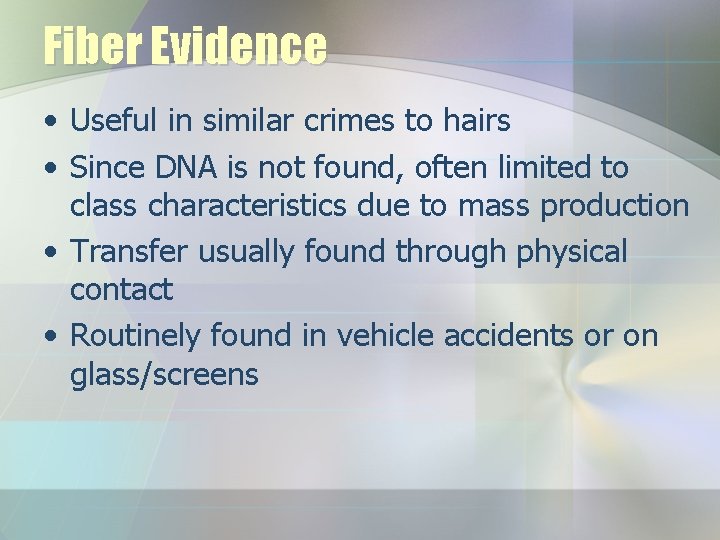

Fiber Evidence • Useful in similar crimes to hairs • Since DNA is not found, often limited to class characteristics due to mass production • Transfer usually found through physical contact • Routinely found in vehicle accidents or on glass/screens

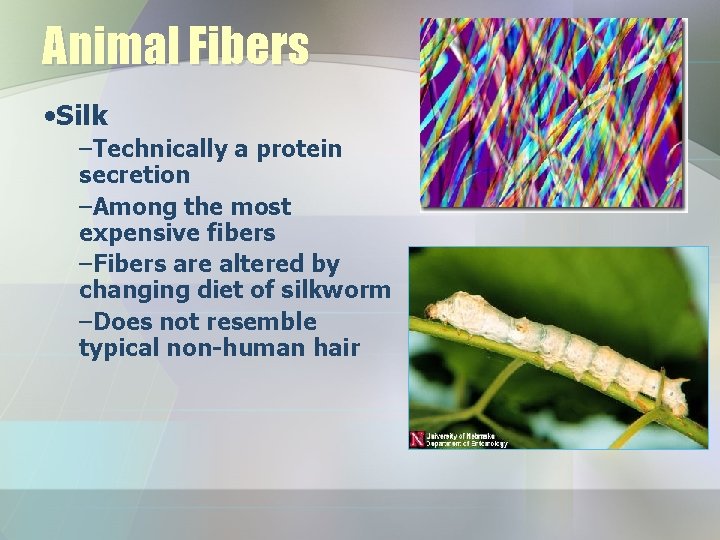

Animal Fibers • Silk –Technically a protein secretion –Among the most expensive fibers –Fibers are altered by changing diet of silkworm –Does not resemble typical non-human hair

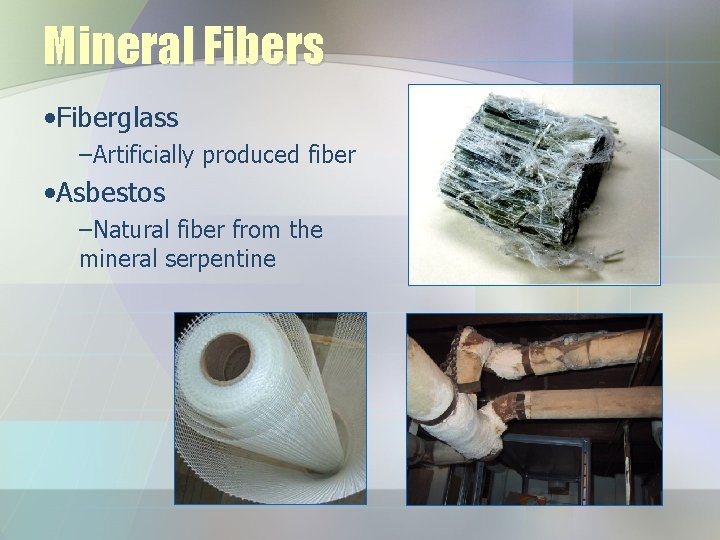

Mineral Fibers • Fiberglass –Artificially produced fiber • Asbestos –Natural fiber from the mineral serpentine

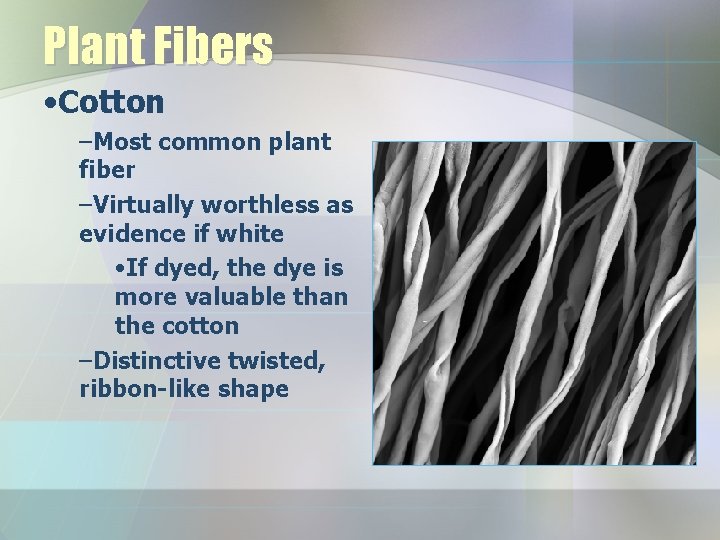

Plant Fibers • Cotton –Most common plant fiber –Virtually worthless as evidence if white • If dyed, the dye is more valuable than the cotton –Distinctive twisted, ribbon-like shape

Plant Fibers Ramie fiber, common in SE Asia Hemp fiber, the strongest natural fiber Plant fibers are based on the polymer cellulose, the chemical that forms the cell wall of plant cells Jute fiber, also common in Asia

Synthetic Fiber Chemistry • Polymers – Well known natural polymers • Starch • Cellulose - nature of polymer provided structure to plants • Proteins - form animal hairs – Well known man-made polymers • Nylon • Teflon • Silicone

Synthetic Fiber Chemistry • Man-made polymers – Basic chemical substance of all artificial fibers – Also include most paints, plastics, adhesives, rubbers • Polymers are routinely formed from thousands of individual atoms • Composed of repeating units called monomers that link like chains

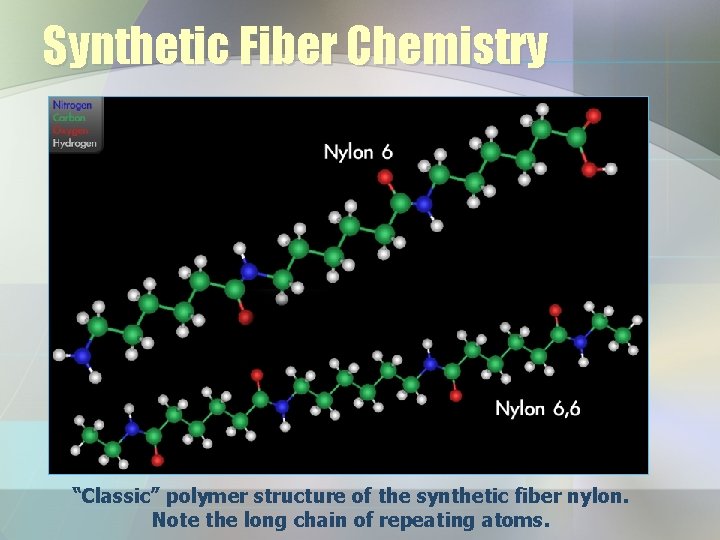

Synthetic Fiber Chemistry “Classic” polymer structure of the synthetic fiber nylon. Note the long chain of repeating atoms.

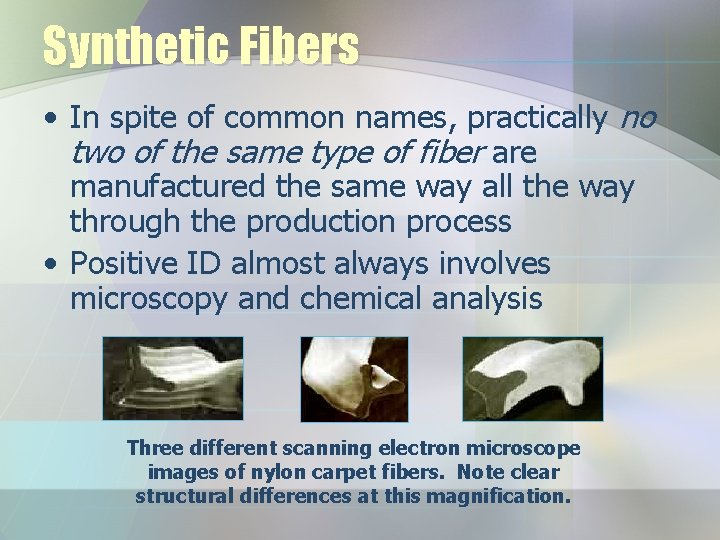

Synthetic Fibers • In spite of common names, practically no two of the same type of fiber are manufactured the same way all the way through the production process • Positive ID almost always involves microscopy and chemical analysis Three different scanning electron microscope images of nylon carpet fibers. Note clear structural differences at this magnification.

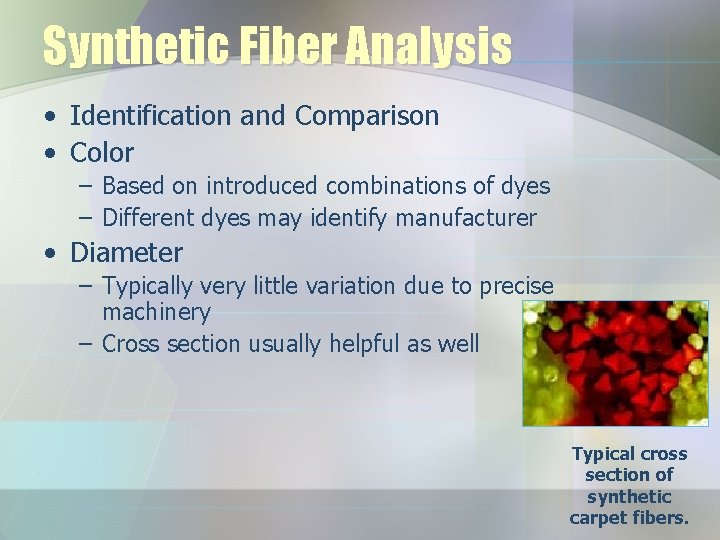

Synthetic Fiber Analysis • Identification and Comparison • Color – Based on introduced combinations of dyes – Different dyes may identify manufacturer • Diameter – Typically very little variation due to precise machinery – Cross section usually helpful as well Typical cross section of synthetic carpet fibers.

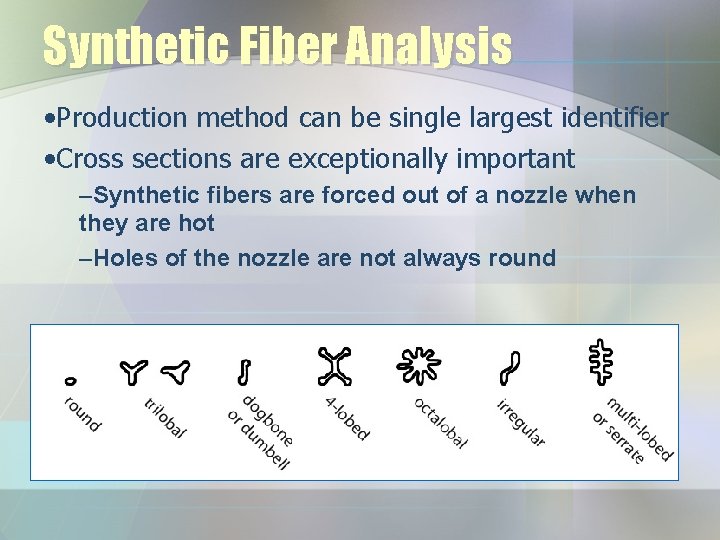

Synthetic Fiber Analysis • Production method can be single largest identifier • Cross sections are exceptionally important –Synthetic fibers are forced out of a nozzle when they are hot –Holes of the nozzle are not always round

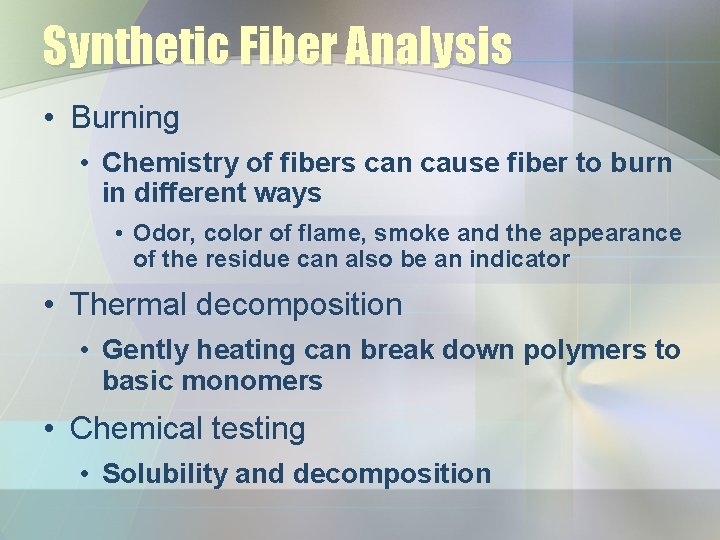

Synthetic Fiber Analysis • Burning • Chemistry of fibers can cause fiber to burn in different ways • Odor, color of flame, smoke and the appearance of the residue can also be an indicator • Thermal decomposition • Gently heating can break down polymers to basic monomers • Chemical testing • Solubility and decomposition

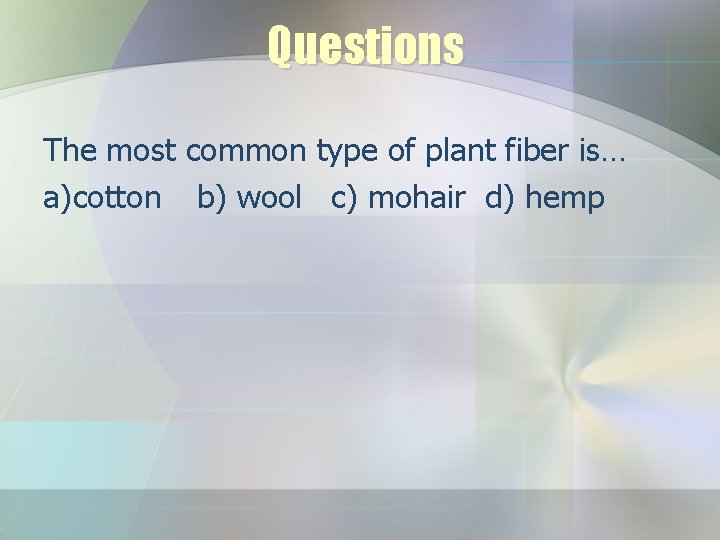

Questions The most common type of plant fiber is… a)cotton b) wool c) mohair d) hemp

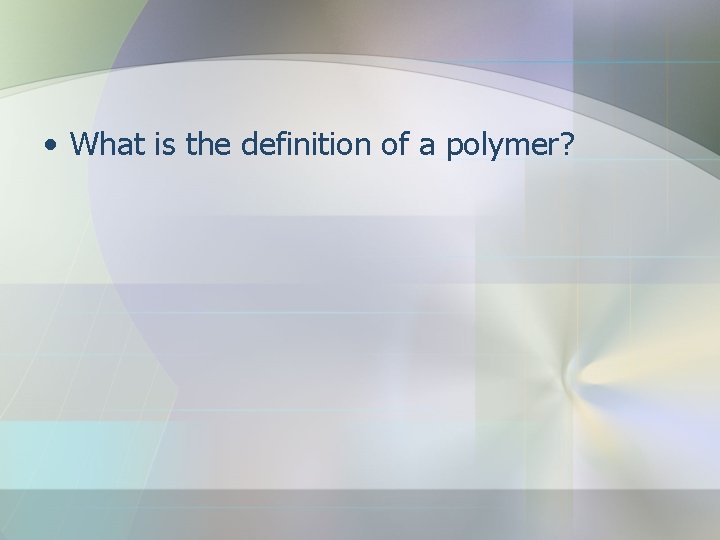

• What is the definition of a polymer?

In plant-based fibers, the polymer _______ is the major component of the fiber. This polymer is composed of the monomer ______.
