Using the FFT for DSP • Because the FFT provides the means to reduce the computational complexity of the DFT from order (N 2) to order (N log 2(N)), it is often desirable to do FFT-based processing for DSP systems • Even the computational cost of doing both FFT and IFFT may be less than conventional methods ECEN 4002 Spring 2003 Fast Convolution and the STFT R. C. Maher 2

Linear Convolution via FFT ECEN 4002 Spring 2003 Fast Convolution and the STFT R. C. Maher

Convolution • FIR digital filter computes the linear convolution of the unit sample response with the input signal • A filter of length P requires P 2 complexity • Recall that convolution in time domain is multiplication in frequency domain • So, consider multiplying signal and filter transforms in the frequency domain ECEN 4002 Spring 2003 Fast Convolution and the STFT R. C. Maher 4

Circular Convolution • The DFT is a sampled version of the Fourier transform, so multiplying DFTs corresponds to circular convolution • Circular convolution can be thought of as “time-domain aliasing” • If we want linear convolution, we must ensure time-limited input signals to avoid time-domain aliasing (like bandlimiting to avoid frequency-domain aliasing) ECEN 4002 Spring 2003 Fast Convolution and the STFT R. C. Maher 5

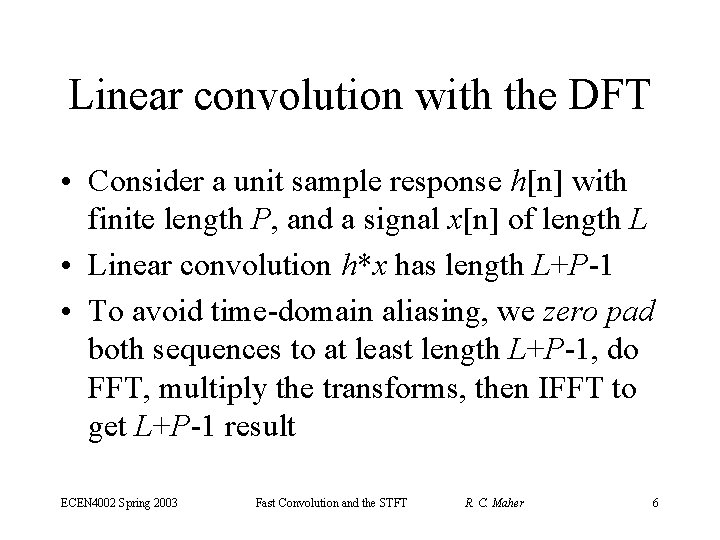

Linear convolution with the DFT • Consider a unit sample response h[n] with finite length P, and a signal x[n] of length L • Linear convolution h*x has length L+P-1 • To avoid time-domain aliasing, we zero pad both sequences to at least length L+P-1, do FFT, multiply the transforms, then IFFT to get L+P-1 result ECEN 4002 Spring 2003 Fast Convolution and the STFT R. C. Maher 6

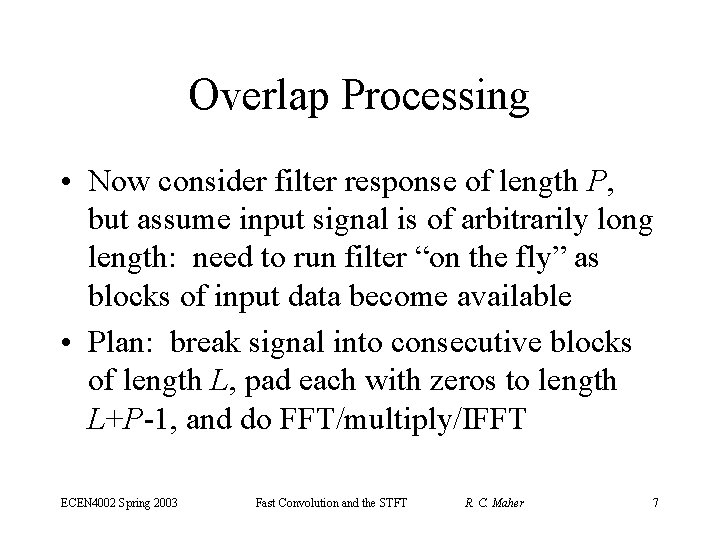

Overlap Processing • Now consider filter response of length P, but assume input signal is of arbitrarily long length: need to run filter “on the fly” as blocks of input data become available • Plan: break signal into consecutive blocks of length L, pad each with zeros to length L+P-1, and do FFT/multiply/IFFT ECEN 4002 Spring 2003 Fast Convolution and the STFT R. C. Maher 7

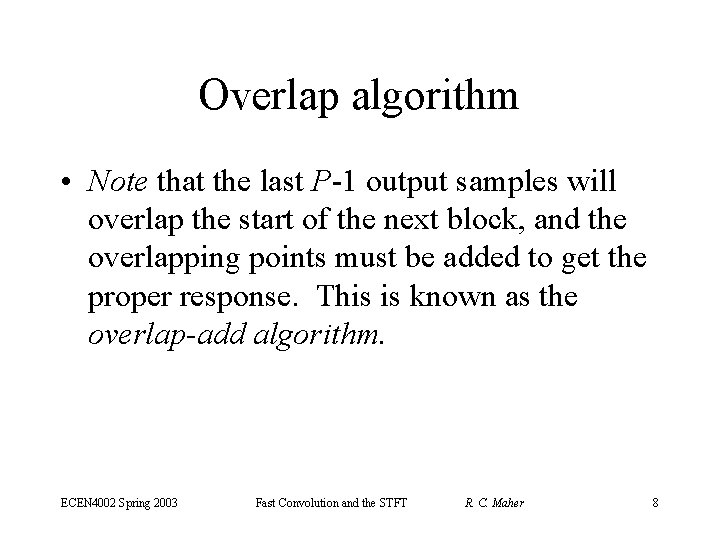

Overlap algorithm • Note that the last P-1 output samples will overlap the start of the next block, and the overlapping points must be added to get the proper response. This is known as the overlap-add algorithm. ECEN 4002 Spring 2003 Fast Convolution and the STFT R. C. Maher 8

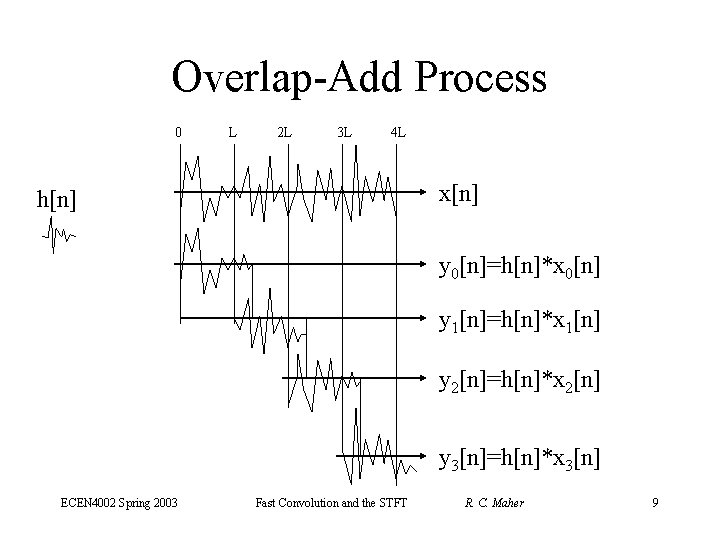

Overlap-Add Process 0 L 2 L 3 L 4 L x[n] h[n] y 0[n]=h[n]*x 0[n] y 1[n]=h[n]*x 1[n] y 2[n]=h[n]*x 2[n] y 3[n]=h[n]*x 3[n] ECEN 4002 Spring 2003 Fast Convolution and the STFT R. C. Maher 9

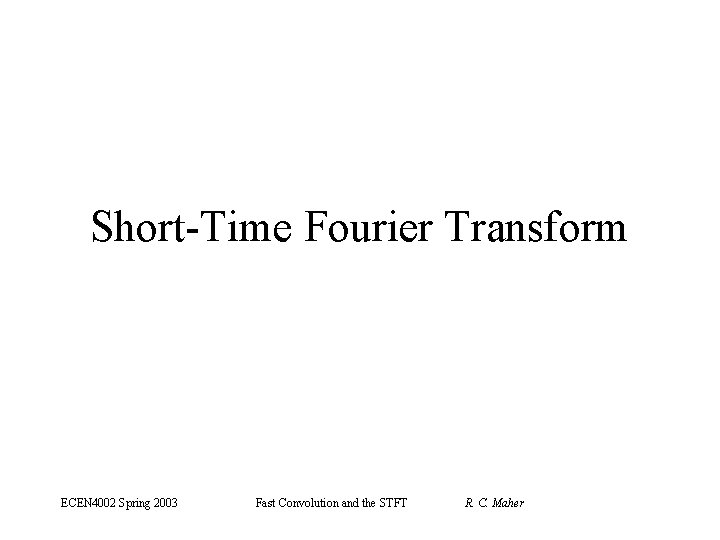

Short-Time Fourier Transform ECEN 4002 Spring 2003 Fast Convolution and the STFT R. C. Maher

Short-Time Fourier Transform • It is often desirable to have an estimate of the input signal spectrum for a “short” interval, especially for non-stationary signals. Want to see changes in spectrum with time. • The Fourier transform gives the frequency response, but it has infinite summation ECEN 4002 Spring 2003 Fast Convolution and the STFT R. C. Maher 11

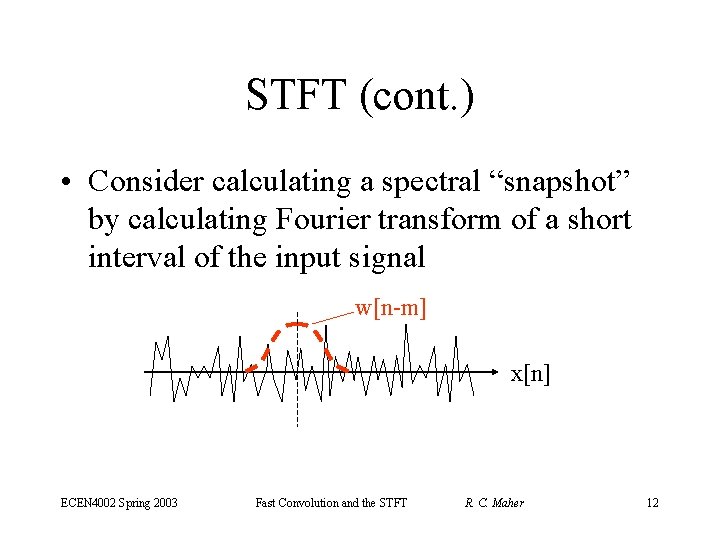

STFT (cont. ) • Consider calculating a spectral “snapshot” by calculating Fourier transform of a short interval of the input signal w[n-m] x[n] ECEN 4002 Spring 2003 Fast Convolution and the STFT R. C. Maher 12

STFT (cont. ) • Express the short-time Fourier transform as a 2 dimensional signal • Multiplying signal by a short time function causes smeared spectrum: convolution of the transforms ECEN 4002 Spring 2003 Fast Convolution and the STFT R. C. Maher 13

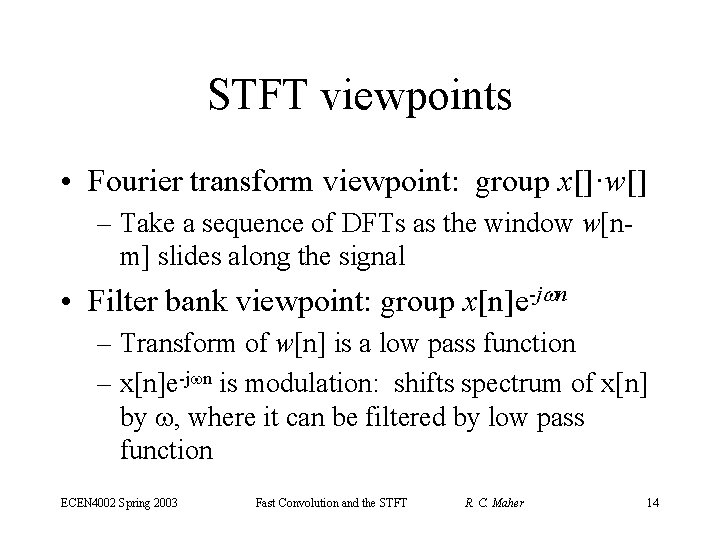

STFT viewpoints • Fourier transform viewpoint: group x[]·w[] – Take a sequence of DFTs as the window w[nm] slides along the signal • Filter bank viewpoint: group x[n]e-jwn – Transform of w[n] is a low pass function – x[n]e-jwn is modulation: shifts spectrum of x[n] by w, where it can be filtered by low pass function ECEN 4002 Spring 2003 Fast Convolution and the STFT R. C. Maher 14

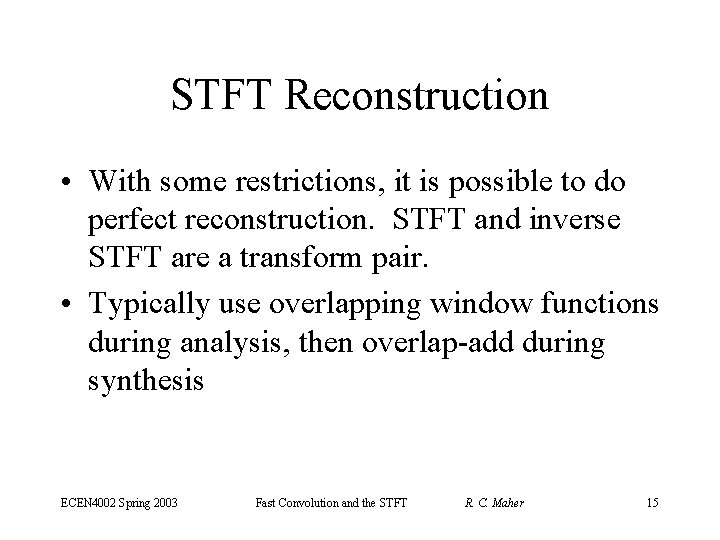

STFT Reconstruction • With some restrictions, it is possible to do perfect reconstruction. STFT and inverse STFT are a transform pair. • Typically use overlapping window functions during analysis, then overlap-add during synthesis ECEN 4002 Spring 2003 Fast Convolution and the STFT R. C. Maher 15

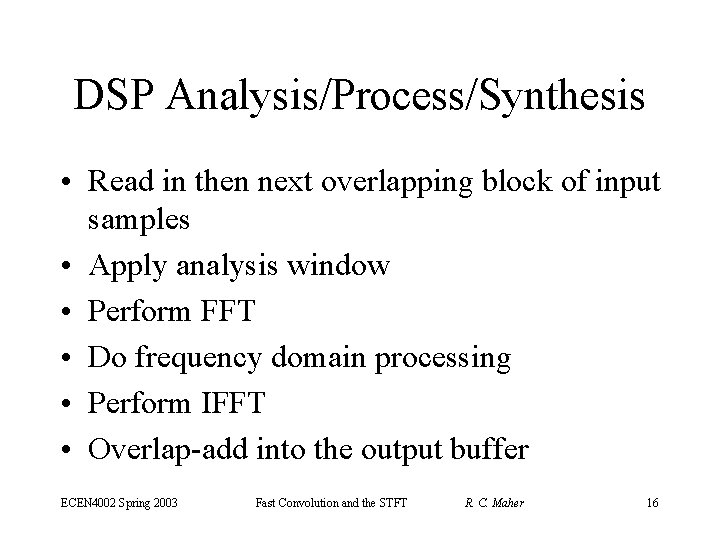

DSP Analysis/Process/Synthesis • Read in then next overlapping block of input samples • Apply analysis window • Perform FFT • Do frequency domain processing • Perform IFFT • Overlap-add into the output buffer ECEN 4002 Spring 2003 Fast Convolution and the STFT R. C. Maher 16
