FFI Database Setup FFI Database Setup Discussion Organizational
FFI Database Setup

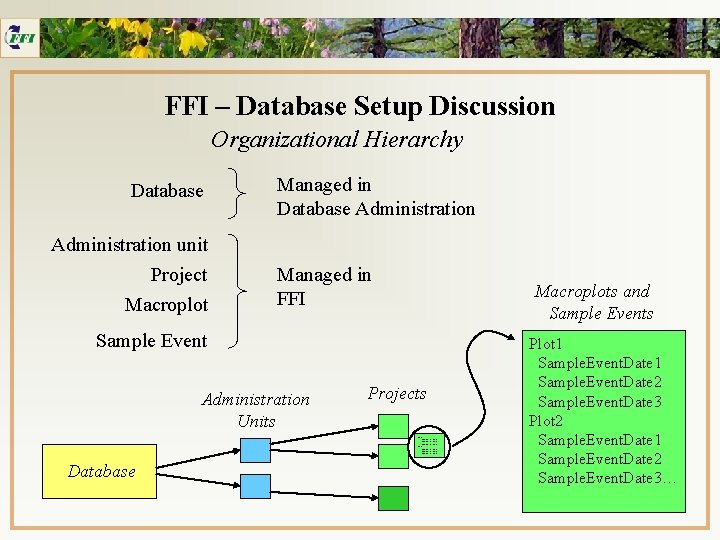

FFI – Database Setup Discussion Organizational Hierarchy Database Managed in Database Administration unit Project Macroplot Managed in FFI Macroplots and Sample Events Sample Event Administration Units Projects Plot 1 Sample. Event. Date 2 Sample. Event. Date 3 Plot 2 Sample. Event. Date 1 Sample. Event. Date 2 Sample. Event. Date 3… Database Plot 1 Sample. Event. Date 2 Sample. Event. Date 3 Plot 2 Sample. Event. Date 1 Sample. Event. Date 2 Sample. Event. Date 3…

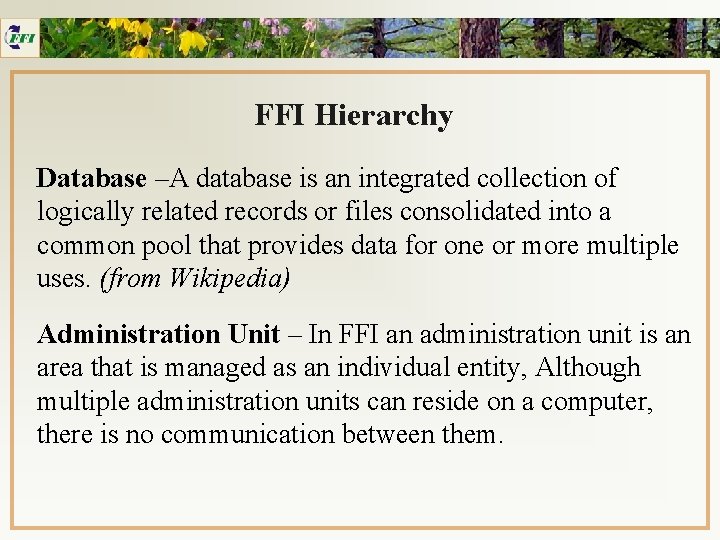

FFI Hierarchy Database –A database is an integrated collection of logically related records or files consolidated into a common pool that provides data for one or more multiple uses. (from Wikipedia) Administration Unit – In FFI an administration unit is an area that is managed as an individual entity, Although multiple administration units can reside on a computer, there is no communication between them.

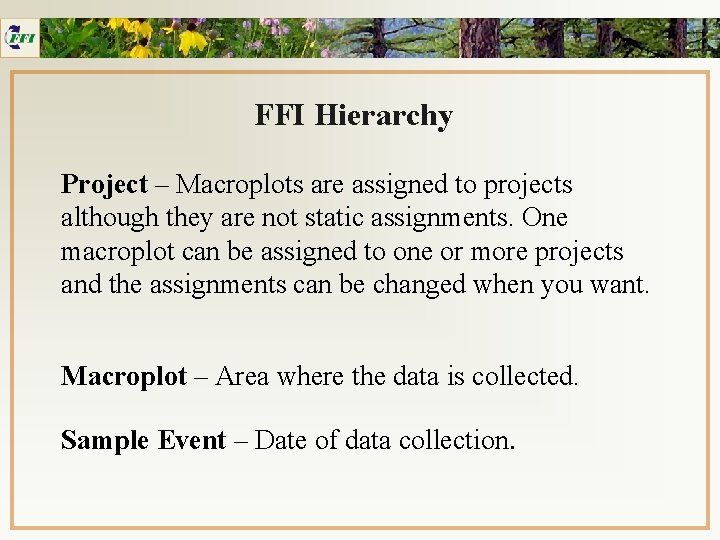

FFI Hierarchy Project – Macroplots are assigned to projects although they are not static assignments. One macroplot can be assigned to one or more projects and the assignments can be changed when you want. Macroplot – Area where the data is collected. Sample Event – Date of data collection.
FFI – Database Setup Discussion Common Questions Which should I have? . . . • Single vs. Multiple Administration Units • Single vs. Multiple Databases • Projects • Data Collection • Analysis

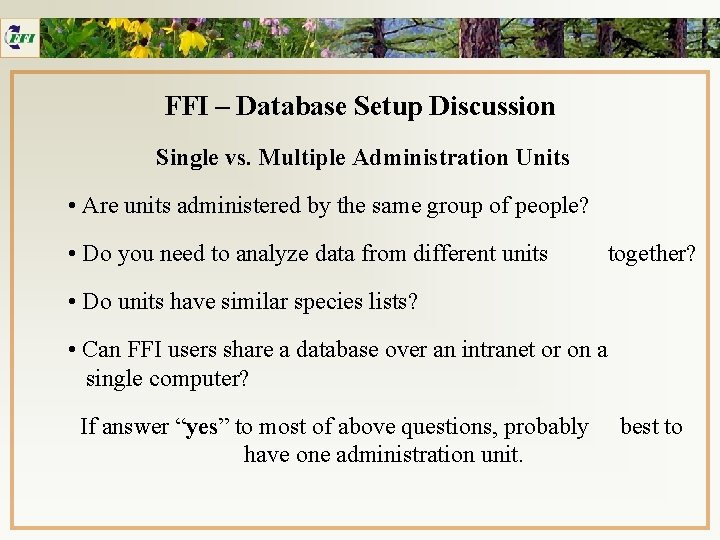

FFI – Database Setup Discussion Single vs. Multiple Administration Units • Are units administered by the same group of people? • Do you need to analyze data from different units together? • Do units have similar species lists? • Can FFI users share a database over an intranet or on a single computer? If answer “yes” to most of above questions, probably have one administration unit. best to
FFI – Database Setup Discussion Single vs. Multiple Databases (If considering multiple databases, you will have multiple administration units. ) • Do FFI users for the different administration units need to work offline when not connected to the intranet?

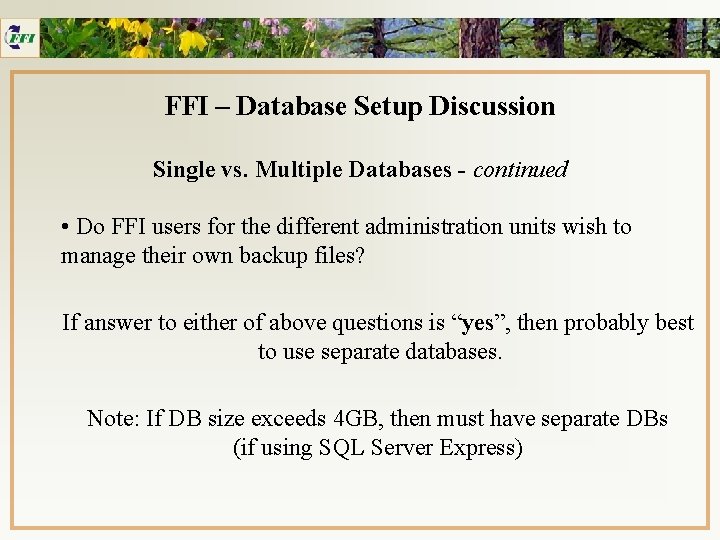

FFI – Database Setup Discussion Single vs. Multiple Databases - continued • Do FFI users for the different administration units wish to manage their own backup files? If answer to either of above questions is “yes”, then probably best to use separate databases. Note: If DB size exceeds 4 GB, then must have separate DBs (if using SQL Server Express)

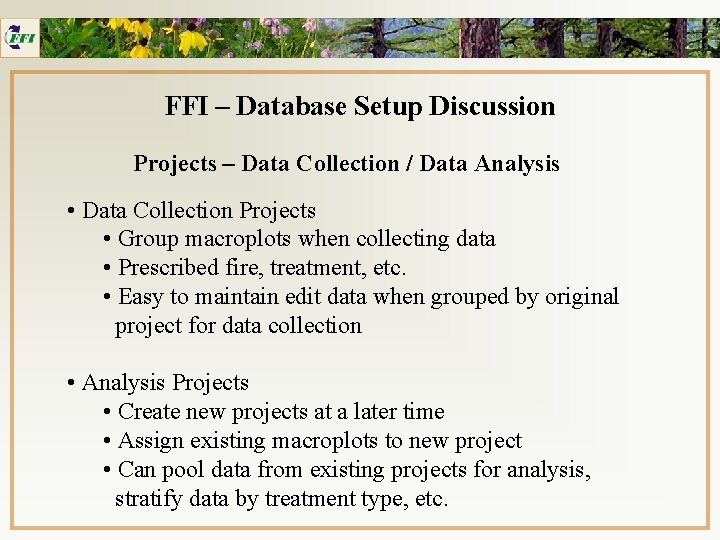

FFI – Database Setup Discussion Projects – Data Collection / Data Analysis • Data Collection Projects • Group macroplots when collecting data • Prescribed fire, treatment, etc. • Easy to maintain edit data when grouped by original project for data collection • Analysis Projects • Create new projects at a later time • Assign existing macroplots to new project • Can pool data from existing projects for analysis, stratify data by treatment type, etc.
FFI – Database Setup Discussion • • Isolated Computers as Servers Computers are not connected over an intranet SQL Server is installed on each computer Each FFI database is created on only one computer Data is not shared or synchronized among computers

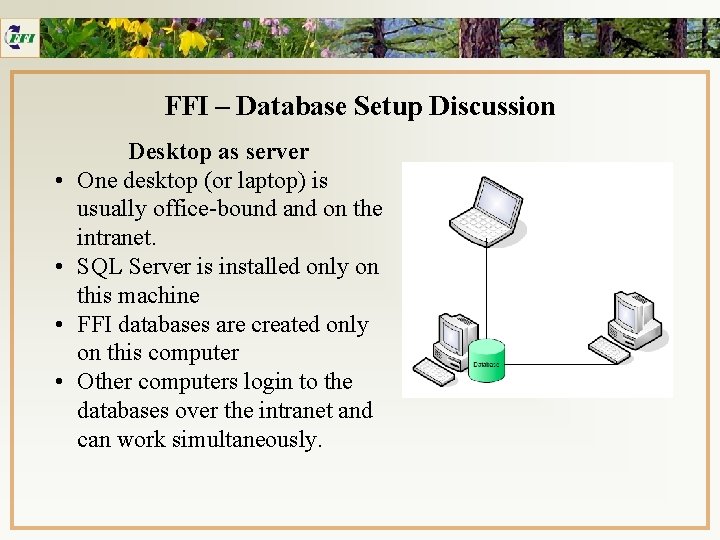

FFI – Database Setup Discussion • • Desktop as server One desktop (or laptop) is usually office-bound and on the intranet. SQL Server is installed only on this machine FFI databases are created only on this computer Other computers login to the databases over the intranet and can work simultaneously.

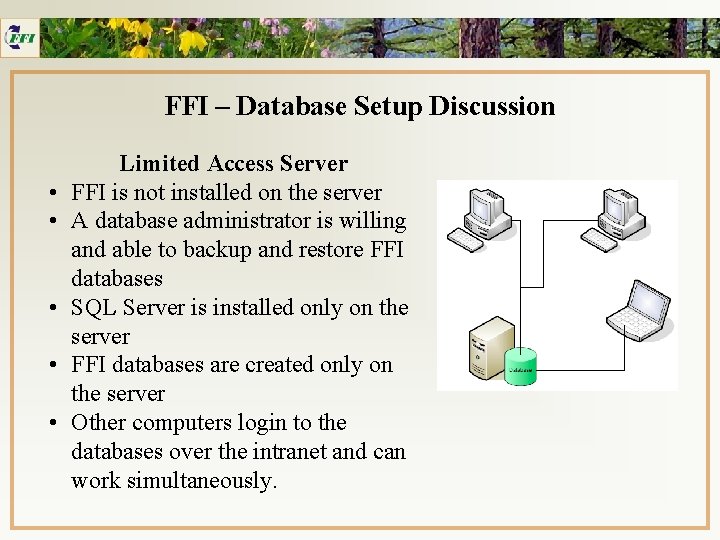

FFI – Database Setup Discussion • • • Limited Access Server FFI is not installed on the server A database administrator is willing and able to backup and restore FFI databases SQL Server is installed only on the server FFI databases are created only on the server Other computers login to the databases over the intranet and can work simultaneously.

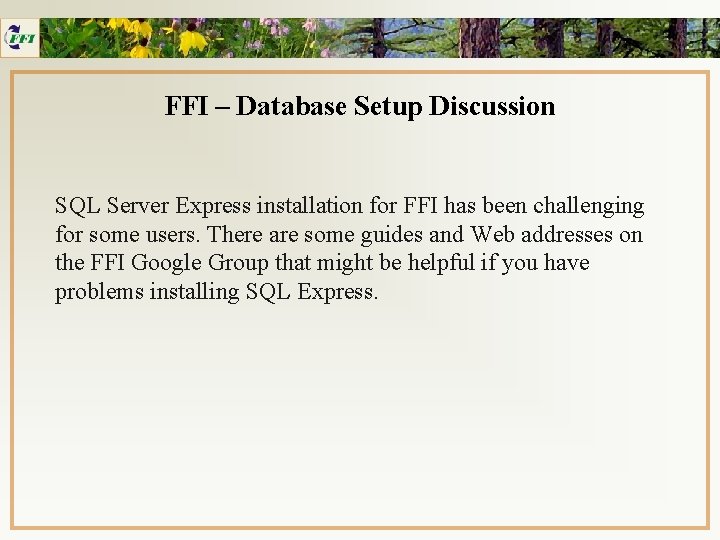

FFI – Database Setup Discussion SQL Server Express installation for FFI has been challenging for some users. There are some guides and Web addresses on the FFI Google Group that might be helpful if you have problems installing SQL Express.

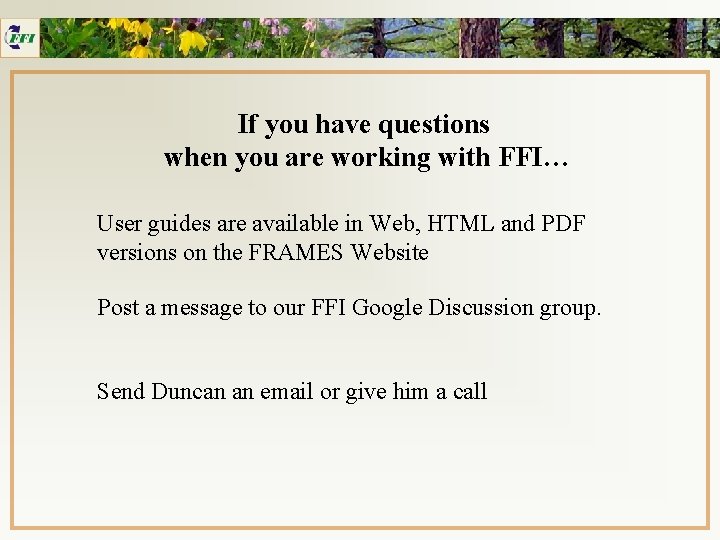

If you have questions when you are working with FFI… User guides are available in Web, HTML and PDF versions on the FRAMES Website Post a message to our FFI Google Discussion group. Send Duncan an email or give him a call

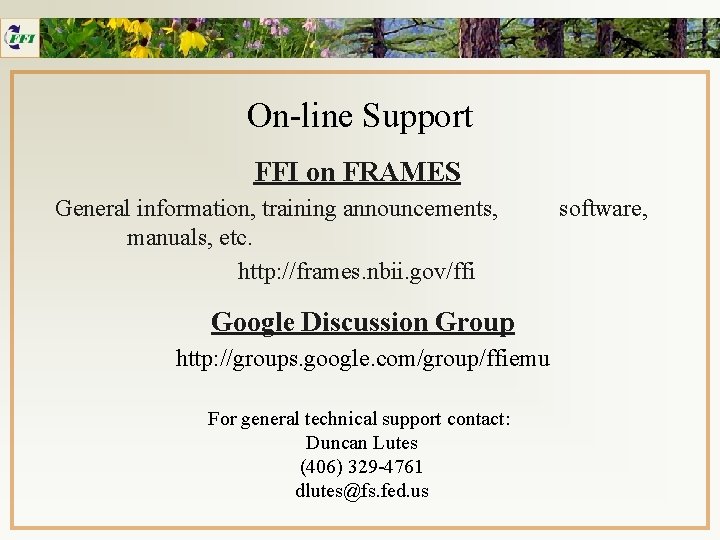

On-line Support FFI on FRAMES General information, training announcements, manuals, etc. http: //frames. nbii. gov/ffi Google Discussion Group http: //groups. google. com/group/ffiemu For general technical support contact: Duncan Lutes (406) 329 -4761 dlutes@fs. fed. us software,
